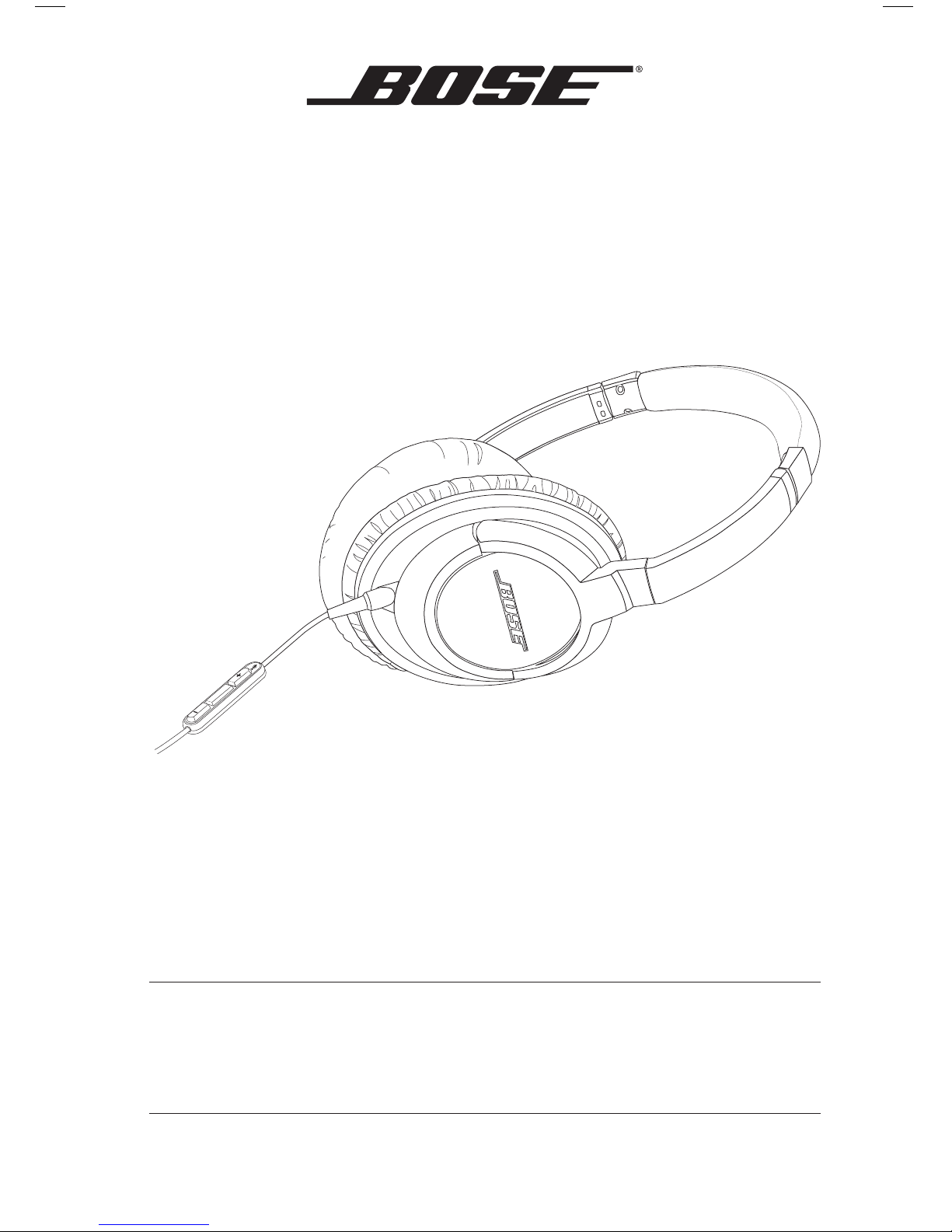

Bose®SoundTrue™
AROUND-EAR HEADPHONES
Owner's Guide
2 - English
Safety
Please read this owner’s guide carefully and save it for future reference.
WARNINGS:
• Long-term exposure to loud music may cause hearing damage. It is best to avoid
extreme volume when using headphones, especially for extended periods.
• Sounds that you rely on as reminders or warnings may have an unfamiliar
character when using headphones. Be aware of how these sounds may vary in
character so you can recognize them as needed.
• Do not place any naked ame sources, such as lighted candles, on or near the
apparatus.
• This product contains magnetic material. Please contact your physician if
you have any questions on whether this might affect the operation of your
implantable medical device.
• DO NOT use mobile phone adapters to connect headphones to airplane
seat jacks as this could result in personal injury such as burns or property
damage due to overheating. Remove and disconnect immediately if you
experience warming sensation or loss of audio.
• Do not submerge or expose for extended period to water or wear while
participating in water sports, i.e. swimming, waterskiing, surng, etc.
CAUTIONS:
• Do not drop, sit on or allow the headphones to be immersed in water.
• Be sure the earcup ports are kept clear, and that no moisture is allowed to get
inside the earcup.
This product conforms to all applicable EU directive requirements. The
complete declaration of conformity can be found at
www.Bose.com/compliance
Limited Warranty
Your Bose® headphones are covered by a limited warranty. Details of the limited
warranty are provided on the product registration card that is included in the
carton. Please refer to the card for instructions on how to register. Failure to
register will not affect your limited warranty rights.
© 2014 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used
without prior written permission.
Safety
English - 3
Names and Contents of Toxic or Hazardous Substances or Elements
Toxic or Hazardous Substances and Elements
Part Name
Lead
(Pb) Mercury
(Hg) Cadmium
(Cd) Hexavalent
(CR(VI)) Polybrominated
Biphenyl (PBB) Polybrominated
diphenylether (PBDE)
PCBs X O O O O O
Metal parts X O O O O O
Plastic parts O O O O O O
Speakers X O O O O O
Cables X O O O O O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit
requirement in SJ/T 11363-2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is
above the limit requirement in SJ/T 11363-2006.
iPad, iPhone, iPod, iPod classic, iPod nano, iPod shuffle and iPod touch are trademarks of Apple Inc.,
registered in the U.S. and other countries.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been
designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the
developer to meet Apple performance standards. Apple is not responsible for the operation of this device
or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod,
iPhone, or iPad may affect wireless performance.
4 - English
Contents
Welcome............................................................................................................5
Components .....................................................................................................5
Wearing the headphones...............................................................................6
Connecting to your iPhone, iPod, or iPad....................................................6
Using the headphones with your iPhone, iPod, or iPad...........................6
For use with...............................................................................................6
Headphone controls ................................................................................6
Basic functions .........................................................................................7
Media playback functions.......................................................................7
Folding earcups............................................................................................... 8
Reattaching earup cushions......................................................................... 8
Troubleshooting ............................................................................................. 9
Cleaning the headphones ............................................................................. 9
Replacement parts and accessories ........................................................... 9
Introduction
English - 5
Welcome
Thank you for purchasing the Bose® SoundTrue™ around-ear headphones for
select iPhone, iPod and iPad models. These headphones were designed to give
you easy access and greater control of your Apple audio device. With Bose
SoundTrue around-ear headphones, you can immerse yourself in your music and
enjoy an around-ear t that stays comfortable for hours.
Components
Replaceable
earcup cushions Adjustable
headband
2.5 mm
1/8 inch
(3.5 mm plug)
L or R mark
Remote and
microphone
Detachable
audio cable
2.5 mm
Using the headphones
6 - English
Wearing the headphones
Put on the headphones using the markings which identify the left (L) and right (R)
earcups. Adjust the headband so it rests gently on top of your head and the earcup
cushions t comfortably around your ears.
Connecting to your iPhone, iPod, or iPad
Connect the smaller (2.5 mm) plug securely to the left earcup. Connect the other
plug securely to the audio output jack of the iPhone, iPod or iPad. You should hear
or feel a click when you make these connections.
Using the headphones with your iPhone, iPod, or iPad
The headphones have a small in-line remote with an integrated microphone for
convenient control of select iPhone, iPod, and iPad models.
For use with
The remote and mic are supported only by iPhone 3GS or later, iPad, iPod touch
(2nd generation or later), iPod classic (120GB, 160GB), and iPod nano (4th gen-
eration or later). The remote is supported by iPod shufe (3rd generation or later).
Audio is supported by all iPad and iPod models.
Note: Full controls may not be available for some iPhone, iPod, or iPad models.
Note: For information on using your headphones with non Apple devices, refer to
http://global.Bose.com
Headphone controls
Volume up
Answer/End
Volume down
Using the headphones
English - 7
Basic functions
Increase volume Press and release the + button.
Decrease volume Press and release the – button.
Answer a call When you receive an incoming call,
press and release the Answer/End
button to answer.
End a call Press and release the Answer/End
button.
Decline an incoming call Press and hold the Answer/End button
for about two seconds, then release.
Switch to an incoming or on-hold call
and put the current call on hold While on a call, press and release the
Answer/End button once. Press and
release again to switch back to the rst
call.
Switch to an incoming or on-hold call
and end the current call While on a call, press and hold the
Answer/End button for about two
seconds, then release.
Use Voice Control Press and hold the Answer/End button.
See iPhone User Guide for compat-
ibility and usage information about this
feature.
Media playback functions
Play or pause a song or video Press and release the Answer/End
button.
Skip to the next song or chapter Press and release the Answer/End
button twice quickly.
Fast forward Press and release the Answer/End
button twice quickly and hold the
second press.
Go to the previous song or chapter Press and release the Answer/End
button three times quickly.
Rewind Press and release the Answer/End
button three times quickly and hold the
third press.
Using the headphones
8 - English
Folding earcups
The Bose® SoundTrue™ around-ear headphones feature rotating earcups that
fold at for easy, convenient storage. The earcups rotate in only one direction.
Incorrectly rotating the earcups can damage the headphones.
Reattaching earup cushions
The earcup cushions are held in place by a mounting ange which snaps under
8 small tabs located around the inside rim of each earcup. If an earcup cushion
becomes partially or completely detached, push the mounting ange of the earcup
cushion back into the earcup. Using your nger or thumb, press around the edge of
the mounting ange, making sure it snaps in place all the way around the earcup.
Using the headphones
English - 9
Troubleshooting
If you experience any trouble using your headphones, try the following
troubleshooting instructions. If you still need help, contact Bose Customer Service.
Problem What to do
No audio or audio in one earcup
only • Make sure both ends of the audio cable
are rmly connected.
• Try another audio device.
Distorted bass • Make sure both ear cushions are rmly
secured.
Mis-shaped cushion • The high-density earcup foam will
regain its shape after a few minutes in a
neutral position.
Microphone is not picking up sound • Make sure that the headphone plug is
securely connected to the headphone
jack.
• Make sure the microphone is not being
blocked or covered.
The microphone is located on the back of
the Answer/End button. (You may notice
the small opening for the microphone.)
Phone not responding to button
presses • Make sure that the headphone plug is
securely connected to the headphone
jack.
• For multi-press functions: Vary speed of
presses.
iPhone, iPod, or iPad not
responding to remote • Full controls may not be available for
some iPhone, iPod, or iPad models.
Cleaning the headphones
The headphones do not require scheduled cleaning. Should cleaning be necessary,
simply wipe the outside surfaces with a soft cloth. Be sure the earcup ports are
kept clear, and that no moisture is allowed to get inside the earcup.
Replacement parts and accessories
Accessories or replacement parts can be ordered through Bose Customer Service
at http://global.Bose.com
©2014 Bose Corporation, The Mountain,
Framingham, MA 01701-9168 USA
AM714531 Rev. 00
