Boss Audio Systems BV4450T Bedienungsanleitung

Congratulations on your purchase

of a

It has been designed, engineered

and manufactured to bring you the

highest level of performance and

quality, and will afford you years of

listening pleasure.

Thank you for making a your

choice for car audio entertainment.

In-Dash DVD Receiver

With Built-In TV Tuner

BV4450T

In-Dash DVD/MP3/CD

AM/FM Receiver

With Built-InTVTuner

BV4450T User’s Manual - page 1

CONTENTS

page

Safety Information

Installation

Specifications

Digital Setup

Audio Setup

Language Setup

System Setup

Setup

Addtional Information

AV In Operation

Data Disc Play Operation

DVD/VCD Operation

CD/MP3 Operation

Radio Operation

General Operation

Using The Detachable Front Panel

Preparing The Remote Control

Features and Controls

Operation

Wiring Diagram

Memory Card Play Operation

TV Operation

Troubleshooting

CAUTION:

This mobile DVD player is a class 1 laser

product. However this mobile DVD player

uses a visible/invisible laser beam which

could cause hazardous radiation

exposure if directed. Be sure to operate

the mobile DVD player correctly as

instructed.

Use of controls or adjustments or

performance of procedures other than

those specified herein may result in

hazardous radiation exposure.

Do not open covers and do not repair

yourself. Refer servicing to qualified

personnel.

- To reduce the risk of fire or electric

shock, do not expose this equipment to

rain or moisture.

- To reduce the risk of fire or electric

shock, and annoying interference, use

only the recommended accessories.

- This device is intended for continuous

operation.

This product incorporates copyright

protection technology that is protected by

method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

This mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on a DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

WARNING:

Region Management Information

Safety Information DISC NOTES

Disc formats supported by this player

Handling and Cleaning

Disc Cleaning

- Dirt, dust, scratches and warping discs

will prevent proper operation.

- Do not place stickers or make scratches

on discs.

- Do not bend discs.

- A disc should always be kept in its case

when not in use to prevent from damage.

- Do not place discs in the following

places:

1. Direct sunlight.

2. Dirty, dusty and damp areas.

3.Near car heaters.

4.On the seats or dashboard.

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistened with isopropyl

(rubbing) alcohol. Never use solvents

such as benzene, thinner or conventional

record cleaners as they may mar the

surface of the disc.

BV4450T User’s Manual - page 2

Notes:

- Choose the mounting location where the unit

will not distract the driver.

- Before the installation of unit, connect the

wiring temporarily and make sure it is all

connected up properly and the unit and the

system works.

- Use only the parts included with the unit to

ensure proper installation. The use of

unauthorized parts can cause malfunctions.

- Consult with your nearest dealer if

installation requires the drilling of holes or

other modifications of the vehicle.

- Install the unit where it does not get in the

driver's way and cannot injure the passenger if

there is a sudden stop, like an emergency

stop.

- If installation angle exceeds 30° from

horizontal, the unit may not perform properly.

- Avoid installing the unit where it will be

subject to high temperature, such as from

direct sunlight, or from hot air, from the

heater, or where it would be subject to

dust, dirt or excessive vibration.

DIN Front/Rear-Mount

This unit can be properly installed

either from the 'Front' (conventional DIN

Front-mount) or the ‘Rear' (DIN Rear-

mount installation, utilizing threaded

screw Holes at the sides of the unit

chassis). For details, refer to the

following illustrated installation methods.

Installation

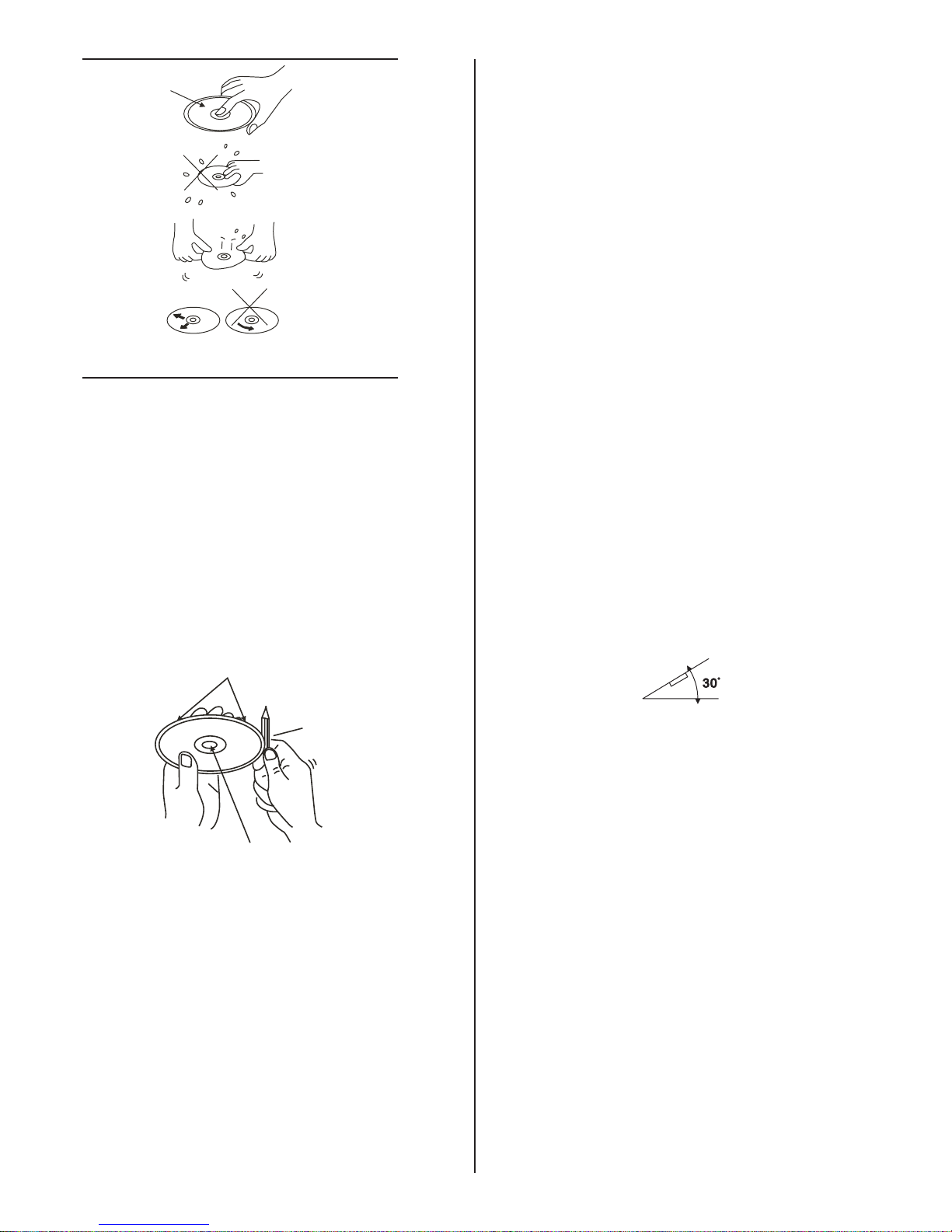

Preparing New Discs with Rough Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a

ballpoint pen or pencil as shown on the

right. To remove the rough edges, press

the side of the pen or pencil against the

inside and outside edges of the disc.

Label side up

Do not touch the

underside of the disc

Do not

bend

Wipe the disc from center

toward the outside edge

Rough spots on outside edge

Ball point pen

or pencil

Rough spots on inside edge

BV4450T User’s Manual - page 3

7. Reconnect the wire harness and the

antenna and be careful not to pinch any

wires or cables.

8. Slide the unit into the sleeve until it

locks into place.

9. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap to

the mounting bolt on the back of the unit.

If necessary, bend the metal strap to fit

your vehicle's mounting area. Then use

the appropriate slots at the middle left

and right sides of the unit. Then slide the

sleeve off the back of the unit.

6. Mount the sleeve by inserting it into the

opening of the dashboard and bend open

the tabs located around the sleeve with a

screwdriver. Not all tabs will be able to

make contact, so examine which ones

will be most effective. Bending open the

appropriate tabs behind the dashboard to

secure the sleeve in place.

1. DIN Front-Mount (Method A)

Remove Transit Screws Before

Installation

Before installing the unit, please

remove the two screws.

Installing the unit

Be sure you test all connections first,

and then follow these steps to install the

unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from the

vehicle battery's negative (-) terminal.

5. The two supplied keys release tabs

inside the unit's sleeve so you can

remove it. Insert the keys as far as they

will go (with the notches facing up) into

2. Disconnect the wire harness and the

antenna.

3. Press the button (7) on the front

panel and remove the control panel (For

details, refer to 'Using the Detachable

Front Panel').

4. Lift the top of the outer trim ring, then

pull it out to remove it.

REL

Installation Opening

This unit can be installed in any

dashboard having an opening as shown

below:

Take out screws

before installation.

BV4450T User’s Manual - page 4

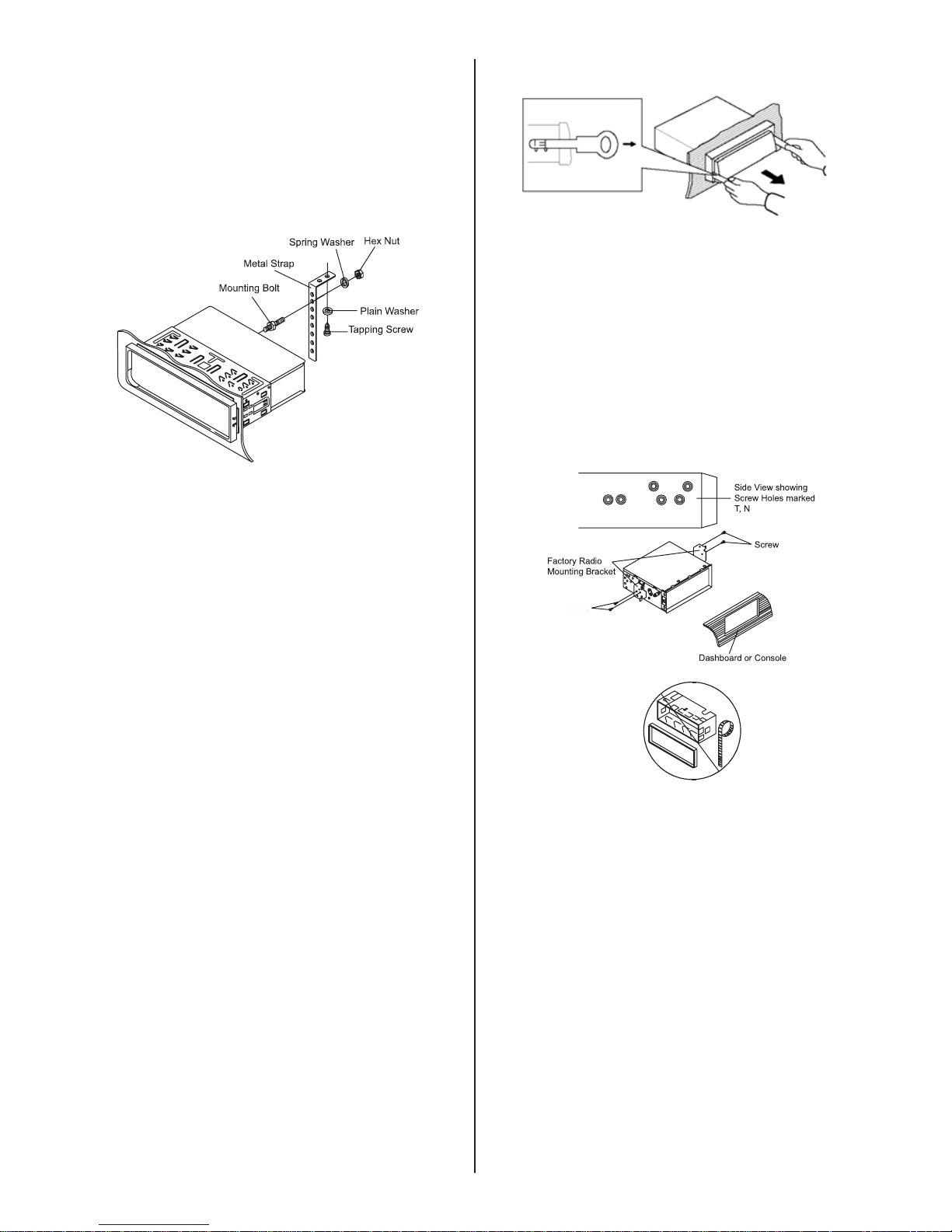

If your vehicle is a Nissan or Toyota,

follow this mounting instruction: Use the

screw holes marked T (Toyota), N

(Nissan) located on both sides of the unit

to fasten the unit to the factory radio

mounting brackets supplied with your

car.

Fasten the unit to the factory radio

mounting brackets. Align the screw holes

on the bracket with the screw holes on

the unit, and then tighten the screws

(5x5mm) on each side.

Note: the outer trim ring, sleeve and

the metal strap are not used for

method B installation.

2. DIN Rear-Mount (Method B)

the supplied hardware (Tapping Screw

(5x25mm) and Plain Washer) to attach

the other end of the metal strap to a solid

metal part of the vehicle under the

dashboard. This strap also helps ensure

proper electrical grounding of the unit.

10. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the outer trim ring and install the

front panel.

1. Make sure the ignition is turned off,

and then disconnect the cable from the

vehicle battery's negative (-) terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Press the release button to remove the

front panel.

4. Lift the top of the outer trim ring, then

pull it out to remove it.

5. Insert both of the supplied keys into

the slots at the middle left and right sides

of the unit. Then pull the unit out of the

dashboard.

Removing the unit

BV4450T User’s Manual - page 5

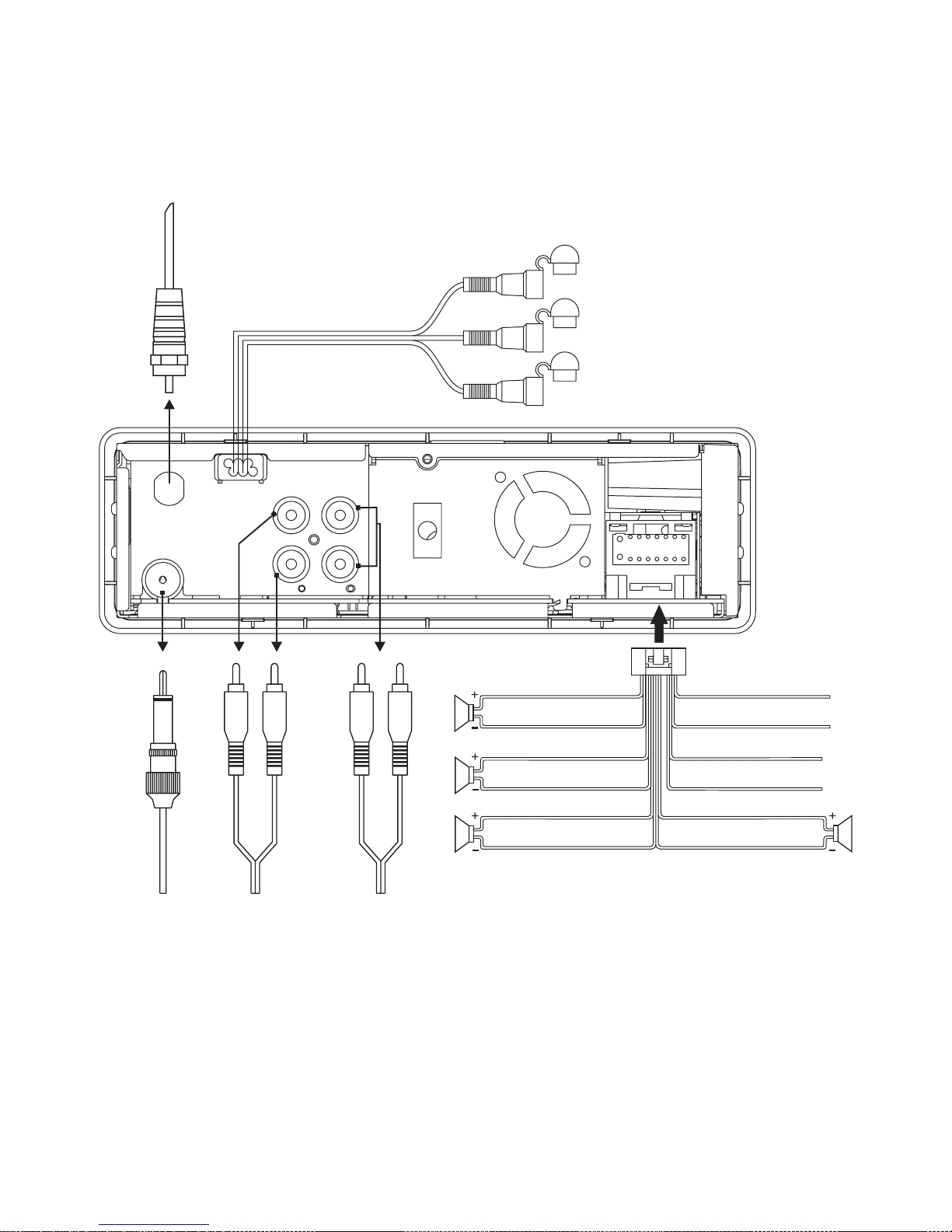

Wiring Diagram

ANTENNA

Socket

Yellow to VIDEO output 1

Yellow to VIDEO output 2

Red to Front R CH RCA output

White to Front L CH RCA output

Green to SUB-Woofer output

Red to Rear R CH RCA output

White to Rear L CH RCA output

Violet Rear Right +

Violet/Black Rear Right -

Grey Front Right +

Grey/Black Front Right -

White Front Left +

White/Black Front Left -

Green Rear Left +

Green/Black Rear Left -

Blue to ANT

Red to ACC

BlacktoGNDB-

Yellow to Battery B+

TV Socket

BV4450T User’s Manual - page 6

SEL

AV IN

Operation

Features and Controls

Front Panel:

Back of Front Panel:

2140

5824 7

13 14 22 1315 6

20 16 17 18

BV4450T User’s Manual - page 7

* Before using the remote control, please

take the transparent insulator strip off the

bottom of remote control.

* Point the remote control at the remote

sensor (2) from no more than 6 feet away.

* If the IR sensor is exposed to direct

sunlight, the remote control may not be

able to communicate with it properly. You

may need to relocate or shield the IR

sensor.

* If you are more than 30º away from

being directly in front of the IR sensor,

the remote control may be unable to

communicate properly.

* The remote control is a small,

lightweight precision device. To avoid

damage, short battery life, operational

errors and poor response, observe the

following:

- Do not subject the remote control to

excessive shock.

- Donotputinapocket.

- Keep away from food, moisture and

dirt.

- Do not place in direct sunshine.

The remote control uses a lithium button-

type battery, model CR2025 3V. Do not

use any other kind of battery in the

remote. Follow these instructions when

installing or replacing the battery.

1. Opening the battery case

Slide out the battery cover while firmly

pressing in the direction of the arrow.

Battery replacement

3. Closing the cover

Slide the cover as illustrated until a click

is heard.

Remote control:

Preparing and Using The Remote Control

20 31

BV4450T User’s Manual - page 8

2. Replacing the battery

Place the battery in the case with the

positive (+) mark up as shown in the

illustration below.

Using The Detachable Front Panel

Removing the Front Panel Initial System Start-Up

Turning Power On And Off

Loading/Removing a Disc

Adjusting sound quality

Be sure to press the button (12)

when using the unit for the first time, after

all connections are completed correctly.

1. Turn off the unit power.

2. Press with a ballpoint pen or

similar pointed object.

Press button (9) or inser a disc

When system is on, press button (9) to

turn off the unit.

1. Insert the disc into the disc slot (5) with

the printed side facing up. The player will

play the disc automatically.

2. Whenever press button (4) to eject

the disc.

Press button (10) to adjust

the volume level.

R press button(11)to

choose the desired mode.

Each time you press the SEL button it will

advance through the following setting

modes:

RESET

VOL+/VOL-

-Adjusting Bass/Treble/Balance/Fader

1. SEL

ttoturn

on the unit

epeatedly

-Adjusting the volume level

VOL BAS TRE

BAL

Bass level: -7 to +7

Treble level: -7 to +7

Balance: 15L to 15R

Fader: 15R to 15F

Press (10) to adjust the

setting.

ress button (15) on the unit to

show the current information and time on

the LCD. It will return to its original state

after 5 seconds.

2. VOL+/VOL-

1. Displaying time:

PDISP

Display/Adjust Time

FAD

General Operation

1 Press the release button 7 on

the front panel

.()

2 Pull off the front panel..

3 Store the front panel in its protective

case

Installing The Front Panel

To install the front panel, insert the

panel into the housing and make sure the

panel is properly installed. Otherwise,

the display or some keys may not

function properly.

BV4450T User’s Manual - page 9

Inhaltsverzeichnis

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems BV9355B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR500UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7348B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 639UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1400W Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-5000B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 612UA Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems CD-3090R Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 614CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 812UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1525UI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 726CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 625UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 722CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 725CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9976B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV90BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 0791489116046 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 870DBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9982U Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9955 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9386NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1315WUA Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems BG200 Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
