1. BUTTONS LOCATION AND FUNCTIONS

8611

7917

413 514

1. Panel Release Button

2. Mute Button

3. CD Eject Button

4. Audio Button

5. Display Button

6. Local / Distant Button

7. Preset Memory Buttons

8. Mono / Stereo Button

9. Scan Button

10. Volume Knob

11. Automatically Store / Preset Scan Button

12. Power Button

13. Band/Loudness Button

14. Tuning Up/Down & Track Up / Down Buttons

15. Source Button

16. Preset Equalizer Button

17. Aux In Jack

1. Bouton De Déclenchement Du Panneau

2. Bouton D'assourdissement

3. Bouton Éjection D'un Cd

4. Bouton De Sélection Audio

5. Bouton D'écran / Affichage D'information

6. Bouton Local/distant

7. Boutons Des Stations Préréglées (m1 ~m6)

8. Bouton De La Stéréo Du Mono

9. Bouton Du Scanner

10. Bouton De Volume

11. Bouton De Stockage Des Stations Dans La Mémoire

12. Bouton D'alimentation

13. Bouton De Bande

14. Bouton De Recherche Des Stations/pistes : En Avant / En Arrière

15. Bouton De Régime

16. Bouton De PEQ

17. Aux A Jack

1. Entriegel-Taste Bedienteil

2. Stumm-Taste

3. CD-Auswurftaste

4. Audio-Taste

5. Display-Taste

6. Local / Distant-Taste

7. Senderspeichertasten

8. Mono / Stereo-Taste

9. Scan- Taste

10. Lautstärkenregler

11. AMS Taste

12. Einschalt-Taste

13. Frequenzband-Taste

14. Titel AUF / AB - Taste

15. Source-Taste

16. PEQ-Taste

17. Front-Audio-Anschluss

1. Tecla para remover o painel frontal

2. Tecla Mute

3. Tecla para ejetar o disco

4. Tecla de ajuste de audio

5. Tecla Display

6. Tecla Local/Distante

7. Teclas de memória de estações

8. Tecla estéreo/mono

9. Tecla Scan

10. Controle de volume

11. Tecla automática (As) / Preset Scan (Ps)

12. Tecla Ligar/desligar

13. Tecla Banda / Loudness

14. Teclas de sintonização de estações /

mudança de faixas de música

15. Tecla Source

16. Tecla Equalizador pré-programado

17. Entrada Auxiliar

1. Extracción del panel frontal

2. Mute / silenciamiento de sonido instantaneo.

3. Apertura del panel motorizado y expulsión del disco

4. Tecla Audio

5. Selección información Display

6. Botón Distancia/Local

7. Botones de estaciones memorizadas

8. Botón selección mono/estéreo

9. Botón De Búsqueda

10. Botón De Volumen

11. Automática de emisoras/ selección de memorias

12. Encendido/Apagado

13. Selector Bandas

14. Botón de selección de emisoras & banda de música

15. Selección modos Radio/CD/Entrada auxiliar

16. Tecla de ecualización

17. Entrada de auxiliar

1. Tasto Rilascio Frontalino

2. Tasto Mute

3. Tasto Eject

4. Audio Controlla

5. Tasto Display

6. Bottone Distante Locale

7. Tasti Stazioni Memorie Preimpostate

8. Bottone di Stereo/Mono

9. Tasto Scan

10. Tasto Volume

11. Tasto AS/PS

12. Tasto Power

13. Tasto Banda/Forte

14. Tasto sintonizzazione su/gui & traccia su/gui

15. Tasto Mode

16. Bottone di equilizzatore preprogrammato

17.Entrada Aux

2. HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 2

P. 3

P. 4

P. 1 P. 5

P. 6

P. 7

NOTES ON DISCS

There are paste residue.

Ink is sticky (P.5).

Stickers that are beginning

to peel away, leaving a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit. Should this

occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until

the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the disc

clean, do not touch the surface (P.1).

If you use the discs explained below, the sticky

residue can cause the CD to stop spinning and

may cause malfunction or ruin your discs.

Do not use second-hand or rental CDs that have a

sticky residue on the surface (for example, from

peeled-off stickers or from ink, or glue leaking

from under the stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the center out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use CDs with old labels that are beginning

to peel off.

Do not use your CDs with labels or stickers

attached.

**************

*******

****

*******

******* *******

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for this

unit and do not use any special shape CDs.

Use of special shape CDs may cause the unit

to malfunction.(P.8).

Be sure to use CDs with disc mark

P. 8

CD-Rs and CD-RWs which have not undergone

finalization processing cannot be played. (For

more information on finalization processing,

refer to the manual for your CD-R/CD-RW

writing software or CD-R/CD-RW recorder.)

Additionally, depending on the recording status,

it may prove impossible to play certain CDs

record on CD-R or CD-RW.

3. INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up

properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts

can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the

vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a

sudden stop, like an emergency stop.

If installation angle exceeds 30° from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or

from hot air, from heater, or where it would be subject to dust dirt or excessive vibration.

Be sure to remove the front panel before installing the unit.

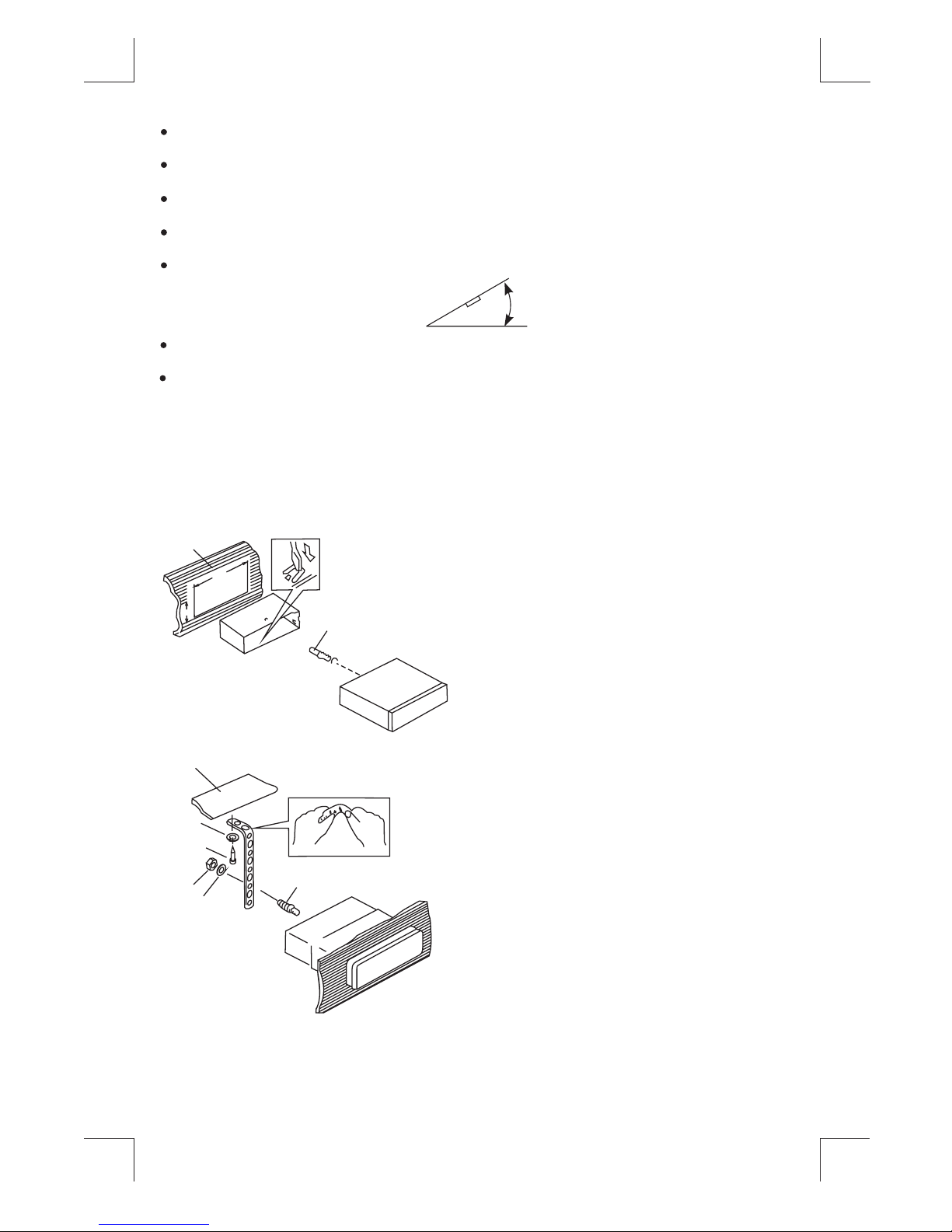

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or “Rear”(DIN

Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details,

refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the

dashboard, select the appropriate tab according

to the thickness of the dashboard material and

bend them inwards to secure the holder in

place.

3. Screw

30°

61. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5x15mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure the

back of the unit in place. The strap can be bent

by hand to the desired angle.

7. Plain washer

182

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw

holes of the bracket and the screw

holes of the main unit become

aligned (are fitted) and tighten the

screws at 2 places on each side.

2. Screw

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method

B installation.

a. Frame

b. Insert fingers into the groove in the front

of frame and pull out to remove the

frame. (When re-attaching the frame,

point the side with a groove down wards

and attach it.)

c. Insert the levers supplied with the unit

into the grooves at both sides of the unit

as shown in figure until they click. Pulling

the levers makes it possible to remove

the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

Removing the unit

4. DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

1. Attach the panel at the right side first, with

point B on the main unit touching point A on

the D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the main

unit until a “click” sound is heard.

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop

it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may cause it to fall. To prevent

damage to the D.C.P, always store it in a protective case after detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important part. Be careful not to

damage it by pressing on it with fingernails, pens, screwdrivers, etc.

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

Socket

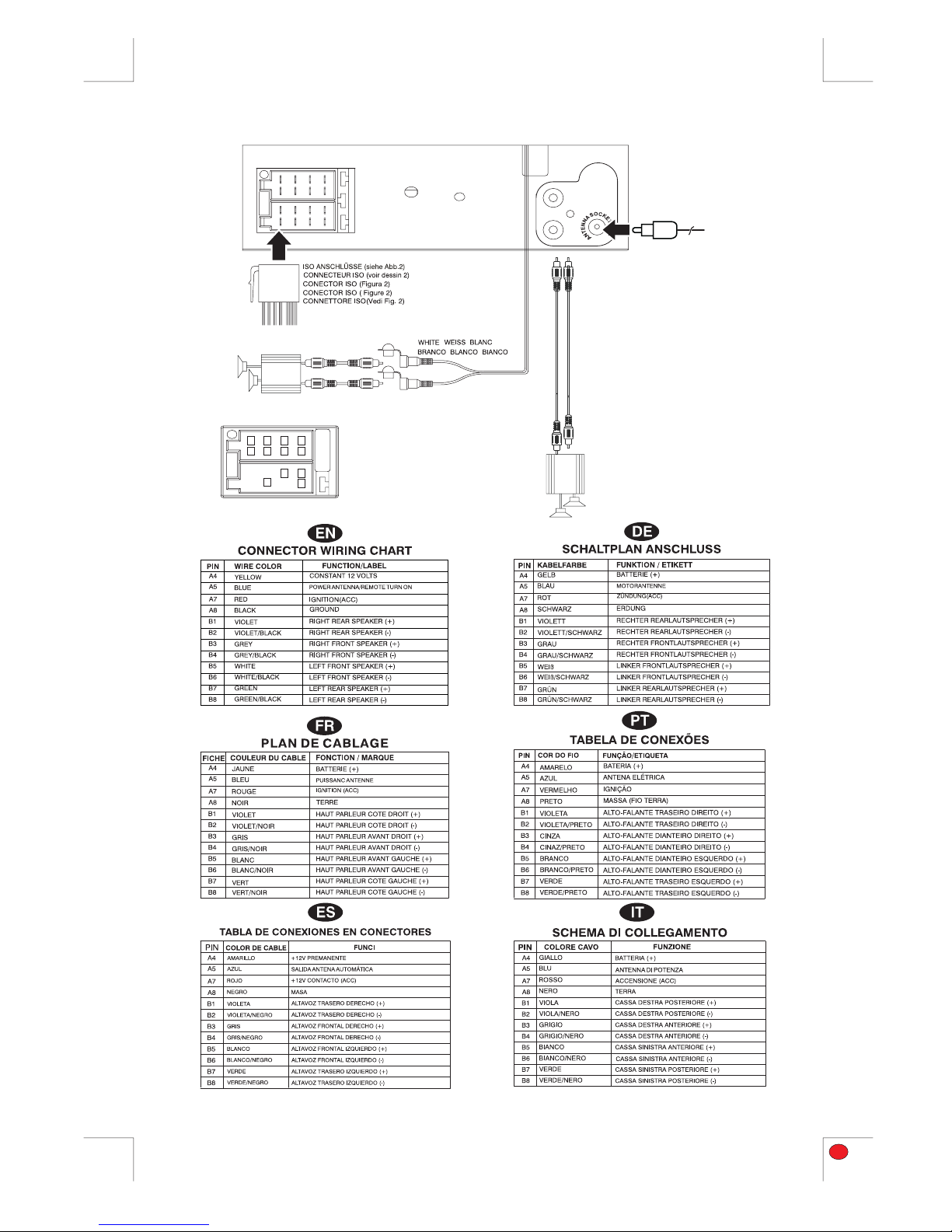

5. WIRING DIAGRAM ( )BUILT IN ISO PLUG

FUSE

5 7

R-CH L-CH

AMP

ANTENNA INPUT

CAVO ANTENNA ESTENDIBILE

ENTRADA PARA CABO DE ANTENA

ANTENA

ANTENNENVERLÄ NGERUNGS

D'EXTENSION D' ANTENNE

AMP

REAR LINE OUT/ LINE OUT POSTERIORE

RÜCKANSCHLUSS/SORTIE ARRIERE/SAIDA TRASEIRA

/SALIDA DE LINEA TRASERA/

L-CH

R-CH

FRONT LINE OUT/VORDERER AUSGANG/SAÍDA FRONTAL

/SALIDA DE LINEA TRASERA/LINE OUT POSTERIORE

FIGURE 2/ABB.2/DESSIN 2/FIGURA 2/FIGURE 2/FIG 2

RCA-TO-RCA CABLES (not supplied)

CABOS RCA A RCA (não fornecidos)

CAVO RCA A RCA ( non fornito)

RCA-TO-RCA-KABEL (nicht geliefert)

CABLES RCA-TO-RCA (non fournis.)

CABLES RCA A RCA (no incluidos)

REAR

RED/ROT/ROUGE/VERMELHO

/ROJO/ROSSO

15) SOURCE BUTTON (SOURCE)

Press this button to select Radio and CD modes.

The available selections depends on version:

Radio CD Player

Radio > CD > AUX in

Press this button to remove the control panel.

6. BASIC OPERATIONS

1) PANEL RELEASE BUTTON (REL)

12) POWER ON/OFF BUTTON

5) DISPLAY BUTTON (DISP)

Press this button to turn on or off the power.

Press this button briefly, the LCD will display the clock for about 2 seconds, then return to previous

display mode.

Clock Adjustment

Under clock display mode, press DISP button until the LCD flashes, press Tuning Up Button to adjust

hour and Tuning Down Button to adjust minute.

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

Note: If the unit cannot function normally after reseting please use a cotton swab soaked in

isopropyl alcohol to clean the socket on the back of the control panel.

The RESET button is located on the main unit (as shown on the diagram). To press it vertically with a

ballpoint pen or metal object will activate it. The reset button is to be activated for the following reasons:

RESET BUTTON

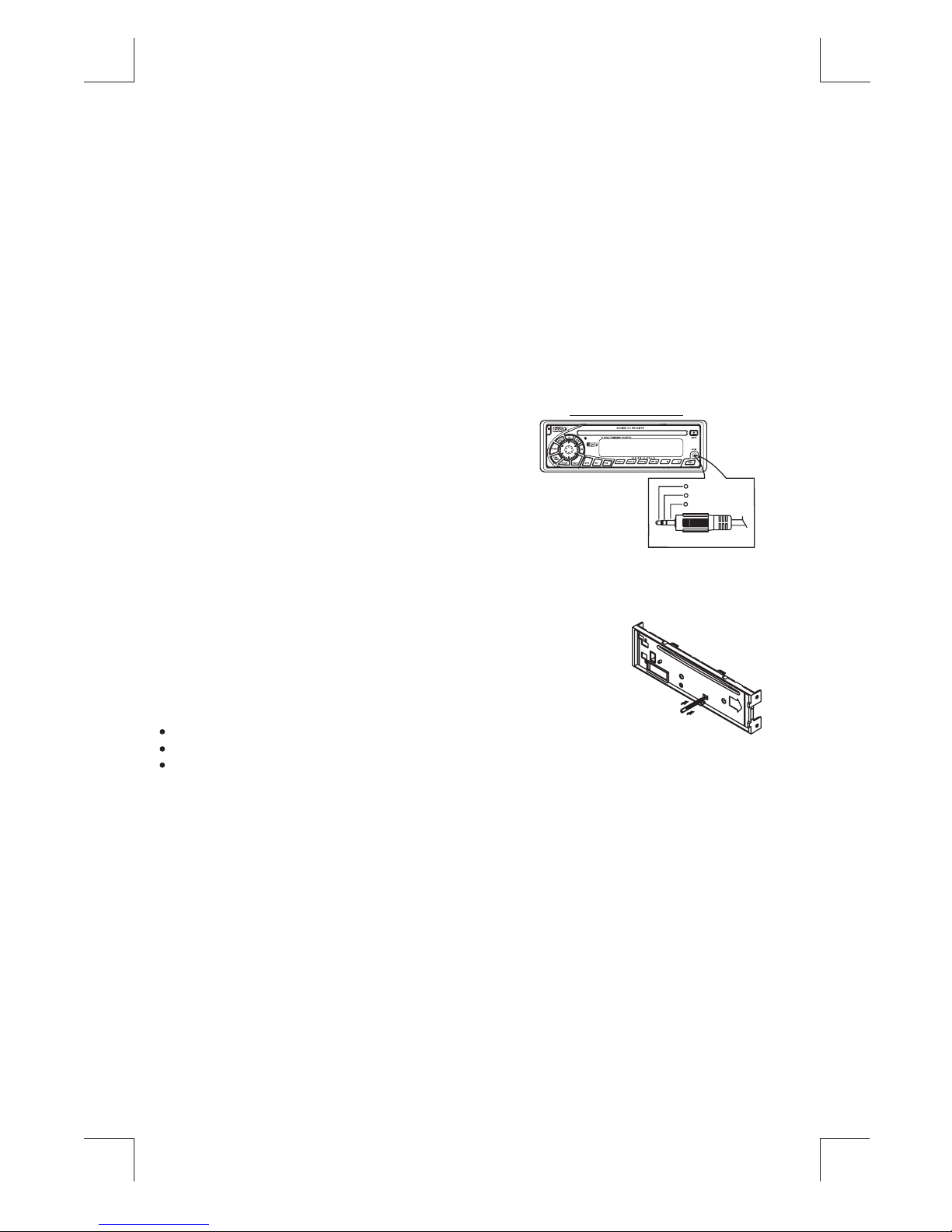

3.5mm Audi o In Cabl e (not in clud ed)

Right Audi o

Left Audi o

Grou nd

AUX IN JACK IN PANEL

Connect the external signal to AUX in jack located

at the front of the panel, then press SOURCE

button to select Aux mode. Press SOURCE

Button again to cancel Aux Mode and return to

previous mode.

17) FRONT AUXILIARY INPUT JACKS

7. AUDIO OPERATIONS

4) AUDIO BUTTON

Press this button to select desired audio function.

While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds,

otherwise the unit will return to volume adjustment mode.

2) MUTE BUTTON (MUTE)

Press this button to mute the sound. Press it again to resume listening.

16) PRESET EQUALIZER BUTTON (EQ)

Press this button to toggle the following EQ settings:

At DSP OFF mode, EQ will be controlled by Bass/Treble setting.

13) BAND/LOUDNESS BUTTON (BAND/LOUD)

Press the Band/Loudness Button for couple of seconds to switch the loudness on or off. When

Loudness is on, display will show 'Loud On' for a few seconds.

ORDER OF FUNCTION:

VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD)

FLAT->CLASSICS->POP M->ROCK M->DSP OFF

10) VOLUME KNOB

Turn this knob to adjust desired volume level.

AREA (Tuner Frequency Spacing)

Press and hold this button to selection of the frequency spacing appropriate for your area. “AREA U.S.A” is

the default setting. Rotate the Encoder Volume Konb to select the EUROPE, U.S.A, OIRT (Russia), LATIN,

ASIA (Asia Pacific), MID-EAST(Middle East) or AUST(Australia) options.

8. RADIO OPERATIONS

11) AUTO MEMORY STORE/PRESET SCAN BUTTON (AS/PS)

1. PRESET SCAN: Press AS/PS button briefly to enter Preset Scan mode, it will scan all the preset

stations in the memories, you can hear that it will stay on each station for about 5 seconds.

2. AUTO MEMORY STORE: Press AS/PS button for couple of seconds to enter Auto Store mode,

this feature will automatically scan the current band and enter up to 6 strongest stations into the

6 preset memories. To stop Auto Store & Scan, press the AS/PS button again.

7) STATION PRESET BUTTONS (M1-M6)

14) TUNING / SEEK UP AND TUNING / SEEK DOWN BUTTONS

13) BAND/LOUDNESS BUTTON (BAND/LOUD)

1. Press these buttons briefly to recall the stored stations in the selected band.

2. Presetting stations manually, Press the BAND button to select the band for the stations to be

preset. Use Tuning Up/Down to tune in the stations to be preset. Press the Preset button at

which you want to store the station for at least 2 second. The preset number will appear on the

display accompanied by a beep, this indicates that the station has been stored into memory.

1. Press these buttons briefly, and the unit will operate in AUTO SEARCH tuning mode, the radio

will tune up or down to the next station and remain on that station.

2. Press these buttons for more than 2 seconds, operate as MANUAL SEARCH buttons, under this

mode the tuning frequency will advance up or down rapidly when the button is pressed. If the

buttons are not pressed within 3 seconds, they will return to auto search mode.

This a dual function button. Press this button shortly to change between BAND FM1, FM2, FM3 or

AM bands. Press this button for couple of seconds to turn Loudness function on or off.

8) MONO STEREO BUTTON (MO/ST)

When you receive a station,“ST” on the display will be on. Press this button to enter Mono mode.

9) SCAN BUTTON(SCAN)

Press this button, the radio will tune up to search stations, the available stations will blink

on the display for a few seconds.

and stay

6) LOCAL/DISTANT BUTTON (LOC)

During station tuning, this button allows you prior to access strong local station only (Local

mode), or to access a wider range of using distant mode (DX). When powered on, DX mode will

be defaulted automatically; Press LOC button briefly to select Local mode and “LOCAL” symbol

on the LCD will light up for a few seconds.

Dieses Handbuch passt für folgende Modelle

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems BV9372BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 870DBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 534UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9968BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 506CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9986BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1360UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 638B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 637UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems CD-3055R Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 634U Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR2180UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2950TU Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 812UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 639UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BVCP9685A Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1315WUA Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems BV7280 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 754DI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9973 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9986BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems ELITE 455BRGB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 726CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 638UA Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
