Boss Audio Systems BV9360B Bedienungsanleitung

6.2

07.2010

6.2

DOUBLE

BV9360B 6.2

And

Warmly Suggestion

Notice Item

Features

1.Front Panel Function Instruction

2.Basic Function

3.Remote Control Function

4.Main menu touch operation

5.RDS User Operation

6.Radio Operation

7.Audio

8.Disc Play Touch Operation

9.DVD Basic Operation

10.VCD Basic Operation

11.CD Basic Operation

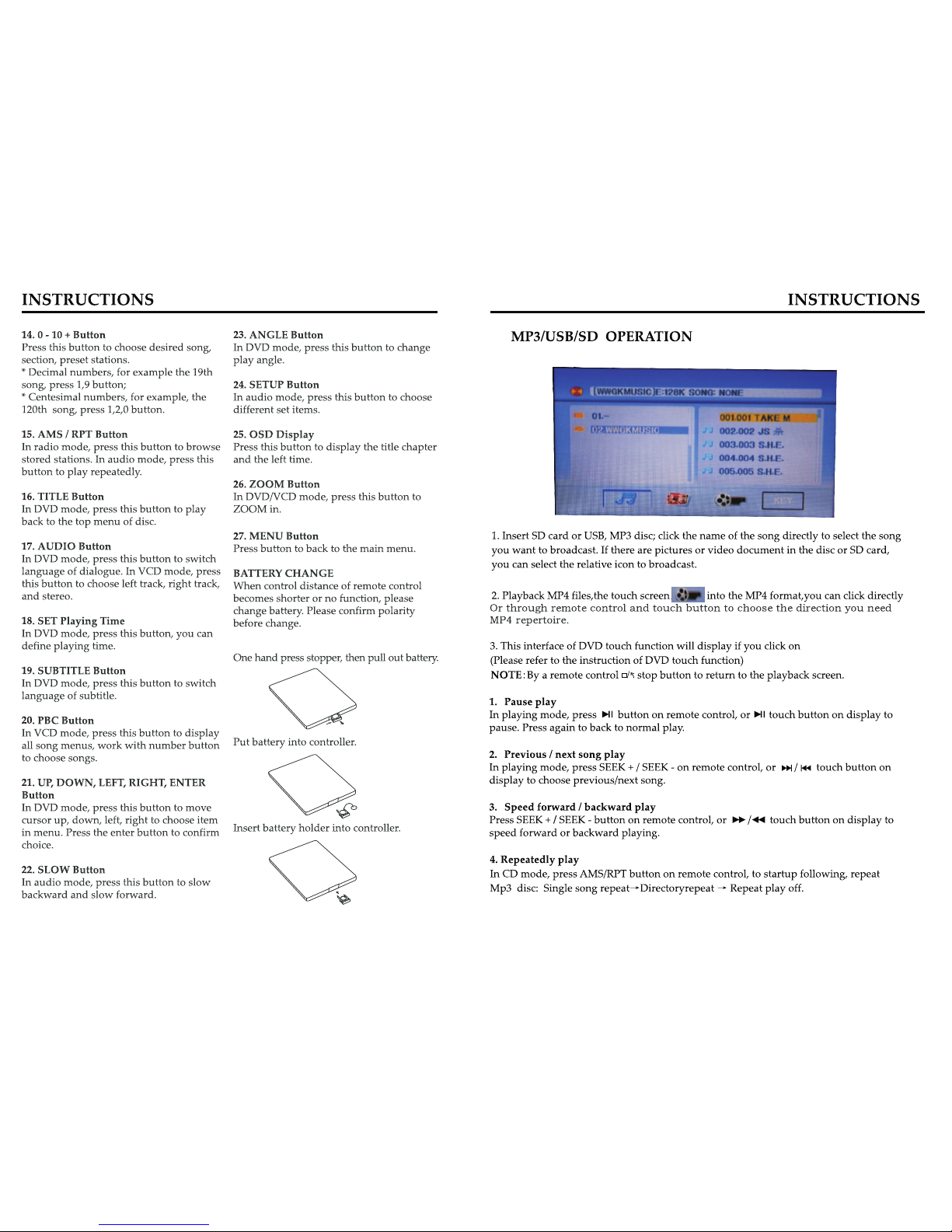

12.MP3/USB/SD Operation

13.Bluetooth Function Instruction

14.Other Play Mode

15.Trouble Shooting

16.Wiring Diagram

17.Specifications

18.Accessory

Welcome

18.ACCESSORY

User Manual

Accessory Quantity

Wire

USB Cable

Remote Controller

Warranty card

1PC

2PCS

04 45

17.SPECIFICATIONS

Amp Rating 80 WattsX4 Channels

European frequency range

USA frequency range 87.5-107.9MHz

European frequency range

USA frequency range 530-1710kHz

522-1620kHz

20-30dBuv

DVD PLAYER

1.MPEG-4 Decoder Technology

2.Compatible with MP4(AVI/5.X),DVD(DVD-R/DVD-RW),VCD,SVCD,CD-RW,

WMA,MP3,JPEG

3.Supporting Multiles Subtitles,Angles,Languages

4.Child lock function

5.4-Channel Audio Output

6.Pause, play, UP/Down, Stop, Zoom, PBC Function

RADIO

1.AM/FM Radio Tuner

2.30 Radio Preset Stations (18FM, 12AM)

BULETOOTH FUNCTION

1.Bluetooth wireless transfers

2.Displaying bluetooth paring and connection status, call status, and caller's ID

3.Fast performance, fast connection, accurate and sensible search of devices in range

4.Support A2DP, AVRCP, HS/HF for handing calls and playing music

FEATURES

16.WIRING DIAGRAM

This player is equipped with ISO standard connector, please follow below instruction:

● Yellow – 12 V Constant

● Black – Ground wire

● Blue - Power Antenna / Remote Amp Turn On

● Orange – Back-Up Camera Trigger (+) ● Pink – Parking Brake (-)

● White/White black - Left front speaker (+-)

● Purple/Purple black - Right rear speaker (+/-)

● Green/Green black - Left rear speaker (+/-)

● Red - ACC ON (+12V) ● Grey/Grey black - Right front speaker (+/-)

Note:

The “PARKING BRAKE” wire must be connected to the parking brake system

of your car. When the parking brake is engages, the LCD will be allowed to view

your video. If not, the screen will produce an image saying, “PARKING BRAKE”.

This is a safety feature designed for the driver not to watch a video while driving.

The video output on this unit will not be affected by this.

06 43

9 10 11

1.SRC Button

2.MUTE/TFT on/off Button

3.MODE Button

4.SD Slot

5.RESET Button

6.SEL/VOL Button

7.AUX IN

8.USB Slot

9.Disk Load Slot

10.OPEN Button

11.Remote Control Receiver

12.MIC Input

15.TROUBLE SHOOTING

1.SRC Button

2.MUTE/TFT on/off Button

3.MODE Button

Blueto oth

4.SD Slot

This is a high-spees transmission interface, which can read high-capacity date in

MP3 or MP4 format.

5.RESET Button

Press this button and this unit will be restored to the initial state.

6.SEL/VOL Button

Turn this button can adjust the volume,Press this button can adjust the

mode according to personal likes.

14.OTHER PLAY MODE

08 41

8.USB Slot

9.Disk Load Slot

Opening for disks to enter or retreat.

10.OPEN Button

Press this button can eject the disc

11.Remote Control Receiver

12.MIC Input

Bluetooth MIC input.

4.Incoming display

If there is incoming, under any mode, system will automatically switch to

Bluetooth hand-free function interface. And it have incoming sound and

incoming display note you to answer telephone.

5.Answer phone

When there is an incoming call, Touch to connect and touch

to refuse to connect.

6.Call logs

Under Bluetooth mode, press call logs button will enter call logs interface, as following:

(1)Press [dialed calls] function position, you will search

telephone number which you have dialed.

(2)Press [received calls] function position, you will

search telephone number which you have answered

(3)Press [missed calls] function position, you will

search telephone number which you have missed.

1.Enter/exit

Touch on main menu interface to enter Bluetooth interface;

Press will exit Bluetooth interface and return main menu interface.

2.Match/connection

If you want to use Bluetooth function, you must establish a connection first.

Matching unit with Bluetooth cell phone..

[operation way]

Set your cell phone to Bluetooth mode, and use cell phone to search equipment.

After Bluetooth equipment of this unit has been search by cell phone, cell phone will

Ask you for Bluetooth matching password.. touch matching setup button on unit and input

Bluetooth Password(0000) on cell phone and confirm it. Cell phone will note to whether authorize

Connection with this equipment. Please select “yes” . cell phone will auto establish connection

with Bluetooth of the equipment within 20seconds. Under any mode(radio, DVD etc. if there is an

incoming call to your cell phone, the unit will switch from current statue to Bluetooth. It will

automatically restore current mode after hang-up.

Note: if Bluetooth equipment matching with this unit correctly, it will display “LINK OK”

otherwise it display “NO LINK”.

3.Dial

You can use cell phone or touch digital key on display to input telephone number. If input wrong,

you can press to delete. After enter telephone number, press to dial.. Touch

to hang-up.

During call period, press “CHANGE” will let phone sound switch between speaker

of unit and speaker of Phone.

13.

10 39

KEY

12.
