Boss Audio Systems BV9370NV Bedienungsanleitung

BV9370NV

GPS

SDMAP

BV9370NV

MIC

CONTENTS

INSTRUCTIONS

Panel Introduction 02

Basic Functions 03

Remote Control Function 04

Radio Function Operation 07

Disc Function Operation 08

Play/Eject Disc 08

DVD/VCD Disc Playback 08

CD Disc Playback 08

MP3/WMA Format Disc Playback 08

Touch Menu Function 09

Language Setup 13

Touch calibration 13

Wiring Diagram 15

Trouble shooting 15

External input operation 11

Calculator function operation 11

Wallpaper function operation 11

Steering wheel setting 11

iPod function operation 11

Other Function Operations 12

Rear view function 12

Accessory 17

DVD Parental control function

Specifications 16

Regional radio

TV standard

System Setting

Version Information

Time setting

Navigation setting

Audio Setting

Touch calibration

Turn on/off Host

Access main interface

Background Setup

Setting method:

Darkness bright screen mode

GPS Navigation Function Operation 12

Bluetooth Function Operation

INSTRUCTIONS

9 10 11

1.SRC Button

2.MUTE/TFT on/off Button

3.GPS Button

4.SD Slot

5.RESET Button

6.SEL/VOL Button

7.AUX IN

8.USB Slot

9.Disk Load Slot

10.OPEN Button

11.Remote Control Receiver

12.MIC Input

13.GPS/MAP (Map Card Socket)

Panel Introduction

SDMAP

GPS

BV9370NV

INSTRUCTIONS

BASIC FUNCTION

1.SRC Button

4.SD Slot

This is a high-spees transmission interface, which can read high-capacity date in

MP3 or MP4 format.

5.RESET Button

Press this button and this unit will be restored to the initial state.

6.SEL/VOL Button

Turn this button can adjust the volume,Press this button can adjust the

mode according to personal likes.

2.MUTE/TFT on/off Button

Subwoofer Mute Feature:

To turn subwoofer off, push Mute on, then Mute off. The subwoofer output will now be silent.

To turn it back on, push EQ.

9.Disk Load Slot

Opening for disks to enter or retreat.

10.OPEN Button

Press this button can eject the disc

11.Remote Control Receiver

12.MIC Input

Bluetooth MIC input.

20. GPS/MAP (Map Card Socket)

Insert map card to read navigation map data.

8 Dual (front and rear)USB

Warning :You can only use either front or rear USB at a time.Never connect both front

and rear USB at the same time! This could cause malfunctions.

2. GPS Button

Press this button for the navigation.

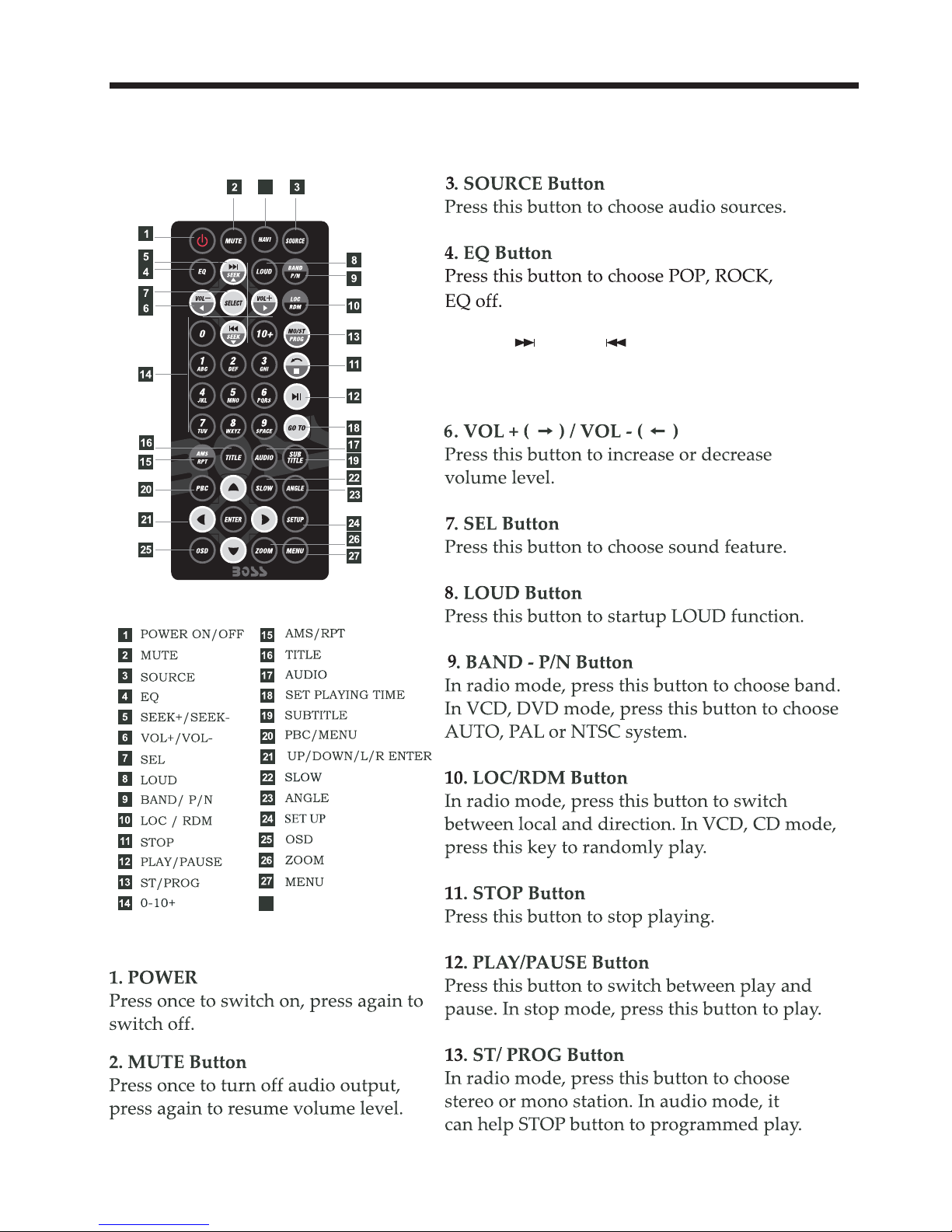

REMOTE CONTROL FUNCTION

INSTRUCTIONS

5.SEEK+ ( )/ SEEK- ( )button

In normal playback MP3, USB, SD songs, press this button to

previous song or next song.

CLASSIC,

1315

166

57911 13

810 1412

28 NAVI

21.UP, DOWN, LEFT, RIGHT, ENTER button

When playing MP3, USB, SD returns to song menu,

up, down selections can be up / " " button or

down / " " key to select up and down, select and

press " " key to confirm. The selected tracks can

be played.

Press the left or right arrow keys to " " or " " key,

can be on the next page function operation.

INSTRUCTIONS

28.NAVI

Press the button to enter/exit the

navigation interface.

INSTRUCTIONS

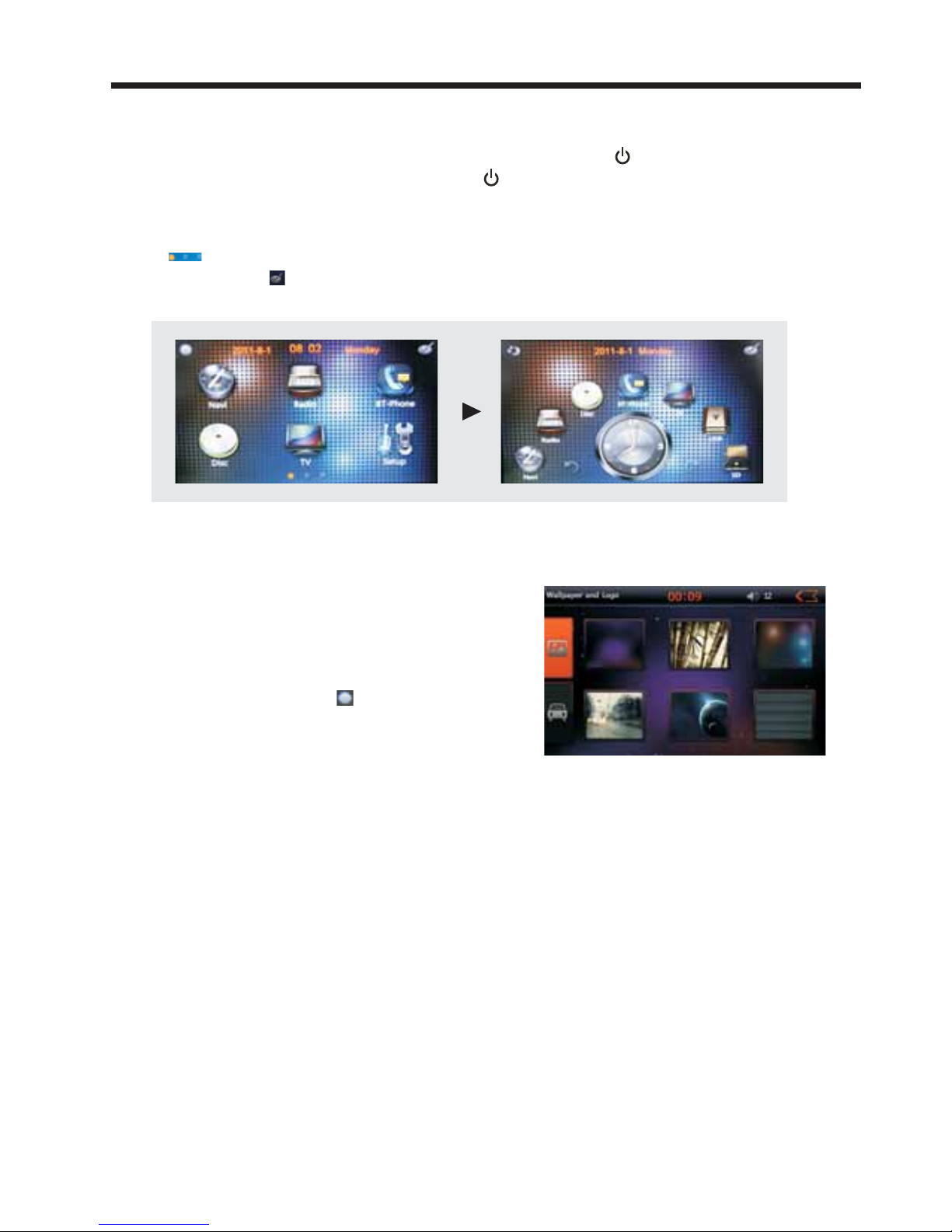

Turn on/off Host

Access main interface

When the ignition switch is put in ACC or ON position,Press[ ] button on the front panel

to turn on the unit.After the host starts, hold [ ]button for 3 seconds , the host will turn off.

In the other mode, click on the interface to return the icon will switch to the main interface.

Darkness bright screen mode

In the main interface touch icon in the day or

night to switch between two modes.

Background Setup

In the main interface touch [Wallpaper] icon to enter the following interface:

Touch icon or at the touch pen / finger gently sliding the screen to switch the main

menu page. Touch in different interface style to switch between. Touch the function

icons so as to access the corresponding function operations.

Setting method:

Through the preview window, select the

background picture you want.

INSTRUCTIONS

Radio Function Operation

Enter/exit

Touch [ RADIO ] icon in the main interface to enter into the radio interface.

Touch icon to return to main interface, and then touch other function icons so as to exit

radio mode.

AF: touch the button to turn on/off AF mode.

TA: touch the button to turn on/off TA mode.

PTY: touch the button the screen displays program types, users can search station

according to program type.

NOTE: If the unit does not have RDS function, it has no AF/TA/PTY function,

Touch the

corresponding icon had no effect

Click [ ] icon so as to switch among AM1, AM2 bands.FM1,FM2, FM3,

Band selection

Search/Save radio stations

Short touch the [ / ] button , single-step reverse / forward adjustment FM / AM

reception frequency;

Long touch the [ / ] button, automatic reverse / forward search for FM / AM radio.

Short touch the [ ] button, browse 1-6 sets of bits stored on the radio, Long touch the

[ ] button to long-automatic station search,and the strongest radio signals P1-P6 are

stored in the display position on the table.

Play radio station selection

Touch [ ] icon pop-up selection sets the keyboard input radio frequency selectable

radio frequency spectrum or you can drag directly touch the icon to select a stored radio

station.

Other Functions

Touch [ ] icon to access sound setting interface.

Touch [ ] icon so as to turn on/off loudness function.

Touch [ ] icon so as to turn on/off Long/Short-Range function.

Touch[ ] icon to turn on/off stereo.

Each band can be stored six radio stations, radio stations can be stored directly click

(P1-P6) choice, and will be displayed on the screen.

Operation stored radio

Select a band, and then select a radio station. Press and hold button (P1-P6) to select the

preset number will appear in the corresponding number button on the screen.

How to save radio stations

RDS function provides series information (such as traffice information, name of station) ,

and can automatically switch to the station with stronger signal andcarries the same

program.

RDS Function

PTY TA AF

INSTRUCTIONS

Disc Function Operation

Do not insert two discs or more.

Eject disc

(1) Click button on the panel to eject the disc.

(2) If a disc has not been took away 15 seconds after it is ejected, system will

automatically take in the disc but not play.

Play/eject disc

Play disc

Insert the disc into the disc slot with the printing surface up, system will detect the disc

and automatically take it in to read and play.

During playback of disc, touch the middle lower area of the screen to pop up the touch

menu, operate the touch menu to perform various playback controls.(PIC 1)

DVD/VCD disc playback

CD Disc Playback

After a CD is inserted, system shall access disk reading state immediately.

When there is a disk in the device, click [Disk] at the main interface so as to access disk

reading state.

After the disk being read out, system shall automatically play in sequence.

MP3/JPEG/MPEG4 disk playing

When the disk contains readable files, such as MP3/JPEG/MPEG4 files, it shall be

automatically read out and played after slipping into DVD player.

During playing, touch the screen area and the touch menu shall pop up. Operate the

touch menu for various playing.

PIC 1

INSTRUCTIONS

Touch Menu Function Description

The disc read, touch area of the screen, pop-up touch menu. Operate a variety of

playback controls the touch menu.

Screen display

Press the button to display title, chapter, play time and left time.

Language Selection

Touch the button, can switch subtitle language.

DVD Setup Menu

Touch the button, pop-up system settings menu,

you can set the system language settings, audio

settings, video settings, and Dolby Digital settings.

Number Button

Touch the button, pop-up numeric keypad. By

touching the numeric keypad for direct selections

played.

Repeat play

During VCD playing, this function only works

when PBC is off.

In playing state, touch this button to start repeat

play function: Chapter → Title → REP All →Off.

Back to Root Menu

Touch the button: to back to root menu in DVD

status; to enter PBC menu play in VCD status.

The interface displays all chapters of disc.Directly

touch the chapters icon option play

Angle Play

When the angle number displays on the screen, press the button repeatedly to switch among

recorded angles.

Access title menu

Press this button to return to title menu of the disk. Directly click menu bar at title menu interface

for playing.

Play/pause

Stop

Eject disc

Sound Settings

The next page menu

Screen display

DVD Setup Menu

Number Button

Loudness on / off

Appears Up/Down/Left/Right

Direction Button

Repeat play

Back to Root Menu

Audio (Dialogue) Button

Access title menu

Language Selection

Angle

Magnify the screen

Insert/Eject USB storage device

1. Connect a U disc recorded with media information to the unit by a USB connecting cable.

2. When there is a need to eject the USB device, exit the USB device playback screen first, and then

take out the device.

Insert/eject SD card

1. Insert a SD card recorded with media information into the SD card slot in the unit correctly until it

is locked.

2. When pulling out the SD card, exit SD card playing state first, then press the SD card and it shall

pop up after unlocking.

Enter/exit

Insert a USB storage device or SD card to automatically play data contained in it. If the unit has

connected with a USB device or SD card, touch[ USB ]icon in the multimedia interface to enter into

the external storage playback interface; Touch[ SD ]icon to enter into the SD card playback interface.

During playback, touch the top center area of the screen to pop up the touch menu, operate touch

menu to perform various playback controls.

When there is a USB device/SD card connected, the unit can conduct the playback of

image files in the USB device/SD card.

audio/video/

U Disc/SD Card function operation

Play

After SD card/USB removable device being read out, the operation methods are similar to disk

operation methods.

previous/next

Andere Handbücher für BV9370NV

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems 870DBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 648UA Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems 506CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV6800 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7945B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV6652 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BVML9384 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 560BRGB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 638BA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9968BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 622UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 3160 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9356I Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 614C Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9364B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BVS13.3B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 612UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV6652 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 614CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7325B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9362BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7942 Benutzerhandbuch

Boss Audio Systems

Boss Audio Systems BV8974B Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
