Boss Audio Systems 638UA Bedienungsanleitung

10R - 021004

MP3-Compatible In-Dash AM/FM Receiver

with Front Panel USB and SD Memory Card Ports

and Front Panel AUX Input

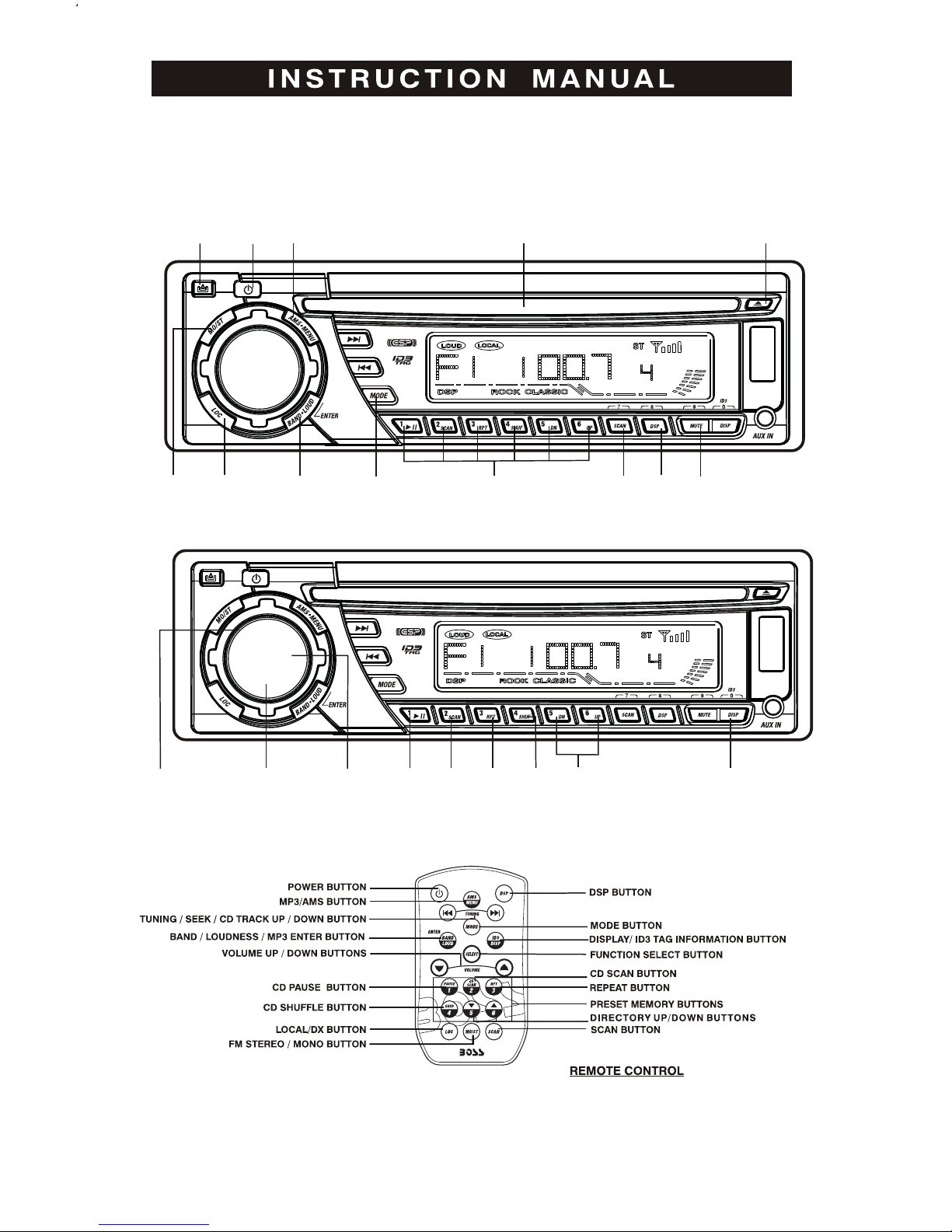

ENCODER

VOLUME

KNOB

PAUSE

BUTTON

SCAN

BUTTON

SHUFFLE

BUTTON

REPEAT

BUTTON

FUNCTION

SELECT

BUTTON

DISPLAY/

ID3 TAG

INFORMATION

BUTTON

TUNING / SEEK /

TRACK / MP3 FILES SEARCH

UP/DOWN BUTTON

DIRECTORY

UP/ DOWN

PANEL

RELEASE

BUTTON

SLOT

MUTE

BUTTON

EJECT

BUTTON

DSP

BUTTON

SCAN

BUTTON

POWER

BUTTON

AMS/

MP3

BUTTON

BAND/

LOUDNESS/

MP3

ENTER

BUTTON

PRESET MEMORY BUTTONS

(M1-M6)

LOCAL

BUTTON

MONO

BUTTON

MODE

BUTTON

E - 1

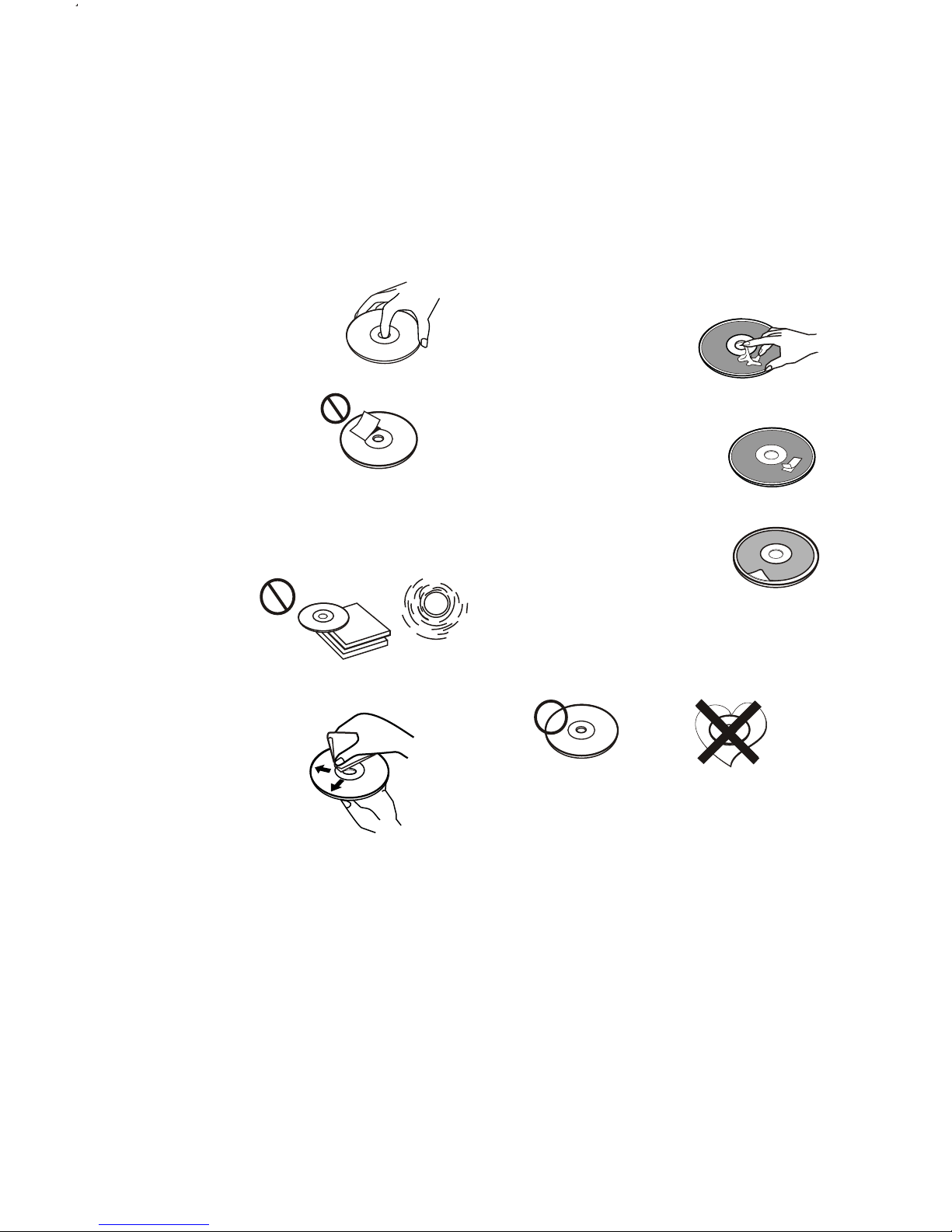

HANDLING COMPACT DISCS

MOISTURE CONDENSATION

NOTES ON CDs

P. 3

P. 4

P. 6

P. 7

NOTES ON DISCS

There are paste residue.

Ink is sticky (P.5).

Stickers that are beginning

to peel away, leaving a

sticky residue (P.6).

Labels are attached (P.7).

On a rainy day or in a very damp area, moisture may condense on the lenses inside the unit.

Should this occur, the unit will not operate properly. In such a case, remove the disc and wait

for about an hour until the moisture has evaporated.

A dirty or defective disc may cause sound

dropouts while playing. To enjoy optimum

sound, handle the disc as follows.

Handle the disc by its edge. To keep the

disc clean, do not touch the surface (P.1).

If you use the discs explained below, the

sticky residue can cause the CD to stop

spinning and may cause malfunction or

ruin your discs.

Do not use second-hand or rental CDs that

have a sticky residue on the surface (for

example, from peeled-off stickers or from

ink, or glue leaking from under the

stickers).

Do not stick paper or tape on the disc (P.2).

Before playing, clean the discs with an

optional cleaning cloth. Wipe each disc from

the centre out (P.4).

Do not use solvents such as benzine,

thinner,commercially available cleaners, or

antistatic spray intended for analog discs.

Do not expose the discs to direct sunlight or

heat sources such as hot air-ducts, or leave

them in a car parked in direct sunlight where

there can be a considerable rise in

temperature inside the car (P.3).

Do not use rental CDs with old labels that

are beginning to peel off.

Do not use your CDs with labels or

stickers attached.

*******

Do Not Use Special Shape CDs

Be sure to use round shape CDs only for

this unit and do not use any special shape

CDs. Use of special shape CDs may

cause the unit to malfunction.(P.8).

Be sure to use CDs with disc mark

CD-Rs and CD-RWs which have not

undergone finalization processing cannot

be played. (For more information on

finalization processing, refer to the manual

for your CD-R/CD-RW writing software or

CD-R/CD-RW recorder.) Additionally,

depending on the recording status, it may

prove impossible to play certain CDs

record on CD-R or CD-RW.

P. 8

**************

*******

P. 5

****

*******

******* *******

*******

P. 2

P. 1

E - 2

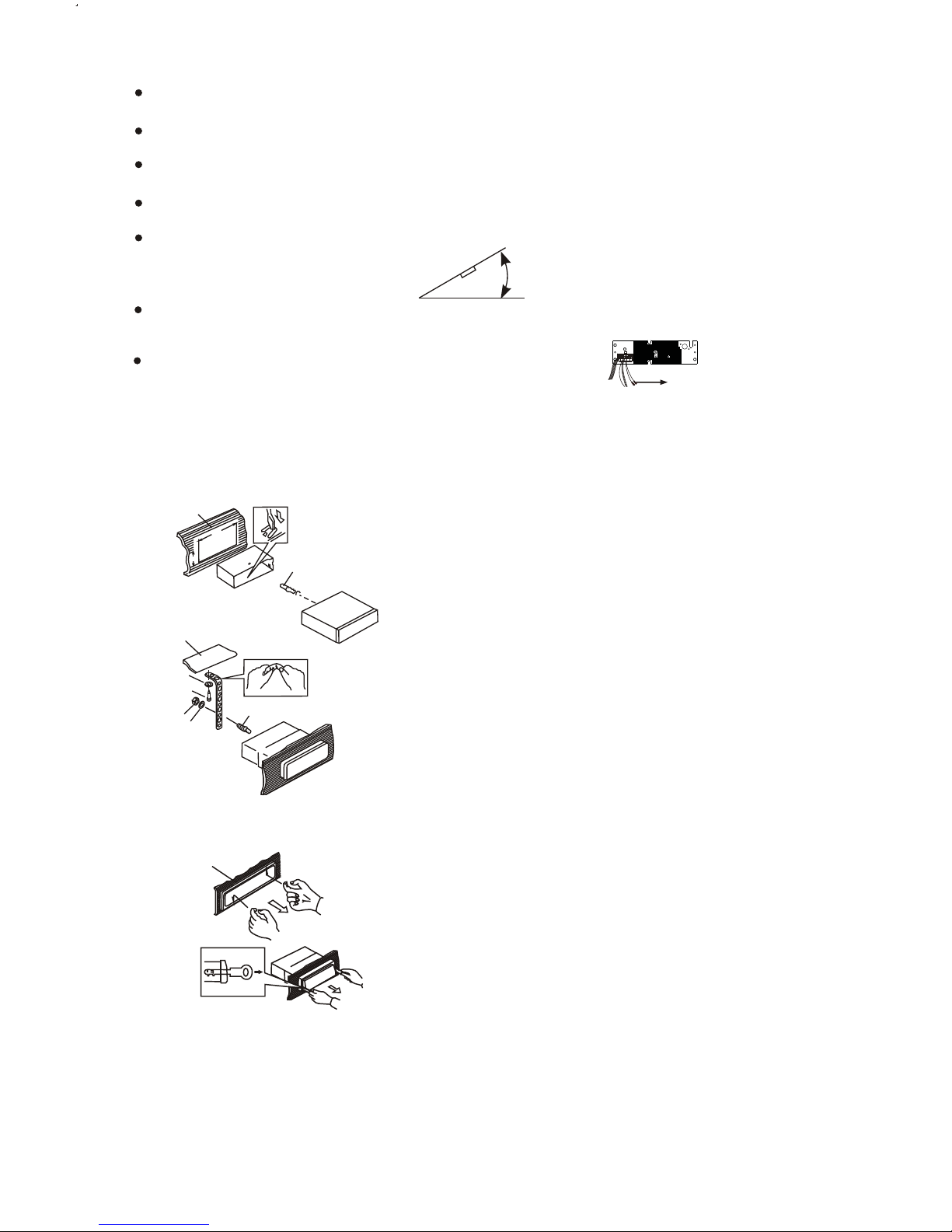

INSTALLATION

Before finally installing the unit, connect the wiring temporarily and make sure it is all

connected up properly and the unit and system work properly.

Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger if

there is a sudden stop, like an emergency stop.I

If installation angle exceeds 30° from horizontal, the unit might not give its optimum

performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct

sunlight, or from hot air, from heater, or where it would be subject to dust dirt or excessive

vibration.

Be sure to remove the front panel before installing the unit.

DIN FRONT/REAR-MOUNT

This unit can be property installed either from “Front” (conventional DIN Front-mount) or

“Rear”(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit

chassis). For details, refer to the following illustrated installation methods A and B.

DIN FRONT-MOUNT (Method A)

Installation the unit

1. Dashboard

2. Holder

After inserting the half sleeve into the dashboard,

select the appropriate tab according to the

thickness of the dashboard material and bend

them inwards to secure the holder in place.

3. Screw

1. Dashboard

2. Nut (5mm)

3. Spring washer

4. Screw (5x15mm)

5. Screw

6. Support Strap

Be sure to use the support strap to secure the

back of the unit in place. The strap can be bent by

hand to the desired angle.

7. Plain washer

Removing the unit

a. Frame

b. Insert fingers into the groove in the front of frame

and pull out to remove the frame. (When re-

attaching the frame, point the side with a groove

down wards and attach it.)

c. Insert the levers supplied with the unit into the

grooves at both sides of the unit as shown in

figure until they click. Pulling the levers makes it

possible to remove the unit from the dashboard.

Trim Plate Installation:

Push the trim plate against the chassis until it is fitted.

You must do this before you install the front panel, otherwise it can't be attached.

RCA LINE OUT JACK(OPTION)

30°

182

E - 3

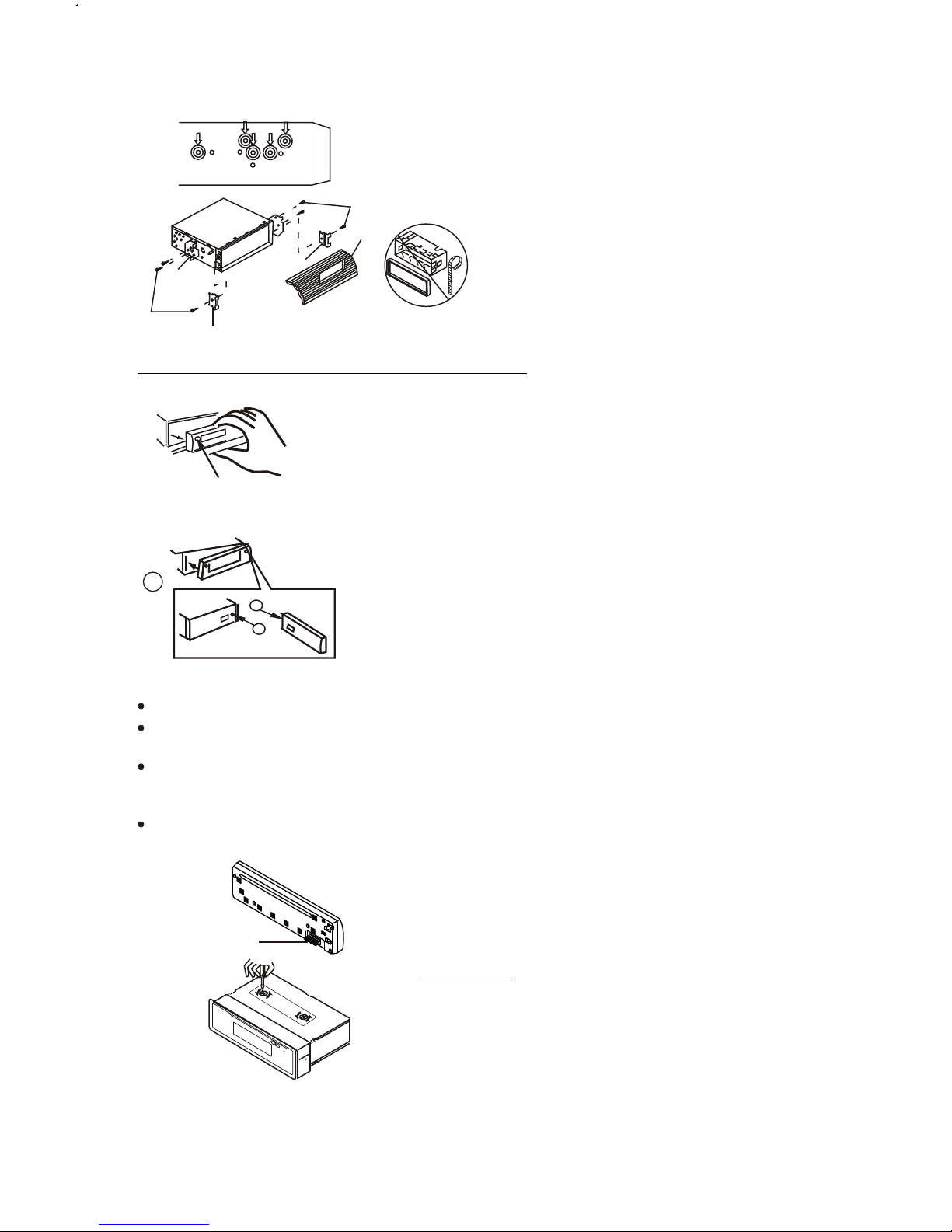

DIN REAR-MOUNT (METHOD B)

Installation using the screw holes on the sides of the unit.

Fastening the unit to the factory radio mounting bracket.

1. Select a position where the screw holes of

the bracket and the screw holes of the main

unit become aligned (are fitted) and tighten

the screws at 2 places on each side.

2. Screw(must not use more than 6mm length)

3. Factory radio mounting bracket.

4. Dashboard or Console

5. Hook (Remove this part)

Note: the mounting box, outer trim ring,

and half-sleeve are not used for method B

installation.

DETACHABLE CONTROL PANEL (D.C.P.)

Removing The Detachable Control Panel (D.C.P.).

PANEL RELEASE

BUTTON

Attaching the DCP

CAUTION

DO NOT insert the D.C.P from the left side. Doing so may damage it.

The D.C.P can easily be damaged by shocks. After removing it, place it in a protective case

and be careful not to drop it or subject it to strong shocks.

When the release button is pressed and the D.C.P is unlocked, the car's vibrations may

cause it to fall. To prevent damage to the D.C.P, always store it in a protective case after

detaching it.

The rear connector that connects the main unit and the D.C.P is an extremely important

part. Be careful not to damage it by pressing on it with fingernails, pens, screwdrivers, etc.

These 2 screws are used to prevent damage to the CD

mechanism during transportation Please make sure to

remove the 2 screws before installing the unit into the vehicle.

DO NOT insert a CD into the unit before removing the 2

screws.

IMPORTANT

Note:

If the D.C.P is dirty, wipe off the dirt with soft,

dry cloth only. And use a cotton swab soaked

in isopropyl alcohol to clean the socket on the

back of the D.C.P.

1. Turn the power off

2. Press the D.C.P. release button

3. Remove the D.C.P.

1. Attach the panel at the right side first, with

point B on the main unit touching point A on

the D.C.P. (As shown on the digram).

2. Then press the left side of D.C.P. onto the

main unit until a “click” sound is heard.

Socket

E - 4

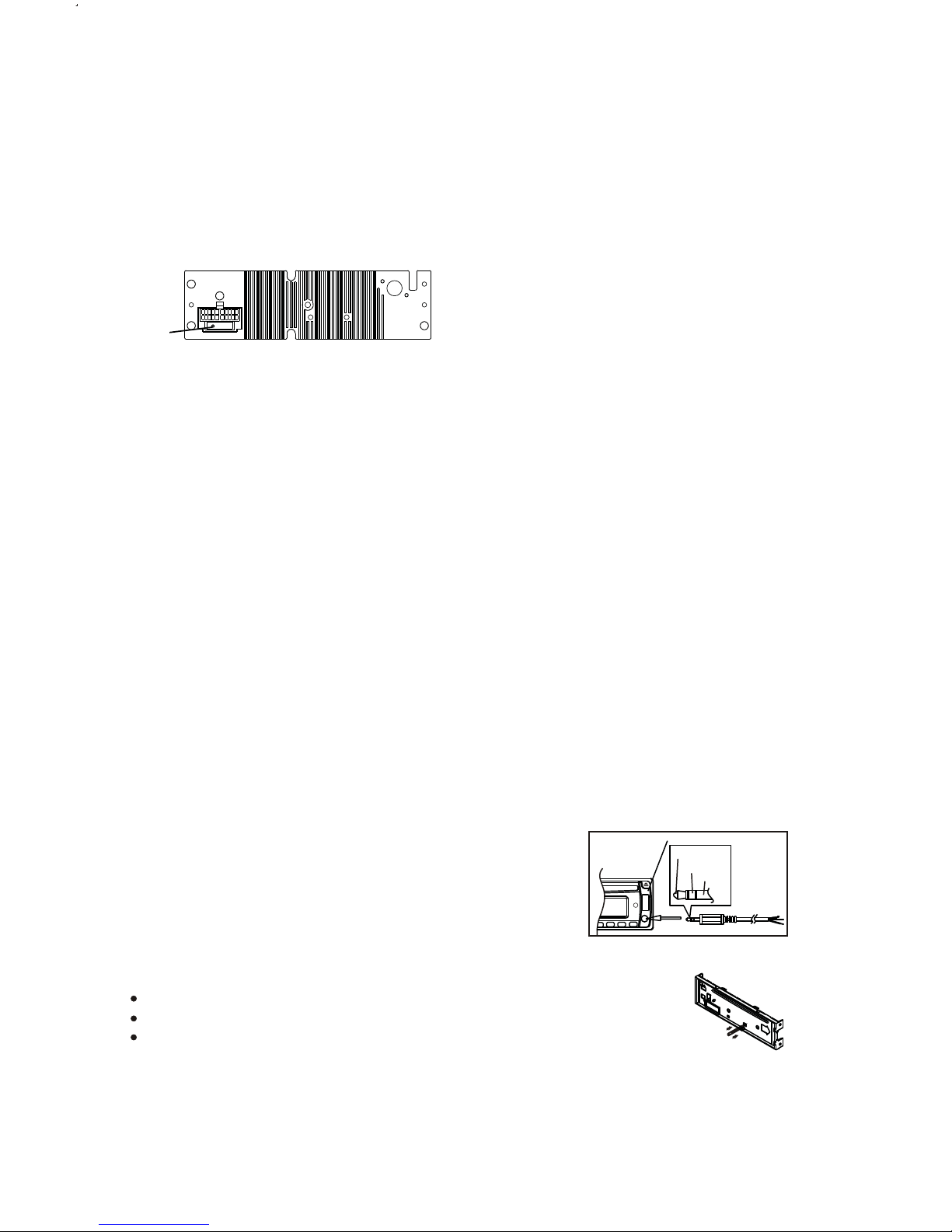

ELECTRICAL CONNECTION

a. Make sure your car battery is a 12 volt (6 filler caps) negative ground system (if not, a

converter will be necessary).

b. Before starting wiring connections, disconnect the power supply by removing the fuse from

the fuse box.

c. Connect the power wire to one of the extra terminals of the fuse box.

contact.

d. Connect the black ground wire to a metal part of the car. It is important to make good

e. Make other wiring connections as shown.

f. If your car does not have ISO connector, you can procure it from any car accessory shop.

Press this button to remove the control panel.

Press this button to turn on or off the power.

BASIC OPERATIONS

PANEL RELEASE BUTTON

POWER BUTTON

Notes: INCORRECT WIRING OR OPERATION WILL AVOID THE WARRANTY OF THIS UNIT.

Fuse Replacement:

To replace the fuse, pull out the blown fuse

from the socket. Insert a new one with same

rating.

FUSE

(CAR UNIT BACK SIDE)

DISPLAY BUTTON

FRONT CABINET

RIGHT TRACK

GROUND

AUX IN

LEFT TRACK

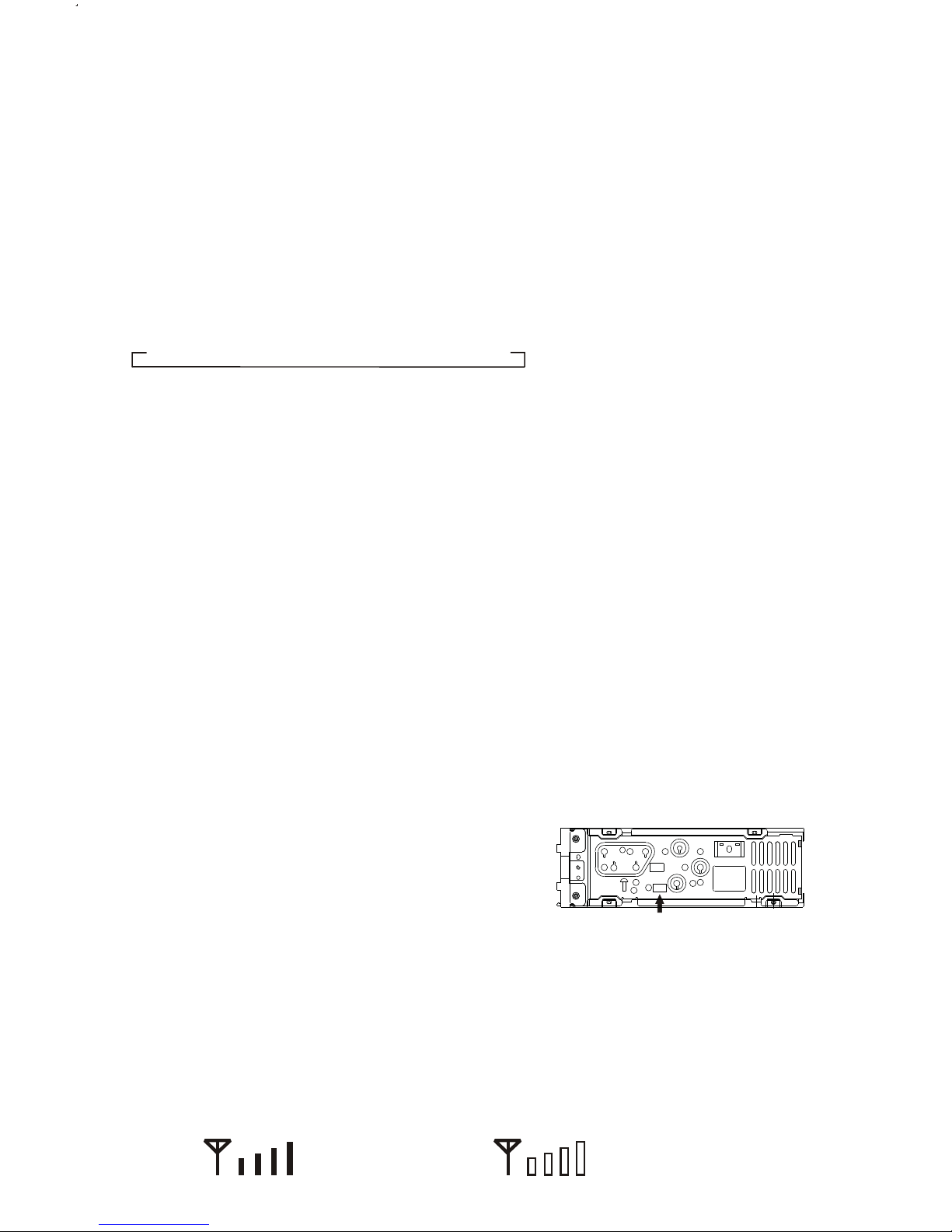

Note: If press RESET button, the unit still cannot function normally, please use a cotton

swab soaked in isopropyl alcohol to clean the socket on the back of the control panel.

The RESET button is located on the main unit (as shown on the diagram). To press it vertically

with a ballpoint pen or metal object will activate it. The reset button is to be activated for the

following reasons:

RESET BUTTON

Initial installation of the unit when all wiring is completed.

All the function buttons do not operate.

Error symbol on the display.

A) Tuner mode (Radio)

B) CDP/MP3 (only if a CD or Mp3 disc is inserted)

C) USB (only if a USB drive is inserted)

D) SD/MMC (only if a SD or MMC card is inserted)

E) AUX mode (only if this unit is equipped with this feature)

Whenever a USB or SD/MMC is being inserted, unit will automatically switch to USB or

SD/MMC mode, does not matter the unit is currently in what mode.

When in USB or SD/MMC mode, if the USB or SD/MMC is being removed, unit will

automatically switch to previous mode.

MODE BUTTON

Press this button to select different mode, sequence as follow:

MODE PRIORITY

FRONT AUX INPUT

Connect the external signal to the front 3.5mm earphone jack on front panel, then press Mode

button to select Aux mode. Press Mode Button again to cancel Aux Mode and return to

previous mode.

Press this button briefly, the LCD will display the clock for about 2 seconds, then return to

previous display mode.

Clock Adjustment

Under clock display mode, press DISP button until the LCD flashes, press Tuning Up Button to

adjust hour and Tuning Down Button to adjust minute.

E - 5

AUDIO OPERATIONS

ENCODER VOLUME KNOB

Turn this knob to adjust desired volume level.

FUNCTION SELECT BUTTON

Press this button to select desired audio function.

While the selected function is displayed, turn Volume Knob to adjust the level within 5 seconds,

otherwise the unit will return to volume adjustment mode.

MUTE BUTTON

Press this button to mute the sound. Press it again to resume listening.

DSP BUTTON (DIGITAL SOUND PROCESSOR)

Press this button to toggle the following EQ setting:

At DSP OFF mode, EQ will be controlled by Bass/Treble setting.

BAND/LOUDNESS BUTTON

Press the Band/Loudness Button long to switch the loudness on or off. When Loudness is on,

display will show 'Loud On' for a few seconds.

ORDER OF FUNCTION:

VOLUME(VOL) -> BASS(BAS) -> TREBLE(TRE) ->BALANCE(BAL) ->FADER(FAD)

FLAT->CLASSICS->POP M->ROCK M->DSP OFF

TUNING / SEEK UP AND TUNING / SEEK DOWN BUTTONS

1.Press these buttons briefly will operate AUTO SEARCH tuning mode, the radio will tune up or

down to the next station and remain on the frequency.

2.Press these buttons more than 2 seconds, operate as MANUAL SEARCH buttons, under this

mode the tuning frequency will advance up or down rapidly when the button is pressed. If the

buttons are not pressed within 3 seconds, they will return to auto search mode.

BAND/LOUDNESS BUTTON

This a dual function button. Press this button short to change between BAND FM1, FM2, Fm3

AM(MW) bands. Press it long to turn on or off Loudness function.

RADIO OPERATIONS

RADIO SIGNAL STRENGTH METER

This is use to indicate the signal strength of current radio station broadcast. When you choose

RADIO mode, it will show on the display.

Best

reception

Worst

reception

This control can be used to change between Local and Distant (-DX) tuning mode. Local

mode improves reception in some areas where the signal is too strong.

Press this button, the radio will tune up to search stations, the available stations will blinking

and stay on the display for a few seconds.

LOCAL / DX BUTTON

SCAN BUTTON

Use this control to select stereo or monaural reception for FM radio stations. You can

sometimes improve reception of distant stations by selecting mono mode.

FM MONO / STEREO BUTTON (MONO)

DUAL FREQUENCY SWITCH

Unit is defaulted in U.S.A frequency, if EURO frequency is required, a sharp pen is needed to

switch the button on the left side of the chassis to EURO frequency.

US EU

E - 6

AUTO MEMORY STORE/PRESET SCAN BUTTON (AMS)

1.PRESET SCAN: Press AMS button briefly enter Preset Scan mode, it will scan all the preset

stations in the memories, you can hear that will stay on each station for about 5 seconds.

2.AUTO MEMORY STORE: Press AMS button long to enter Auto Store mode, this feature will

automatically scan the current band and enter up to 6 strongest stations into the 6 preset

memories. To stop Auto Store & Scan, press the AMS button again.

STATION PRESET BUTTONS (M1-M6)

1.Press these buttons briefly to recall the stored stations in the selected band.

2.Presetting stations manually, Press the BAND button to select the band for the station to be

preset. Use Tuning Up/Down to tune in the stations to be preset. Press the Preset button at

which you want to store the station for at least 2 second. The preset number will appear on

the display accompanied by a beep, this indicate that the station has been stored into

memory.

CD OPERATIONS

CD SLOT

Insert the disc into CD slot. The CD will begin to play.

CD PAUSE BUTTON

Press this button to pause CD play, press again to release pause.

CD SCAN BUTTON

Press this button, the first 10 seconds of each track will be played sequentially until this button is

pressed again, then normal play will resume at the current track.

CD REPEAT BUTTON

Press this button, the current track will be played repeatedly until this button is pressed again.

CD SHUFFLE BUTTON

Press this button to play all tracks on CD in random. Press again to deactivate it.

EJECT BUTTON

Press this button to eject the CD from the unit. The receiver will switches to radio mode

automatically.

TRACK UP AND TRACK DOWN BUTTON

Press the Track Up Button to skip to the next track or previous track. Press the Track Down

button during play will return to the beginning of the current track, press it one more time to

skip to previous skip. Press and hold Track Up/Down Button to fast forward or fast reverse. CD

player starts when you release the button.

E - 7

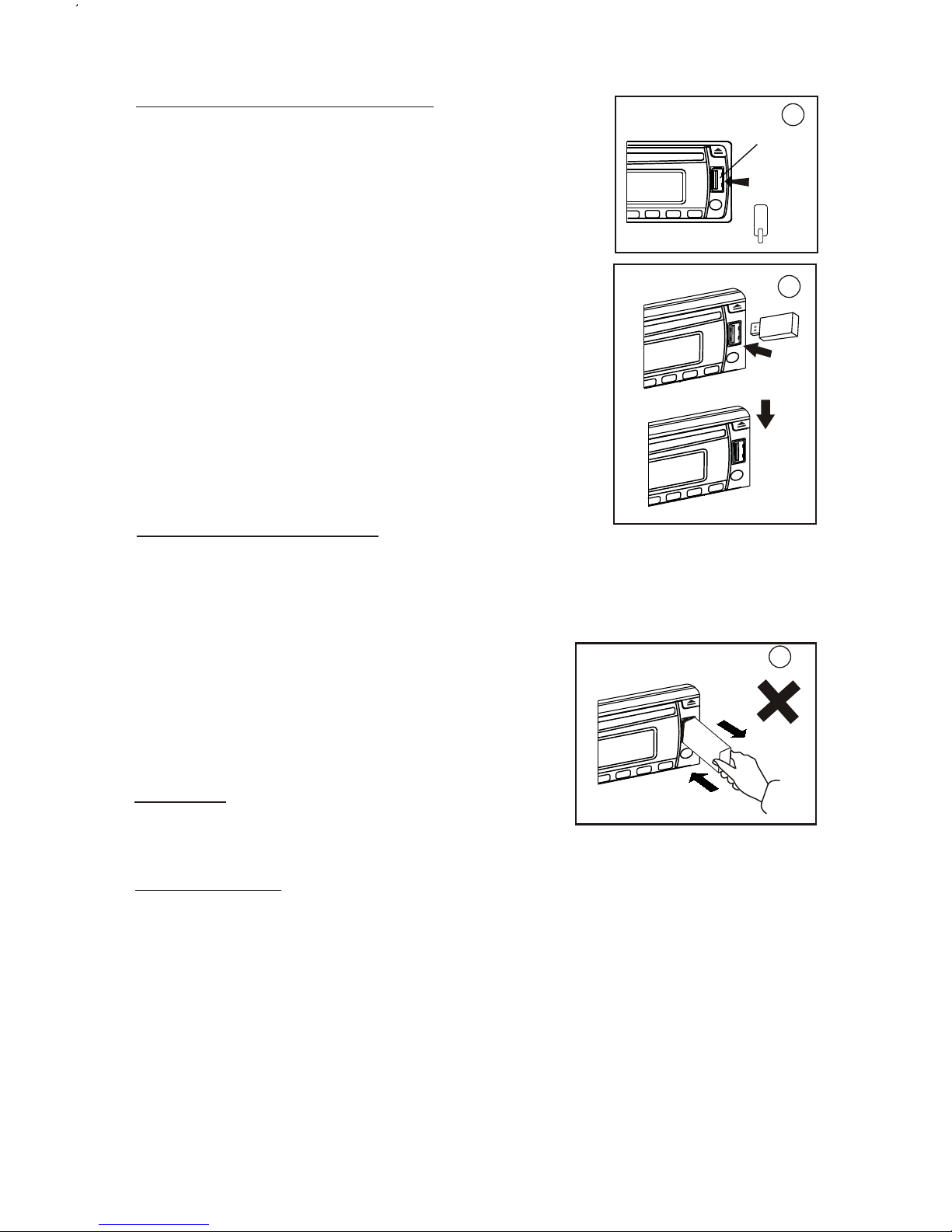

MMC/SD CARD & USB DEVICE OPERATIONS

START THE USB DEVICE MODE

1.The USB socket is accessible as indicated in picture

1.(P.1)

2.Plug in the USB drive / device completely as indicated

in picture 2(P.2) and display will show “USB PLAY” to

indicate that the USB drive / device is being plugged in

correctly & the download has begun.

3.Does not matter the unit is in what mode (TUNER, CD,

SD/MMC, etc), once a USB drive / device is being

plugged into the unit, unit will automatically switch to

USB mode.

4.All the USB files playback function is same as normal

CD or MP3 disc playback.

1.Always unplugged the USB gently from the unit,

excessive force used will cause permanent & serious

damage to the unit & the USB drive / device.

TO STOP USB PLAYBACK

1.The USB drive / device is unplugged, the unit automatically switch to radio mode.

Or user can use mode button to switch to other mode.

2.User can use the mode button to choose USB mode (only if USB drive / device is

inserted in the unit ) or any other modes, when they are in any mode.

CAUTION

COMPATIBILITY

Due to the fast changing technology world, this unit may

or may not be compatible to all the USB drive / device

available with all the future technology, especially those

USB drive / device which require to install a driver. Always

choose a compatible USB drive / device which is

compatible with this unit.

Warning: Excessive weight or size USB drive/device

may cause permanent & serious damage to the unit and

may cause access to the buttons on the front panel

impossible. User must use an extension cable (provide

by USB device manufacturer) to connect with USB

socket to prevent any damage cause.

USB SPECIFICATION

* SUPPORT MAX IG USB FLASH MEMORY

* SUPPORT MAX 255 SONGS

* USB 1.1 DEVICE SUPPORT

* USB 2.0 DEVICE SUPPORT

(TRANSFER SPEED SAME AS VER 1.1)

* FILE MANAGER: FAT12/FAT16/FAT32

* CURRENT SUPPLY: MAX 500mA

NOTE:

This unit is not compatible with portable Hard-Disc.

P. 3

USB SOCKET

P. 1

P. 2

E - 8

START THE SD/MMC MODE

1.Press panel release button to release the front panel.(P.4)

CAUTION

2.The SD/MMC card slot is located on top of the front panel as

indicated in (P.5).

3. Insert the SD/MMC card into the card slot in the correct direction

until a “CLICK” sound is heard.

4.Close the front panel.

5. The display will show “SD PLAY” to indicate that the SD or

MMC card is correctly inserted. Once the SD or MMC card is

inserted, the MP3 file will automatically loaded & playback will also

start.

6. Does not matter the unit is in what mode (Tuner,CD, USB, etc),

once a SD or MMC card is being inserted in the unit, unit will

automatically switch to SD / MMC mode.

7. All the SD / MMC files playback function is same as normal CD or

MP3 disc playback.

P. 4

2.Please make sure to insert the SD or MMC

card in the correct direction / orientation as

indicated in picture 6(P.6). Wrong insert will

cause permanent & serious damage to the

unit & the SD or MMC card.

TO STOP SD/MMC CARD PLAYBACK

1.Push on the end of the SD or MMC card to eject the sd or MMC card. Once the SD or MMC

card is taken out, the unit will automatically switch to previous mode.

2.User can use the mode button to choose SD / MMC mode (only if SD or MMC is inserted in

the unit ) or any other modes, when they are in any mode.

P. 5

SD/MMC SPECIFICATION

* SUPPORT MAX 1G SD/MMC CARD

* SUPPORT MAX 255 SONGS

Back side

Front side

P. 6

Andere Handbücher für 638UA

Andere Boss Audio Systems Autoempfänger Handbücher

Boss Audio Systems

Boss Audio Systems 614CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 822UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9354 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 822UA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7200 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems EC3002 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9370NV Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV4250 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 722CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7330 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8974B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9158B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9348B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR1315WUA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 812UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems MR762BRGB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 748UAI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems CAP200CR Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 812UAB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 4100 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 630CA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9351B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 758DBI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 630UA Bedienungsanleitung

Beliebte Autoempfänger Handbücher anderer Marken

Motorola

Motorola VWA63 Bedienungsanleitung

Nextar

Nextar D3201 Bedienungsanleitung

Alpine

Alpine CDE-163BT Bedienungsanleitung

Pioneer

Pioneer DEH-P645R Bedienungsanleitung

Axxera

Axxera XDMA7600 Betriebsanleitung

XM OnyX Bedienungsanleitung

Sound Storm

Sound Storm STM93R Bedienungsanleitung

Soundstream

Soundstream VIR-5000 Bedienungsanleitung

Avson

Avson MKT Platform Bedienungsanleitung

Sony

Sony MEX-1HD - Audio Library System Bedienungsanleitung

Pioneer

Pioneer DVH-P500UB Bedienungsanleitung

JVC

JVC KD-AHD69 Bedienungsanleitung

Blaupunkt

Blaupunkt SANTIAGO CR 87 Bedienungsanleitung

Sony

Sony CDX-4160 - Cd Receiver Bedienungsanleitung

XFIRE AUDIO

XFIRE AUDIO BMW42S Bedienungsanleitung

VDO

VDO CD 2253 Bedienungsanleitung

Volvo

Volvo 13 84 580 Bedienungsanleitung

ZENEC

ZENEC ZE-160DVD Bedienungsanleitung
