Precaution

THANK YOU FOR PURCHASING PLAYER .

Before operating the unit, read this manual thoroughly and keep it handy

for future reference .

To avoid injury or accident , read the following precautions before

installing and operating the unit .

A BOSS AUDIO MULTIMEDIA

ABOUT THE LIQUID CRYSTAL DISPLAY (LCD) PANEL

Do not press on the LCD panel on the unit as doing so can distort the

picture or cause a malfunction . The picture may become unclear , or the

LCD panel may be damaged .

NOTES ON CLEANING

-Clean the LCD panel with a slightly damp soft cloth.

-Do not use solvents such as benzine, thinner, commercially available

cleaners or antistatic spray .

- Do not use alcohol to clean the screen .

If your car was parked in a cold or hot place, the picture may not be clear .

The monitor is not damaged . The picture will become clear the temper-

ature in your car becomes normal .

DO NOT install any receiver in locations where;

- it may obstruct the steering wheel and gearshift lever operations, as this

may result in a traffic accident.

- it may obstruct the operation of safety devices such as air bags, as this

may result in a fatal accident.

- it may obstruct visibility.

DO NOT operate any receiver while manipulating the steering wheel, as

this may result in a traffic accident.

The driver must not watch the monitor while driving.

IF THE DRIVER watches the monitor while driving, it may lead to

carelessness and cause an accident.

IF YOU NEED to operate the receive while driving, be sure to look ahead

carefully or you may be involved in a traffic accident.

IF THE PARKING BRAKE is not engaged.“ ParkingBrake” flashes on the

monitor, and no playback picture will be shown.

- This warning appears only when the parking brake wire is connected to

the parking brake system built in the car ( refer to the electric connection)

ON INSTALLATION

Safety Information

CAUTION:

THIS DIGITAL VIDEO PLAYER IS A CLASS I LASER PRODUCT. HOWEVER

THIS DIGITAL VIDEO PLAYER USES A VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DIGITAL VIDEO PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

REGION MANAGEMENT INFORMATION:

This Digital Video Player is designed and manufactured to respond to the Region

Management Information that is recorded on a Digital Video disc. If the Region

number described on the Digital Video disc does not correspond to the Region

number of this Digital Video Player, this Digital Video Player cannot play this disc.

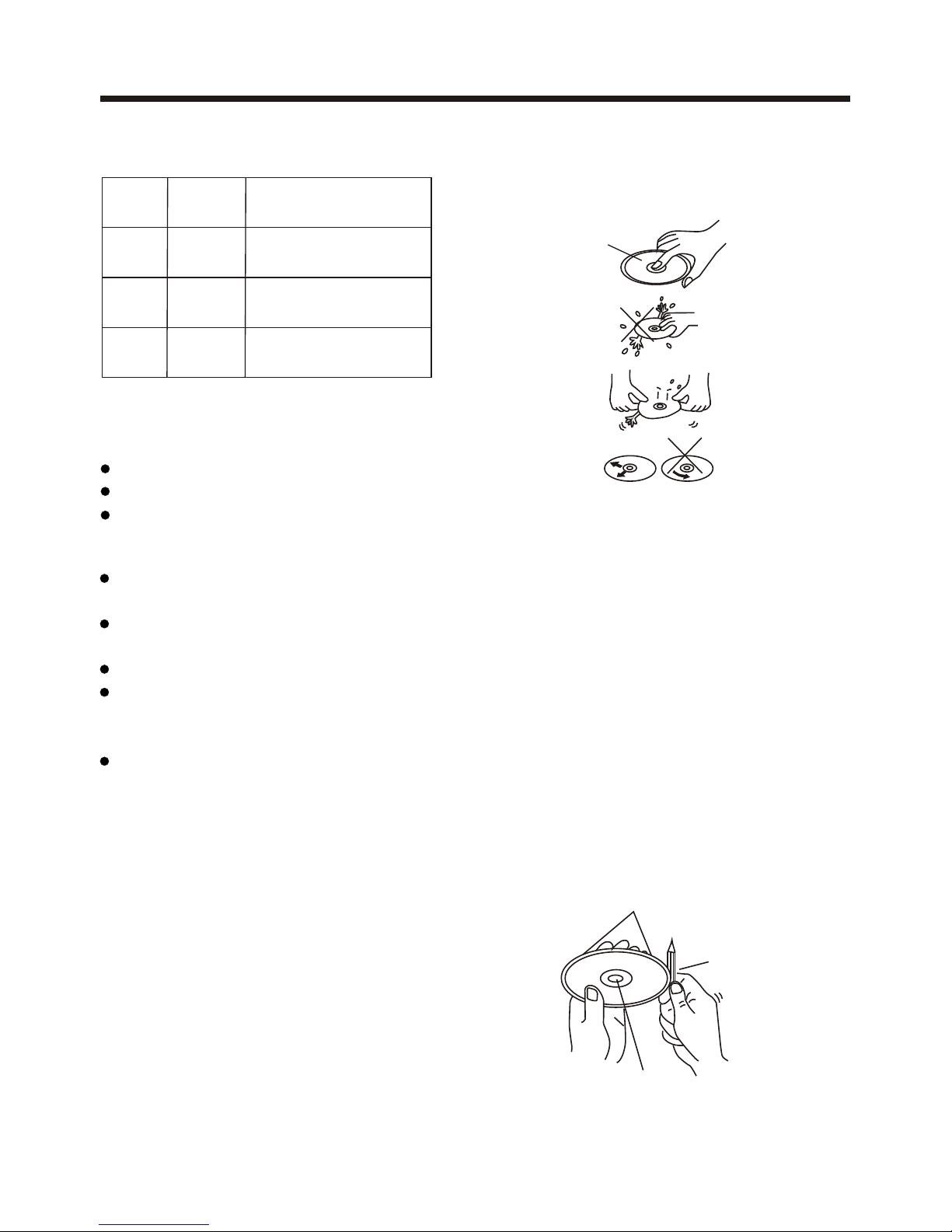

Disc Note

Preparing New Discs with Rough

Spots

A new disc may have rough edges on

its inside and outside edges. If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc. Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right. To remove the

rough edges, press the sid e of the pen

or pencil against the inside and outside

edges of the disc.

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Label side

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Handling and Cleaning

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Discs which cannot be played

with this player

Digital Video-RAM

CDV

CDG

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Disc formats supported by this

player

Digital

Video

VCD

MP3

Audio and Video

Disc size 12 cm

Audio and Video

Disc size 12 cm

Audio

Disc size 12 cm

Audio

Disc size 12 cm

Digital

Video

VCD

MP3

Installation

NOTES:

1. Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

2. Before finally installing the unit, connect the wiring temporarily and make sure

it is all connected up properly and the unit and the system work properly.

3. Use only the parts included with the unit to ensure proper installation. The use

of unauthorized parts can cause malfunctions.

4. Consult with your nearest dealer if installation requires the drilling of holes or

other modifications of the vehicle.

5. Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

. Avoid installing the unit where it would be subject to high temperature, such

as from direct sunlight, or from hot air, from the heater, or where it would be

subject to dust, dirt or excessive vibration.

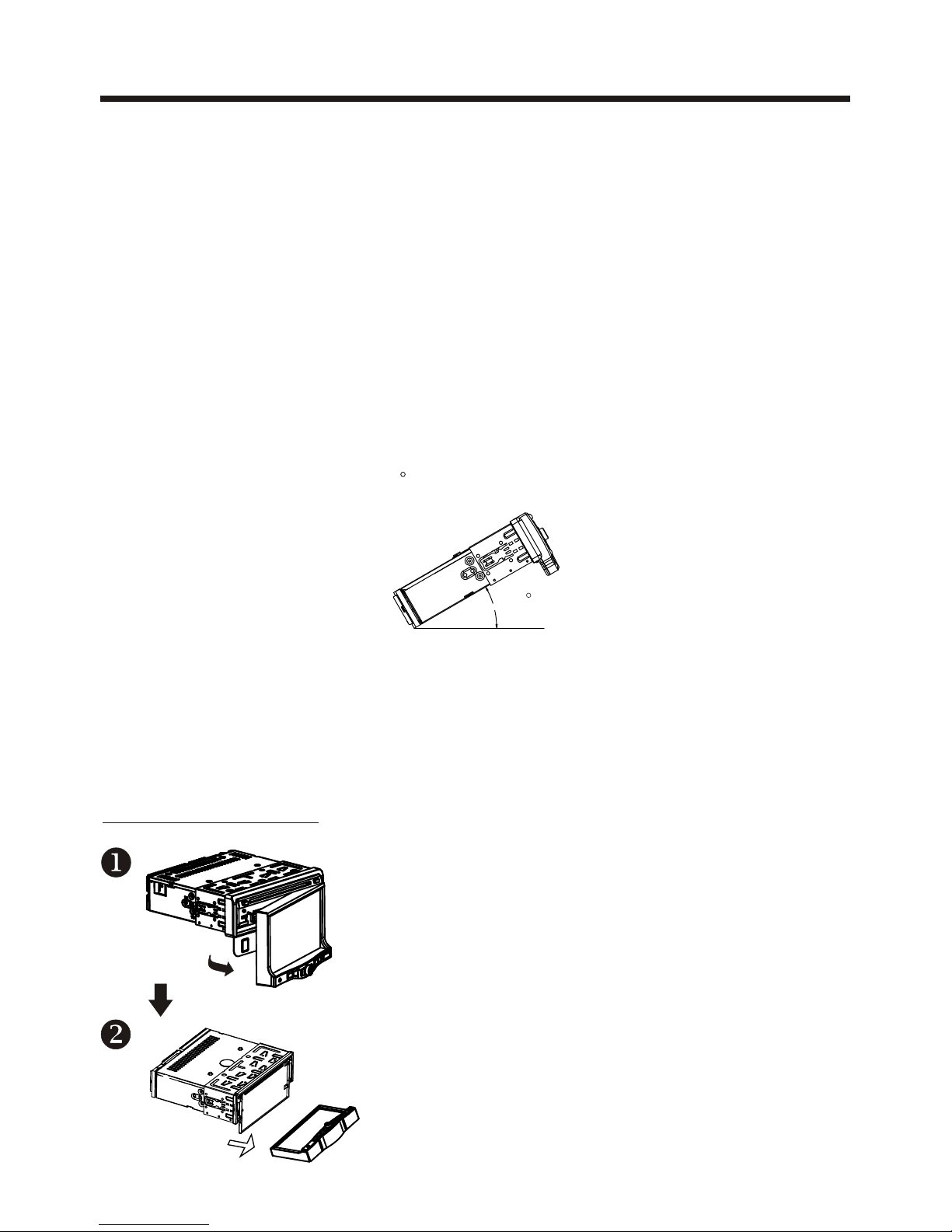

7. If installation angle exceeds 30 from horizontal, the unit might not give its

optimum performance.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from "Front"(conventional DIN

Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded

screw holes at the sides of the unit chassis). For details, refer to the following

illustrated installation methods.

Removing the unit

1. Press the REL button to release the front panel .

2. Remove the control panel .

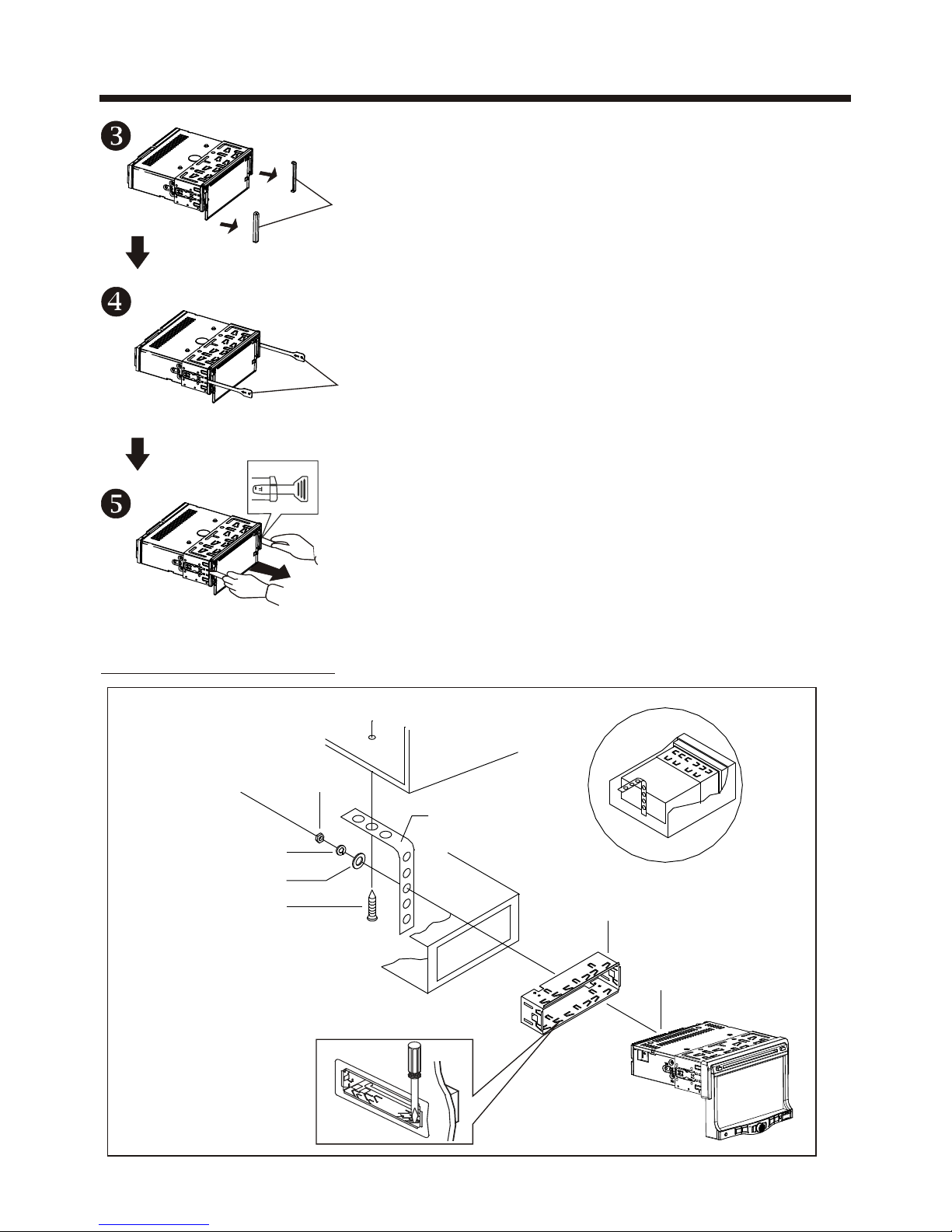

Installation

Installation the unit

3. Remove the PLASTIC COVER of the both sides away

4. Insert the two KEY PLAT into the grooves at both sides

of the unit as shown in figure until they click .

PLASTIC COVER

KEY PLATE

5. Pulling the levers makes it possible to remove

the unit from the dashboard .

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

Installation

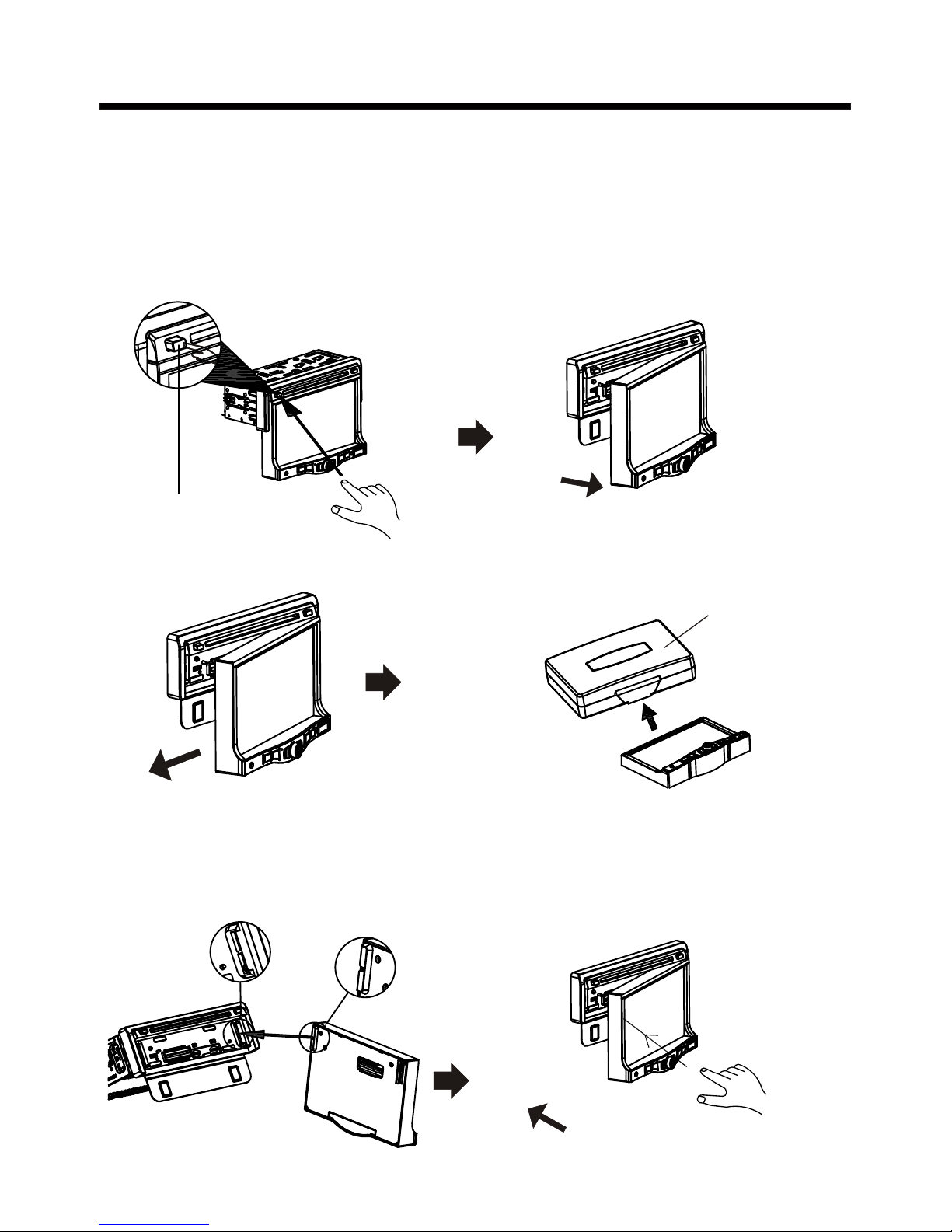

How To Remove And Install The Front Panel

When detaching or attaching the control panel, be careful not to damage the

connectors on the back of the control panel and on the panel holder.

2). Pull-off the front panel and keep the front panel into the case .

Detaching Control Panel

Before detaching the control panel, be sure to turn off the power.

1). Press the “REL” release button and the left hand side of front panel will release.

Attaching Control Panel

1). First insert the right hand side of the front panel into the hollow of the unit .

(NOTE : the “bulge” point on the panel must be attached into the hollow of the unit .)

2). Gently push the left hand side of the front panel until you feel a “ Click” .

PROTECTIVE CASE

RELEASE BUTTON

Hollow Bulge

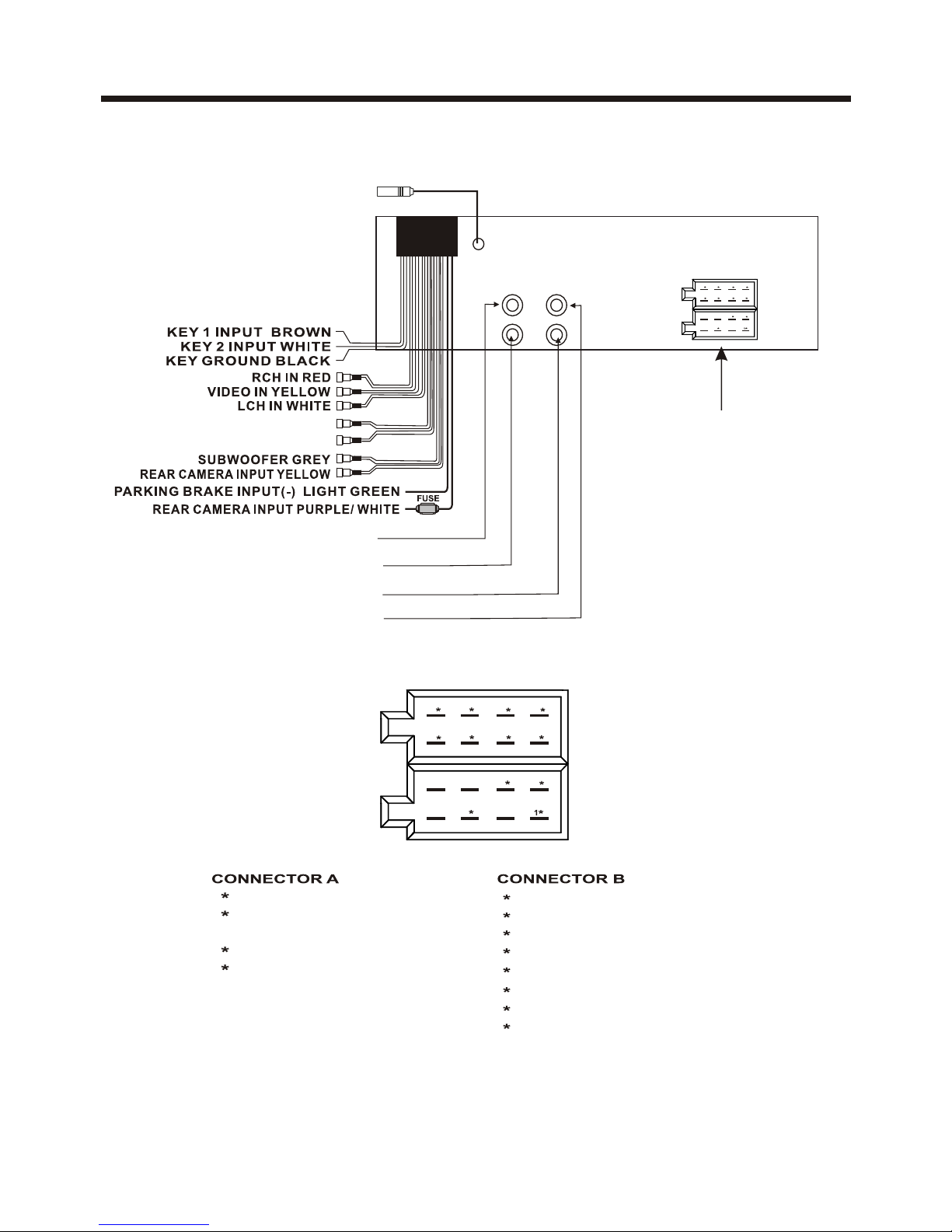

Electric Connection

WIRING CONNECTION

Note:

the ground connection cable (parking brake B-) must be connected in order for

pictures to be played back to the monitor. If the cable has not been correctly

connected, appears on the monitor. warning message

ISO CONNECTOR

1 BLACK.........................GROUND

5 YELLOW...............CONSTANT(+)

2 RED.........................IGNITION(+)

4 BLUE................AUTO ANTENNA

1 GREEN/BLACK................LEFT REAR(-)

3 WHITE/BLACK...............LEFT FRONT(-)

5 GRAY/BLACK..............RIGHT FRONT(-)

7 VIOLET/BLACK.............RIGHT REAR(-)

2 GREEN...........................LEFT REAR(+)

4 WHITE..........................LEFT FRONT(+)

6 GRAY..........................RIGHT FRONT(+)

8 VIOLET.........................RIGHT REAR(+)

8 6 4 2

7 5 3 1

RADIO ANTENNA JACK

FRONT RCA AUDIO OUT SOCKET

VIDEO OUTPUT SOCKET

White Yellow

Yellow

Red

ISO CONNECTOR

8 6 4 2

7 5 3 1

REAR RCA AUDIO OUTPUT RED

REAR RCA AUDIO OUTPUT WHITE

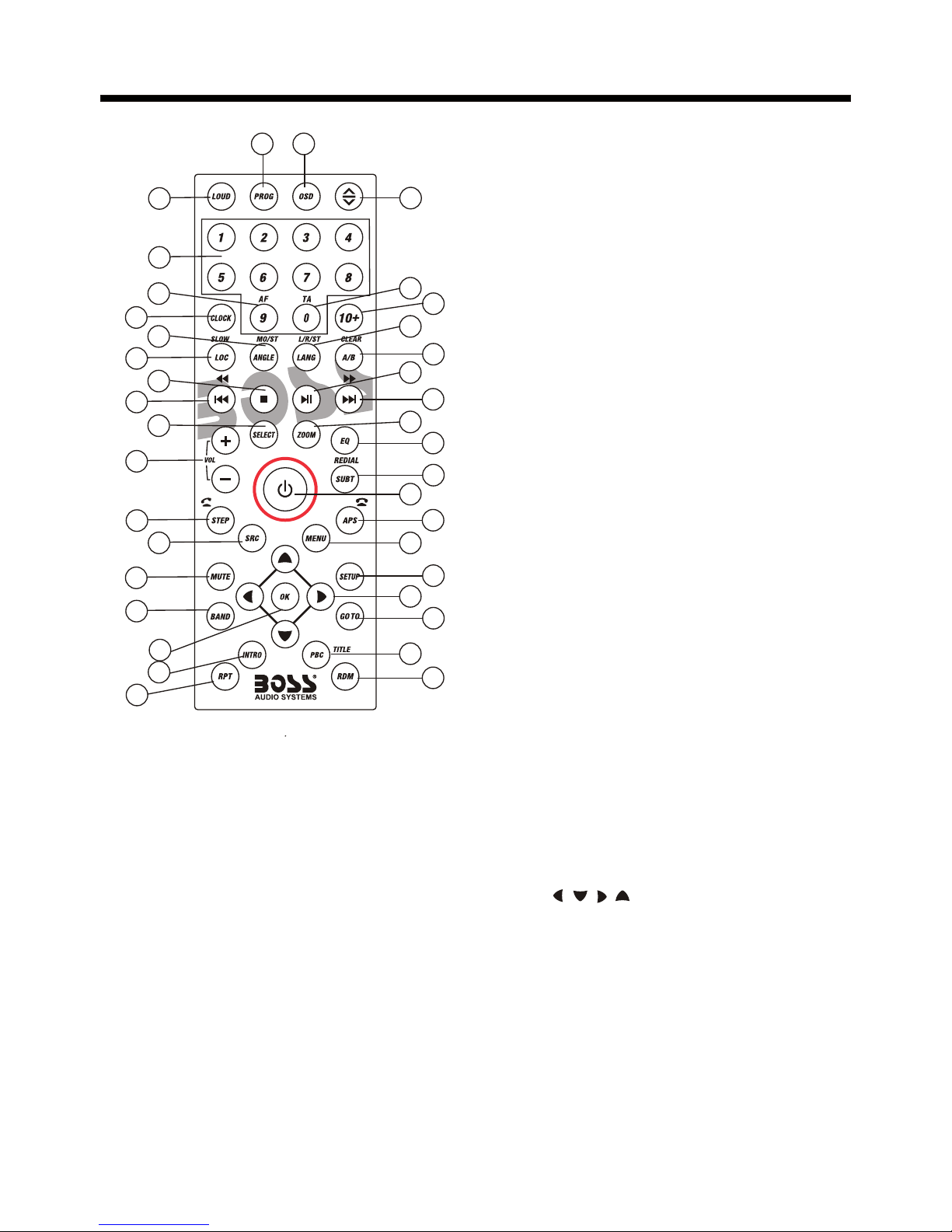

Remote Control

18. RPT BUTTON

19. ANG BUTTON

20. 10+ BUTTON

21. LANG/L/R/ST BUTTON

22. A-B/CLEAR BUTTON

23. >II BUTTON

24. >>I BUTTON

25. ZOOM BUTTON

26. EQ BUTTON

27. SUBT/REDIAL BUTTON

29. APS/ BUTTON

30. MENU BUTTON

31. SETUP BUTTON

32. / / / BUTTON

33. GOTO BUTTON

34. PBC/TITLE BUTTON

35. RDM BUTTON

36. AF BUTTON

37. TA BUTTON

28. POWER BUTTON

Hang Up

1. OSD BUTTON

2. PROG BUTTON

3. LOUD BUTTON

4. 9

5. LOCK BUTTON

6. ANGLE/MO/ST BUTTON

7. LOC/SLOW BUTTON

8. STOP BUTTON

9. I<< BUTTON

12. STEP/TEL BUTTON

13. SRC BUTTON

14. MUTE BUTTON

15. BAND BUTTON

NUMBER(0~ )BUTTONS

10. SELECT BUTTON

11. VOLUME+/- BUTTONS

16. OK BUTTON

17. INT BUTTON

Remote ControlRemote Control

Using the Remote Control

Face the remote control towards the player front face IR mark (remote control signal

receiver).

Operation angle: About 30 degree in each the direction of the front of the IR mark.

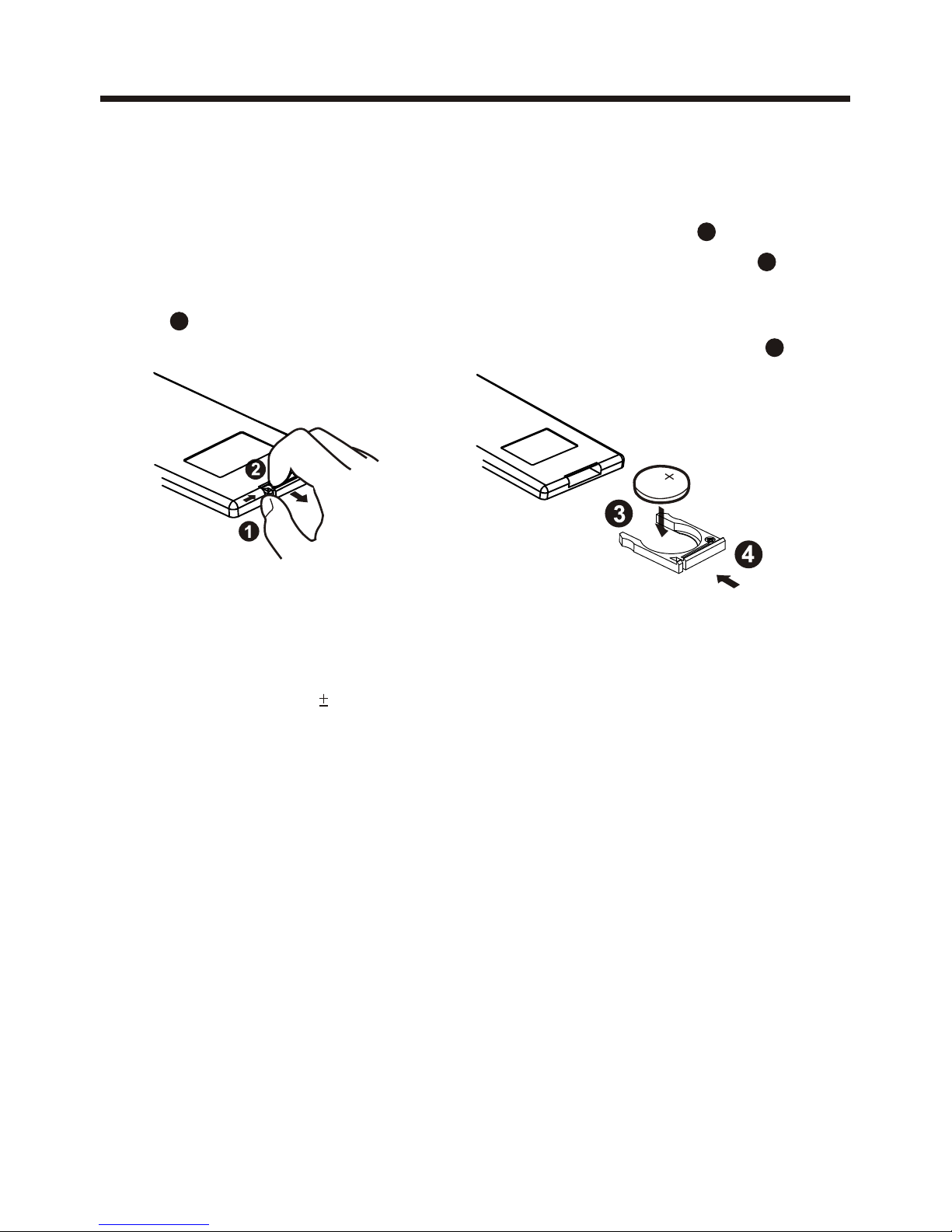

Preparing the Remote Control

1.First push to inside as the direction indicated by the arrow (See )And then

Remove the battery holder as the direction indicated by the arrow (See ).

2.Replace the battery Set a new battery property with (+)side up as illustrated

(See ).

3.Insert the battery holder. Push in the holder to the original position(See ).

Inserting the Battery

Note :

The lithium cell in the battery compartment of remote control has been secured for

transport with a plastic . Before initial use please remove this plastic so that the

remote control is ready for operation .

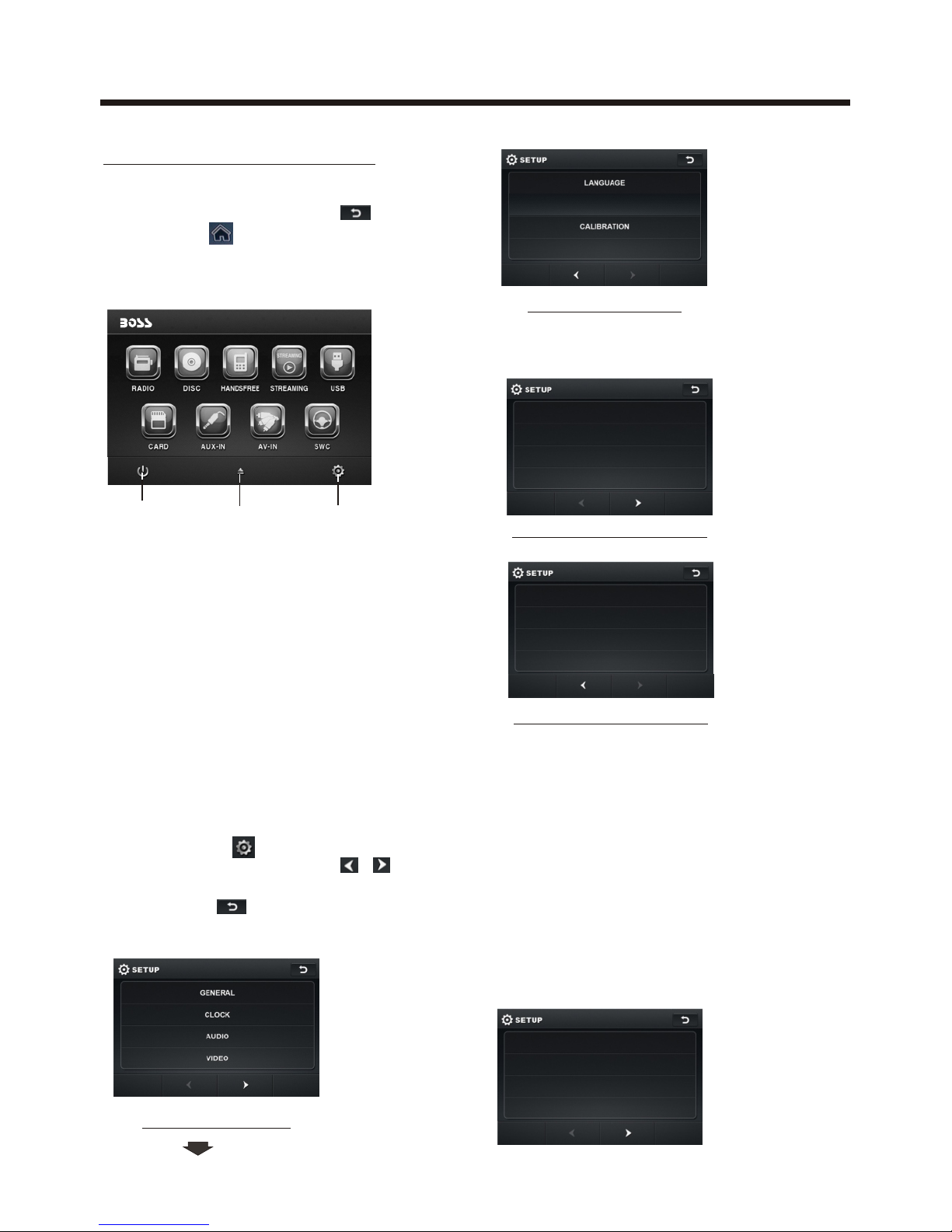

Basic Operation

General setup interface2

GENERAL

WALLPAPER ...

BLUETOOTH ON

ABOUT ...

ADJUSTABLE ITEMS:

ANIMATION

In RADIO mode, you can change the

playing time of animation among of

“OFF, 10S, 30S, 1M,90S, 2M, 3M and 4M ”.

Note:

Please set the playing time of the

animation to “ 10S ” for the first, when

you turn the unit on .

KEY BEEP : ON or OFF.

GENERAL

ANIMATION 2 MINUTE

KEY BEEP ON

DISC ...DISC ...

RADIO ...

General setup interface1

Main Menu Operation

In many modes, touch the icon

or touch the range to enter the

main menu, the message like following

as below.

Touch the “ ” section on the

setting menu, touch the “ / ”

ranges to select the adjustment item,

Touch the “ ” icon to return to the

previous playback .

Setup interface 1

Setup interface 2

ILLUMINATION COLOR

1. POWER icon

In any modes, touch the POWER icon

to switch the unit off . The monitor will

draw in automatically .

2. EJECT icon

Touch to allow for inserting or ejecting

disc.

3. SETUP icon

Touch to enter the SETTING mode,

the message will display as follow :

DISC

FORMAT NTSC

TV TYPE 4:3PS

RATING ADULT

Disc setup as follow:

10:00 AM10:00 AM

(3)

(1) (2)

Inhaltsverzeichnis

Andere Boss Audio Systems Auto-Videosystem Handbücher

Boss Audio Systems

Boss Audio Systems Vision BV10.4IRF Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2450 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision DVD-8000 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.2FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9255 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9998B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems DVD-7500 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Elite BE950WCPA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8.5GA Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Universal headrest Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9364B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR7UBL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision BV-56TS Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2250 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9565BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9558 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9967B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV775B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1F Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9960 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9968BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV12.1BGT Handbuch

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung

Boss Audio Systems bv8970b Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken
