FEATURES

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

This set has been designed and

manufactured to assure personal safety.

Improper use can result in electric shock

or fire hazard. The safeguards

incorporated in this unit protect you if

you observe the following procedures for

installation, use and servicing. This unit

doesn’t contain any parts that can be

repaired by the user.

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Washing Your Car

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centers

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Center list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30˚.

Protect the Monitor Mechanism

• The monitor is operated automatically.

Do not pull the monitor out or turn it

upward or downward manually.

Otherwise, the mechanism

construction may be harmed to some

degree.

CONTENTS

Safety Information......................................................................................................4

Disc Notes...................................................................................................................5

Installation...................................................................................................................6

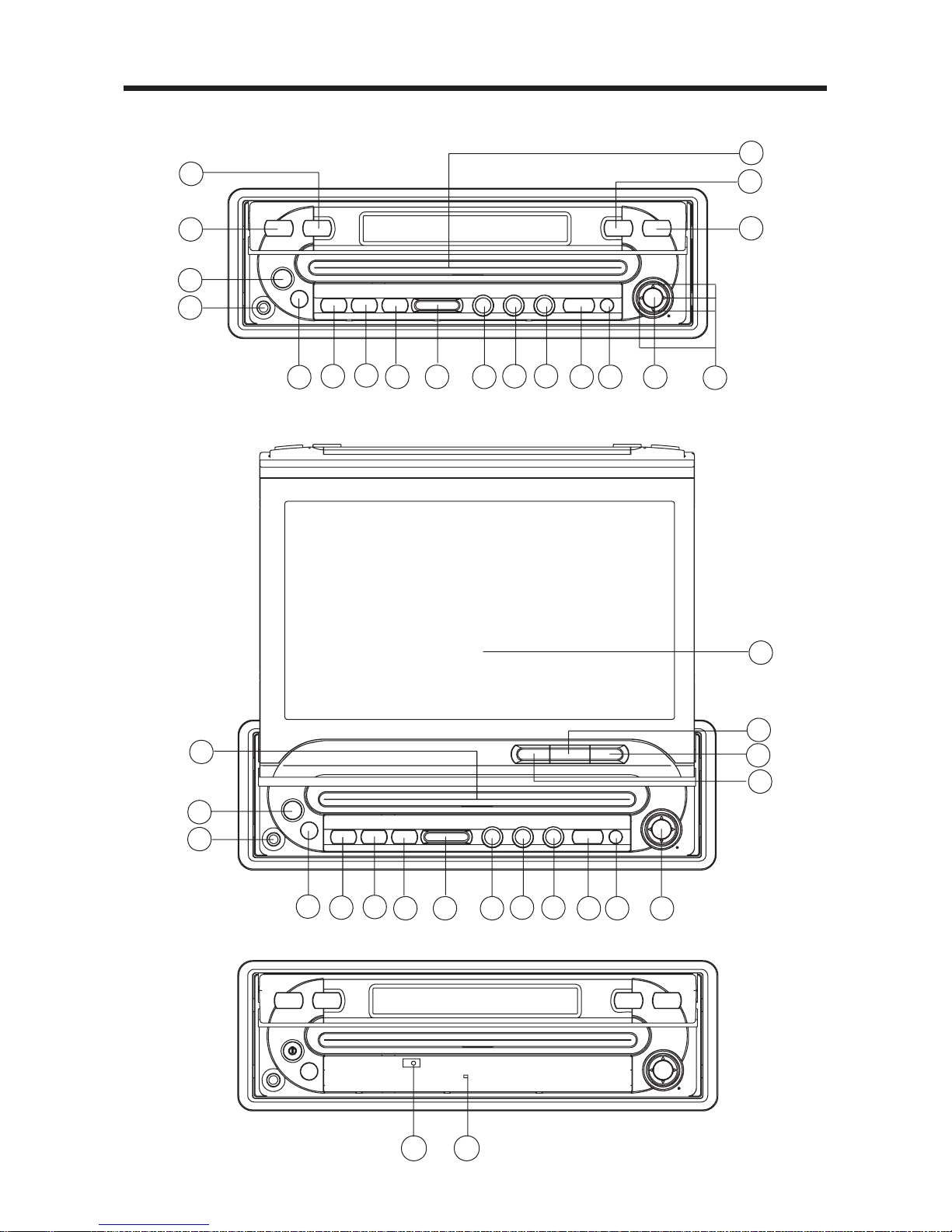

The Player ...................................................................................................................9

Electrical Connections.............................................................................................11

Remote Control ........................................................................................................12

Location and Function of Keys.............................................................................12

Preparing the Remote Control..............................................................................15

Loading/Ejecting a disc ...........................................................................................15

Loading a Disc......................................................................................................15

Ejecting a Disc ......................................................................................................15

Operation ..................................................................................................................16

Basic Operation ....................................................................................................16

Disc (DVD, VCD, CD, MP3) Operation..................................................................20

Radio Operation....................................................................................................26

TV Operation.........................................................................................................27

AV Operation.........................................................................................................27

RGB Operation .....................................................................................................27

Setup..........................................................................................................................28

Language Setup ...................................................................................................28

Display Setup........................................................................................................28

Audio Setup ..........................................................................................................29

Lock Setup ...........................................................................................................29

Other Table ...........................................................................................................30

Trouble Shooting ......................................................................................................31

Specification .............................................................................................................32

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE

OF PROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

• TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

• THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this copyright

protection technology must be

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

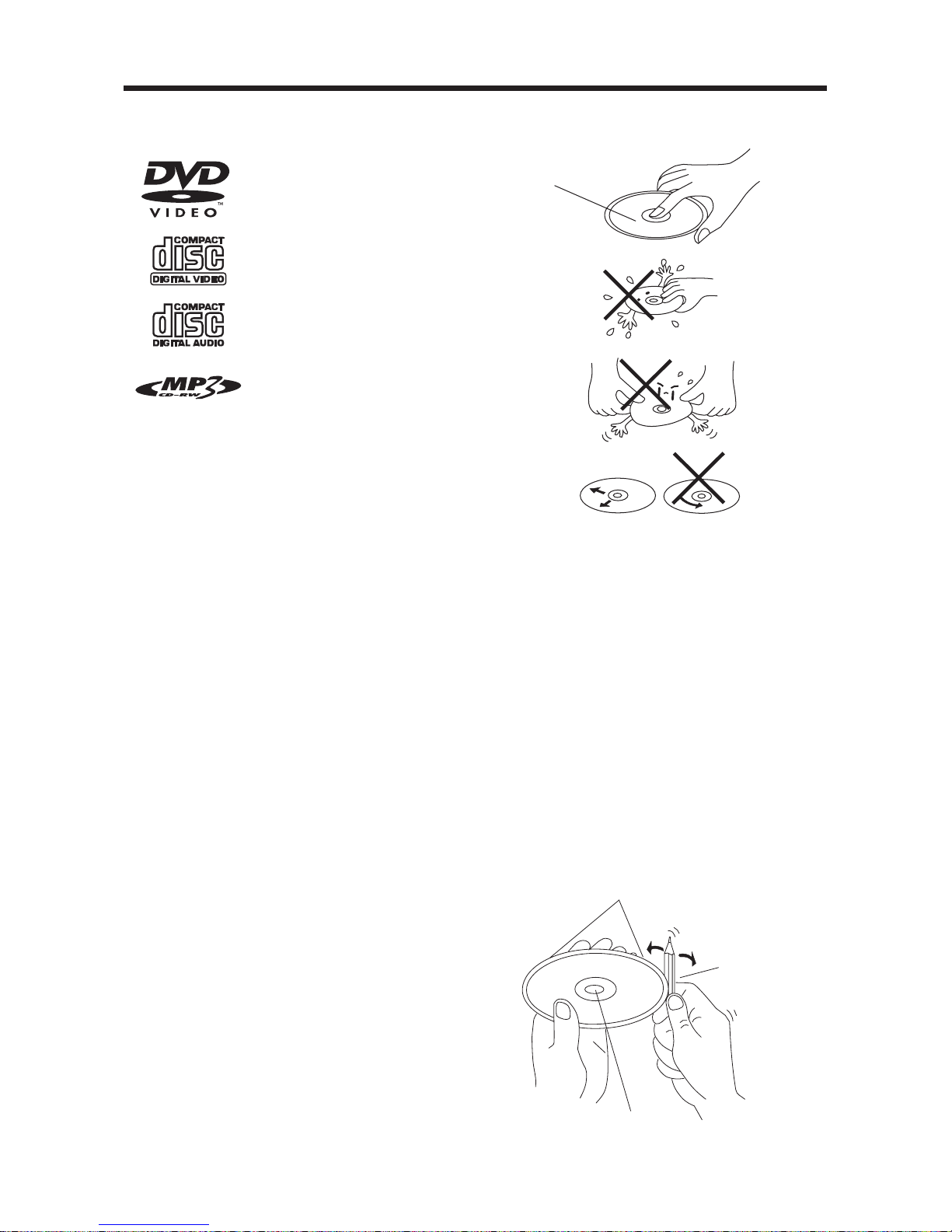

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Handling and Cleaning

• Dirt, dust, scratches and warping disc

will cause misoperation.

• Do not place stickers or make

scratches on discs.

• Do not warp discs.

• A disc should always be kept in its

case when not in use to prevent from

damage.

• Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on the way it is

handled and conditions in the usage

environment. Note these scratches are

not an indication of any problem with the

player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc.

Therefore, remove the rough edges in

advance by using a ballpoint pen or

pencil as shown on the right. To remove

the rough edges, press the side of the

pen or pencil against the inside and

outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

30˚

182 mm

53 mm

Front Panel

Outer Trim Ring

L Key

Sleeve

R Key

INSTALLATION

Notes:

• Choose the mounting location where

the unit will not interfere with the

normal driving function of the driver.

• Before finally installing the unit,

connect the wiring temporarily and

make sure it is all connected up

properly and the unit and the system

work properly.

• Use only the parts included with the

unit to ensure proper installation.

The use of unauthorized parts can

cause malfunctions.

• Consult with your nearest dealer if

installation requires the drilling of holes

or other modifications of the vehicle.

• Install the unit where it does not get in

the driver’s way and cannot injure the

passenger if there is a sudden stop,

like an emergency stop.

• If installation angle exceeds 30˚ from

horizontal, the unit might not give its

optimum performance.

• Avoid installing the unit where it would

be subject to high temperature, such

as from direct sunlight, or from hot air,

from the heater, or where it would be

subject to dust, dirt or excessive

vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either

from “Front” (conventional DIN Front-

mount) or “Rear” (DIN Rear-mount

installation, utilizing threaded screw holes

at the sides of the unit chassis).

For details, refer to the following

illustrated installation methods.

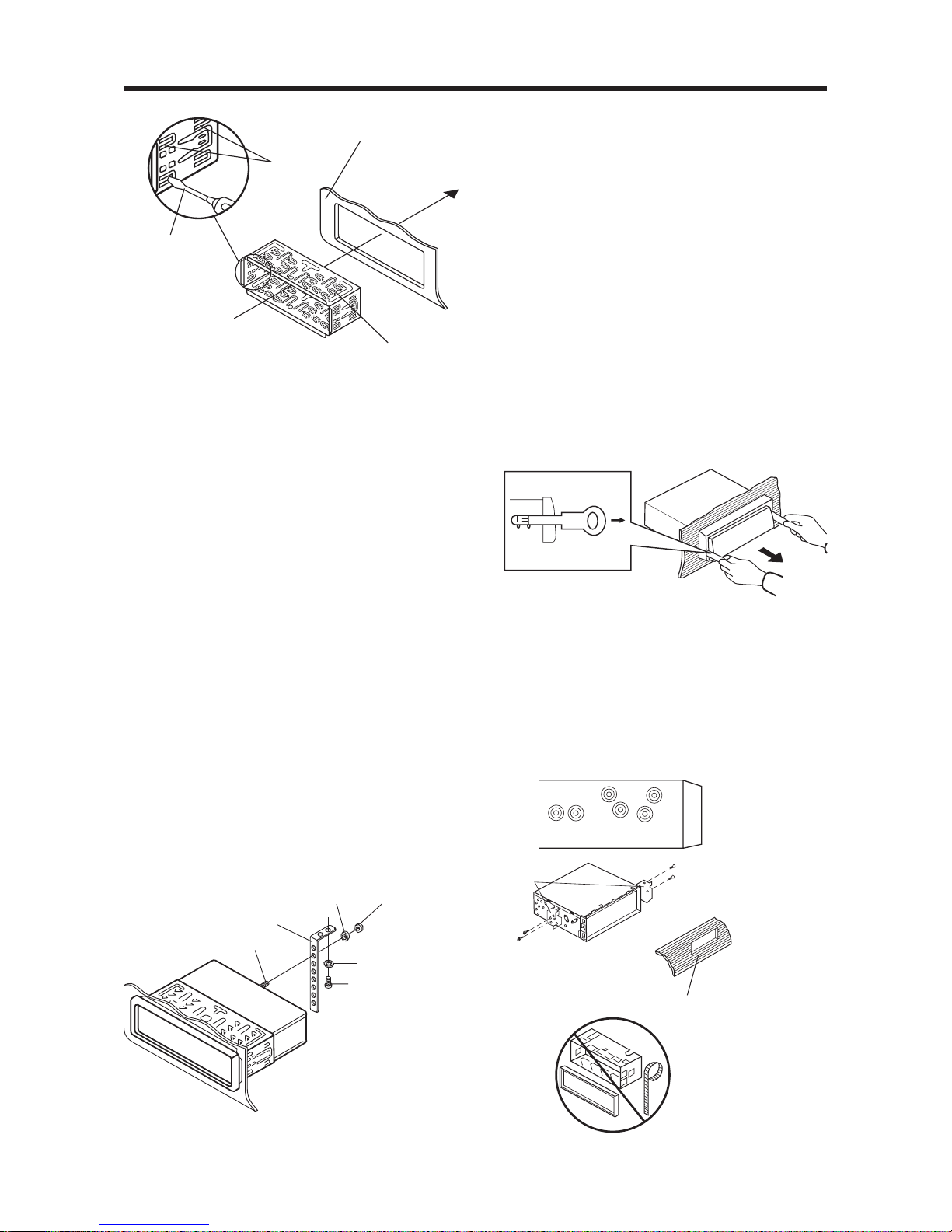

DIN FRONT-MOUNT (Method A)

Installation Opening

This unit can be installed in any dashboard

having an opening as show below:

Installing the unit

Be sure you test all connections first, and

then follow these steps to install the unit.

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's negative (-)

terminal.

2. Disconnect the wire harness and the

antenna.

3. Lift the top of the outer trim ring then

pull it out to remove it.

4. The two supplied keys release tabs

inside the unit’s sleeve so you can

remove it. One key is for the right side

and the other is for the left side. Insert

the keys as far as they will go (with the

notches facing up) into the appropriate

slots at the middle left and right sides

of the unit. Then slide the sleeve off

the back of the unit.

5. Mount the sleeve by inserting the sleeve

into the opening of the dashboard and

bend open the tabs located around the

sleeve with a screwdriver. Not all tabs

will be able to make contact, so

examine which ones will be most

effective. Bending open the appropriate

tabs behind the dashboard to secure

the sleeve in place.

9. Reconnect the cable to the vehicle

battery's negative (-) terminal. Then

replace the out trim ring

Removing the unit

1. Make sure the ignition is turned off,

and then disconnect the cable from

the vehicle battery's negative (-)

terminal.

2. Remove the metal strap attached the

back of the unit (if attached).

3. Lift the top of the outer trim ring then

pull it out to remove it.

4. Insert both of the supplied keys into

the slots at the middle left and right

sides of the unit, then pull the unit out

of the dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow

these mounting instructions.

Use the screw holes marked T (Toyota),

N (Nissan) located on both sides of the

unit to fasten the unit to the factory radio

mounting brackets supplied with your

vehicle.

Sleeve

Dashboard

Screwdriver

Tabs

Spring Washer

Tapping Screw

Plain Washer

Hex Nut

Metal Strap

Mounting Bolt

Dashboard or

Console

Side view showing

Screw Holes marked

T, N or S

Factory Radio

Mounting

Bracket

Screw

INSTALLATION

6. Reconnect the wire harness and the

antenna and be careful not to pinch

any wires or cables.

7. Slide the unit into the sleeve until it

locks into place.

8. To further secure the unit, use the

supplied metal strap to secure the back

of the unit in place. Use the supplied

hardware (Hex Nut (M5mm) and Spring

Washer) to attach one end of the strap

to the mounting bolt on the back of

the unit. If necessary, bend the metal

strap to fit your vehicle's mounting

area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain

Washer) to attach the other end of

metal strap to a solid metal part of the

vehicle under the dashboard. This strap

also helps ensure proper electrical

grounding of the unit.

Note to install the short threading

terminal of the mounting bolt to the

back of the unit and the other long

threading terminal to the dashboard.

INSTALLATION

To fasten the unit to the factory radio

mounting brackets.

1. Align the screw holes on the bracket

with the screw holes on the unit, and

then tighten the screws on each side.

2. Fasten with the supplied truss screws

(5x5mm) or flush surface screws

(4x5mm), depending on the shape of

the screw holes in the bracket.

Note:

(1) The outer trim ring, sleeve and the

metal strap are not used for method B

installation.

(2) When the unit is on work, if you release

the front panel, the unit will enter into the

power off state automatically, and you

can see the indicater LED flashing. When

you install the front panel the unit will

resume work automatically.

THE PLAYER

FRONT VIEW

23 3 156710

12 13 4 14 16 25

23 3 15 6 7 10 12 13 414 16

22 24

Closed Position

Open Position

Remove the front panel:

1. (BACK) 14.

2. AV IN 15. DSP

3. (OPEN/CLOSE) 16. ENT

4. (EJECT) 17. SETUP

5. Disc Slot 18. LOC

6. MODE 19. MO/ST

7. VOL

+/-20. BAND

8. + 21. AS/PS

9. - 22. Reset Button

10. /MUT 23. Remote Sensor

11. 7“ COLOR TFT 24. Front Panel LED

MONITOR

12. S (Smart MODE) 25. / , / (Cursor Buttons)

13. (MENU)

THE PLAYER

Inhaltsverzeichnis

Andere Boss Audio Systems Auto-Videosystem Handbücher

Boss Audio Systems

Boss Audio Systems BV7950 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Vision BVT5.6 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV650M Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7FL Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR7BLK Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.4FB Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9.2F Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV8250 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7.2FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9980 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV10.4FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems Road Show RS70DVDT Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems HIR8BGTM Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7986 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2500 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7350T Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems 14.1 FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV11.2MC Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV15.3FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV7980 Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9567BI Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV9979B Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV13FLIP Bedienungsanleitung

Boss Audio Systems

Boss Audio Systems BV2000 Bedienungsanleitung

Beliebte Auto-Videosystem Handbücher anderer Marken

Stinger

Stinger HEIGH10 RB10RAM13B Bedienungsanleitung

Eonon

Eonon E1057 Bedienungsanleitung

Milion

Milion D2223 Bedienungsanleitung

Metra Electronics

Metra Electronics 99-8153 Bedienungsanleitung

Voxx Electronics

Voxx Electronics HR8MA1 Bedienungsanleitung

Axxera

Axxera AV604Bi Bedienungsanleitung

Clarion

Clarion NX706E Bedienungsanleitung

Pyle view

Pyle view PLDN74BTi Bedienungsanleitung

Clarion

Clarion NX602 Bedienungsanleitung

PowerAcoustik

PowerAcoustik PTID-5850N Bedienungsanleitung

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Benutzerhandbuch

Lanzar

Lanzar SVDVD5 Bedienungsanleitung

Kia

Kia MTXM100YPPE Bedienungsanleitung

Eonon

Eonon E1060 Bedienungsanleitung

Macrom

Macrom M-AN900 Bedienungsanleitung

Hyundai

Hyundai BAPE-L3000N Bedienungsanleitung

r.LiNK

r.LiNK RL2-UCON8-SM Bedienungsanleitung

Blaupunkt

Blaupunkt DVP 01C Bedienungsanleitung
