Boston Acoustics PV500 Bedienungsanleitung

Powered Subwoofer

PV500

Important Safety Instructions

This symbol found on the apparatus indicates hazards arising from dangerous

voltages.

This symbol found on the apparatus indicates the user should read all safety state-

ments found in the user manual.

This symbol found on the apparatus indicates double insulation.

WARNING! To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer's

instructions.

8. Do not install near any heat sources such

as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug. A polarized

plug has two blades with one wider than the

other. A grounding type plug has two blades

and a third grounding prong. The wide blade or

the third prong are provided for your safety. If

the provided plug does not fit into your outlet,

consult an electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at plugs,

convenience receptacles, and the point where

they exit from the apparatus.

11. Only use attachments/accessories

specified by the manufacturer.

12. Unplug this apparatus during lightning

storms or when unused for long periods of time.

13. Refer all servicing to qualified service

personnel. Servicing is required when the

apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid

has been spilled or objects have fallen into the

apparatus, the apparatus has been exposed to

rain or moisture, does not operate normally, or

has been dropped.

14. Maintain a minimum distance of 50 mm

around the front, rear and sides of the

apparatus for sufficient ventilation. The

ventilation should not be impeded by covering

the ventilation openings or placing on or

around the apparatus items such as

newspapers, table-cloths, curtains, etc.

15. No naked flame sources, such as lighted

candles, should be placed on the apparatus.

16 The apparatus shall not be exposed to

dripping or splashing. No objects filled with

liquids, such as vases, shall be placed on the

apparatus.

17. The apparatus is suitable for use in

tropical and/or moderate climates.

Description

Boston’s PV500 subwoofer delivers the dynamic bass foundation that is essential for lifelike reproduction of movie

soundtracks and music in the home. This attractive, powered subwoofer will complement any stereo or home theater

surround sound system with its impressive bass output and compact size.

This subwoofer utilizes our rugged DCD™ (Deep Channel Design) bass unit designed in Boston’s state-of-the-art

engineering facility in Peabody, Massachusetts. Every one is tested as it comes off the line to be within ±1dB of the lab

reference unit, an incredibly tight tolerance. The amplifier has a built-in variable crossover that makes it easy to achieve a

seamless blend with the main speakers, while a 24dB/octave low-pass filter prevents the subwoofer from being easily

localized by ear, increasing placement flexibility. A crossover bypass function is provided for use with home theater

electronics that perform their own bass management.

Because of its high-powered amplifier and computer-optimized tuning, the PV500 is capable of impressive deep bass

and high output from a remarkably compact enclosure. In addition, it features BassTrac®, a proprietary Boston-designed

circuit that tracks the input signal to the subwoofer and prevents its amplifier from being driven into audible distortion.

The benefit: The bass stays clean and strong at any listening level.

Auto on-off amplifier switching and easily accessible controls make the PV500 subwoofer as convenient to use as it is

exciting to listen to.

Specifications

Frequency Response (±3dB) 38Hz–180Hz

Subwoofer Amplifier Power Nominal: 100 watts RMS @ 1% THD maximum

FTC Rated Power: 85 watts from 38-180Hz at less than 1% THD

Subwoofer Crossover 75–150Hz

24dB/octave low-pass

LFE Input Yes

Crossover Bypass Yes

Bass Unit 10" (254mm) DCD

down-firing

Enclosure Type Single ported

Dimensions (HxWxD) 131/4 x 121/4 x 153/4"

(with feet and rear connectors) (337 x 310 x 400mm)

Weight 28.5 lbs (12.8kg)

Finish Charcoal grey and black vinyl veneer

Connections

NOTE: Power is always supplied to the subwoofer electronics unless it is unplugged.

The auto-on circuitry only activates or deactivates the power amplifier. Make sure your subwoofer and receiver are

unplugged when making the connection.

Line level: Use one of the “line level in” jacks with most systems. These inputs accept the line level signal from your

receiver’s subwoofer output. When using the “use crossover control” input, the subwoofer’s circuitry filters out the high

frequencies and sends the remaining low frequencies to the subwoofer power amplifier.

Speaker level: Use these high-level terminals with receivers that do not have subwoofer output. The speaker inputs

accept both left and right channel speaker signals from your receiver.

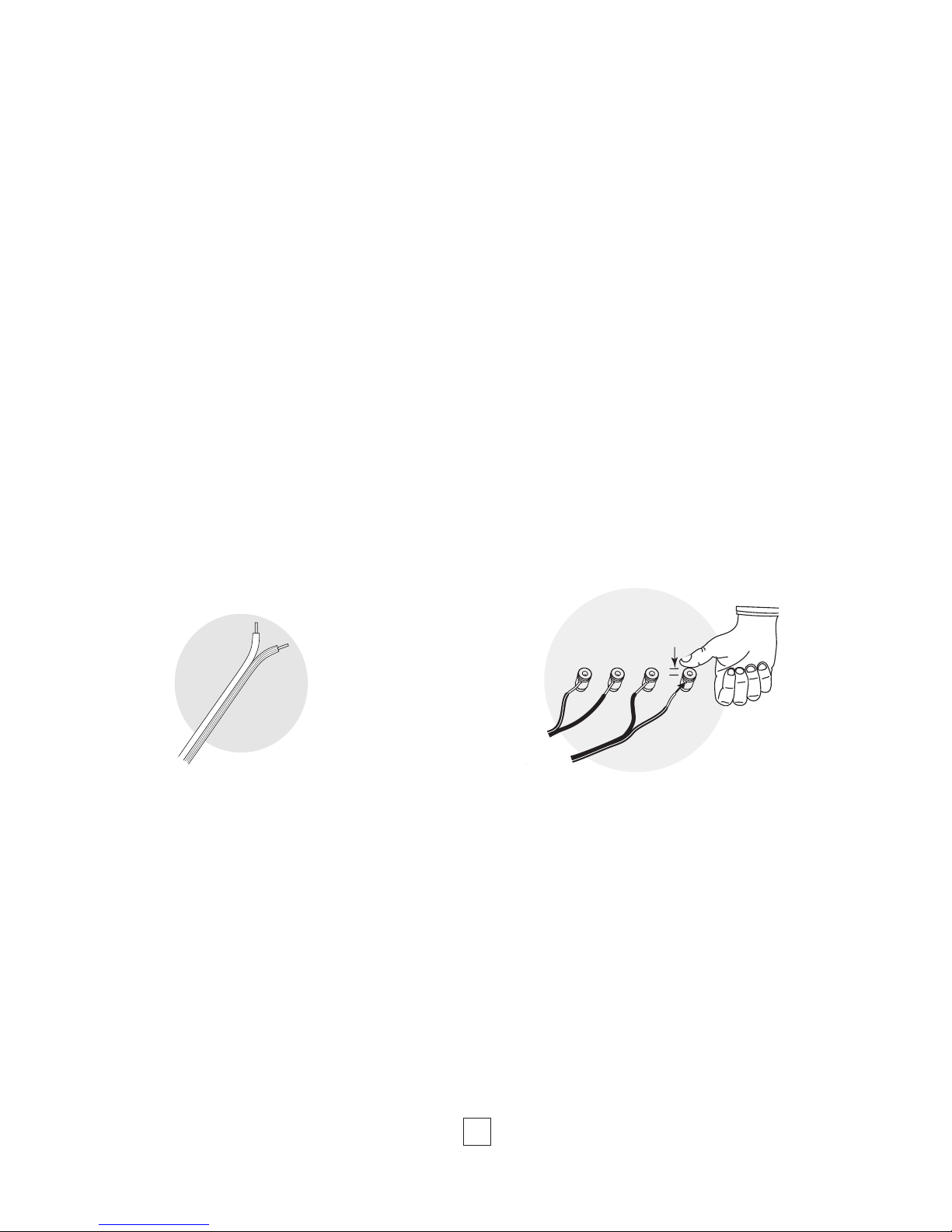

How to Connect Using the Speaker Terminals

We recommend 18-gauge wire or thicker for runs up to 15 feet (4.5m), and 16-gauge wire or thicker for longer runs.

Separate the first few inches of the wire conductors. Strip off 1⁄2-inch (13mm) of insulation from the ends of each speaker

wire to expose the two conductors and tightly twist the wire strands.

WARNING: To prevent electrical shock hazard, always switch off the amplifier or receiver when making connections to

the speaker.

When making all connections, be sure to connect the +(red) on the speaker to the +(red) on the amplifier, and

the –(black) on the speaker to the –(black) on the amplifier.

IMPORTANT: Typically, one side of the wire is

smooth. Connect this side to the –(black) connection.

The other side has a rib or stripe. Connect this to the

+(red) connection.

Using the spring terminal posts: The spring

terminal posts permit easy connection to banana

plugs, spade lugs, and bare wire.

Push the the top of the terminal down by

approximately 1⁄4-inch (6mm), exposing the hole.

Insert the wire in the hole and release the termi-

nal.

1/4"

+ ––+

–

use

crossover

control *

T 1.5A L 250V

CAUTION: Disconnect supply cord

before replacing fuse. For continued

protection against risk of fire, replace only

with same type fuse.

ATTENTION: Debrancher avant de

remplacer le fusible. Utiliser un fusible de

rechange de même type.

120V ~ 60Hz 1.25A

bypass

crossover

control **

100 125

150

* use crossover control: removes high

frequencies; use with sources lacking suitable

filtering (most products without Dolby Digital

or THX), or where manual control is desired.

crossover (Hz)

power

0º

180 º

polarity

left right

speaker level in

PowerVent Powered Subwoofer

line level in

** bypass crossover control: direct to woofer;

use with sources having built-in crossover

controls or bass management (most products

with Dolby Digital or THX).

C US

PV500

Featuring BassTrac®

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

use

crossover

control *

T 1.5A L 250V

CAUTION: Disconnect supply cord

before replacing fuse. For continued

protection against risk of fire, replace only

with same type fuse.

ATTENTION: Debrancher avant de

remplacer le fusible. Utiliser un fusible de

rechange de même type.

120V ~ 60Hz 1.25A

bypass

crossover

control **

100 125

150

* use crossover control: removes high

frequencies; use with sources lacking suitable

filtering (most products without Dolby Digital

or THX), or where manual control is desired.

crossover (Hz)

power

0º

180 º

polarity

left right

speaker level in

PowerVent Powered Subwoofer

line level in

** bypass crossover control: direct to woofer;

use with sources having built-in crossover

controls or bass management (most products

with Dolby Digital or THX).

C US

PV500

Featuring BassTrac®

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

BACK OF RECEIVER

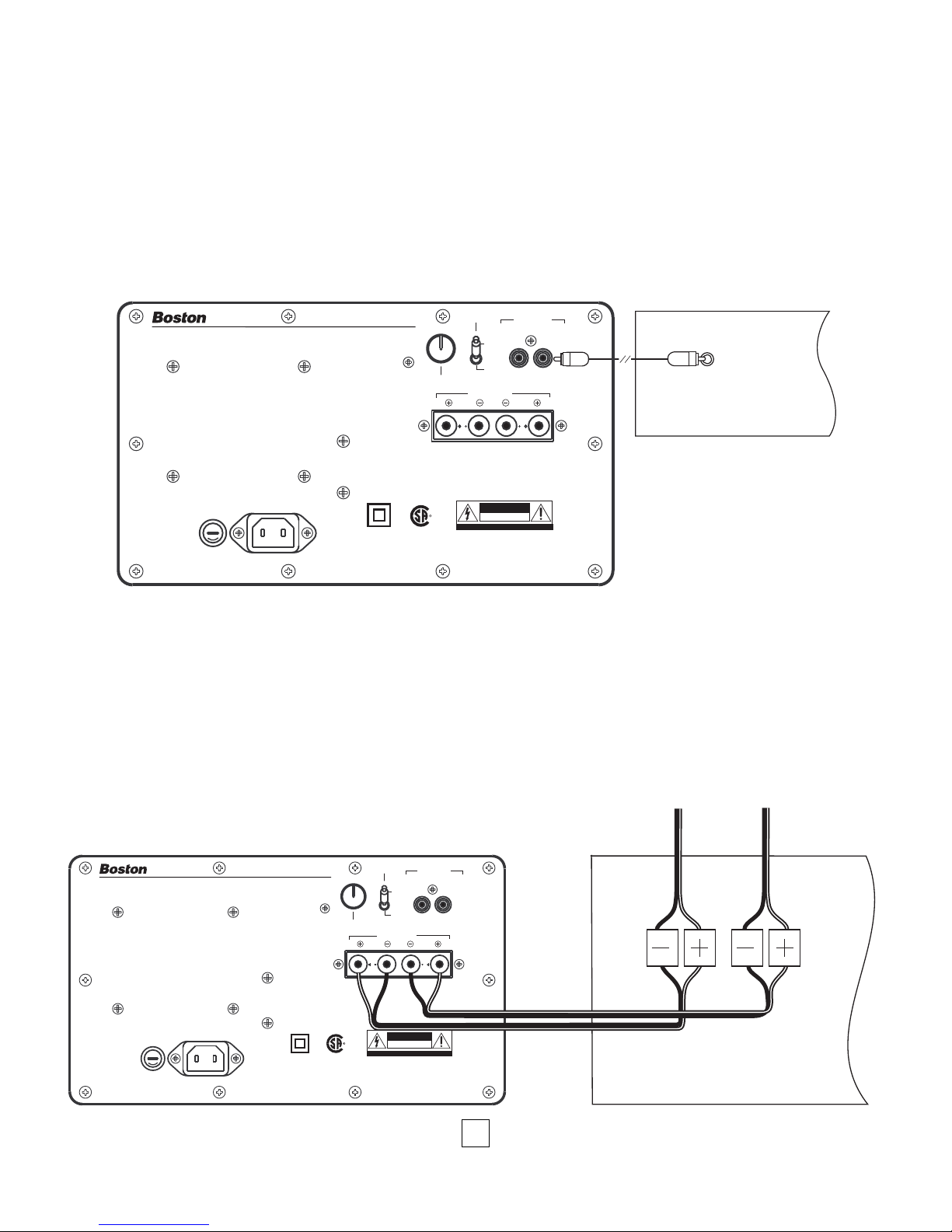

Connecting the Subwoofer to Digital Home Theater Systems

Digital 5.1, 6.1 and 7.1 home theater electronics dedicate one channel (the “.1”) to reproduce the special

low-frequency (LFE) information (such as explosions and thunder) contained in digitally-encoded soundtracks.

Select ”subwoofer-yes“ from your receiver’s set-up menu. Hooked up this way, the receiver’s amplifier is relieved of

having to reproduce the difficult low bass signals that can drive the receiver into audible distortion.

Use an RCA cable (not included), as shown, to connect your digital receiver’s subwoofer output to the subwoofer.

Connect the other end to the PV500 jack labeled “bypass crossover control” underneath “line level in”.

Be sure to connect +to +(red) and –to –(black).

If you do not wish to run RCA cables to your subwoofer, you may use speaker wire to connect the subwoofer in parallel

with your main speakers (see diagram below). The subwoofer does not present any additional load to your receiver.

Select “subwoofer-no” from your receiver’s set-up menu. This sends the LFE signal to the main left and right speakers,

and thus, to the subwoofer. Consult your receiver’s owner’s manual for more details.

When using the speaker wire hookup, the subwoofer’s built-in crossover is engaged. As a starting point, set the

crossover control on the subwoofer about 10Hz higher than the lower limit of your main speakers’ bass response (for

Boston Acoustics front speakers, refer to the included “Optimal Crossover Settings...”sheet). Fine-tune the crossover

setting by ear for the smoothest blend with your main speakers. The best setting of the crossover control will depend on

speaker placement and personal preference.

SUBWOOFER OUT

BACK OF RECEIVER

left right

front

speakers

to main

speakers

use

crossover

control *

T 1.5A L 250V

CAUTION: Disconnect supply cord

before replacing fuse. For continued

protection against risk of fire, replace only

with same type fuse.

ATTENTION: Debrancher avant de

remplacer le fusible. Utiliser un fusible de

rechange de même type.

120V ~ 60Hz 1.25A

bypass

crossover

control **

100 125

150

* use crossover control: removes high

frequencies; use with sources lacking suitable

filtering (most products without Dolby Digital

or THX), or where manual control is desired.

crossover (Hz)

power

0º

180 º

polarity

left right

speaker level in

PowerVent Powered Subwoofer

line level in

** bypass crossover control: direct to woofer;

use with sources having built-in crossover

controls or bass management (most products

with Dolby Digital or THX).

C US

PV500

Featuring BassTrac®

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

AVIS: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR

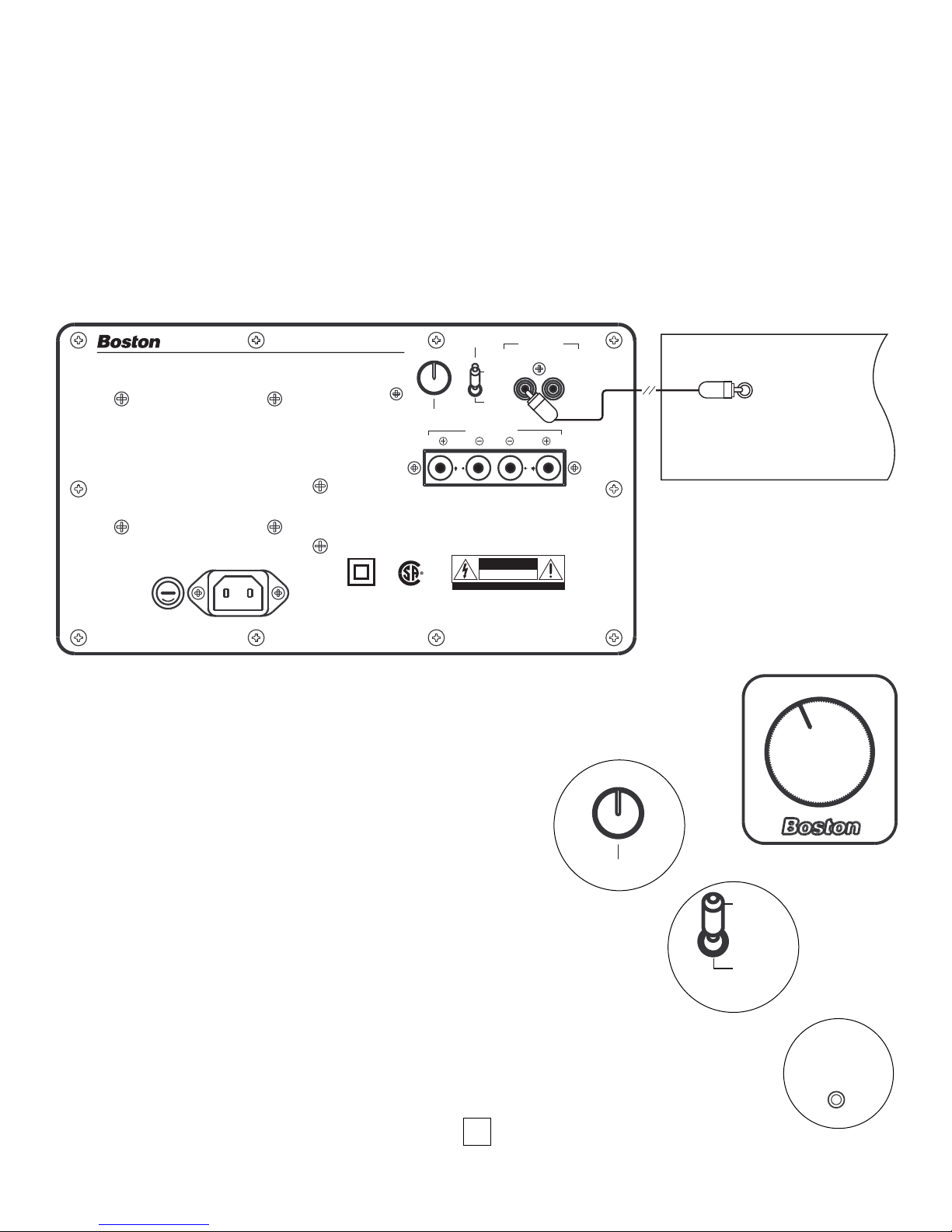

Controls

Volume (on front panel): Adjusts the sound level of the subwoofer. A typical setting is around

11 o’clock.

Crossover (Hz): Adjusts the frequency of the low-pass filter for the

subwoofer. This control is inactive when using the “bypass crossover

control” input jack.

Polarity (0° or 180°): Selects regular (0°) or inverted (180°) polarity for the subwoofer.

Set this switch to provide the fullest, most dynamic bass. The effect of phase will be

most audible on low-frequency percussion instruments or music with a continuously

repeating bass line.

Power light and power status: The power light turns on whenever the PV500 is plugged into an

electrical outlet. The PV500’s auto-on circuitry turns the subwoofer on when a signal is presented, and

turns it off if no signal is detected. NOTE: Power is always supplied to the subwoofer electronics unless

it is unplugged. The auto-on circuitry only activates or deactivates the power amplifier.

Connecting the Subwoofer to Stereo or Dolby®Pro Logic®Systems

For stereo or Dolby Pro Logic systems, the easiest method is to use the same speaker wire connections as shown on page 5.

You may also use the “sub out” connection from your receiver to the input on the subwoofer marked use crossover

control. When using speaker wire or the use crossover control input, the subwoofer’s built-in crossover is engaged. As a

starting point, set the crossover control on the subwoofer about 10Hz higher than the lower limit of your main speakers’

bass response (for Boston Acoustics front speakers, refer to the included “Optimal Crossover Settings...”sheet). Fine-

tune the crossover setting by ear for the smoothest blend with your main speakers. The best setting of the crossover

control will depend on speaker placement and personal preference.

BACK OF RECEIVER

SUBWOOFER OUT

100 125

150

crossover (Hz)

0º

180 º

polarity

power

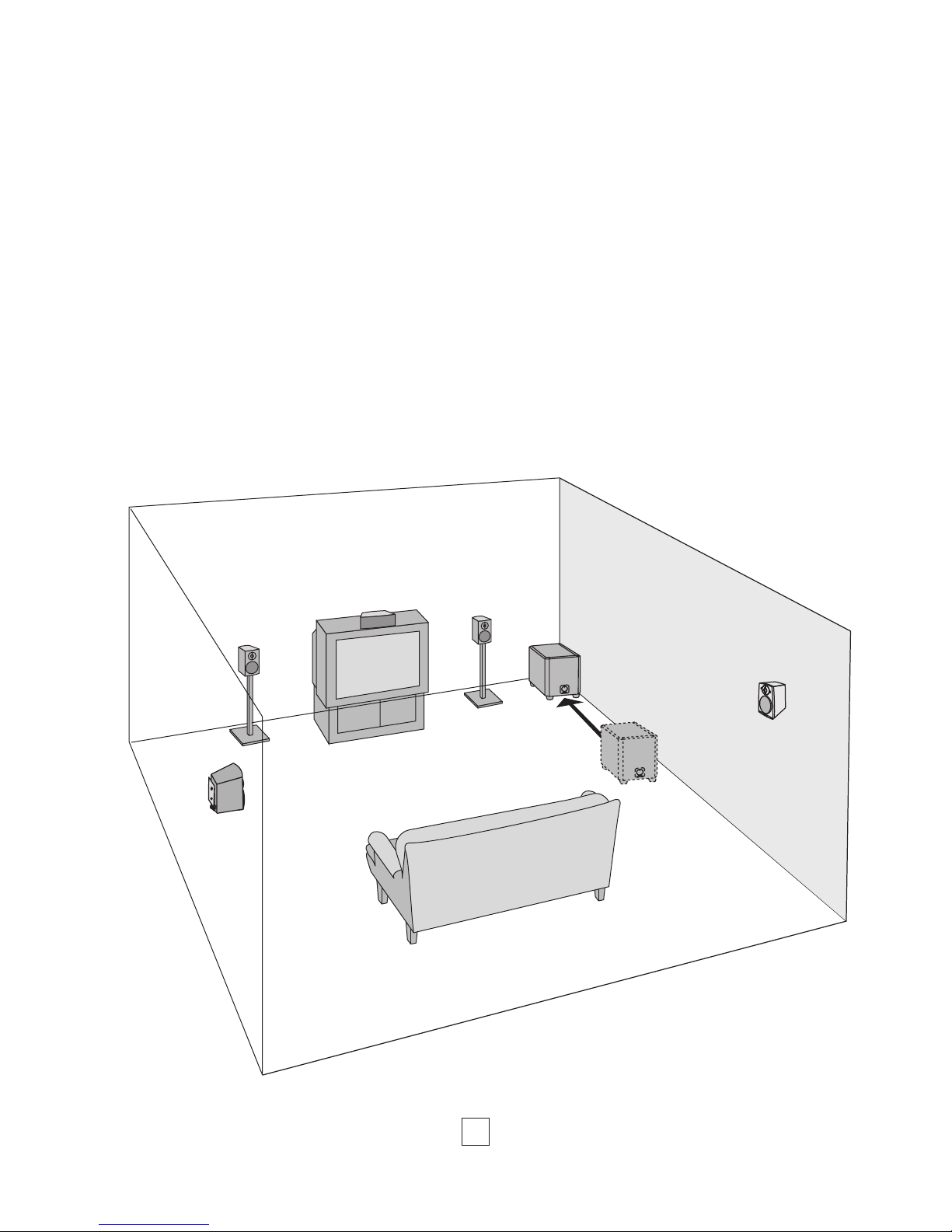

Placement

Place the subwoofer next to a wall or in a corner near your main speakers. Typically, the sound is best when the subwoofer

is within 15 feet (5m) of the main speakers. However, the sharp 24dB/octave crossover roll-off permits placement farther

from the main speakers if necessary. Since the ear is unable to localize the low frequencies of the subwoofer, the bass still

appears to come from the main speakers. In most cases, the subwoofer may be placed anywhere in the listening room.

The level of bass output from the subwoofer will vary at different positions in a room. When placed near walls, its loudness

is emphasized. Corner placement provides the most bass output, while placement near only one wall will provide some-

what less bass. Placement completely away from walls may produce too little bass. Regardless of how you place the sub-

woofer, you can adjust the subwoofer’s level with its volume control. If you move the subwoofer, recheck the setting of the

polarity switch. Use the setting that yields the louder and more dynamic sound.

IMPORTANT: Do not place the subwoofer where there is a chance of contact between the rear panel and drapes or

furniture. Avoid obstructing air flow to the back.

Position PV500 in corner

for maximum bass output

DCD is a trademark and BassTrac, Boston and Boston Acoustics are

registered trademarks of Boston Acoustics, Inc. Dolby and Dolby Pro Logic

are registered trademarks of Dolby Laboratories Licensing Corporation.

Specifications subject to change without notice.

300 Jubilee Drive

Peabody, MA 01960 U.S.A.

978.538.5000

www.bostonacoustics.com

042-001578-1

Limited Warranty

For one year from the date of purchase, Boston Acoustics will repair for the original owner any defect in materials

or workmanship that occurs in normal use of the subwoofer, without charge for parts and labor.

Your responsibilities are to use the system according to the instructions supplied, to provide

safe and secure transportation to an authorized Boston Acoustics service representative, and to present proof of

purchase in the form of your sales slip when requesting service.

Excluded from this warranty is damage that results from abuse, misuse, accidents, shipping,

or repairs or modifications by anyone other than an authorized Boston Acoustics service

representative.

This warranty is void if the serial number has been removed or defaced.

This warranty gives you specific legal rights, and you may also have other rights which vary

from state to state.

If Service Seems Necessary

First, contact the dealer from whom you purchased the PV500. If that is not possible, write to:

Customer Service

Boston Acoustics, Inc.

300 Jubilee Drive

Peabody, MA 01960 U.S.A.

Or visit our web site at:

www.bostonacoustics.com

We will promptly advise you of what action to take. If it is necessary to return your unit to the factory, please ship it

prepaid. After it has been repaired, we will return it freight prepaid in the U.S. and Canada.

Inhaltsverzeichnis

Andere Boston Acoustics Subwoofer Handbücher

Boston Acoustics

Boston Acoustics Designer VRiSub85 Bedienungsanleitung

Boston Acoustics

Boston Acoustics TVee 26 Bedienungsanleitung

Boston Acoustics

Boston Acoustics Vri In-Wall Subwoofer VRiSub82 VRiSub82 Bedienungsanleitung

Boston Acoustics

Boston Acoustics BT1100 Bedienungsanleitung

Boston Acoustics

Boston Acoustics G110 Bedienungsanleitung

Boston Acoustics

Boston Acoustics XB2 Bedienungsanleitung

Boston Acoustics

Boston Acoustics PowerVent PV1000 Bedienungsanleitung

Boston Acoustics

Boston Acoustics 10.5LF Bedienungsanleitung

Boston Acoustics

Boston Acoustics XB6 Bedienungsanleitung

Boston Acoustics

Boston Acoustics XB4 Bedienungsanleitung

Boston Acoustics

Boston Acoustics Generator GS210 Bedienungsanleitung

Boston Acoustics

Boston Acoustics SoundWare Sub Bedienungsanleitung

Boston Acoustics

Boston Acoustics BT1100 Benutzerhandbuch

Boston Acoustics

Boston Acoustics VPS 210 Betriebsanleitung

Boston Acoustics

Boston Acoustics G1 Bedienungsanleitung

Boston Acoustics

Boston Acoustics SUB10F Bedienungsanleitung

Boston Acoustics

Boston Acoustics XB8 Bedienungsanleitung

Boston Acoustics

Boston Acoustics HPS 10SE Bedienungsanleitung

Boston Acoustics

Boston Acoustics PowerVent PV400 Bedienungsanleitung

Boston Acoustics

Boston Acoustics Designer VRiSub85 Bedienungsanleitung

Boston Acoustics

Boston Acoustics G310 Bedienungsanleitung

Boston Acoustics

Boston Acoustics CPS 10Wi Bedienungsanleitung

Boston Acoustics

Boston Acoustics SPG555 Bedienungsanleitung

Boston Acoustics

Boston Acoustics G110 Bedienungsanleitung

Beliebte Subwoofer Handbücher anderer Marken

Sony

Sony XS-AW8 Bedienungsanleitung

Sony

Sony XS-L836 Bedienungsanleitung

B&C Speakers

B&C Speakers 15 HPL 76W Bedienungsanleitung

Velodyne

Velodyne DD-18+ Bedienungsanleitung

Sonance

Sonance Cinema Series SUB 10-150 Bedienungsanleitung

Hifonics

Hifonics HW-12 Kurzanleitung

Magnat Audio

Magnat Audio ADR 130 BP Bedienungsanleitung

Blitz

Blitz BZP106 Bedienungsanleitung

Technics

Technics SB-AS500 Bedienungsanleitung

Lyngdorf

Lyngdorf BW-2 Bedienungsanleitung

Lyngdorf

Lyngdorf BW-3 Bedienungsanleitung

Pyle Pro

Pyle Pro PYLE PRO PDW15125 Bedienungsanleitung

REL Acoustics

REL Acoustics Q Series Bedienungsanleitung

Pioneer

Pioneer Elite S-W1EX Bedienungsanleitung

L-Acoustics

L-Acoustics KIVA SB15M Kurzanleitung

B&C Speakers

B&C Speakers Woofer 12 HPL 76 Bedienungsanleitung

KEF

KEF KUBE 200 Bedienungsanleitung

Yamaha

Yamaha SW500 Bedienungsanleitung
