Boya BY-M3D Bedienungsanleitung

BY-M3D

User Manual • Uživatelský manuál •

Užívateľský manuál • Használati utasítás •

Benutzerhandbuch

Dear customer,

Thank you for purchasing our product. Please read the following instructions carefully

before first use and keep this user manual for future reference. Pay particular attention

to the safety instructions. If you have any questions or comments about the device,

please contact the customer line.

✉www.alza.co.uk/kontakt

✆+44 (0)203 514 4411

Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Instruction

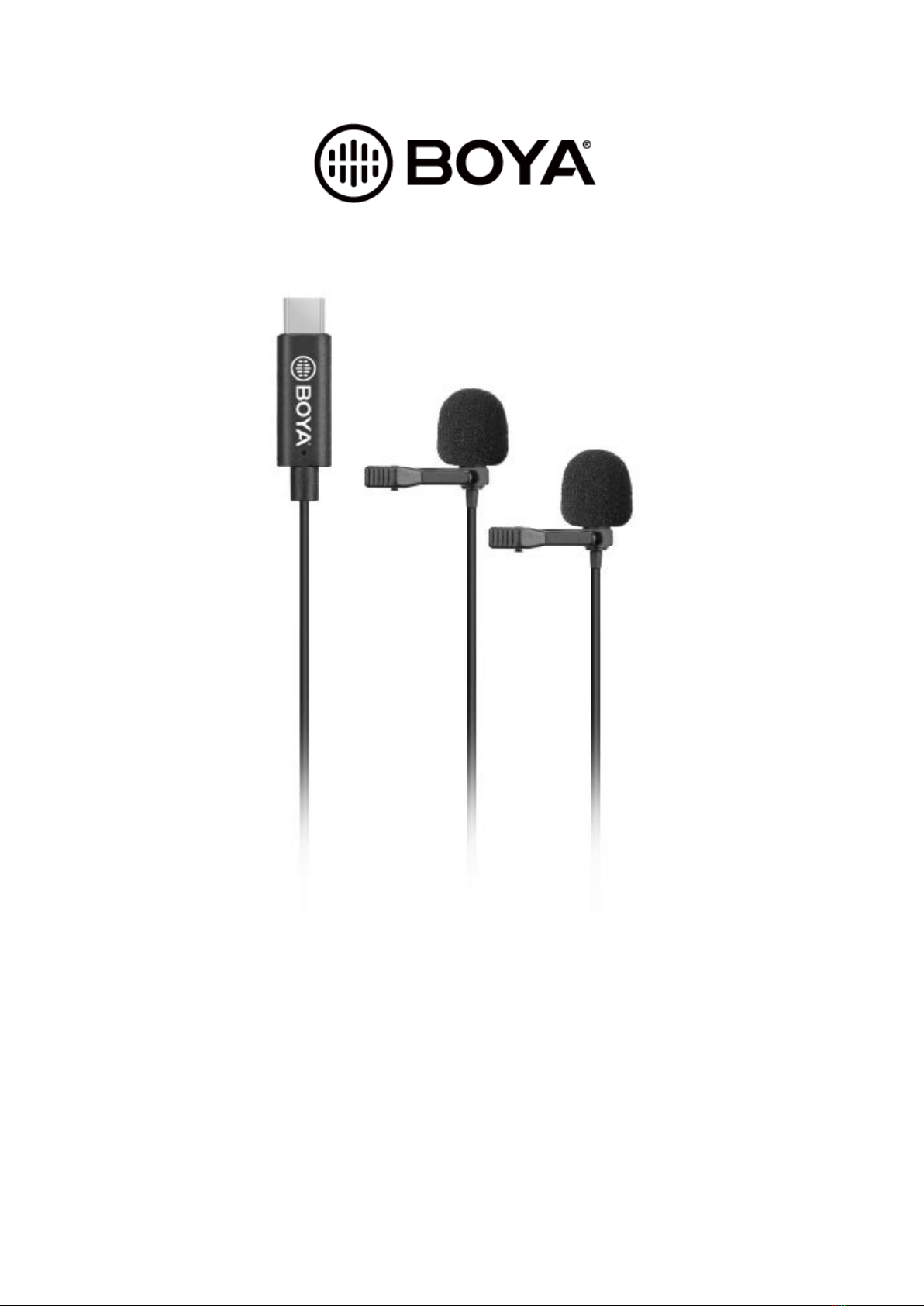

Designed for recording interviews, the BOYA BY-M3D is a digital USB Type-C microphone

and comprised of two well-received omnidirectional condenser lavalier microphones,

which is specially designed for Android devices ant other devices with Type-C connector,

such as iPad Pro, Mac PC.

With 16 bits/48kHz resolution and each microphone recording to a separate channel

features, it is ideal for presentations, podcasts, webcasts, or any situation where one or

two subjects needs to be recorded.

The package included the tie clips allow for hands-free operation while the windscreens

help ensure quiet professional-quality recordings.

Components

1) USB Type-C connector

2) Microphone

3) Clothing clip

4) Foam windscreen

NOTE:

Not all Android applications can support USB external microphone when you take a video, and

you may need to download a third-party application to use this feature.

Package contents

•BY-M3D dual lapel microphone

•Foam windscreen

•Clothing clip

•Velcro

•Carrying pouch

•User manual

How to use BY-M3D with the mobile devices

1) Connect BY-M3 to your mobile devices

2) Mounting the microphone to your Clothing

Attach the microphone to the front of your clothing with the clothing clip, about 20cm (8

inches) from your face.

Attach the microphone upside down to reduce excessive breath noises and tonal

inconsistencies due to head movements.

It is recommended that you always use the foam wind screen to avoid wind noise, even

when recording inside.

3) Turn on the video / audio application and start the recording

Features

•Dual-lapel design, allows 2 people to use at the same time

•Omnidirectional polar pattern

•Compatible with most of Type-C devices

•6 meters long cable, comfortably adapter to various environments

•16 bits/48kHz digital resolution

•Low handing noise

•Each mic routes to left channel and right channel

•Powered by USB Type-C devices

Specifications:

Connector:

Type-C (USB-IF certified)

Sensitivity:

-40dB±3dB (0dB=1V/Pa, at 1kHz)

Polar Pattern:

Omnidirectional

Signal to Noise Ratio:

76dB or more

Bit Rate:

16Bit

Sampling Rates:

48 kHz

Frequency Response:

50Hz-20kHz

Power Requirement:

Via Type-C devices

Cable length:

6m (19,7’)

Weight:

78.5g (2.8oz)

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you

need repair or other services during the warranty period, contact the product seller

directly, you must provide the original proof of purchase with the date of purchase.

The following are considered to be a conflict with the warranty conditions, for

which the claimed claim may not be recognized:

•Using the product for any purpose other than that for which the product is intended

or failing to follow the instructions for maintenance, operation and service of the

product.

•Damage to the product by a natural disaster, the intervention of an unauthorized

person or mechanically through the fault of the buyer (e.g. during transport, cleaning

by inappropriate means, etc.).

•Natural wear and aging of consumables or components during use (such as

batteries, etc.).

•Exposure to adverse external influences, such as sunlight and other radiation or

electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,

electrostatic discharge voltage (including lightning), faulty supply or input voltage and

inappropriate polarity of this voltage, chemical processes such as used power

supplies, etc.

•If anyone has made modifications, modifications, alterations to the design or

adaptation to change or extend the functions of the product compared to the

purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer's / importer's authorized representative:

Importer: Alza.cz a.s.

Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7

IČO: 27082440

Subject of the declaration:

Title: Microphone

Model / Type: BY-M3D

The above product has been tested in accordance with the standard(s) used to

demonstrate compliance with the essential requirements laid down in the

Directive(s):

Directive No. (EU) 2014/30/EU

Directive No. 2011/65/EU as amended 2015/863/EU

Prague, 23.11.2020

WEEE

This product must not be disposed of as normal household waste in accordance with

the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).

Instead, it shall be returned to the place of purchase or handed over to a public

collection point for the recyclable waste. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product. Contact your local authority or the nearest collection point for further

details. Improper disposal of this type of waste may result in fines in accordance with

national regulations.

Vážený zákazníku,

Děkujeme vám za zakoupení našeho produktu. Před prvním použitím si prosím pečlivě

přečtěte následující pokyny a tento manuál si uschovejte pro budoucí použití. Věnujte

zvláštní pozornost bezpečnostním pokynům. Pokud máte jakékoliv dotazy nebo

připomínky k produktu, kontaktujte zákaznickou linku.

✉www.alza.cz/kontakt

✆+420 255 340 111

Dovozce: Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Popis

BOYA BY-M3D, navržený pro nahrávání rozhovorů, je digitální mikrofon USB typu C a

skládá se ze dvou dobře přijímaných všesměrových kondenzátorových lavalierových

mikrofonů, které jsou speciálně navrženy pro zařízení Android a jiná zařízení s

konektorem typu C, jako je iPad Pro. , Mac PC.

Díky rozlišení 16 bitů / 48 kHz a záznamu každého mikrofonu do samostatných funkcí

kanálu je ideální pro prezentace, podcasty, webové vysílání nebo jakoukoli situaci, kdy je

třeba zaznamenat jeden nebo dva subjekty.

Součástí balení jsou spony na oblečení, které umožňují hands-free provoz, zatímco

pěnové kryty pomáhají zajistit tiché záznamy v profesionální kvalitě.

Komponenty

1) USB Typ-C konektor

2) Mikrofon

3) Spona na oblečení

4) Pěnový kryt

POZNÁMKA:

Ne všechny aplikace pro Android mohou při pořizování videa podporovat externí mikrofon USB a

pro použití této funkce si možná budete muset stáhnout aplikaci jiného výrobce.
