B+K precision 0-30V Bedienungsanleitung

INSTRUCTION

MANUAL

El Manual de la Instrucción

Manual de Instruccion

MODEL 1735A

MODELO 1735A

0-30V, 0-3A

DC POWER SUPPLY

With Dual 4-Digit LED Displays

Fuente de poder DC

Con doble LED indicador

TEST INSTRUMENT SAFETY

WARNING

Normal use of test equipment exposes you to a certain amount of danger from electrical shock because testing must sometimes be

performed where exposed high voltage is present. An electrical shock causing 10 milliamps of current to pass through the heart will stop

most human heartbeats. Voltage as low as 35 volts dc or ac rms should be considered dangerous and hazardous since it can produce a

lethal current under certain conditions. Higher voltages are even more dangerous. Your normal work habits should include all accepted

practices to prevent contact with exposed high voltage, and to steer current away from your heart in case of accidental contact with a

high voltage. Observe the following safety precautions:

1. There is little danger of electrical shock from the dc output of this power supply. However, there are several other possible test

conditions using this power supply that can create a high voltage shock hazard:

a.If the equipment under test is the “hot chassis” type, a serious shock hazard exists unlessthe equipment is unplugged (just turning

off the equipment does not remove the hazard), or an isolation transformer is used.

b. If the equipment under test is “powered up” (and that equipment uses high voltage in any of its circuits), the power supply outputs

may be floated to the potential at the point of connection. Remember that high voltage may appear at unexpected points in

defective equipment. Do not float the power supply output to more than 100 volts peak with respect to chassis or earth ground.

c.If the equipment under test is “off” (and that equipment uses high voltage in any of its circuits under normal operation), discharge

high-voltage capacitors before making connections or tests. Some circuits retain high voltage long after the equipment is turned

off.

2. Use only a polarized 3-wire ac outlet. This assures that the power supply chassis, case, and ground terminal are connected to a good

earth ground and reduces danger from electrical shock.

3. Don’t expose high voltage needlessly. Remove housings and covers only when necessary. Turn off equipment while making test

connections in high-voltage circuits. Discharge high-voltage capacitors after removing power.

(continued on inside back cover)

Instruction Manual

for

Model 1735A

0-30 V, 0-3 A

DC POWER SUPPLY

With Dual LED Display

22820 Savi Ranch Parkway

Yorba Linda, CA 92887

www.bkprecision.com

TABLE OF CONTENTS

Page

TEST INSTRUMENT SAFETY ----------------inside front cover

INTRODUCTION------------------------------------------------------5

FEATURES -------------------------------------------------------------6

SPECIFICATIONS ----------------------------------------------------7

CONTROLS AND INDICATORS----------------------------------9

OPERATING INSTRUCTIONS---------------------------------- 11

Safety Precautions--------------------------------------------------11

Equipment Precautions--------------------------------------------11

Hook-Up -------------------------------------------------------------11

Typical Constant Voltage Operation -------------------------- 14

Setting Current Limit ----------------------------------------------15

Typical Constant Current Operation--------------------------- 16

Constant Voltage/Constant Current Characteristic----------17

ConnectingTwo Power Supplies in Series------------------- 17

Connecting Two Power Supplies in Parallel------------------20

Page

APPLICATIONS----------------------------------------------------21

General--------------------------------------------------------------21

Electronics Servicing --------------------------------------------21

Electronics Manufacturing--------------------------------------21

Electronics Design Lab------------------------------------------22

Electronics Education--------------------------------------------22

Battery Charging--------------------------------------------------22

MAINTENANCE----------------------------------------------------23

Fuse Replacement ------------------------------------------------23

Line Voltage Conversion----------------------------------------23

Adjustments--------------------------------------------------------23

1735A Calibration ------------------------------------------------26

Instrument Repair Service --------------------------------------25

WARRANTY SERVICE INSTRUCTIONS--------------------27

LIMITED TWO-YEAR WARRANTY--------------------------28

SPANISH MANUAL-----------------------------------------------30

INTRODUCTION

The

B+K Precision

Model

1735A

DC Power Supply is a high

quality, general purpose dc power source. It provides 0-30 volts

dc output, adjustable with both coarse and fine voltage controls

for precise settability. The current output is 0-3 amps, adjustable

with both coarse and fine current controls. Two large LED

meters continuously monitor the output voltage and current. The

VOLTAGE meter is green, while the CURRENT meter is red.

The Model 1735A exhibits excellent regulation and low ripple

characteristics. The circuit design incorporates a pre-regulator,

which greatly reduces internal power dissipation at low output

voltages. The styling is both attractive and functional. The

mechanical configuration conserves bench space and allows for

easy portability.

This instrument may be used in constant voltage or constant

current applications. The crossover from constant voltage to

constant current modes is smooth and automatic. LED’s indicate

the “CV” (constant voltage) or “CC” (constant current) mode of

operation. In constant voltage applications, a current limit may

be preset. When load variations cause the current to reach the

preset limit, the unit then regulates output current rather than

output voltage.

Current limits are adjustable from 5% to 100% of maximum.

In constant current applications, the maximum voltage may

be preset. When load variations cause current to drop below

the regulated value, the unit reverts to regulated voltage

operation at the preset value.

Reverse polarity protection prevents accidental damage to

the power supply from improper connection to an external

voltage, and current limiting protects the equipment being

powered, as well as the power supply.

The output is isolated from chassis and earth ground,

which permits full flexibility of connections. When needed,

the (+) or (-) polarity may be strapped to ground, or either

polarity may be floated to an external voltage. Two supplies

may be connected in series as a 0-to-60 volt power source, or

two supplies may be connected in parallel, with suitable

balancing resistors, for up to twice the output current.

This power supply is well suited for a wide variety of

electrical and electronics applications, including service

shops, engineering labs, production testing, school

laboratories, and home use by hobbyists.

FEATURES

30 VOLTS

Continuously variable over 0-to-30 volt range with coarse and fine

controls.

0-3 AMPS

0-to-3 amp current rated for continuous duty at full output current.

Coarse and fine current adjust controls.

LABORATORY QUALITY

Excellent regulation, low ripple.

CONSTANT VOLTAGE OR CONSTANT CURRENT

Provides regulated dc voltage output or regulated dc current output.

Crossover is smooth and automatic.

LED DISPLAYS

Two large, easy-to-read LED digit displays monitors output voltage

and output current, and provides good visibility in bright or low

light.

LED INDICATORS

Act as pilot light and identify mode of operation and

metering.

PRE-REGULATOR

Limits internal dissipation for higher reliability.

ISOLATED OUTPUT

Either polarity may be floated or grounded.

OVERLOAD PROTECTION

Fully adjustable current limiting (from 5% to 100% of

maximum output current) protects circuit under test and the

power supply.

REVERSE POLARITY PROTECTION

Prevents damage to power supply from external voltage of

reverse polarity.

STYLING

Modern functional styling. Configuration conserves bench

space and aids portability. Logical, convenient layout of

controls.

SPECIFICATIONS

OUTPUT VOLTAGE:

0 to 30

VDC, coarse and fine

adjustment.

OUTPUT CURRENT: 0 to 3A, coarse and fine adjustment.

CONSTANT VOLTAGE OPERATION

Voltage Regulation

Line (108-132 V): 0.01% + 3mV.

Load (no load to full load): 0.01% + 3mV.

Recovery Time: 100 µs typical.

Ripple Voltage

Peak-to-Peak: 2mV, typical

RMS: 1mV.

Temperature Coefficient

(0° to +35 °C): 300 PPm/°C

CONSTANT CURRENT OPERATION

Adjustable Current Limits: 5% to 100%

Current Regulation

Line (108

132

V):

0.2% + 3mA

Load 0.2% + 3mA

Current Ripple: 3mA typical.

METERING

Voltmeter 4 digit Green LED Display

Range: 0 to 99.99 V.

Accuracy: (0.5% + 9 digits)*.

Ammeter 4 digit Red LED Display

Range: 0 to 9.999A.

Accuracy: (0.5% + 9 digits)*.

(* = see note 1 at end of specifications)

POWER REQUIREMENTS:

Domestic: 120 VAC ±10%, 60 Hz

International: 120/220/230/240 VAC -10%, 50/60 Hz

POWER CONSUMPTION: Approximately 180W or less at

full load.

PROTECTION: Reverse polarity protection,

Current limiting.

SPECIFICATIONS

NOTE: Specifications and information are subject to change without notice. Please visit www.bkprecision.com for the most current product

information.

Note 1:

Important: Even with noticeable Thermal Drift, this high resolution power supply will be considerably more accurate than any standard

three digit display bench power supply.

Thermal Drift: Since this power supply has greater resolution than standard bench power supplies they are more susceptible to Thermal

Drift. Thermal Drift occurs on almost every type of power supply but is more apparent on high resolution types. Thermal Drift results in

the metering of the power supply to either slowly increase or decrease with the change in the power supply’s internal temperature. As the

power supply outputs more power its internal temperature will increase causing the metering (primarily the current) to slowly increase. As

the power demand is deceased the power supply will cool causing the metering (primarily the current) to slowly decrease. If the power

supply remains with a constant output of power for more than fifteen minutes the power supply metering will remain constant and should

not continue to drift.

TEMPERATURE RANGE

Operation: 0° to +40° C, 75% R.H.

Storage: -15° to +70° C, 85% R.H.

DIMENSIONS (HxWxD): 6.2 x 5.5 x 12.5"

WEIGHT:

10.5 lb.

ACCESSORIESSUPPLIED: Instruction Manual,

Spare Fuse

CONTROLS AND INDICATORS

INDICATORS

Either the “CC” or “CV” and the LED indicators will be lit

whenever the unit is operating, thus serving as a pilot light. The unit

automatically changes from CV to CC operation when the preset

current limit is reached.

1. C.C. (Constant Current) Indicator. Red LED lights in constant

current mode. Unit regulates output current at value set by CUR-

RENT controls.

2. C.V. (Constant Voltage) Indicator. Green LED lights in

constant voltage mode. Unit regulates output voltage at value set

by VOLTAGE controls.

3. GREEN LED Display. 4 digit display continuously monitors

voltage.

4. RED LED Display. 4 digit display continuously monitors

current.

VOLTAGE CONTROLS

5. Coarse Control. Coarse adjustment of output voltage. Read value

on GREEN LED display.

6. Fine Control. Fine adjustment of output voltage. Read value on

GREEN LED display.

CURRENT CONTROL

7. Coarse CURRENT Control. Adjusts current limit in

constant voltage mode. Adjusts constant current value in

constant current mode. Current can be read from RED

LED display.

8. Fine Control. Adjusts current limit in constant voltage

mode. Adjusts constant current value in constant current

mode. Current can be read from RED LED display.

POWER CONTROLS

9. ON-OFF Switch.

OUTPUT TERMINALS

10. “+” Terminal (Red). Positive polarity output terminal.

11. GND Terminal. Earth and chassis ground.

12. “-” Terminal (Black). Negative polarity output

terminal.

CONTROLS AND INDICATORS

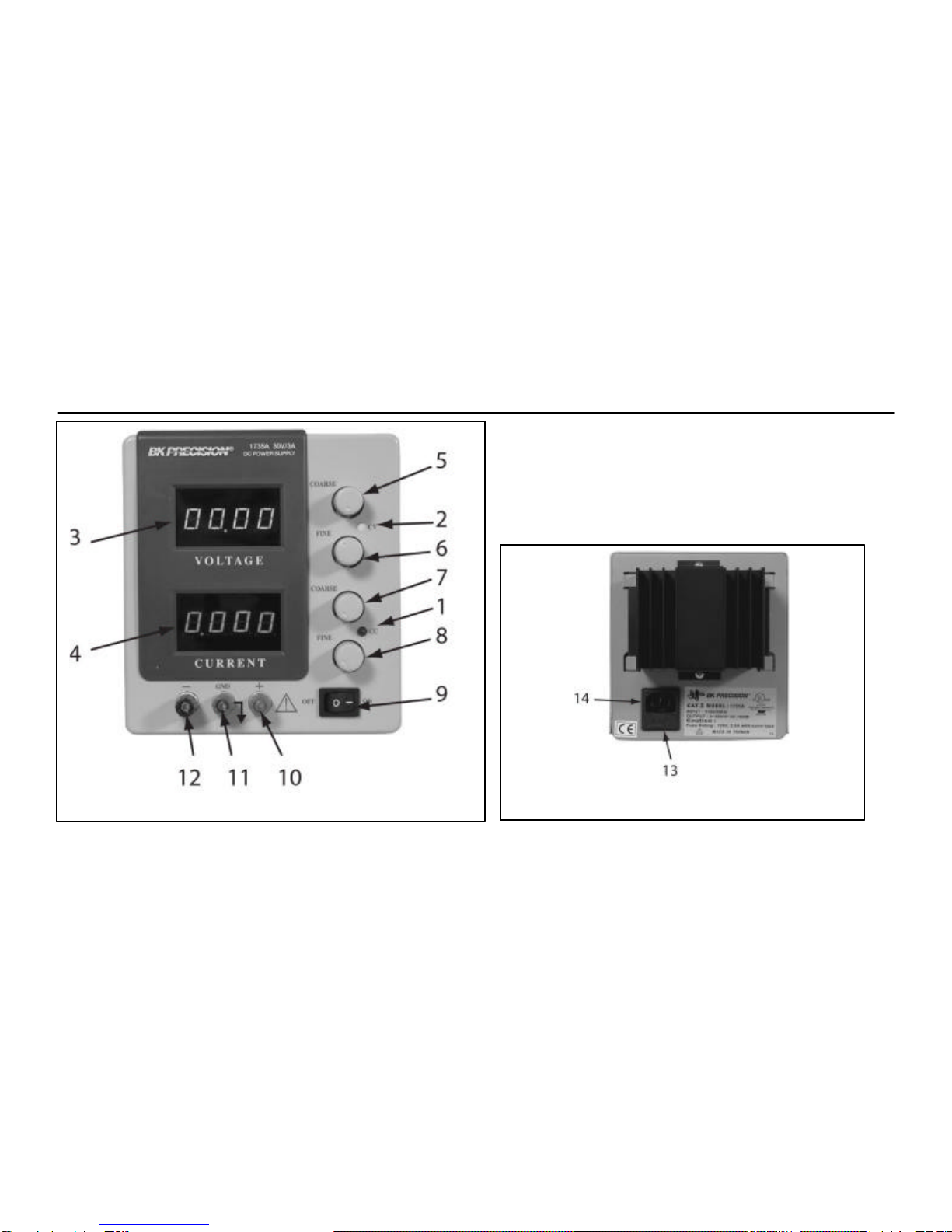

Figure 1. Front Panel Controls and Indicators.

Figure 2.

Rear Panel

REAR PANEL CONTROLS

13. Fuse.

14. Power Cord.

15. 110/220 Line Voltage Conversion Switch.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere B+K precision Stromversorgung Handbücher

B+K precision

B+K precision 19*00 Bedienungsanleitung

B+K precision

B+K precision 9115/B Bedienungsanleitung

B+K precision

B+K precision PVS10005 Bedienungsanleitung

B+K precision

B+K precision 1739 Bedienungsanleitung

B+K precision

B+K precision MDL4U Series Bedienungsanleitung

B+K precision

B+K precision 1785B Bedienungsanleitung

B+K precision

B+K precision 1746B Bedienungsanleitung

B+K precision

B+K precision 1693 Bedienungsanleitung

B+K precision

B+K precision 9110 Bedienungsanleitung

B+K precision

B+K precision 1680 Bedienungsanleitung

B+K precision

B+K precision 1680 Bedienungsanleitung

B+K precision

B+K precision 9140 Series Bedienungsanleitung

B+K precision

B+K precision 1865B Betriebsanleitung

B+K precision

B+K precision 1653A Bedienungsanleitung

B+K precision

B+K precision 1670A Bedienungsanleitung

B+K precision

B+K precision 9103 Bedienungsanleitung

B+K precision

B+K precision 1602 Bedienungsanleitung

B+K precision

B+K precision 1747 Bedienungsanleitung

B+K precision

B+K precision 1670A Bedienungsanleitung

B+K precision

B+K precision 9140 Series Bedienungsanleitung

B+K precision

B+K precision 9240 Series Bedienungsanleitung

B+K precision

B+K precision 1671A Bedienungsanleitung

B+K precision

B+K precision 1743B Bedienungsanleitung

B+K precision

B+K precision 1795 Bedienungsanleitung

Beliebte Stromversorgung Handbücher anderer Marken

Monacor

Monacor PS-12CCD Bedienungsanleitung

VOLTIMA

VOLTIMA MagicBox 15 Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6032A Bedienungsanleitung

Miller

Miller Auto Deltaweld 452 Bedienungsanleitung

BCP

BCP PUOUBK Merkblatt

HC 2210 Bedienungsanleitung

Puls

Puls CT5.241 Bedienungsanleitung

OCZ

OCZ ZX1250W Bedienungsanleitung

iseg

iseg ECH 238 Bedienungsanleitung

Power

Power XXL A Series Bedienungsanleitung

Agilent Technologies

Agilent Technologies 6631B Bedienungsanleitung

Renogy

Renogy PHOENIX 300 Bedienungsanleitung

HP 6200B Service-Handbuch

Epson

Epson Stylus Scan 2500 Betriebsanleitung

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Bedienungsanleitung

Puls

Puls MiniLine ML50.100 Bedienungsanleitung

Puls

Puls AS-Interface SLA4.100 Bedienungsanleitung

Kenwood

Kenwood PS-60 Bedienungsanleitung
