Braeburn 5020 Bedienungsanleitung
5020
5220
Programmable Thermostats
For 1 Heat / 1 Cool Systems
For Systems Up to 3 Heat / 2 Cool
Detailed
User Manual
Read all instructions before proceeding.
Store this manual for future reference
©2013 Braeburn Systems LLC • All Rights Reserved • Made in China. 5020W-110-02
®
PREMIER
SERIES
Contents
1 About Your Thermostat
Thermostat Features ................................................ 3
Thermostat and Display ........................................... 4
2 Setting User Options
Advanced User Options ............................................ 8
Table of User Options ............................................... 9
Service Monitors (Filter, UV and Humidier Pad) ........ 10
Extended Hold Time Period ..................................... 10
Temporary Override Adjustment Limit ..................... 11
Program Override Time Limit .................................. 11
Thermostat Lock Code ........................................... 11
3 Setting Your Program Schedule
Setting the Time and Day ....................................... 12
Tips Before Setting Your Program Schedule ........... 13
Programming a 7 Day Residential Schedule ........... 16
Programming a 5-2 Day Residential Schedule ........ 18
Programming a 7 Day Commercial Schedule ......... 19
4 Operating Your Thermostat
Setting the System Control Mode ......................... 21
Setting the Fan Control Mode ............................... 22
Setting the Temperature ....................................... 23
Status Indicators .................................................. 24
Program Event Indicator ....................................... 25
Resetting the Thermostat ..................................... 25
5 Additional Operation Features
Auto Changeover Mode ....................................... 26
Adaptive Recovery Mode ..................................... 27
Programmable Fan Mode ..................................... 28
Compressor Protection ........................................ 28
Locking and Unlocking the Thermostat................. 29
AC Power Monitor ............................................... 31
Indoor Remote Sensing ....................................... 31
Outdoor Remote Sensing .................................... 32
6 Thermostat Maintenance
Thermostat Cleaning ............................................ 33
Battery Replacement ........................................... 33
User Manual 2
Congratulations! You are in control of one of the easiest-to-use thermostats on the market today. This
thermostat has been designed to provide you with years of reliable performance and comfort control.
Features
• SpeedBar® multi-function button simplies programming and setting changes.
• SpeedSet® programming gives you the option of programming all 7 days at once.
• Convenient HOLD feature lets you override the program schedule.
• Large 5 sq. in. bright blue backlit display is easy to read.
• Extra large display characters make viewing settings even easier.
• User selectable service monitors remind you of required system maintenance.
• Precise temperature accuracy keeps you in control of your comfort.
• Convenient programmable fan mode.
• Optional indoor or outdoor remote sensing.
3 User Manual
1
About Your Thermostat

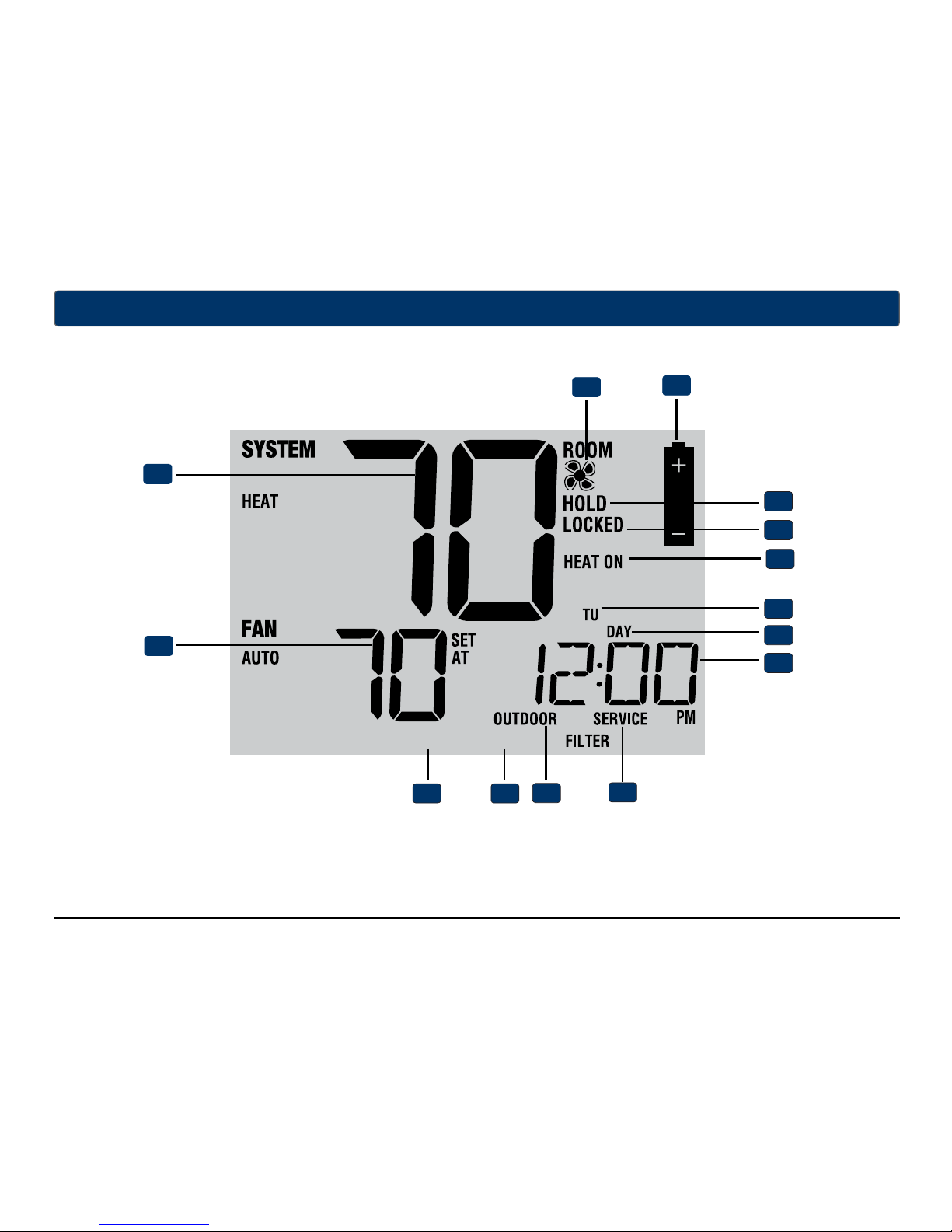

User Manual 4
BACK NEXT
1
2
3 4
78
9
10
11
56
12
13
14
5 User Manual
Room Temperature ......................Displays the current room temperature
Set Temperature .......................... Displays the current set point temperature
BACK Indicator* ........................... BACK button is active
NEXT Indicator*............................ NEXT button is active
Outdoor Temperature Indicator ... Displays along with the outdoor temperature reading**
Service Indicators ...................... Displays various service/maintenance information
Fan Indicator ................................ Indicates when the system fan is running
Low Battery Indicator .................. Indicates when the batteries need to be replaced
Hold Mode Indicator ................... Indicates if the thermostat is in HOLD mode
Lock Mode Indicator ...................Indicates if the thermostat is locked
System Status Indicator ............. Displays information about the status of the system
Day of the Week ........................... Displays the current day of the week
Program Event Indicator.............. Displays the program event
Time of Day ................................. Displays the current time of day
1
2
3
4
5
6
7
8
9
10
11
Thermostat Display
12
13
14
* BACK and NEXT are secondary functions of the PROG and HOLD buttons. When in programming or
conguration modes, BACK and NEXT appear in the display screen indicating that the PROG and HOLD buttons
now function as BACK and NEXT.
** Also see #24 on page 7.

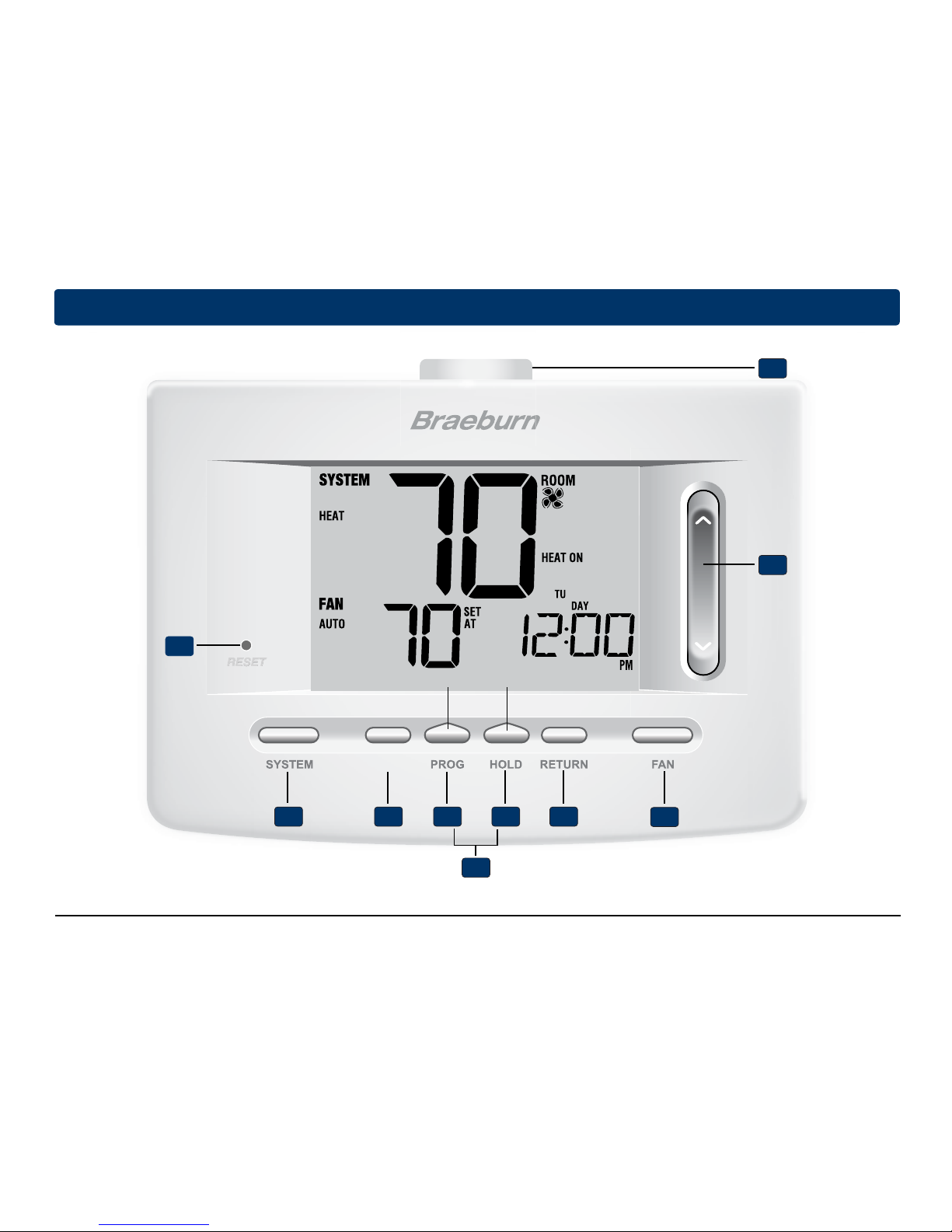

User Manual 6
1
About Your Thermostat
INSTRUCTIONS
DAY/ TIME
BACK NEXT
15
16
23
17 18 19 20 21
22
24
7 User Manual
Reset Button ............................... Resets current time, program and user settings
SYSTEM Button ............................ Selects the system you want to control
DAY/TIME Button .......................... Sets the current time and day of the week
PROG Button................................. Selects programming mode or press for 3 seconds to select SpeedSet®
BACK Button* ............................... Secondary function of the PROG button - moves back a setting
HOLD Button ................................. Enters/Exits the HOLD mode (program bypass)
NEXT Button* ............................... Secondary function of the HOLD button - moves to next setting
RETURN Button ............................ Returns to normal mode from program or setting modes
FAN Button ................................... Selects the system fan mode
Quick Reference Instructions ...... Stored in slot located at top of thermostat
SpeedBar® ................................... Increases or decreases settings (time, temperature, etc.)
Outdoor Temperature ................... If a Braeburn® outdoor sensor was connected you can view the outdoor
temperature by pressing the PROG and HOLD buttons at the same time.
Battery Compartment .................. Located in the back of thermostat
Thermostat
15
16
17
18
19
20
21
22
23
24
* BACK and NEXT are secondary functions of the PROG and HOLD buttons. When in programming or
conguration modes, BACK and NEXT appear in the display, indicating that the PROG and HOLD buttons
now function as BACK and NEXT.
INSTRUCTIONS
DAY/ TIME
User Manual 8
2
Setting User Options

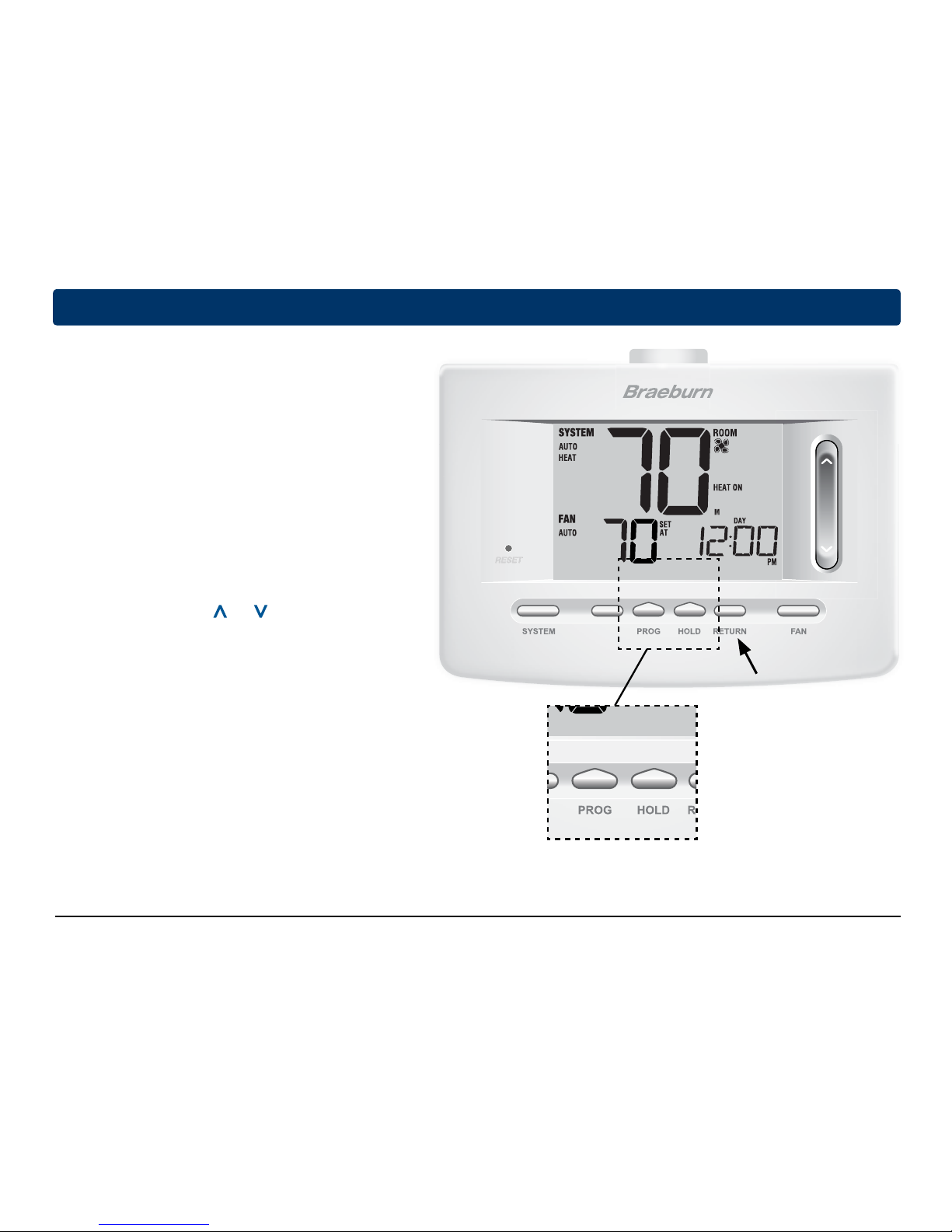

Advanced User Options
User options allow you to customize some of your
thermostat’s features.
Most users will not need to
make any changes to the settings in this section.
To access the User Options menu, press and hold
the RETURN button for approximately 3 seconds
until the screen changes and displays the rst
User Option.
Press the SpeedBar
®
or to change the
setting
for the displayed User Option. After you
have changed your
desired setting, press NEXT
(HOLD) to advance to the next User Option. You may
also press BACK (PROG) to move backwards through
the User Options.
When your changes are complete, press RETURN to exit.
INSTRUCTIONS
DAY/ TIME
BACK NEXT
9 User Manual
Table of User Options
No. User Options Factory Setting Comments Pg.
Default Options
1 Filter Service OFF OFF Disables lter service monitor feature.
Monitor 30, 60, 90, Selects a number of days that must pass before the
120, 180, 365
thermostat will ash a Service Filter reminder
in the display screen.
2 UV Light Service OFF OFF Disables UV service monitor feature.
Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service UV reminder in the display screen.
3 Humidier Pad OFF OFF Disables pad service monitor feature.
Service Monitor 180, 365 Selects a number of days before the thermostat will
ash a Service Humid reminder in the display screen.
4 Extended Hold Period LONG LONG Selects long (permanent) hold mode.
24HR Selects 24 hour (temporary) hold mode.
5 Temporary Override 0 ADJ 0, 1, 2,
or
3
Selects a temporary temperature adjustment limit of
Adjustment Limit ADJ 0 0 (disabled), 1˚, 2˚ or 3˚.
6 Program Override 4 TEMP 4, 3, 2 or 1 Selects a temporary program override time limit of
Time Limit TEMP 1, 2, 3 or 4 hours.
7 Thermostat Lock Code 000 0-9 Select a 3 digit lock code of 0-9 for each digit.
NOTE: Some user options may not be available, depending on how your thermostat was configured in the
Installer Settings (see Installer Manual). A detailed description of each User Option follows this table.
10
10
10
10
11
11
11

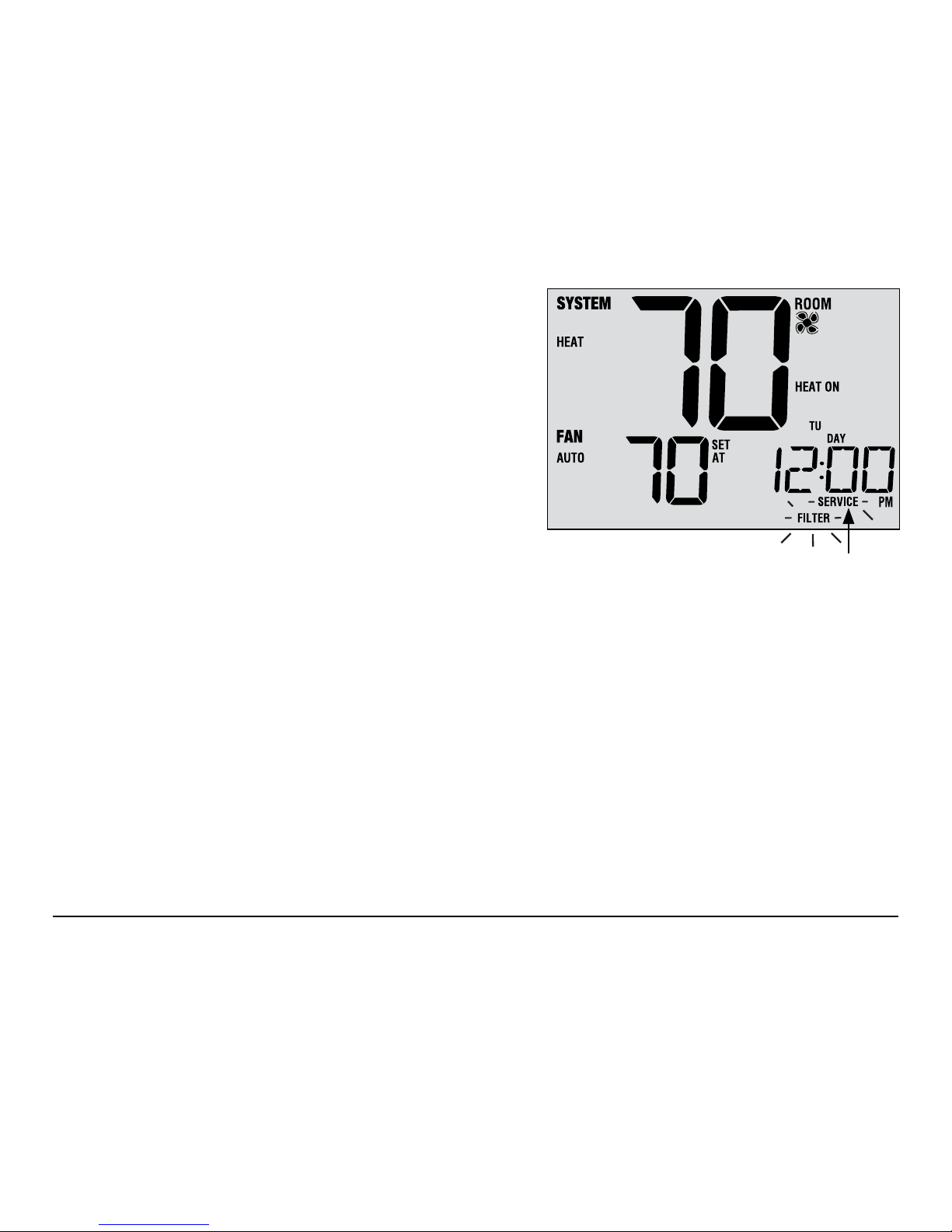

Service Monitors
(Filter, UV and Humidifier Pad)
User Options 1, 2 and 3
There are three user selectable service monitors that will display
reminders for a required air lter, UV bulb or humidier pad
replacement. The SERVICE segment ashes in the display
along with FILTER, UV or HUMID. When the service interval
has been reached, and required cleaning or replacement has
been performed, press the RETURN button to reset the
timer. Select OFF or a set number of days before the reminder
will appear.
Extended Hold Period
User Option 4
The Extended Hold Period lets you select the period your thermostat will hold the temperature when the HOLD
mode is activated (See Setting the Temperature, page 23). When LONG is selected the thermostat will hold your
temperature indenitely. When 24HR is selected, the thermostat will hold your temperature for 24 hours and
then return to the current program at that time. Not available in non-programmable mode.
Service
Reminders
User Manual 10
