Owner’s Operation and Instruction Manual

SAFETY NOTICE:

If this heater is not properly installed, a house re may

result. For your safety, follow the installation instruc-

tions. Never use make-shi compromises during the

installation of this heater. Contact local building or

re ocials about permits, restrictions and installa-

tion requirements in your area.

CAUTION!

Please read this entire manual before you install or

use your new room heater. Failuretofollowinstruc-

tions may result in property damage, bodily injury,

or even death.

Improper Installation Could Void

Your Warranty!

SAFETY TESTED TO UL 1482 and ULC-S627

US ENVIRONMENTAL PROTECTION AGENCY PHASE II CERTIFIED WOODSTOVE

WASHINGTON STATE APPROVED

Breckwell

227 Industrial Park Road P.O.

Box 151

South Pittsburg, TN 37380

Phone: (800) 750-2723

Web: www.BRECKWELL.com

SAVE THESE INSTRUCTIONS

THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE YOU TO OR-

DER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

851982 C

MODELS: SW4100

e French version is available for download from the site Breckwell: http://www.breckwell.com/

La version française est disponible pour téléchargement à partir du site Breckwell: http://www.breckwell.com/

2 Ussc

OPTIONAL ACCESSORIES

DESCRIPTION PART #

B36 Blower Assembly - 100 CFM 69354

Combustion Air Adapter 892021

CONGRATULATIONS!

You’ve purchased a heater from North America’s oldest manufacturer of wood burning products.

By heating with wood you’re helping to CONSERVE ENERGY!

Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year.

Future generations will thank you.

e instructions pertaining to the installation of your wood stove comply with UL-1482 and ULC-S627 standards.

CAUTIONS:

• HOT WHILE IN OPERATION. KEEP CHILDREN, CLOTHING AND FURNITURE AWAY.

CONTACT MAY CAUSE SKIN BURNS.

• DO NOT USE CHEMICALS OR FLUIDS TO IGNITE THE FIRE.

• DO NOT LEAVE THE STOVE UNATTENDED WHEN THE DOOR IS SLIGHTLY OPENED.

• DO NOT BURN GARBAGE, FLAMMABLE FLUID SUCH AS GASOLINE, NAPHTHA OR

MOTOR OIL.

• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.

• ALWAYS CLOSE THE DOOR AFTER THE IGNITION.

• THIS MODEL NOT APPROVED FOR MANUFACTURED OR MOBILE HOME INSTALLATION.

Combustible : Wood

Colors : Metallic Black

Flue Pipe Diameter : 6” (15.3cm)

Flue Pipe Type: (Standard Single Wall or Double Wall): Black or Blued Steel 2100°F (650°C)

Minimum Chimney Hieght : 12’ (3.7m)

Maximum Log Length : 21” (53.4cm)

Dimensions

Overall :

Depth x Width x Height :

32” x 27 1/4” x 34-1/8” (81cm x 69cm x 87cm)

Combustion Chamber :

Width x Depth :

22 3/4”x 21” (578mm x 533mm)

Volume :

Cubic Feet:

3.11 ³ (.0881m³)

Door Opening : Width x Height: 16” x 8” (41cm x 20cm)

Pyroceramic Glass Door : (Viewing) Width x Height: 14 7/16” x 9 1/8” (37cm x 23cm)

Weight (lbs): 430 lbs (195kg)

Ussc 3

CUT HERE CUT HERE

WARRANTYINFORMATIONCARD

Name__________________________________________ Telephone #: (_____)_____________

City____________________________________________ State_______ Zip_________________

Email Address __________________________________________________________________

Model # of Unit________________________________ Serial #___________________________

Fuel Type: Wood Coal Pellet Gas Other _________________________

Place of Purchase (Retailer)______________________________________________________

City____________________________________________ State_______ Zip_________________

If internet purchase, please list website address___________________________________

Date of Purchase _______________________________________________________________

Reason for Purchase: Alternative Heat Main Heat Source

Decoration Cost Other _________________________

What was the determining factor for purchasing your new appliance?_______

I have read the owner’s manual that accompanies this unit and fully understand the:

Installation



Operation



and Maintenance



of my new appliance.

Print Name Signature Date

Please attach a copy of your purchase receipt.

Warranty not valid without a Proof of Purchase.

Warranty information must be received within 30 days of original purchase.

Detach this page from this manual, fold in half with this page to the inside and tape together. Apply a

stamp and mail to the address provided. You may use an envelope if you choose.

You may register online by going to www.usstove.com

All information submitted will be kept strictly condential. Information provided will not be sold for advertising purposes.

Contact information will be used solely for the purpose of product notications.

4 Ussc

CUT HERE CUT HERE



Fold Here Fold Here

United States Stove Company

P.O. Box 151

South Pittsburg, TN 37380

Fold Here

PLACE

STAMP

HERE

Ussc 5

Tools and Materials Needed For Installation

You will need a drill with a 1/8” bit to install sheet metal screws into connector pipe. A 5/16” socket/wrench or screw driver to install

pedestal trim, room air deector, and blower assembly described below. A 1/2” socket/wrench to install ue collar. A non-combustible

oor protector as specied in this manual. All chimney and chimney connector components required for your particular chimney

installation.

Assembly

Flue Collar Assembly:

1. Mount the ue collar to the top of the unit as shown using the (3)

5/16-18 x 1-1/2 bolts, (3) washers, and (3) weld

tabs

provided in the parts box.

Firebrick Conguration:

1. Replace the Firebrick as shown in the illustration below.

Side view of ﬂue collar

mount to heater top

Brick Conﬁguration

HEATER

TOP

WELD

TAB

5/16-18 x 1-1/2

BOLT

6 Ussc

ASSEMBLY INSTRUCTIONS

Combustion Air Intake

This appliance requires a source of combustion air. If you home is of tight construction or has nega-

tive pressure problems, you will need an outside source of air.

You have two options. You may cut a rectangular hole in the ﬂoor of your home and the ﬂoor protector, or

purchase a standard 4” Dryer Vent kit from your local hardware supply store and install it on the rear of the

pedestal.

If your choice is to cut a rectangular hole in the ﬂoor and ﬂooring protector, refer to the below illustrations for

assistance. You must place a rodent screen between the ﬂoor protector and the ﬂoor to prevent passage of

any unwanted vermin into your home.

If using a Dryer venting kit, the outlet cover must be of a design that DOES NOT close by means of

a ﬂap or trap door. You must purchase a style that allows a continuous in-ﬂow of air and that has a rodent

screen. You will also need a Combustion AirAdapter to attach to the pedestal of the appliance. This adapter

can be purchased from your dealer.

If your home is not of tight construction, you can just simply remove the 4” round knockout in the rear of the

pedestal.

“Combustion Air thru Unit Base” installation:

First,decide thelocation of theappliance.Then, cuta 2”x 6”rectangular openinginthe ﬂoorprotector

within the appliance base’s perimeter. Using the ﬂooring protector as a template, position it in place

and mark onto the ﬂoor of your home where to make your next cut. Make the cut in your home’s ﬂoor

slightly larger than the 2” x 6” to accommodate any misalignment.Attach a piece of screen over the

hole to prevent any unwanted vermin entering your home. Complete your appliance install.

“Dryer Venting Kit” installation:

Beginby installingthe 4” adapterto therear ofthe applianceusingthe screwsprovided. Ifnot already,

remove the round knock-out from the pedestal. Follow the manufacturer’s installation instructions for

attaching the dryer vent kit to the home. Then attach it to the adapter on the appliance.

“Combustion Air thru Unit Base” Installation “Dryer Venting Kit” Installation

FLOOR PROTECTOR Home’s Floor

Rodent Screen

Non-Combustible Floor

Make a 2” x 6” (51mm x 152mm)

cutout through both the oor

protector and home’s ooring

within the perimeter of the

appliance’s base.

Ussc 7

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO REDUCE THE

RISK OF FIRE, FOLLOW THE INSTALLATION INSTRUCTIONS.

• CONSULT YOUR MUNICIPAL BUILDING DEPARTMENT OR FIRE OFFICIALS ABOUT PERMITS,

RESTRICTIONS AND INSTALLATIONS REQUIREMENTS IN YOUR AREA.

• USE SMOKE DETECTORS IN THE ROOM WHERE YOUR STOVE IS INSTALLED.

• KEEP FURNITURE AND DRAPES WELL AWAY FROM THE STOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER

FLUID, OR SIMILAR LIQUIDS TO START OR “FRESHEN UP” A FIRE IN THIS HEATER. KEEP ALL

SUCH LIQUIDS WELL AWAY FROM THE HEATER WHILE IT IS IN USE.

• IN THE EVENT OF A CHIMNEY FIRE, PUSH THE AIR CONTROL FULL CLOSED TO DEPRIVE

THE FIRE OF OXYGEN. CALL THE FIRE DEPARTMENT.

• DO NOT CONNECT TO ANY AIR DISTRIBUTION DUCT OR SYSTEM.

• A SOURCE OF FRESH AIR INTO THE ROOM OR SPACE HEATED SHALL BE PROVIDED WHEN

REQUIRED.

POSITIONING THE STOVE

It is very important to position the wood stove as close as possible to the chimney and in an area that will favor

the most ecient heat distribution possible throughout the house. e stove must, therefore, be installed in the

room where the most time is spent and in the most spacious room possible. Recall that wood stoves produce

radiating heat, the heat we feel when we are close to a wood stove. A wood stove also functions by convection,

that is through the displacement of hot air accelerated upwards and its replacement with cooler air. If necessary,

the hot air distribution from the stove may be facilitated by the installation of a blower.

e wood stove must not be hooked up to a hot air distribution system since an excessive accumulation of heat

may occur.

A wood stove must never be installed in a hallway or near a staircase, since it may block the way in case of re

or fail to respect required clearances.

THIS APPLIANCE SHOULD NOT BE USED AS THE PRIMARY HEAT SOURCE.

8 Ussc

FLOOR PROTECTOR

Your wood stove should be placed on a 1 inch, non-combustible surface with a k factor of 0.84. For multiple

layers, add R-values of each layer to determine the overall R-value. e R value for the required board is 1.2. If

there is a horizontal section of chimney connector, the oor protector should go under it and 2 inches beyond

each side.

Convert specication to R-value:

k-factor is given with a required thickness (T) in inches: R=1/k x T

C-factor is given: R=1/C

Example:

If the oor protector is 4” brick with a C-factor of 1.25 over 1/8” mineral board with a “k” factor of 0.29

the total R-value of the system is:

4” brick C=1.25, R=1/1.25=0.8

1/8” mineral board K=0.29, R=1/0.29 x 0.125=0.431

Total R = Rbrick + Rmineral = 0.8 + 0.431 = 1.231

Total R is greater than 1.2, the system is acceptable.

e oor protector should exceed the stove as follows:

e oor protector must be listed to UL1618.

- Canadian installations require 8” (203mm)

Model Front Sides Rear

SW4100 26”

(660mm)

8”

(203mm)

6”

(152mm)

Ussc 9

CLEARANCES TO COMBUSTIBLES

It is of utmost importance that the clearances to combustible materials be strictly adhered to during installation

of the stove. Refer to the tables below :

• Floor to ceiling height must be at least 7’ (2.13m) in all cases.

• Do not place any combustible material within 4’ (1.2m) of the front of the unit.

• e clearance between the ue pipe and a wall are valid only for vertical walls and for vertical ue pipe.

• e chimney connector must not pass through an attic or roof space, closet or similar concealed space, a

oor, or a ceiling.

• For Canadian installations, where passage through a wall, or partition of combustible construction is desired,

the installation must conform to CAN/CSA-B365.

• A ue pipe crossing a combustible wall must have a minimum clearance of 18” (457.2mm).

• To reduce ue clearances from combustible materials, contact your local safety department.

Single Wall Pipe

Model A B C D E F

SW4100 14

(358mm)

(508mm)

17.5

(445mm)

30.5

(775mm)

(279mm)

(610mm)

10 Ussc

CHIMNEY CONNECTOR (STOVE PIPE)

Your chimney connector and chimney must have the same diameter as the stove outlet (6”). If this is not the

case, we recommend you contact your dealer in order to insure there will be no problem with the dra.

e stove pipe must be made of aluminized or cold roll steel with a minimum thickness of 0.021” or 0.53 mm.

It is strictly forbidden to use galvanized steel.

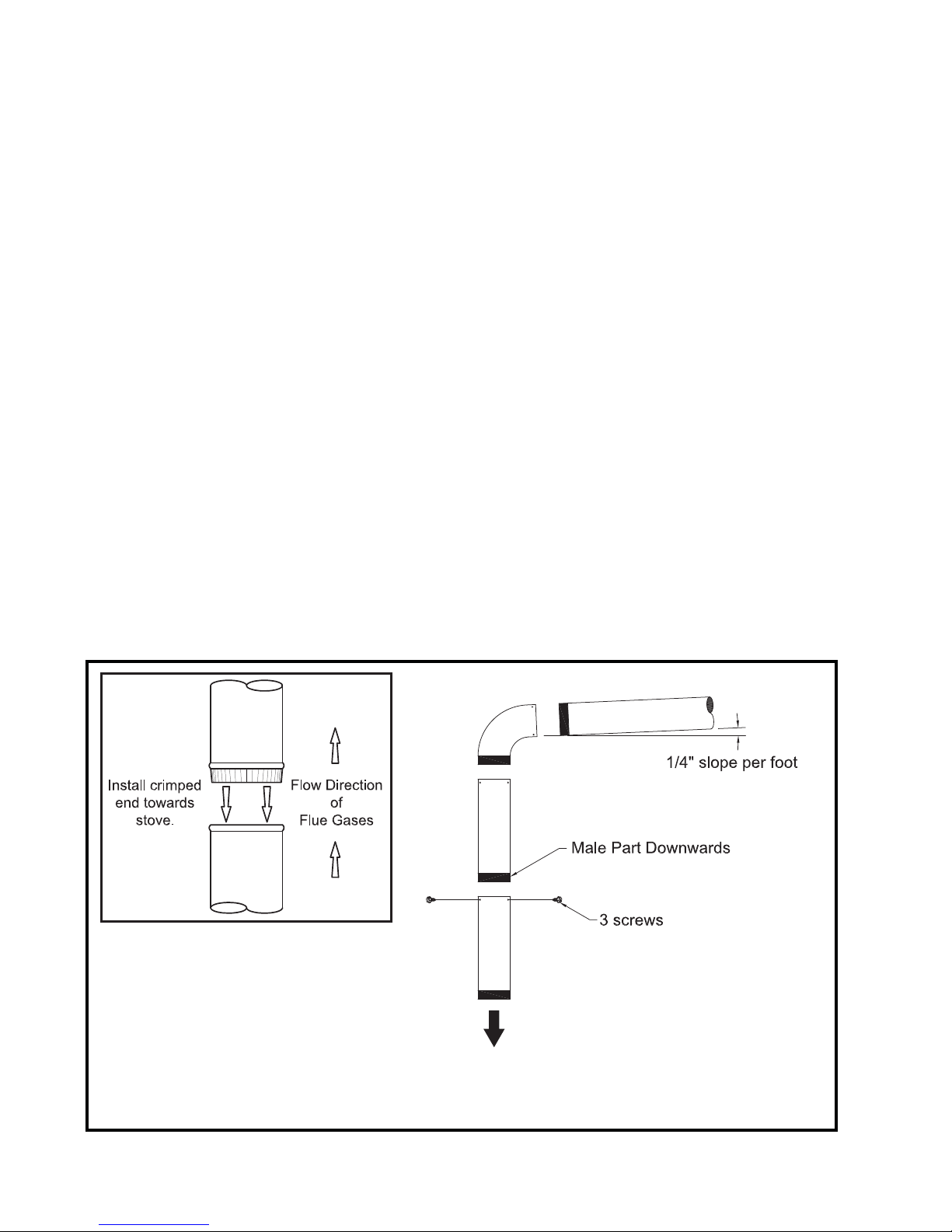

Your smoke pipe should be assembled in such a way that the male section (crimped end) of the pipe faces down.

Attach each of the sections to one another with three equidistant metal screws. Each inner joint should be sealed

with high temperature silicone. Outer joints should be sealed with high temperature tape.

e pipe must be short and straight. All sections installed horizontally must slope at least 1/4 inch per foot,

with the upper end of the section toward the chimney. Any installation with a horizontal run of chimney pipe

must conform to NFPA 211. You may contact NFPA (National Fire Protection Association) and request the

latest edition of the NFPA Standard 211.

To insure a good dra, the total length of the coupling pipe should never exceed 8’ to 10’ (2.4m to 3.04 m).

(Except for cases of vertical installation, cathedral-roof style where the smoke exhaust system can be much

longer and connected without problem to the chimney at the ceiling of the room).

ere should never be more than two 90 degrees elbows in the smoke exhaust system.

Installation of a “barometric dra stabilizer” (replace register) on a smoke exhaust system is prohibited.

Furthermore, installation of a dra damper is not recommended. Indeed, with a controlled combustion wood

stove, the dra is regulated upon intake of the combustion air in the stove and not at the exhaust. e dra

should be measured at 0.06”w.c. for proper dra.

Appliance

Inhaltsverzeichnis

Andere Breckwell Herd Handbücher

Breckwell

Breckwell G29I Bedienungsanleitung

Breckwell

Breckwell SW500 Bedienungsanleitung

Breckwell

Breckwell Luxury P2000FS Bedienungsanleitung

Breckwell

Breckwell Cadet P20FS Bedienungsanleitung

Breckwell

Breckwell Cadet P32 Bedienungsanleitung

Breckwell

Breckwell P24FSA Bedienungsanleitung

Breckwell

Breckwell P24FSA Bedienungsanleitung

Breckwell

Breckwell Tradition P23FSL Bedienungsanleitung

Breckwell

Breckwell Cadet P20FS Bedienungsanleitung

Breckwell

Breckwell Cadet P20 Bedienungsanleitung

Breckwell

Breckwell Cardinal P24I Bedienungsanleitung

Breckwell

Breckwell P24FSA Bedienungsanleitung

Breckwell

Breckwell SP23 Bedienungs- und Wartungshandbuch

Breckwell

Breckwell P28FS Bedienungsanleitung

Breckwell

Breckwell Charm P22FS Bedienungsanleitung

Breckwell

Breckwell Luxury P2700FSA Bedienungsanleitung

Breckwell

Breckwell Cadet P26FS Bedienungsanleitung

Breckwell

Breckwell SWC31 Bedienungsanleitung

Breckwell

Breckwell SP6000 Bedienungsanleitung

Breckwell

Breckwell Luxury P2700 Series Bedienungsanleitung

Breckwell

Breckwell Luxury P2000FS Bedienungsanleitung

Breckwell

Breckwell The big E utility furnance Bedienungsanleitung

Breckwell

Breckwell Maverick SP22i Handbuch

Breckwell

Breckwell TRADITION SERIES P23 Bedienungsanleitung

Beliebte Herd Handbücher anderer Marken

Arada

Arada Cassette Stove Bedienungsanleitung

Parmco

Parmco FS 600 Bedienungsanleitung

MCZ

MCZ SUITE AIR 10 M2 Bedienungsanleitung

HearthStone

HearthStone Stowe DV 8321 Fehlerbehebungshandbuch

Cattara

Cattara FAMILY Bedienungsanleitung

Stanley

Stanley Argon F500 OVAL Bedienungsanleitung

Avalon

Avalon B-VENT Bedienungsanleitung

Nordpeis

Nordpeis Vega Bedienungsanleitung

Exquisit

Exquisit EKC601-5 Bedienungsanleitung

Stanley

Stanley Oisin Oil MK II Betriebsanleitung

Thermocet

Thermocet Brookfield S/CC Bedienungsanleitung

HASE

HASE delhi Bedienungsanleitung

Vermont Castings

Vermont Castings Intrepid 2 Bedienungsanleitung

Italiana Camini

Italiana Camini CLASSICA Kurzanleitung

Avalon

Avalon Vashon Avanti DVS FS Bedienungsanleitung

Spartherm

Spartherm ambiente a1 Bedienungsanleitung

Dimplex

Dimplex MCFSTV12AU Bedienungsanleitung

Warmlite

Warmlite WL46040 Bedienungsanleitung
