Briggs & Stratton 127700 Series Einrichtungshandbuch

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS−0567−06/27/2008

REPLACES FORM MS−0567−05/06/2008

FILE IN SECT. 2 OF SERVICE MANUAL

127700

Illustrated Parts List

Model Series

127700

TYPE NUMBERS

0100 through 4715.

TABLE OF CONTENTS

Alternator 7. . . . . . . . . . . . . . . . . . . . . . . . . .

Air Cleaner 4. . . . . . . . . . . . . . . . . . . . . . . . .

Blower Housing/Shrouds 6. . . . . . . . . . . .

Camshaft 2. . . . . . . . . . . . . . . . . . . . . . . . . . .

Carburetor 3. . . . . . . . . . . . . . . . . . . . . . . . .

Controls 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Crankshaft 2. . . . . . . . . . . . . . . . . . . . . . . . .

Cylinder 2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electric Starter 7. . . . . . . . . . . . . . . . . . . . . .

Electrical 7. . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Sump 2. . . . . . . . . . . . . . . . . . . . . . .

Exhaust System 4. . . . . . . . . . . . . . . . . . . .

Flywheel 6. . . . . . . . . . . . . . . . . . . . . . . . . . .

Flywheel Brake 7. . . . . . . . . . . . . . . . . . . . .

Fuel Supply 5. . . . . . . . . . . . . . . . . . . . . . . .

Governor Spring 5. . . . . . . . . . . . . . . . . . . .

Ignition 7. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Kits/Gaskets 2 & 3. . . . . . . . . . . . . . . . . . . . . . . .

Lubrication 2. . . . . . . . . . . . . . . . . . . . . . . .

Piston Group 2. . . . . . . . . . . . . . . . . . . . . . .

Rewind Starter 6. . . . . . . . . . . . . . . . . . . . . .

Valves 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−2Assemblies include all parts shown in frames. 06/27/2008

128

718

307

306

383

635

337

15A

20A

1102

847

523

287

524

525

842

883

1095 VALVE GASKET SET

40 45

358 ENGINE GASKET SET

883

842

617

524

163

20A

585

668

32A

743

101

721

715

146

741

374

46A

374

870

869

871

684585

584

635A

868

1019 LABEL KIT

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

1319 WARNING LABEL

REQUIRED when replacing parts

with warning labels affixed.

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−3Assemblies include all parts shown in frames. 06/27/2008

117

975

133

134

617

130

130A

633

127A

163

276

137

104

365

276

118 276

94 134

975

133

134

125

CHOKE SYSTEM

PRIMER SYSTEM

108

633

217

617

130

130A

633

127

163

276

137

104

365

276 276

125A

109

127

121 CARBURETOR OVERHAUL KIT

977 CARBURETOR GASKET SET

163

137 276

104

127

137

163

633

617

276

617

633

127A

117A118A

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−4Assemblies include all parts shown in frames. 06/27/2008

346

677

613

883

163

529

970

159

443A

445A

967A

968B

425A

966A

976

300 300A

676

832

994A

676E676C676A

994

613A

836

677677677

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−5Assemblies include all parts shown in frames. 06/27/2008

670

190

930C

1040

930

240

601A

209

616

404

615

505

562

202

410

489

624

188

843A

843

265

267

270

271

268

621 227

98A

222

222E222D

222A

668

621

668

601

269 265A

267

209A

958

187 187B187A

601

972

1059

972D

957A

127700

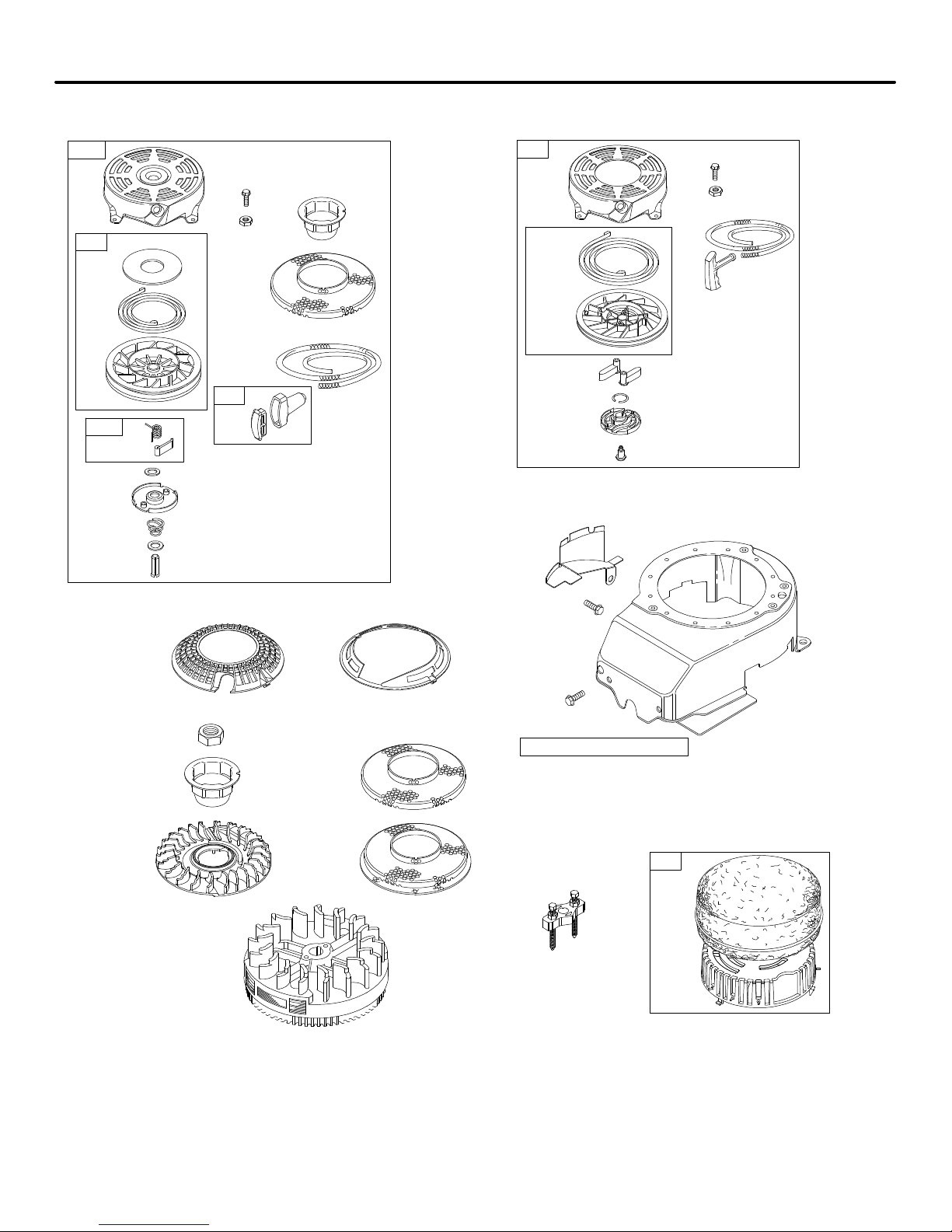

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−6Assemblies include all parts shown in frames. 06/27/2008

455

101A

1134

276A

678 60

592

597

456

689

459

1210

1211

363

23A

73A

455

332

608

60B

608A

459A

144

59A

55A

689A

456A

592

930C

930

986

305

304

1036 EMISSIONS LABEL

1005

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−7Assemblies include all parts shown in frames. 06/27/2008

942

1208

621

922

745

236

923

373

359

520

507

990

664

500

940

259

1160

497

347

627

851

334

910

474

1119

578

356

935

892

333

356D

356B

356A

789B789A

310

802

853

803

544

801

783A

651

513

785

784

783

937

742

309

545

510

334

851A

635A

333A

853

697

783A

651

513

785

784

783

937

742

510

309A

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−8Assemblies include all parts shown in frames. 06/27/2008

1 697322 Cylinder Assembly

2 399269 Kit−Bushing/Seal

(Magneto Side)

3K299819S Seal−Oil

(Magneto Side)

4 493279 Sump−Engine

−−−−−−− Note −−−−−

498983 Sump−Engine

Used on Type No(s).

1762.

4A 493365 Sump−Engine

5 691160 Head−Cylinder

6 690371 Washer

(Cylinder Head)

Used on Type No(s).

0618, 0624.

7K∅692249 Gasket−Cylinder Head

8 695250 Breather Assembly

9K∅699833 Gasket−Breather

10 691125 Screw

(Breather Assembly)

11 691781 Tube−Breather

12 K692232 Gasket−Crankcase

13 690912 Screw

(Cylinder Head)

14 690368 Stud

(Cylinder Head)

Used on Type No(s).

0618, 0624.

15 691680 Plug−Oil Drain

(Square Socket)

15A 691093 Plug−Oil Drain

(Hex Socket)

16 691451 Crankshaft

(Used After Code Date

97011200).

−−−−−−− Note −−−−−

694442 Crankshaft

(Used Before Code

Date 97011300).

691450 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0600, 0608, 0623,

0627, 0629, 0632,

0633, 0639, 0640,

0641, 1700, 1708,

1746.

694440 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0100, 0120, 0123,

0600, 0608, 0623,

0627, 0632.

691452 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0617, 0618, 0624,

0647, 1709, 1711,

1716, 1722, 1723,

1724, 1736, 1740,

1791, 1792.

694059 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0617, 0618, 0624.

691454 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0646.

692000 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0646.

691455 Crankshaft

(Used After Code Date

97011200).

Used on Type No(s).

0660, 0672, 0674,

4711.

691375 Crankshaft

(Used Before Code

Date 97011300).

Used on Type No(s).

0660, 0672.

694443 Crankshaft

Used on Type No(s).

0115, 0131, 0645,

1745.

691482 Crankshaft

Used on Type No(s).

1783.

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−9Assemblies include all parts shown in frames. 06/27/2008

20 K399781S Seal−Oil

(PTO Side)

20A K691952 Seal−Oil

(PTO Side)

(Auxiliary PTO)

22 691092 Screw

(Crankcase Cover/

Sump)

23A 691987 Flywheel

−−−−−−− Note −−−−−

691992 Flywheel

Used on Type No(s).

0660, 0672, 0674,

1770, 1783, 4711,

4715.

24 222698S Key−Flywheel

25 795429 Piston Assembly

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791097 Piston

Assembly

(Used After Code Date

04031400 and Before

Code Date 07090400).

499429 Piston

Assembly

(Standard)

(Used After Code Date

97011200 and Before

Code Date 04031500).

493262 Piston

Assembly

(Standard)

(Used Before Code

Date 97011300).

795430 Piston

Assembly

(.020” Oversize)

(Used After Code Date

07090300).

791326 Piston

Assembly

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07040400).

499431 Piston

Assembly

(.020” Oversize)

(Used After Code Date

97011200 and Before

Code Date 04102200).

493386 Piston

Assembly

(.020” Oversize)

(Used Before Code

Date 97011300).

493387 Piston

Assembly

(.030” Oversize)

(Used Before Code

Date 97011300).

26 795431 Ring Set

(Standard)

(Used After Code Date

07090300).

−−−−−−− Note −−−−−

791098 Ring Set

(Standard)

(Used After Code Date

04031400 and Before

Code Date 07090400).

499425 Ring Set

(Standard)

(Used After Code Date

97011200 and Before

Code Date 04031500).

493261 Ring Set

(Standard)

(Used Before Code

Date 97011300).

795432 Ring Set

(.020” Oversize)

(Used After Code Date

07090300).

791324 Ring Set

(.020” Oversize)

(Used After Code Date

04102100 and Before

Code Date 07090400).

499427 Ring Set

(.020” Oversize)

(Used After Code Date

97011200 and Before

Code Date 04102200).

493389 Ring Set

(.020” Oversize)

(Used Before Code

Date 97011300).

493390 Ring Set

(.030” Oversize)

(Used Before Code

Date 97011300).

27 691866 Lock−Piston Pin

(Used After Code Date

97011200).

−−−−−−− Note −−−−−

691588 Lock−Piston

(Used Before Code

Date 97011300).

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

127700

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

0567−10 Assemblies include all parts shown in frames. 06/27/2008

28 499423 Pin−Piston

(Standard)

(Used After Code Date

97011200).

−−−−−−− Note −−−−−

298909 Pin−Piston

(Standard)

(Used Before Code

Date 97011300).

298908 Pin−Piston

(.005” Oversize)

(Used Before Code

Date 97011300).

29 499424 Rod−Connecting

(Standard)

(Used After Code Date

97011200).

−−−−−−− Note −−−−−

490566 Rod−

Connecting

(Standard)

(Used Before Code

Date 97011300).

32 691664 Screw

(Connecting Rod)

32A 695759 Screw

(Connecting Rod)

33 262651S Valve−Exhaust

34 262652S Valve−Intake

35 691270 Spring−Valve

(Intake)

36 691270 Spring−Valve

(Exhaust)

37 694086 Guard−Flywheel

40 692194 Retainer−Valve

43 691997 Slinger −Governor/Oil

−−−−−−− Note −−−−−

691486 Slinger−

Governor/Oil

Used on Type No(s).

1762.

45 690548 Tappet−Valve

46 691449 Camshaft

(Used After Code Date

96060200).

−−−−−−− Note −−−−−

492830 Camshaft

(Used Before Code

Date 96060300).

46A 691460 Camshaft

(Clockwise)

(Used After Code Date

96060200).

Used on Type No(s).

0627.

−−−−−−− Note −−−−−

493740 Camshaft

(Clockwise)

(Used Before Code

Date 96060300).

Used on Type No(s).

0627.

691459 Camshaft

(Counterclockwise)

(Used After Code Date

96060200).

Used on Type No(s).

0144, 0629, 0633,

0644, 1715, 1746,

1752, 1770.

493738 Camshaft

(Counterclockwise)

(Used Before Code

Date 96060300).

Used on Type No(s).

0144, 0644.

50 497465 Manifold−Intake

51 K272199S Gasket−Intake

54 691650 Screw

(Intake Manifold)

55 691421 Housing−Rewind

Starter

55A 492831 Housing−Rewind

Starter

57 491889 Spring−Rewind Starter

58 697316 Rope−Starter

(Cut To Required

Length)

59A 396892 Insert−Grip

60 281434S Grip−Starter Rope

60B 393152 Grip−Starter Rope

65 690837 Screw

(Rewind Starter)

73 691222 Screen−Rotating

73A 224527 Screen−Rotating

78 691108 Screw

(Flywheel Guard)

81 691740 Lock−Muffler Screw

83 691778 Shaft−Auxiliary Drive

−−−−−−− Note −−−−−

690521 Shaft−Auxiliary

Drive

Used on Type No(s).

0144, 0644.

690522 Shaft−Auxiliary

Drive

Used on Type No(s).

1770.

94 D493765 Kit−Idle Mixture

95 691636 Screw

(Throttle Valve)

97 493267 Shaft−Throttle

(Metal)

−−−−−−− Note −−−−−

696565 Shaft−Throttle

(Plastic)

98 398185 Kit−Idle Speed

98A 493280 Kit−Idle Speed

101 691623 Pin−Shaft

101A 262626 Pin−Shaft

(For Rewind Starter)

104 D691242 Pin−Float Hinge

108 691182 Valve−Choke

109 494218 Shaft−Choke

KIncluded in Engine Gasket Set−Ref. No.358.

DIncluded in Carburetor Overhaul Kit−Ref. No. 121.

zIncluded in Carburetor Gasket Set−Ref. No. 977.

∅Included in Valve Gasket Set−Ref. No 1095.

REF. PART REF. PART REF. PART

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton 190000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Power Built Intek I/C 210000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 21000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 12E300 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 11A600 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton P0820B Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 106200 Betriebsanleitung

Briggs & Stratton

Briggs & Stratton Intek Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 12A800 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 210000 Intek Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 300000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 276781 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 405700, 406700, 407700, 445700 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 9B900 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 441700 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 190000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 90000 series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 32K400 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton DOV InStart 100600 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 543200 Series Einrichtungshandbuch

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
