Briggs & Stratton 40F700 Series Einrichtungshandbuch
COPYRIGHT by BRIGGS & STRATTON CORPORATION
All rights reserved. No part of this material may be reproduced or transmitted,
in any form or by any means, electronic or mechanical, including photocopying,
recording or by any information storage and retrieval system, without permission
in writing from Briggs & Stratton Corporation.
PRINTED IN U.S.A.
FORM MS--5572--11/24/2008
REPLACES FORM MS--5572--05/05/2008
FILE IN SECT. 2 OF SERVICE MANUAL
40F700
Illustrated Parts List
Model Series
40F700
TYPE NUMBERS
0100 through 0113.
TABLE OF CONTENTS
Air Cleaner 6.........................
Alternators/Ignition 8..................
Blower Housing/Shrouds 6............
Camshaft 2, 4...........................
Carburetor 5..........................
Controls 7............................
Crankshaft 3..........................
Cylinder 2............................
Cylinder Head 4.......................
Electric Starter 7......................
Engine Sump 2.......................
Flywheel 7............................
Kit/Gasket Sets 3, 5.....................
Lubrication 3.........................
Piston, Rings, Connecting Rod 3.......
Valves 4..............................
Not for
Reproduction

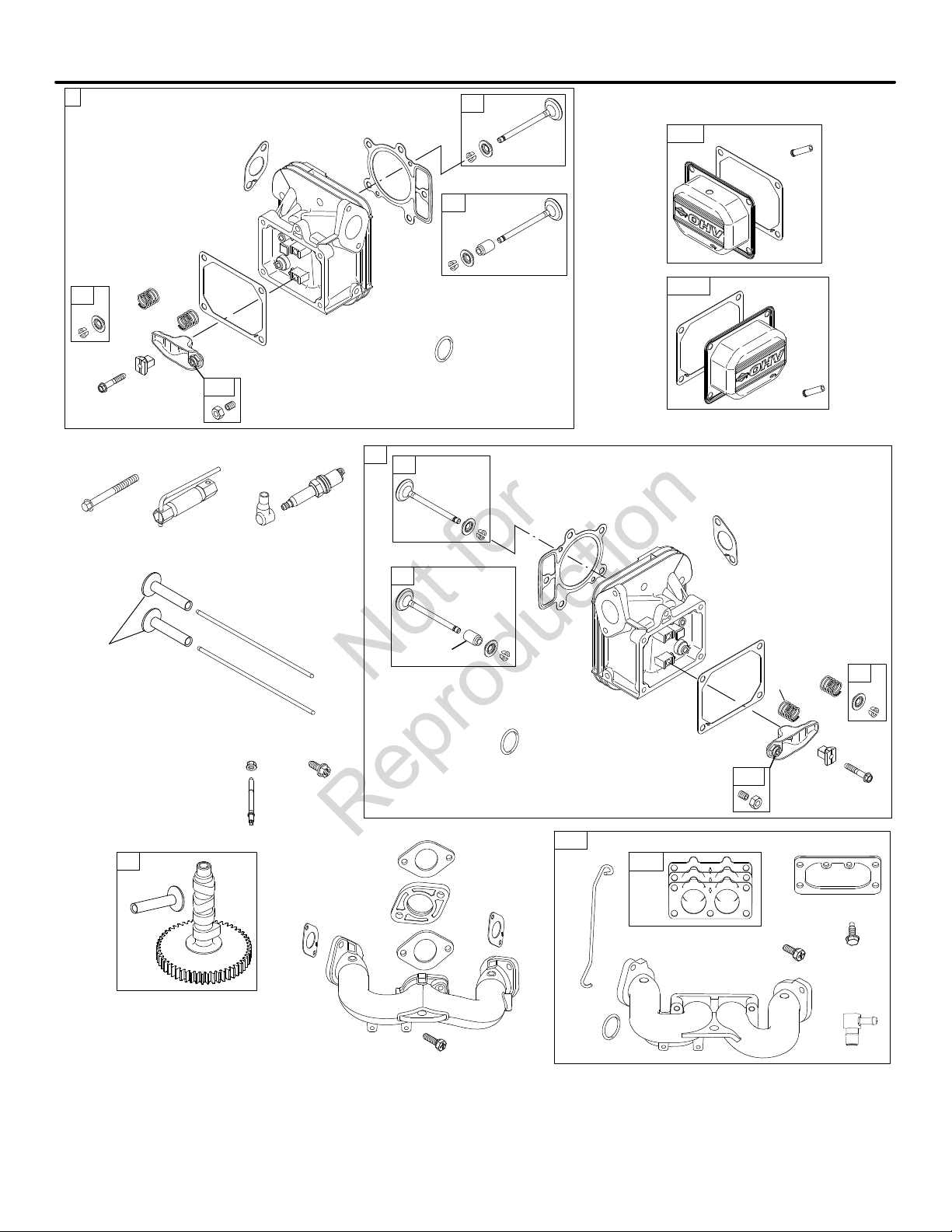

40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--2 Assemblies include all parts shown in frames. 11/24/2008
2
415
8
20
1013
691 552
1017
12
252
10
9
11
718
3
2
1
250
239 22
4
943
750
1035
965
15
718
1330 REPAIR MANUAL
1058 OPERATOR’S MANUAL
15A
1319 WARNING LABEL
REQUIRED when replacing parts
with warning labels affixed.
1024A
415
20
1013
691
552
1017
12
15
15A
718
3
2
46 45
1A
850
1027
1027A
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--3 Assemblies include all parts shown in frames. 11/24/2008
3
24
26
28
25
27
27
741
146
16
32
29
287
842
524
523
525
847
741
146
16A
32
29
357
883
943
1022
12
9
7
3
358A ENGINE GASKET SET
868
842
691
524
20
276
163
51E
51A
943A
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--4 Assemblies include all parts shown in frames. 11/24/2008
4
914
53
654
337
635
383
13
798
42
192
1022
1100
1029
7
36
35
33
34
868
798
5A
883
1022
1100
1029
7
36 35
33
34
868
5
42
192
1023A
1023
1022
883 1022
1026
45
1026A
918
918
46
45
50A
929
212
163
54
617 186
617
617
54
122A
50
51
51E
51E
51
51A
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--5 Assemblies include all parts shown in frames. 11/24/2008
5
918
387 628
788
601
187A
601
240A
385
1022
868
1095 VALVE GASKET SET
7
163
883
601A
947
133B
98
104
1127A
987A
130A
105
127
125C
117E
131A
975B
95
108A
231
141A
137A
51
51D
135B
137A
633A
276A
276A
118E
187D
601
187E
601
187C
613A
788A
121C CARBURETOR OVERHAUL KIT
104
987A
137A
105
51D
51
633A
276A
634B
51E
276A
1127
137
104
987
95
150
1128
105
1126
1124
160
1123
276A
633
108
672
418
163
135
231
130
98
947
141
125
975
133
131
142
276
117A
51A
117
142
51E
1342A
1123
118A
118
121 CARBURETOR OVERHAUL KIT
104
105
137
987
633
1123
276
672
1124
150
276A
163
51A
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--6 Assemblies include all parts shown in frames. 11/24/2008
6
447
865
573
163
304
967
865A
447A
865B
447A
405A
855A
703
729
1036 EMISSIONS LABEL
305
1005
304B
305B
1040
304A
431B
968B
968A 467 467A 467A
968C
467A
445 445A
968A 467 467A
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--7 Assemblies include all parts shown in frames. 11/24/2008
7
363
1070
75
332
1005
668
74
23
73
165
695
726
271
742
552
616
213
216
269 268
270 220
615
209
211 267
265
188
219
265
552A
404
552A
691
562
505
227
1090
797
311
579
802
310
801
1051
783
513
309
510
697
267
222
267A
212
Not for
Reproduction
40F700
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--8 Assemblies include all parts shown in frames. 11/24/2008
8
501B
526B
578
877C
10 -- 16 AMP
474B
729
1119
1054
851
334
635
578
789D
333
1059
NOTE: All stators use a No. mounting screw.
1119
NOTE: The proper flywheel part number and/or the alternator magnet size will
determine the alternator type or output. See repair instruction manual
for additional information.
474C
CIRCUIT
TRI
1059
877C
878C
789A
789B
Not for
Reproduction
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
40F700
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121.
zIncluded in Carburetor Gasket Set--Ref. No. 977.
∆Included in Valve Gasket Set--Ref. No. 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--9 Assemblies include all parts shown in frames. 11/24/2008
9
1 795118 Cylinder Assembly
(Used After Code Date
07070900).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
699751 Cylinder
Assembly
(Used Before Code
Date 07071000 and
After Code Date
03082800).
699742 Cylinder
Assembly
(Used Before Code
Date 03082900).
2 499585 Kit--Bushing/Seal
(Magneto Side)
3K391086 Seal--Oil
(Magneto Side)
4 699747 Sump--Engine
(Used After Code Date
03082800).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
690069 Sump--Engine
(Used Before Code
Date 03082900).
5 792299 Head--Cylinder
(Cylinder 1)
5A 792300 Head--Cylinder
(Cylinder 2)
7K∆693997 Gasket--Cylinder Head
8 499601 Breather Assembly
9K792185 Gasket--Breather
10 691108 Screw
(Breather Assembly)
11 792184 Tube--Breather
12 K697227 Gasket--Crankcase
13 791130 Screw
(Cylinder Head)
15 691680 Plug--Oil Drain
(1/2” Square Flush)
15A 690946 Plug--Oil Drain
16 699700 Crankshaft
(Used After Code Date
04010800).
16A 699701 Crankshaft
(Includes Connecting
Rod)
(Used Before Code
Date 04010800).
20 K795387 Seal--Oil
(PTO Side)
22 694966 Screw
(Crankcase
Cover/Sump)
23 691053 Flywheel
-- -- -- -- -- -- N o t e -- -- -- -- -- --
791054 Flywheel
Used on Type No(s).
0100.
24 222698S Key--Flywheel
25 793647 Piston Assembly
(Standard)
-- -- -- -- -- -- N o t e -- -- -- -- -- --
793648 Piston
Assembly
(.020” Oversize)
26 698430 Ring Set
(Standard)
-- -- -- -- -- -- N o t e -- -- -- -- -- --
698437 Ring Set
(.020” Oversize)
27 690975 Lock--Piston Pin
28 690229 Pin--Piston
(Standard)
29 699699 Rod--Connecting
(Standard)
(Used After Code Date
04010800).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
(For Replacement
Connecting Rod, See
Reference 16A)
(Used Before Code
Date 04010900).
32 690976 Screw
(Connecting Rod)
33 697576 Valve--Exhaust
34 792200 Valve--Intake
35 690963 Spring--Valve
(Intake)
36 690963 Spring--Valve
(Exhaust)
42 499586 Keeper--Valve
45 690977 Tappet--Valve
46 790562 Camshaft
(Used After Code Date
03082800).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
Camshaft
(Used Before Code
Date 03082900).
No Longer Available.
Must Use Ref 1A.
792555 Camshaft
Used on Type No(s).
0100, 0113.
50 699801 Manifold--Intake
Used on Type No(s).
0113.
50A 695241 Manifold--Intake
(Plastic)
51 699803 Gasket--Intake
51AKDz791677 Gasket--Intake
51D 699800 Gasket--Intake
51E 690949 Gasket--Intake
53 690951 Stud
(Carburetor)
54 699816 Screw
(Intake Manifold)
73 494439 Screen--Rotating
74 698425 Screw
(Rotating Screen)
75 691056 Washer
(Flywheel)
95 690718 Screw
(Throttle Valve)
98 699721 Kit--Idle Speed
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499802 Kit--Idle Speed
(Used Before Code
Date 04080400).
104 D694918 Pin--Float Hinge
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
690984 Pin--Float
Hinge
(Used Before Code
Date 04080400).
105 D698537 Valve--Float Needle
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
690985 Valve--Float
Needle
(Used Before Code
Date 04080400).
Not for
Reproduction
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
40F700
KIncluded in Engine Gasket Set--Ref. No. 358.
DIncluded in Carburetor Overhaul Kit--Ref. No. 121.
zIncluded in Carburetor Gasket Set--Ref. No. 977.
∆Included in Valve Gasket Set--Ref. No. 1095.
Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.
5572--10 Assemblies include all parts shown in frames. 11/24/2008
10
108 690986 Valve--Choke
108A 699808 Valve--Choke
117 D690232 Jet--Main
(Standard)
(Used Before Code
Date 04080400).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
699732 Jet--Main
(Standard)
(Left or Cylinder 1)
(Used After Code Date
04080300).
117A 699733 Jet--Main
(Standard)
(Right Or Cylinder 2)
(Used After Code Date
04080300).
117E 791406 Jet--Main
(Standard)
Used on Type No(s).
0113.
118 790890 Jet--Main
(High Altitude)
(Left or Cylinder 1)
(Used After Code Date
04080300).
118A 699458 Jet--Main
(High Altitude)
(Right Or Cylinder 2)
(Used After Code Date
04080300).
121 699734 Kit--Carburetor
Overhaul
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499811 Kit--Carburetor
Overhaul
(Used Before Code
Date 04080400).
121C 699814 Kit--Carburetor
Overhaul
125 791230 Carburetor
125C 699807 Carburetor
Used on Type No(s).
0113.
127 699810 Plug--Welch
Used on Type No(s).
0113.
130 690993 Valve--Throttle
130A 699809 Valve--Throttle
Used on Type No(s).
0113.
131 499805 Kit--Throttle Shaft
131A 699812 Kit--Throttle Shaft
Used on Type No(s).
0113.
133 699724 Float--Carburetor
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499806 Float--
Carburetor
(Used Before Code
Date 04080400).
133B 694914 Float--Carburetor
Used on Type No(s).
0113.
135 699729 Tube--Fuel Transfer
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499803 Tube--Fuel
Transfer
(Used Before Code
Date 04080400).
135B 698780 Tube--Fuel Transfer
Used on Type No(s).
0113.
137 Dz690994 Gasket--Float Bowl
137A D698781 Gasket--Float Bowl
Used on Type No(s).
0113.
141 699722 Kit--Choke Shaft
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499807 Kit--Choke
Shaft
(Used Before Code
Date 04080400).
141A 699811 Kit--Choke Shaft
Used on Type No(s).
0113.
142 D699726 Nozzle--Carburetor
(Standard)
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
499808 Nozzle--
Carburetor
(Standard)
(Used Before Code
Date 04080400).
146 690979 Key--Timing
150 Dz690995 Gasket--Nozzle
160 699727 Retainer--Solenoid
(Used After Code Date
04080300).
-- -- -- -- -- -- N o t e -- -- -- -- -- --
690996 Retainer--
Solenoid
(Used Before Code
Date 04080400).
163 K∆691001 Gasket--Air Cleaner
165 693148 Nut
(Ring Gear)
186 795985 Connector--Hose
187A 791666 Line--Fuel
(Cut To Required
Length)
187C 791745 Line--Fuel
(Cut To Required
Length)
187D 791744 Line--Fuel
(Molded)
187E 791801 Line--Fuel
(Cut To Required
Length)
188 691108 Screw
(Control Bracket)
Not for
Reproduction
Andere Briggs & Stratton Motor Handbücher
Briggs & Stratton
Briggs & Stratton 21000 Series Installations- und Betriebshandbuch
Briggs & Stratton
Briggs & Stratton Power Built Intek I/C 210000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton VANGUARD M490000 Betriebsanleitung
Briggs & Stratton
Briggs & Stratton Vanguard 350000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton Vanguard 490000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 215800 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton Vanguard 290000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 400000 Professional Series Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 21B900 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton 90000 series Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 217900 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton MS3419 Installations- und Betriebshandbuch
Briggs & Stratton
Briggs & Stratton 126L00 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton Professional Series 775 Series 110000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton Vanguard 610000 Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 217800 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton 330000 VERTICAL SERIES Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 310000 Intek Bedienungsanleitung
Briggs & Stratton
Briggs & Stratton 11B600 Installations- und Betriebshandbuch
Briggs & Stratton
Briggs & Stratton 31N800 Series Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton P2132E Einrichtungshandbuch
Briggs & Stratton
Briggs & Stratton 405700, 406700, 407700, 445700 Montageanleitung
Briggs & Stratton
Briggs & Stratton 91200 Series Installations- und Betriebshandbuch
Briggs & Stratton
Briggs & Stratton 101120 Series Installations- und Betriebsanleitung
