Briggs & Stratton P2132E Einrichtungshandbuch

Not for

Reproduction

in any form or by any means, electronic or mechanical, including photocopying,

recording or by any information storage and retrieval system, without permission

in writing from Briggs & Stratton Corporation.

PRINTED IN U.S.A.

FORM MS10310 REV G 03/01/2013

REPLACES FORM MS10310 REV F 11/06/2012

FILE IN SECT. 2 OF SERVICE MANUAL

25M100

Illustrated Parts List

Model Series

25M100

TYPE NUMBERS

0019 through 0115.

TABLE OF CONTENTS

Alternator 8..........................

Blower Housing 5....................

Camshaft 2..........................

Carburetor 4.........................

Controls 8...........................

Crankcase Cover 2...................

Crankshaft 2.........................

Cylinder 2...........................

Cylinder Head 3......................

Electrical Starter 8....................

Exhaust System 7....................

Flywheel 5...........................

Fuel Supply 7........................

Gasket Sets 3........................

Governor Spring 8....................

Ignition 8............................

Lubrication 2.........................

Operator’s Manual 2..................

Piston/Rings/Connecting Rod 2.......

Rewind Starter 5.....................

Shrouds 6...........................

Warning Label 2......................

Not for

Reproduction

25M100

10310--2 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

718

631

718A

306

505

616

562

614

227

307

17A

758

17A 17

729

276A

998

847

287

357

842

522

512

Note: Includes Governor Gear --

Not Serviced Separately.

1058 OPERATOR’S MANUAL 1036 EMISSIONS LABEL

1319 WARNING LABEL

REQUIRED when replacing

parts with warning labels

affixed.

REQUIRED when replacing

parts with warning labels

affixed.

1319A WARNING LABEL

Not for

Reproduction

25M100

10310--3 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

1095 VALVE GASKET SET

12 3

358 ENGINE GASKET SET

1023

1022

830

1026

1029

718

238

1022

40A

914

51A

868

276

40 42

40A

42 238

1034

163

883

883A

883

883A

883

883A

71022

868

51A

163

71022

868

51A

163

Not for

Reproduction

25M100

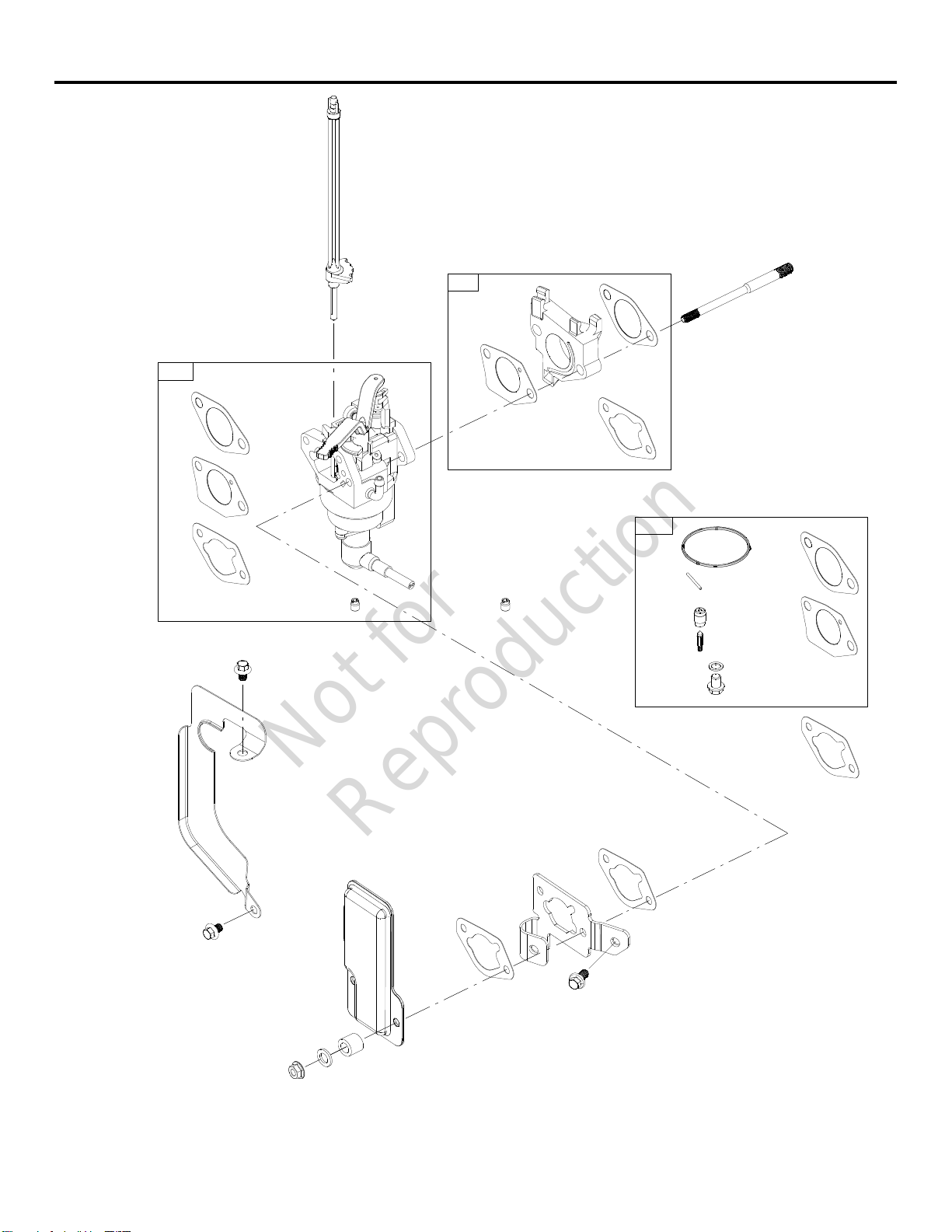

10310--4 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

51A

163

122

51A

109

610

125B

163

493A

318

51A

163

100

654

305

996

711

668

118B117B

121A

Not for

Reproduction

25M100

10310--5 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

304

455

332

1005

608

305

363

Not for

Reproduction

25M100

10310--6 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

663A

281A

663

1251

1252

554

307

731

731A

281

663

892

976

1196

528

731B

892

976

472C 1196A

990A

493A

731C

307 306

306A

307

654

996

711

Not for

Reproduction

25M100

10310--7 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

181

601

187

529 601

187A

240

958

300

883

883A

836A

1302

832

705

190

180B

832C

883

883A

836A

1302

300C

436

1177

1176

Not for

Reproduction

25M100

10310--8 Assemblies include all parts shown in frames. 03/01/2013

Illustrations cover a range of engines. Parts shown without text may not be used on your specific engine.

318

188

270

269

268

271

202

267

265

222D

209

789

729

232

211

309

474

493

1119 367

318A

729A

501

526

383

337

333A

635A

334

493B

485

813

1009

188

222C

98 211

485

309A

Not for

Reproduction

REF. PART REF. PA RT R E F. PA RT

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

25M100

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10310--9 Assemblies include all parts shown in frames. 03/01/2013

1 799808 Cylinder Assembly

3 797766 Seal--Oil

(Magneto Side)

5 799801 Head--Cylinder

7 799534 Gasket--Cylinder Head

11 799930 Tube--Breather

12 797789 Gasket--Crankcase

13 797791 Screw

(Cylinder Head)

15 797793 Plug--Oil Drain

16 799842 Crankshaft

Used on Type No(s).

0019, 0110, 0114.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

591097 Crankshaft

Used on Type No(s).

0112, 0113.

591096 Crankshaft

Used on Type No(s).

0111, 0115.

17 797765 Bearing--Ball

(Crankshaft)

17A 797764 Bearing--Ball

(Counterweight)

18 799812 Cover--Crankcase

(Includes Governor

Gear - Not Serviced

Separately)

20 797766 Seal--Oil

(PTO Side)

21 799857 Cap--Oil Fill

22 797795 Screw

(Crankcase

Cover/Sump)

23 799926 Flywheel

Used on Type No(s).

0019, 0110, 0114,

0115.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

591095 Flywheel

Used on Type No(s).

0111, 0112, 0113.

24 797812 Key--Flywheel

25 799535 Piston Assembly

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

799536 Piston

Assembly

(.010” Oversize)

799537 Piston

Assembly

(.020” Oversize)

26 799538 Ring Set

(Standard)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

799539 Ring Set

(.010” Oversize)

799540 Ring Set

(.020” Oversize)

27 797803 Lock--Piston Pin

28 797799 Pin--Piston

29 797804 Rod--Connecting

33 797778 Valve--Exhaust

34 797777 Valve--Intake

35 797780 Spring--Valve

(Intake)

36 797780 Spring--Valve

(Exhaust)

40 797781 Retainer--Valve

40A 797782 Retainer--Valve

42 797783 Keeper--Valve

45 797786 Tappet--Valve

46 797851 Camshaft

51 797845 Gasket--Intake

51A 797755 Gasket--Intake

53 591841 Stud

(Carburetor)

-- -- -- -- -- -- N o t e -- -- -- -- -- --

591841 Stud

(Carburetor)

(Used After Code Date

12030500)

Used on Type No(s).

0019.

591841 Stud

(Carburetor)

(Used After Code Date

12050100)

Used on Type No(s).

0110, 0111.

799804 Stud

(Carburetor)

(Used Before Code

Date 12030600)

Used on Type No(s).

0019.

799804 Stud

(Carburetor)

(Used Before Code

Date 12050200)

Used on Type No(s).

0110, 0111.

58 691921 Rope--Starter

(Cut to Required

Length)

60 699334 Grip--Starter Rope

Used on Type No(s).

0019, 0110, 0111,

0012, 0113, 0114,

0115.

65 799923 Screw

(Rewind Starter)

98 799928 Kit--Idle Speed

(High Speed

Adjustment)

100 591000 Washer

(Carburetor)

109 799803 Shaft--Choke

Not for

Reproduction

REF. PART REF. PA RT R E F. PA RT

NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION

25M100

Illustrations cover a range of engines. Parts shown without corresponding text may not be used on your specific engine.

10310--10 Assemblies include all parts shown in frames. 03/01/2013

117B 591553 Jet--Main

(Standard)

118B 591554 Jet--Main

(High Altitude)

121A 590453 Kit--Carburetor

Overhaul

122 799961 Spacer--Carburetor

125B 799802 Carburetor

163 797756 Gasket--Air Cleaner

180B 799782 Tank--Fuel

181 794641 Cap--Fuel Tank

187 799784 Line--Fuel

(Formed Hose)

187A 799785 Line--Fuel

(Formed Hose)

188 798618 Screw

(Control Bracket)

190 590997 Screw

(Fuel Tank)

202 797810 Link--Mechanical

Governor

209 797843 Spring--Governor

Used on Type No(s).

0112, 0113, 0114,

0115.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

797843 Spring--

Governor

(Carburetor)

(Used After Code Date

12030500)

Used on Type No(s).

0019.

797843 Spring--

Governor

(Carburetor)

(Used After Code Date

12050100)

Used on Type No(s).

0110, 0111.

799932 Spring--

Governor

(Carburetor)

(Used Before Code

Date 12030600)

Used on Type No(s).

0019.

799932 Spring--

Governor

(Carburetor)

(Used Before Code

Date 12050200)

Used on Type No(s).

0110, 0111.

211 799927 Spring--Governed Idle

222C 799827 Bracket--Control

(Used Before Code

Date 12030600)

Used on Type No(s).

0019.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

799827 Bracket--

Control

(Used Before Code

Date 12050200)

Used on Type No(s).

0110, 0111.

222D 591857 Bracket--Control

Used on Type No(s).

0112, 0113, 0114,

0115.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

591857 Bracket--

Control

(Used After Code Date

12030500)

Used on Type No(s).

0019.

591857 Bracket--

Control

(Used After Code Date

12050100)

Used on Type No(s).

0110, 0111.

227 799924 Lever--Governor

Control

232 797809 Spring--Governor Link

238 797784 Cap--Valve

240 797346 Filter--Fuel

265 691024 Clamp--Casing

267 699492 Screw

(Casing Clamp)

268 691025 Casing--Control Wire

(Cut To Required

Length)

269 691026 Wire--Control

(Cut To Required

Length)

270 691027 Nut

(Control Wire Casing)

271 691028 Lever--Control

276 797847 Washer--Sealing

(Rocker Cover)

276A 797806 Washer--Sealing

(Governor Crank)

281 799792 Panel--Control

281A 799793 Panel--Control

287 710023 Screw

(Dipstick Tube)

300 799799 Muffler--Exhaust

(Used Before Code

Date 12030600)

Used on Type No(s).

0019.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

799799 Muffler--

Exhaust

(Used Before Code

Date 12041700)

Used on Type No(s).

0110.

799799 Muffler--

Exhaust

(Used Before Code

Date 12050200)

Used on Type No(s).

0111.

300C 591837 Muffler--Exhaust

Used on Type No(s).

0112, 0113, 0114,

0115.

-- -- -- -- -- -- N o t e -- -- -- -- -- --

591837 Muffler--

Exhaust

(Used After Code Date

12030500)

Used on Type No(s).

0019.

591837 Muffler--

Exhaust

(Used After Code Date

12041600)

Used on Type No(s).

0110.

591837 Muffler--

Exhaust

(Used After Code Date

12050100)

Used on Type No(s).

0111.

304 799920 Housing--Blower

305 710023 Screw

(Blower Housing)

306 797749 Shield--Cylinder

306A 591839 Shield--Cylinder

Dieses Handbuch passt für folgende Modelle

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 190707 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 80200 Series Handbuch

Briggs & Stratton

Briggs & Stratton P0820B Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 10T600 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 120000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 440000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 470000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 420000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 133400 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 281H00 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 120000 Betriebsanleitung

Briggs & Stratton

Briggs & Stratton 490000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 90000 series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 200000 Vanguard Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 190000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 194700 Series Montageanleitung

Briggs & Stratton

Briggs & Stratton 120000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 11B600 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 420000 Series Handbuch

Briggs & Stratton

Briggs & Stratton 12H800 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 287700 Series Montageanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
