Briggs & Stratton 9B900 Installations- und Betriebshandbuch

262v9,10 - page 1 (Black)

Screen angle and frequency: 45.0000, 150.0000

Model Series

Covered in

This Manual

9B900

9C900

9D900

98900

10A900

10B900

10C900

10D900

Operating & Maintenance

Instructions

Model Type Code

Note: General Model Series numbers noted above include many specific numbers

like the ones on your engine. To get replacement parts or technical assistance in

the future, write your engine Model, Type, Code and date of purchase here.

Month Day Year

TABLE OF CONTENTS

Safety 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Information 6. . . . . . . . . . . . . . . . . . . . . . . .

Oil 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting Information 9. . . . . . . . . . . . . . . . . . . . . . .

Starting and Stopping 10. . . . . . . . . . . . . . . . . . . . .

Maintenance 11-13. . . . . . . . . . . . . . . . . . . . . . . . .

Adjustments 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts and Service & Storage 15-16. . . . . . . . . . . .

Warranty Information 17. . . . . . . . . . . . . . . . . . . . .

WARNING

Briggs & Stratton does not approve or authorize the use of

these engines on 3-wheel All Terrain Vehicles (ATVs), motor

bikes, aircraft products or vehicles intended for use in

competitive events. Use of these engines in such applications

could result in property damage, serious injury (including

paralysis), or even death.

In the USA and Canada our 24 hour hotline is

1-800-233-3723

Briggs & Stratton Corporation

Milwaukee, Wisconsin 53201

www.briggsandstratton.com

262v9,10 - page 2 (Black)

Screen angle and frequency: 45.0000, 150.0000

THE POWER IN POWER EQUIPMENT

Thank you for selecting a Briggs & Stratton engine to power your equipment.

Briggs & Stratton is committed to producing a line of engines which will make your life’s chores easier to

perform. We have, at the same time, improved the design of our engines so they are environmentally

friendly. Since 1995, we have succeeded in reducing smog-forming exhaust emissions from our engines

by 70%. Briggs & Stratton’s efforts have not stopped there. We are also committed to designing and

introducing even cleaner engines in the future, while maintaining our reputation for excellent utility and

value.

Briggs & Stratton’s environmental awareness has resulted in the engineering of the “Smart-Fill” gas

can, featuring a spill resistant nozzle which opens only when fully inserted into the gas tank, and which

shuts off automatically when the tank is full. Because refueling spills can harm the environment, the

Smart-Fillcontainer helps preserve a stronger ecosystem by reducing this source of pollution.

We hope you will enjoy your new engine and equipment. We welcome you to our worldwide family of

Briggs & Stratton engine users.

Best Wishes Always,

The Employees of Briggs & Stratton Corporation

262v9,10 - page 3 (Black)

Screen angle and frequency: 45.0000, 150.0000

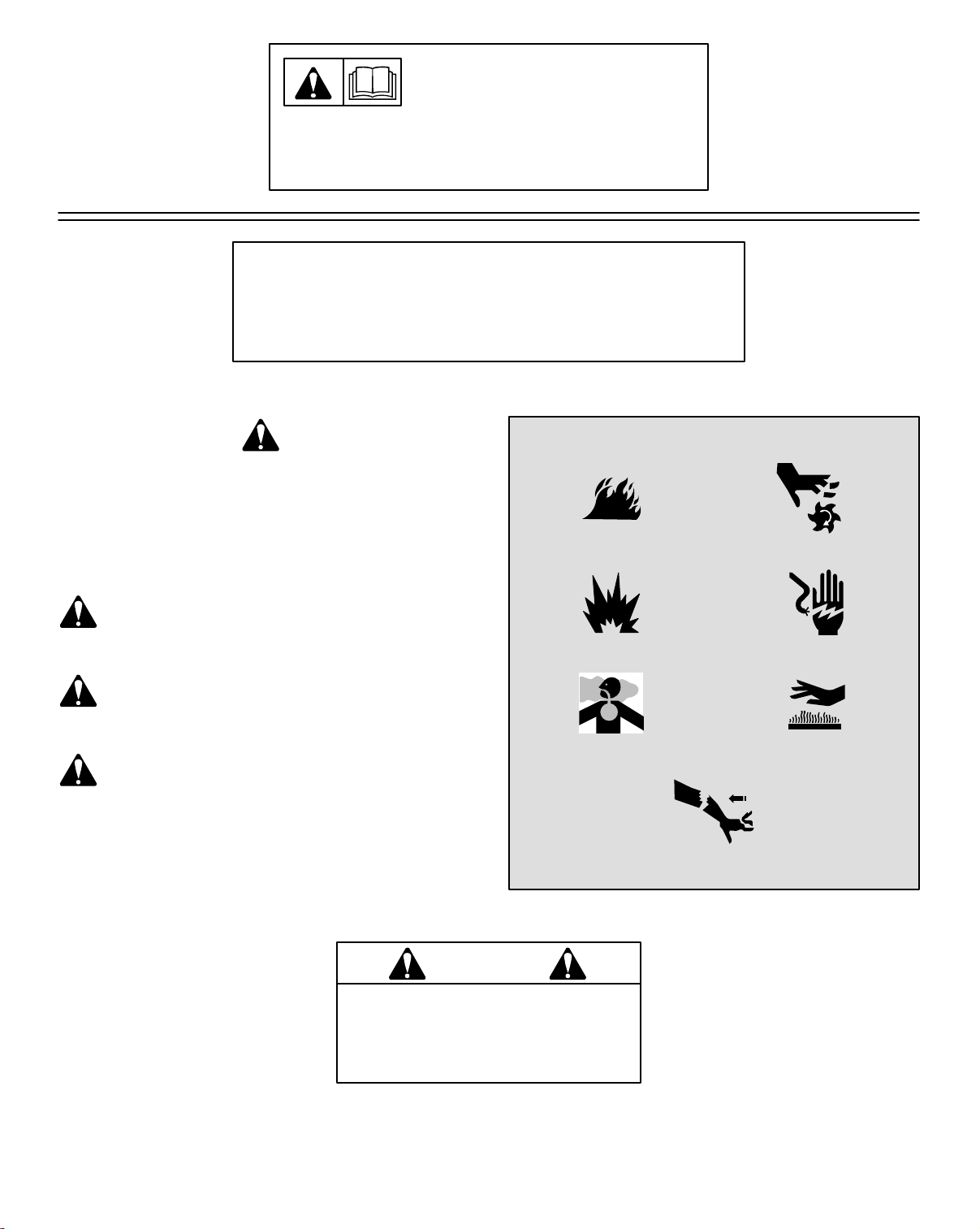

BEFORE OPERATING ENGINE

•Read entire Operating & Maintenance Instructions AND

the instructions for the equipment this engine powers.*

•Failure to follow instructions could result in serious injury

or death.

THE OPERATING & MAINTENANCE INSTRUCTIONS

CONTAIN SAFETY INFORMATION TO

•Make you aware of hazards associated with engines

•Inform you of the risk of injury associated with those hazards, and

•Tell you how to avoid or reduce the risk of injury.

274262

The safety alert symbol ( )is used to identify safety

information about hazards that can result in personal injury.

A signal word (DANGER, WARNING, or CAUTION) is

used with the alert symbol to indicate the likelihood and the

potential severity of injury. In addition, a hazard symbol

may be used to represent the type of hazard.

DANGER indicates a hazard which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not

avoided,could result in death or serious injury.

CAUTION indicates a hazard which, if not

avoided, might result in minor or moderate

injury.

CAUTION,when used without the alert symbol,

indicates a situation that could result in damage

to the engine.

HAZARD SYMBOLS AND MEANINGS

Explosion

Toxic Fumes

Moving Parts

Shock

Hot Surface

Kickback

Fire

WARNING

The engine exhaust from this prod-

uct contains chemicals known to the

State of California to cause cancer,

birth defects, or other reproductive

harm.

* Briggs & Stratton does not necessarily know what equipment this engine will power. For that reason, you should carefully

read and understand the operating instructions for the equipment on which your engine is placed.

262v9,10 - page 4 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

WARNING

Gasoline and its vapors are extremely flammable

and explosive.

Fire or explosion can cause severe burns or death.

WHEN ADDING FUEL

•Turn engine OFF and let engine cool at least 2

minutes before removing gas cap.

•Fill fuel tank outdoors or in well-ventilated area.

•Do not overfill fuel tank. Fill tank to approximately 1

inch below lowest portion of neck to allow for fuel

expansion.

•Keep gasoline away from sparks, open flames,

pilot lights, heat, and other ignition sources.

•Check fuel lines, tank, cap, and fittings frequently

for cracks or leaks. Replace if necessary.

WHEN STARTING ENGINE

•Make sure spark plug, muffler, fuel cap and air

cleaner are in place.

•Do not crank engine with spark plug removed.

•If fuel spills, wait until it evaporates before starting

engine.

•If engine floods, set choke to OPEN/RUN position,

place throttle in FAST and crank until engine starts.

WHEN OPERATING EQUIPMENT

•Do not tip engine or equipment at angle which

causes gasoline to spill.

•Do not choke carburetor to stop engine.

WHEN TRANSPORTING EQUIPMENT

•Transport with fuel tank EMPTY or with fuel shut-off

valve OFF.

WHEN STORING GASOLINE OR EQUIPMENT

WITH FUEL IN TANK

•Store away from furnaces, stoves, water heaters or

other appliances that have pilot light or other

ignition source because they can ignite gasoline

vapors.

WARNING

Unintentional sparking can result in fire or electric

shock.

Unintentional start-up can result in entanglement,

traumatic amputation, or laceration.

BEFORE PERFORMING ADJUSTMENTS OR

REPAIRS

•Disconnect spark plug wire and keep it away from

spark plug.

•Disconnect battery at negative terminal (only

engines with electric start).

WHEN TESTING FOR SPARK

•Use approved spark plug tester.

•Do not check for spark with spark plug removed.

WARNING

Starting engine creates sparking.

Sparking can ignite nearby flammable gases.

Explosion and fire could result.

•If there is natural or LP gas leakage in area, do not

start engine.

•Do not use pressurized starting fluids because

vapors are flammable.

262v9,10 - page 5 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

WARNING

Engines give off carbon monoxide, an odorless,

colorless, poison gas.

Breathing carbon monoxide can cause nausea,

fainting or death.

•Start and run engine outdoors.

•Do not start or run engine in enclosed area, even if

doors or windows are open.

WARNING

Running engines produce heat. Engine parts,

especially muffler, become extremely hot.

Severe thermal burns can occur on contact.

Combustible debris, such as leaves, grass, brush,

etc. can catch fire.

•Allow muffler, engine cylinder and fins to cool

before touching.

•Remove accumulated combustibles from muffler

area and cylinder area.

•Install and maintain in working order a spark

arrester before using equipment on forest-covered,

grass-covered, brush-covered unimproved land.

The state of California requires this (Section 4442

of the California Public Resources Code). Other

states may have similar laws. Federal laws apply

on federal land.

WARNING

Rotating parts can contact or entangle hands, feet,

hair, clothing, or accessories.

Traumatic amputation or severe laceration can

result.

•Operate equipment with guards in place.

•Keep hands and feet away from rotating parts.

•Tie up long hair and remove jewelry.

•Do not wear loose-fitting clothing, dangling

drawstrings or items that could become caught.

WARNING

Rapid retraction of starter cord (kickback) will pull hand

and arm toward engine faster than you can let go.

Broken bones, fractures, bruises or sprains could

result.

•When starting engine, pull cord slowly until

resistance is felt, then pull rapidly.

•Remove all external equipment/engine loads

before starting engine.

•Direct coupled equipment components such as,

but not limited to, blades, impellors, pulleys,

sprockets, etc., must be securely attached.

262v9,10 - page 6 (Black)

Screen angle and frequency: 45.0000, 150.0000

ENGINE PARTS

1. Carburetor

2. Air cleaner

3. Rope handle

4. Finger guard

5. Oil fill/Dipstick

6. Engine Model Type Code

xxxxx xxxx xx xxxxxxxx

7. Muffler/(Muffler guard, if equipped)/

(Spark arrester, if equipped)

8. Spark plug wire

9. Governor control lever

10. Primer bulb

11. Fuel tank

12. Fuel fill

13. Flywheel

11 9

10 8

GENERAL INFORMATION

ENGINE MODEL

This is a single cylinder, L-head, air-cooled engine. It is a

low emissions engine.

MODEL SERIES 90000

Bore 2-9/16 in. (65.09 mm). . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 1-3/4 in. (44.45 mm). . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 9.02 cu. in. (147.8 cc). . . . . . . . . . . . . . . . . .

MODEL SERIES 100000

Bore 2-9/16 in. (65.09 mm). . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 1-7/8 in. (47.63 mm). . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 9.67 cu. in. (158.6 cc). . . . . . . . . . . . . . . . . .

Note: For practical operation, the horsepower loading

should not exceed 85% of rated horsepower. Engine power

will decrease 3-1/2% for each 1,000 feet (300 meters)

above sea level and 1% for each 10°F (5.6°C) above 77°F

(25°C). It will operate satisfactorily at an angle up to 15°.

TUNE-UP SPECIFICATIONS

Armature air gap 0.006 –0.010 in. (0.15 –0.25 mm). . .

Spark plug gap 0.030 in. (0.76 mm). . . . . . . . . . . . . . . . . .

Valve clearance with valve springs installed and piston 1/4 in.

(6 mm) past top dead center (check when engine is cold).

See Repair Manual P/N 270962.

Intake 0.005 –0.007 in. (0.13 –0.18 mm). . . . . . . . . . . . .

Exhaust 0.007 –0.009 in. (0.18 –0.23 mm). . . . . . . . . . .

THE INTERNATIONAL SYMBOLS USED

ON THE ENGINE OR

IN THIS MANUAL INCLUDE:

On Off

Fuel Shutoff

Read Owner’s

Manual

Stop

Fuel

Choke

Safety Alert

Oil

Primer

262v9,10 - page 7 (Black)

Screen angle and frequency: 45.0000, 150.0000

OIL

274262

CAUTION: This engine is shipped from Briggs &

Stratton without oil. Check oil level before starting

engine. If you start the engine without oil, the engine

will be damaged beyond repair and will not be

covered under warranty.

OIL CAPACITY

The engine holds approximately 5/8 qt (20 ozs; 0.6 liter).

TYPE OF OIL TO USE

•Use a high quality detergent oil classified “For Service

SF, SG, SH, SJ”or higher, such as Briggs & Stratton

30W, Part Number 100005 (20 oz) or 100028 (48 oz).

•Do not use special additives.

•Choose a viscosity according to the table opposite.

Note: Synthetic oil meeting ILSAC GF-2, API

certification mark and API service symbol

(shown at left) with “SJ/CF ENERGY CON-

SERVING”or higher, is an acceptable oil at all

temperatures. Use of synthetic oil does not

alter required oil change intervals.

°F-20 0 20 40 60 80 100

°C-30 -20 -10 0 10 20 30 40

STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

*CAUTION: Air cooled engines run hotter than

automotive engines. The use of non-synthetic

multi-viscosity oils (5W-30, 10W-30, etc.) in

temperatures above 40°F (4°C) will result in higher

than normal oil consumption. When using a

multi-viscosity oil, check oil level more frequently.

** CAUTION: SAE 30 oil, if used below 40°F (4°C), will

result in hard starting and possible engine bore

damage due to inadequate lubrication.

SAE Viscosity Grades

CHECKING AND ADDING OIL

•Check oil level before starting the engine.

•Check level daily, or after every eight (8) hours.

•Keep oil level at FULL.

CAUTION:Do not overfill. Overfilling with oil may cause:

Smoking,

Hard starting,

Spark plug fouling, or

Oil saturation of air filter.

[1] Place engine level and

clean around oil fill area.

[2] Remove dipstick and wipe clean with cloth.

[3] Replace and tighten dipstick. Remove and

check oil level. Oil level should be at FULL

line on dipstick.

[4] If needed, add oil slowly -

recheck. Do not over fill.

[5] Replace and tighten dipstick.

High Oil Fill

(if equipped)

[1] Place engine level and

clean around oil fill area.

[2] Remove dipstick and wipe clean with cloth.

[3] Replace and tighten dipstick. Remove and

check oil level. Oil level should be at FULL

line on dipstick.

[4] If needed, add oil slowly -

recheck. Do not over fill.

[5] Replace and tighten dipstick.

Low Oil Fill

(if equipped)

262v9,10 - page 8 (Black)

Screen angle and frequency: 45.0000, 150.0000

FUEL

TYPE OF FUEL TO USE

•Use clean, fresh, regular unleaded gasoline with a

minimum of 77 octane. Fresh fuel prevents gum from

forming in the fuel system or onessential carburetor parts.

Purchase fuel in quantity that can be used within 30 days.

•Do not use gasoline which contains Methanol.

•Do not mix oil with gasoline.

•For engine protection use Briggs & Stratton Gasoline

Additive available from your Authorized Briggs &

Stratton Dealer (P/N 5041 or single use pouch).

•This engine is certified to operate on gasoline. Exhaust

Emission Control System: EM (Engine Modifications).

CAUTION: Some fuels, called oxygenated or reformu-

lated gasoline, are gasoline blended with alcohols or

ethers. Excessive amounts of these blends can damage

the fuel system or cause performance problems. If any

undesirable operating symptoms occur, use gasoline

with a lower percentage of alcohol or ether.

ADDING FUEL

WARNING

[1] Fill fuel tank outdoors or in well-ventilated area,

away from sparks, open flames, pilot lights, heat,

and other ignition sources.

[2] If fuel spills, wait until it evaporates before starting

engine.

[3] Turn engine OFF and let engine cool at least 2

minutes before removing gas cap.

[4] Remove cap. Fill tank to approximately 1 inch below

the lowest portion of neck to allow for fuel expansion.

Be careful not to overfill.

Briggs & Stratton’s Smart-Fillfuel can fills to

correct level and automatically shuts off, reducing

spills and emissions.

[5] Replace cap before starting.

Neck

262v9,10 - page 9 (Black)

Screen angle and frequency: 45.0000, 150.0000

STARTING

WARNING

•Do not use pressurized starting fluids.

•Vapors are flammable.

CAUTION

•Smoking,

•Hard starting,

•Spark plug fouling,

•Oil saturation of air filter.

If engine is tipped to transport equipment, remove grass,

drain oil, etc., keep spark plug side of engine up.

Tipping engine with spark plug down may cause:

KEEP SPARK PLUG UP

STARTING AND OPERATING TIPS

♦Store and fuel equipment in level position.

♦Use fresh fuel. (See Fuel.)

♦Use correct type of oil for expected starting

temperature. (See Oil.)

♦Remove external equipment/engine loads. (See

equipment operating instructions.)

♦Start lawn mower on hard surface or over previously

cut grass.

♦Periodically remove grass buildup under mower

deck. (See Maintenance.)

♦After engine has started, let it warm up several

seconds to several minutes, depending on outside

temperature.

♦For maximum performance and life, operate engine

with throttle in FAST.

262v9,10 - page 10 (Black)

Screen angle and frequency: 45.0000, 150.0000

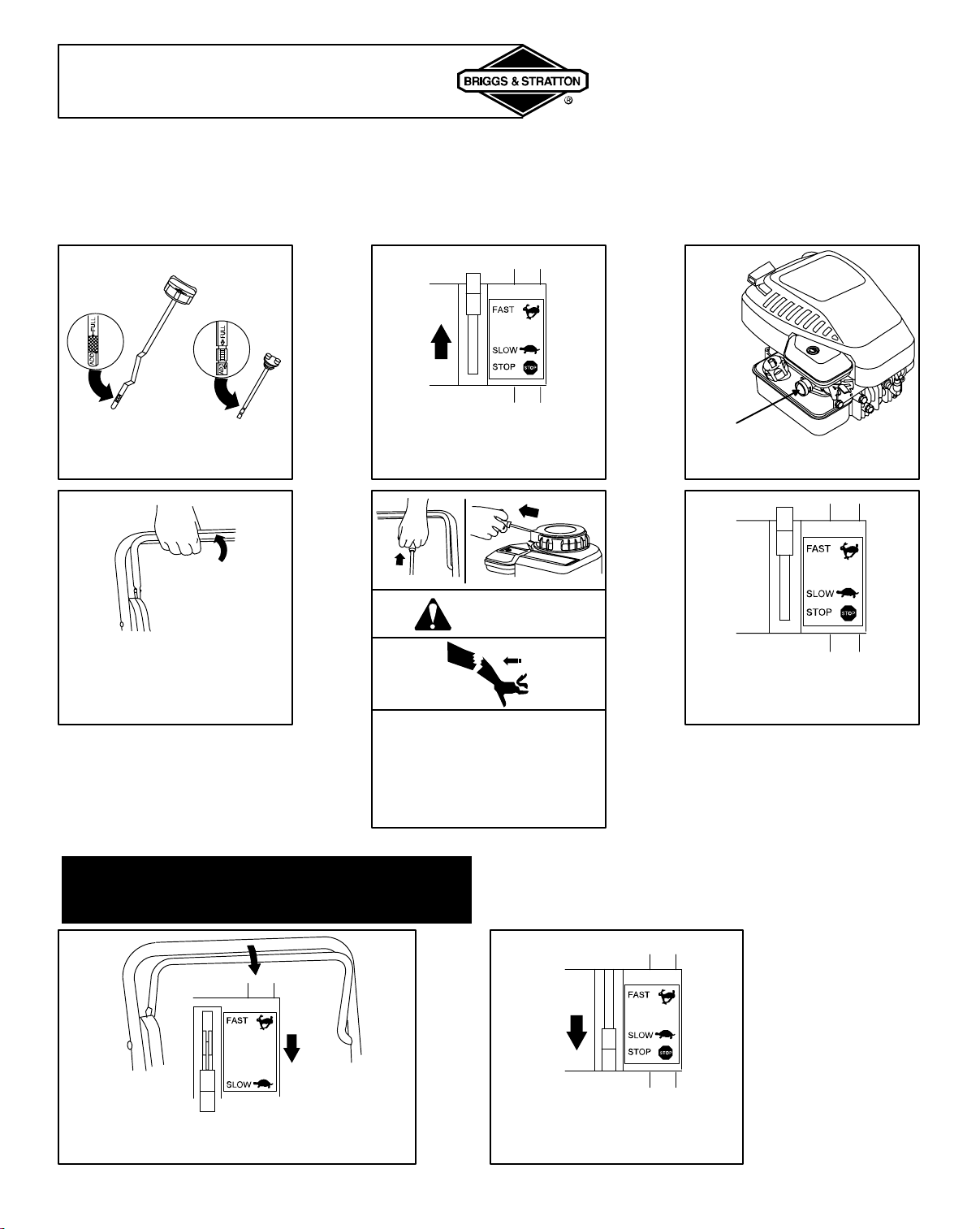

STARTING AND STOPPING

REWIND (MANUAL) STARTER

TO START ENGINE

When starting engine first time, push primer bulb firmly 5 times as illustrated below and pull starter rope as instructed

below. If engine fails to start after 3 pulls, push primer bulb 3 times and pull starter rope as instructed below.

When starting engine thereafter, push primer bulb firmly 3 times as illustrated below and pull starter rope as instructed below.

[1] Check oil level (see p. 8). [2] Move throttle (if

equipped) to FAST. [3] Firmly push primer bulb

3 times.

Primer

bulb

[4] Close safety brake

handle on lawn mowers

and any other equipment

with this feature. [5] Grasp rope handle. Pull

slowly until resistance is

felt, then pull rapidly to

start engine and avoid

kickback.

[6] Let engine warm up.

Operate engine with

throttle in FAST.

WARNING

TO STOP ENGINE

CAUTION: Do not stop engine by moving choke

control to CHOKE. Backfire, fire or engine damage

could occur.

[1] Move throttle (if equipped) to SLOW,

then release safety brake control handle. [2] Move throttle (if equipped)

to SLOW, then to STOP.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton 21000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 290700 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 190000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Handbuch

Briggs & Stratton

Briggs & Stratton 150000 HORIZONTAL SERIES Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 080000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 11A600 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 083100 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 130200 Series Handbuch

Briggs & Stratton

Briggs & Stratton H1528E Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 205300 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Racing Animal Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 126T00 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 351700 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 40G700 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton 260700 Handbuch

Briggs & Stratton

Briggs & Stratton 5129 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 90000 series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 280000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Classic 100000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 92500 Series Handbuch

Briggs & Stratton

Briggs & Stratton 90000 series Bedienungsanleitung

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
