Operating & Maintenance

Instructions

Model Type Code

Month Day Year

Note: General Model Series numbers noted above include many specific numbers

like the ones on your engine. To get replacement parts or technical assistance in

the future, write your engine Model, Type, Code and date of purchase here.

Model Series

Covered in

This Manual,

including

Natural Gas

and Liquid

Propane Gas

Engines

290000

300000

350000

380000

TABLE OF CONTENTS

Safety 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine Information 6. . . . . . . . . . . . . . . . . . . . . . . .

Oil 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting and Stopping 9. . . . . . . . . . . . . . . . . . . . . .

Maintenance 11. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjustments 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts and Service & Storage 16. . . . . . . . . . . . . . .

Warranty Information 17. . . . . . . . . . . . . . . . . . . . .

WARNING

Briggs & Stratton does not approve or authorize the use of

these engines on 3-wheel All Terrain Vehicles (ATVs), motor

bikes, aircraft products or vehicles intended for use in

competitive events. Use of these engines in such applications

could result in property damage, serious injury (including

paralysis), or even death.

Need assistance? Visit our website for detailed information

regarding Briggs & Stratton engines,

www.briggsandstratton.com

In the USA and Canada, a 24 hour hot line,

1-800-233-3723,

has a menu of pre-recorded messages offering engine

maintenance information.

Document: - page 2 (Black)

Screen angle and frequency: 45.0000, 150.0000

The Power That Works For You.

Look For Relevant Emissions Durability Period and

Air Index Information On Your Engine Emissions Label

Engines that are certified to meet the California Air Resources Board (CARB) Tier 2 Emission Standards must display

information regarding the Emissions Durability Period and the Air Index. Briggs & Stratton makes this information available

to the consumer on our emission labels.

TheEmissions Durability Period describes the number of hours of actual running time for which the engine is certified to

be emissions compliant, assuming proper maintenance in accordance with the Operating & Maintenance Instructions. The

following categories are used:

Moderate: Engine is certified to be emission compliant for 125 hours of actual engine running time.

Intermediate: Engine is certified to be emission compliant for 250 hours of actual engine running time.

Extended: Engine is certified to be emission compliant for 500 hours of actual engine running time.

For example, a typical walk-behind lawn mower is used 20 to 25 hours per year. Therefore, the Emissions Durability

Period of an engine with an intermediate rating would equate to 10 to 12 years.

The Air Index is a calculated number describing the relative level of emissions for a specific engine family. The lower the

Air Index,the cleaner the engine. This information is displayed in graphical form on the emissions label.

After July 1, 2000, Look For Emissions Compliance Period

On Engine Emissions Compliance Label

After July 1, 2000 certain Briggs & Stratton engines will be certified to meet the United States Environmental Protection

Agency (USEPA) Phase 2 emission standards. For Phase 2 certified engines, the Emissions Compliance Period referred

to on the Emissions Compliance label indicates the number of operating hours for which the engine has been shown to

meet Federal emission requirements. For engines less than 225 cc displacement, Category C = 125 hours, B = 250 hours

and A = 500 hours. For engines of 225 cc or more, Category C = 250 hours, B = 500 hours and A = 1000 hours.

The displacement of Model Series 290000 and

300000 engines is 480 cc, 350000 engines is

570 cc, and 380000 engines is 627 cc.

       

      

Document: - page 3 (Black)

Screen angle and frequency: 45.0000, 150.0000

BEFORE OPERATING ENGINE

•Read entire Operating & Maintenance Instructions

AND the instructions for the equipment this engine

powers.*

•Failure to follow instructions could result in serious

injury or death.

THE OPERATING & MAINTENANCE

INSTRUCTIONS CONTAIN SAFETY

INFORMATION TO

•Make you aware of hazards associated with engines

•Inform you of the risk of injury associated with those

hazards, and

•Tell you how to avoid or reduce the risk of injury.

The safety alert symbol ( )is used to identify safety

information about hazards that can result in personal injury.

A signal word (DANGER, WARNING, or CAUTION) is

used with the alert symbol to indicate the likelihood and the

potential severity of injury. In addition, a hazard symbol

may be used to represent the type of hazard.

DANGER indicates a hazard which, if not

avoided, will result in death or serious injury.

WARNING indicates a hazard which, if not

avoided,could result in death or serious injury.

CAUTION indicates a hazard which, if not

avoided, might result in minor or moderate

injury.

CAUTION,when used without the alert symbol,

indicates a situation that could result in damage

to the engine.

WARNING

The engine exhaust from this product

contains chemicals known to the State of

California to cause cancer, birth defects, or

other reproductive harm.

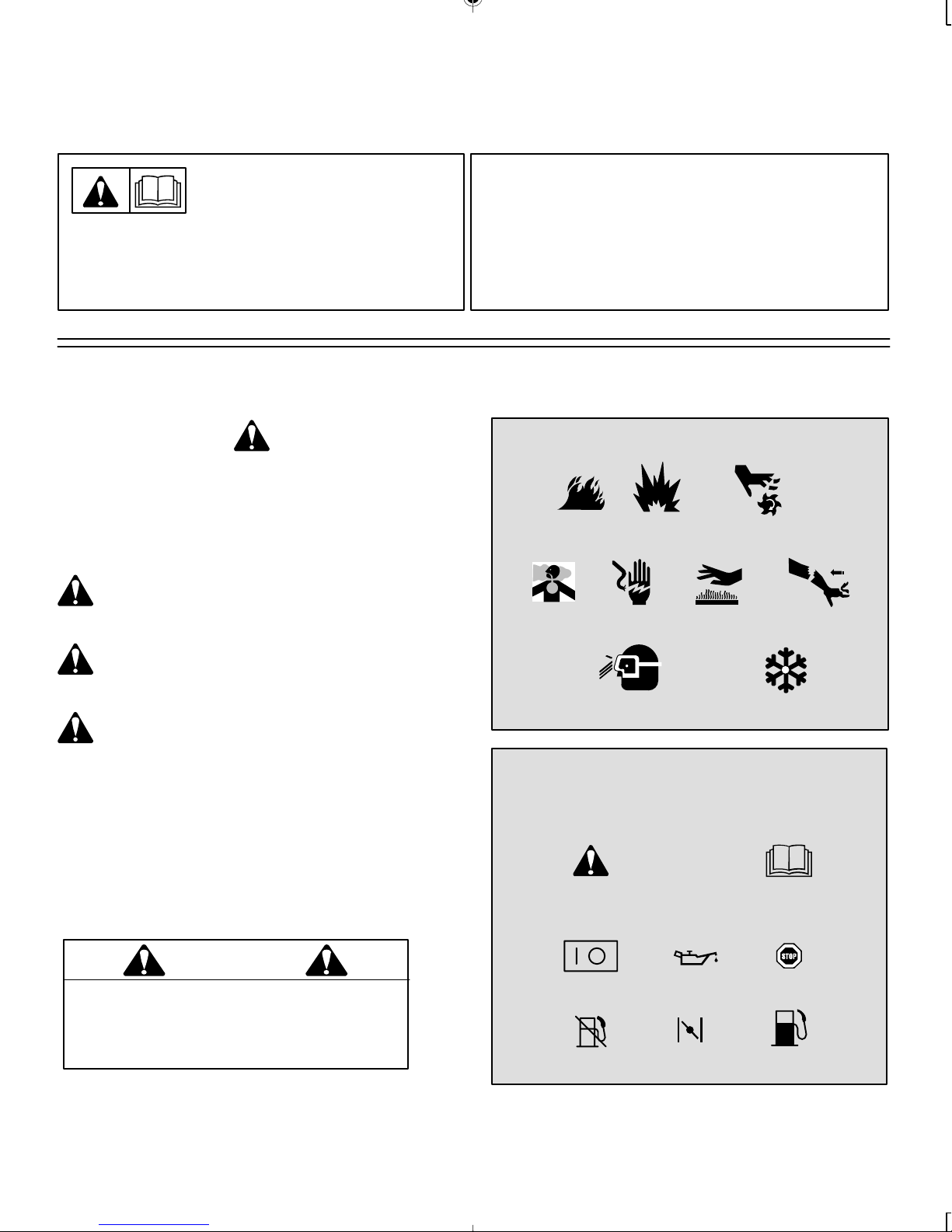

HAZARD SYMBOLS AND MEANINGS

Explosion

Toxic Fumes

Moving Parts

Shock Hot Surface Kickback

Fire

FrostbiteWear Eye Protection

THE INTERNATIONAL SYMBOLS USED

ON THE ENGINE OR

IN THIS MANUAL INCLUDE:

On Off

Fuel Shutoff

Read Operating &

Maintenance Instructions

Stop

FuelChoke

Safety Alert

Oil

* Briggs & Stratton does not necessarily know what equipment this engine will power. For that reason, you should carefully

read and understand the operating instructions for the equipment on which your engine is placed.

Document: - page 4 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

WARNING

        

        

 

•           

 

•       

•          

           

  

•          

  

•          

   

   

•           



•       

•         

•         

        

    

  

•          

 

•      

   

•          

  

•          

         



       

     

•        

         

    

WARNING

       

     

    

•    

•     

•       

•  

•      



•           

            

      

•         

          

•        

•          

    

•          

 

•         

           

       

•         

 

•        

WARNING

      

        



•         

 

•         

        



Document: - page 5 (Black)

Screen angle and frequency: 45.0000, 150.0000

SAFETY

WARNING

        

      

  

     

•          

•       

 

    

•    

•        

WARNING

   

     

    

•             

•        



•         

        

 

WARNING

        

  

      

•     

•       

•      

•       

    

WARNING

       

 

       



•    

•            

  

WARNING

      

   

      

        

 

•         

•      

 

•          

    

        

         

        

WARNING

          

       

       

•          

 

•      



•         

       



Document: - page 6 (Black)

Screen angle and frequency: 45.0000, 150.0000

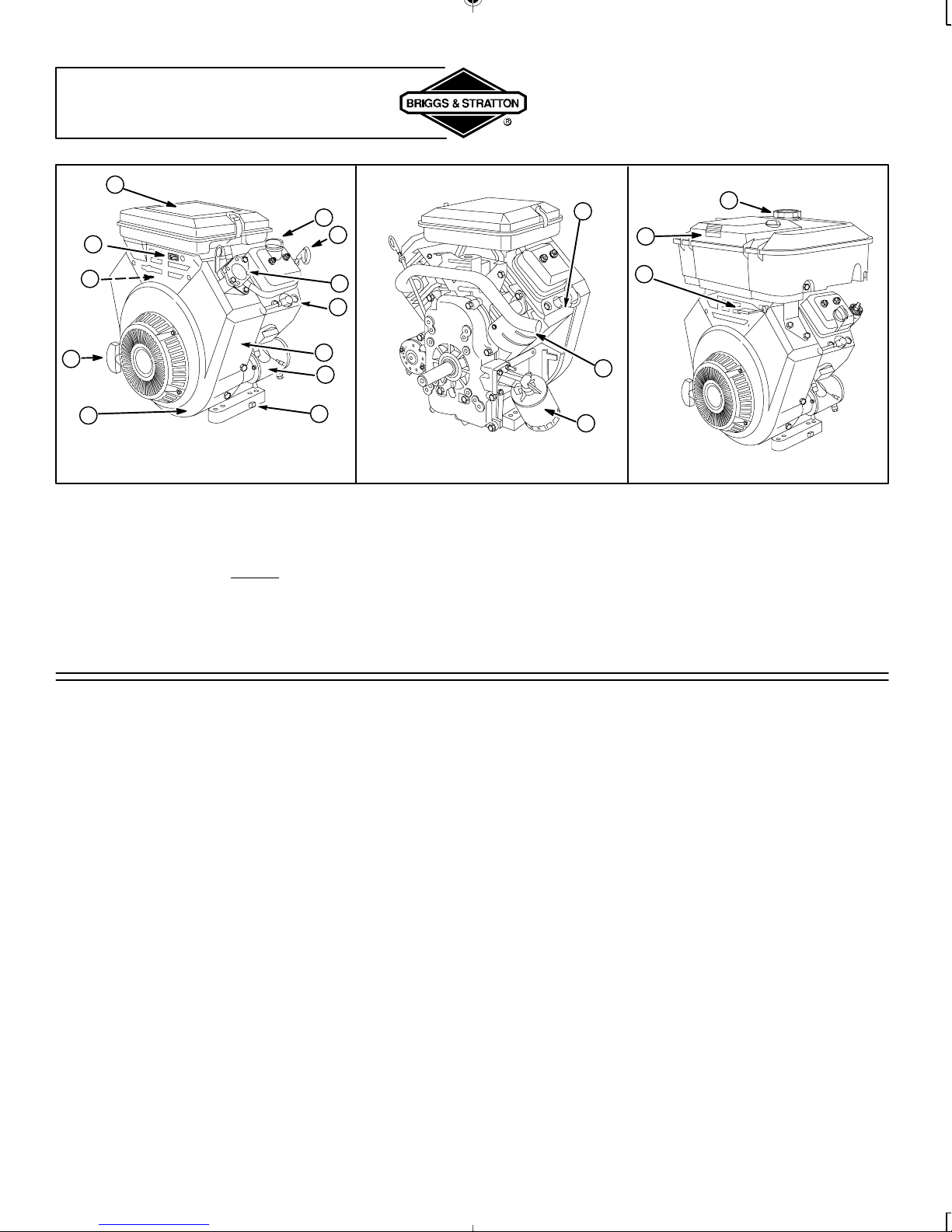

ENGINE INFORMATION

1. Oil fill cap

2. Dipstick

3. Fuel pump (if equipped)

4. Spark plug

5. Emission label and Engine

Model Type Code

xxxxxx xxxx xx xxxxxxxx

6. 12V electric starter (if equipped)

7. Oil drain plug

8. Blower housing

9. Rope handle

10. Carburetor or LPG/NG Fuel mixer

11. Stop switch (if equipped)

12. Air cleaner (without fuel tank)

13. Fuel shut-off valve (if equipped)

14. Air cleaner (with fuel tank)

15. Fuel fill/fuel tank (if equipped)

16. Exhaust manifold

17. Oil filter (if equipped)

Equippedwith optional fuel tank.

GENERAL INFORMATION

ENGINE MODEL

This is a twin cylinder, overhead valve (OHV), air-cooled

engine. It is a low emissions engine.

In the state of California, Model Series 290000, 300000,

350000 and 380000 engines are certified by the California

Air Resources Board to meet emissions standards for 250

hours. Such certification does not grant the purchaser,

owner or operator of this engine any additional warranties

with respect to the performance or operational life of this

engine. This engine is warranted solely according to the

product and emissions warranties stated elsewhere in this

manual.

TUNE-UP SPECIFICATIONS

Armature air gap 0.008 – 0.012 in. (0.20 – 0.30 mm). . .

Spark plug gap 0.030 in. (0.76 mm). . . . . . . . . . . . . . . . . .

Valve clearance with valve springs installed and piston 1/4 in.

(6 mm) past top dead center (check when engine is cold).

See Repair Manual P/N 272144.

Intake 0.004 – 0.006 in. (0.10 – 0.15 mm). . . . . . . . . . . . .

Exhaust 0.004 – 0.006 in. (0.10 – 0.15 mm). . . . . . . . . . .

MODEL SERIES 290000 and 300000

Bore 2.68 in. (68 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 2.60 in. (66 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 29.3 cu. in. (480 cc). . . . . . . . . . . . . . . . . . .

MODEL SERIES 350000

Bore 2.83 in. (72 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 2.76 in. (70 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 34.7 cu. in. (570 cc). . . . . . . . . . . . . . . . . . .

MODEL SERIES 380000

Bore 2.97 in. (75.5 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stroke 2.76 in. (70 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . .

Displacement 38.2 cu. in. (627 cc). . . . . . . . . . . . . . . . . . .

Note:

For practical operation, the horsepower loading should not

exceed 85% of rated horsepower. Engine power will

decrease 3-1/2% for each 1,000 feet (300 meters) above

sea level and 1% for each 10°F (5.6°C) above 77°F (25°

C). It will operate satisfactorily at an angle up to 15°.

Document: - page 7 (Black)

Screen angle and frequency: 45.0000, 150.0000

OIL

CAUTION: This engine is shipped from Briggs &

Stratton without oil. Check oil level before starting

engine. If you start the engine without oil, the engine

will be damaged beyond repair and will not be

covered under warranty.

OIL CAPACITY

Engine holds approximately 1-1/2 quarts (48 ounces or 1.4

liters) when changing oil and filter.

TYPE OF OIL TO USE

•Use a high quality detergent oil classified “For Service

SF, SG, SH, SJ”or higher, such as Briggs & Stratton

30W, Part Number 100005 (20 oz) or 100028 (48 oz).

•Do not use special additives.

•Choose a viscosity according to the table opposite.

Note: Synthetic oil meeting ILSAC GF-2, API

certification mark and API service symbol

(shown at left) with “SJ/CF ENERGY CON-

SERVING”or higher, is an acceptable oil at all

temperatures. Use of synthetic oil does not

alter required oil change intervals.

°F-20 0 20 40 60 80 100

°C-30 -20 -10 0 10 20 30 40

STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

*CAUTION: Air cooled engines run hotter than

automotive engines. The use of non-synthetic

multi-viscosity oils (5W-30, 10W-30, etc.) in

temperatures above 40°F (4°C) will result in higher

than normal oil consumption. When using a

multi-viscosity oil, check oil level more frequently.

** CAUTION: SAE 30 oil, if used below 40°F (4°C),

will result in hard starting and possible engine bore

damage due to inadequate lubrication.

SAE Viscosity Grades

CHECKING AND ADDING OIL

•Check oil level before starting the engine.

•Check level daily, or after every eight (8) hours. •Keep oil level at FULL.

•Do not overfill.

[1] Place engine level.

Clean around oil fill and dipstick.

[2] Remove dipstick and

wipe clean with cloth.

[3] Then push dipstick back

in and remove to check

oil level.

Oil Fill

Dipstick

Oil checking procedure: before starting engine, check oil level.

Oil filling procedure: first add 1 quart (32 ounces or 1 liter). Start and run engine at idle for 30 seconds. Shut engine off and

wait 30 seconds. Then add more oil slowly to bring level to Full mark on dipstick.

FULL

ÏÏ

[4] Remove oil fill cap (if

equipped). Pour oil slowly. [5] Fill to FULL line on dip-

stick –recheck. [6] Replace dipstick firmly.

FULL

Document: - page 8 (Black)

Screen angle and frequency: 45.0000, 150.0000

[1] Remove cap. Fill tank to approximately 1-1/2

inches below top of neck to allow for fuel

expansion. Be careful not to overfill.

Briggs & Stratton Smart-fill)Fuel Can fills to

the correct level and automatically shuts off,

reducing spills and emissions.

[2] Replace cap before starting.

FUEL

TYPE OF FUEL TO USE

•Use clean, fresh, regular unleaded gasoline with a

minimum of 85 octane. Fresh fuel prevents gum from

forming in the fuel system or on essential carburetor parts.

Purchase fuel in quantity that can be used within 30 days.

•Do not use gasoline which contains Methanol.

•Do not mix oil with gasoline.

•For engine protection use Briggs & Stratton Gasoline

Additive available from your Authorized Briggs &

Stratton Dealer (P/N 5041 or single use pouch).

•The gasoline engine is certified to operate on gasoline.

Exhaust Emission Control System: EM (Engine

Modifications).

WARNING

•Turn engine OFF and let engine cool at least 2

minutes before removing gas cap.

•Fill fuel tank outdoors or in well-ventilated area.

•Keep gasoline away from sparks, open flames,

pilot lights, heat, and other ignition sources.

•If fuel spills, wait until it evaporates before

starting engine.

CAUTION: Some fuels, called oxygenated or

reformulated gasoline, are gasoline blended with

alcohols or ethers. Excessive amounts of these

blends can damage the fuel system or cause

performance problems. If any undesirable operat-

ing symptoms occur, use gasoline with a lower

percentage of alcohol or ether.

GASOLINE POWERED ENGINES NATURAL (NG) / LIQUID PROPANE (LPG)

GAS POWERED ENGINES

•Use clean, dry fuel, free of moisture or any particulate

material. Using fuels outside the following recom-

mended values may cause performance problems.

•In engines set up to run on LPG, commercial grade

HD5 LPG is recommended. Recommended fuel

composition is fuel with a minimum fuel energy of

2500 BTU’s/ft3with maximum propylene content of

5% and butane and heavier gas content of 2.5% and

minimum propane content of 90%.

•NG or LPG engines are certified to operate on natural

or liquid propane gas.

The equipment on which this engine is mounted is

equipped with an automatic safety gas “fuel

lock-off”valve. DO NOT operate the equipment if

the “fuel lock-off”valve is missing or inoperative.

WARNING

ADDING FUEL

GASOLINE POWERED ENGINES NATURAL (NG) / LIQUID PROPANE (LPG)

GAS POWERED ENGINES

•Read the operating instructions supplied by the

equipment manufacturer for information on refueling

natural or LP gas engine.

Document: - page 9 (Black)

Screen angle and frequency: 45.0000, 150.0000

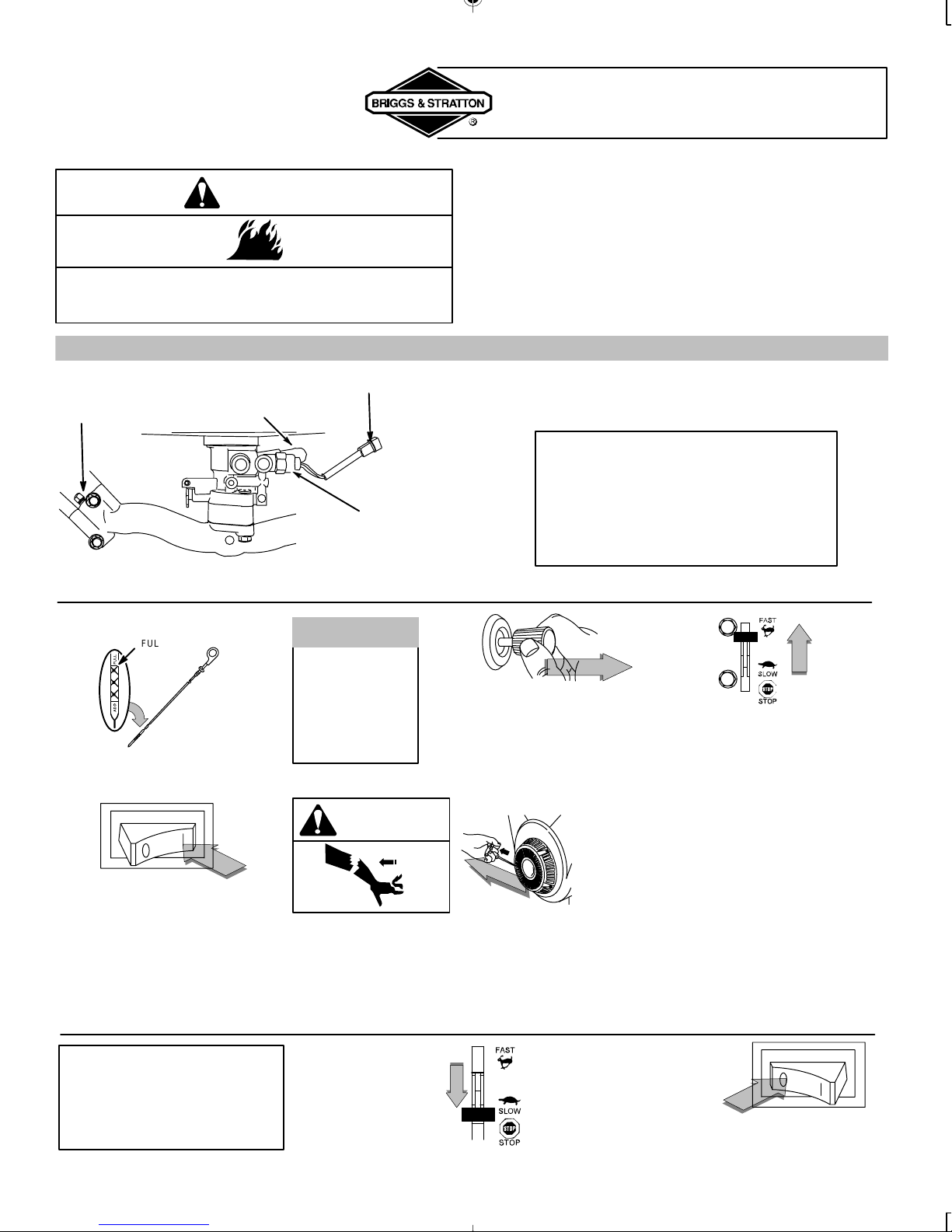

STARTING AND STOPPING

WARNING

•Do not use pressurized starting fluids.

•Vapors are flammable.

OIL PRESSURE SWITCH

If engine is equipped with an oil pressure switch, the switch

will either activate a warning device or stop the engine

when the engine runs low on oil. (Read the operating

instructions supplied by the equipment manufacturer to

determine how your engine is equipped.)

BEFORE STARTING –LPG / NG ENGINES

CAUTION:

When operating on LPG fuel, 12 volts

MUST be supplied to the connector.

When operating on NG fuel, 12 volts

MUST NOT be supplied to connector.

Failure to do so, may cause engine

damage.

FUEL INLET

12 VOLT CONNECTOR

FUEL

LOCK-OFF

VALVE

The LPG / NG mixer is equipped with solenoid,

fuel inlet, 12 volt connector, and equipped for a fuel

lock-off valve.

SOLENOID

[

1] Check oil level (see p. 7).

[2] Open fuel shut-off valve

(if equipped).

[3] Move choke control to

CHOKE or START.

[4] Move throttle (if equipped)

to FAST. Operate engine

with throttle in FAST.

Choke

FULL

[5] Push rocker switch

(if equipped) to ON or

RUN. [6] Grasp rope handle. Pull slowly until

resistance is felt, then pull rapidly to

start engine and avoid kickback.

[7] Allow engine to warm up.

Choke Equipped Engines: In warm

weather temperatures, move choke

control lever toward RUN slowly over

several seconds, in cold weather allow

engine to run smoothly before each

change. Operate with choke in RUN.

WARNING

STOP RUN

REWIND (MANUAL) STARTING –ALL ENGINES

Note:

NG / LPG

ENGINES

–skip steps

[2] and [3].

[1] Move

throttle (if

equipped)

to SLOW,

then to

STOP.

[2] Push rocker switch

(if equipped) to

OFF or STOP.

[3] Close fuel shut-off

valve (if equipped). STOP RUN

CAUTION: Do not stop

engine by moving choke

control to CHOKE.

Backfire, fire or engine

damage could occur.

STOPPING

Document: - page 10 (Black)

Screen angle and frequency: 45.0000, 150.0000

STARTING AND STOPPING

[1] Check oil level (see p. 7).

[2] Open fuel shut-off valve

(if equipped).

[3] Move choke control to

CHOKE or START.

[4] Move throttle (if equipped)

to FAST. Operate engine

with throttle in FAST.

Choke

ÏÏ

FULL

[5] Push rocker switch

(if equipped) to ON

or RUN.

STOP RUN

ELECTRIC (KEY) STARTING (if equipped) –ALL ENGINES

[6] Insert key and

turn to START.

[7] Allow engine to warm up.

Choke Equipped Engines:

In warm weather tempera-

tures, move choke control

lever toward RUN slowly over

several seconds, in cold

weather allow engine to run

smoothly before each

change. Operate with choke

in RUN.

CAUTION:

Use short starting

cycles (5 seconds, wait

one minute between

cycles).

Follow equipment

manufacturer’s recom-

mendations for charg-

ing battery.

Note:

NG / LPG

ENGINES

–skip steps

[2] and [3].

[1] Move

throttle (if

equipped)

to SLOW,

then to

STOP.

STOP RUN

CAUTION:

Do not stop engine

by moving choke

control to CHOKE.

Backfire, fire or

engine damage

could occur.

STOPPING

[2] Turn key to OFF. Remove key and store out of reach of children.

[3] Push rocker switch (if equipped) to OFF or STOP.

[4] Close fuel shut-off valve (if equipped).

♦Use correct type of oil for expected starting

temperature.

♦Remove external equipment/engine loads. (See

equipment operating instructions.)

♦Periodically remove any debris buildup from the

machine.

♦After engine has started, let it warm up several

seconds to several minutes, depending on outside

temperature.

♦For maximum performance and life, operate engine

throttle in FAST.

STARTING AND OPERATING TIPS –ALL ENGINES

Andere Handbücher für Vanguard 290000

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Briggs & Stratton Motor Handbücher

Briggs & Stratton

Briggs & Stratton Sno/Gard 170400 Series Handbuch

Briggs & Stratton

Briggs & Stratton 192400 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 110000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 290700 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 445600 Series Einrichtungshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 470000 Series Handbuch

Briggs & Stratton

Briggs & Stratton 090000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 84100 Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 54000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton Vanguard 10V000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton PROFESSIONAL SERIES 110000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 120000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 400000 Professional Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 540000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton VH-300 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Quantum 650 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 21000 Series Installations- und Betriebshandbuch

Briggs & Stratton

Briggs & Stratton 210000 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 44J677 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton THE POWER WITHIN 600 SERIES Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton Vanguard 290000 Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 1450 Series Bedienungsanleitung

Briggs & Stratton

Briggs & Stratton 133200 Series Installations- und Betriebshandbuch

Beliebte Motor Handbücher anderer Marken

Rotax

Rotax 125 senior MAX evo Bedienungsanleitung

Kohler

Kohler K361 Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

Kohler

Kohler COMMAND CH18-745 Bedienungsanleitung

Mercury

Mercury D4.2L D-Tronic Bedienungsanleitung

Selve

Selve SE Plus-RC Series Bedienungsanleitung

Perkins

Perkins 1206E-E66TA Bedienungsanleitung

Skov

Skov DA 174 Handbuch

Rossi

Rossi TX11 Series Bedienungsanleitung

Siemens

Siemens SIMOTICS T-1FW3 Merkblatt

AL-KO

AL-KO PRO 350 Bedienungsanleitung

MTU

MTU 12 V 4000 Lx4 Bedienungsanleitung

Nanni

Nanni N3.30 Gebrauchsanweisung

Nanni

Nanni N5.160 CR2 Bedienungsanleitung

KSB

KSB SuPreme Series Montageanleitung

Hiwin

Hiwin EM1 Series Bedienungsanleitung

Rotax

Rotax 912 i series Betriebsanleitung

Siemens

Siemens SIMOTICS XP 1MB1 Bedienungsanleitung
