Briggs & Stratton 030235-02 Einrichtungshandbuch

Model / Modèle / Modelo

030235-02

Questions? Help is just a moment away!

Vous avez des questions? Vous n'avez pas besoin

d'aller loin pour trouver de l'aide!

Preguntas? La ayuda es justa un momento lejos!

Call: Generator Helpline

Appelez: Ligne d'assistance de Générateur

Llame: Línea Directa del Generador

1-800-743-4115 M-F 8-5 CT

web: BRIGGSandSTRATTON.COM

5550 WATTS

8550 STARTING WATTS

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A. Manual No. 199408B

Revision A (04/21/2008)

Illustrated

Parts List

EXPLODED VIEWS AND PARTS LISTS

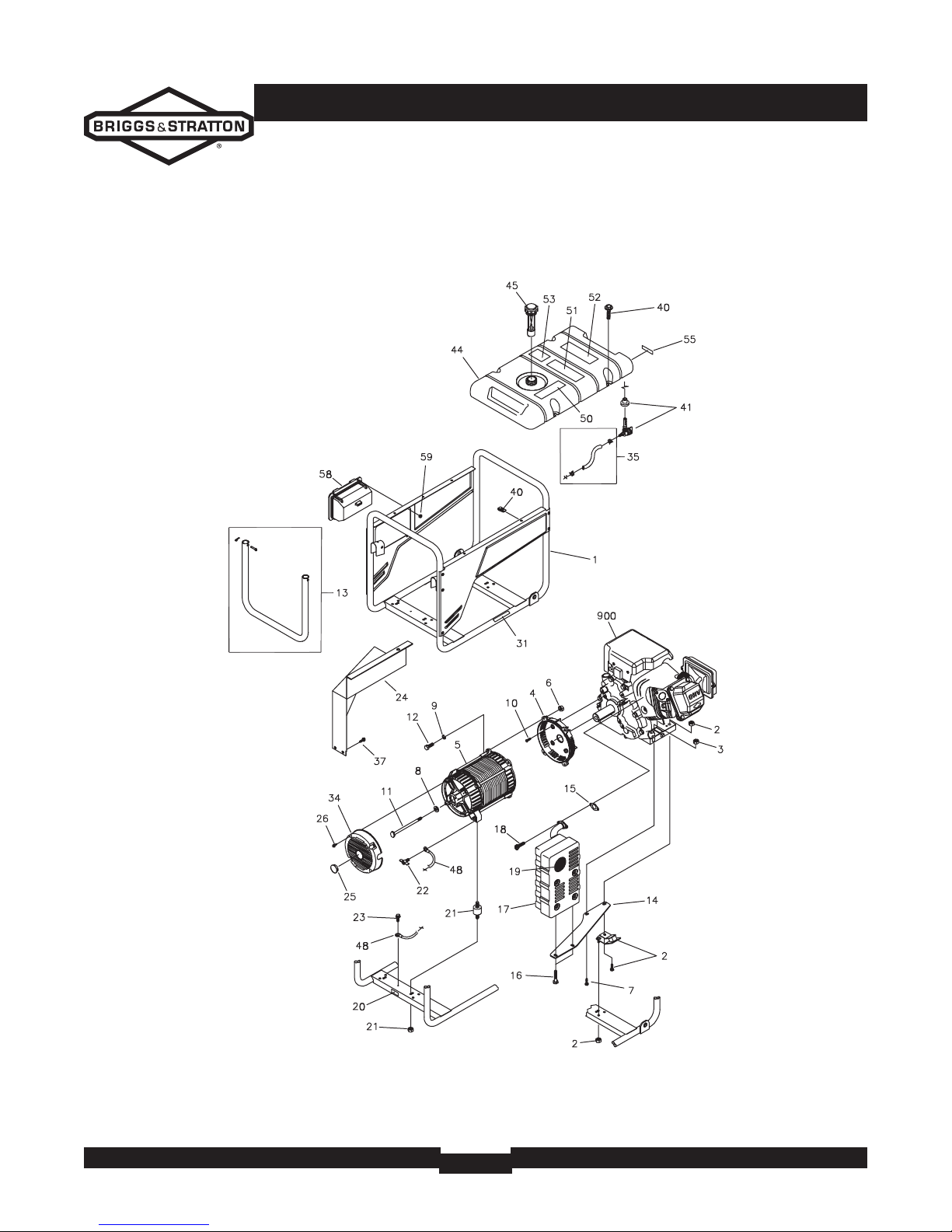

EXPLODED VIEW - MAIN UNIT

be reproduced or transmitted in any form by any means without the express written permission of Briggs &

Stratton Power Products Group, LLC.

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW - PARTS LIST

Item Part # Description

1 198163GS ASSY., Cradle (Includes #20 &

31)

2 194150GS KIT, Vibration, Mount, 45°

3 67989GS NUT, M8 Flange Serrated

4 190220GS HOUSING, Engine Adapter

5 NSP ASSY., Alternator (see page 5)

6 * NUT, Hex M8 - 1.25

7 195398GS TPHMS, M8 - 1.25 x 35

8 96796GS WASHER, M8 Flat

9 * WASHER, Lock 5/16 - M8

10 * SBHCS, 3/8-16 x 1.0

11 47480GS HHCS, 5/16-24 x 7

12 * HHCS, M8 - 1.25 x 25

13 198165GS KIT, Handle

14 189009GS BRACKET, Muffler

15 695398 GASKET, Exhaust

16 * HHCS, M6 - 1.0 x 12 w/LW

17 189008GS MUFFLER

18 201522GS SHCS, 5/16 - 18 x 7/8"

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground, Green

21 194153GS KIT, Vibration Mount

22 86494GS SCREW, Wing M6 - 1.0 x 16

23 B2153GS SCREW, 12 - 14 x 7/8, Self Drill

24 197424GS SHIELD, Heat

25 191190GS CAP

26 74908GS SCREW, M5-0.8 x 10, Taptite

31 196830GS DECAL, Exhaust Warning

34 195422GS COVER, RBC, Plastic w/Cap

Item Part # Description

35 791745 KIT, Fuel Hose, w/clamps (cut to

fit)

37 56893GS CRIMPTITE, 10-24 x 1/2

40 199433GS KIT, Fuel Tank Hardware w/U-

Clips

199284GS U-CLIPS, (Optional Accessory)

41 192980GS KIT, Valve, Fuel Tank

44 193668GS ASSY., Tank, Fuel (Includes #41,

50, 51, 52, 53 & 55)

45 B4363GS CAP, Fuel Gauge

48 195373GS WIRE, Ground

50 188333GS DECAL, Gas Fill

51 194799GS DECAL, Danger

52 189235GS DECAL, Start Instructions

53 202997GS DECAL, Warning, CO

55 197798GS DECAL, Shut-Off, Fuel

58 197641GS ASSY., Control Panel

59 * NUT, Palnut, 3/16"

900 § ENGINE

Parts Not Illustrated

200907GS MANUAL, Operator’s

BB3061GS BOTTLE, Oil

197474GS CORDSET, Storm

198166GS KIT, Decals

* - Items without part numbers are common fasteners

and are available at your local hardware store.

§ - Contact Engine Manufacturer

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 197471GS PANEL, Control

2 197472GS COVER, Outlet Flip

3 188890GS COVER, Back Panel

4 197731GS OUTLET, 120V, 15/20A Duplex

5 189165GS NUT, 5/32 Pal

6 197729GS MODULE, Led

7 197958GS SCREW, 3 x 6, Tapping

8 191479DGS BREAKER, Circuit, 20A

191481GS BOOT, Breaker Circuit (not

shown)

9 43437GS OUTLET, 120/240V, 30A

10 22694GS HOUSING, Receptacle, 6 Pin

11 82308GS SCREW, 3 x 18, Tapping

12 192241GS SCREW, 3.5 x 14, Tapping

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting, Alternator

2 191043GS ASSY., Rotor (Includes Item 12)

3 191042AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308CGS HHCS, M6 - 1.0 x 130 SEMS

6 91825GS ASSEMBLY, Holder,

Rectifier/Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS WIRE-A, Ground

11 194274GS HARNESS, Wire, Power

12 65791GS BEARING

EXPLODED VIEWS AND PARTS LISTS

EXPLODED VIEW AND PARTS LIST - WHEEL KIT

Item Part # Description

1 196517GS WHEEL

2 B1764GS SUPPORT, Wheel Kit

3 191267HGS AXLE

4 * WASHER, 5/8"

5 191265GS E-RING

6 67989GS NUT, M8 - Flange Serrated

7 * HHCS, M8 - 1.25 x 16

Parts Not Illustrated

197594GS SUBKIT, Hardware

* - Items without part numbers are common fasteners

and are available at your local hardware store.
