Briggs & Stratton 30213 Bedienungsanleitung

Illustrated Parts List

Questions?

Help is just a moment away!

Find your Briggs and Stratton distributor

at www.briggsandstratton.com

or contact your local Briggs and Stratton dealer.

Before using this product, read this

manual and follow all Safety Rules and

Operating Instructions.

CAUTION

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON,WISCONSIN, U.S.A. Manual No. 196978B

Revision 0 (05/09/2005)

030213 (2.8 kW)

Portable Generator

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton

Power Products Group, LLC.

Portable Generator

PARTS LIST - MAIN UNIT

Item Part # Description

1 B196749GS CRADLE

2 197567GS KIT, Mount,Vibartion 45°

3 * PPHMS, M8 - 1.25 x 35

4 186058AGS HOUSING, Engine Adapter

5 194151GS KIT, Hrdwr, Mounting Adapter

6 NSP ASSY,Alternator (see page 4)

7 67989GS NUT, M8 Flange Serrated

8 96796GS WASHER, 8.4 x 22.2 x 3

9 193588GS SPACER

10 * HHCS, M8 - 1.25 x 20

11 99383GS HHCS, 5/16-24 x 7-3/8

12 * WASHER, Lock, M8 5/16

13 66476GS HHCS, M6 - 1.0 x 12 w/ LW

14 191785GS BRACKET, Muffler

15 697815 GASKET, Exhaust

16 * HHCS, M8 - 1.25 x 30

17 188301GS MUFFLER

18 * SHCS, M6 - 1.0 x 20

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 194153GS KIT,Vibration Mount

22 86494GS SCREW,Wing M6 1.0 x 16

23 86292GS SCREW, 10-16 x 3/4, Self Drill

24 197601GS SHIELD, Heat

25 191190GS CAP

26 74908GS TAPTITE, M5-0.8 x 10

27 87841GS MOUNT,Vibration

28 B1797GS CLIP,Tree

29 * WASHER, Shakeproof Ext. #10

30 * WASHER, Shakeproof Ext. M6 - 1/4

34 195422GS COVER, Bearing Carrier

35 197619GS KIT, Fuel Hose w/ Clamps

38 56893GS CRIMPTITE, 10-24 x 1/2

40 197618GS KIT, Fuel Tank Hardware

41 195590GS FITTING, Elbow Tank

44 197620GS ASSY,Tank, Fuel (Includes Items 41, 45, 46, 51 & 53)

45 189135GS CAP, Fuel,Vented

46 197499GS STRAINER,Tank Fuel

48 14353621GS WIRE, Ground

51 197157GS DECAL,Warning

53 189136GS GAUGE, Fuel

58 195782GS ASSY, Control Panel (see page 5)

59 189164GS PALNUT, 3/16

900 § ENGINE

Parts Not Illustrated

MS6737 MANUAL, Engine

196761GS MANUAL, Owners, CHN

196978GS MANUAL, Owners, English

197621GS KIT, Decals Service

190356GS HARNESS,Wire, Power Gen

* - Items without part numbers are common fasteners and are available at your local hardware store.

§ - Contact Engine Manufacturer

Portable Generator

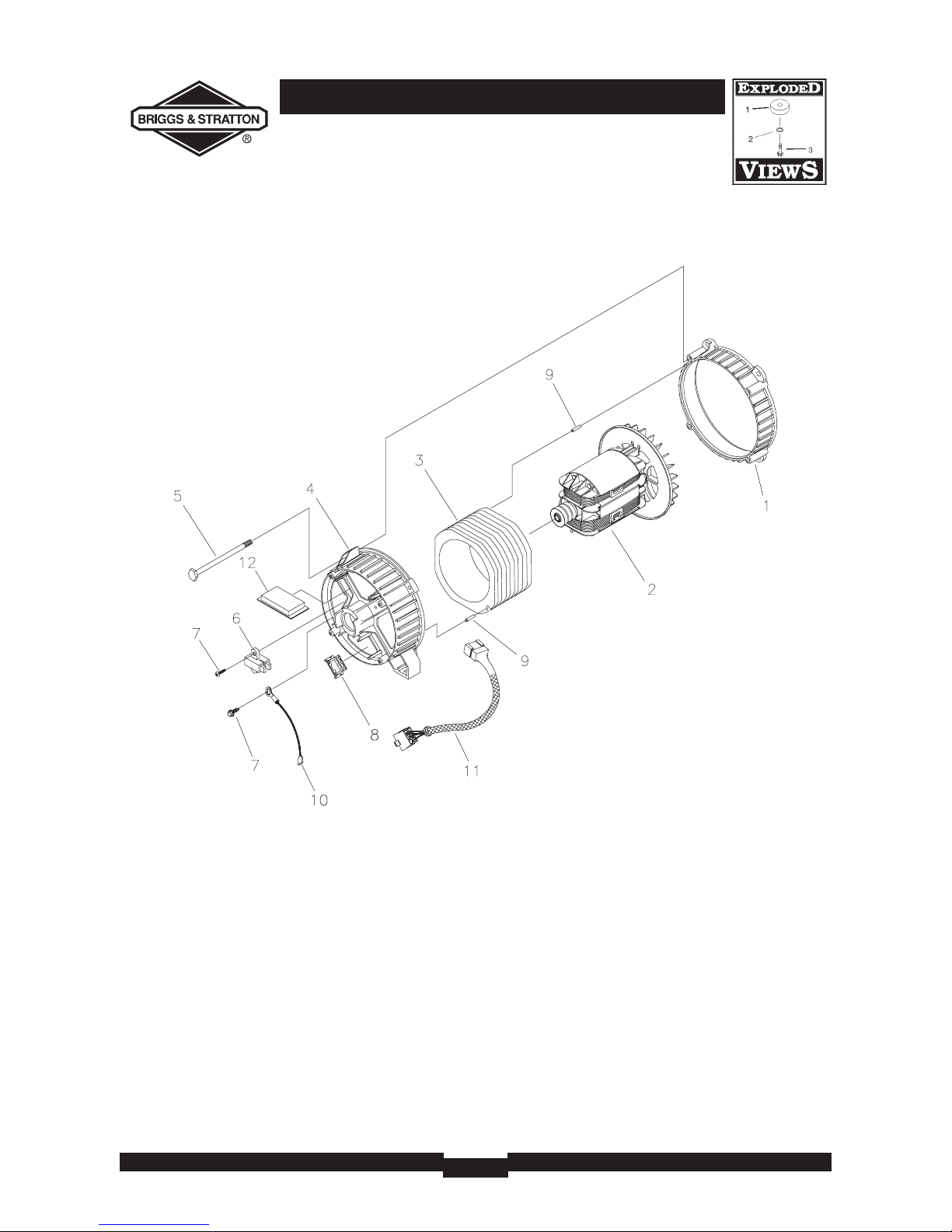

EXPLODED VIEW AND PARTS LIST - ALTERNATOR

Item Part # Description

1 186059GS ADAPTER, Mounting,Alternator

2 195841GS ROTOR

3 195839AGS STATOR

4 186060GS RBC, with O-Ring (p/n 189197GS)

5 86308JGS HHCS, M6 - 1.0 x 95 SEMS

6 66386GS ASSY, Holder, Brush

7 66849GS TAPTITE, M5 - 0.8 x 16

8 22694GS RECEPTACLE, 6 pin

9 81917GS PIN, Roll, 4mm x 10

10 193428AGS ASSY,Wire, Ground

11 190356GS HARNESS,Wire, Power

12 189769GS REGULATOR

Portable Generator

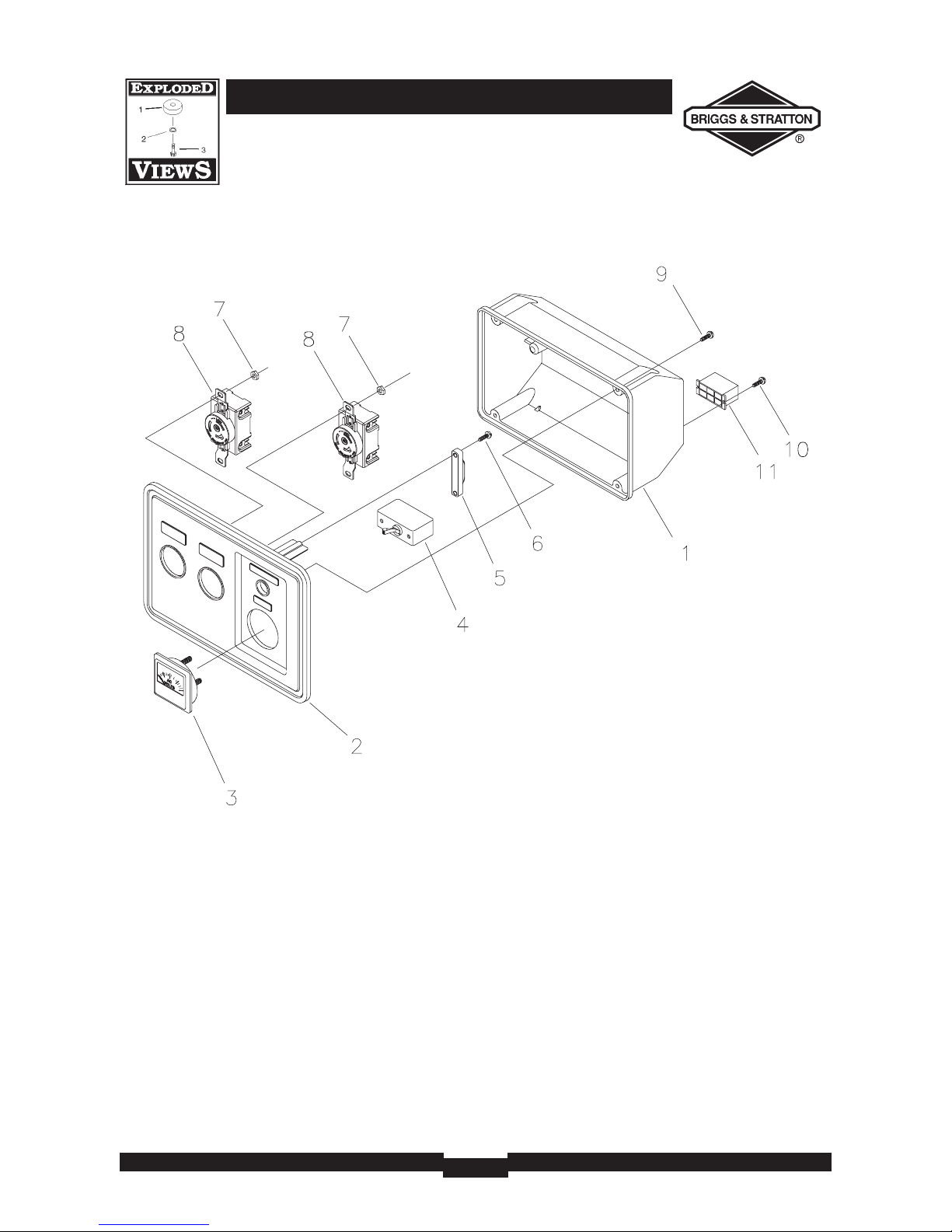

EXPLODEDVIEW AND PARTS LIST - CONTROL PANEL

Item Part # Description

1 188890GS BACK PANEL

2 195783GS PANEL, Control

3 98242GS METER,Volt

4 195968BGS BREAKER, Circuit, 15A

5 196952GS BAR, Retaining, Circuit Breaker

6 * PPPHS, M3 - 0.5 x 18

7 * PALNUT, 3/16

8 195969GS OUTLET, 230V, 20A Locking

9 192241GS SCREW,Tapping, 3.5 x 14

10 82308GS SCREW,Tapping, STC 3 x 18

11 22694GS HOUSING, Receptacle

* - Items without part numbers are common fasteners and

are available at your local hardware store.
