Briggs & Stratton 30372 Einrichtungshandbuch

Illustrated Parts List

Manual No. 204883A Revision - (01/11/2008)

Portable Generator

Model 030372

BRIGGS & STRATTON POWER PRODUCTS GROUP, LLC

JEFFERSON, WISCONSIN, U.S.A.

Exploded Views and Parts Lists

EXPLODED VIEW - MAIN UNIT

reproduced or transmitted in any form by any means without the express written permission of Briggs & Stratton Power

Products Group, LLC.

2BRIGGSandSTRATTON.COM

Exploded Views and Parts Lists

Item Part # Description

1 205612GS CRADLE (Includes Items 20 & 21)

2 203694GS WIRE, Ground

3 * WASHER, Lock, M8 Zinc Plated

4 * HEX BOLT, M8 x 30, Zinc Plated

5 791745 KIT, Fuel Line (cut to fit)

6 204748GS WING NUT

7 * WASHER, Lock M8

8 * HHCS, 5/16 - 24

9 204735GS ABSORBER, Vibration

10 * SHCS, M8 x 30

11 * HHCS

12 204772GS ASSY, Alt

13 * WASHER, M8, Zinc Plated

14 * WASHER, Flat, M8 x 16

15 * HEX NUT, M8, Zinc Plated

16 * NUT, M10

17 * WASHER, Lock, M10 Blk Zinc Plated

18 * WASHER, Flat, M10

19 83083GS SCREEN, Spark Arrest

20 B4986GS DECAL, Ground

21 200310GS DECAL, Warning, Exhaust

22 202997GS DECAL, Warning CO

23 194984GS DECAL, Warning Fuel

24 188333GS DECAL, Warning Fuel Fill

25 94480GS DECAL, Fuel Instructions

26 204740GS WIRE END SEAT

27 204741GS WIRE END SEAT, White

28 204736GS PAD, Plastic

29 * HHCS, M8 x 35

30 * WASHER, Flat, M8 x 16

31 * NUT, Nylon M8, Zinc Plated

32 204737GS QUICK CONNECTOR

33 204738GS TUBE

Item Part # Description

34 204739GS CAP, Fuel

35 * SCREW, M6 x 30

36 * WASHER, Flat, M6 x 24

37 * NUT, M8

38 204749GS GROMMET, Tank

39 205614GS ASSY, Tank, Fuel (Includes Items 22,

23, 24, 25 & 58)

40 204744GS GAUGE, Fuel

41 * SCREW, M5 x 10

42 * NUT, Nylon, M6

43 204743GS VALVE, Fuel

44 * HHCS, M6 1.0 x 12 with LW

45 * SHCS, M6 - 1.0 x 20

46 697815 GASKET, Exhaust

47 188301GS MUFFLER

48 191785GS BRACKET, Muffler

49 * SCREW, M8 x 25

50 204742GS FILTER

51 204774GS CAPACITOR

52 204776GS WASHER, Capacitor

53 * NUT, Nylon, M8

54 204777GS SCREW, Capacitor

55 204775GS COVER, Alt

56 204773GS RUBBER

57 203705GS FLANGE, Alt

58 197797GS DECAL, Fuel Shut off

900 § ENGINE

Parts Not Illustrated

204883GS MANUAL, Operator’s

BB3061BGS Oil Bottle

205613GS KIT, Decals, Service

* - Items without part numbers are common fasteners and

are available at your local hardware store.

§ - Contact Engine Manufacturer

PARTS LIST - MAIN UNIT

Item Part # Description

1 203692GS CONTROL PANEL (Includes decal)

2 * NUT, Nylon

3 * WASHER, M4 x 08

4 * SCREW, M6 x 16

5 68759GS OUTLET, 120/125V, 15/20a, Duplex

6 * SCREW, Pan Head, M4x10

7 203527GS CIRCUIT BREAKER, 15A

8 68867GS OUTLET, 120/240V, 20a, Locking

9 * SCREW, M3 x 06

10 * LOCK WASHER

Parts Not Illustrated

205615GS DECAL, Control Panel

* - Items without part numbers are common fasteners and are

available at your local hardware store.

Exploded Views and Parts Lists

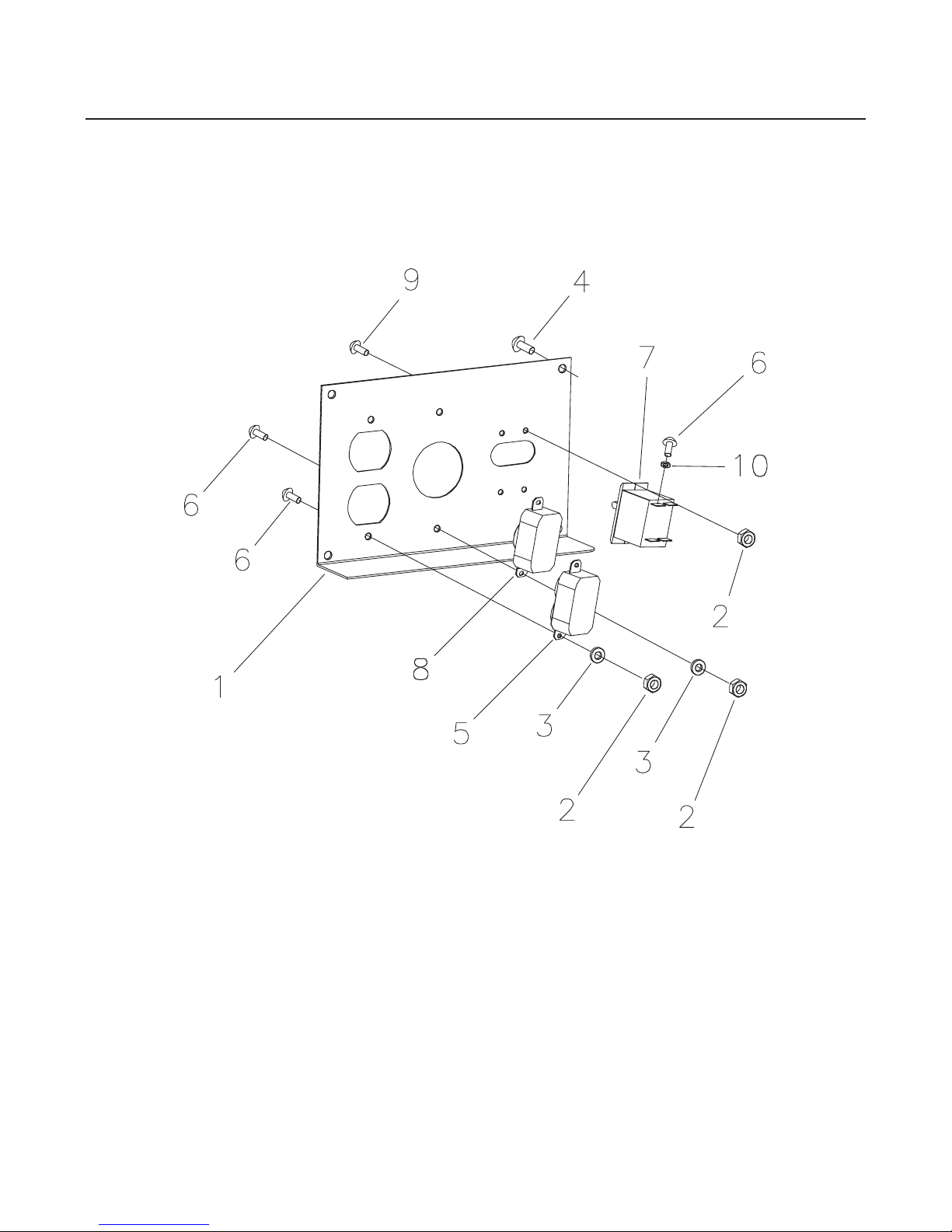

CONTROL PANEL EXPLODED VIEW & PARTS LIST

4BRIGGSandSTRATTON.COM

Exploded Views and Parts Lists

WHEEL KIT EXPLODED VIEW & PARTS LIST

Item Part # Description

1 204780GS KIT, Handle

2 204778GS KIT, Pad Vibration Mount

3 204779GS KIT, Wheel

4 204548GS Axle
