Brighter Pixel Strobe IP

2 |

SAFETY PRECAUTIONS

This fixture is a sophisticated piece of electronic equipment.

To guarantee a smooth operation, it is important to follow all instructions

and guidelines in this manual. Manufacturer is not responsible for

injuries and/or damages resulting from the misuse of this fixture due to

the disregard of the information printed in this manual. Only qualified

and/or certified personnel should perform installation of this fixture and

only the original rigging parts included with this fixture should be used

for installation. Any modifications to the fixture and/ or the included

mounting hardware will void the original manufacturer’s warranty and

increase the risk of damage and/or personal injury.

PROTECTION CLASS 1-FIXTURE MUST BE PROPERLY

GROUNDED.

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS

UNIT.DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO

WILL VOID YOUR MANUFACTURER’SWARRANTY. DAMAGES

RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/ OR

THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES

IN THIS MANUAL VOID THE MANUFACTURER’SWARRANTY AND

ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR

REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK!

NEVER OPEN THIS FIXTURE WHILE IN USE!

UNPLUG POWER BEFORE SERVICING FIXTURE!

NEVER TOUCH FIXTURE DURING OPERATION,AS IT MAY BE HOT!

KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!

RETINA INJURY RISK -MAY INDUCE BLINDNESS!

SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY

SEALED WITH ADIELECTRIC GREASE (AVAILABLE AT MOST

ELECTRICAL SUPPLIERS)TO PREVENT WATER CORROSION

AND/OR ELECTRICAL SHORT CIRCUIT.

MINIMUM DISTANCE TO OBJECTS/SURFACES

MUST BE 3.3FEET (1METER)

MAXIMUM TEMP OF EXTERNAL SURFACE 185° F( 8 5 ° C)

MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE

SURFACE IS 1.6 FEET (0 .5 METER)

Brighter Pixel Strobe IP

3 |

SAFETY PRECAUTIONS

• DO NOT TOUCH the fixture housing during operation. Turn OFF the

power and allow approximately 15 minutes for the fixture to cool down

before servicing.

• DO NOT shake fixture, and avoid brute force when installing and/or

operating fixture.

• DO NOT operate fixture if the power cord is frayed, crimped,

damaged and/or if any of the power cord connectors are damaged and

do not insert into the fixture securely with ease.

• NEVER force a power cord connector into the fixture. If the power

cord or any of its connectors are damaged, replace it immediately with a

new one of the same power rating.

• DO NOT block any air ventilation slots.

• All fan and air inlets must remain clean and never blocked.

• Allow approx.6” (15cm) between fixture and other devices or a wall

for proper cooling.

• Always disconnect fixture from main power source before performing

any type of service and/or cleaning procedure.

• Only handle the power cord by the plug end. Never pull out the plug

by tugging the wire portion of the cord.

• During the initial operation of this fixture, a light smoke or smell may

emit from the interior of the fixture. This is a normal process and is

caused by excess paint in the interior of the casing burning off from the

heat associated with the lamp and will decrease gradually over time.

• Consistent operational breaks will ensure fixture will function properly

for many years .

• use the original packaging and materials to transport the fixture in for

service.

Brighter Pixel Strobe IP

4 |

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

CLEANING

Frequent cleaning is recommended to ensure proper function,optimized

light output, and an extended life.The frequency of cleaning depends on

the environment in which the fixture operates: damp, smoky or

particularly dirty environments can cause greater accumulation of dirt on

the fixture’s optics. Periodically clean the external lens surface with a soft

cloth to avoid dirt/debris accumulation. NEVER use alcohol, solvents, or

ammonia-based cleaners .

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended

life.

There are no user serviceable parts inside this fixture. Please refer all other

service issues to an authorized our service technician. If you need any spare parts,

please order genuine parts from your local dealer.

Please refer to the following points during routine inspections:

• A detailed electric check by an approved electrical engineer every three

months, to make sure the circuit contacts are in good condition and prevent

overheating.

• Be sure all screws and fasteners are securely tightened at all times. Loose

screws may fall out during normal operation, resulting in damage or injury as larger

parts could fall.

• Check for any deformations on the housing, rigging hardware, and rigging

points (ceiling, suspension, trussing).Deformations in the housing could allow for dust

to enter into the fixture. Damaged rigging points or unsecured rigging could cause the

fixture to fall and seriously injure a person(s).

• Electric power supply cables must not show any damage, material fatigue or

sediments. NEVER remove the ground prong from the power cable.

Brighter Pixel Strobe IP

5 |

OVERVIEW

Brighter Pixel Strobe IP

6 |

INSTALLATION GUIDELINES

FLAMMABLE MATERIAL WARNING

Keep fixture minimum 5.0 feet (1 .5m) away from flammable materials and/or pyrotechnics.

ELECTRICAL CONNECTIONS

A qualified electrician should be used for all electrical connections and/or installations.

MINIMUM DISTANCE TO SURFACES/OBJECTS IS 3.3 FEET (1 METER).

MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET(0 .5 METER).

EXTERNAL SURFACE CAN REACH TEMPERATURES OF 185° F (85° C).

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

Fixture MUST be installed following all local,national, and country commercial electrical

and construction codes and regulations.

Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or

placing the fixture( s) on any surface,a professional equipment installer MUST be

consulted to determine if the metal truss/ structure or surface is properly certified to safely

hold the combined weight of the fixture( s) , clamps, cables, and accessories.

Overhead rigging requires extensive experience, including calculating working load limits,

installation material being used, and periodic safety inspection of all installation material and

the fixture, among other skills. If you lack these qualifications, do not attempt the installation

yourself. Improper installation can result in bodily injury.

Fixture ambient operating temperature range is -4° to 113°F (-20° to 45°C). Do not operate

the fixture when the ambient temperature falls outside of this range.

Fixture(s) should be installed away from walking paths, seating areas, or areas were

unauthorized personnel might reach the fixture by hand.

NEVER stand directly below the fixture(s) when rigging, removing, or servicing.

Overhead fixture installation must always be secured with a secondary safety attachment,

such as an appropriately rated safety cable.

Allow approximately 15 minutes for the fixture to cool down before serving.

Brighter Pixel Strobe IP

7 |

INSTALLATION GUIDELINES

OMEGA BRACKET INSTALLATION

Insert the Omega Brackets into the matching holes on the

bottom of the fixture. Secure the Omega Brackets to the fixture

by turning each quick-lock fastener ¼ turn clockwise . Always

check to make sure that each fastener is completely

locked. Omega brackets can be installed as illustrated below:

Brighter Pixel Strobe IP

8 |

CLAMP INSTALLATION

When mounting the fixture to a truss, be sure to secure appropriately rated

professional grade rigging clamps to the included Omega Brackets using an M10

screw fitted through the center hole of the Omega Brackets. This fixture requires the

installation of two Omega brackets and two clamps for secure truss mounting. The fixture also

provides built- in rigging points for a SAFETY CABLE. Be sure to only use the designated rigging point

for the safety cable and never secure a safety cable to a carrying handle.

SAFETY CABLE:

ALWAYS ATTACH A SAFETY CABLE WHENEVER

INSTALLING THIS FIXTURE IN A SUSPENDED

ENVIRONMENT TO ENSURE THAT THE

FIXTURE WILL NOT FALL IF THE CLAMP FAILS.

INSTALLATION GUIDELINES

POWER AND DATA CABLES

TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL

CABLES MUST BE RUN TOWARDS THE GROUND IN ORDER TO

PREVENT WATER ACCUMULATION AROUNDTHE CONNECTIONS.

RJ45DATA CABLES

THE INCLUDED RJ45 DATA CABLE IS FOR FIXTURE TO FIXTURE

INTERCONNECTIONS ONLY!THE RJ45 CABLE CONNECTORS

MAY NOT BE COMPATIBLE WITH OTHER RJ45 OR ETHERNET

TYPE CONNECTORS.

INSTALLATION GUIDELINES

POWER AND DATA CONNECTIONS

ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY

SEALED WITH ADIELECTRIC GREASE (AVAILABLE AT MOST

ELECTRICAL SUPPLIERS) IN ORDER TO PREVENT WATER

CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.

TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT

WATER FROM ENTERING THE FIXTURE, SEAL ALL UNUSED

CONNECTION RUBBER CAPS.

Brighter Pixel Strobe IP

9 |

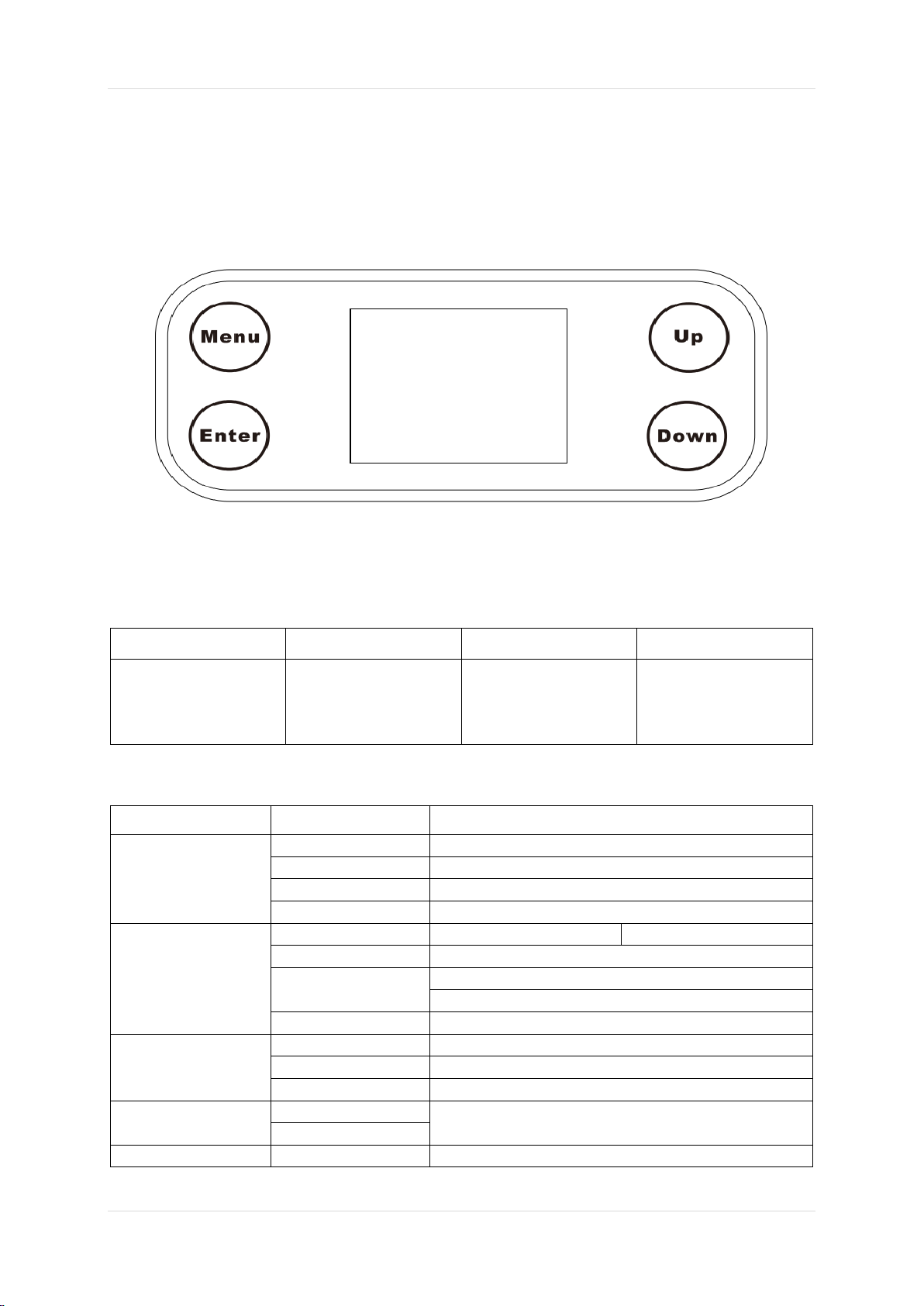

SYSTEM MENU

DOWN

ENTER

Increase the displayed

value or pass it to the

previous item in the

Reduce the displayed

value or pass it to the

next item in the menu

Confirms the displayed

values, activate the

displayed functions, or

enters a continuous

Scroll through the

main menu or return

to the options in the

previous menu

Main Menu

Sub Menu

Option/Value

CONNECT

DMX Address

001-512

DMX Mode

4CH-A,4CH-B,12CH,15CH,44CH,244CH

Ethernet

IP configuration

Universe

Changes Art-Net universe

SETUP

White Balance

R,G,B,W

0-255

Dimmer mode

Off, Dimmer 1, Dimmer 2, Dimmer 3

Signal Hold

BLACKOUT

HOLD

Clr Working time

Working time cleaning

STAND ALONE

Normal

Stand alone off

Sequence

SHOW 01-05

Static

Fixed/Manual Color

Lock Screen

Locks screen

Yes

Working time

Show Working Time

Brighter Pixel Strobe IP

10 |

LIGHTING CONSOLE PATCHING GUIDELINES

The product is a versatile luminaire allowing it to produce

multiple unique lighting effects typically not found in a single

lighting fixture. The DMX layout is designed to offer a variety of

options for controlling fixture.

The fixture contains 150x 1,5W RGB pixel cells, and 150x5W

White cells. For ease of use the DMX layout is arranged to

allow lighting consoles to separate the fixture into multiple

segments or parts. It is especially important to arrange the

fixture in such segments or parts when using the fixture in the

full extended 244 channel DMX mode. For simple programming,

reduced DMX channel modes can be used. However, for easy

recall of interesting pixel animations, fixture contain FX

systems.

DMX CHART

4CH Mode(RGBW)

Channel

Value

Function

Description

1CH

0-255

RED

Dark to light

2CH

0-255

GREEN

Dark to light

3CH

0-255

BLUE

Dark to light

4CH

0-255

WHITE

Dark to light

4CH Mode(STROBE)

Channel

Value

Function

Description

1CH

0-255

FLASH INTENSITY

2CH

0-255

FLASH DURATION

3CH

0-255

FLASH RATE

4CH

0-255

EFFECTS

Inhaltsverzeichnis

Andere Brighter Beleuchtungsausrüstung Handbücher

Brighter

Brighter Smart Spot 150 LED Bedienungsanleitung

Brighter

Brighter PIXEL Bedienungsanleitung

Brighter

Brighter Smart 400 Bedienungsanleitung

Brighter

Brighter Eye 900 Pro Bedienungsanleitung

Brighter

Brighter Smart 280 Bedienungsanleitung

Brighter

Brighter 6X40W Bedienungsanleitung

Brighter

Brighter PRO BAR 18IP Bedienungsanleitung

Brighter

Brighter Magic Matrix Bedienungsanleitung

Brighter

Brighter Mini Eye Bedienungsanleitung

Brighter

Brighter FW200C Bedienungsanleitung

Brighter

Brighter MINI EYE P40 Bedienungsanleitung

Brighter

Brighter X-Dot Bedienungsanleitung

Brighter

Brighter LED PROFILE 250C Bedienungsanleitung

Brighter

Brighter SMART 150 Beam Plus Bedienungsanleitung

Brighter

Brighter FW 300 Bedienungsanleitung

Brighter

Brighter FW200CTO Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
