2
ENGLISH
Read the entire document
CAUTION:
• Installation must be carried out by an electrician and must comply with national and
local electrical codes.
• Use this thermostat only for resistive load.
• Do NOT install the thermostat in an area where it can be exposed to water or rain.
• To prevent severe shock or electrocution, always turn the power OFF at the service
panel before working with wiring.
• Install the thermostat onto an electrical box.
• Use special CO/ALR solderless connectors if you connect the thermostat to aluminum
wires.
• Keep the thermostat's top and bottom air vents (openings) clean and unobstructed at
all times.
Before you start
TH115-AF-GB-10
3
ENGLISH
The TH115 programmable thermostat has three temperature control modes:
See page 9 on how to change the temperature control mode setting.
Supplied Parts
• One (1) power base
• Two (2) mounting screws
• Four (4) solderless connectors for copper wires
• One (1) floor sensor
• One (1) flat-tip screwdriver
About your thermostat
A mode: controls the ambient air temperature
F mode: controls the floor temperature using an external temperature sensor
AF mode: controls the ambient air temperature
maintains the floor temperature within desired limits using an external temperature
sensor
Operating Manual 400-115-050-EFS
4
ENGLISH

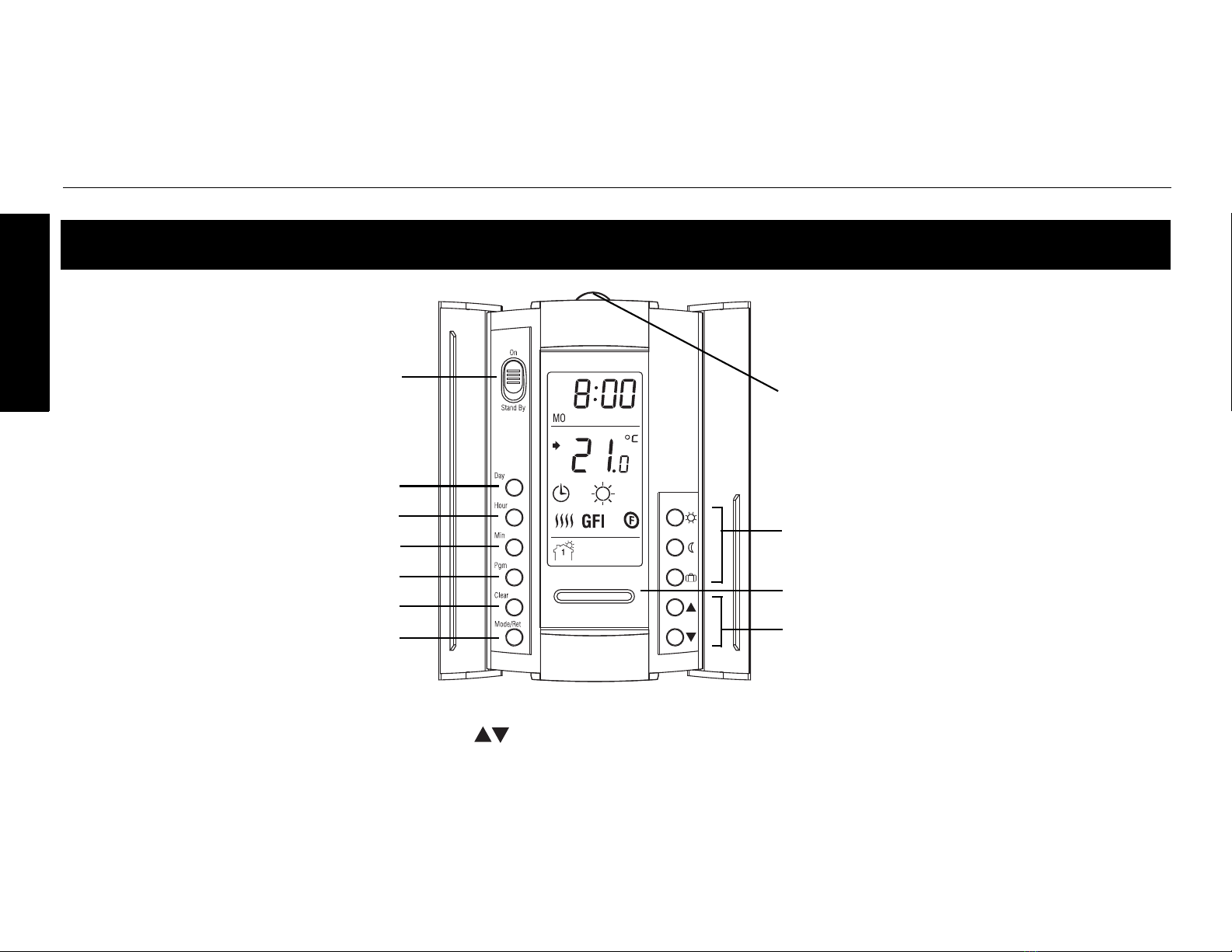

Quick reference to controls
On/Standby switch1
Day button
Up/Down buttons2
Program button
Mode selection /program exit
Preset temperature buttons
Backlight button2
Program clear button
Hour button
Minutes button
1
Place on Standby to cut power to the heater (e.g., in the summer). This will not affect the time and temperature settings.
2When the backlight button or either of the (Up/Down) buttons is pressed, the display illuminates for 12 seconds.
TEST light /button for ground
fault protection (see page 18)
TH115-AF-GB-10
5
ENGLISH

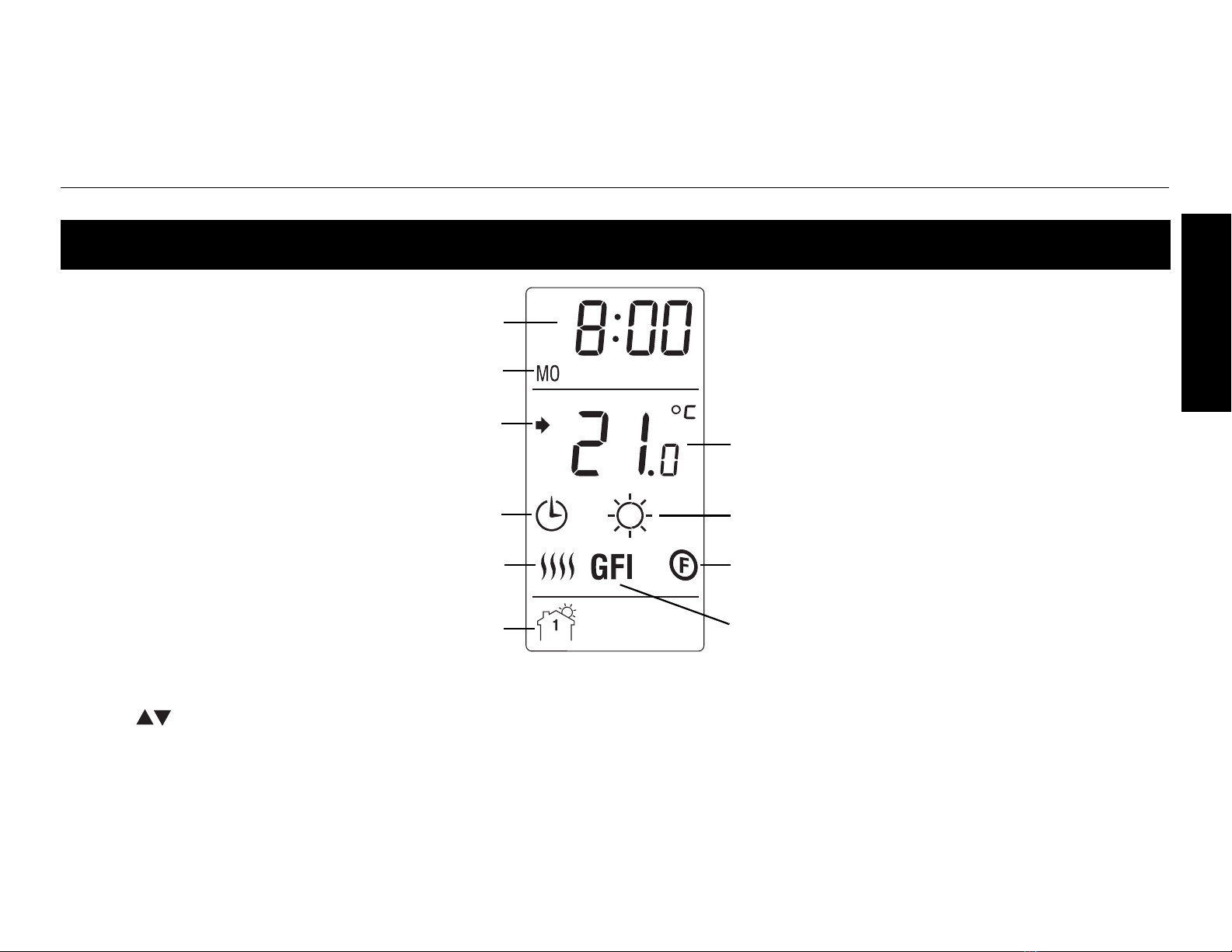

Quick reference to display
Temperature*
Mode
Period
Time
Heating intensity indicator
Preset temperature icon (see page 13)
Appears when the setpoint is displayed*
Temperature control mode (see page 3)
Ground fault indicator (see page 18)
Day
*The thermostat normally displays the actual (measured) temperature. To view the setpoint, press either
of the buttons once. The setpoint will appear for the next 5 seconds. To change the setpoint, press
one of the buttons until the desired temperature is displayed. To scroll faster, press and hold the button.
Operating Manual 400-115-050-EFS
6
ENGLISH
n

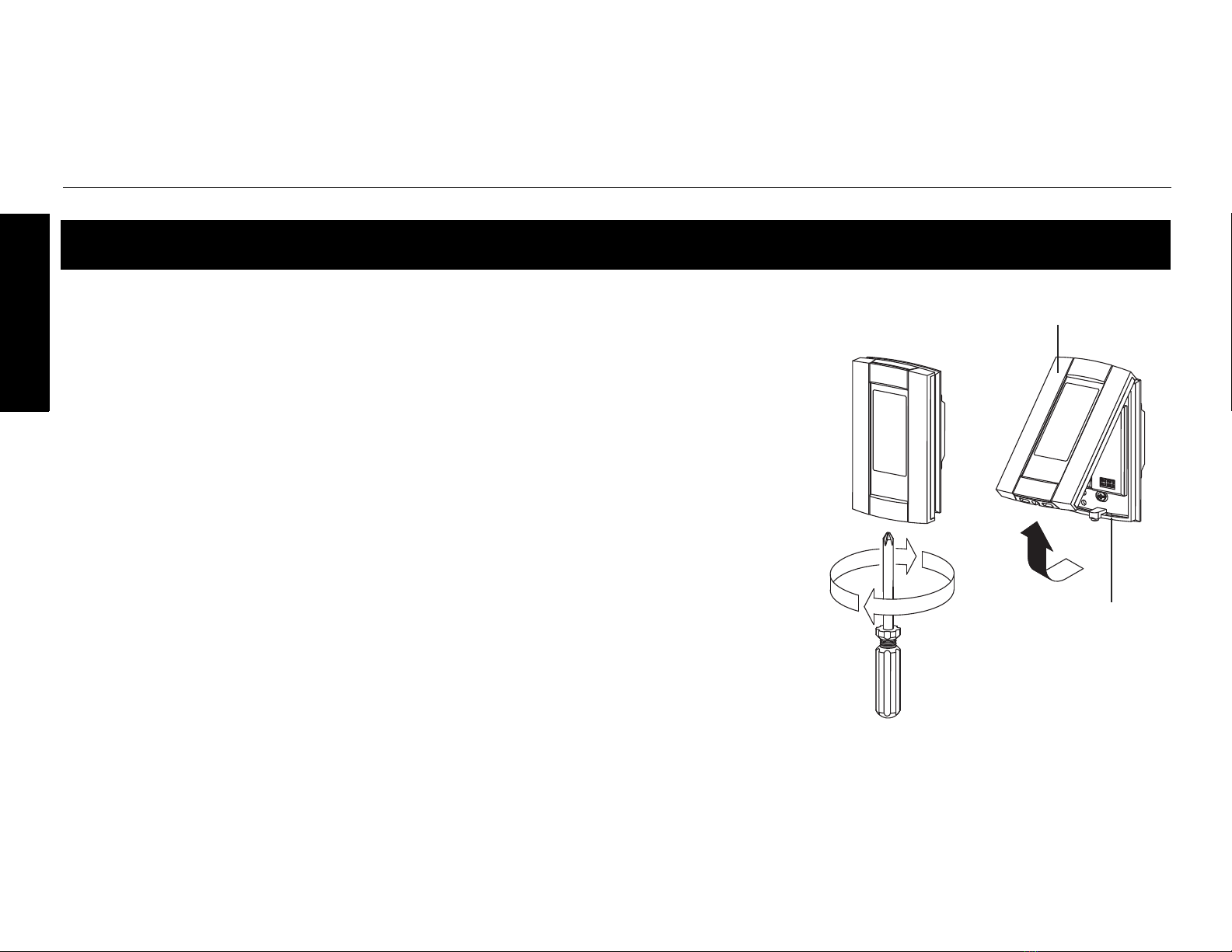

Turn off power to the heating system at the service panel.
oLoosen the captive screw and remove the thermostat faceplate from the
wallplate. (The screw remains captive and cannot be completely removed.)
pConnect the thermostat to the power supply and to the load (see page 7).
qConnect the floor sensor (see page 8).
rIf you wish to connect a remote control device, see page 8.
sInstall the wallplate to the electrical box using the provided screws.
tSet the configuration switches on the back of the faceplate (see page 9).
uInstall the faceplate on the wall plate and tighten the captive screw.
vApply power to the heating system.
wTest the ground fault protection (see page 19).
Installing the thermostat
Wallplate
Faceplate
TH115-AF-GB-10
7
ENGLISH
NOTE: Connect the wires using the provided solderless connectors for copper wires:

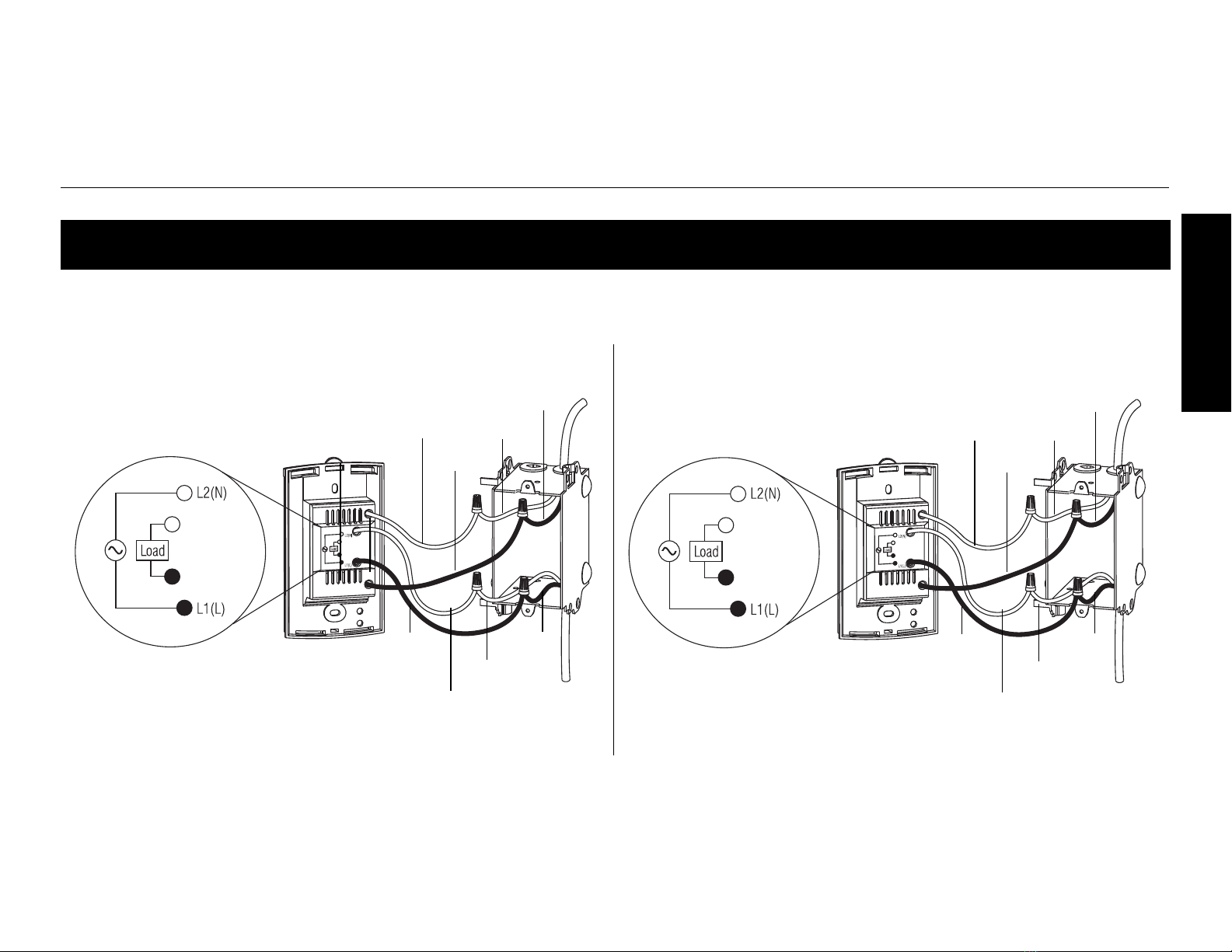

Wiring diagram
White
120 V
Load
Power
supply
Red
Black
Red
Red
Black
Black
Red
Black
240 V
Load
Power
supply
Red
Black
Red
Black
Black
Black
White
Operating Manual 400-115-050-EFS
8
ENGLISH

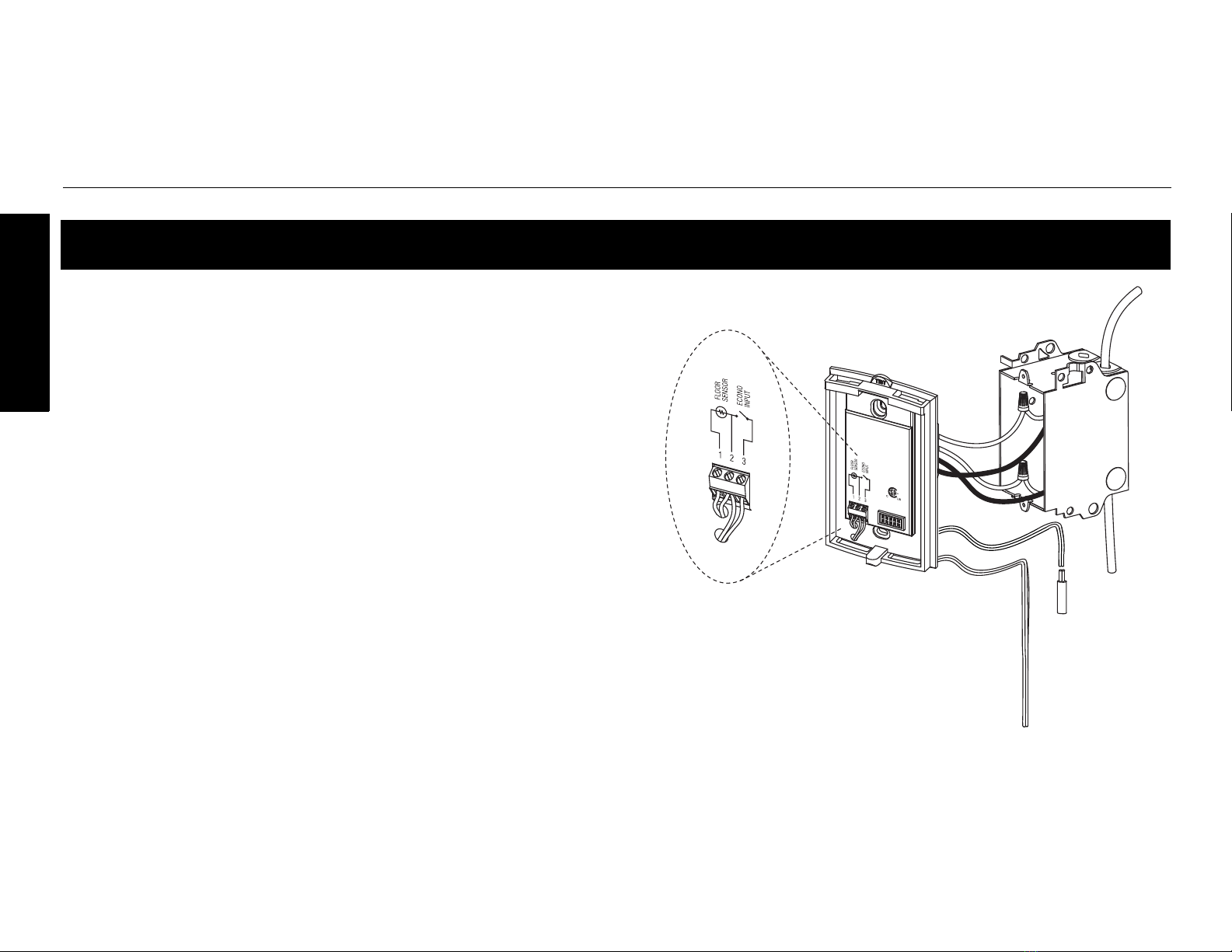

nInsert the floor sensor cable through one of the two
openings on the wallplate and connect the sensor
wires to terminals 1 and 2 (no polarity).
• The sensor cable must pass outside the electrical
box and follow the wall down to the floor.
• Position the sensor cable such that it does not
come in contact with the floor heating wires. The
sensor must be centered between two floor heating
wires for best temperature control.
• Do NOT staple the sensor head (the plastic end) to
the floor. Doing so might damage the sensor. Any
damages might not be noticeable during testing but
can become apparent several days later.
oIf you wish to connect a remote control device, insert
the wires (use 18- to 22-gauge flexible wires) through
one of the two openings on the wallplate and connect
them to terminals 2 and 3 (no polarity). Connecting a
remote device enables you to place the thermostat on
vacation mode from a remote location. See page 17.
Floor sensor / remote control connections
Floor
temperature
sensor
Remote control device
