Product Overview
Broadcom 5989-0046EN
January 24, 2018
Description
The Broadcom® HLMP-0103 is a black plastic mounting clip
and retaining ring. It is designed to panel mount Broadcom
high-profile T-1-3/4 size lamps. This clip and ring
combination is intended for installation in instrument panels
from 1.52 mm (0.060 in.) to 2.67 mm (0.105 in.) thick. For
panels greater than 2.67 mm (0.105 in.), counterboring may
be needed to the required thickness.

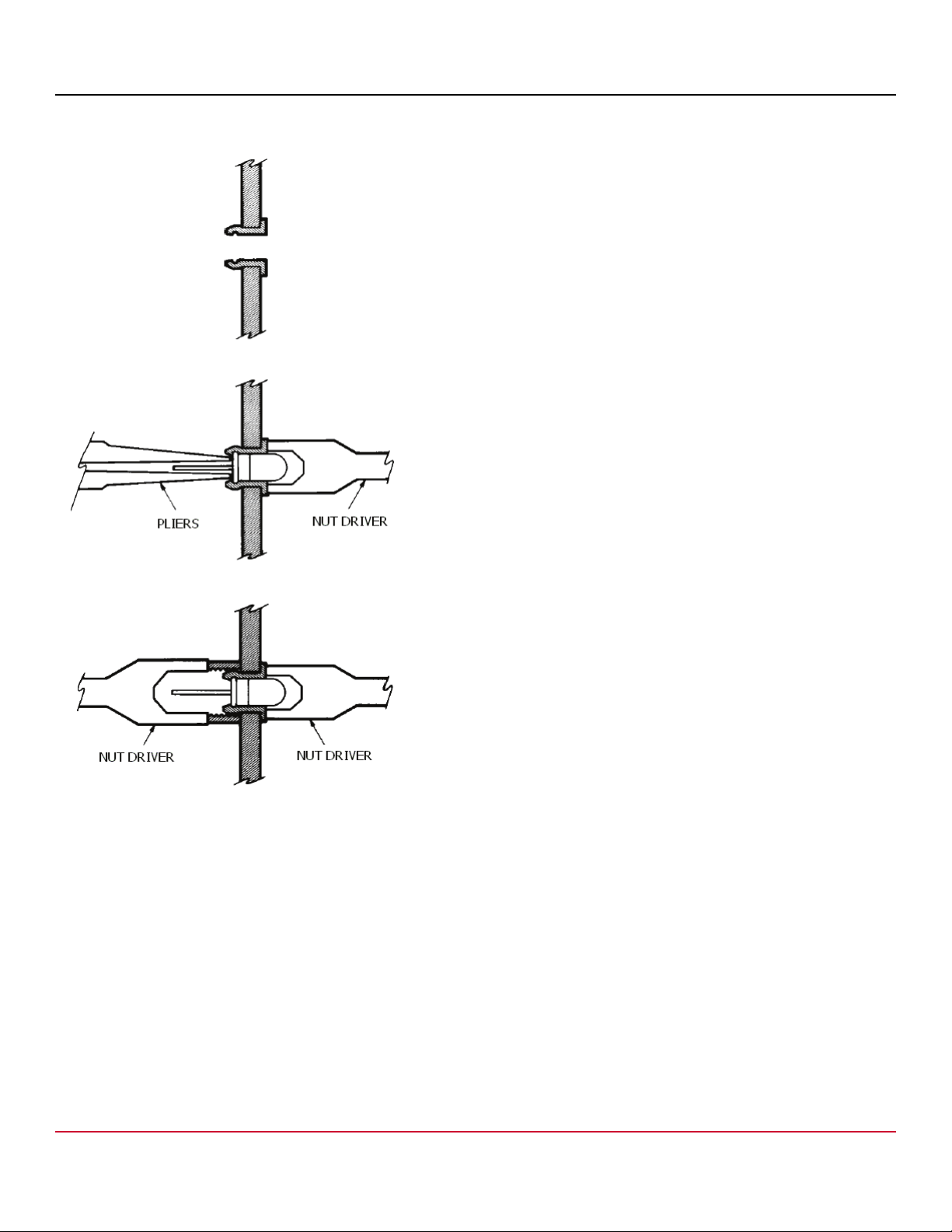

Mounting Instructions
1. Drill a 6.45/6.63 (0.254/0.261 in.) diameter hole in the
panel. Deburr but do not chamfer the edges of the hole.
2. Press the panel clip into the hole from the front of the
panel.
3. Press the LED into the clip from the back. Use blunt long
nose pliers to push on the LED. Do not use force on the
LED leads. A tool, such as a nut driver, may be used to
press on the clip.
4. Slip a plastic retaining ring onto the back of the clip and
press tight using tools such as two nut drivers.
See the following figure.
HLMP-0103
T-1-3/4 (5 mm) Panel Mount Clip and Retaining
Ring
Broadcom 5989-0046EN
2
HLMP-0103 Product Overview T-1-3/4 (5 mm) Panel Mount Clip and Retaining Ring

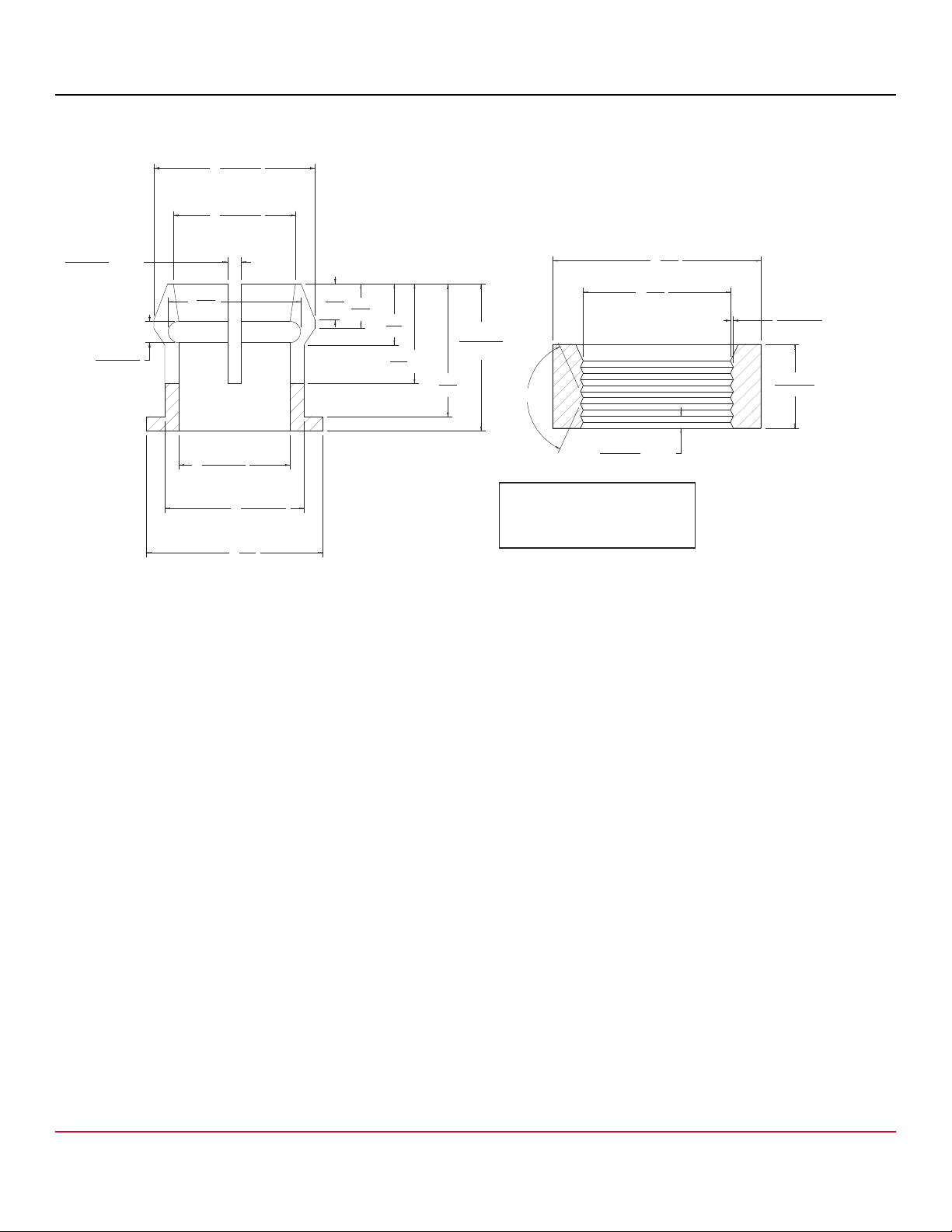

Package Dimensions
0.110
2.79
0.038±0.003
0.97±0.08
0.022±0.001
0.56±0.03
0.005±0.003
0.13±0.08
6.73
0.290±0.010
7.37±0.25
0.250±0.005
6.35±0.13
0.318
8.08
0.065
1.65 2.03
0.240
6.10
4.57
9.53
0.151±0.005
0.238
0.220±0.010
5.59±0.25
0.265+0.010-
6.73+0.25-
3.84±0.13
0.265
120oTYP. 6X
6.05
Ø
0.080
TYP. 6X
Ø
0.025
+0.005-0.010
0.64+0.13-0.25
TYP. 4X
0.180 TYP. 4X
Ø
Ø
Ø
Ø
Ø
0.375
Ø
NOTE:
ALL DIMENSIONS ARE IN INCHES
(MILLIMETERS).
0.200+0.0040
5.08+0.100
Broadcom 5989-0046EN
3
HLMP-0103 Product Overview T-1-3/4 (5 mm) Panel Mount Clip and Retaining Ring
Mounting Instructions
