Inkjet DCP/MFC

PARTS REFERENCE LIST

MODEL:

DCP-195C / DCP-197C

DCP-365CN / DCP-373CW

DCP-375CW / DCP-377CW

DCP-395CN / MFC-253CW

MFC-255CW / MFC255CWE

MFC-257CW / MFC-295CN

MFC-495CW / MFC-795CW

Read this list thoroughly before maintenance work.

Keep this list in a convenient place for quick and easy reference at all times.

April 2009

PL-FAX163

8CAJ06

Ver. M-1

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it is necessary to mention the following items;

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No. etc )

Note: Orders without Parts Code or Tool No. can not be accepted.

< Example >

REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK

2. Design-changed parts :

If any of the parts is changed, one of the following symbols is indicated in the REMARK column.

CHG(chg) : The parts is changed to a new parts.

ADD(add) : The parts is newly added.

DEL(del) : The parts is deleted.

Symbol in capital letters indicates the latest parts change information in the page.

3. Parts change will be informed by the Parts change information.

4. Parts are subject to change in design without prior notice.

COUNTRIES

U.S.A. ----- US TURKEY ---- TUR

CANADA ---- CAN HONG KONG ---- HK

GERMANY ----- GER POLAND ---- POL

UNITED KINGDOM ----- UK ASIA (SINGAPORE & GULF) ---- ASA

FRANCE ---- FRA RUSSIA ---- RUS

BELGIUM ---- BEL OCEANIA

NETHERLANDS --- NLD (AUSTRALIA & NEW ZEALAND) ---- OCE

SWITZERLAND ---- CHE PAN NORDIC

AUSTRIA ---- AUS (NORWAY/FINLAND/DENMARK/SWEDEN)--- PND

SPAIN ---- SPA CEE GENERAL --- CEE

PORTUGAL ---- POR IBERIA (SPAIN & PORTUGAL) ---- IBR

ITALY ---- ITA

ISRAEL ---- ISR

CHINA ---- CHN

TAIWAN ---- TWN

SOUTH AFRICA ---- ZAF

(1) (4)

(3)

(2)

CONTENTS

1. SCANNER UNIT.................................................................................. 1

2. CARTRIDGE CASE.............................................................................. 3

3. ENGINE................................................................................................ 5

4. HEAD.................................................................................................... 7

5. PAPER TRAY....................................................................................... 9

6. COVER............................................................................................... 11

7. PANEL................................................................................................ 13

8. PCB .................................................................................................... 17

9. ACCESSORIES.................................................................................. 19

10. PRINTED MATERIALS ...................................................................... 22

11. PACKAGING...................................................................................... 24

12. OTHERS............................................................................................. 28

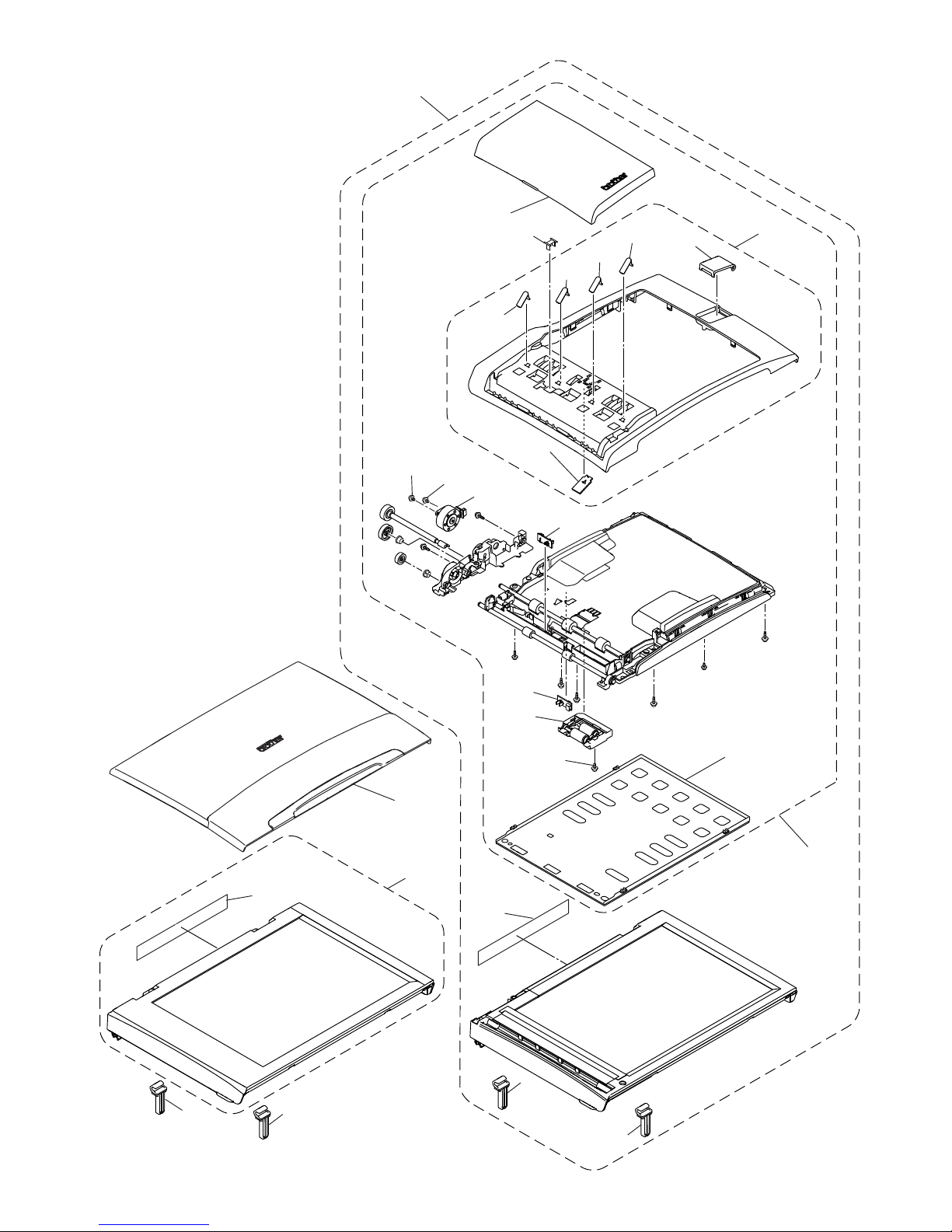

1 SCANNER UNIT

- 1 -

1-1-7-1

1-1-7-2

1-1-2

1-1-8

1-1-3

1-1-4

1-1-1

1-2

1-1-5

1-1-2

1-1-6

1-1-7

1-1-7-3

1-1

1-2

1-1-7-3

2-1

1-1-6

1-3

1-1-9

List1(SCANNER UNIT)

REF No. CODE Q'TY DESCRIPTION SYMBOL REMARKS

1 LX1706001 1 ADF & SCANNER COVER ASSY (SP), MFC295CN

1 LX1714003 1 ADF & SCANNER COVER ASSY (SP), MFC495CW chg

1 LX1714005 1 ADF & SCANNER COVER ASSY (SP), MFC795CW CHG

1-1 LX1707001 1

DF & DOCUMENT COVER ASSY

(

MFC295CN

1-1 LS6546002 1

DF & DOCUMENT COVER ASSY

(

MFC495CW

1-1 LS6546003 1

DF & DOCUMENT COVER ASSY

(

MFC795CW

1-1-1 LS6891001 1 DOCUMENT SPONGE ASSY

(

MFC295CN/MFC495CW/MFC795CW

1-1-2 LG6753001 2 DOCUMENT SENSOR PCB ASSY

MFC295CN/MFC495CW/MFC795CW

1-1-3 LS4406001 1 DOCUMENT ROLLER HOLDER ASSY

MFC295CN/MFC495CW/MFC795CW

1-1-4 087310816 1 TAPTITE CUP B M3X8

MFC295CN/MFC495CW/MFC795CW

1-1-5 LS4414001 1

DF MOTOR

MFC295CN/MFC495CW/MFC795CW

1-1-6 0A5300606 2 SCREW PAN

(

S/P WASHER

)

M3X6

MFC295CN/MFC495CW/MFC795CW

1-1-7 LS4691002 1

DF UNIT

MFC295CN

1-1-7 LS4422002 1

DF UNIT

MFC495CW

1-1-7 LS4422003 1

DF UNIT

MFC795CW

1-1-7-1 LS469301

1 DOCUMENT STOPPER

MFC295CN

1-1-7-1 LS4424011 1 DOCUMENT STOPPER

MFC495CW

1-1-7-1 LS442400

1 DOCUMENT STOPPER

MFC795CW

1-1-7-2 LS5437001 1 SEPARATION PAD AND FILM

MFC295CN/MFC495CW/MFC795CW

1-1-7-3 LP1429001 4 EXIT FILM

MFC295CN/MFC495CW/MFC795C

1-1-8 LS4435001 1

DF COVER

MFC295CN/MFC495CW/MFC795CW

1-1-9 LS5961001 1 DOCUMENT COVER SUPPORT

MFC295CN/MFC495CW/MFC795CW

1-2 LS4442010 2 HINGE

MFC295CN

1-2 LS4442011 2 HINGE

MFC495CW

1-2 LS4442007 2 HINGE

MFC795CW

1-3 LS5965001 1 PAPER JAM INST. LABEL

MFC295CN/MFC495CW/MFC795CW

2 LX1551002 1 SCANNER COVER ASSY

(

DCP195C/DCP197

CHG

2 LX1551005 1 SCANNER COVER ASSY

(

DCP365CN CHG

2LS6532004 1 SCANNER COVER ASSY

(

DCP373CW/DCP375CW/DCP377CW/DCP395CN DEL

2 LX1551001 1 SCANNER COVER ASSY (SP), DCP373CW/DCP375CW/DCP377CW/DCP395CN/

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

2-1 LS5965001 1 PAPER JAM INST. LABEL,

DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/DCP395CN/

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

3 LS6545006 1 DOCUMENT COVER ASSY

(

DCP195C/DCP197C

3 LS6545005 1 DOCUMENT COVER ASSY

(

DCP365CN

3 LS6856002 1 DOCUMENT COVER ASSY

(

DCP373CW/DCP375CW/DCP377CW add

3 LS6856001 1 DOCUMENT COVER ASSY

(

DCP395CN

3 LS6545004 1 DOCUMENT COVER ASSY

(

MFC253CW/MFC255CW/MFC257CW

3 LX1549001 1 DOCUMENT COVER ASSY

(

DCP375CW

MFC255CWE

4 LS4537008 2 HINGE

DCP195C/DCP197C

4 LS4537011 2 HINGE

DCP365CN

4 LS4537007 2 HINGE, DCP373CW/DCP375CW/DCP377CW/DCP395CN/

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

8CAJ06/11/13/15/17/33

36/35/37/41/43/47

DCP195C/DCP197C/DCP365CN

DCP373CW/DCP375CW/DCP377CW/DCP395CN

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

MFC295CN/MFC495CW/MFC795CW

- 2 -

2 CARTRIDGE CASE

- 3 -

1-1

List2(CARTRIDGE CASE)

REF No. CODE Q'TY DESCRIPTION SYMBO

REMARKS

1 LK3553001 1 INK REFILL ASSY (SP),

DCP395CN/MFC255CWE/MFC495CW/MFC795CW FOR ALL COUNTRIES,

DCP375CW/MFC295CN FOR US/CAN

1 LK3554001 1 INK REFILL ASSY (SP),

DCP195C/DCP197C/DCP365CN/DCP373CW/DCP377CW/

MFC253CW/MFC255CW/MFC257CW FOR ALL COUNTRIES,

DCP375CW/MFC295CN EXCEPT FOR US/CAN

1-1 LK3329001 1 INK CARTRIDGE DETECTION SENSOR PCB B57C002

2LK3555001 1 HEAD JOINT RUBBER

(

)

8CAJ06/11/13/15/17/33

36/35/37/41/43/47

DCP195C/DCP197C/DCP365CN

DCP373CW/DCP375CW/DCP377CW/DCP395CN

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

MFC295CN/MFC495CW/MFC795CW

- 4 -

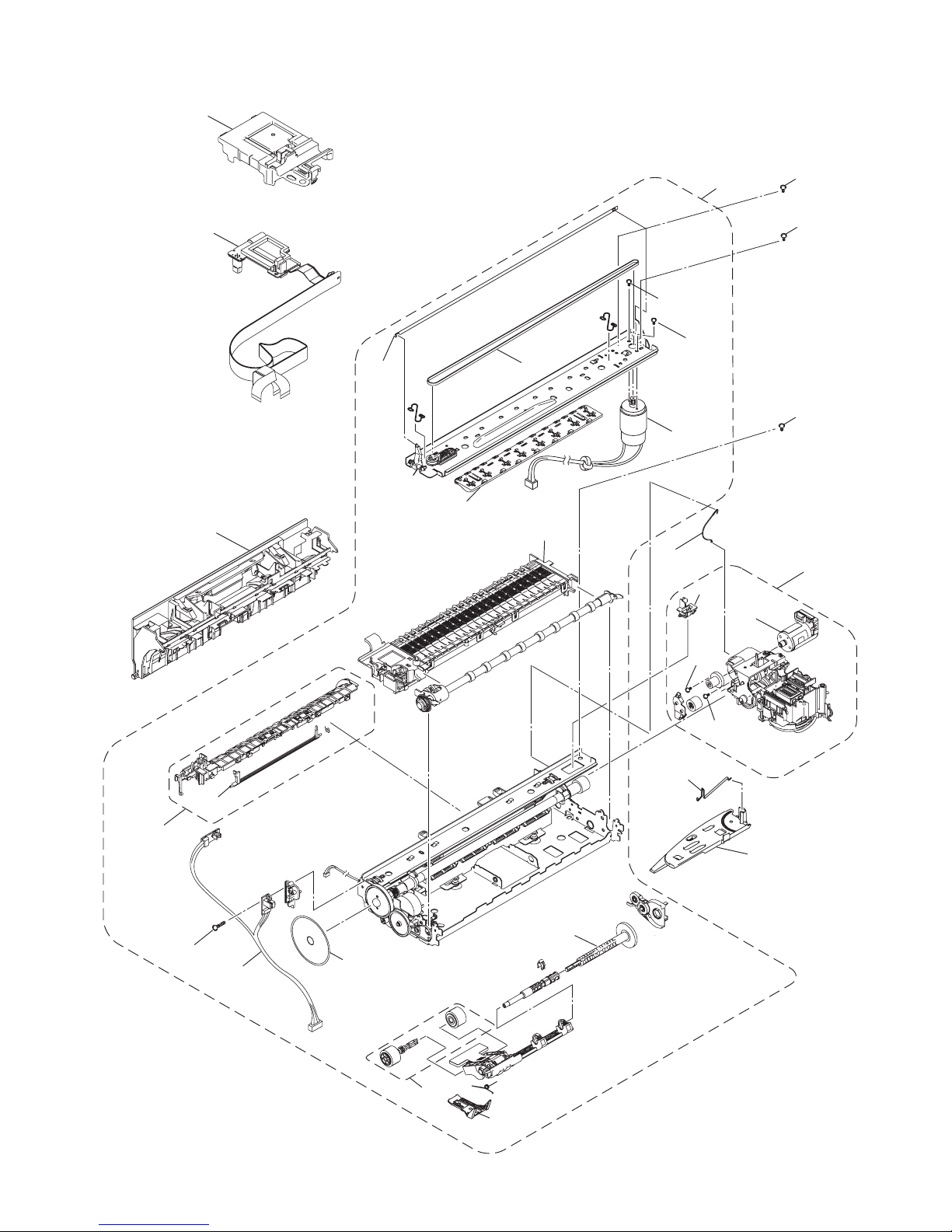

3 ENGINE

- 5 -

7-2

1-2

1-4

1-7

1-5

1-10

7-1

1-8

1-1

1-6

1-9

1-3

1-11

1-12

7-3

1-5-1

1-14

1-13

List3(ENGINE)

REF No. CODE Q'TY DESCRIPTION REMARKS

1 LS6537001 1 ENGINE UNIT (SP),

DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/

53C

55C

95C

1 LX1876001 1 ENGINE UNIT

(

DCP395CN/MFC495CW/MFC795CW

1-1 LS4301001 1 STAR WHEEL HOLDER

1-2 LS4303001 1 PLATEN F ASSY,

DCP195C/DCP197C/DCP365CN/DCP373CW/DCP375CW/DCP377CW/

53C

55C

95C

1-2 LS4304001 1 PLATEN M ASSY

DCP395CN/MFC495CW/MFC795CW

1-3 LX3629001 1 CARRIAGE MOTOR CHG

1-4 LP1471001 1 RF ENCODER DISK

1-5 LS4249001 1 INNER CHUTE ASSY

1-5-1 LS4251001 1 REGISTRATION SENSOR ACTUATOR

1-6 LT0466001 1 SENSOR HARNESS UNIT

1-7 LS4198001 1 TIMING BELT

1-8 LS4260001 1

SF GEAR SHAFT OUTER

1-9 LX0126001 1

SF ROLLER 9 UNIT ASS

1-10 LS4467001 1 ENCODER STRIP

1-11 00030060

2 SCREW BIND M3X6

1-12 00002120

1 SCREW BIND M2X12

1-13 LS4120001 1 PE ACTUATOR 9 ASSY add

1-14 LS4075001 1 PE ACTUATOR SPRING add

2 LS425300

1 JAM CLEAR COVER

DCP195C/DCP197

2 LS425300

1 JAM CLEAR COVER

DCP365CN

2 LS4253003 1 JAM CLEAR COVER, DCP373CW/DCP375CW/DCP377CW/DCP395CN/

MFC253CW/MFC255CW/MFC255CWE/MFC257CW/MFC295CN/MFC495CW/MFC795CW

3 LS4383001 1 HEAD COVER

4 LX0376001 1 TUBE SUPPORT PLATE

5 LS4469001 1 TUBE SUPPORT WIRE

6 LS6543001 1 CARRIAGE PCB ASSY

(

)

7 LS6544001 1 MAINTENANCE UNIT

(

)

7-1 LS4091001 1

SF MOTOR

7-2 LS4098001 1 SWITCHING LEVER GUIDE

7-3 LS4375001 2 SCREW PAN

(

S/P WASHER

)

M3X5

8 LS5775001 1 EARTH SPRING

9 08731101

3 TAPTITE CUP B M3X10

8CAJ06/11/13/15/17/33

36/35/37/41/43/47

DCP195C/DCP197C/DCP365CN

DCP373CW/DCP375CW/DCP377CW/DCP395CN

MFC253CW/MFC255CW/MFC255CWE/MFC257CW

MFC295CN/MFC495CW/MFC795CW

- 6 -
