Before you can use the machine, you must set up the hardware and install the software.

Please read this “Quick Setup Guide” for the correct setup procedure and installation

instructions.

Keep this “Quick Setup Guide”, User’s Guide and supplied CD-ROM in a convenient place for

quick and easy reference at all times.

Step 1

Setting Up the machine

Step 2

Installing the Drivers & Software

Setup is Complete!

Installing the Drivers & Software

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows NT

4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

MFC-8660DN

Quick Setup Guide

Version A

Warning Caution Improper Setup Note User’s Guide

Warnings tell you

what to do to prevent

possible personal

injury.

Cautions specify

procedures you

must follow or avoid

to prevent possible

damage to the

machine or other

objects.

Improper Setup

icons alert you to

devices and

operations that are

not compatible with

the machine.

Notes tell you how

you should respond

to a situation that

may arise or give

tips about how the

current operation

works with other

features.

Indicates reference

to the User’s Guide.

Carton components may differ from one country to another.

Save all packing materials and the carton in case for any reason you must ship your machine.

Carton Components

Quick Setup Guide

CD-ROM

User’s Guide

Drum Unit Assembly

(including Toner Cartridge)

AC Power Cord Telephone Line Cord

USB Cable Product Registration and

Test Sheet

(USA only)

Accessory Order Form

The interface cable is a standard accessory. Please purchase the appropriate interface cable if USB you

intend to use the Parallel, USB or Network interface.

Do NOT connect the interface cable at this time. Connecting the interface cable is done during the

software installation process.

■USB interface cable

Please make sure you use a USB 2.0 interface cable that is no longer than 6 feet (2.0 meters).

When you use a USB cable, make sure you connect it to the USB port of your computer and not to a

USB port on a keyboard or non-powered USB hub.

■Parallel interface cable

Please make sure you use a Parallel interface cable that is no longer than 6 feet (2.0 meters).

Use a shielded interface cable that is IEEE 1284-compliant.

■Network cable

Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100Base-TX Fast

Ethernet Network.

1. Automatic Document Feeder (ADF)

2. Control Panel

3. Face-down Output Tray

Support Flap (Support Flap)

4.FrontCover

5. Paper Tray

6. Power Switch

7. Document Cover

8. ADF Document Output Support

Flap

■Getting Started

Control Panel

1One Touch keys 2Status LED 3LCD (Liquid Crystal Display)

4Menu keys 5Dial Pad 6Stop/Exit key

7Start key 8Copy keys 9Mode keys

10 Fax and telephone keys 11 Print keys

For the details of the control panel, see “Control panel overview” in Chapter 1 of the User’s Guide.

When you move the machine, grasp the side handholds that are under the scanner. Do NOT carry the

machine by holding it at the bottom.

981011

12 345

Table of Contents

Setting Up the machine

1. Install the Drum Unit and Toner Cartridge Assembly .................................... 4

2. Load Paper in the Paper Tray ..........................................................................5

3. Release the Scanner Lock ................................................................................6

4. Install the Power Cord and Phone Line ..........................................................6

5. Setting the Date and Time ................................................................................8

6. Setting your Station ID .....................................................................................9

7. Selecting a Receive Mode ..............................................................................10

8. Tone and Pulse dialing mode (Canada only) ................................................11

9. Selecting Your Language (Canada only) ...................................................... 11

10. Setting the LCD Contrast ...............................................................................11

11. Sending in the Product Registration and Test Sheet (USA Only) .............. 11

Installing the Drivers & Software

Supplied CD-ROM “MFL-Pro Suite” ..............................................................................12

For USB Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ... 14

For Parallel Interface Cable Users

(For Windows®98/98SE/Me/2000 Professional/XP/XP Professional x64 Edition) ... 16

For Windows NT®Workstation Version 4.0 Users ......................................................19

For Network Interface Cable Users

(For Windows

98/98SE/Me/NT/2000 Professional/XP/XP Professional x64 Edition)

...21

For USB Interface Cable Users ......................................................................................24

■For Mac OS®9.1 to 9.2 ......................................................................................24

■For Mac OS®X 10.2.4 or greater .......................................................................26

For Network Interface Cable Users ...............................................................................29

■For Mac OS®9.1 to 9.2 ......................................................................................29

■For Mac OS®X 10.2.4 or greater .......................................................................31

■For Network Users and Administrators

BRAdmin Professional configuration utility (For Windows®users) ..........................34

BRAdmin Light configuration utility (For Mac OS®X users) ......................................36

■Options and Consumables

Options ............................................................................................................................ 37

Replacement Consumables ...........................................................................................37

Step 1

Step 2

Setting Up the machine

Do NOT connect the interface cable.

Connecting the interface cable is

done during the software

installation process.

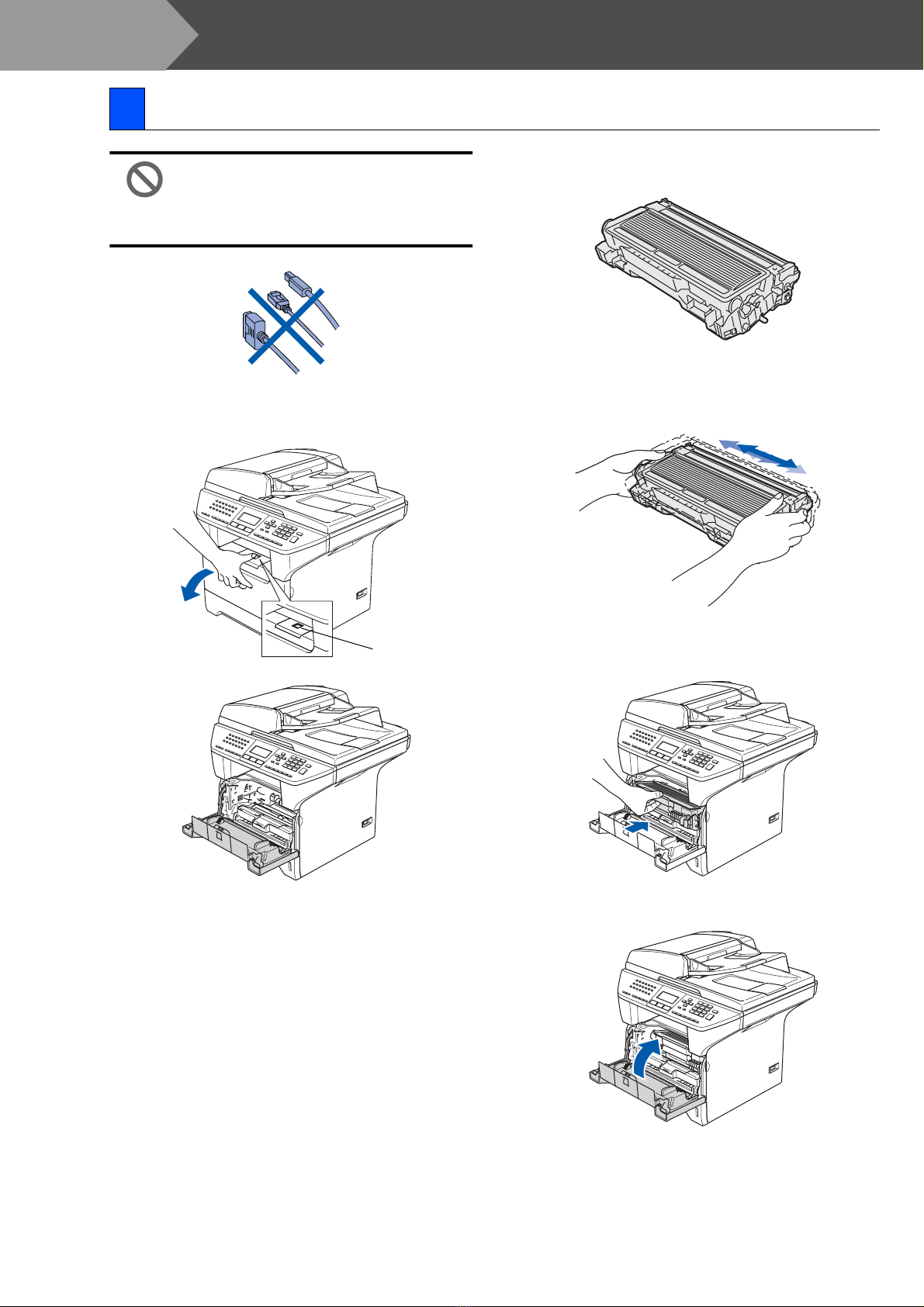

1Open the front cover by pressing the front

cover release button (1).

2Unpack the drum unit and toner cartridge

assembly.

3Gently rock the drum assembly from side to

side several times to distribute the toner

evenly inside the assembly.

4Put the drum unit assembly into the

machine until it clicks into place.

5Close the front cover of the machine.

1Install the Drum Unit and Toner Cartridge Assembly

(1)

Step 1

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows NT

4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

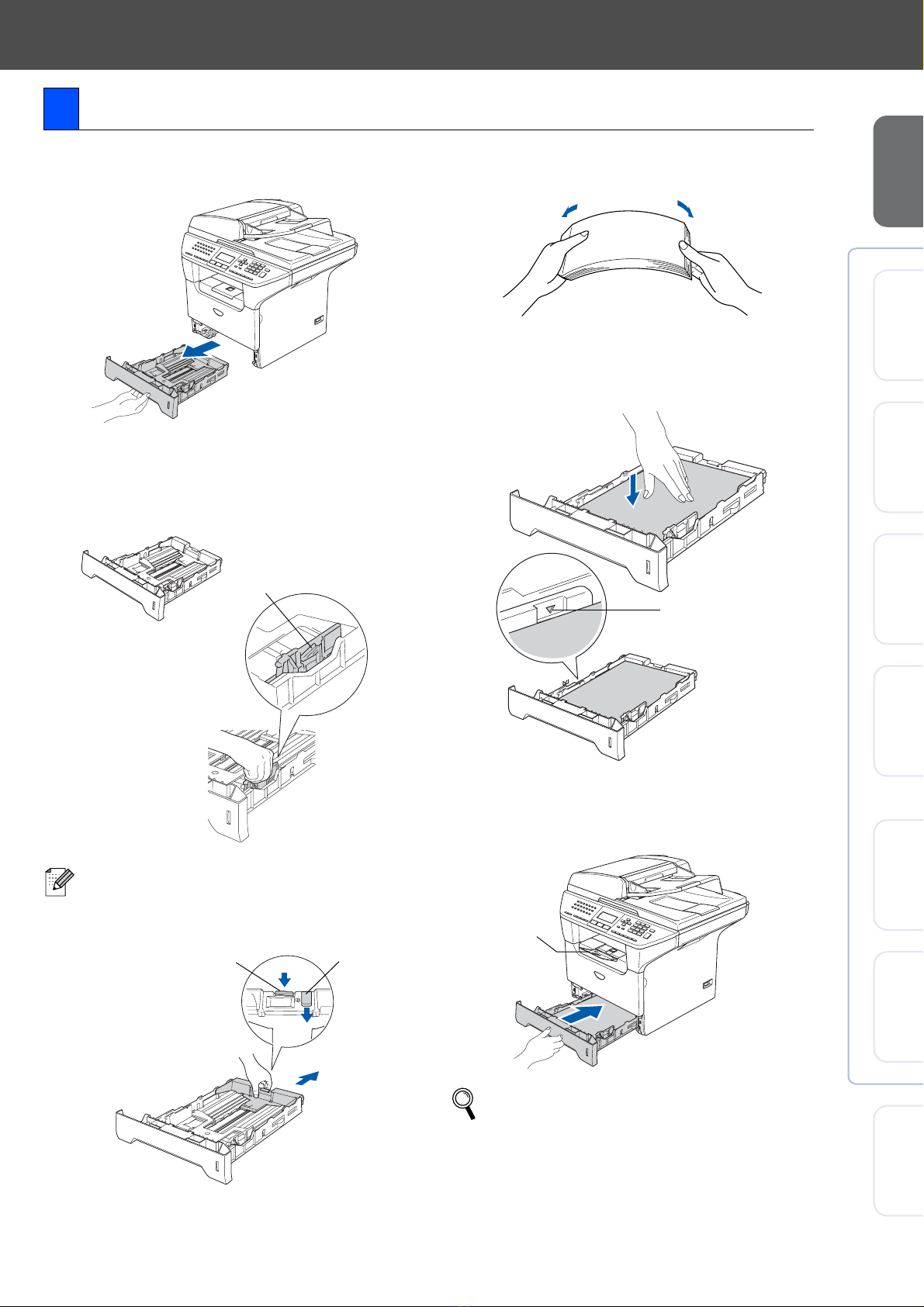

1Pull the paper tray completely out of the

machine.

2While pressing the paper guide release

lever (1), slide the adjusters to fit the paper

size. Check that the guides are firmly in the

slots.

3Fan the stack of paper well to avoid paper

jams and misfeeds.

4Put paper in the paper tray.

Check that the paper is flat in the tray and

below the maximum paper mark (1).

5Put the paper tray firmly back into the

machine and unfold the output tray support

flap (1) before you use the machine.

2Load Paper in the Paper Tray

For Legal size paper, press the lever (1)

located at the back of the tray and pull out the

back of the paper tray. Move the tray lock

button (2) to the lock position.

(1)

(1) (2)

For details on supported paper

specifications, see “Acceptable paper and

other media” in Chapter 2 of the User’s

Guide.

(1)

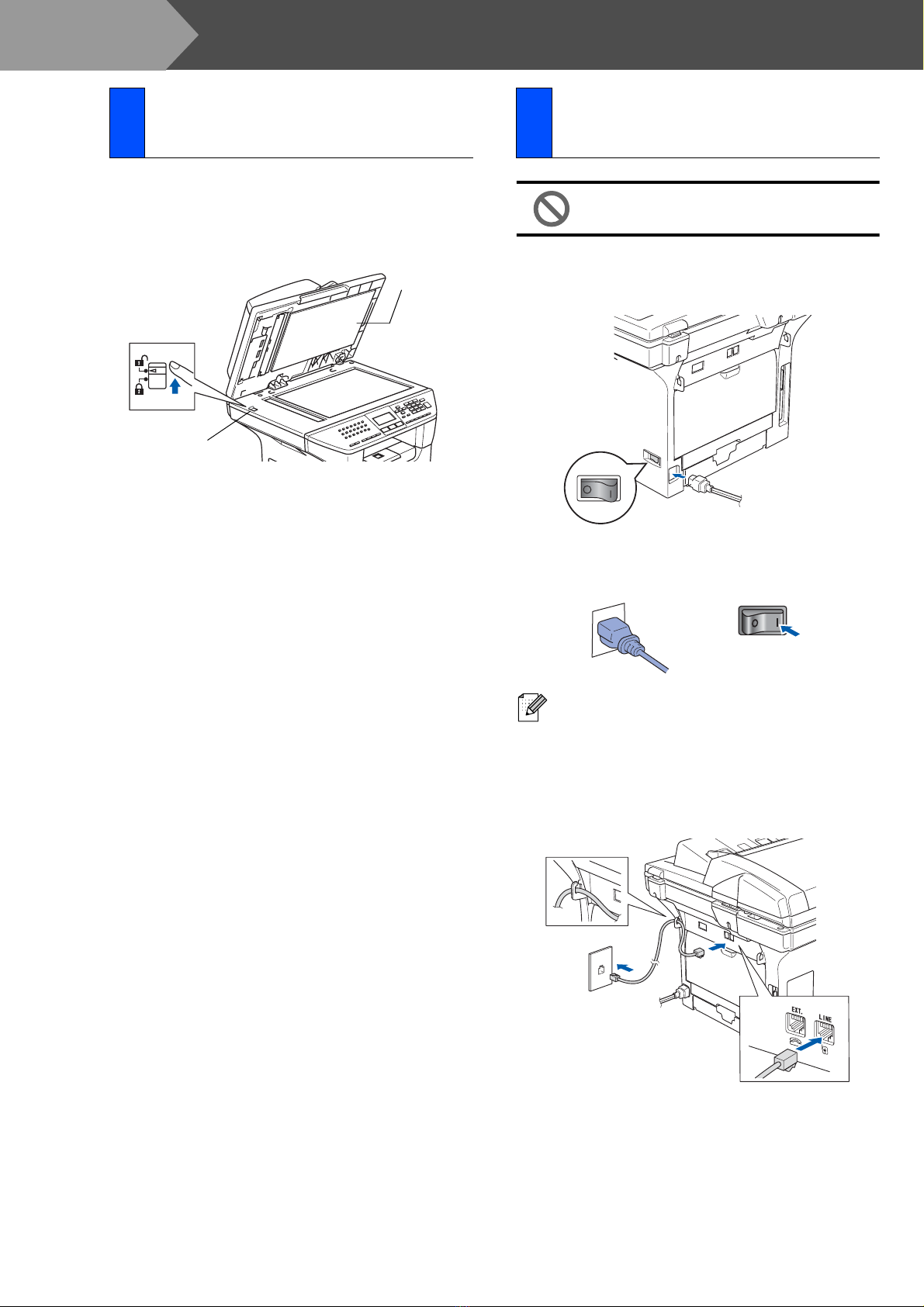

1Push the lever (1) up to unlock the scanner.

(The gray scanner lock lever is located at

the back left side, under the document cover

(2).)

Do not connect the Parallel or USB

cable yet.

1Make sure that the power switch is off.

Connect the AC power cord to the machine.

2Plug the AC power cord into an AC outlet.

Turn the power switch on.

3Connect one end of the telephone line cord

to the jack on the machine marked LINE

and the other end to a modular wall jack.

3Release the Scanner

Lock

(2)

(1)

4Install the Power Cord

and Phone Line

If Scanner Locked appears on the LCD,

immediately release the scanner lock and

press Stop/Exit.

Step 1 Setting Up the machine

Setting Up

the machine

Windows®

USB

Windows®

Parallel

Windows NT

4.0

Parallel

Macintosh®

USB

Macintosh®

Network

Windows®

Network

Administrators

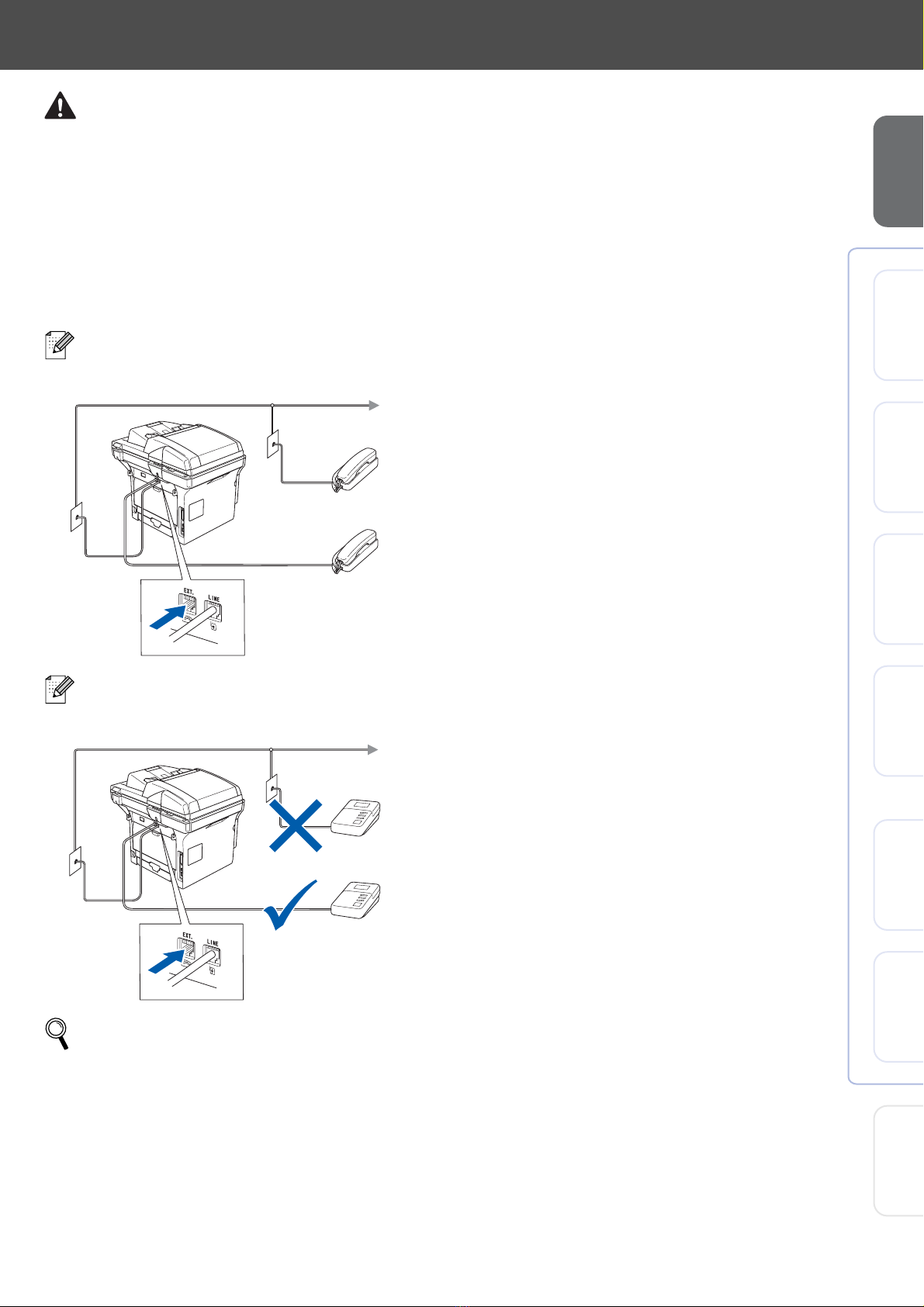

Warning

■The machine must be grounded using a 3-prong

plug.

■Since the machine is grounded through the power

outlet, you can protect yourself from potentially

hazardous electrical conditions on the telephone

network by keeping the power cord connected to

your machine when you connect it to a telephone

line. Similarly, you can protect yourself when you

want to move your machine by disconnecting the

telephone line first and then the power cord.

If you are sharing one phone line with an

external telephone, connect it as shown

below.

If you are sharing one phone line with an

external telephone answering device,

connect it as shown below.

Please set the receive mode to

External TAD.

For more details, see “Connecting an

external TAD (Telephone Answering

Device)” in Chapter 7 of the User’s Guide.

Extension

Telephone

External

Telephone

TAD

The machine displays the date and time, and prints it on every fax you send.

1Press Menu.

2Press 0.

3Press 2.

4Enter the last two digits of the year on the

dial pad, and then press OK.

(e.g. Enter 0, 6for 2006.)

5Enter the two digits for the month on the dial

pad, and then press OK.

(e.g. Enter 0, 3for March.)

6Enter the two digits for the day on the dial

pad, and then press OK.

(e.g. Enter 2, 5.)

7Enter the time in 24-hour format on the dial

pad, and then press OK.

(e.g. Enter 1, 5, 2, 5for 3:25 P.M.)

8Press Stop/Exit.

5Setting the Date and Time

02.Date/Time

Year:2006

Enter & OK Key

02.Date/Time

XX/XX/2006

Month:03

Enter & OK Key

02.Date/Time

03/XX/2006

Day:25

Enter & OK Key

02.Date/Time

03/25/2006

Time:15:25

Enter & OK Key

If you make a mistake, press Stop/Exit to

start from Step 1.

Step 1 Setting Up the machine

Inhaltsverzeichnis

Andere Brother Multifunktionsdrucker Handbücher

Brother

Brother DCP-J140W Betriebsanleitung

Brother

Brother DCP-9040CN Bedienungsanleitung

Brother

Brother Work Smart MFC-J875dw Bedienungs- und Wartungshandbuch

Brother

Brother MFC-J6910DW Bedienungsanleitung

Brother

Brother MFC-9750 Bedienungsanleitung

Brother

Brother MFC 685CW - Color Inkjet - All-in-One Bedienungsanleitung

Brother

Brother MFC-J6959DW Bedienungsanleitung

Brother

Brother DCP-8110DN Montageanleitung

Brother

Brother Inkjet MFC-J4710DW Montageanleitung

Brother

Brother MFC-790CW Bedienungsanleitung

Brother

Brother MFC 990cw - Color Inkjet - All-in-One Stücklistenhandbuch

Brother

Brother MFC-J625DW Programmierhandbuch

Brother

Brother DCP-9040CN Bedienungsanleitung

Brother

Brother MFC-J6520DW Bedienungsanleitung

Brother

Brother 8085DN - DCP B/W Laser Bedienungsanleitung

Brother

Brother DCP-J572DW Bedienungsanleitung

Brother

Brother 8060P MFC-9060 Bedienungsanleitung

Brother

Brother MFC-J280W Montageanleitung

Brother

Brother MFC-J6510DW Bedienungsanleitung

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Bedienungsanleitung

Brother

Brother MFC-9*970CDW Bedienungsanleitung

Brother

Brother MFC 495CW - Color Inkjet - All-in-One Bedienungsanleitung

Brother

Brother MFC-9840CDW Bedienungsanleitung

Brother

Brother Work Smart MFC-J470dw Bedienungsanleitung

Beliebte Multifunktionsdrucker Handbücher anderer Marken

Triumph Adler

Triumph Adler DC 2016 Handbuch

Epson

Epson WorkForce WF-2510 Benutzerhandbuch

Epson

Epson Stylus Scan 2000 Installations- und Betriebshandbuch

Epson

Epson PictureMate Snap PM 240 Bedienungsanleitung

Konica Minolta

Konica Minolta bizhub C35 Bedienungsanleitung

Konica Minolta

Konica Minolta BIZHUB 558 Bedienungsanleitung

Lexmark

Lexmark MX710 Series Handbuch

Lexmark

Lexmark XC8155 Bedienungsanleitung

Lexmark

Lexmark X642E Bedienungsanleitung

Sharp

Sharp MX-2310U Leitfaden

Aficio

Aficio 200 Bedienungsanleitung

Canon

Canon ImageCLASS 2300 Handbuch

Ricoh

Ricoh Pro C900 Bedienungsanleitung

Lexmark

Lexmark X925 Bedienungsanleitung

Epson

Epson Stylus CX8400 Series Bedienungsanleitung

Oce

Oce VarioLink 5022 Bedienungsanleitung

Copystar

Copystar CS 4551ci Bedienungsanleitung

Konica Minolta

Konica Minolta Magicolor 4650EN Bedienungsanleitung
