Brother MFC-8950DW Bedienungsanleitung

Web Connect Guide

Version 0

ENG

Applicable models

This User’s Guide applies to the following models.

DCP-8250DN/MFC-8950DW(T)

Definitions of notes

We use the following icon throughout this user’s guide:

Trademarks

The Brother logo is a registered trademark of Brother Industries, Ltd.

Android and Google Docs are trademarks of Google, Inc. Use of these trademarks are subject to Google

Permissions.

Windows is a registered trademark of Microsoft Corporation in the United States and other countries.

Apple and Macintosh are trademarks of Apple Inc., registered in the United States and other countries.

Each company whose software title is mentioned in this manual has a Software License Agreement specific

to its proprietary programs.

Any trade names and product names of companies appearing on Brother products, related

documents and any other materials are all trademarks or registered trademarks of those respective

companies.

IMPORTANT NOTE

Please go to the Brother Solutions Center at http://solutions.brother.com/ and click Manuals on your model

page to download the other manuals.

Not all models are available in all countries.

For DCP users; This documentation is for both MFC and DCP models. Where it says ‘MFC’ in this user’s

guide, please read ‘MFC-xxxx’ as ‘DCP-xxxx’.

Notes tell you how you should respond to a situation that may arise or give tips

about how the operation works with other features.

Note

1 Introduction 1

Brother Web Connect Feature...................................................................................................................1

Accessible services ...................................................................................................................................1

Conditions for using Brother Web Connect ...............................................................................................2

Service account ...................................................................................................................................2

Internet connection ..............................................................................................................................2

MFL-Pro Suite installation ...................................................................................................................2

Proxy server settings using a Web Browser..............................................................................................3

How to configure the Proxy server settings using Web Based Management......................................3

Setting up Brother Web Connect

(For GOOGLE DOCS™ and Dropbox)...................................................................................................4

Step by step overview .........................................................................................................................4

Create an account for each of the desired services ............................................................................5

Applying for Brother Web Connect Access .........................................................................................5

Registering and deleting accounts on the machine.............................................................................7

Setting up Brother Web Connect (For EVERNOTE®) ...............................................................................9

Step by step overview .........................................................................................................................9

Create an account with EVERNOTE®...............................................................................................10

Registering and deleting accounts on the machine...........................................................................10

2Upload 13

Scanning and uploading documents........................................................................................................13

For GOOGLE DOCS™ and Dropbox ................................................................................................13

For EVERNOTE®..............................................................................................................................15

Scan settings .....................................................................................................................................16

A Troubleshooting 17

Error messages .......................................................................................................................................17

Table of Contents

Brother Web Connect Feature 1

Certain web sites provide services that allow users to upload and view images and files on the web site. Your

Brother machine can scan images and upload them to these services.

1 Photos and documents

Accessible services 1

The following services can be accessed from your Brother machine.

GOOGLE DOCS™

GOOGLE DOCS™ is an online document editing and sharing service.

URL: http://docs.google.com/

EVERNOTE®

EVERNOTE®is an online file storage and managing service.

URL: http://www.evernote.com/

Dropbox

Dropbox is an online file storage, sharing and file synchronization service.

URL: http://www.dropbox.com/

For details about any of these services, refer to the respective service’s web site.

The following table describes which types of files can be used with each Brother Web Connect feature.

1You can upload images to a service by sending E-mail messages to the E-mail address provided by the respective service.

Note

(For Hong Kong, Taiwan and Korea)

Brother Web Connect only supports English. Files named in the local language may not be uploaded.

Introduction 1

Accessible services GOOGLE DOCS™ EVERNOTE®Dropbox

Upload scanned images PDF JPEG 1, PDF 1JPEG, PDF

Scanning

Web service

Introduction

Conditions for using Brother Web Connect 1

Service account 1

In order to use Brother Web Connect, you must have an account with the desired service. If you do not

already have an account, use a computer to access the web site of the service and create an account.

Internet connection 1

In order to use Brother Web Connect, your Brother machine must be connected to a network that has access

to the Internet, either through a wired or wireless connection. Refer to the Quick Setup Guide to connect and

configure the machine appropriately.

For network setups that use a proxy server, the machine must also be configured to use a proxy server.

(Proxy server settings using a Web Browser uu page 3)

Note

A proxy server is a computer that serves as an intermediary between users’ computers, which don’t access

the Internet directly, and the Internet.

MFL-Pro Suite installation 1

The initial installation of Brother Web Connect requires a computer that has access to the Internet and Brother

MFL-Pro Suite installed. Following the steps outlined in the Quick Setup Guide you can install the MFL-Pro

Suite (from the supplied installer CD-ROM) and configure the machine to be able to print over your wired or

wireless network.

Introduction

Proxy server settings using a Web Browser 1

If the network uses a proxy server, the following proxy server information must be configured on the machine.

You can configure the following settings by using Web Based Management (web browser) or BRAdmin

Professional 3.

Proxy server address

Port number

User name

Password

How to configure the Proxy server settings using Web Based Management 1

Note

We recommend Windows®Internet Explorer®7.0/8.0 or Firefox®3.6 for Windows®and Safari 4.0/5.0 for

Macintosh. Please also make sure that JavaScript and Cookies are always enabled in whichever browser

you use. If a different web browser is used, make sure it is compatible with HTTP 1.0 and HTTP 1.1.

aStart your web browser.

bType “http://machine’s IP address/” into your browser (where “machine’s IP address” is the machine’s IP

address).

For example: http://192.168.1.2/

cNo password is required by default. Enter a password if you have set one and press .

dClick Network.

eClick Protocol.

fMake sure the Proxy check box is checked and then click Submit.

gClick Advanced Setting.

hEnter the proxy server information.

iClick Submit.

Introduction

Setting up Brother Web Connect

(For GOOGLE DOCS™ and Dropbox) 1

Step by step overview 1

Configure the settings using the following procedure.

Step 1: Create an account with the desired service. (uu page 5)

Access the service’s web site

using a computer and create

an account. (If you already

have an account, there is no

need to create an additional

account.)

Step 2: Apply for Brother Web Connect access. (uu page 5)

Start Brother Web Connect

access using a computer and

obtain a temporary ID.

Step 3: Register, on the machine, the account information that is needed to access the desired services.

(uu page 7)

Enter the temporary ID to

enable the service on the

machine. Specify the account

name as you would like it to be

displayed on the machine, and

enter a PIN code if you would

like to use one.

The machine can now use the service.

Web serviceObtain account

User registration

Brother Web Connect

application page

Obtain temporary ID

Enter account information

Web service

Enter temporary ID

Introduction

Create an account for each of the desired services 1

In order to use Brother Web Connect to access an online service, you need to have an account with that

online service. If you do not have an account, use a computer to access the web site of the service and create

an account. If you already have an account, there is no need to create an additional account.

Before you use Brother Web Connect, you must log in to your account and use the provided services. If you

have never used the provided services, you may not be able to access the service using Brother Web

Connect.

Go to the next procedure. (Applying for Brother Web Connect Access uu page 5)

Applying for Brother Web Connect Access 1

In order to use Brother Web Connect to access online services, you must first apply for Brother Web Connect

access using the computer that has Brother MFL-Pro Suite installed.

aTurn on your computer.

bAccess the Brother Web Connect application web page.

Windows®

If you have already installed MFL-Pro Suite, choose Start / All Programs / Brother / MFC-XXXX

(where XXXX is your model name) / Brother Web Connect.

The web browser will start and access the application page.

Note

You can also access the page directly by entering “https://moi.bwc.brother.com/portal/” into your web

browser’s address bar.

Macintosh

If you have already installed MFL-Pro Suite, double-click Macintosh HD (Startup Disk) / Library /

Printers / Brother / Utilities / Brother Web Connect.

The web browser will start and access the application page.

Introduction

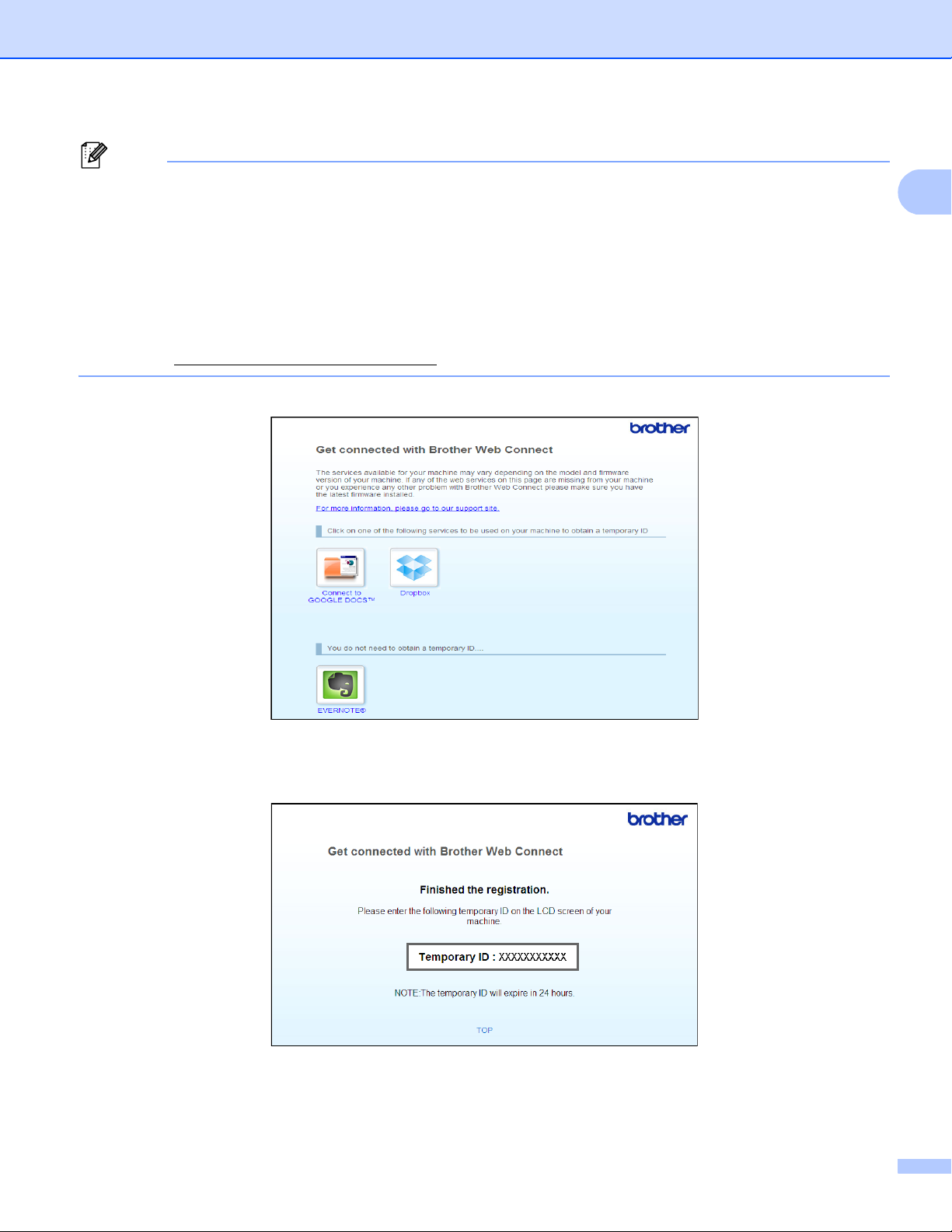

Note

You can also access the page directly by the following ways:

• From the supplied installer CD-ROM

1Put the supplied installer CD-ROM into your CD-ROM drive. Double-click the Brother Support

icon.

2Click the Brother Web Connect icon.

• From your web browser

Enter “https://moi.bwc.brother.com/portal/” into your web browser’s address bar.

cChoose your desired service.

dFollow the on-screen instructions and apply for access.

When finished, your temporary ID will be displayed. This temporary ID is needed when registering

accounts to the machine, so make a note of the ID. The temporary ID is valid for 24 hours.

eClose the web browser.

Go to the next procedure. (Registering and deleting accounts on the machine uu page 7)

Introduction

Registering and deleting accounts on the machine 1

Enter the account information and configure the machine so that it can access the service.

aBefore you begin to register an account please confirm the correct time zone, date and time are set on

the control panel of the machine. Please see the Quick Setup Guide included with your machine for

instructions on setting the correct time zone, date and time.

bPress Web on your machine’s LCD.

If a message regarding your Internet connection is displayed, press OK. You will be asked if you want to

display this information again in the future. Press Yes or No.

cChoose the desired service.

dIf information regarding Brother Web Connect is displayed, press OK.

ePress Register/Delete Account.

fPress Register Account.

gA message is displayed prompting you to enter the temporary ID you received when you applied for

Brother Web Connect access.

Press OK.

hEnter the temporary ID by using the buttons on the LCD.

Press OK.

iA message is displayed prompting you to enter a name for the account as you want it to be displayed on

the LCD.

Press OK.

jEnter the name by using the buttons on the LCD.

Press OK.

kDo one of the following:

If you want to set a PIN code for the account, press Yes. Then enter a four-digit number and press

OK. (The PIN code prevents unauthorized access to the account.)

If you do not want to set a PIN code, press No.

Andere Handbücher für MFC-8950DW

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Brother Multifunktionsdrucker Handbücher

Brother

Brother DCP-130C Bedienungsanleitung

Brother

Brother DCP-T520W Bedienungsanleitung

Brother

Brother HL-L5100DN Bedienungsanleitung

Brother

Brother HL1210W Bedienungsanleitung

Brother

Brother MFC 795CW - Color Inkjet - All-in-One Stücklistenhandbuch

Brother

Brother MFC-8510DN Bedienungsanleitung

Brother

Brother DCP-J4120DW Bedienungs- und Wartungshandbuch

Brother

Brother MFC-7470D Bedienungs- und Wartungshandbuch

Brother

Brother HL-L2305W Bedienungsanleitung

Brother

Brother DCP 330C - Color Inkjet - All-in-One Bedienungsanleitung

Brother

Brother DCP-8110DN Bedienungsanleitung

Brother

Brother HL-3180CDW Bedienungsanleitung

Brother

Brother MFC 3100C - Inkjet Multifunction Bedienungsanleitung

Brother

Brother MFC 640CW - Color Inkjet - All-in-One Einrichtungshandbuch

Brother

Brother MFC-J425W Bedienungsanleitung

Brother

Brother HL-1218W Bedienungsanleitung

Brother

Brother MFC 7440N - B/W Laser - All-in-One Kurzanleitung

Brother

Brother DCP-1000 Bedienungsanleitung

Brother

Brother MFC-J6947DW Betriebsanleitung

Brother

Brother MFC-J3520 Bedienungsanleitung

Brother

Brother MFC-7420 Bedienungsanleitung

Brother

Brother DCP-8070D Bedienungsanleitung

Brother

Brother FAX-1840CN Bedienungsanleitung

Brother

Brother MFC9030 Bedienungsanleitung

Beliebte Multifunktionsdrucker Handbücher anderer Marken

Triumph Adler

Triumph Adler DC 2016 Handbuch

Epson

Epson WorkForce WF-2510 Benutzerhandbuch

Epson

Epson Stylus Scan 2000 Installations- und Betriebshandbuch

Epson

Epson PictureMate Snap PM 240 Bedienungsanleitung

Konica Minolta

Konica Minolta bizhub C35 Bedienungsanleitung

Konica Minolta

Konica Minolta BIZHUB 558 Bedienungsanleitung

Lexmark

Lexmark MX710 Series Handbuch

Lexmark

Lexmark XC8155 Bedienungsanleitung

Lexmark

Lexmark X642E Bedienungsanleitung

Sharp

Sharp MX-2310U Leitfaden

Aficio

Aficio 200 Bedienungsanleitung

Canon

Canon ImageCLASS 2300 Handbuch

Ricoh

Ricoh Pro C900 Bedienungsanleitung

Lexmark

Lexmark X925 Bedienungsanleitung

Epson

Epson Stylus CX8400 Series Bedienungsanleitung

Oce

Oce VarioLink 5022 Bedienungsanleitung

Copystar

Copystar CS 4551ci Bedienungsanleitung

Konica Minolta

Konica Minolta Magicolor 4650EN Bedienungsanleitung
