Start Here FAX-2840
Quick Setup Guide
ARL/ASA/NZ/SAF/GLF Version 0
Please read the Product Safety Guide first, then read this Quick Setup Guide for the correct setup and installation
procedure.
To view the Quick Setup Guide in other languages, please visit http://solutions.brother.com/.
1

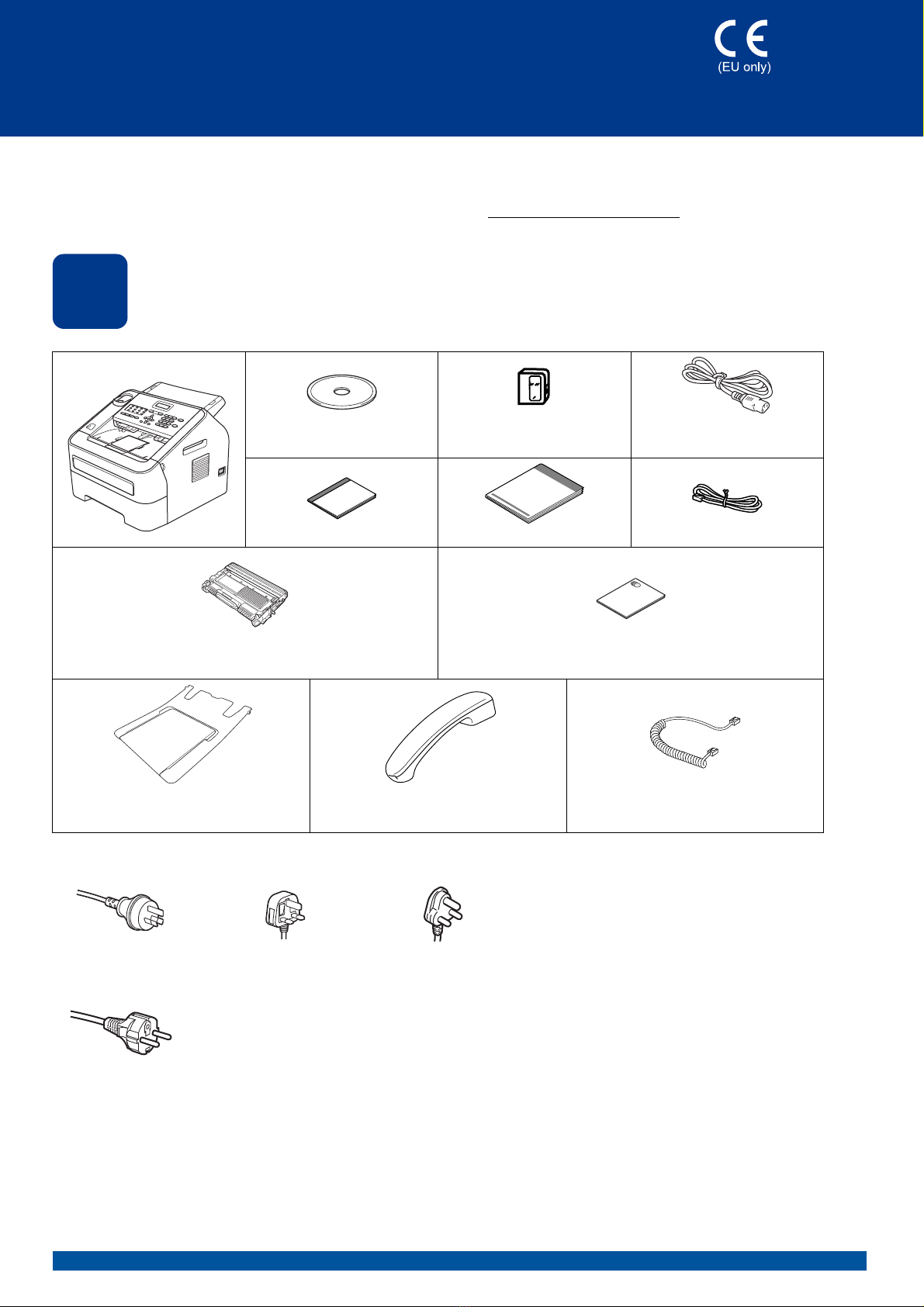

Unpack the machine and check the components
This machine must be grounded, If in doubt, call a qualified electrician.
To ensure safe operation the supplied plug must be inserted only into a standard electrical socket that is
properly grounded through the standard electrical wiring. Non grounded equipment may cause an
electrical shock hazard, and may cause excessive electrical noise radiation.
Documentation CD-ROM
Telephone Line Cord Adapter
(Australia only)
AC Power Cord
Basic User’s Guide Quick Setup Guide Telephone Line Cord
Drum Unit and Toner Cartridge Assembly
(pre-installed)
Product Safety Guide
ADF Document Output Support Telephone Handset
(not available in South Africa)
Curled Handset Cord
(not available in South Africa)
For Australia and
New Zealand:
For Hong Kong, Malaysia
and Singapore:
For India:
The mains plug supplied with this machine is
a grounded three pin plug. Make sure that
the AC socket will accept the supplied
grounded pin plug.
For Philippines
and Thailand:
The mains plug supplied with this machine is a side grounded two pin plug. Make sure that
the AC socket will accept the supplied grounded pin plug.
2
WARNING
Plastic bags are used in the packing of your machine. To avoid danger of suffocation, keep these
plastic bags away from babies and children. Plastic bags are not toys.
CAUTION
CAUTION

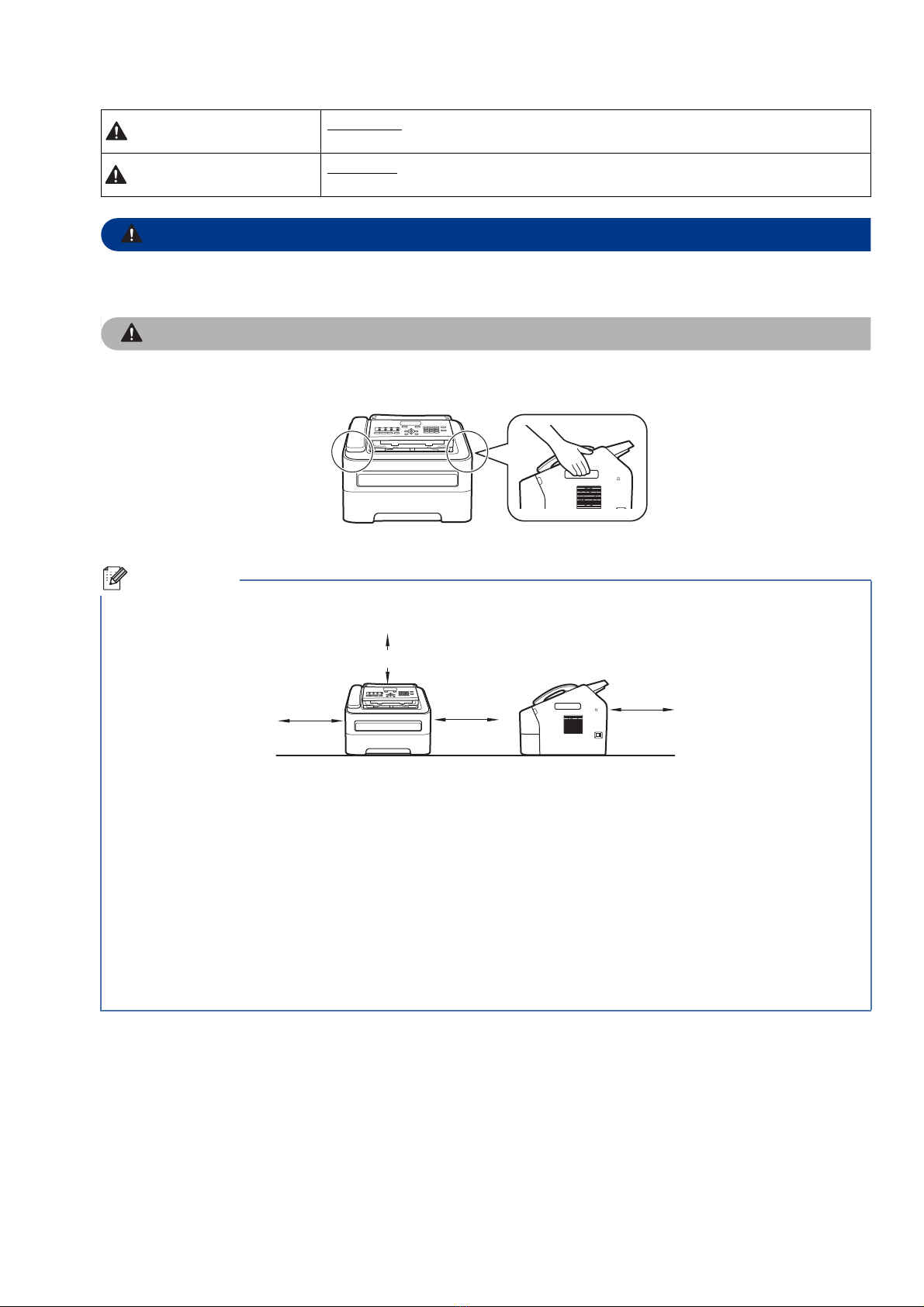

When moving the machine, grasp the side handholds firmly from the front of the machine.
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injuries.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injuries.
WARNING
CAUTION
Note
• Keep a minimum gap around the machine as shown in the illustration.
• The components included in the box may differ depending on your country.
• We recommend that you save the original packaging.
• If for any reason you must ship your machine, carefully repack the machine in the original packaging to avoid
any damage during transit. The machine should be adequately insured with the carrier. For how to repack
the machine, see Packing and shipping the machine in the Advanced User’s Guide.
• The interface cable is not a standard accessory. Buy the appropriate interface cable.
USB cable
• It is recommended to use a USB 2.0 cable (Type A/B) that is no longer than 2 metres.
• DO NOT connect the interface cable at this time. Connecting the interface cable is done during the MFL-Pro
installation process.
100 mm 100 mm 210 mm
250 mm
3
2

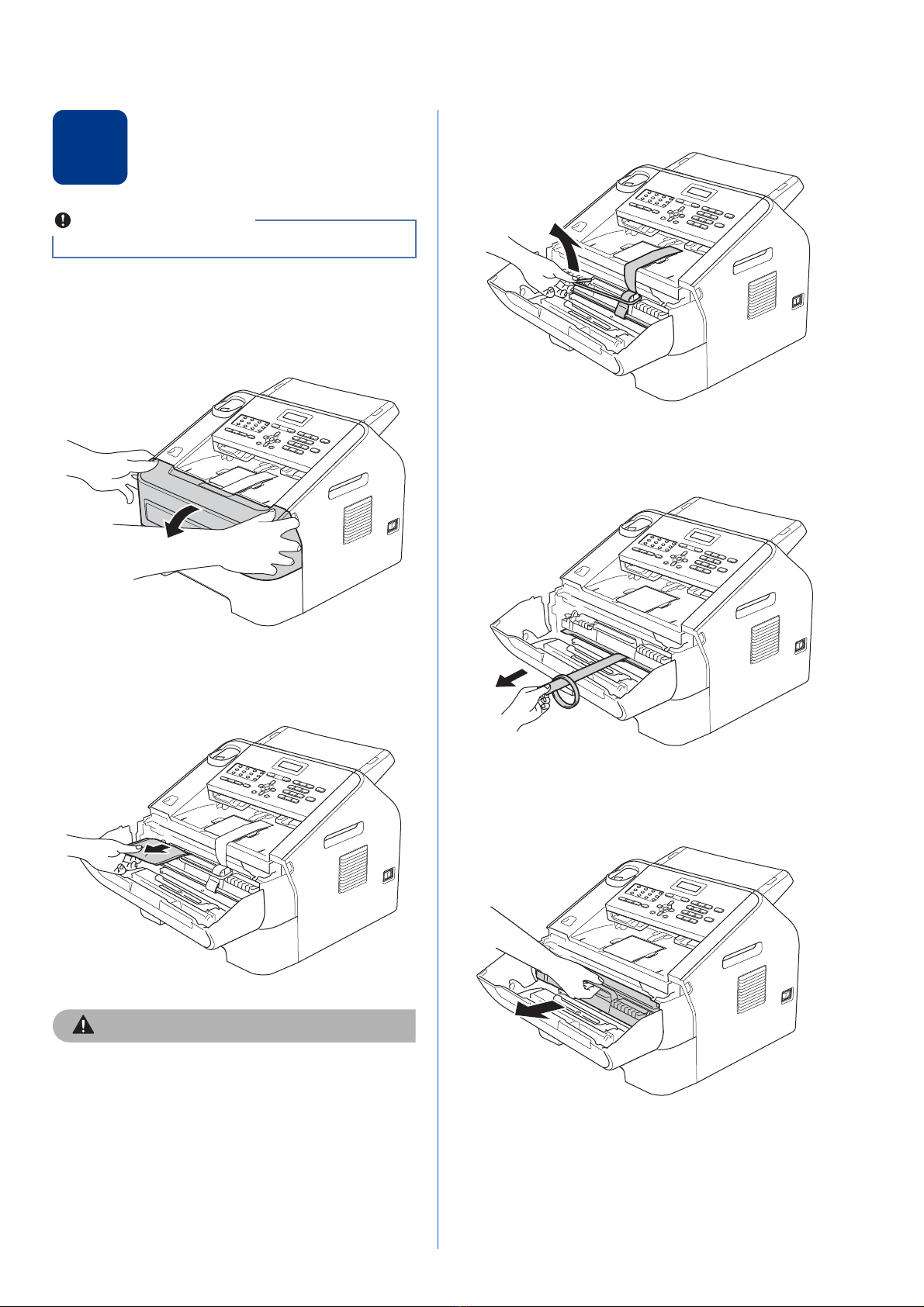

Remove the packing
material from the
machine
aRemove the packing tape from the outside of
the machine.
bOpen the front cover.
cRemove the Silica Pack from the inside of the
machine.
CAUTION
CAUTION
DO NOT eat the silica gel pack. Please throw
away. If ingested, seek medical attention
immediately.
dLift the elastic band off the drum.
ePull the paper strip to remove the protective
material as shown in the illustration.
fTake out the drum unit and toner cartridge
assembly.
IMPORTANT
DO NOT connect the AC power cord yet.
4

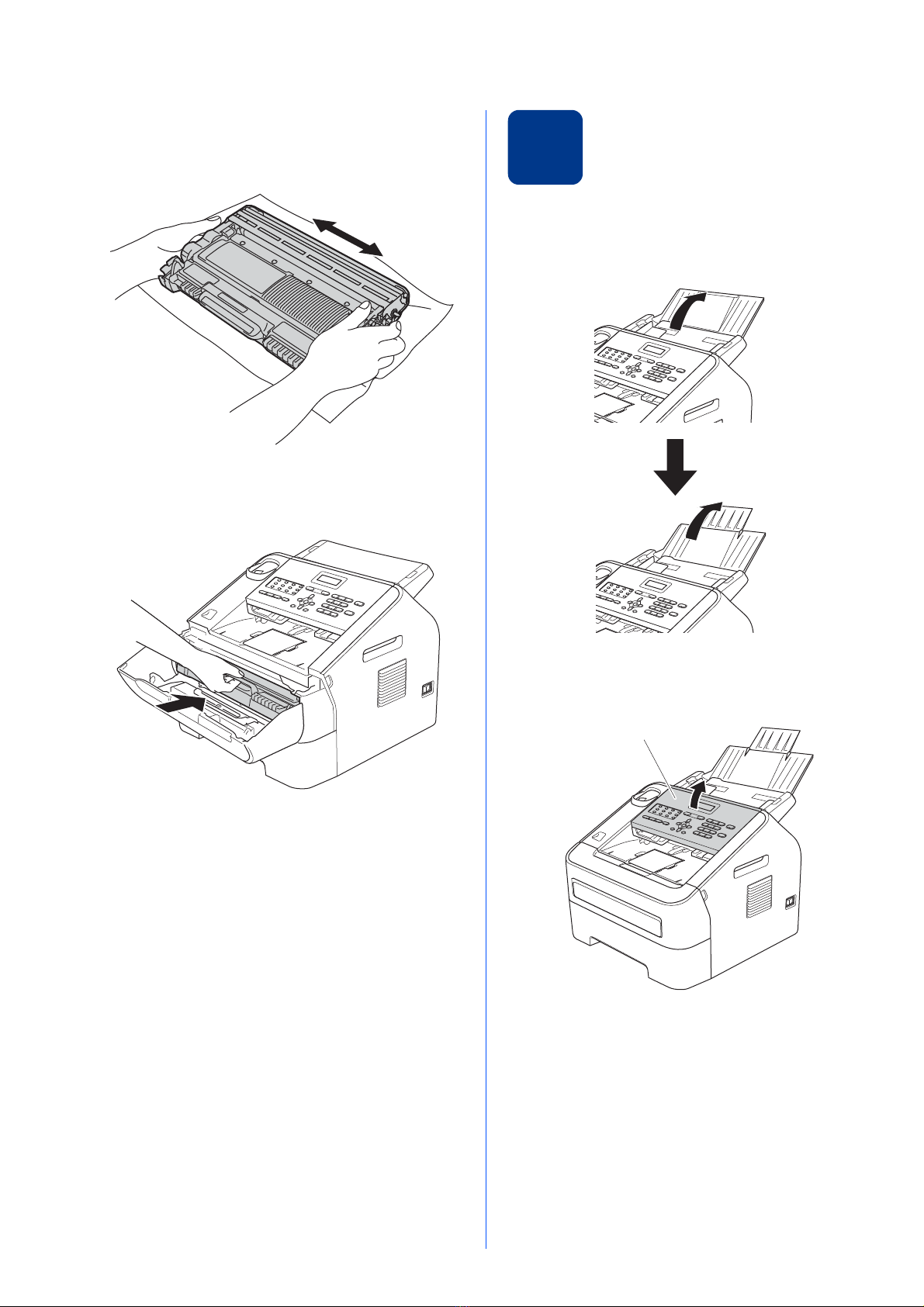

gGently shake it from side to side several times
to distribute the toner evenly inside the
assembly.
hPut the drum unit and toner cartridge assembly
back in the machine.
iClose the front cover of the machine.
3
Attach the ADF
Document Output
Support
aUnfold the ADF Document Support.
bOpen the control panel cover by lifting it toward
the back.
Control Panel Cover
5

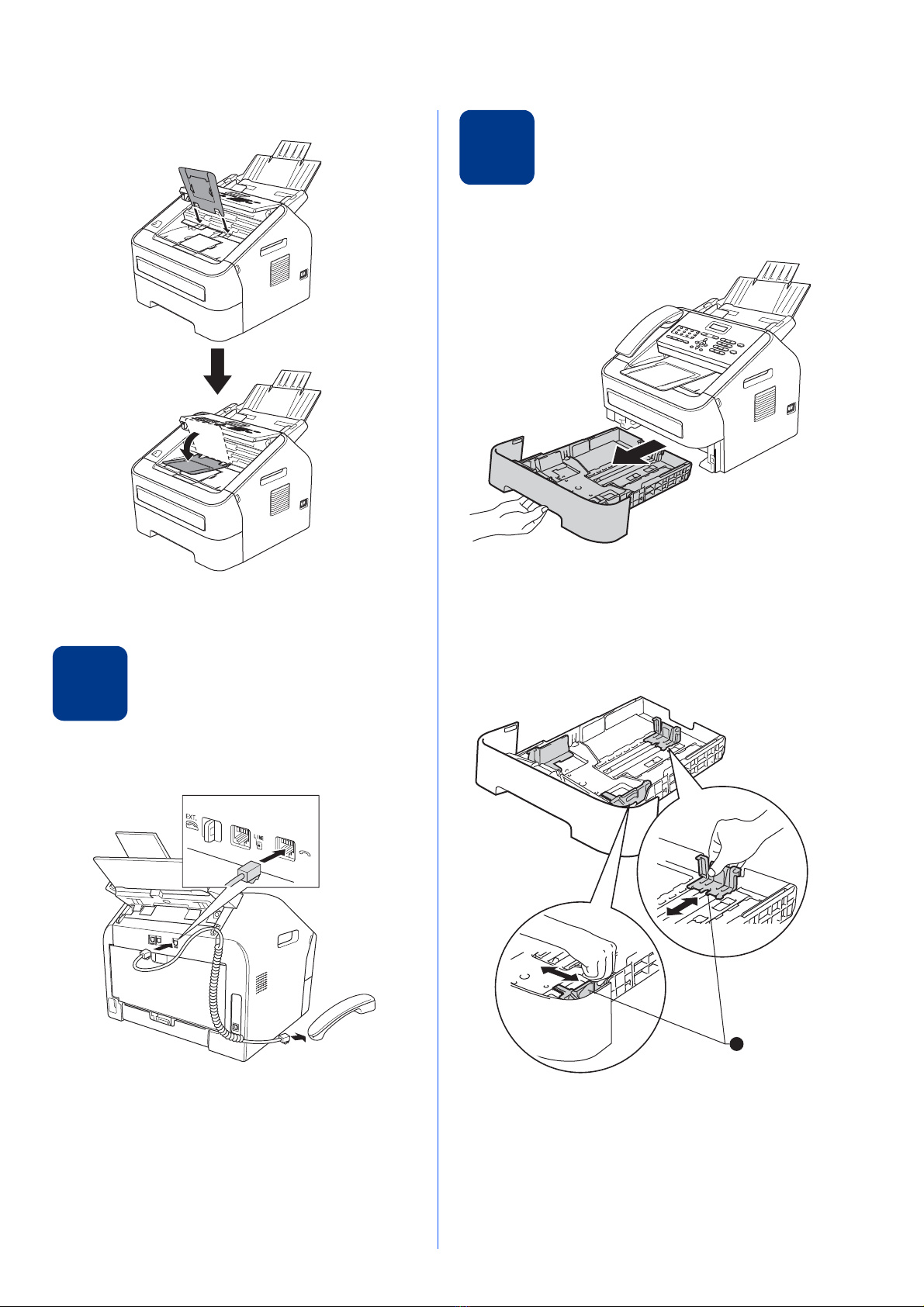

cAttach the ADF Document Output Support.
dClose the control panel cover.
4
Install the Handset
(not available in South
Africa)
aConnect the curled handset cord to the
machine and the other end to the handset.
5
Load paper in the paper
tray
aPull the paper tray completely out of the
machine.
bWhile pressing the green paper-guide release
lever a, slide the paper guides to fit the paper
size you are loading in the tray. Make sure that
the guides are firmly in the slots.
1
6
cFan the stack of paper well to avoid paper jams
and misfeeds.
dPut paper in the tray and make sure:
The paper is below the maximum paper
mark (bbb)a.
Over filling the paper tray will cause paper
jams.
The side to be printed on must be face down.
The paper guides gently touch the sides of
the paper so it will feed correctly.
ePut the paper tray firmly back in the machine.
Make sure that it is completely inserted into the
machine.
fUnfold the support flap ato prevent paper
from sliding off the face-down output tray.

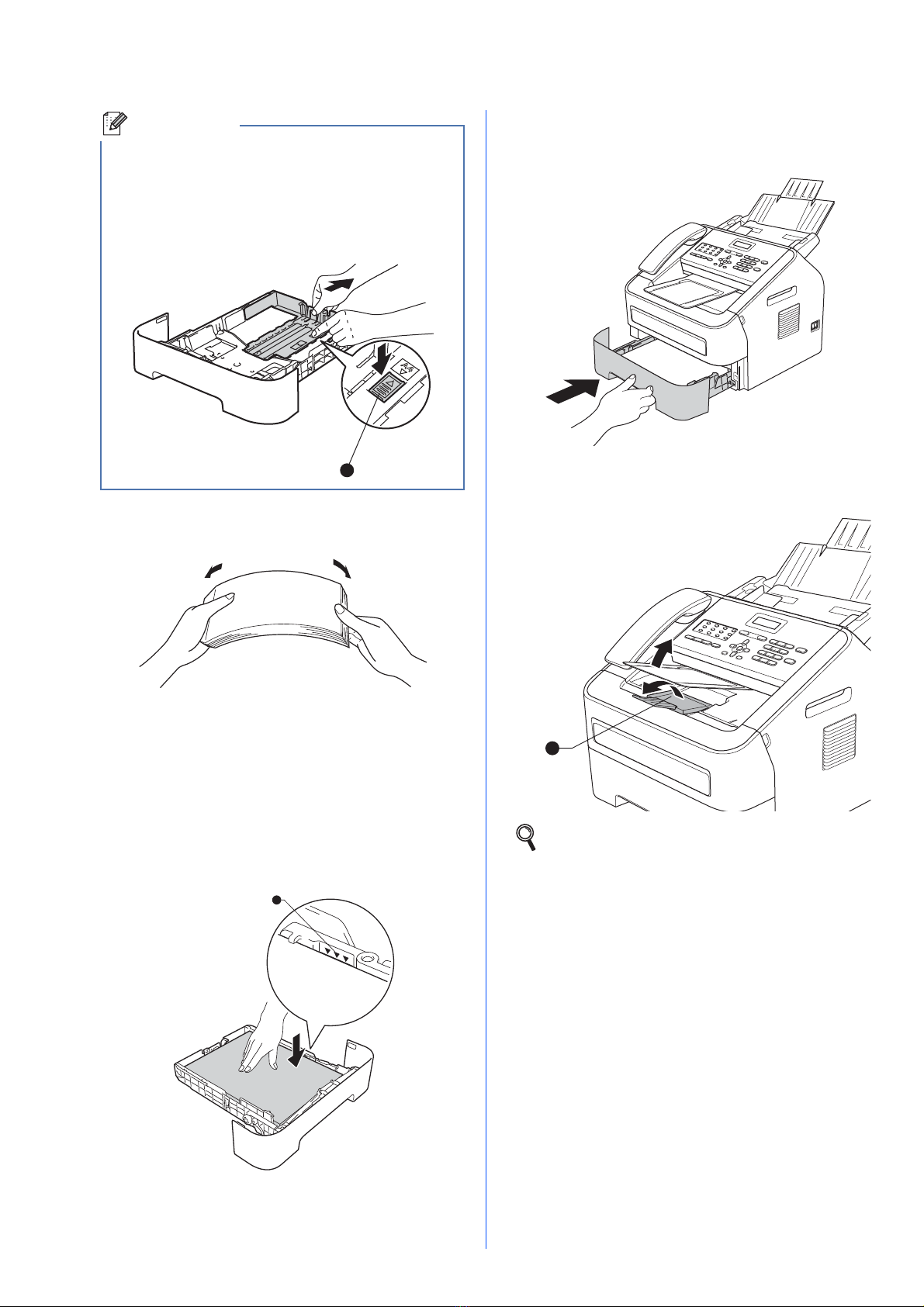

Note
For Legal or Folio size paper, press the release
button a in the bottom of the paper tray and then
pull out the back of the paper tray.
(Legal or Folio size paper are not available in
some regions.)
11
1
(Middle East and Africa only) For more
information about recommended paper, see
Recommended paper and print media in the
Basic User’s Guide.
1
7
6

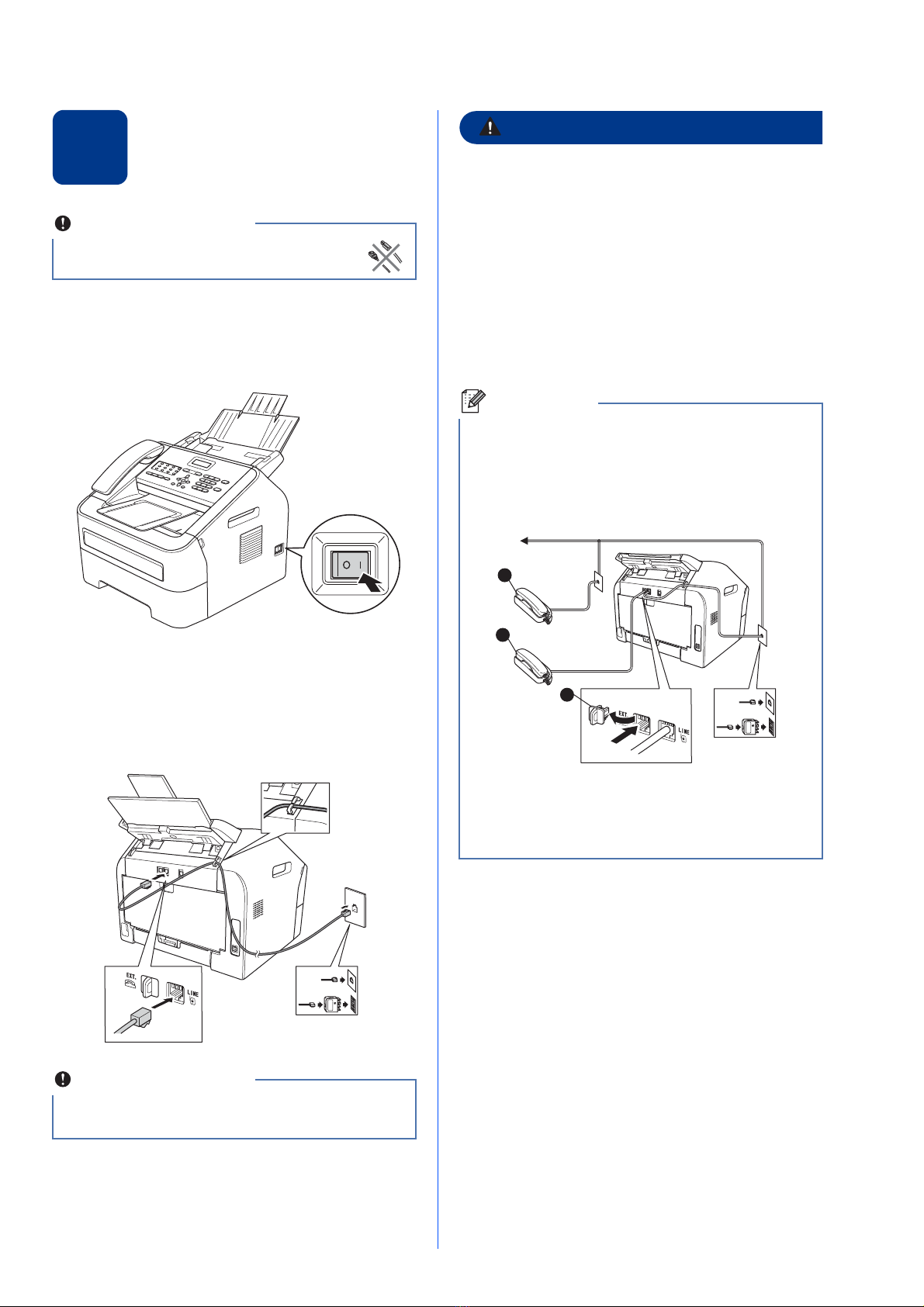

Connect the power cord
and telephone line
aConnect the AC power cord to the machine,
and then plug it into an electrical socket.
bTurn the machine’s power switch on.
cConnect the telephone line cord. Connect one
end of the telephone line cord to the socket on
the machine marked LINE and the other end to
a telephone wall socket.
WARNING
The machine must be grounded using an
earthed plug.
Since the machine is grounded through the
electrical socket, you can protect yourself
from potentially hazardous electrical
conditions on the telephone network by
keeping the power cord connected to your
machine when you connect it to a telephone
line. Similarly, you can protect yourself when
you want to move your machine by
disconnecting the telephone line first and then
the power cord.
IMPORTANT
DO NOT connect the interface cable
yet.
IMPORTANT
The telephone line cord MUST be connected to
the socket on the machine marked LINE.
(Example
for Australia)

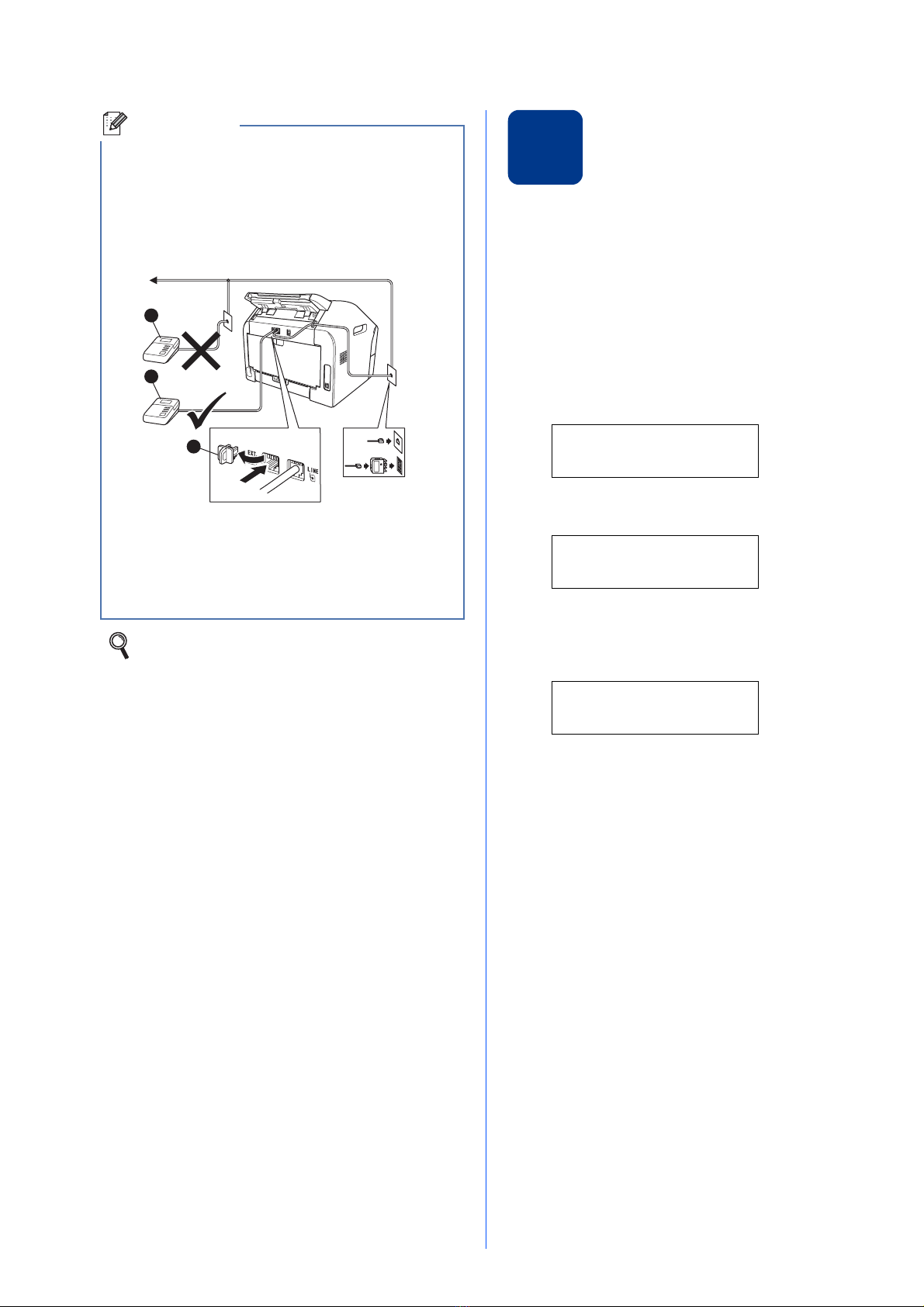

Note
If you are sharing one telephone line with an
external telephone, connect it as shown below.
Before you connect the external telephone,
remove the protective cap cfrom the EXT.
socket on the machine.
aExtension telephone
bExternal telephone
cProtective cap
(Example
for Australia)
3
1
2
8
7
Set your country
This procedure may not be available, depending on
the model of your machine.
In this case, proceed to the next step.
You must set your country so that the machine works
correctly on local telecommunication lines in each
country.
aCheck that the power is turned on by plugging
in the power cord and turn the power switch on.
Press OK.
Set Country
Press OK Key
bPress aor bto select your country (Australia,
New Zealand, South Africa, Turkey or others).
Australia
Select ab or OK
cPress OK when the LCD shows your country.
dThe LCD prompts you to make sure of the
country again.
Australia?
1.Yes 2.No
eDo one of the following:
If the LCD shows the correct country, press
1to go to Step f.
Press 2to go back to Step bto select the
country again.
fAfter the LCD shows Accepted, the machine
will restart automatically. After the restart, the
LCD shows Please Wait.
Note
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
Before you connect the external telephone
answering machine, remove the protective cap c
from the EXT. socket on the machine.
aExtension telephone answering machine (not
allowed)
bExternal telephone answering machine
cProtective cap
Set the receive mode to External TAD if
you have an external answering machine.
See Choose a Receive Mode on page 9. For
additional details, see Connecting an
external TAD in the Basic User’s Guide.
(Example
for Australia)
3
1
2
9
8
Choose a Receive Mode
There are four possible receive modes: Fax Only,
Fax/Tel, Manual and External TAD.
aPress Menu, 0, 1.
bPress aor bto choose the receive mode.
Press OK.
cPress Stop/Exit.
9
Set the LCD contrast
(if needed)
If you are having difficulty reading the LCD, try
changing the contrast setting.
aPress Menu, 1, 5.
bPress cto increase the contrast.
—OR—
Press dto decrease the contrast.
Press OK.
cPress Stop/Exit.
10
Set the date and time
The machine displays the time, and if you set up the
station ID the date and time will be added to each fax
you send.
aPress Menu, 0, 2, 1.
bEnter the last two digits of the year on the dial
pad, and then press OK.
Date&Time
Year:2013
(e.g. Enter 1, 3for 2013.)
cEnter the two digits for the month on the dial
pad, and then press OK.
Date&Time
Month:03
(e.g. Enter 0, 3for March.)
dEnter the two digits for the day on the dial pad,
and then press OK.
Date&Time
Day:25
(e.g. Enter 2, 5for 25th.)
eEnter the time in 24-hour format on the dial
pad, and then press OK.
Date&Time
Time:15:25
(e.g. Enter 1, 5, 2, 5for 15:25.)
fPress Stop/Exit.
For more details, see Using receive modes in
the Basic User's Guide.
Do you want to use the telephone features of your
machine (if available) or an external telephone or
external telephone answering device connected on the
same line as the machine?
Your machine
automatically answers
every call as a fax.
Your machine controls
the line and
automatically answers
every call. If the call is
not a fax, the phone will
ring for you to pick up
the call.
Your external telephone
answering device (TAD)
automatically answers
every call. Voice
messages are stored
on the external TAD.
Fax messages are
automatically printed.
You control the phone
line and must answer
every call yourself.
Do you want the machine to
answer fax and telephone calls
automatically?
Manual
Fax Only
Fax/Tel
External TAD
No
Yes
Yes
No
No
Yes
Are you using the voice message
function of an external telephone
answering device?
10
11
Enter personal
information (Station ID)
The machine displays the date and time, and if you
set up the Station ID, it will add it to each fax you send.
aPress Menu, 0, 3.
bEnter your fax number (up to 20 digits) on the
dial pad, and then press OK.
Station ID
Fax:
cEnter your telephone number (up to 20 digits)
on the dial pad, and then press OK. If your
telephone number and fax number are the
same, enter the same number again.
Station ID
Tel:
dUse the dial pad to enter your name (up to
20 characters), and then press OK.
Station ID
Name:
ePress Stop/Exit.
12
Fax Transmission Report
Your Brother machine is equipped with a
Transmission Verification Report that can be used as
confirmation that you sent a fax. This report lists the
name or fax number of the receiving party, the date,
time, and duration of the transmission, the number of
pages transmitted, and whether or not the
transmission was successful. If you want to use the
Fax Transmission Report feature see Printing reports
in the Advanced User’s Guide.
13
Set tone or pulse dialling
mode (not available in
New Zealand)
Your machine comes set for a Tone dialling service. If
you have a Pulse dialling service (rotary), you need to
change the dialling mode.
aPress Menu, 0, 4.
bPress aor bto choose Pulse (or Tone).
Press OK.
cPress Stop/Exit.
14
Set the telephone line
compatibility
If you are connecting the machine to a VoIP service
(over the Internet) you need to change the
compatibility setting.
aPress Menu, 2, 0, 1.
bPress aor bto choose Basic(for VoIP).
Press OK.
cPress Stop/Exit.
Note
• See the following chart for entering your name.
• If you need to enter a character that is on the
same key as the last character, press cto move
the cursor to the right.
• If you entered a character incorrectly and want
to change it, press dor cto move the cursor to
the incorrect character, press Clear.
Press
key
One
time
Two
times
Three
times
Four
times
Five
times
2ABC2A
3DEF 3D
4GH I 4G
5JKL5J
6MNO 6M
7PQRS 7
8TUV8T
9WX Y Z 9
For more details, see Entering text in the
Basic User’s Guide.
Note
If you make a mistake and want to start again,
press Stop/Exit and go back to step a.
Note
If you are using an analogue telephone line you
can skip this step.
Andere Handbücher für FAX-2840
6
Dieses Handbuch passt für folgende Modelle
2
Inhaltsverzeichnis
Andere Brother Faxgerät Handbücher
Brother
Brother FAX-1360 Bedienungsanleitung
Brother
Brother DCP-7010 Bedienungsanleitung
Brother
Brother FAX-2840 Bedienungs- und Wartungshandbuch
Brother
Brother IntelliFAX 2480C Bedienungsanleitung
Brother
Brother MFC-9160 Bedienungsanleitung
Brother
Brother MFC-7050C Bedienungsanleitung
Brother
Brother MFC-215C Bedienungsanleitung
Brother
Brother PT-9200PC Bedienungsanleitung
Brother
Brother FAX-1820C Bedienungsanleitung
Brother
Brother FAX-210 Bedienungsanleitung
Brother
Brother MFC-590 Bedienungsanleitung
Brother
Brother FAX-8360P Bedienungsanleitung
Brother
Brother FAX 2750 Bedienungsanleitung
Brother
Brother MFC-925 Bedienungsanleitung
Brother
Brother PT-9200PC Bedienungsanleitung
Brother
Brother MFC-4820C Bedienungsanleitung
Brother
Brother DCP 7020 - B/W Laser - All-in-One Bedienungsanleitung
Brother
Brother FAX-575 Bedienungsanleitung
Brother
Brother FAX-1820C Bedienungsanleitung
Brother
Brother FAX-2480C Bedienungsanleitung
