FACSIMILE EQUIPMENT

SERVICE MANUAL

MODEL: FAX560/FAX580MC/MFC660MC

FAX-T72/FAX-T74/FAX-T76/FAX-T78

FAX-T82/FAX-T84/FAX-T86

FAX645/FAX685MC/MFC960MC

FAX1280/FAX1980MC/FAX816

©Copyright Brother 2001-2003

No part of this publication may be reproduced in any

form or by any means without permission in writing

from the publisher.

Specifications are subject to change without notice.

PREFACE

This publication is a Service Manual covering the specifications, construction, theory of operation,

and maintenance of the Brother facsimile equipment. It includes information required for field

troubleshooting and repair--disassembly, reassembly, and lubrication--so that service personnel will

be able to understand equipment function, to rapidly repair the equipment and order any necessary

spare parts.

To perform appropriate maintenance so that the facsimile equipment is always in best condition for

the customer, the service personnel must adequately understand and apply this manual.

This manual is made up of six chapters and appendices.

CHAPTER I. GENERAL DESCRIPTION

CHAPTER II. INSTALLATION

CHAPTER III. THEORY OF OPERATION

CHAPTER IV. DISASSEMBLY/REASSEMBLY AND LUBRICATION

CHAPTER V. MAINTENANCE MODE

CHAPTER VI. ERROR INDICATION AND TROUBLESHOOTING

Appendix 1. EEPROM Customizing Codes

Appendix 2. Circuit Diagrams

This manual describes the models and their versions to be destined for major countries. The specifications

and functions are subject to change depending upon each destination.

CHAPTER I.

GENERAL DESCRIPTION

CHAPTER I. GENERAL DESCRIPTION

CONTENTS

1. EQUIPMENT OUTLINE ............................................................................................ I-1

1.1 External Appearance and Weight..................................................................... I-1

1.2 Components ..................................................................................................... I-1

2. SPECIFICATIONS..................................................................................................... I-2

I- 1

1. EQUIPMENT OUTLINE

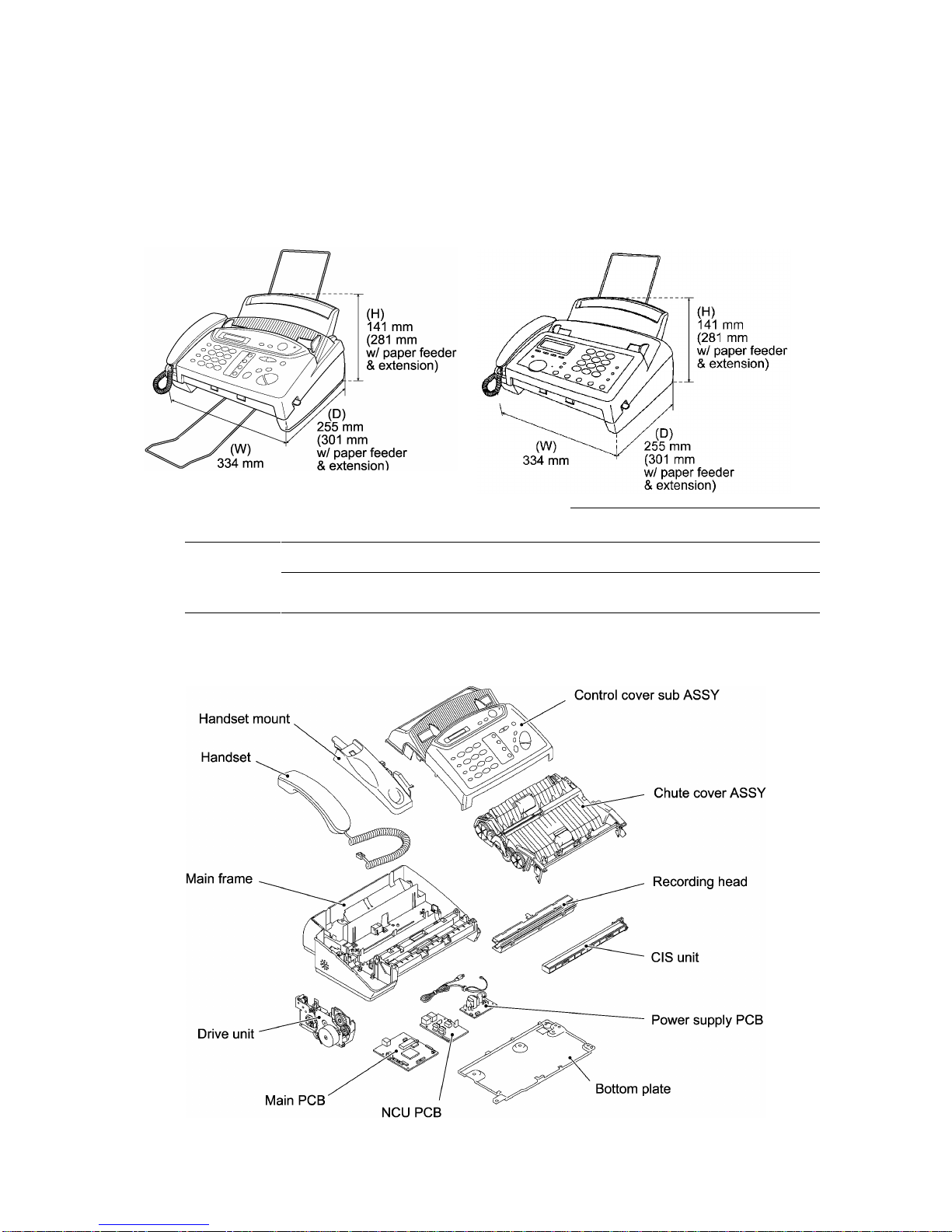

1.1 External Appearance and Weight

The figure below shows the equipment appearance and approximate dimensions.

Models except

European models European models

Weight: Machine proper (excluding accessories) Approx. 2.9 kg Approx. 3.0 kg

In package MFC660MC/MFC960MC

Other models Approx. 4.5 kg

Approx. 4.1 kg 

Approx. 4.3 kg

1.2 Components

The equipment consists of the following major components:

FAX-T78

Models except

FAX-T78

I- 2

2. SPECIFICATIONS

The tables below list the detailed specifications of typical models. The specifications of other

models differ from them on the points of with/without handset, LCD type and others according to

destinations as shown on page I-7. (1/2)

Model Name FAX560 FAX580MC MFC660MC

Engine Thermal transfer Thermal transfer Thermal transfer

Color Upper: New Personal white

(1485)

Lower: 1473 gray

Upper: New Personal white

(1485)

Lower: 1473 gray

Upper: MFC white

(1495 gray)

Lower: 1473 gray

Transmission Speed (sec) 15 9 9

Modem Speed (bps) 9600 14,400 14,400

Group Compatibility G3 G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5" 8.5"/8.5"

ADF (pages) 10 10 10

Paper Feeder (sheets) Letter: 50*, Legal: 30 Letter: 50*, Legal: 30 Letter: 50*, Legal: 30

Ribbon Yield (letter-size) 150 pages (47 m) 150 pages (47 m) 150 pages (47 m)

Starter Ribbon Yield (letter-size) 30 pages (10 m) 30 pages (10 m) 30 pages (10 m)

Replacement Roll PC401: 47 m (150 pages) PC401: 47 m (150 pages) PC401: 47m (150 pages)

LCD Size 16 x 1 16 x 1 16 x 1

On-Screen Programming Yes Yes Yes

Super Fine Yes Yes Yes

Smoothing Yes Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered 64 by Dithered

One Touch 4 4 4

Speed Dial 50 50 50

Telephone Index Yes as "Search" Yes as "Search" Yes as "Search"

Speaker Phone Monitor Full duplex (digital) Full duplex (digital)

Handset Yes Yes Yes

FAX/TEL Switch Yes Yes Yes

Distinctive Ring Detection Yes Yes Yes

Caller ID Yes Yes Yes

Call Waiting Caller ID Yes Yes Yes

TAD Interface Yes Yes Yes

Enhanced Remote Activation Yes Yes Yes

Automatic Redial Yes Yes Yes

Next-FAX Reservation Yes Yes Yes

Multi-Resolution Transmission Yes Yes Yes

Polling Type Sim/Seq Sim/Seq Sim/Seq

Delayed Transmission 3-timer 3-timer 3-timer

Call Reservation Yes Yes Yes

Electronic Coverpage Yes-Super Yes-Super Yes-Super

Call Back Message Yes Yes Yes

Activity Report Yes Yes Yes

TX Verification Report Yes Yes Yes

Memory Capacity (pages) 512 KB

(up to 25 pages for OPR**) 512 KB

(up to 25 pages for OPR**)

512 KB

(up to 25 pages for OPR**)

ECM Yes Yes Yes

Broadcasting Yes Yes Yes

*Paper feeder: 50 sheets for US/Canada

**Page memory: 25 pages in OPR (out-of-paper reception), 22 pages in quick scan

I- 3

(1/2)

Model Name FAX-T72 FAX-T74

Engine Thermal transfer Thermal transfer

Color New Personal black (1293) New Personal black (1293)

Transmission Speed (sec) 15 15

Modem Speed (bps) 9600 9600

Group Compatibility G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5"

ADF (pages) 10 10

Paper Feeder (A4-size) 30 sheets 30 sheets

Ribbon Yield (A4-size) 144 pages (47 m) 144 pages (47 m)

Starter Ribbon (A4-size) Yes-10 m (30 pages) Yes-10 m (30 pages)

LCD Size 16 x 1 16 x 1

On-Screen Programming Yes Yes

Super Fine Yes Yes

Smoothing Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered

One Touch 4 4

Speed Dial 50 50

Telephone Index Yes as "Search" Yes as "Search"

Speaker Phone Monitor Monitor

Handset No Yes

FAX/TEL Switch Yes Yes

Caller ID Yes

GER/FRA/SPA Yes

GER/HOL/SWE/UK/IRE/

FRA/NOR/BEL/DEN/SPA

Call Waiting Caller ID No No

Distinctive Ring Detection No Yes for DEN/UK

TAD Interface Yes Yes

Enhanced Remote Activation Yes Yes

Automatic Redial Yes Yes

Next-FAX Reservation Yes Yes

Multi-Resolution Transmission Yes Yes

Polling Type Sim/Sec/Del/Seq Sim/Sec/Del/Seq

Delayed Transmission 3-timer 3-timer

Call Reservation Yes Yes

Electronic Coverpage Yes-Super Yes-Super

Callback Message Yes Yes

Journal Report Yes Yes

TX Verification Report Yes Yes

Memory Capacity 512 KB

(up to 20 pages for OPR*) 512 KB

(up to 20 pages for OPR*)

ECM Yes Yes

Broadcasting Yes Yes

Quick Scan Yes Yes

*Page memory: 20 pages ITU-T No.1 chart in OPR (out-of-paper reception) in the ECM mode

I- 4

(1/2)

Model Name FAX-T76 FAX-T78

Engine Thermal transfer Thermal transfer

Color New Personal black (1293) White (1517)

Transmission Speed (sec) 9 9

Modem Speed (bps) 14,400 14,400

Group Compatibility G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5"

ADF (pages) 10 10

Paper Feeder (A4-size) 30 sheets 30 sheets

Ribbon Yield (A4-size) 144 pages (47 m) 144 pages (47 m)

Starter Ribbon (A4-size) Yes-10 m (30 pages) Yes-10 m (30 pages)

(Not applicable to UK model)

LCD Size 16 x 1 16 x 2 + pict sign

On-Screen Programming Yes Yes

Super Fine Yes Yes

Smoothing Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered

One Touch 4 N/A

Speed Dial 50 100

Telephone Index Yes as "Search" Yes as "Jog Search"

Speaker Phone Full duplex (digital) Full duplex (digital)

Handset Yes Yes

FAX/TEL Switch Yes Yes

Caller ID Yes

GER/HOL/SWE/UK/IRE/FRA/

NOR/BEL/DEN/SPA

Yes

GER/UK/FRA/BEL/SPA

Call Waiting Caller ID No No

Distinctive Ring Detection Yes for DEN/UK Yes for UK

TAD Interface Yes Yes

Enhanced Remote Activation Yes Yes

Automatic Redial Yes Yes

Next-FAX Reservation Yes Yes

Multi-Resolution Transmission Yes Yes

Polling Type Sim/Sec/Del/Seq Sim/Sec/Del/Seq

Delayed Transmission 3-timer 3-timer

Call Reservation Yes Yes

Electronic Coverpage Yes-Super Yes-Super

Callback Message Yes Yes

Journal Report Yes Yes

TX Verification Report Yes Yes

Memory Capacity 512 KB

(up to 20 pages for OPR*) 512 KB

(up to 20 pages for OPR*)

ECM Yes Yes

Broadcasting Yes Yes

Quick Scan Yes Yes

*Page memory: 20 pages ITU-T No.1 chart in OPR (out-of-paper reception) in the ECM mode

I- 5

(1/2)

Model Name FAX-T82

FAX-T84

FAX-T86

Engine Thermal Transfer Thermal Transfer Thermal Transfer

Color WHITE (1517)

WHITE (1517)

Transmision Speed (sec) 15 15 9

Modem Speed (bps) 9600 9600 14,400

Group Compatibility G3 G3 G3

Input/Output Width 8.5"/8.5" 8.5"/8.5" 8.5"/8.5"

ADF(pgs) 10 10 10

Paper Cassette ( A4 size ) 30 Sheets 30 Sheets 30 Sheets

Ribbon Yield ( A4 size ) 144 Pages ( 47 m ) 144 Pages ( 47 m ) 144 Pages ( 47 m )

Starter ribbon ( A4 size ) Yes - 10 m ( 30 pages ) Yes - 10 m ( 30 pages ) Yes - 10 m ( 30 pages )

LCD Size 16X1 16X1 16X1

On-Screen Programming Yes Yes Yes

Super Fine Yes Yes Yes

Smoothing Yes Yes Yes

Gray Scale (levels) 64 by Dithered 64 by Dithered 64 by Dithered

One Touch 4 4 4

Speed Dial 100 100 100

Telephone Index Yes as "Search" Yes as "Search" Yes as "Search"

Speaker Phone Monitor Monitor Full duplex ( digital )

Handset No Yes Yes

FAX/TEL Switch Yes Yes Yes

Caller ID Yes

FRA/SPA/GER/AUS Yes

HOL/SWE/UK/IRE/

FRA/NOR/BEL/DEN/SPA/

GER/AUS/POR

Yes

HOL/SWE/UK/IRE/

FRA/NOR/BEL/DEN/SPA/

GER/AUS/POR

Call waiting caller ID No No No

Distinctive Ring Detection No Yes for DEN/UK Yes for DEN/UK

TAD Interface Yes Yes Yes

Enhanced Remote Activation Yes Yes Yes

Automatic Redial Yes Yes Yes

Next-FAX Reservation Yes Yes Yes

Multi-Resolution Transmission Yes Yes Yes

Polling Type Sim/Sec/Del/Seq Sim/Sec/Del/Seq Sim/Sec/Del/Seq

Delayed Transmission 3-timer 3-timer 3-timer

Call Reservation Yes Yes Yes

Electronic Coverpage Yes - Super Yes - Super Yes - Super

Call Back Message Yes Yes Yes

Journal Report Yes Yes Yes

TX Verification Report Yes Yes Yes

Memory Capacity (pgs) 512KB

(up to 20pages for OPR*) 512KB

(up to 20pages for OPR*)

ECM Yes Yes Yes

Broadcasting Yes Yes Yes

Quick-Scan Yes Yes Yes

*Page memory: 20 pages ITU-T No.1 chart in OPR (out-of-paper reception) in the ECM mode
