P-touch

PARTS REFERENCE LIST

MODEL: PT-1850

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B55L125 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in April, 2002.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . RUBBER KEY...........................................................................................1

2 . POWER SUPPLY PCB.............................................................................1

3 . PRINT MECHANISM ................................................................................3

4 . COVERS ..................................................................................................5

5 . MAIN PCB................................................................................................7

6 . SENSORS................................................................................................9

7 . PRINTED MATTER ..................................................................................9

8 . ATTACHMENTS.....................................................................................11

9 . PACKING MATERIALS...........................................................................11

-1-

MODEL PT-1850 8V2-326-102

1 . RUBBER KEY

MODEL PT-1850 8V2-326-003

2 . POWER SUPPLY PCB

-2-

1 . RUBBER KEY

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA7410001 1RUBBER 51 KEY 1850 GE (DEU/AUT)

1LA7429001 1RUBBER 51 KEY 1850 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/FIN/NOR/ESP/ZAF)

1LA7433001 1RUBBER 51 KEY 1850 FR (FRA)

1LA7437001 1RUBBER 51 KEY 1850 BG (BEL)

MODEL PT-1850 8V2-326-003

2 . POWER SUPPLY PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B55L126-1A LA7399001 1POWER SUPPLY PCB ASSY

1W00325001 1JACK, HEC0470

2UN0999000 1FUSE, 125V4A

MODEL PT-1850 8V2-326-102

-3-

MODEL PT-1850 8V2-326-045

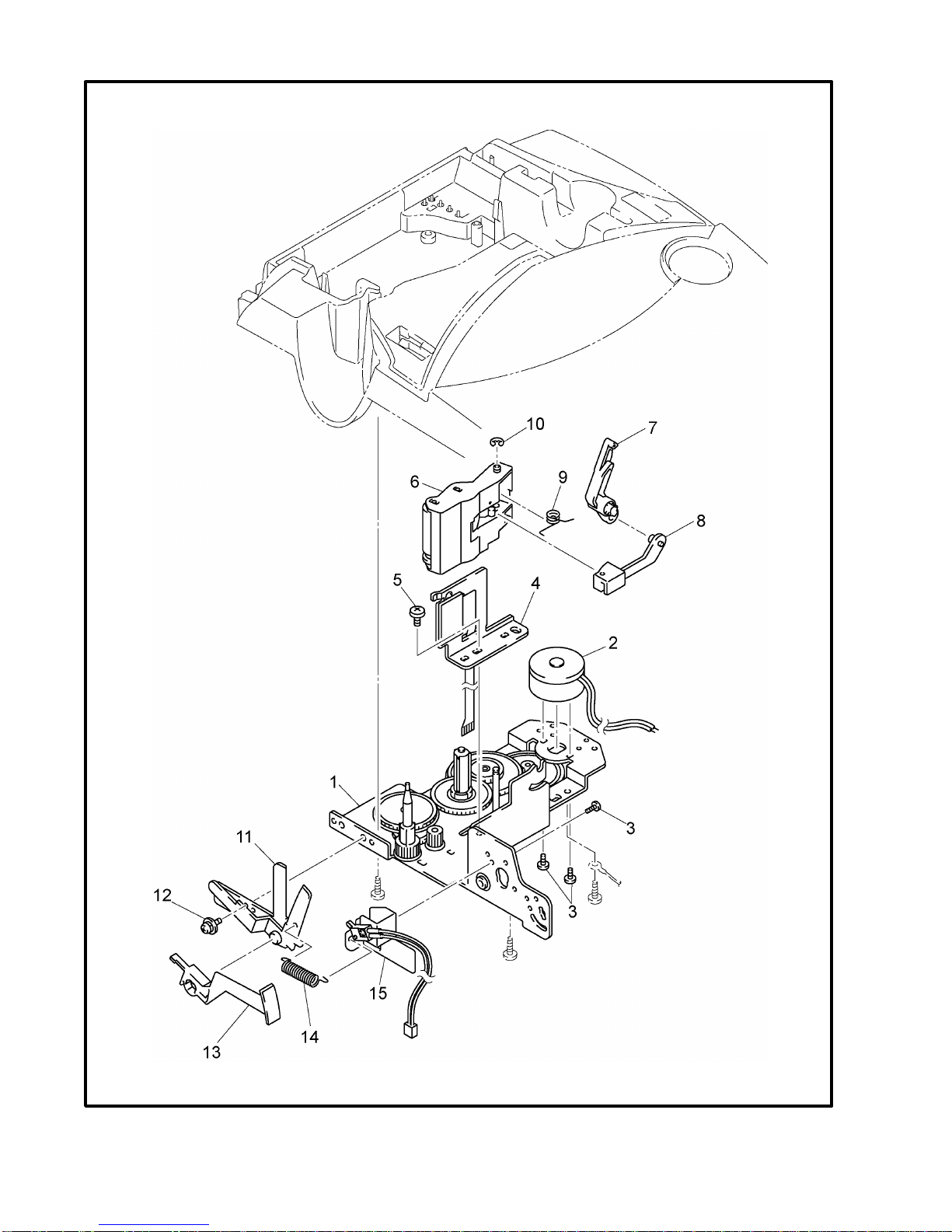

3 . PRINT MECHANISM

-4-

3 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA7465001 1CHASSIS ASSY 1850

2LA3963001 1DC MOTOR ASSY F

3UN3640001 3SCREW, PAN 1.7X2.5

4LA5688001 1HEAD ASSY KV1801-26B

5 060300415 1 SCREW, BIND M3X4

6LA4711001 1ROLLER HOLDER ASSY 240

7LA4886001 1ROLLER RELEASE LEVER 1750

8LA4887001 1ROLLER HOLDER RELEASE ROD

9LA4888001 1ROLLER HOLDER RELEASE SPRING

10 048020346 1 RETAINING RING, E2

11 LA4300001 1CUTTER ASSY (SP)

12 0A4300605 1SCREW, PAN (S/P WASHER) M3X6

13 LA7411001 1CUTTER SENSOR ARM 1900

14 UN4285001 1SPRING

15 LA7412001 1CUTTER SENSOR FOLDER ASSY

MODEL PT-1850 8V2-326-045

-5-

MODEL PT-1850 8V2-326-061

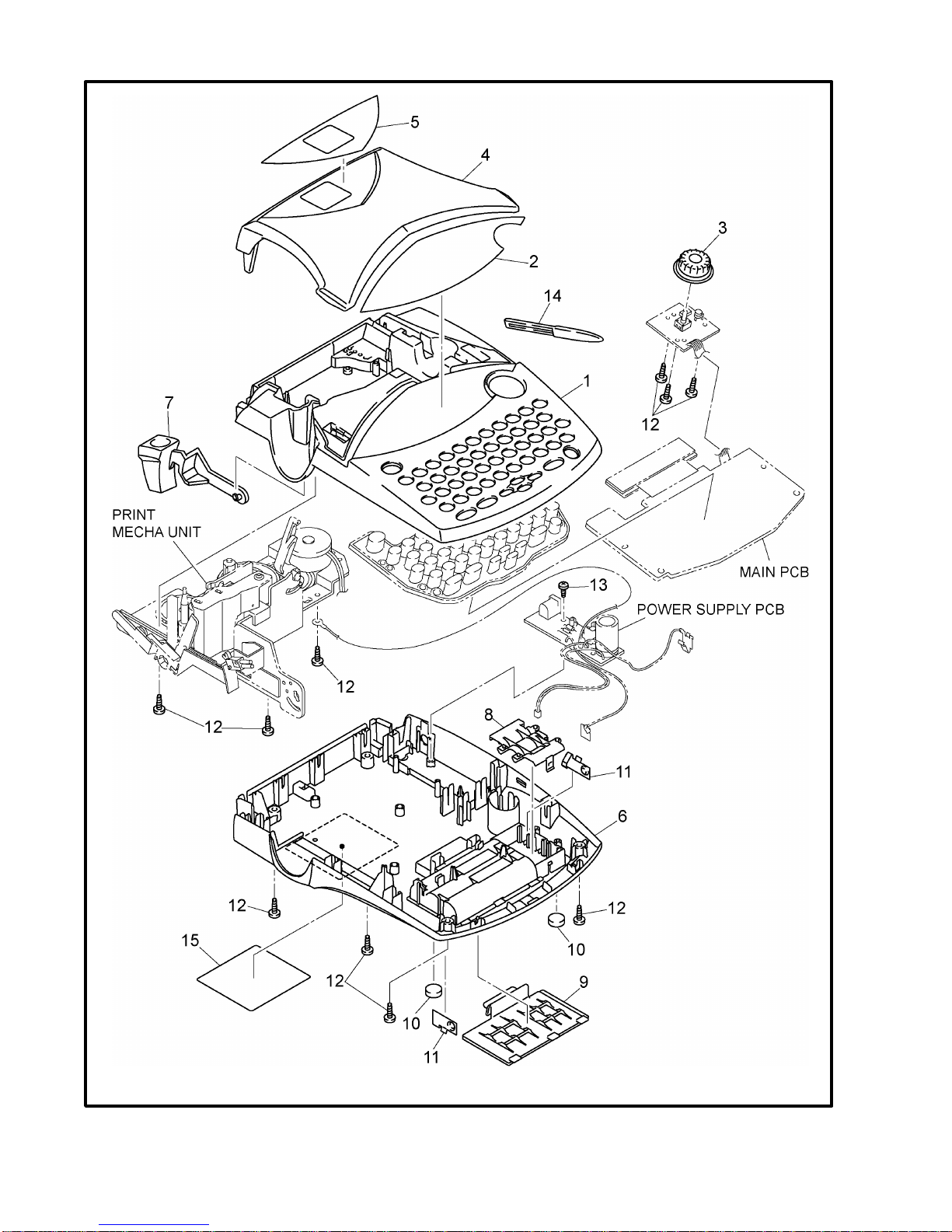

4 . COVERS

-6-

4 . COVERS

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1LA7415001 1UPPER COVER 1850 GE, SILVER1585 (DEU/AUT)

1LA7430001 1UPPER COVER 1850 UK, SILVER1585 (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/

FIN/NOR/ESP/ZAF)

1LA7434001 1UPPER COVER 1850 FR, SILVER1585 (FRA)

2LA7416001 1LCD PANEL 1850 GE (DEU/AUT)

2LA7431001 1LCD PANEL 1850 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF)

2LA7435001 1LCD PANEL 1850 FR (FRA)

3LA7417001 1NAVI DIAL 1850 GE (DEU/AUT)

3LA7432001 1NAVI DIAL 1850 UK (GBR/IRL/NLD/CHE/DNK/SWE/ITA/BEL/FIN/NOR/ESP/ZAF)

3LA7436001 1NAVI DIAL 1850 FR (FRA)

4LA7381001 1CASSETTE COVER 1900, BLUE6350

5LA7418001 1TAPE PANEL 1850

6LA7419001 1BOTTOM COVER 1850, GRAY1593

7LA7420001 1CUTTER LEVER 1850, PURPLE6140

8UN0401003 1BLIND COVER, GRAY1593

9LA0092003 1BATTERY LID PS, GRAY1593

10 LA5753001 2LOWER FOOT 2300

11 UB3719000 2BATTERY TERMINAL

12 085270817 10 TAPTITE, BIND B M2.6X8

13 085270615 1 TAPTITE, BIND B M2.6X6

14 LA4896001 1PEELER-STICK, GRAY1252

15 LA7857001 1CAUTION LABEL 1850 EC

MODEL PT-1850 8V2-326-061

-7-

MODEL PT-1850 8V2-326-101

5 . MAIN PCB
