PARTS REFERENCE LIST

MODEL: PT-2500PC

NOTES FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol (PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

[ Example ]

(4) (1) (2) (3)

REF. NO. SYMBOL CODE Q’TY DESCRIPTION REMARKS

Revision No. : marked on the printed circuit board.

B48J300 - 101 A

Design change indication

Specification No.

Pattern alteration No.

Circuit board No.

2. Design-changed parts:

When the parts are changed, any one of the following symbols is indicated in the REMARKS column.

CHNG#A : compatible between old and new

CHNG#B : replaceable from old to new

CHNG#D : incompatible

ADD : newly established

3. The original of this list was made based on the information available in November,1998.

4. Parts are subject to change in design without prior notice.

CONTENTS

1 . PRINT MECHANISM ................................................................................1

2 . COVERS..................................................................................................3

3 . MAIN PCB................................................................................................5

4 . DETECTORS............................................................................................7

5 . POWER SUPPLY PCB.............................................................................7

6 . ATTACHMENTS.......................................................................................9

7 . PRINTED MATTERS................................................................................9

8 . PACKING MATERIALS...........................................................................11

-1-

MODEL PT-2500PC 5V2-611-045

1 . PRINT MECHANISM

-2-

1 . PRINT MECHANISM

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT2409001 1FRAME TZPC ASSY

2Z26490001 1TAPE FEED MOTOR, BP243016M11-PT

3UB3848001 2SCREW, PAN M2.6X3.5

4UT0224001 1ROLLER HOLDER ASSY

5UN0039001 1ROLLER HOLDER RELEASE SPRING

6 048025346 1 RETAINING RING, E2.5

7UT2412001 1RELEASE LEVER TZPC

8UT0240000 1RELEASE ROD

9UB5507000 1RELEASE ROD ROLLER

10 048025346 1 RETAINING RING, E2.5

11 UT0241001 1RELEASE LEVER SPRING

12 UT0242001 1HEAD 530 ASSY

13 060300516 2 SCREW, BIND M3X5

14 LA4062001 1CUTTER ASSY

15 060300516 2 SCREW, BIND M3X5

16 UT0252001 1CUTTER MOVING GEAR

17 UT0254000 2CUTTER DOUBLE GEAR

18 UT0401001 1CUTTER MOTOR ASSY

19 UB3848001 2SCREW, PAN M2.6X3.5

20 UB3733001 1WASHER 2.6

21 UT2419001 1ACTUATOR TZ-PC

22 UT2420001 1CASSETTE ROD

23 048015346 1 RETAINING RING, E1.5

24 UT1466001 1FULL CUTTER SENSOR PRO ASSY

25 UT0855001 1SCREW, PAN M1.7X6

MODEL PT-2500PC 5V2-611-045

-3-

MODEL PT-2500PC 5V2-611-061

2 . COVERS

-4-

2 . COVERS PT2000065

REF.NO. CODE Q'TY DESCRIPTION REMARKS

1UT2421001 1BODY COVER TZPC, GRAY1395

2UT2422001 1OPEN PUSH BUTTON, GRAY1395

3UT2423001 1COVER LOCK LEVER TZPC

4UT2426001 2CASSETTE COVER BRACKET

5UT2427001 1CASSETTE COVER TZPC, GRAY1395

6UT2428001 1CASSETTE WINDOW TZPC US (USA/CAN)

6UT2475001 1CASSETTE WINDOW TZPC EC (EUROPE/AUS/SGP) CHNG

7UT2429001 1CASSETTE HOLD SPRING

8UT2430001 1BOTTOM COVER TZPC, GRAY1395

9UT2431001 1FRONT COVER TZPC, GRAY1395

10 UT2432001 1ON/OFF PUSH BUTTON TZPC

11 UT2433001 1REFLECT SHEET TZPC

12 UT2434001 1CUT PUSH BUTTON TZPC, BLUE6189

13 UB4431001 2LOWER FOOT

14 U05404003 1TAPTITE, BIND B M3X8

15 060300406 1 SCREW, BIND M3X4

16 085270817 4 TAPTITE, BIND B M2.6X8

17 U52594001 1TAPTITE, CUP P M2.6X8

18 U52594001 1TAPTITE, CUP P M2.6X8

19 085270817 1 TAPTITE, BIND B M2.6X8

20 085270817 1 TAPTITE, BIND B M2.6X8

21 085270817 2 TAPTITE, BIND B M2.6X8

22 085270817 3 TAPTITE, BIND B M2.6X8

23 085311217 2 TAPTITE, BIND B M3X12

24 085270615 3 TAPTITE, BIND B M2.6X6

25 085270615 2 TAPTITE, BIND B M2.6X6

26 UT2457001 1LOCK LEVER RETURN SPRING

27 UT2458001 1ANTI-STATIC BRUSH

28 UT2463001 2KEY RETURN SPRING

29 UT2461001 1CAUTION LABEL TZPC US (USA)

29 UT0578001 1TAPE CAUTION LABEL PP EC (EUROPE/CAN/AUS/SGP) CHNG

30 UT2425001 1MYLAR LABEL TZPC US (USA)

30 UT2454001 1MYLAR LABEL TZPC EC (EUROPE)

31 UT0555001 1FCC LABEL (USA/CAN)

32 UT2485001 1COVER OPEN SPRING

MODEL PT-2500PC 5V2-611-061

-5-

MODEL PT-2500PC 5V2-611-101

3 . MAIN PCB

-6-

3 . MAIN PCB

REF.NO. SYMBOL CODE Q'TY DESCRIPTION REMARKS

1-2 B55L041-2B UT2435001 1MAIN PCB TZPC ASSY

1 #3 UT2437001 1MCUM, M30622M8-194

2 #4 UT2438001 1SRAM, 2B256SLMX55

MODEL PT-2500PC 5V2-611-101

-7-

MODEL PT-2500PC 5V2-611-102

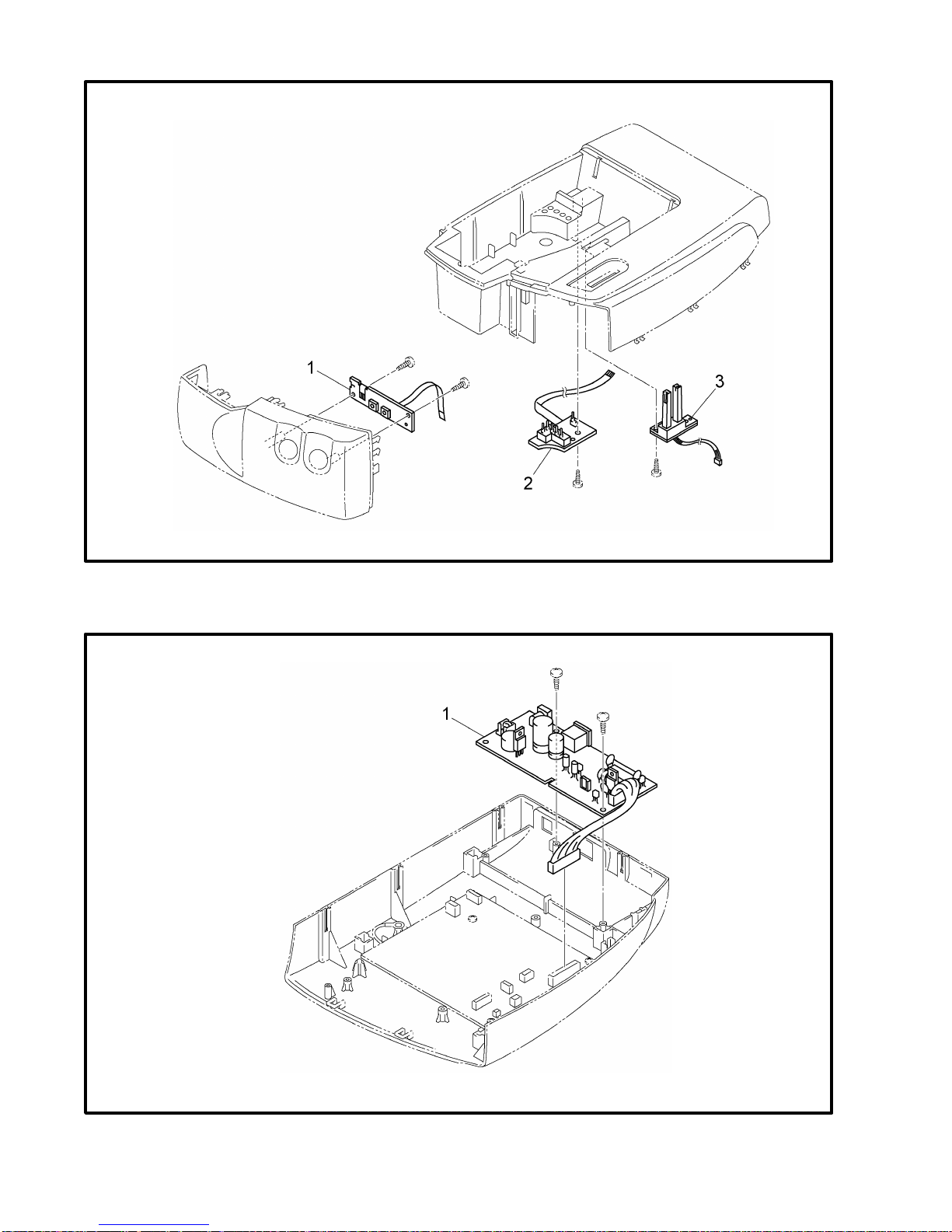

4 . DETECTORS

MODEL PT-2500PC 5V2-611-100

5 . POWER SUPPLY PCB
