Changing the color change potentiometer

With power to the machine off, turn color change knob until machine is on needle

number one and the flag on the motor gear is sticking straight up. The flag will be

underneath the color change assembly cover and can best be viewed with a

flashlight aiming at approximately 45 degrees into the color change assembly at

about the height of the take-up levers from the right hand side of the machine.

Remove the old color change potentiometer by loosening the two outer

setscrews, the ones closest to the potentiometer, that hold the color change

potentiometer to the gear or knob, depending on whether you have a 9 or 12

needle machine, and slide the color change potentiometer out.

B

BE

ES

S-

-1

10

01

1,

,1

11

16

6,

,9

90

01

1,

,9

91

16

6,

,1

12

20

01

1,

,1

12

21

16

6

For Technical Assistance Please Call Toll Free 1-877-4BROTHER

Setscrews Setscrews

Color Change Knob

Color Change Potentiometer

Color Chan

g

e Potentiometer

Color Chan

g

e Gear

12 Needle Machine

9 Needle Machine

Color change knob

Flag

9 Needle 12 Needle

Flag Color change gear

2

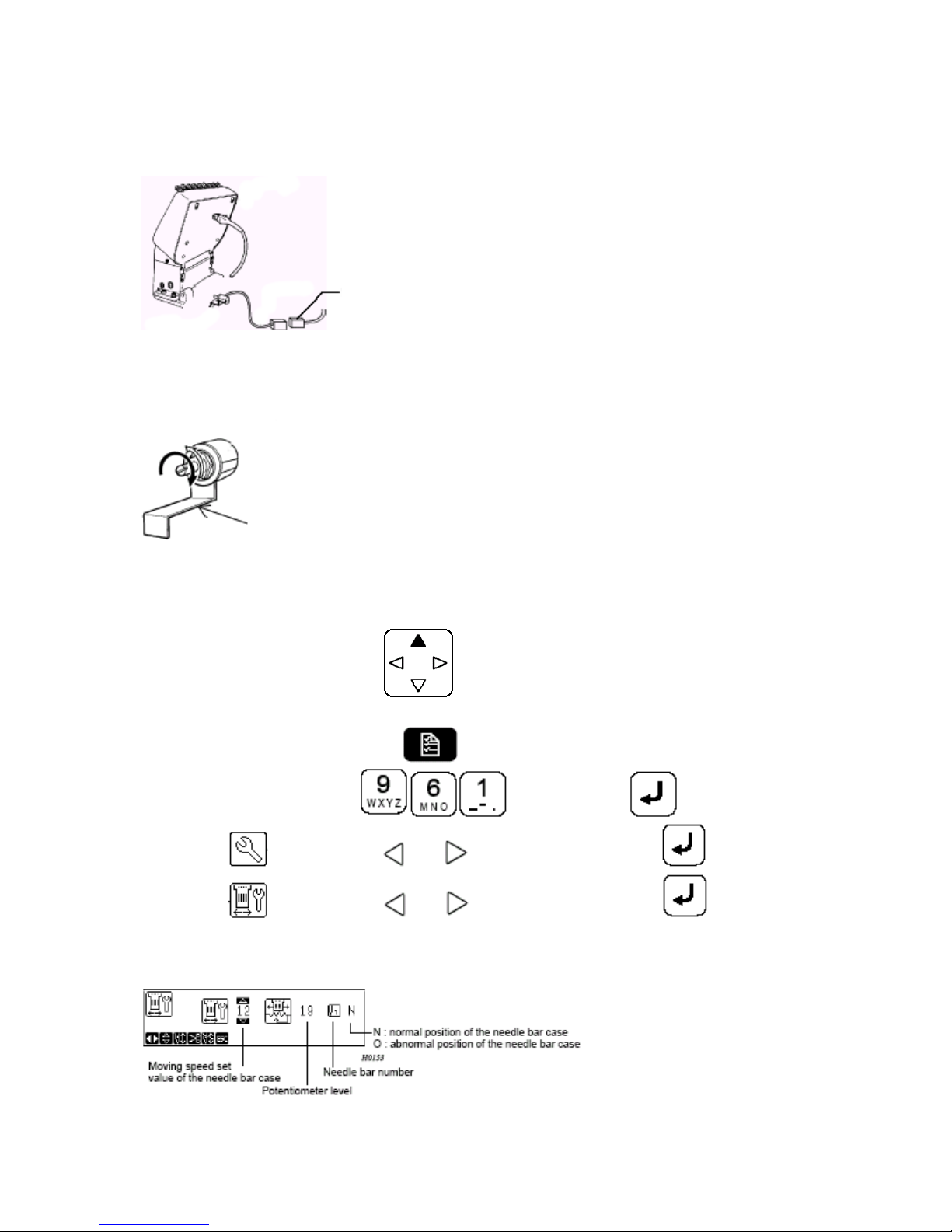

Unplug the old color change potentiometer by following the cable out of the

potentiometer and unplugging at the connector.

Remove the mounting bracket from the old color change potentiometer with a

wrench and install on the new potentiometer in the same orientation as the old

one.

Plug the new color change potentiometer into the connector but do not connect

mechanically to the machine.

Press and hold the up arrow, on the panel while turning on the machine.

Continue to hold up arrow down until a menu is displayed asking you to confirm

going into test mode. Press the to go into the test mode. It will then ask

you for a password. Input and press the key.

Select the icon with the or jog key and press the key.

Select the icon with the or jog key and press the key.

The following screen will be displayed.

Connector

Mountin

g

Bracket

3

Turn the shaft sticking out of the potentiometer slowly until you get a reading of

19 on the potentiometer level on the display. The machine will also start beep

continuously when the number 19 is displayed.

Insert the new potentiometer into the knob or gear of the color change assembly

being careful not to turn the shaft while doing it. After you get the potentiometer

in place, the machine should still be beeping and 19 displayed on the panel. If

not, then turn shaft of potentiometer until it comes back.

Tighten the two outer setscrews of the color change assembly knob or gear to

hold it in place. One setscrew will be accessible from the top, which you should

do first. Then, turn the color change knob to get to the other one.

Press the key and turn the power off to the machine.

Power back on the machine and check the color changing. It should be fine and

the machine ready to run.
