AX-325/GX-6750

ELECTRONIC TYPEWRITER

USER'S GUIDE CDN.ENGLISH

Thank you for choosing a Brother electronic typewriter! This product is designed to deliver

years of reliable operation.

Some of the outstanding features of this typewriter are illustrated in the letter betow. The

numbers in brackets refer to the page and box where you can find further information

explaining a feature. For example, Margins (p. 2, Box 4) means that this feature is explained in

box 4, on page 2.

Ribbon replacement is explained on page 10.

Margtns (f_2, Box 4)

R,ght Margin Flush (#.6. Box 20)

Capstal (p 4. Box 102

Indent (D.6. Box 18)

Undemne (p.5, BOX 16)

SubsCnpt (p.4. Box 1U

Superscnpt _4. Sox 11)

Tabs (P.5,Box 15)

Centnng (_6, Box 1,9)

Boid (p 5,Boz 17)

Line Spacing (p.3. Box 5)

fCrr ;I_S. :,[CS= _ec_e a=% _C -]©_U__.+...._ _." .._ ,,;2_h <rer.

3. ,c ....

., i

-Page 1-

Special note: tn thi_ Guide, the "4-" sign between two keys, like _ +_ means that

you press _ and hold it down while pressing ]_ .

1 Repeat Keys

The fotIowing keys wilI automaticaily repeat when held down.

All Character key [<--J _÷ _ _ 4-_;:

[-] (hyphen) H

[SPACE BAR] --_

(carrier moves from one tab to the next)

2 Inserting and Moving Paper

To insert paper: insert a sheet of paper and press _ 4-_. Paper will

advance to approximately one inch from the top edge of the paper. Press

to position the carrier on the left margin.

To move paper: Press _ + ]_ to raise the paper by 1/12 inch. Press

4-:;_ to lower the paper by 1/12 inch.

To move the paper continuously in either direction, hold down the appro-

priate key(s) for more than half a second.

If you raise/lower the paper more than !/12 inch, the correction memory is

cleared.

3 Viewing Mode

Press _ ÷ [VIEW] to turn the viewing mode on or off. (2D ©

Viewing Mode OFF

During continuous typing and during viewing, the paper remains at the

typing position.

4 Margins

Move the carrier to the desire0 position for the new left or right margin

using H or [SPACE].

TO move beyond the position of a current margin, first position the carrier

on the margin and press [ALT] + _.

5"i

When the carrier is on the desired position, press [ALT] + [<---{(if you are F-4,3

setting the left margin), or [ALT] + 1-_ (if you are setting the right margin). _

L_J ÷L_J

The minimum distance between the left and right margins is two (2)

inches, i.e. either 20 characters (Pica pitch), 24 characters (Elite pitch). -

-Page 2-

5 Line Spacing

Single space: Press [ALT) + [LINE 1].

One and a half space: Press [ALT] + [LINE 1 1/2].

Double space: Press [ALT] + [LINE 2].

C3-©

t1,'2

©'0 2

6Pitch '°

Pica (10 characters per inch): Press [ALT]+ [PITCH 10]. (_rj ÷ [._ j

Elite (12 characters per inch): Press [ALT] + [PITCH 12]. L._

7Returning the Carrier

TO return the carrier manually: S,mpty press [(-J. Holding down this key I_" t +I I

will feed the paper repeatedly.

To activate the auto carrier return function: _Press[ALT] +[AUTO]

(you will hear two beeps). The carrier will return automatically every time

the [SPACE BAR] or [HYPHEN] is pressed in the hot zone. To turn this

function off, press If're"same [ALT] 4-[AUTO] again.

The hot zone starts six (6) spaces beT©rethe right margin and extends to

the right margin. A warning beep wi!!sound when the hot zone is reached.

8typing n'ps

Permanent space: If you want to type a space 4nthe hot zone without

triggering a carrier return, press ]_ 4.[SPACE BAR],

Permanent hyphen: If you want to type a hyphen in the hot zone without

activating an auto carrier return, press _ + [HYPHEN].

Typing past a margin: If you want to type a few characters outside of a

margin, press [ALT]+ _ when the carrier is on the margin.

9Backs_pacmg

To move back one space at atime: Press }4--]rTOmove continuously

to the left, hotd this key down. See also "I2 Superimposing Characters" _ 1"'C%

on page 4, _ +

To move the carrier quickly to the left margin: Press _ + _.

To move back half a space: Press _ + H •See also "23 Half Back-

space" on page 8 for more details.

-Page 3-

10 Uppercase characters

To type uppercase characters: Hold down either the right or left [SHIFT]

key (the SHIFT lamp witl blink while the key is held down). Releasing this

key returns the keyboard to the lowercase mode.

For continuous uppercase typing: Press _ (the SHIFT lamp will blink

and all the keys will be set in uppercase mode), To return to lowercase

typing, press either the right or left [SHIFT] key.

For continuous capital letter typing: Press ]8[ + _, (the SHIFT lamp will

blink quickly and the [etter keys only, not the number keys, witl be set in

uppercase mode). Press the same keys to return to norma! typing.

Superscripts and subscripts are used mainly for scientific text composition

(for instance, exponents, chemical symbots, or reference to footnotes).

To print a superscript: Press ]_ + _ to lower the paper by lft2 inch,

and then type the character that you want in superscript.

To print a subscript: Press ]81+ q;; to raise the paper by 1112inch, and

then type the character that you want in subscript.

To restart normal typing: After typing a supers,cript, press _ + q;;. After

typing a subscript, press _1 4-_. This witI move the paper back to

normai position.

In super/subscript mode, the carrier will always move by 1/12inch,

regardless of the current line spacingl If" _ + _ or _+_, is pressed

more than two times, the correction memory is cleared.

12 Superimposing Characters

Some characters not found on your keyboard can be created. For exam-

ple, if you want the symbol for Japanese yen:

Type the leEer Y and press H. You may now type the symbol "=" to

obtan "¥'.

To erase superimposed characters, you may use the automatic correction

function (See "21 Automatic Corrections on the Current Line" on page 7;)

for the second character, but you have to use the manual method (See 22

Corrections outside of the Correction Memory" on page 7.) for the first

l"J E.XIfa LflafatJief ,._¢l

To type the special characters and symbols marked in green on the

bottom of certain keys, hold down _ and press the desired key.

14 Dead key

The character keys of the keyboard differ slightly from country to country

in order to provide the accented letters that are frequently used. If an

accentuated letter is not available on the keyboard, you can type it using

the dead key,

To type the dead key: Press the dead key, and then type the character

under the accent.

-Page 4-

15 Tabs

To set tab stops: Move the carrier to the desired position using

[SPACE BAR] or }<--}, then press [ALT] + [T+] to set a normal tab stop.

A maximum of 8 tab stops can be set. Repeat the above step to set each

tab stop.

The right and left margins, as well as the right and left ends of the platen,

are considered tab positions.

To type tables: Press "--)'1to space to the next tab and type the word(s).

Repeat the steps above to complete a line of your table.

Press _-J to move to the beginning of the next line and proceed as for the

first line to complete the table.

To clear tab stops: Use the -._ key to move the carrier to the tab stop

you want to clear.

Press [ALT] + rr.] to clear the tab.

Caution,' Ifyou press [ALT] + [T-] for more than half a second, all tab

stops witl be deleted. A beep will sound three times.

16 Underline

To turn on the automatic underlining function: Press [ALT] + ,[._._,..

You will hear _o,.t_eps,

Type your text. If the underline function is on, all characters and spaces

are underlined.

To cancel the automatic underlining function: Press [ALT] +_,..

again.

The spaces that trigger a carrier return in the automattc carrier return

mode are not underlined.

Permanent spaces or hyphens, i.e. spaces or hyphens typed while holding

,however, are underlined.

17 Bold

To turn on the bold face function: Press [ALT] + [aaa]. You will hear

two beeps.

Type _,o_, _.L ;_ii,_ b_id iu_cinch Json, a_ cnaracters are ooldea.

T'o cancel the bold function: Press [ALT] +[aaal again

-Page 5-

18 Indenting

To indent a line, move the carrier to the left margin and press ]_ +

[LIND]. The carrier will move five spaces to the right of its current

position.

19 Centering

First move the carrier to the left margin.

Press _ + IOI • The carrier will ad-

vance to a point halfway between both margins.

Type the text. The characters are not printed immediately, but the carrier

positions itself at the printing position.

To print the text, press --_, _, or _ ÷ In[ -

If you make a mistake, press <_ or _ before printing the text. These

keys will delete the whole line from the memory and will return the carrier

to the initial printing position.

To cancel centering: Press one of the above keys or _t ÷IoI without

typing any text, The carrier will then return to tile left margin.

20 Right Margin Flush

First move the carrier to the left margin.

TO automatically align text to the right margin: Press ]_ + a_l. The

carrier will advance to the right margin.

Type the text. The characters are not printed immediately, but the cartier

positions itself at the printing position.

To print the text, press --_, _, or _ ÷ ,_].

If you make amistake, press 4_ or _before printing the text. These

keys will delete the whole line from the memory and will return the carrier

to the initial printing position.

To cancel riclht margin flush: Press one of the above keys or _ ÷aI .

The career will then return to _ne;ett margin.

-Page 6-

21 Automatic Corrections on the Current Line

This typewriter has a 65 character correction memory, it erases the errors

on the current line.

First, use H or [SPACE BAR] to line up the career with the error.

To erase one character: Press @. The incorrect character will be

erased and you can type the correct character.

TOerase a series of characters, simply hold down <_. The carrier will

backspace and correct continuously until you release the key.

To erase one word: Press _ ,The word is erased and the carrier is

now on the space previously occupied by the first character of the erased

word. You can now retype the word.

If the carrier is positioned in the middle of a word, only the letters from that

position to the beginning of the word will be erased.

The _key moves you to the end of your typing line rapidly, Press that

key to take the carrier back to the position it occupied before the correc-

tion.

22 Corrections- outside of the Correction Memory

Press H or, [SPACE BAR], _ + q;: 07 _ + _ tOmove the carrier to the

character to be corrected,

Press ]_ + [], then retype the wrong character (use the [SHIFT] key for

uppercase cnaracters).The incorrect character will be erased.

Type in the correct character,

-Page 7-

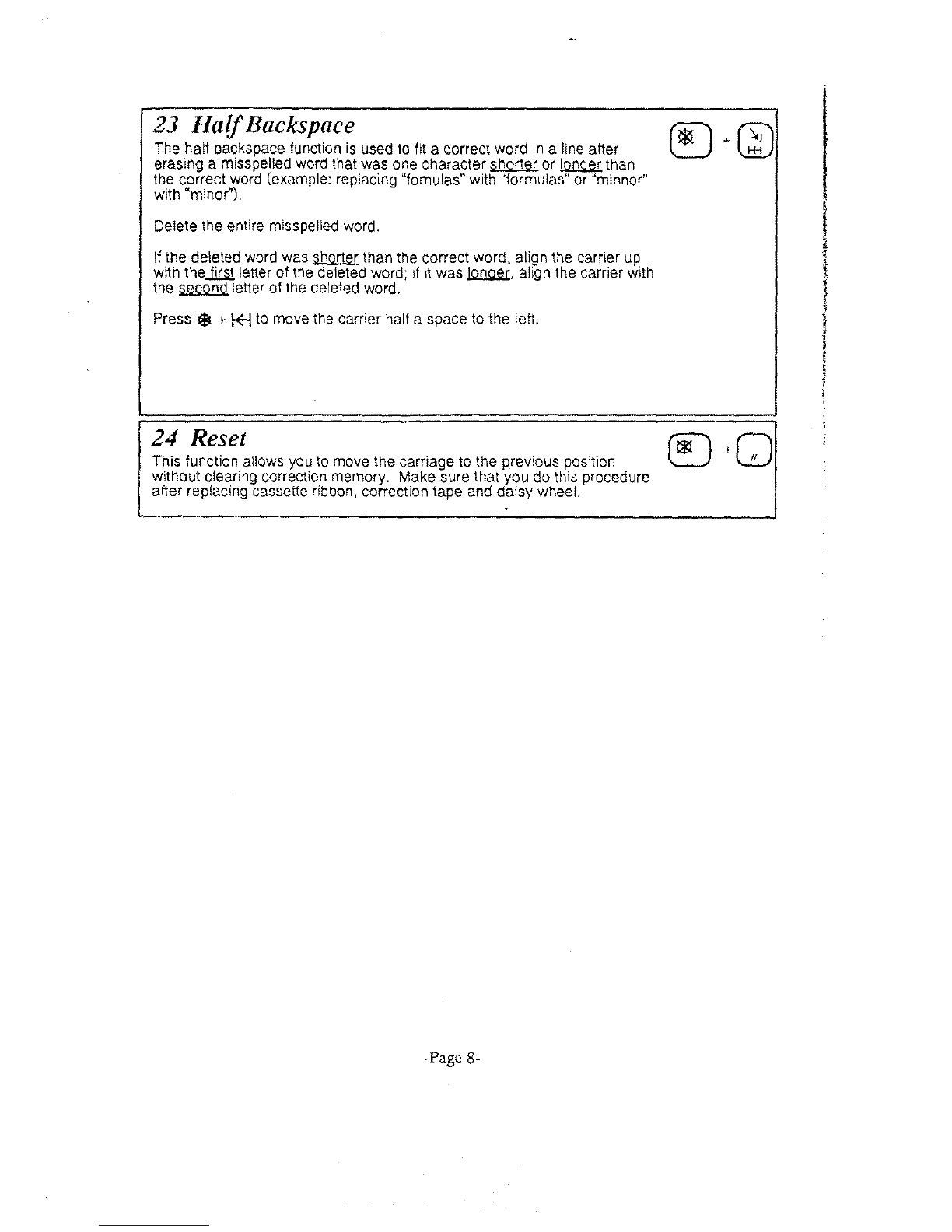

23 Half Backspace

The half backspace function is used to fit a correct word in a line after

erasing a misspelled word that was one character h_ or _ than

the correct word (example: replacing "fomulas" with "formulas" or "minnor"

with "minor").

Delete the entire misspelled word.

If the deleted word was _ than the correct word, align the carrier up

with the first letter of the deleted word; if it was _, align the carrier with

the _ letter of the deleted word.

Press _ + _ to move the carrier half a space to the left.

24 Reset

This function allows you to move the carriage to the previous pOsition

without clearing correction memory. Make sure that you do this procedure

after replacing cassette ribbon, correction tape and daisy wheel.

-Page 8-

Description

Casse_e Ribbon

Pa_er Relaase Lever Cassette Daisy Wheel

Top Cover , \ /

Paper Supporter\ _._ \, __/ Daisy Wheel

i _ Lock Lever

Platen Knob_ Correction Tape

PowerSJw_tch _ _Carrier

Keyboard

Carrying Handle

Paper Release Lever: Pushing this lever loosens tension on the paper so it can be adjusted if

necessary,

Paper Supporter: Keyboard Cover can be used as a paper supporter as illustrated above,

-Pa_e 9-

Replacing the cassette ribbon

Two types of ribbons are available:

Ribbon Types Brother Model

Correctable film ribbon t 030 /1230

Nylon ribbon i 1032

To replace the cassette ribbon:

1) Use [SPACE BAR] or Hto move the carrier to the

centre of the platen,

2) Open the top cover.

3) Holding the cassette with both hands, lift the front of

the cassette up and out.

4) Move the cassette towards the platen to remove it.

5) Turn the feed knob (on the left side of the cassette)

counter-clockwise to tighten the ribbon in the new

cassette.

6) Align the arrow on the cassette with the arrow on the

cassette holder. Use both hands to ease the cassette

into the holder, back first.

7) Gently press down on the front of the cassette until it

clicks into place.

8) Again turn the feed knob counter*clockwise to take up

any slack.

9) Close the top cover.

10) Press _ +//to move the carrier to the previous

position.

The amount of tape remaining can be checked

,through the viewing hole on the right side of the

cassette.

Make sure to use only Brother-authorized cas-

sette ribbons, correction tapes and cassette daisy

wheels. Brother cannot be held responsible for

difficulties caused by the use of unauthorized

supplies.

Note; Please do not touch the keyboard during replacing the daisy wheel, cassette J

ribbon or correction tape in order to avoid carrier movement. I

-Page i0-

Andere Handbücher für AX-325

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Brother Schreibmaschine Handbücher

Brother

Brother GX-6750 Bedienungsanleitung

Brother

Brother ML-100 Bedienungsanleitung

Brother

Brother WP-1700MDS Bedienungsanleitung

Brother

Brother WP-760D Bedienungsanleitung

Brother

Brother CM-1000 Bedienungsanleitung

Brother

Brother WP-335B Bedienungsanleitung

Brother

Brother GX-8750 Kurzanleitung

Brother

Brother AX-10 Bedienungsanleitung

Brother

Brother WhisperWriter WP-6700CJ Bedienungsanleitung

Brother

Brother Ensemble PDP-100J Bedienungsanleitung

Brother

Brother PersonalType PY80 Bedienungsanleitung

Brother

Brother AX-325 Bedienungsanleitung

Brother

Brother Ensemble PDP-300CJ Bedienungsanleitung

Brother

Brother GX-6750 Bedienungsanleitung

Brother

Brother EM-550 Bedienungsanleitung

Brother

Brother GX8500 Kurzanleitung

Brother

Brother WhisperWriter WP-7550J Bedienungsanleitung

Brother

Brother GX-6500 Kurzanleitung

Brother

Brother WP7550JPLUS Bedienungsanleitung

Brother

Brother GX-9750 Kurzanleitung

Brother

Brother EM-850fx Bedienungsanleitung

Brother

Brother AX-325 Bedienungsanleitung

Brother

Brother EM-611 Bedienungsanleitung

Brother

Brother WhisperWriter WP-7550J Bedienungsanleitung

Beliebte Schreibmaschine Handbücher anderer Marken

IBM

IBM Selectric II Bedienungsanleitung

Panasonic

Panasonic KX-R530 - Electronic Typewriter Bedienungsanleitung

Olivetti

Olivetti LINEA 88 Bedienungsanleitung

Remington Rand Inc.

Remington Rand Inc. Noiseless 10 Bedienungsanleitung

Scheidegger

Scheidegger TYPOMATIC-TMS Handbuch

Siemens

Siemens 1000 CA Bedienungsanleitung

Panasonic

Panasonic KX-E50 Montageanleitung

IBM

IBM Selectric III Betriebsanleitung

Canon

Canon varioPRINT 135 Series Bedienungsanleitung

Torpedo

Torpedo 18 Bedienungsanleitung

Zyteq

Zyteq LightWRITER SL40 Bedienungsanleitung

Hermes

Hermes 3000 Bedienungsanleitung

Olympia

Olympia SM 5 Bedienungsanleitung

Royal

Royal Linea 10 Leitfaden

Remington

Remington Quiet-Riter Bedienungsanleitung

Digital Equipment

Digital Equipment Letterwriter 100 Bedienungsanleitung

Smith Corona

Smith Corona Typewriter Bedienungsanleitung

Teletype

Teletype 15 Bedienungs- und Montageanleitung
