Bryant Evolution Control Montageanleitung

™

Evolution®Control

Homeowner’s Guide

Your decision to choose the

Bryant Evolution®Control puts

you in a select group of home-

owners who understand the

value of precise comfort control

and appreciate the simplicity

of an easy-to-use, intuitive,

user interface.

We sincerely appreciate you

putting your trust in Bryant.

Bryant has been delivering

the finest indoor comfort

equipment since 1904. Your

new Evolution Control offers yet

another example of the high

quality comfort technology for

which we are recognized.

Please take a few moments to

review this manual…set up a

comfort schedule that makes

sense for your lifestyle…then

relax and enjoy the comfort!

Temperature/Humidity Button

displays current indoor humidity

or outside temperature.

Room Temperature

Day & Time

Time Period displays the com-

fort schedule’s active period.

Left Button provides accessory

status.

Hold Button maintains desired

temperature indefinitely.

Left Up/Down Button

Schedule Button used to

access and exit the comfort

schedule.

Vacation Button

activates/deactivates vacation

comfort settings.

Scroll Button used to move

up and down the screen

during scheduling and setup.

CONGRATULATIONS!

Fan Setting

Fan Button chooses “high,”

“medium,” “low,” or “auto”

fan mode.

Desired Heating/Cooling

Temperature

Right Button provides

system status.

Heat Button selects heating

operation.

Cool Button selects cooling

operation.

Heat/Cool LEDs indicate

heating or cooling operation.

Right Up/Down Button

Off Button turns the system

on and off.

Advanced Setup Button

provides access to

customizable features.

Basic Setup Button provides

access to current day, time

and desired humidity level.

TABLE OF CONTENTS 1

QUICK GUIDE INSTRUCTIONS . . .2

BASIC SETUP . . . . . . . . . . . . . . . . . .6

Set Day, Time & Humidity . . . . . .6

NORMAL OPERATION . . . . . . . . . .7

Turn System On/Off . . . . . . . . . . . .7

Heating . . . . . . . . . . . . . . . . . . . . . .7

Auxiliary Heat . . . . . . . . . . . . . . . . .7

Emergency Heat . . . . . . . . . . . . . .7

Cooling . . . . . . . . . . . . . . . . . . . . . .8

Auto . . . . . . . . . . . . . . . . . . . . . . .9

Adjust Current Temperature . . .9

Adjust Heating Temperature .9

Adjust Cooling Temperature 10

Adjust Fan Speed . . . . . . . . . . . .10

Hold Current Temperature . . . .10

Vacation Function & Settings . .11

Check System Status

(Right Button) . . . . . . . . . . . . . . . . . . . .12

Accessory Status (Left Button) 12

Resetting Accessory Usage

Indicator . . . . . . . . . . . . . . . . . . . . .13

Accessory Maintenance Pop-Up

Messages . . . . . . . . . . . . . . . . . . . . . .13

Service Pop-Up Messages

. . . . .14

Keyboard Lock-out . . . . . . . . . . .15

PROGRAMMABLE FEATURES,

SETUP & OPERATION . . . . . . . . . .16

Backlighting . . . . . . . . . . . . . . . . . .16

Determining Your Comfort

Schedule . . . . . . . . . . . . . . . . . . . . . . . .16

Programming Your Comfort

Schedule . . . . . . . . . . . . . . . . . . . . .17

One Schedule for All Days . . . .18

Weekdays Schedule . . . . . . . . . .19

Weekend Schedule . . . . . . . . . .20

Daily Schedule . . . . . . . . . . . . . . .21

Copying a Schedule . . . . . . . . .22

Programming Fan Speed . . . .23

VENTILATION FEATURES,

SETUP & OPERATION . . . . . . . . . .24

Fresh Air Ventilation . . . . . . . . . .24

ADVANCED SETUP . . . . . . . . . . . .25

Accessory Maintenance

Reminders . . . . . . . . . . . . . . . . . . .25

Display Settings . . . . . . . . . . . . . .26

Heating Humidity . . . . . . . . . . . .27

Cooling Humidity . . . . . . . . . . . .28

Vacation . . . . . . . . . . . . . . . . . . . .29

GLOSSARY . . . . . . . . . . . . . . . . . . .31

QUICK GUIDE INSTRUCTIONS 2

This guide provides the basic operations for setting up and operat-

ing your Evolution®Control.

Set Day, Time & Desired Humidity

1Open the door of the Evolution®Control.

2Press the BASIC button.

3Adjust the highlighted HOUR setting using

the Left Up/Down button.

4Press SCROLL to highlight MINUTE.

5Adjust the MINUTE setting using the Left Up/Down button.

6Press SCROLL to highlight DAY.

7Adjust the current DAY setting, using the Left Up/Down

button, until the correct day is displayed.

8Press SCROLL to highlight HUMIDITY.

9Press the red HEAT button to set the heating humidity.

10 Adjust the desired heating humidity using either Up/Down but-

ton.

11 Press the blue COOL button to set the cooling humidity.

12 Adjust the desired cooling humidity using either Up/Down but-

ton.

13 Press BASIC or close the door to exit.

QUICK GUIDE INSTRUCTIONS 3

Adjust Heating Temperature

1Press the red HEAT button. Heating is confirmed when the red

LED adjacent to the red HEAT button is lit.

2Use the Right Up/Down button to select your desired

temperature, which will be displayed on the lower right.

An override time will be displayed on the lower left.

Please note an override time will not

appear if programming has been turned off.

3You can change the override time in

15-minute increments by pressing the Left

Up/Down button until the desired override

time is selected.

- OR -

Press the HOLD button to override the schedule indefinitely.

Adjust Cooling Temperature

1Press the blue COOL button. Cooling is confirmed when the

blue LED adjacent to the blue button is lit.

2Use the Right Up/Down button to select your desired

temperature, which will be displayed on the lower right.

An override time will be displayed on the lower left. Please note

an override time will not appear if programming has been

turned off.

3You can change the override time to 15-minute increments by

pressing the Left Up/Down button until the desired

override time is selected.

- OR -

Press the HOLD button to override the schedule indefinitely.

QUICK GUIDE INSTRUCTIONS 4

Quick Programming Instructions

These instructions will guide you through creating one comfort

schedule that will repeat every day. For more details on

programming, or to create customized schedules for the week,

weekend, or each day, refer to PROGRAMMABLE FEATURES, SETUP

& OPERATION on pages 16 - 23 of this manual.

One Schedule for All Days

1Open the door of the control.

2Press the SCHEDULE button.

3Press either the LEFT or RIGHT button

repeatedly until “ALLDAYS” is displayed.

4The WAKE time period will be highlighted. Set the start time for

this time period using the Left Up/Down button.

5Press the red HEAT button. Heating temperature will begin

flashing.

6Set the heating temperature using the Right Up/Down

button.

7Press the blue COOL button. Cooling temperature will begin

flashing.

8Set the cooling temperature using the Right Up/Down

button.

9Set the remaining periods, “DAY,” “EVENING,” AND “SLEEP” by

using the SCROLL button to select a time period, then follow

steps 5 – 9 to select temperature and time settings.

10 Exit the scheduling mode by either closing the door or press-

ing the SCHEDULE button.

QUICK GUIDE INSTRUCTIONS 5

Pop-up Messages

Your Evolution®Control provides important and useful maintenance

and service reminders via pop-up messages on the display.

Accessory Maintenance Reminders: An accessory reminder lets

you know when it’s time for maintenance of your air filter, humidifier

pad, UV lamp or ventilator. When an accessory reminder pop-up

message appears, perform the accessory maintenance yourself

OR contact your dealer/contractor.

Service Reminders: When a service reminder pop-up message

appears, contact your dealer/contractor.

See ACCESSORY MAINTENANCE OR SERVICE POP-UP MESSAGES

on page 13 - 14 in this manual for additional information on service

and maintenance reminders.

BASIC SETUP 6

Set Day, Time & Desired Humidity

1Open the door of the Evolution®Control.

2Press the BASIC button.

3Adjust the highlighted HOUR setting using

the Left Up/Down button.

4Press SCROLL to highlight MINUTE.

5Adjust the MINUTE setting using the Left

Up/Down button.

6Press SCROLL to highlight DAY.

7Adjust the current DAY setting, using the Left Up/Down button,

until the correct day is displayed.

8Press SCROLL to highlight HUMIDITY.

9Press the red HEAT button to set the heating humidity.

10 Adjust the desired heating humidity using either Up/Down

button.

11 Press the blue COOL button to set the cooling humidity.

12 Adjust the desired cooling humidity using either Right

Up/Down button.

13 If a ventilator has been installed, press scroll to highlight

FRESH AIR.

14 Adjust your desired FRESH AIR setting using the Right

Up/Down button. For a description of fresh air settings, see

FRESH AIR VENTILATION on page 24 in this manual.

15 Press the BASIC button to exit.

- OR -

If you need to readjust one of your settings, use the SCROLL

button to highlight the desired setting, then make your changes.

NORMAL OPERATION 7

16 Close the door.

NOTE: You can exit at any time. When exiting, you will be prompt-

to save changes if you have made any. Select “YES” to

save your changes, “NO” to revert back to previous settings.

Turn System On/Off

The OFF button is used to turn the system both on and off.

Heating

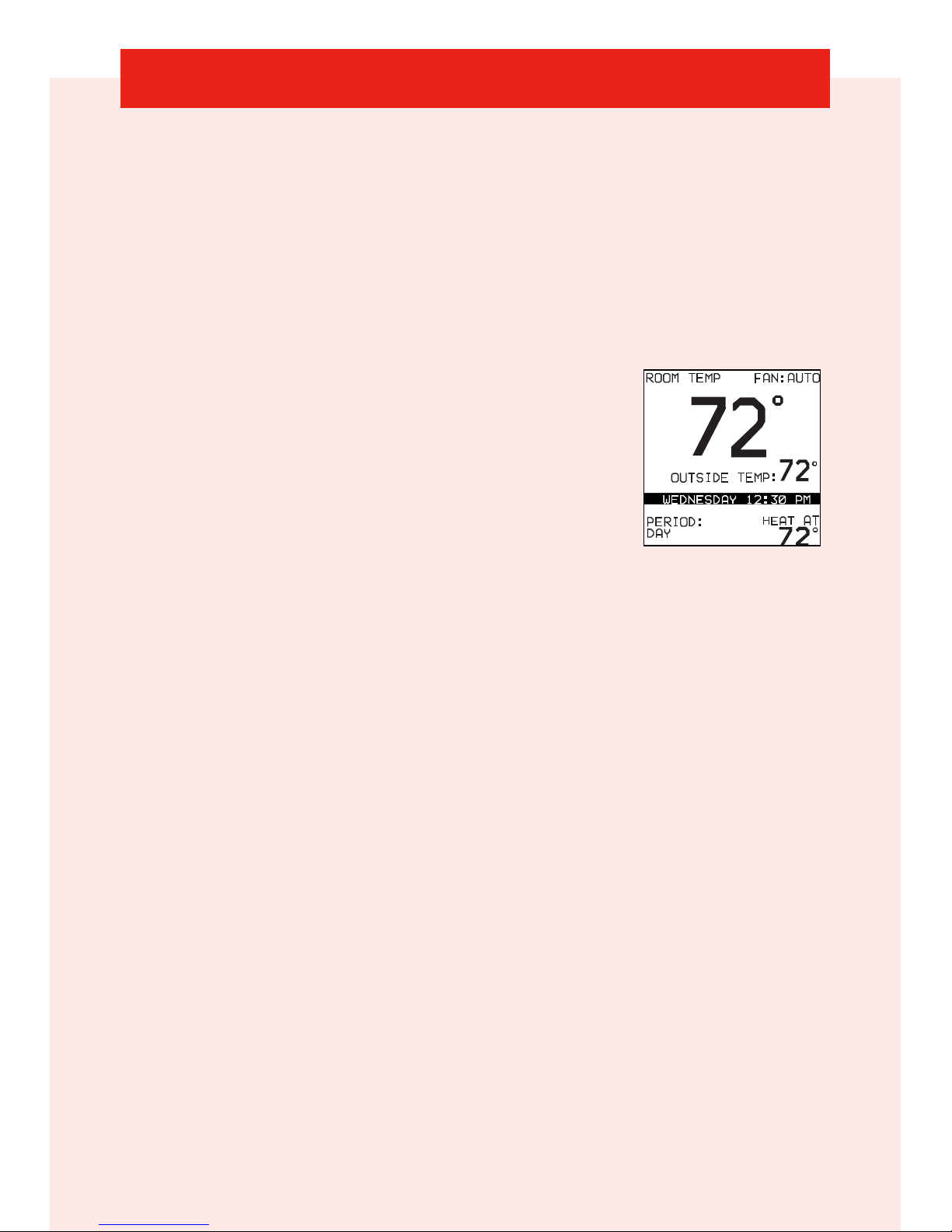

To select heating, press the red HEAT button.

Heating is confirmed when the red LED

adjacent to the red HEAT button is lit.

Heating is operating when the red LED is

gradually pulsing on and off. (The LEDs can

be turned off. For details, see ADVANCED

SETUP – DISPLAY on page 26.) The heating

temperature will appear in the lower right

screen with the text, “HEAT AT.”

Auxiliary Heat

Auxiliary heat is staged electric heating included with many heat

pump systems. Auxiliary heat is automatically activated by the

system when it’s too cold for the heat pump to effectively heat

your home. Auxiliary heat operation is confirmed when the red

LED adjacent to the red HEAT button is lit, gradually pulsing on,

then off. (The LEDs can be turned off. For details, see ADVANCED

SETUP – DISPLAY on page 26.) The text, “AUXILIARY HEAT ACTIVE”

will appear below the room temperature.

Inhaltsverzeichnis

Andere Bryant Thermostat Handbücher

Bryant

Bryant TSTATBBP250-01 Abmessungen und Installationsanleitung

Bryant

Bryant T2-PAC01-A Bedienungsanleitung

Bryant

Bryant Legacy Series Bedienungsanleitung

Bryant

Bryant TSTATCCPS101 Bedienungsanleitung

Bryant

Bryant PREFERRED T6-NAC Bedienungsanleitung

Bryant

Bryant PROGRAMMABLE DIGITAL TERMOSTAT OM 17-101 Bedienungsanleitung

Bryant

Bryant Programmable Thermidistat Bedienungsanleitung

Bryant

Bryant LEGACY LINE-RNC T1-PAC Bedienungsanleitung

Bryant

Bryant TSTATCCPB101 Bedienungsanleitung

Bryant

Bryant Evolution Control SYSTXBBUID01 Anleitungen und Rezepte

Bryant

Bryant AND THERMIDISTAT CONTROL Montageanleitung

Bryant

Bryant Evolution Connex Control Bedienungsanleitung

Bryant

Bryant TSTATBBP071-01 Leitfaden

Bryant

Bryant T2--WHS01 Bedienungsanleitung

Bryant

Bryant P474-0401RF Leitfaden

Bryant

Bryant PREFERRED T6-NRH Bedienungsanleitung

Bryant

Bryant OM TSTAT-1 Leitfaden

Bryant

Bryant start-up and Anleitungen und Rezepte

Bryant

Bryant Preferred T6-PRH01-B Bedienungsanleitung

Bryant

Bryant TSTATBBP250-01 Leitfaden

Bryant

Bryant LEGACY LINE--RNC T1--PAC Bedienungsanleitung

Bryant

Bryant Legacy Series Bedienungsanleitung

Bryant

Bryant 53DFST2-NP-BRY Bedienungsanleitung

Bryant

Bryant TSTATBBNQ001 Leitfaden

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
