USER'S
MANUAL
TBM061
TBM062
TBM063
TBM065
Compact AC/DC
Clamp-on
Multimeter Series
1
1) SAFETY
This manual contains information and warnings that must be followed for operating the
instrument safely and maintaining the instrument in a safe operating condition. If the
instrument is used in a manner not specified by the manufacturer, the protection
provided by the instrument may be impaired.
The meter protection rating, against the users, is double insulation per IEC61010-1 2nd
Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed., CAN/CSA C22.2 No. 61010-1, 2nd Ed.,
IEC61010-2-032, EN61010-2-032, UL61010B-2-032 and CAN/CSA C22.2 No.
61010-2-032-04:
Category CAT III 600V AC & DC.
PER IEC61010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be
supplied from the fixed installation.
Note – Examples include household, office, and laboratory appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in fixed installations.
Note – Examples include switches in the fixed installation and some equipment for
industrial use with permanent connection to the fixed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the
installation. Note – Examples include electricity meters and primary over-current
protection equipment.
TERMS IN THIS MANUAL
WARNING identifies conditions and actions that could result in serious injury or even
death to the user.
CAUTION identifies conditions and actions that could cause damage or malfunction
in the instrument.
2
WARNING
To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. The meter is intended only for indoor use.
To avoid electrical shock hazard, observe the proper safety precautions when working
with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential
shock hazard to the user.
Keep your hands/fingers behind the hand/finger barriers (of the meter and the test
leads) that indicate the limits of safe access of the hand-held part during measurement.
Inspect test leads, connectors, and probes for damaged insulation or exposed metal
before using the instrument. If any defects are found, replace them immediately.
This Clamp-on meter is designed to apply around or remove from uninsulated
hazardous live conductors. But still, individual protective equipment must be used if
hazardous live parts in the installation where measurement is to be carried out could be
accessible.
CAUTION
Disconnect the test leads from the test points before changing meter functions.
INTERNATIONAL ELECTRICAL SYMBOLS
!Caution ! Refer to the explanation in this Manual
Caution ! Risk of electric shock
Earth (Ground)
Double Insulation or Reinforced insulation
Fuse
AC--Alternating Current
DC--Direct Current
Application around and removal from hazardous live conductors is permitted
2) CENELEC Directives
The instruments conform to CENELEC Low-voltage directive 2006/95/EC and
Electromagnetic compatibility directive 2004/108/EC
3
3) PRODUCT DESCRIPTION
Note: Top of the line model is used as representative for illustration purposes. Please
refer to your respective model for function availability.
1) Hall-effect Clamp Jaw for AC
& DC current magnetic field pick
up
2) Hand/Finger Barrier to
indicate the limits of safe access
of the meter during
measurement
3) Push-buttons for special
functions & features
4) Input Jack for all functions
EXCEPT non-invasive ACA &
DCA current functions
5) Common (Ground reference)
Input Jack for all functions
EXCEPT non-invasive ACA &
DCA current functions
6) Slide-switch Selector to turn
the power ON/OFF and Select a
function
7) 3-3/4 digits 4000 counts LCD
display
8) Jaw trigger for opening the
clamp jaw
9) DCA direction for + polarity as
well as Jaw center Indicator, at
where best ACA & DCA
accuracy is specified
4
4) OPERATION
CAUTION: Before and after hazardous voltage measurements, test the voltage
function on a known source such as line voltage to determine proper meter functioning.

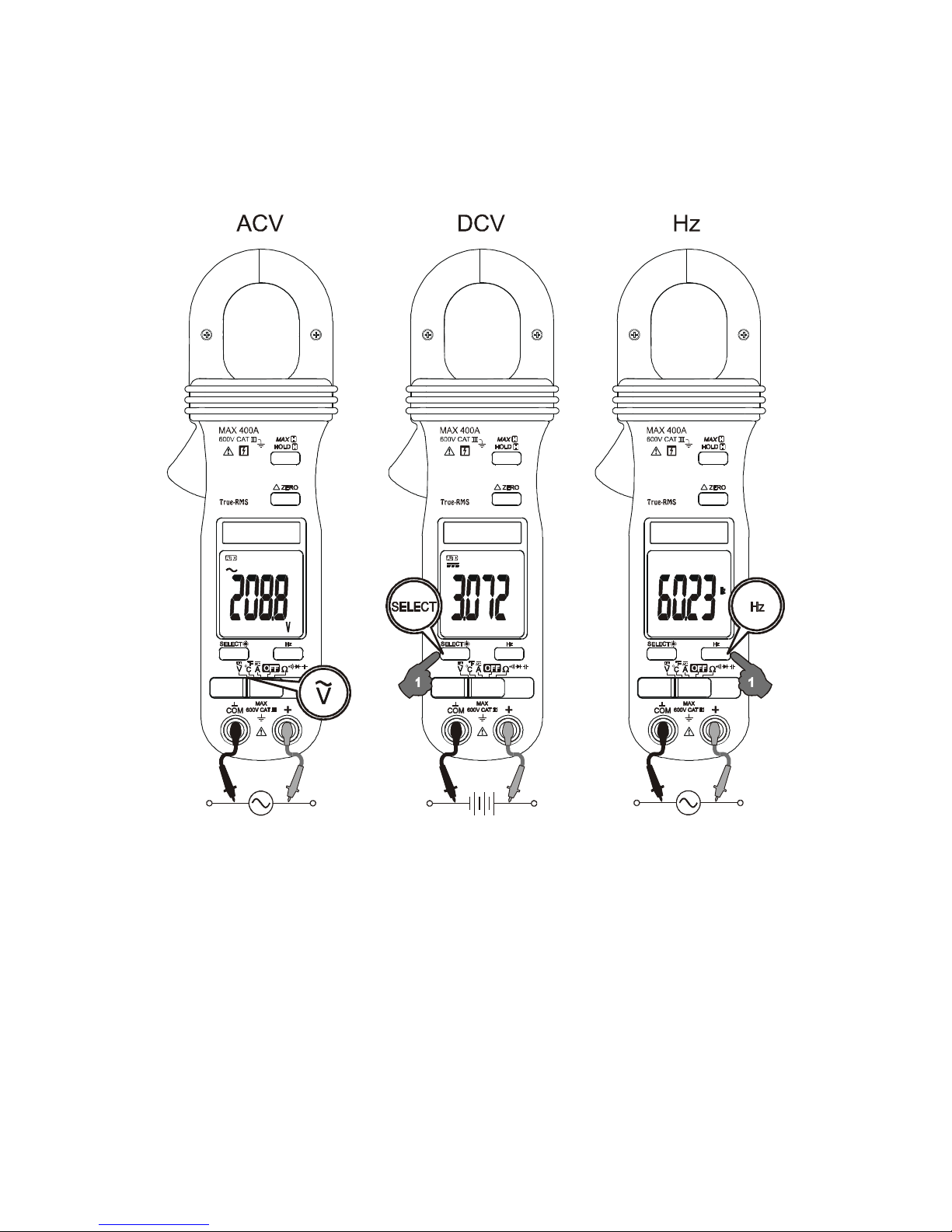

DC Voltage, AC Voltage, Hz Frequency functions
Set slide-switch to Voltage function position. Inputs are made through the test leads
terminals. For Models 063 & 065, slide-switch on defaults at AC voltage. Press
SELECT button momentarily to select DC voltage. For Models 061& 062, separate
ACV & DCV slide-switch positions are being used.
Press the Hz button momentarily to activate Hz Frequency. The Hz trigger level is
determined by the selected function-range from where the Hz function is activated. In
ACV function, activating the Hz function during significant measurements can get the
most appropriate trigger level to avoid electrical noises in most cases. Electrical noise
may cause unstable Hz reading. Activating the Hz function at AC 4.000V range (before
making significant measurements) can get lower trigger level (higher sensitivity). Hz
reading may show zero when the sensitivity is insufficient.
5
Note: DC 400.0mV range is designed with 1000Mhigh input impedance for least
current drain in measuring small signals, and can cope better with most commercially
available voltage output transducers/adapters. The non-zero display reading is normal
when the meter inputs are open circuit, which will not affect actual measurement
accuracy. The meter will show close-to-zero readings when the inputs are shorted.
Open input is actually a floating condition, which is not a zero-volt-input condition.
ACA & DCA Current clamp-on function
Inputs are made through the clamp jaws for non-invasive ACA & DCA current
measurements.
CAUTION (Application and removal of the Clamp-on meter)
Press the jaw trigger and clamp the jaws around only one single conductor of a circuit
for load current measurement. Make sure the jaws are completely closed, or else it will
introduce measurement errors. Enclosing more than one conductor of a circuit will
result in differential current measurement (like identifying leakage current). Locate the
conductor(s) at the Jaws center as much as possible to get the best measuring
accuracy. The jaw “+” mark indicates current flow direction on DCA positive readings.
6
For removal, press the jaw trigger and remove the jaws from the conductor(s).
Note: In DCA measurements, hysteresis of the jaws (after measuring high DC currents)
may introduce non-zero residual readings. Relative Zero mode should be used
each time to offset the residual readings, if any, for more accurate measurements.
Adjacent current-carrying devices such as transformers, motors and conductor wires
will affect measurement accuracy. Keep the jaws away from them as much as possible
to minimize influence.
Resistance, and Continuity functions
CAUTION
Using Resistance, Continuity or Diode function in a live circuit will produce false results
and may damage the instrument. In many cases the suspected component must be
disconnected from the circuit to obtain an accurate measurement reading
Inputs are made through the test leads terminals. Slide-switch on defaults at . Press
SELECT button momentarily to select Continuity function which is convenient for
checking wiring connections and operation of switches. A continuous beep tone
indicates a complete wire.
7
Diode test function
Inputs are made through the test leads terminals. Slide-switch on defaults at .Press
SELECT button momentarily 2 times to select Diode test function. Normal forward
voltage drop (forward biased) for a good silicon diode is between 0.400V to 0.900V. A
reading higher than that indicates a leaky diode (defective). A zero reading indicates a
shorted diode (defective). An OL indicates an open diode (defective). Reverse the test
leads connections (reverse biased) across the diode. The digital display shows OL if
the diode is good. Any other readings indicate the diode is resistive or shorted
(defective).
Capacitance function
Inputs are made through the test leads terminals. Slide-switch on defaults at .Press
SELECT button momentarily 3 times to select Capacitance function. Relative zero
mode can be used to zero out the parasitic capacitance of the leads and the internal
protection circuitry of the meter when measuring low capacitance in the order of Pico
Farad (pF).
CAUTION
Discharge capacitors before making any measurement. Large value capacitors should
be discharged through an appropriate resistance load
8
Temperature function (Model 065 & 063 only)
Be sure to insert the banana plug type-K temperature bead probe Bkp60 with correct
polarities. Slide-switch on defaults at degree C (Celsius). Press SELECT button
momentarily to select degree F (Fahrenheit). You can also use a plug adapter Bkb32
(Optional purchase) with banana pins to type-K socket to adapt other type-K standard
mini plug temperature probes.
HOLD
The Hold feature freezes the display for later viewing. Press the HOLD button
momentarily to toggle to the Hold feature. The annunciator “ ” turns on.
MAX
The max feature compares and displays the measured maximum value as fast as
9
30ms with auto-ranging capability. It allows the meter to capture in-rush currents in
current functions. Press and hold the MAX button for 1 second or more to toggle to
the max feature. The annunciators “MAX” and “ ” turn on.
Relative Zero mode
Relative Zero mode allows the user to offset the meter consecutive measurements
with the displaying reading as the reference value. The display will now show readings
relative to the stored reference value. That is, display = reading - stored value. Press
the button momentarily to toggle to the relative zero mode. The annunciator “ ”
turns on. The meter also enters manual ranging mode where available. The
annunciator “ ” turns off.
Display Backlight (Model 065 & 062 only)
Press the SELECT button for 1 second or more to toggle the display backlight on and
off.
Auto Power Off (APO)
When the meter is on, the Auto Power Off (APO) feature will switch the meter to sleep
mode automatically after approximately 30 minutes of neither slide-switch nor push
button operations to extend battery life. To wake up the meter from APO, press any
push-button momentarily or set the slide-switch to the OFF position and then slide back
on again. Always set the slide-switch to the OFF position manually when the meter is
not in use.
5) MAINTENANCE
WARNING
To avoid electrical shock, disconnect the meter from any circuit, remove the test leads
from the input jacks and turn OFF the meter before opening the case. Do not operate
with open case.
Trouble Shooting
If the instrument fails to operate, check batteries and test leads etc., and replace as
necessary. Double check operating procedure as described in this user’s manual
If the instrument voltage-resistance input terminal has subjected to high voltage
transient (caused by lightning or switching surge to the system) by accident or
abnormal conditions of operation, the series fusible resistors will be blown off (become
high impedance) like fuses to protect the user and the instrument. Most measuring
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere Brymen Multimeter Handbücher
Brymen
Brymen BM2807CSE Series Bedienungsanleitung
Brymen
Brymen BM161s Bedienungsanleitung
Brymen
Brymen BM251s Bedienungsanleitung
Brymen
Brymen BM195 Bedienungsanleitung
Brymen
Brymen EEVblog BM235 Bedienungsanleitung
Brymen
Brymen BM079 Bedienungsanleitung
Brymen
Brymen BM230 Series Bedienungsanleitung
Brymen
Brymen BM161 Bedienungsanleitung
Brymen
Brymen BM810 Series Bedienungsanleitung
Brymen
Brymen BM110M Bedienungsanleitung
Brymen
Brymen BM035 Bedienungsanleitung
Brymen
Brymen BM905s Bedienungsanleitung
Brymen
Brymen BM061s Bedienungsanleitung
Brymen
Brymen BM867s Bedienungsanleitung
Brymen
Brymen BM252 Bedienungsanleitung
Brymen
Brymen BM821s Bedienungsanleitung
Brymen
Brymen BM115 Bedienungsanleitung
Brymen
Brymen BM236R Bedienungsanleitung
Brymen
Brymen BM837RS Bedienungsanleitung
Brymen
Brymen BM805s Bedienungsanleitung
Beliebte Multimeter Handbücher anderer Marken
Gossen MetraWatt
Gossen MetraWatt METRAmax 6 Bedienungsanleitung
PeakTech
PeakTech 4000 Gebrauchs- und Pflegehandbuch
YOKOGAWA
YOKOGAWA 90050B Bedienungsanleitung
Gossen MetraWatt
Gossen MetraWatt METRALINE DMM16 Bedienungsanleitung
Fluke
Fluke 8846A Bedienungs- und Wartungshandbuch
Tempo Communications
Tempo Communications MM200 Bedienungsanleitung
