Buffalo Tech WZR-RS-G54 Bedienungsanleitung
User Manual
125* High Speed Mode Wireless
Secure Remote Router
WZR-RS-G54
www.buffalotech.com
125* High Speed Mode Wireless
Rev B
2
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
Installation / Setup . . . . . . . . . . . . . . . . . . . . . . 11
Antenna Installation. . . . . . . . . . . . . . . . . . . . . . 13
Standard Settings . . . . . . . . . . . . . . . . . . . . . . . 14
AOSS Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Advanced Setup . . . . . . . . . . . . . . . . . . . . . . . . 26
LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . 26
Wireless Settings . . . . . . . . . . . . . . . . . . 26
Wireless LAN Security . . . . . . . . . . . . . . 28
LAN Port . . . . . . . . . . . . . . . . . . . . . . . . 32
DHCP Server . . . . . . . . . . . . . . . . . . . . . 33
Wireless MAC Filtering . . . . . . . . . . . . . 36
Wireless Bridge (WDS) . . . . . . . . . . . . . 38
WAN Settings . . . . . . . . . . . . . . . . . . . . . . . 40
WAN Port . . . . . . . . . . . . . . . . . . . . . . . . 40
WAN Network . . . . . . . . . . . . . . . . . . . . . 43
3
Table of Contents
PPTP Client Setup . . . . . . . . . . . . . . . . . . . . 44
PPTP Server Setup . . . . . . . . . . . . . . . . 46
Dynamic DNS Setup. . . . . . . . . . . . . . . . 47
Network Settings. . . . . . . . . . . . . . . . . . . . . 49
Routing Setup . . . . . . . . . . . . . . . . . . . . 49
Address Translation . . . . . . . . . . . . . . . . 51
Packet Filter . . . . . . . . . . . . . . . . . . . . . . 54
Intrusion Detector . . . . . . . . . . . . . . . . . 59
UPnP . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Management . . . . . . . . . . . . . . . . . . . . . . . . 62
System Information . . . . . . . . . . . . . . . . 62
Change Password . . . . . . . . . . . . . . . . . 63
Time Setup . . . . . . . . . . . . . . . . . . . . . . 64
Traffic Information . . . . . . . . . . . . . . . . . 65
Client Monitor . . . . . . . . . . . . . . . . . . . . 66
Ping Tool . . . . . . . . . . . . . . . . . . . . . . . . 67
Log Information . . . . . . . . . . . . . . . . . . . 68
4
Table of Contents
Syslog Transfer . . . . . . . . . . . . . . . . . . . 69
Save/Restore Settings . . . . . . . . . . . . . . 70
Reboot/Reload Settings . . . . . . . . . . . . . 71
Firmware Updates . . . . . . . . . . . . . . . . . 72
AOSS . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Network Service List . . . . . . . . . . . . . . . . . . . . . . . . . 75
File & Printer Sharing / Audio/Video Playback . . 77
Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . 78
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 81
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 85
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
FCC/CE Information . . . . . . . . . . . . . . . . . . . . . . . . 100
Warranty Information. . . . . . . . . . . . . . . . . . . . . 105
Contact Information . . . . . . . . . . . . . . . . . . . . . 106
5
AirStation 125 High Speed Mode Wireless Cable/DSL Router (WZR-RS-G54)
This manual introduces you to the AirStation Cable/DSL Router, and will help you connect to your
network quickly.
The WZR-RS-G54 router, is a wireless 4-port router network device that complies with the 2.4GHz
IEEE 802.11g standard specification on wireless LANs. It also supports 125 High Speed Mode
technology. The WZR-RS-G54 supports enhanced built-in NAT/SPI firewall functions and is used
as a multi-functional router/link between wired and wireless LAN computers. Additionally, the WZR-
RS-G54 includes a secure PPTP Server designed to serve remote clients with access to the LAN
and special features via an easy to use Network Service List.
Summary of the AirStation WZR-RS-G54 features:
• Wi-Fi™ (Wireless Fidelity) certified by the Wi-Fi Alliance as an 802.11b/g device. The AirStation
will communicate with other IEEE 802.11b/g/Wi-Fi compliant wireless LAN products.
• Supports 125* High Speed Mode
• Auto-Channel Selection
• Support for Wi-Fi Protected Access™ (WPA), 802.1x, TKIP, AES, and WEP.
• PPTP Endpoint Client
• PPTP Server
• DHCP client/server function.
• Auto roaming, supports seamless roaming over multiple channels.
• VPN pass-through, for secure communications.
Introduction
6
• Packet Filtering for eliminating unwanted communications.
• SOHO/SMB routing and firewall functions provide a safer private networking environment, includ-
ing support for MS NetMeeting and MSN-Messenger.
• Additional SPI Firewall Functions - DMZ, intrusion detection and notification
• Syslog transmits some or all system activities to a central Syslog server.
• Extended range, with optional add-on antennas or WDS (Wireless Distribution System).
• Auto Media Dependent Interface/Crossover (MDI/X) port, allows connection by standard and
crossover CAT5 cables.
• Supports Universal Plug and Play (UPnP).
• Buffalo’s AOSS System for easy, secure wireless client configuration.
• Enhanced security features:
- SPI Firewall and DMZ zone functions to prevent unknown intruders.
- Intrusion Detector Firewall (NAT) with a pop-up or email alert warning unwanted attacks.
- Dynamic packet filtering.
- WPA, 802.1x, TKIP, AES, and WEP.
- VPN (IPSec, PPTP and L2TP) pass-through
- Packet monitoring and filtering by MAC address, IP address and port.
- PPPoE support
- WDS support
Introduction
7
• Buffalo’s easy web interface configuration
• Broadband router static and dynamic routing methods between WAN and LAN based on updated
routing tables. An economical way to bridge multiple networks.
• Optional external antennas for boosting range and signal quality.
• Buffalo’s AOSS System for easy, secure wire-
less client configuration.

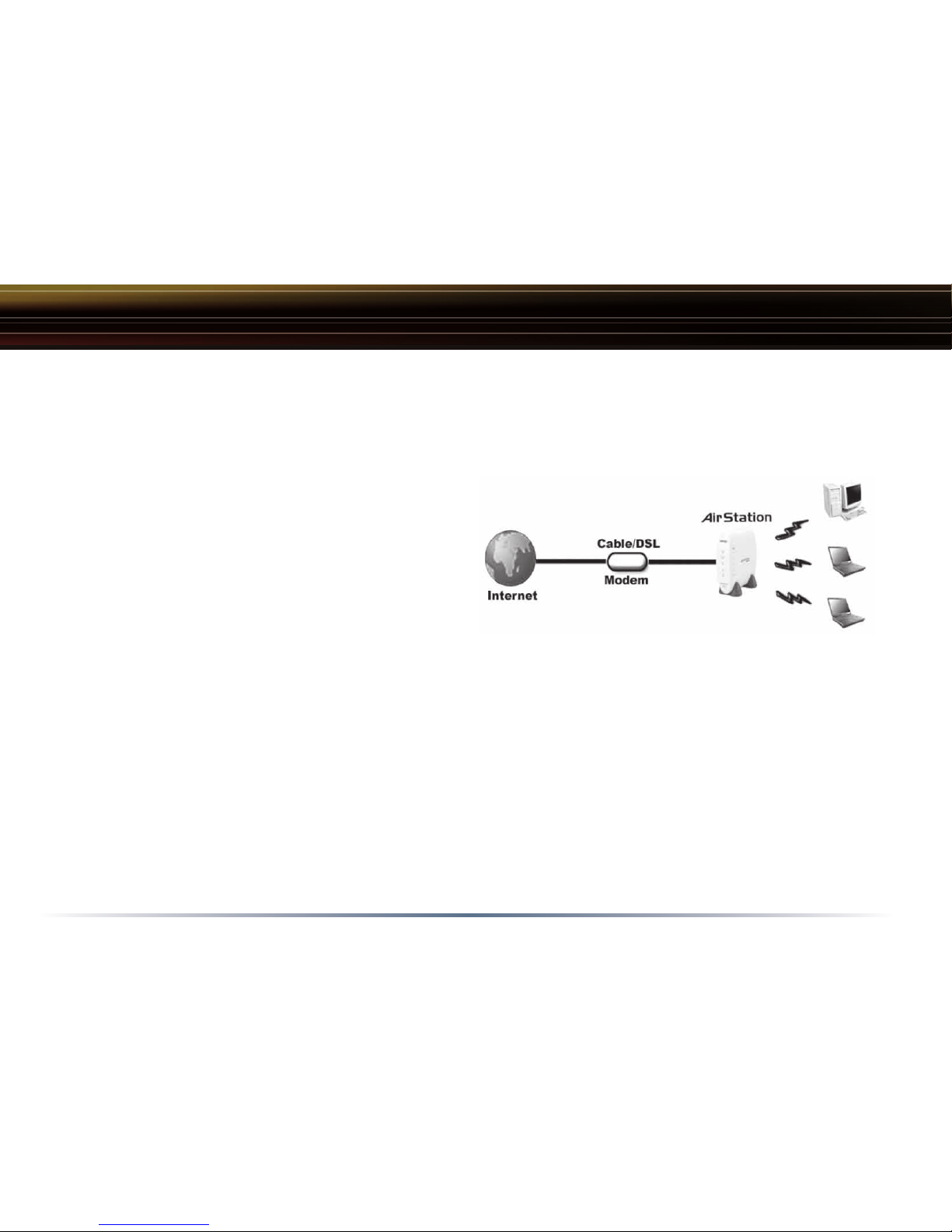

Home Networking 1
Buffalo AirStation wireless access points enable
sharing broadband by simply connecting the
AirStation to a DSL or Cable modem to:
• Share files and printers
• Access and share the Internet
• Share media files
• Take remote control of any of your PC’s from anywhere.
SOHO/SMB Networking
With high-speed DSL or Cable connections readily available, many users can work effectively from
a home office, connected securely to a corporate network. Buffalo’s solutions are ideal for home
networks that require secure, high-speed access to the corporate LAN. Tools that play an integral
part in Buffalo’s solutions include VPN connectivity for secure access to corporate resources, which
enable the remote employee to handle information from clients or coworkers as if they were in the
office. Connect the Buffalo AirStation Broadband router AP to a Cable or DSL modem in order to:
Introduction
8
•Share broadband access
•Share files and printers
•Bridge between multiple networks and multiple computer platforms
•Provide easy and secure access to home or company networks from remote locations
System Requirements
• Broadband (High-Speed) Internet connection or existing Local area connection
• Any Wi-Fi (wireless) compatible computer with a Web Browser Internet Explorer or Netscape 4.5
or later. (Safari 1.0 is supported with Macintosh OS X.2)
AirStation WZR-RS-G54 Package Contents
The AirStation WZR-RS-G54 package consists of the following items.
1. WZR-RS-G54 Base Station
2. AC adapter and power cable
3. CAT5 LAN cable
4. Utility CD with Manual
5. Quick Setup Guides
6. Warranty Statement
Introduction
9
Product Views
Power - Lit when the device is powered on.
Wireless - Lit when the wireless radio is on.
Flashes when wireless traffi c is present.
WAN - Lit when connection to Cable/DSL
modem is present. Flashes when internet
traffi c is present.
Diag - Flashes red when performing
diagnostic functions.
VPN - Lit when a client is connected into the
AirStation’s PPTP Server.
AOSS - Flashes when in AOSS mode, solid
when AOSS encryption has been set.
Ethernet - 1, 2, 3, or 4 lit when ethernet
clients are connected. Flashes when
ethernet traffi c is present.
Introduction
10
About the AirStation CD
The AirStation does not require any software to be installed on your computer for configuration. The
AirStation CD contains product documentation and Buffalo’s Client Manager which provides AOSS
functionality for any Buffalo client card or any Intel Centrino notebook.
It is the policy of Buffalo Technology to improve products as new technology, components, software
and firmware become available.
Please consult the AirStation wireless website (http://www.buffalotech.com) to download and install
the latest firmware for your product.
Follow these simple steps to connect the AirStation to your Broadband Internet connection allowing
you to combine and share wired and wireless computers and printers with the high-speed internet
connection.
Introduction
