Chapter 1 - Product Overview
Features
Supports IEEE802.11n and IEEE802.11a/b/g
With support for current Wireless-N, Wireless-A, Wireless-G, and Wireless-B standards, the AirStation
can transfer data to and from all standard 2.4 GHz and 5 GHz wireless clients.
This device does not support simultaneous communication on the 2.4 GHz and 5 GHz bands.
Supports AOSS and WPS
Both AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi Protected Setup) are supported.
These automatic connection standards make connection with compatible wireless devices easier.
Security
The AirStation supports the following security standards:
• AOSS
• WPS
• WPA-PSK (TKIP/AES)
• WPA2-PSK (TKIP/AES)
• WPA/WPA2 mixed PSK
• WEP (128-bit/64-bit)
Chapter 1 Product Overview
WLI-UTX-AG300 User Manual 5
300 Mbps High Speed Mode
300 Mbps is the maximum link speed when using Wireless-N mode with dual 40 MHz channels.
Usable sustained data rates will be substantially slower.
Package Contents
The following items are included in your AirStation package. If any of the items are missing, please
contact your vender.
• WLI-UTX-AG300 ........................................................................................................................... 1
• USB cable .......................................................................................................................................1
• LAN cable ....................................................................................................................................... 1
• Quick Setup Guide ...................................................................................................................... 1
• Setup CD ........................................................................................................................................ 1
WLI-UTX-AG300 User Manual 6
Chapter 1 Product Overview

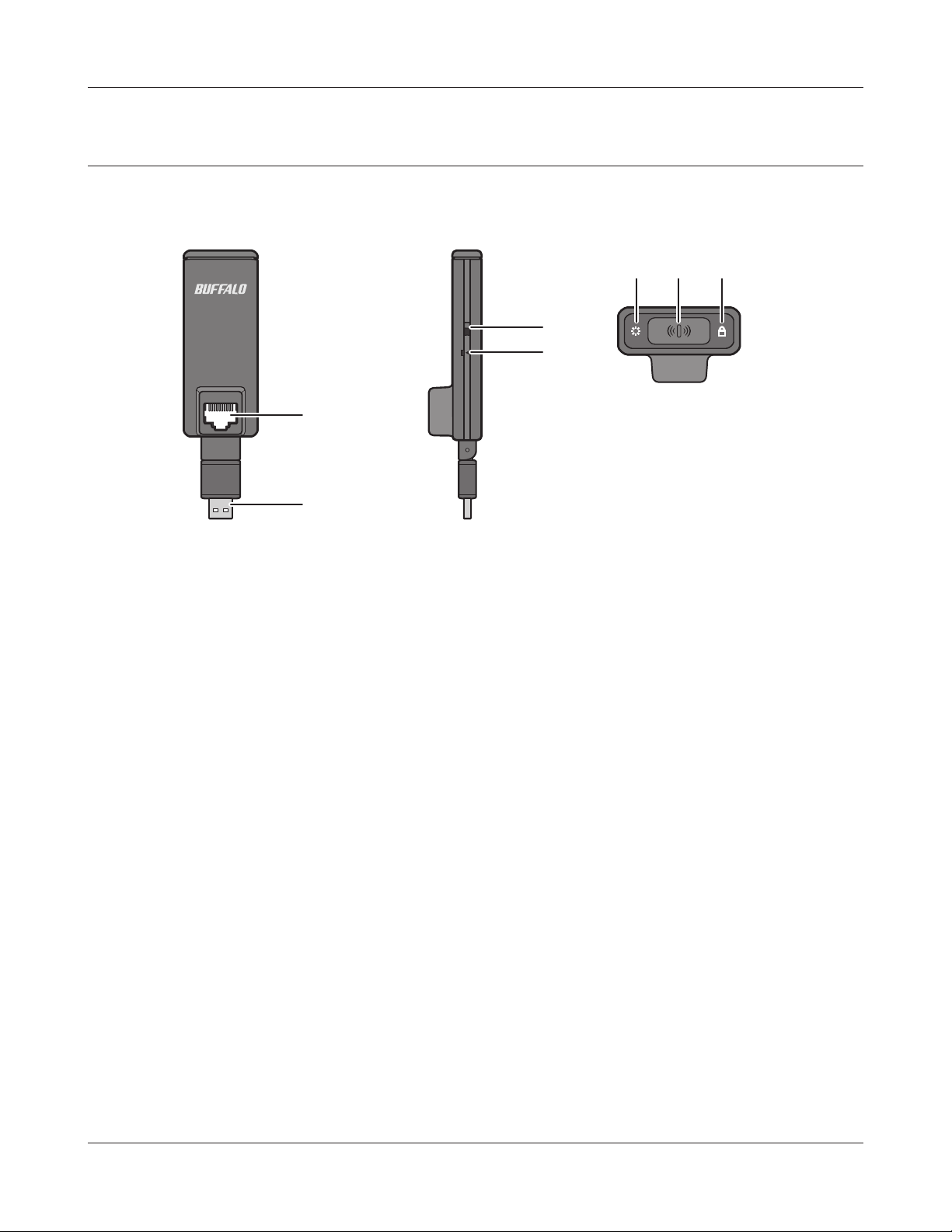

Hardware Overview
Front View
1LAN Port
Connect your computer to this port. This port supports 10 Mbps and 100 Mbps connections.
2USB Connector
Connect your computer to this port (for power).
311a ONLY Switch
When turned on, the wireless connection is limited to the 5 GHz band only. Turn on only if you
have a compatible wireless access point.
4Reset Button
To restore the wireless media bridge back to factory default settings, press and hold this button
until the red Diag LED ashes (about 3 seconds).
5Diag LED(Red)
Shows wireless media bridge status.
On During boot.
2 blinks Flash ROM error.
3 blinks Wired Ethernet LAN error.
4 blinks Wireless LAN error.
o Normal operation/Power o
LA
N
RESET ON OFF
11a ONLY
1
3
4
5 6 7
2
Chapter 1 Product Overview
WLI-UTX-AG300 User Manual 7
6AOSS/WPS Button
To initiate AOSS/WPS, hold down this button until the SECURITY LED ashes (about 1 second).
Then, push or click the AOSS or WPS button on your wireless access point device to complete
the connection. Both devices must be powered on for this to work.
7SECURITY LED(Blue)
Shows wireless LAN status.
On During boot and for one minute after wireless settings are complete
2 blinks During AOSS/WPS
Blinking AOSS/WPS error
O Normal operation/Power o
WLI-UTX-AG300 User Manual 8
Chapter 2 - Installation
Setup

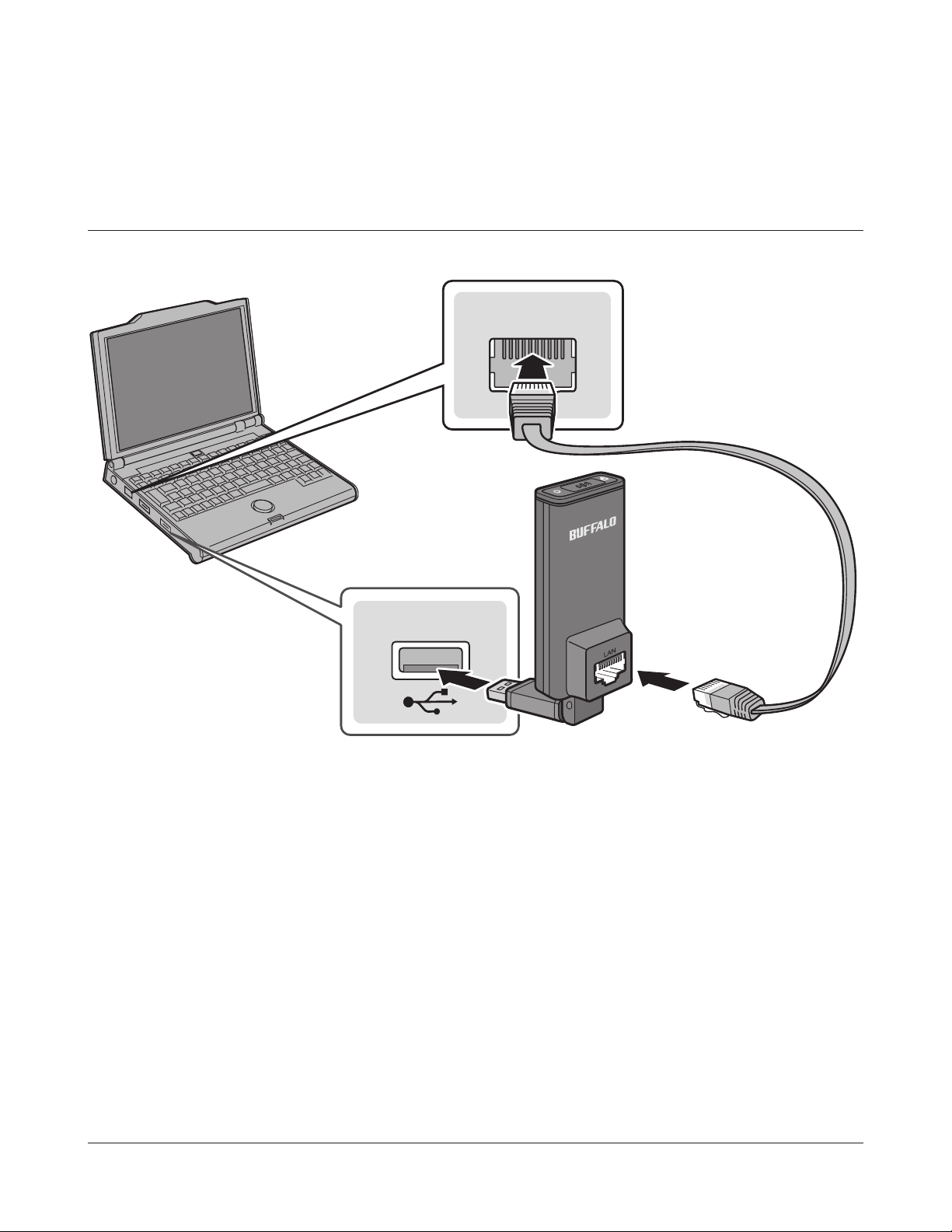

1Connect the USB port of the wireless media bridge to a PC.
2Connect the wireless media bridge to the PC with a LAN cable.
USB
LAN
If this product is wirelessly connected with a TV, this completes the procedure.
If using this product for the rst time (or when a wireless connection has not been made before),
or if the wireless access point did not support AOSS or WPS, establish the wireless connection by
referring to chapter 4.
WLI-UTX-AG300 User Manual 9
Chapter 3 - Conguration
The web-based conguration tool lets you change the wireless media bridge’s settings. Don’t
change these settings unless you know what you’re doing.
Installing the Ethernet Converter Manager
(Windows)
The Ethernet Converter Manager is required to display the wireless media bridge Conguration
Interface in a Windows computer. Use the procedure below to perform the installation.

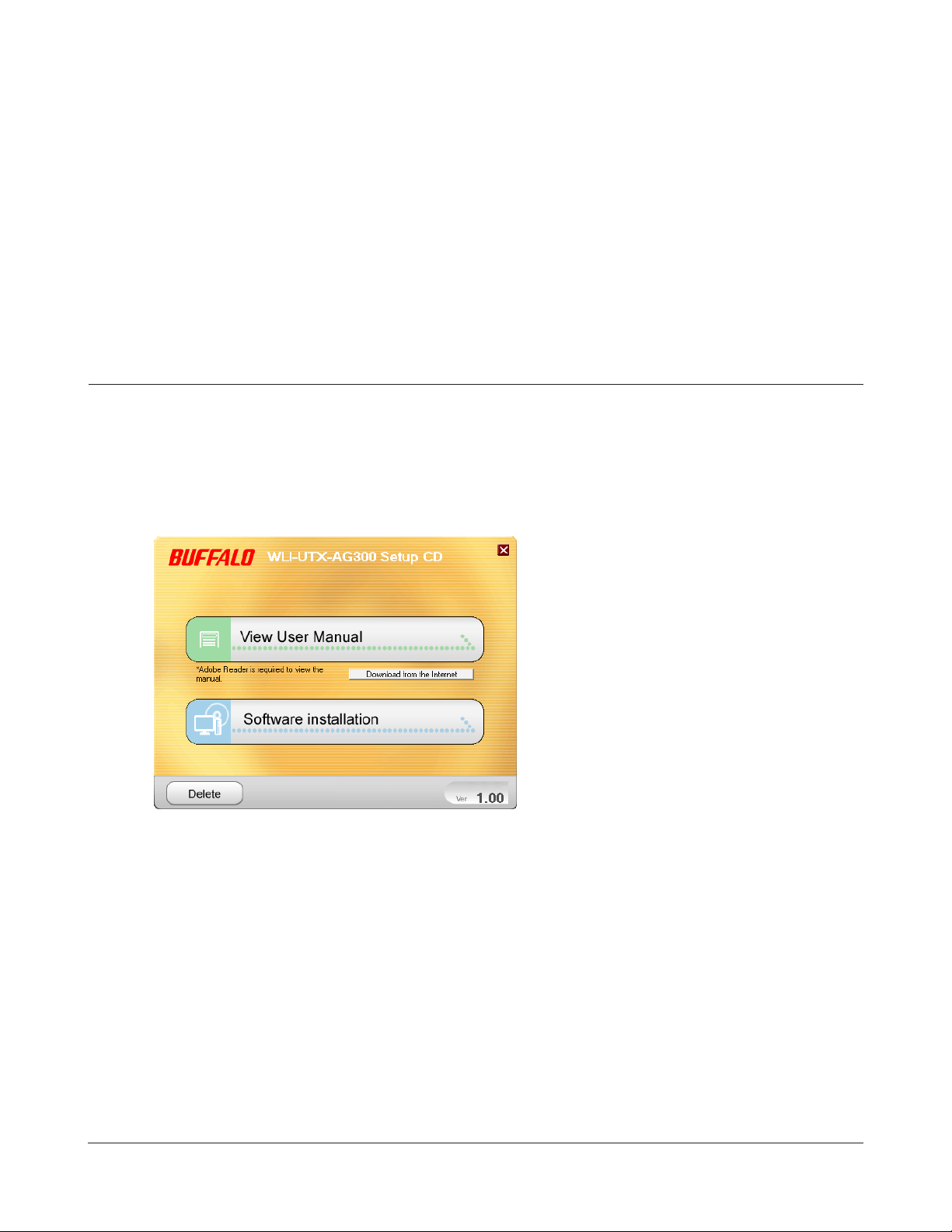

1
2
3
Load the Setup CD into your computer.
Step through the wizard to install the Ethernet Converter Manager software.
Click [Software installation].
