Burris DROPTINE HD Bedienungsanleitung

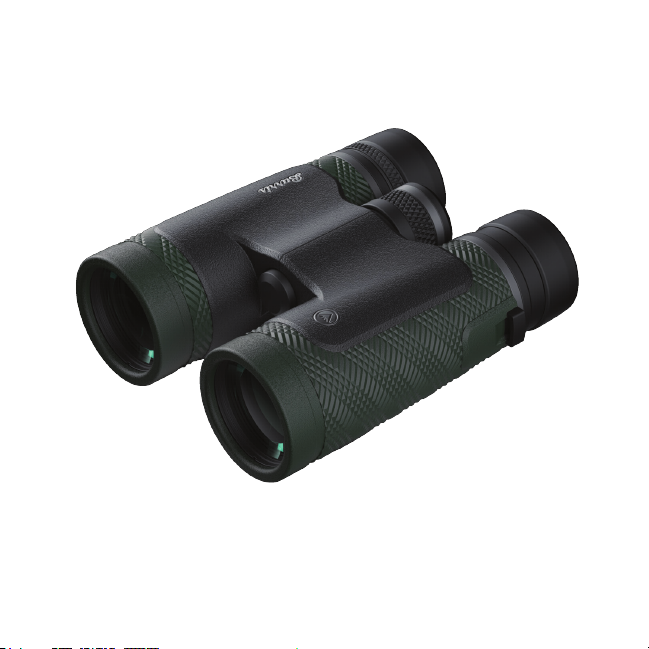

DROPTINE HD
BINOCULAR
User Guide
2 | Burris Droptine HD Binocular User Guide
TABLE OF CONTENTS
Overview............................................................................
Product Map .......................................................................
Eyepiece Adjustments .........................................................
Focusing the Binocular ........................................................
Care and Maintenance ........................................................
8x42 mm Specifications ......................................................
10x42 mm Specifications ....................................................
Warranty............................................................................
3
4
5
6
7
8
9
11
Congratulations on purchasing a Burris®Droptine HD Binocular!
Hunters have trusted Burris optics for over 40 years and the Droptine
HD binoculars continue the tradition of reliability, affordability and
performance. High-performance lenses and BaK 4 prisms produce
sharper images and edge-to-edge clarity.
• All lenses are fully multi-coated for maximum light transmission and
reduced glare.
• Internally, they are nitrogen-filled for fog proof performance.
Outer surfaces are rubber armored for protection and a sure grip.
• For convenient operation the center focus knob provides quick
adjustment and twist-up eyecups make them easy to use with
eyeglasses.
• Comes with a durable carrying case and neoprene neck strap for
all-day comfort.
• Covered by the Burris Forever Warranty.
Burris Droptine HD Binocular User Guide | 3
4 | Burris Droptine HD Binocular User Guide

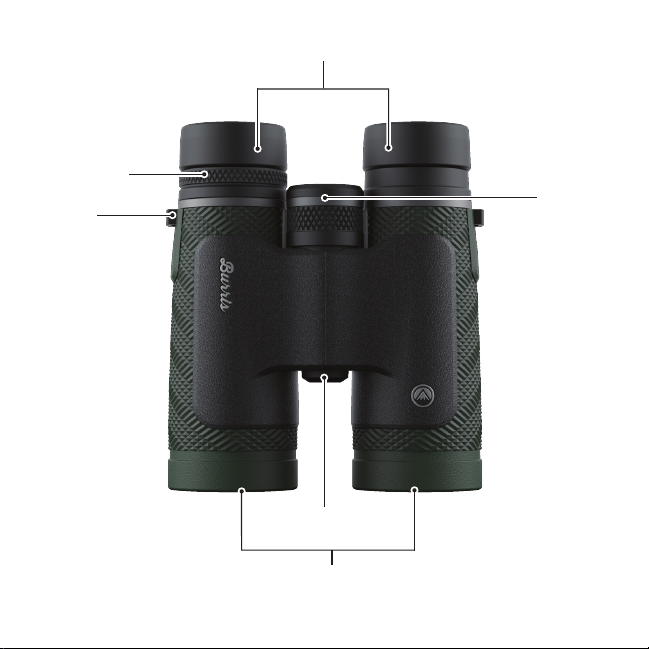

ADJUSTABLE
DIOPTER
TRIPOD ADAPTER
OBJECTIVE LENS
NECK
HARNESS
LOOP
ADJUSTABLE EYECUPS
CENTER
FOCUS
KNOB
Burris Droptine HD Binocular User Guide | 5
Eyecup Adjustment
The eyecups on the Droptine HD binoculars are adjustable to ensure a
full field of view. Twist the eyecups up for normal use, or turn them down
when wearing eyeglasses or sunglasses.
IPD Adjustment
The Inter-pupillary Distance or IPD is the distance between the center
of your left and right eye. Setting the IPD is simple and easy. The two
binocular barrels pivot on a hinge to match your eyes. Move the barrels
in and out until you see a single bright image with no shadows.
6 | Burris Droptine HD Binocular User Guide
Focusing the Binoculars
Your Droptine HD binoculars can be set up for your eyes with two
simple steps:
1. Find the diopter adjustment ring located below the right eyecup.
Start with the diopter adjustment set to zero with the two hash
marks aligned.
Focus on an object approximately 25 yards away. Place the lens
cap on the objective lens of the right side and use the center focus
knob to bring the object into sharp focus. Leave the center focus
knob in this position while you adjust the diopter in step 2.
2. Uncover the objective lens on the right side, and cover the left
objective lens while looking at the same object. Next, turn the
diopter ring to bring the object into sharp focus. To fine tune the
focus, you might have to turn the diopter slightly past sharp focus
and then back again. The diopter focus only affects the right side.
Once you have the diopter focused, you can now use the center
focus knob for all viewing and adjustment.
Burris Droptine HD Binocular User Guide | 7
Care & Maintenance
The Droptine HD binocular is fully waterproof and fogproof. In the
event that the lenses are subjected to dust, dirt or mud, follow these
steps to clean and protect the lens surface. Failure to remove grit
before final cleaning can damage lens coatings.
Coarse dirt/debris must be removed from the lens surface. The
most convenient way to clean a lens surface is to use a Lens Pen.
Position the binocular so particles will fall away from the lens, and
then use the Lens Pen or soft brush to gently whisk away the debris
while blowing on the lens to dislodge the particles. For heavy dirt,
like dried mud, use a spray of clean water or lens cleaning fluid to
remove the dirt.
Your Burris optic will provide reliable performance given reasonable
care and treatment. All moving assemblies are permanently
lubricated. Only occasional cleaning of the outside of the binocular
and the exterior lenses is required. Never disassemble your
binocular. Disassembly by anyone other than our factory will
void the warranty. If you have any other problems, contact Burris
Customer Service.

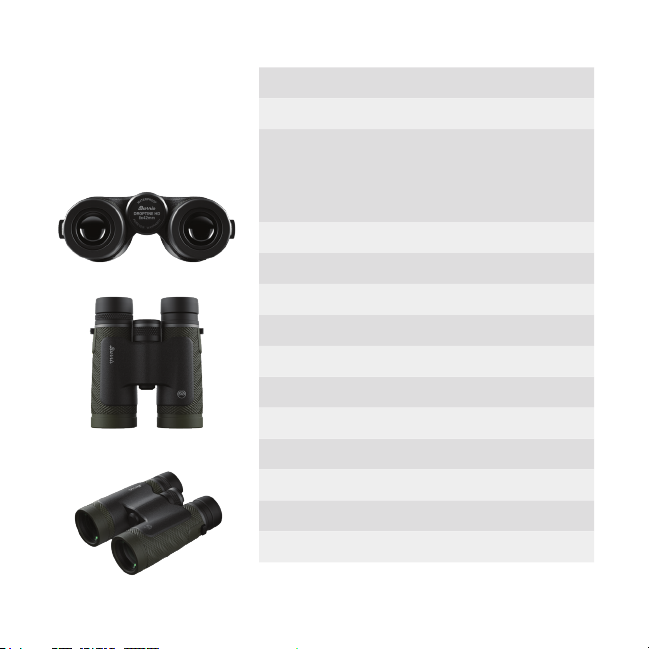

Magnication 8x
Objective Diameter 42 mm
Field of View @ 1000yds 393 ft.
Dipoter Adjustment -4 to +4
Optics System Roof Prism
Close Focus 7.5 ft
Exit Pupil 5.2 mm
Eye Relief 0.7 in.
IP Distance Range 55 mm - 73 mm
Eyecups Adjustable, Aluminum
Nitrogen Filled Yes
Waterproof IPX7
Weight 25.6 oz
Dimensions 5.8”x5.3”x2.1”
Neck Strap Yes, Neoprene
Objective Lens Cover Included
DROPTINE HD
8x42mm
Item # 300278
8| Burris Droptine HD Binocular User Guide
Magnication 10x
Objective Diameter 42 mm
Field of View @ 1000yds 330 ft.
Dipoter Adjustment -5 to +5
Optics System Roof Prism
Close Focus 7.5 ft
Exit Pupil 4.2 mm
Eye Relief 0.6 in.
IP Distance Range 55 mm - 73 mm
Eyecups Adjustable, Aluminum
Nitrogen Filled Yes
Waterproof IPX7
Weight 25.6 oz
Dimensions 5.8”x5.3”x2.1”
Neck Strap Yes, Neoprene
Objective Lens Cover Included
DROPTINE HD
10x42mm
Item # 300279
Burris Droptine HD Binocular User Guide | 9
