BWI Eagle AIR-EAGLE SR PLUS Bedienungsanleitung

AIR-EAGLE SR PLUS

36-HH-9-VBR

2.4 GHz RF Transmitter

Document Date: 5/12/2023

Product Rev: 12

36-HH-9-VBR

WARRANTY STATEMENT

BWI Eagle Inc. warrants the Air-Eagle Remote Control System, if properly used and installed, will be free

from defects in material and workmanship for a period of 1 year after date of purchase. Said warranty to

include the repair or replacement of defective equipment. This warranty does not cover damage due to

external causes, including accident, problems with electrical power, usage not in accordance with product

instructions, misuse, neglect, alteration, repair, improper installation, or improper testing. This limited

warranty, and any implied warranties that may exist under state law, apply only to the original purchaser of

the equipment, and last only for as long as such purchaser continues to own the equipment. This warranty

replaces all other warranties, express or implied including, but not limited to, the implied warranties or

merchantability and fitness for a particular purpose. BWI Eagle makes no express warranties beyond

those stated here. BWI disclaims without limitation, implied warranties of merchantability and fitness for a

particular purpose. Some jurisdictions do not allow the exclusion of implied warranties so this limitation

may not apply to you. To obtain warranty service, contact BWI Eagle for a return material authorization.

When returning equipment to BWI Eagle, the customer assumes the risk of damage or loss during

shipping and is responsible for the shipping costs incurred.

SIGNAL RANGE

Max range statements are estimates based on a clear line of sight with few interferences. Actual range will

vary based on transmitting power, orientation of transmitter and receiver, height of transmitting and

receiving antennas, weather conditions, electronic interference, terrain, and physical obstacles, including

but not limited to; walls, building structures, trees (foliage), metal objects, and landscape (hills, mountains).

WIRELESS STOP, ASTOP, and E-STOP SYSTEMS

Wireless E-STOP systems should never be considered a primary life-saving device.

At least one hard-wired switch must be available in the event the wireless system is

not operational. Failure to comply may result in serious injury or death to personnel

and damage to equipment.

Wireless STOP and ASTOP transmitters are not failsafe emergency stop controls.

They are NOT to be used as a life-saving device. They are designed for wireless

control of equipment or vehicle remote operation. Failure to use as intended may

result in serious injury or death to personnel and damage to equipment.

36-HH-9-VBR

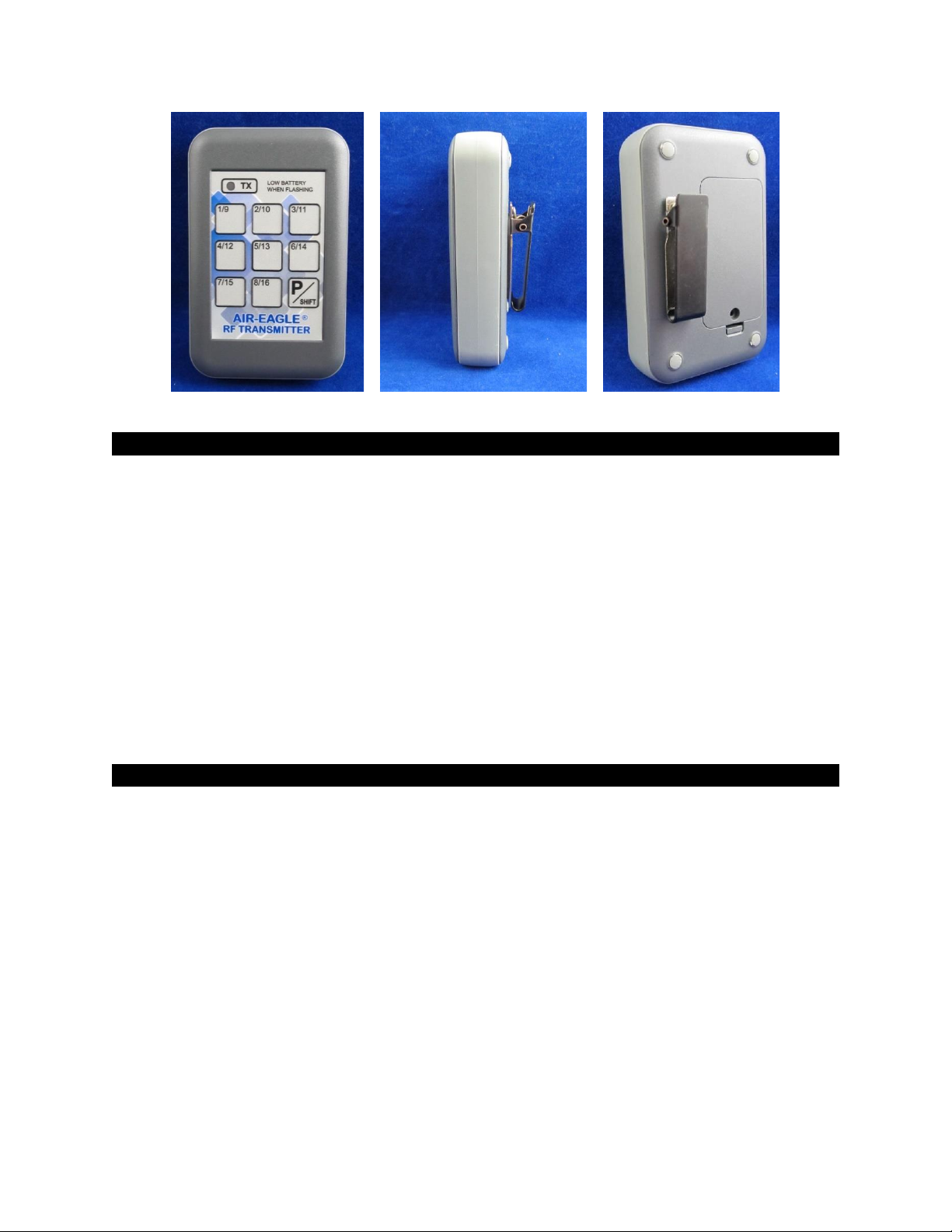

INTRODUCTION

The Air-Eagle SR Plus is an RF system designed for short to medium range wireless remote control of

electrical apparatus in a variety of industrial applications. Systems can consist of any number of receivers

and handheld or contact input transmitters working together to create a short to medium-range radio

frequency system that operates hazardous or hard-to-reach equipment from safe, convenient locations.

Eight user selectable frequencies allow multiple systems to be used in the same area without

interference.

This handheld transmitter is equipped to send up to sixteen unique digital commands to an Air-Eagle SR

Plus receiver located up to 600 feet away. This model is equipped with vibrating feedback to confirm the

transmitted signal has reached the receiver. It will automatically go into “sleep” mode during periods of

inactivity to dramatically extend battery life. The Air-Eagle SR Plus transmitter utilizes spread-spectrum

technology and provides the utmost in security and reliability.

INITIAL OPERATION SET-UP

This transmitter comes ready to operate with batteries installed. It is factory set to operate on frequency 1

at power level 4 (max range 600 feet). No setup is necessary. To change frequency or power level, see

FREQUENCY PROGRAMMING and POWER LEVEL PROGRAMMING sections.

36-HH-9-VBR

CONTROLS & INDICATORS

TX LED

LED illuminates RED while button is pressed and unit is transmitting.

When this LED blinks briefly following a transmission, the battery needs

to be replaced. *

Buttons 1 - 8

Transmits individual commands 1 - 8 to the receiver.

Button P/Shift

The P/Shift button performs two functions:

1. If button is pressed momentarily followed by another button

within 10 seconds, the higher code on that button is

transmitted. This allows for transmission of codes 9-16.

2. If button is pressed and held for longer than 5 seconds the

transmitter will enter programming mode. See

PROGRAMMING sections.

Buttons 9 - 16

Transmits individual commands 9 - 16 to the receiver.

Vibrate Alert

Vibration confirms signal has been transmitted successfully.

*Note: The low battery notification signals have been improved to provide more noticeable

indications and to safely disable communications BEFORE a low battery condition can corrupt

internal memory causing device failure. When a low battery is first detected, the TX LED will blink

several times after all buttons are released. If it is possible to replace the batteries now, please do

so. If not, the operator has approximately 15 more button activations. During this time, when a

button is pressed and hFeld, the TX LED will blink SLOWLY. The slow blinking will continue several

more times after all buttons are released. Transmissions are still being sent to the receiver during

this time. When a button is pressed and the TX LED is RAPIDLY blinking, the RF output is

disabled, and no signal will reach the receiver. The batteries MUST NOW BE REPLACED to

resume normal functions.

GENERAL OPERATION

This transmitter sends up to 16 independent commands. Each button sends an RF Code for that channel.

Button 1 transmits channel 1 commands, button 2 transmits channel 2 commands, etc. To send

commands 9 - 16, the P/Shift button must be used. As noted under CONTROLS & INDICATORS, the

P/Shift button serves two purposes. As the “P” button, it enters the unit into programming mode. As the

“Shift” button, it allows the unit to send commands 9 - 16 to the receiver.

To use as the “P” button, press and hold the P/Shift button for approximately 5 seconds to enter

programming mode. (See PROGRAMMING sections for more details).

To use as the “Shift” button, press the P/Shift button momentarily. The TX LED will begin to flash rapidly

indicating the unit is in shift mode. While in shift mode pressing buttons 1 - 8 transmits the higher

numbered code for that button. The transmitter will stay in the Shift mode while buttons are being pressed

within 10 seconds of one another. During this time, the TX LED gives visual confirmation that the

transmitter is in Shift mode by continuously flashing GREEN/RED rapidly. After 10 seconds of inactivity,

the transmitter will return to standard mode and the TX LED will go out. To exit shift mode immediately

without waiting for it to time out, press the P/Shift button momentarily to return to standard mode.

36-HH-9-VBR

FREQUENCY PROGRAMMING

Read instructions completely before beginning programming procedure.

Transmitters are shipped from the factory set to frequency 1 by default. The frequency can be changed at

any time by following the procedure below. Once changed, it is recommended to label the transmitter with

the selected frequency number.

*Note: Current frequency setting is maintained in flash memory during battery replacement. No

reprogramming of frequency setting is necessary after battery change.

To Select Frequency:

1. Press and hold the P/Shift button until the TX LED illuminates RED (approximately 5 seconds).

2. Release the P/Shift button. While the TX LED is still illuminated RED, press button 1 to select

frequency 1, or button 2 to select frequency 2, etc

3. After frequency is set, the TX LED will confirm the selection by blinking the corresponding code of

the frequency that was set. For example, if frequency 1 was selected, the TX LED will blink RED

once, if frequency 6 was selected, the TX LED will blink GREEN twice, etc. If the confirmation

shows the incorrect frequency, simply restart the programming from step 1.

Frequency Selected:

TX LED Blinks:

Frequency 1

1 RED flash

Frequency 2

2 RED flashes

Frequency 3

3 RED flashes

Frequency 4

4 RED flashes

Frequency 5

1 GREEN flash

Frequency 6

2 GREEN flashes

Frequency 7

3 GREEN flashes

Frequency 8

4 GREEN flashes

*Note: If no frequency is selected during the programming procedure the transmitter will blink the

frequency currently set in the transmitter as shown in the chart above. This can be used to view the

transmitter’s frequency without changing it.

Programming is now complete. Repeat the above procedure to change the frequency at any time.

36-HH-9-VBR

POWER LEVEL PROGRAMMING

Read instructions completely before beginning programming procedure.

Transmitters are shipped from the factory set to power level 4 (max range 600 ft.) by default. The power

level can be changed at any time by following the procedure below.

*Note: Current power level setting is maintained in flash memory during battery replacement. No

reprogramming of power level setting is necessary after battery change.

To Select Power Level:

1. Press and hold the P/Shift button until the TX LED begins blinking GREEN (approximately 8

seconds).

2. Release the P/Shift button. While the TX LED is still blinking GREEN, press button 1 to select

power level 1, or button 2 to select power level 2, etc.

3. After the power level is set, the TX LED will confirm the selection by blinking the corresponding

code of the level that was set. For example, if power level 1 was selected, the TX LED will blink

GREEN once, if power level 2 was selected, the TX LED will blink GREEN twice, etc. If the

confirmation shows the incorrect power level, simply restart the programming from step 1.

Power Level Selected:

TX LED Blinks:

Power Level 1 (approximately 100 ft. range)

1 GREEN flash

Power Level 2 (approximately 250 ft. range)

2 GREEN flashes

Power Level 3 (approximately 400 ft. range)

3 GREEN flashes

Power Level 4 (approximately 600 ft. range)

4 GREEN flashes

*Note: If no power level is selected during the programming procedure the transmitter will blink the power

level currently set in the transmitter as shown in the chart above. This can be used to view the

transmitter’s power level without changing it.

Programming is now complete. Repeat the above procedure to change the frequency at any time.

APPROVALS

United States (FCC)

MCQ-XBEE3

Canada (IC)

1846A-XBEE3

Europe (CE)

ETSI

Australia

RCM

Brazil

ANATEL 06329-18-01209

36-HH-9-VBR

SPECIFICATIONS

Keypad

Durable Sealed Membrane Keypad –Eliminates Dust, Dirt and

Moisture Failures

Enclosure

ABS UL94 HB

Enclosure with ring is rated IP54 (Not

Waterproof)

Protective Ring

SEBS (TPE)

Power Requirements

3.0 VDC

Battery Type

(2) 1.5V lithium each, size AA, to equal 3.0VDC nominal. For

best performance use only Energizer Brand Lithium Batteries. *

Battery Life (Active Usage)

Up to 6 months

Battery Life (Sleep Mode)

Up to 1 Year

Transmit Frequency

2.4GHz Spread Spectrum

RF Networks

Eight Independent Network Frequencies

RF Output Power

User Selectable from 1mW to 60mW

Max Transmit Range

User-Selectable from 100 to 600 Feet

Operating Temperature

-40oF to +185oF

*Note: Current settings are maintained in flash memory during battery replacement. No

reprogramming of settings is necessary.

**Note: Max range statements are estimates based on a clear line of sight with few interferences.

Actual range will vary based on transmitting power, orientation of transmitter and receiver, height of

transmitting and receiving antennas, weather conditions, electronic interference, terrain, and

physical obstacles, including but not limited to; walls, building structures, trees (foliage), metal

objects, and landscape (hills, mountains).

DIMENSIONS

Andere Handbücher für AIR-EAGLE SR PLUS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BWI Eagle Sender Handbücher

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36UP-HHED-4-001 Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE XLT 441UP-HHED-4-001 Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1100R1-DC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE XLT Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-HH-9 Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000N4W-120VAC Handbuch

BWI Eagle

BWI Eagle 461-1400-AC Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-RB-N4-120VAC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE XLT 441-HH-4-VBR Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1150-120VAC Handbuch

BWI Eagle

BWI Eagle 441-10100-AC Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1420-2B-120VAC Handbuch

BWI Eagle

BWI Eagle 36-HHE-4 Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1000-120VAC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE XLT PLUS 461-1400-AC Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE XLT Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE XLT 44-10100-120I-AC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1400-2B-120VAC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE FM2 43-1100R2-DC Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE XLT Bedienungsanleitung

BWI Eagle

BWI Eagle AIR-EAGLE XLT Handbuch

BWI Eagle

BWI Eagle AIR-EAGLE SR PLUS 36-1400-4B-120VAC Handbuch

Beliebte Sender Handbücher anderer Marken

NIVELCO

NIVELCO EasyTREK SCA-300 Series Betriebsanleitung

Honeywell

Honeywell 5816WMBR Bedienungsanleitung

Kamstrup

Kamstrup READy MTU Betriebsanleitung

Omega

Omega ZW Series Bedienungsanleitung

ABB

ABB Field 264H Leitfaden

Alinco

Alinco DJ-V17T Bedienungsanleitung

Dejero

Dejero EnGo 3x Bedienungsanleitung

Rosemount

Rosemount 4600 Bedienungsanleitung

Speaka Professional

Speaka Professional 2342740 Bedienungsanleitung

trubomat

trubomat GAB 1000 Bedienungsanleitung

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Bedienungsanleitung

Rondish

Rondish UT-11 Bedienungsanleitung

MG 10JRE Bedienungsanleitung

Burkert

Burkert 8177 Bedienungsanleitung

Firetide

Firetide HotPort 3203 Handbuch

Tele Radio

Tele Radio T9-02 Bedienungsanleitung

Rotronic

Rotronic HygroFlex HF3 Series Bedienungsanleitung

Jamara

Jamara FCX6 Pro Tel Bedienungsanleitung
