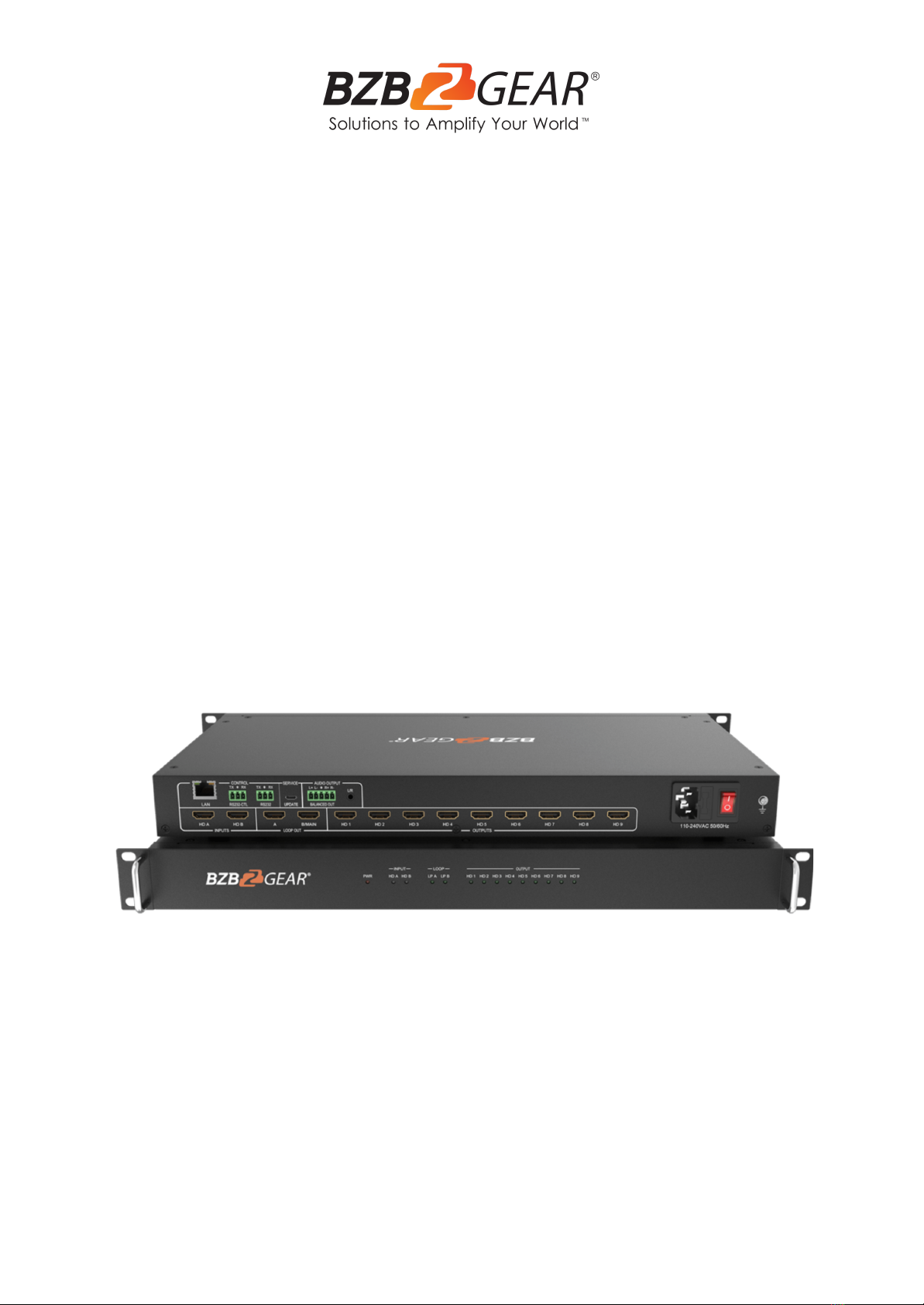

BZB Gear BG-UHD-VW29 Bedienungsanleitung

BG-UHD-VW29

Crestron Driver User Manual

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Table of Contents

Statement 4

Safety Precaution 4

Introduction 5

Installation 5

Inputs 6

Outputs 10

Tech Support 11

Warranty 11

Mission Statement 11

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●Unplug this device during lightning storms

●Clean only with a soft dry microﬁber cloth.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

●Only use accessories speciﬁed by the manufacture

●Product speciﬁcations may be subject to technical upgrades without further notice

●Do not hot plug when it is working.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Introduction

This driver has been designed to provide control for the BZBGEAR BG-UHD-VW29 via

TCP/IP.

Installation

●You will need to copy all of the ﬁles in the folder to your project directory to allow

Simpl Windows to recognize the driver module.

●When using TCP/IP for the connection use the following settings:

○IP: The IP you set for the product.

○Port: The port you set for the product. (Default: 23)

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Inputs

The module has the following commands available as inputs:

Command

Type

Description

RX_Buﬀer

Product information feedback input

GetInxFormatStatus

Get the status of the HDMI input format. Trigger on the

rising edge.

GetSystemStatus

Get the status of the system. Trigger on the rising edge.

Source_A_to_all

Press to send Input A to all Output

Source_B_to_all

Press to send Input B to all Output

GetOutxTypeStatus

Get the status of the HDMI output type. Trigger on the

rising edge.

GetOutxFormatStatus

Get the status of the HDMI output format. Trigger on the

rising edge.

Preset_Recall[X]

Recall the saved preset (X range 1-10).

Preset_Save[X]

Save the preset (X range 1-10).

Set_B_MAIN_loop_out[X]

Input port X (range 1-2) to select the video output main

loop.

1. Input A

2. Input B

Set_Audio_Output[X]

Input port X(range 1-2) to select the audio output.

1. Input A

2. Input B

OutxMarginLeft[X]

In splicing mode, adjust the size of the left margin of the

output port x(range 1-9). [X] range 0-100.

OutxMarginRight[X]

In splicing mode, adjust the size of the right margin of the

output port x(range 1-9). [X] range 0-100.

OutxMarginTop[X]

In splicing mode, adjust the size of the top margin of the

output port x(range 1-9). [X] range 0-100.

OutxMarginBottom[X]

In splicing mode, adjust the size of the bottom margin of

the output port x(range 1-9). [X] range 0-100.

TvWall_Mode_[X]

Conﬁgure the video wall mode [X] (range 1-12).

1) 2x1 (row x column)

7) 2x2

2) 1x2

8) 2x3

3) 1x3

9) 3x3

4) 3x1

10) 4x2

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Command

Type

Description

5) 4x1

11) 2x4

6) 1x4

12) 3x3

SetMargin1x2_Out[1]

Press to send margin output 1 to videowall 1x2.

SetMargin1x2_Out[2]

Press to send margin output 2 to videowall 1x2.

SetMargin1x3_Out[1]

Press to send margin output 1 to videowall 1x3.

SetMargin1x3_Out[2]

Press to send margin output 2 to videowall 1x3.

SetMargin1x3_Out[3]

Press to send margin output 3 to videowall 1x3.

SetMargin3x1_Out[1]

Press to send margin output 1 to videowall 3x1.

SetMargin3x1_Out[2]

Press to send margin output 2 to videowall 3x1.

SetMargin3x1_Out[3]

Press to send margin output 3 to videowall 3x1.

SetMargin4x1_Out[1]

Press to send margin output 1 to videowall 4x1.

SetMargin4x1_Out[2]

Press to send margin output 2 to videowall 4x1.

SetMargin4x1_Out[3]

Press to send margin output 3 to videowall 4x1.

SetMargin4x1_Out[4]

Press to send margin output 4 to videowall 4x1.

SetMargin1x4_Out[1]

Press to send margin output 1 to videowall 1x4.

SetMargin1x4_Out[2]

Press to send margin output 2 to videowall 1x4.

SetMargin1x4_Out[3]

Press to send margin output 3 to videowall 1x4.

SetMargin1x4_Out[4]

Press to send margin output 4 to videowall 1x4.

SetMargin2x2_Out[1]

Press to send margin output 1 to videowall 2x2.

SetMargin2x2_Out[2]

Press to send margin output 2 to videowall 2x2.

SetMargin2x2_Out[3]

Press to send margin output 3 to videowall 2x2.

SetMargin2x2_Out[4]

Press to send margin output 4 to videowall 2x2.

SetMargin3x2_Out[1]

Press to send margin output 1 to videowall 3x2.

SetMargin3x2_Out[2]

Press to send margin output 2 to videowall 3x2.

SetMargin3x2_Out[3]

Press to send margin output 3 to videowall 3x2.

SetMargin3x2_Out[4]

Press to send margin output 4 to videowall 3x2.

SetMargin3x2_Out[5]

Press to send margin output 5 to videowall 3x2.

SetMargin3x2_Out[6]

Press to send margin output 6 to videowall 3x2.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Command

Type

Description

SetMargin2x3_Out[1]

Press to send margin output 1 to videowall 2x3.

SetMargin2x3_Out[2]

Press to send margin output 2 to videowall 2x3.

SetMargin2x3_Out[3]

Press to send margin output 3 to videowall 2x3.

SetMargin2x3_Out[4]

Press to send margin output 4 to videowall 2x3.

SetMargin2x3_Out[5]

Press to send margin output 5 to videowall 2x3.

SetMargin2x3_Out[6]

Press to send margin output 6 to videowall 2x3.

SetMargin2x4_Out[1]

Press to send margin output 1 to videowall 2x4.

SetMargin2x4_Out[2]

Press to send margin output 2 to videowall 2x4.

SetMargin2x4_Out[3]

Press to send margin output 3 to videowall 2x4.

SetMargin2x4_Out[4]

Press to send margin output 4 to videowall 2x4.

SetMargin2x4_Out[5]

Press to send margin output 5 to videowall 2x4.

SetMargin2x4_Out[6]

Press to send margin output 6 to videowall 2x4.

SetMargin2x4_Out[7]

Press to send margin output 7 to videowall 2x4.

SetMargin2x4_Out[8]

Press to send margin output 8 to videowall 2x4.

SetMargin4x2_Out[1]

Press to send margin output 1 to videowall 4x2.

SetMargin4x2_Out[2]

Press to send margin output 2 to videowall 4x2.

SetMargin4x2_Out[3]

Press to send margin output 3 to videowall 4x2.

SetMargin4x2_Out[4]

Press to send margin output 4 to videowall 4x2.

SetMargin4x2_Out[5]

Press to send margin output 5 to videowall 4x2.

SetMargin4x2_Out[6]

Press to send margin output 6 to videowall 4x2.

SetMargin4x2_Out[7]

Press to send margin output 7 to videowall 4x2.

SetMargin4x2_Out[8]

Press to send margin output 8 to videowall 4x2.

SetMargin3x3_Out[1]

Press to send margin output 1 to videowall 3x3.

SetMargin3x3_Out[2]

Press to send margin output 2 to videowall 3x3.

SetMargin3x3_Out[3]

Press to send margin output 3 to videowall 3x3.

SetMargin3x3_Out[4]

Press to send margin output 4 to videowall 3x3.

SetMargin3x3_Out[5]

Press to send margin output 5 to videowall 3x3.

SetMargin3x3_Out[6]

Press to send margin output 6 to videowall 3x3.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Command

Type

Description

SetMargin3x3_Out[7]

Press to send margin output 7 to videowall 3x3.

SetMargin3x3_Out[8]

Press to send margin output 8 to videowall 3x3.

SetMargin3x3_Out[9]

Press to send margin output 9 to videowall 3x3.

SetVideoRouting[X]

Input port X (range 1-2) to select the video output source:

1) Output 1

6) Output 6

2) Output 2

7) Output 7

3) Output 3

8) Output 8

4) Output 4

9) Output 9

5) Output 5

SetOutType[X]

Set output X (range 1-4) video type:

1) UHD-HDMI

2) UHD-DVI

3) UHD-HDMI 1.4

4) UHD-HDMI 2.2

SetOutputFormat[X]

Output port X (range 1-14) select output format:

1) 3840x2160p60

8) 1366x768p60

2) 3840x2160p50

9) 1360x768p60

3) 1920x1200p60

10) 1280x1024p60

4) 1920x1080p60

11) 1280x768p60

5) 1920x1080p50

12) 1280x720p50

6) 1600x1200p60

13) 1280x720p60

7) 1400x1050p60

14) 1024x768p60

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-UHD-VW29 Crestron Driver User Manual

Outputs

The module has the following commands available to be used as feedback outputs:

Command

Type

Description

TX_Buﬀer

Equipment control command issuance.

FB_InxFormat[X]

Input format feedback of input channel X (range 1-4).

FB_IN1_Audio-Route_LR

Source selected to route audio.

FB_IN2_Audio-Route_LR

Source selected to route audio.

FB_Preset[X]

Save a preset or recall the preset X (range 1-4) feedback

FB_TvWall_Mode_[X]

Spliced wall mode X (range 1-7) feedback:

0) The preset was recalled or saved successfully.

1) The preset was not recalled or saved.

FB_SetVideoRouting[X]

Input port x (range 1-2) to select the video output source

feedback:

1) Output 1

2) Output 2

3) Output 3

4) Output 4

5) Output 5

6) Output 6

7) Output 7

8) Output 8

9) Output 9

FB_OutxType[X]

Set output X (range 1-4) video type feedback:

1) UHD-HDMI

2) UHD-DVI

3) UHD-HDMI 1.4

4) UHD-HDMI 2.2

FB_OutxFormat[X]

Output port x (range 1-9) video type feedback [X] (range

1-14):

1) 3840x2160p60

8) 1366x768p60

2) 3840x2160p50

9) 1360x768p60

3) 1920x1200p60

10) 1280x1024p60

4) 1920x1080p60

11) 1280x768p60

5) 1920x1080p50

12) 1280x720p50

6) 1600x1200p60

13) 1280x720p60

7) 1400x1050p60

14) 1024x768p60

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 10

Andere Handbücher für BG-UHD-VW29

Inhaltsverzeichnis

Andere BZB Gear Computerhardware Handbücher

BZB Gear

BZB Gear BG-UHD-VW24 Bedienungsanleitung

BZB Gear

BZB Gear BG-AVTPG-KIT Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-VW24 Bedienungsanleitung

BZB Gear

BZB Gear BG-A88M Bedienungsanleitung

BZB Gear

BZB Gear BG-A1616MD Bedienungsanleitung

BZB Gear

BZB Gear BG-MKVM41R Bedienungsanleitung

BZB Gear

BZB Gear BG-AU88-MA Bedienungsanleitung

Beliebte Computerhardware Handbücher anderer Marken

EMC2

EMC2 VNX Series Betriebsanleitung

Panasonic

Panasonic DV0PM20105 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Bedienungsanleitung

Gigabyte

Gigabyte B660M DS3H AX DDR4 Bedienungsanleitung

Raidon

Raidon iT2300 Bedienungsanleitung

National Instruments

National Instruments PXI-8186 Bedienungsanleitung

Hauppauge

Hauppauge WinTV-HVR-2250 Bedienungsanleitung

Kontron

Kontron CP6002 Bedienungsanleitung

Manhattan

Manhattan 702843 Bedienungsanleitung

Aphex

Aphex 230 Bedienungsanleitung

AMD

AMD Phenom II Betriebshandbuch

Intel

Intel NUC 12 Pro Bedienungsanleitung

dbx

dbx Zone Pro 1260 Bedienungsanleitung

Galaxy

Galaxy GHDX2-2430S-24F4D Bedienungsanleitung

Intel

Intel AXXRMFBU4 Bedienungsanleitung

Kontron

Kontron DIMM-PC/MD Bedienungsanleitung

ST X-NUCLEO-SAFEA1B Betriebsanleitung

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Bedienungsanleitung
