BG-EXD-150C

150m 4K60 DisplayPort HDBaseT Extender with USB KVM

User Manual

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-EXD-150C PRODUCT MANUAL

TABLE OF CONTENTS

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Packing List 6

Speciﬁcations 6

Operation Controls and Functions 8

IR Pin Deﬁnition 10

Connection Diagrams 11

Tech Support 12

Warranty 12

Mission Statement 12

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Introduction

The BG-EXD-150C is a 4K60 DisplayPort (DP) range extender that can

transmit DP video, bi-directional IR and RS-232 control signals, and also USB KVM

signals. It can transmit up to distances of 328ft/100m for a 4K60 signal and

492ft/150m for a 1080P signal using a single CAT6 cable.

The BG-EXD-150C converts the DP signal into a standard HDBaseT signal

and sends it via a LAN cable. Users can eﬀortlessly control the signal source device

or the display device using a remote thanks to the bi-directional IR signal

pass-through feature. It supports video resolutions of up to 4K2K@60Hz YUV 4:4:4

and also oﬀers a bi-directional POC function.

Furthermore, with support for DisplayPort 1.2, this extender facilitates the

transmission of visually lossless 4K Ultra HD resolutions, making it ideal for striking

digital signage or detailed content in medical settings. The extender is also

compatible with lossless audio formats, including Dolby TrueHD and DTS-HD,

enriching video content with powerful multi-channel sound, thus elevating the

viewer's experience. The USB KVM connectivity ensures full control of a DisplayPort

PC from a local console, which can be kept in a secure or temperature-controlled

environment, all while seamlessly delivering consistent video content to the display.

Features

● DisplayPort 1.2a and HDCP 2.2 compliant

● 21.6Gbps video bandwidth

● Video resolution up to 4K2K@60Hz YUV 4:4:4

● Signal transmission distance up to 328ft/100m for 4K60 signals or 492ft/150m

for 1080P signals via a single CAT6 cable

● LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and DTS-HD Master 7.1CH

● Smart compression for visually lossless transmissions

● Control a remote DisplayPort PC via keyboard and mouse with the KVM

function

●Bi-directional Power Over Cable (POC), IR, RS-232 and USB KVM signal

pass-through

●Advanced EDID management

●Compact design for easy and flexible installation

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Packing List

●1x BG-EXD-150C Transmitter

●1x BG-EXD-150C Receiver

●1x 24V / 1A Locking Power Supply

●1x IR Blaster Cable (1.5m)

●1x IR Receiver Cable (1.5m)

●2x 3-pin 3.81mm phoenix connectors

●4x Mounting ears

●8x KM3*4 Machine Screws

●1x 1.5m USB 2.0 Cable (A to B)

●1x User Manual

Speciﬁcations

Technical Speciﬁcations

DP Compliance

DP 1.2a

HDCP Compliance

HDCP 2.2

Video Bandwidth

Up to 21.6Gbps

Video Resolution

Up to 4K@60Hz YUV 4:4:4

USB Compliance

USB 1.1

HDR

HDR, HDR10, HDR10+, Dolby Vision, HLG

Color Space

RGB, YCbCr 4:4:4 / 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12-bit

Audio Formats

LPCM 2.0 (96KHz), Dolby Digital Plus 5.1CH and

DTS-HD Master 7.1CH

IR Level

5Vp-p/12Vp-p

IR Bandwidth

20K - 60KHz

Transmission

Distance

1080P@60Hz – 492ft /150m, 4K@60Hz – 328ft / 100m

ESD Protection

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

Connections

Transmitter

Input: 1 x DP IN [20-pin female]

Output:1 x HDBT OUT [RJ45, 8-pin female]

Control: 1 x IR IN [3.5mm Stereo Mini-jack]

1 x IR OUT [3.5mm Stereo Mini-jack]

1 x RS-232 [3 pin-3.81mm Phoenix jack]

1 x PC [USB-A]

1 x Service [Micro USB]

Receiver

Input: 1 x HDBT IN [RJ45, 8-pin female]

Output: 1 x DP OUT [20-pin female]

Control: 1 x IR IN [3.5mm Stereo Mini-jack]

1 x IR OUT [3.5mm Stereo Mini-jack]

1 x RS-232 [3 pin-3.81mm Phoenix jack]

2 x USB 1.1 [USB-A]

1 x Service [Micro-USB]

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Mechanical

Housing

Enclosure - Metal Composite

Color

Black

Dimensions (L x W x H)

140mm x 65mm x 18mm

Weight

0.5Lbs (8oz)

Power Supply

DC 24V/1A (US/EU standard, CE/FCC/UL certified)

Bi-directional POC

Power Consumption

Total power consumption: 13.2w

Operating Temperature

32° - 104°F / 0° - 40°C

Storage Temperature

-4° - 140°F / -20° - 60°C

Relative Humidity

20 - 90% RH (no condensation)

Resolution

8K30

4K60

4K24

1080P60

Cable Length

9.8ft / 3m

16ft / 5m

32ft / 10m

66ft / 20m

NOTE: The use of “Premium High Speed” HDMI 2.1 cables is highly recommended.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-EXD-150C PRODUCT MANUAL

Operation Controls and Functions

Transmitter

Name

Description

PWR LED

The red LED is on when the Transmitter is powered on.

EDID DIP

switch

Used for EDID setting (COPY by default). COPY: Copy the EDID

of the DP OUT port of Receiver. STD: Default 1080P 2CH

SERVICE

Micro USB port, used to update MCU ﬁrmware.

DC 24V

DC 24V/1A power input port.

Note: The extender supports POC functionality which means

that either Transmitter or Receiver is connected to 24V/1A

power supply, the other does not need a power supply.

HDBT OUT

HDBT output port, connected to the HDBT IN port of the

Receiver with CAT6 cable.

Link Signal

Indicator

(Green)

Solid: Transmitter and Receiver are in good connection status.

Flashing: Transmitter and Receiver are in poor connection

status.

Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator

(Yellow)

Solid: DP signal with HDCP.

Flashing: DP signal without HDCP.

Dark: No DP signal.

DP IN

DP signal input port, connected to DP source device such as

computer host.

IR IN

Connected to IR receiver cable. The IR receive signal will emit

to the IR OUT port of the Receiver.

IR OUT

Connected to IR blaster cable. The IR emit signal is from the IR

IN port of the Receiver.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-EXD-150C PRODUCT MANUAL

RS-232

3-pin phoenix connector, connected to a PC or control system

for RS-232 command transmission.

USB-B port, connected to PC.

Receiver

Name

Description

PWR LED

The power LED is on when the Receiver is powered on.

SERVICE

Micro USB port, used to update MCU ﬁrmware.

DC 24V

DC 24V/1A power input port.

Note: The extender supports POC functionality which means

that either Transmitter or Receiver is connected to 24V/1A

power supply, the other does not need a power supply.

HDBT IN

HDBT input port, connected to the HDBT OUT port of the

Transmitter with CAT6 cable.

Link Signal

Indicator (Green)

Solid: Transmitter and Receiver are in good connection

status.

Flashing: Transmitter and Receiver are in poor connection

status.

Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator (Yellow)

Solid: DP signal with HDCP.

Flashing: DP signal without HDCP.

Dark: No DP signal.

DP OUT

DP signal output port, connected to DP display device

such as TV or monitor.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-EXD-150C PRODUCT MANUAL

IR IN

Connected to the IR receiver cable. The IR receive signal

will emit to the IR OUT port of the Transmitter.

IR OUT

Connected to the IR blaster cable. The IR emit signal is

from the IR IN port of the Transmitter.

RS-232

3-pin phoenix connector, connected to a PC or control

system for RS-232 command transmission.

USB-A

Two USB-A ports, connected to a keyboard or mouse.

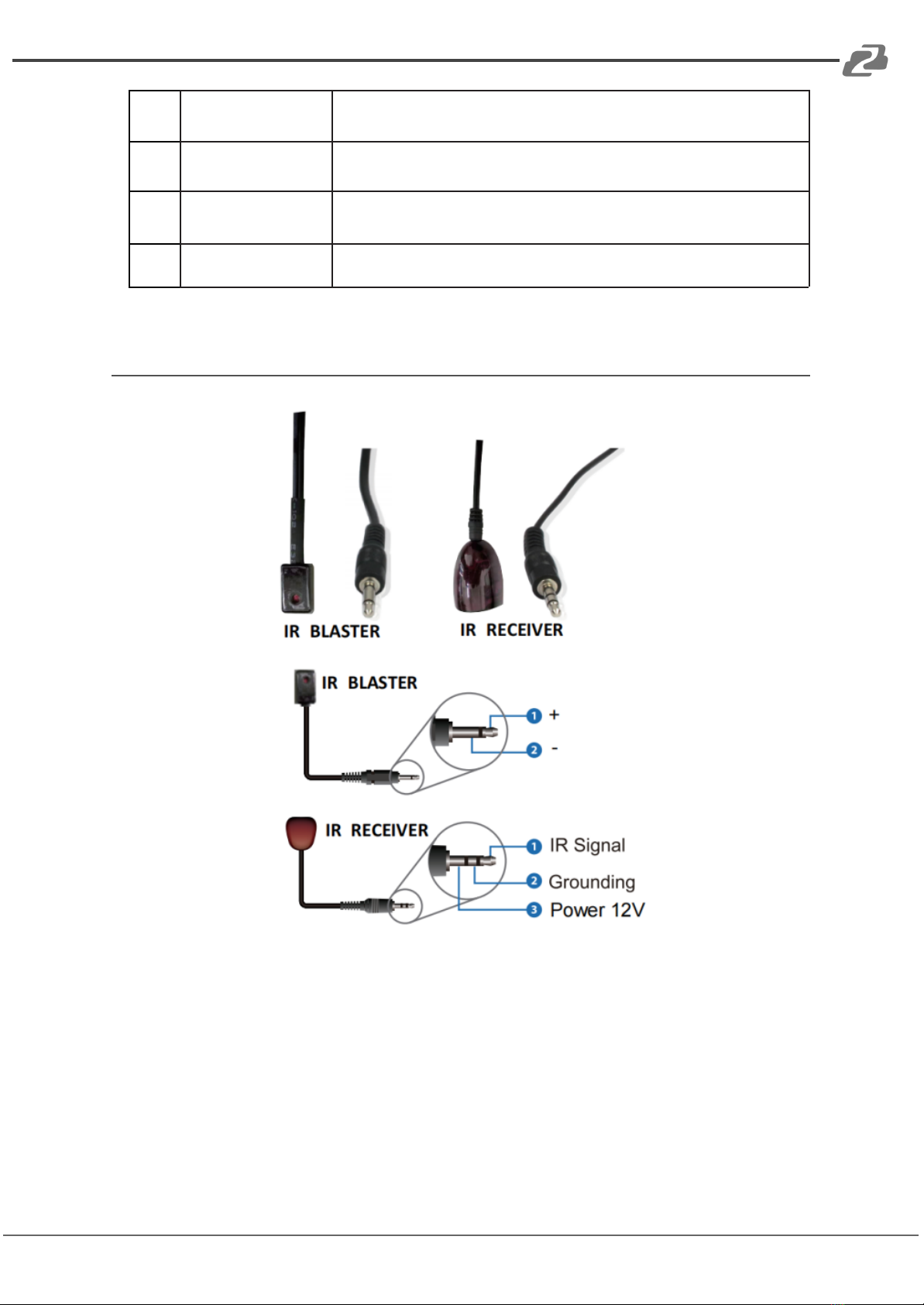

IR Pin Deﬁnition

Note: When the angle between the IR receiver and the remote control is ± 45°, the

transmission distance is 0-5 meters; when the angle between the IR receiver and

the remote control is ± 90°, the transmission distance is 0-8 meters.
