BZB Gear BG-UHD-18GFE Bedienungsanleitung

BG-UHD-18GFE

4K 18Gbps UHD HDMI USB KVM Extender Kit over Fiber w/HDR,

2-Way IR & RS-232

User Manual

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 2

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

TABLE OF CONTENTS

Statement 4

Safety Precaution 4

Introduction 5

Features 5

Packing List 5

Speciﬁcations 6

Operation Controls and Functions 7

Application Diagram 9

IR Pass-Through 10

HDMI Pin Deﬁnition 11

Tech Support 11

Warranty 11

Mission Statement 12

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 3

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

Statement

Please read these instructions carefully before connecting, operating, or conﬁguring this

product. Please save this manual for future reference.

Safety Precaution

●To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion

during transportation, storage, and installation.

●The housing of this product is made of organic materials. Do not expose to any liquid,

gas, or solids which may corrode the shell.

●Do not expose the product to rain or moisture.

●To prevent the risk of electric shock, do not open the case. Installation and maintenance

should only be carried out by qualiﬁed technicians.

●Do not use the product beyond the speciﬁed temperature, humidity, or power supply

speciﬁcations.

●This product does not contain parts that can be maintained or repaired by users.

Damage caused by dismantling the product without authorization from BZBGEAR is not

covered under the warranty policy.

●Installation and use of this product must strictly comply with local electrical safety

standards.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 4

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

Introduction

The BG-UHD-18GFE over Fiber USB KVM Extender boosts up your video/audio

transmission distance up to 10km (6.25miles) over single mode ﬁber optic cables in

Ultra-HD 4K2K@60. Users can easily extend Ultra-HD sources from DVD/Blu-ray Disc

players, game consoles, PCs, and any other HDMI sources broadcasting to distant

displays. The BG-UHD-18GFE is also HDCP compliant and supports IR & RS-232

pass-through as well as keyboard/mouse USB signal transmission.

Features

●4K2K@60 4:4:4 8 bits

●HDR 4K2K@60 4:2:0 10 bits

●Supports HDCP2.2

●Extend HDMI signals up to 10km (6.25miles) over single mode ﬁber optic cables

●Keyboard & mouse signal transmission

●Full frequency IR signal from 20KHz to 60KHz

●Bi-directional IR pass-through

●Link LED indicator light

●Wall mounting housing design for easy and robust installation

Note: The RS-232, IR, and USB functions cannot be used at the same time.

Packing List

●1x BG-UHD-18GFE [TX & RX]

●1x IR blaster

●1x IR receiver

●2x DC 12V

●1x User Manual

●2x Single Mode Module [optional]

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 5

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

Speciﬁcations

Technical

Role of usage

Transmitter [TX]

Receiver [RX]

HDMI compliance

HDMI 2.0a

HDCP compliance

HDCP2.2

Video bandwidth

Single-link 600MHz [18Gbps]

Video support

HDR 4K2K@60 (4:2:0 10 bits) / 4K2K@60 (4:4:4 8 bits)

HDMI over ﬁber

Yes

Audio support

Surround sound [up to 7.1ch] or stereo audio

Input TMDS signal

1.2 Volts [peak-to-peak]

Input DDC signal

5 Volts [peak-to-peak, TTL]

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

4-layer board [impedance control — diﬀerential 100Ω; single 50Ω ]

IR pass-thru

Bi-directional

RS-232 support

Yes

Input

1x HDMI, 1x 3.5mm

1x ﬁber, 1x 3.5mm

Output

1x ﬁber, 1x 3.5mm

1x HDMI, 1x 3.5mm

In/Out

1x RS-232, 1x USB

1x RS-232, 2xUSB

HDMI source control

Controllable via IR pass-through from RX to TX with IR extenders

HDMI connector

Type A [19-pin female]

USB connector

Type A

3.5mm connector

IR receiver / IR blaster

Mechanical

Housing

Metal enclosure

Dimensions

[L x W x H]

Model

125x112.2x28mm[4.9" x4.4" x1.1"]

Package

371 x 170 x 77m m[1'5" x 6.7" x 3"]

Carton

410 x 368 x 393m m[1'3" x 1'4" x 1'5"]

Weight

Model

463g [16.3 oz]

455g [16 oz]

Package

1730g [3.8 lbs]

Fixedness

Wall-mounting case with screws

Power supply

12V2A

Power consumption

Max 10W

Operation temperature

0-50°C

Storage temperature

-20~60°C [-4~140°F]

Relative humidity

20~90% RH [no condensation]

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 6

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

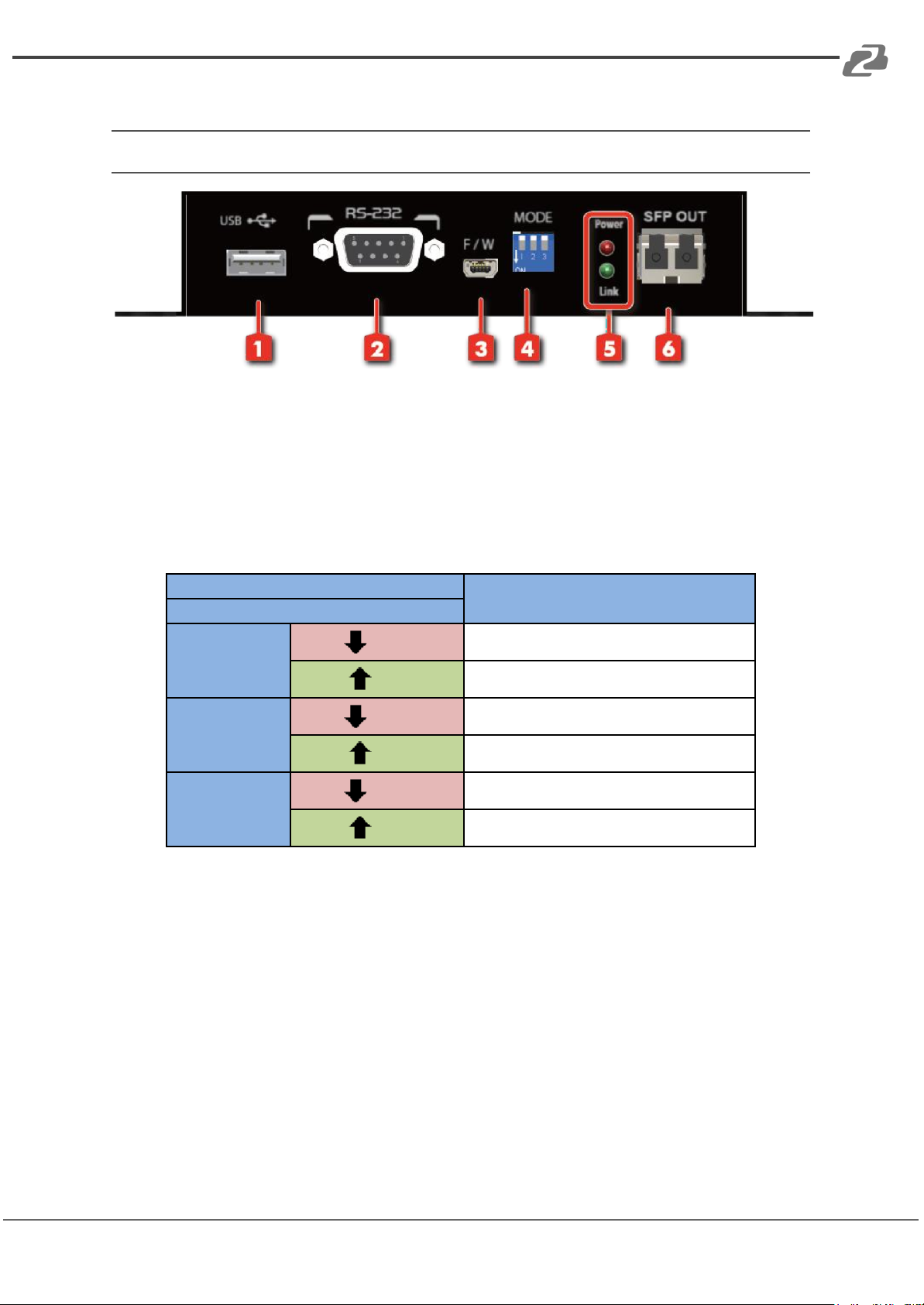

Operation Controls and Functions

Transmitter Front Panel

1. USB[Host]: Connect to a USB port from the computer for keyboard & mouse

control

2. RS-232: Connect to serial port device with a DSUB-9 male-male or male-female

cable here

3. Mini USB: For technical support only [ﬁrmware update]

4. Dip Switch

DIP Switch Position

Description

TX & RX

PIN#1

ON [ ]

For system ﬁrmware update

OFF [ ]

Normal

PIN#2

ON [ ]

USB function ON

OFF [ ]

RS-232/IR function ON

PIN#3

ON [ ]

Disable IR function

OFF [ ]

Enable IR function

5. LED indicator

[Red]: Power LED indicator

[Green]: Link LED indicator

6. SFP OUT: Plug in single mode ﬁber optic cables that needs to be linked to the

receiving unit

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 7

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

Transmitter Rear Panel

7. HDMI IN: Connect to a HDMI source with a HDMI male-male cable

8. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR

receiver

9. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster

10. +12V DC: Connect to a 12V power supply unit

Receiver Front Panel

11. USB [Device]: Connect to the USB keyboard & mouse

12. RS-232: Connect to serial port device with a DSUB-9 male-male or male-female

cable here

13. Mini-USB: For technical support only [ﬁrmware update]

14. Dip Switch

DIP Switch Position

Description

TX & RX

PIN#1

ON [ ]

For system ﬁrmware update

OFF [ ]

Normal

PIN#2

ON [ ]

USB function ON

OFF [ ]

RS-232/IR function ON

PIN#3

ON [ ]

Disable IR function

OFF [ ]

Enable IR function

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 8

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

15. LED indicator

[Red]: Power LED indicator

[Green]: Link LED indicator

16. SFP IN: plug in single mode ﬁber optic cables that needs to be linked to the

transmitting unit

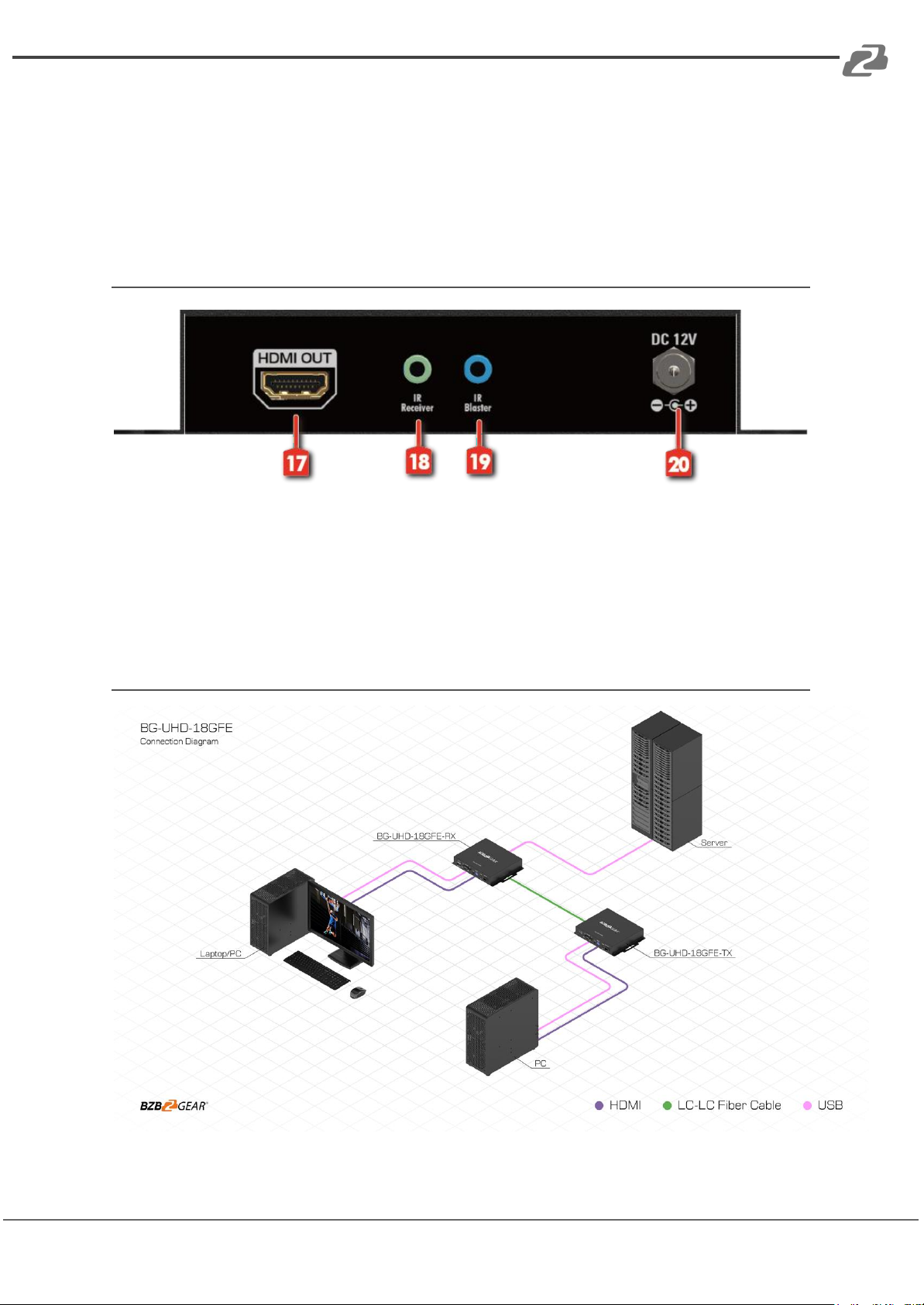

Receiver Rear Panel

17. HDMI OUT: Connect to a HDMI display with a HDMI male-male cable

18. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR

receiver

19. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster

20. +12V DC: Connect to a 12V power supply unit

Application Diagram

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 9

BZBGEAR BG-UHD-18GFE PRODUCT MANUAL

IR Pass-Through

IR Extenders

IR Blaster IR Receiver

IR Sockets

●IR BLASTER: plug in the IR blaster to emit all IR command signals received from the IR

receiver from the other end to control the devices corresponding to the IR signals.

●IR RECEIVER: plug in the IR receiver to receive all IR command signals from the IR

remote controls of the corresponding devices.

CAUTION!

Incorrect placement of IR Blaster and Receiver may result in the failure of the IR extenders.

Please check carefully before plugging in the IR extender to the respective IR sockets.

Warranty will not cover the damage.

Deﬁnition of IR Earphone Jack

IR Blaster IR Receiver

Note: You can buy any IR extension cables in the market that are compatible with the

deﬁnition of the IR sockets for the matrix if necessary for replacement use. However, IR

cables longer than 2m (6-ft) may not work.

Address: 830 National Drive #140, Sacramento, CA 95834, USA ·Tel: +1(888)499-9906 ·Email: support@bzbgear.com 10
