Introduction

Thank you for choosing PoE+ Series Switches. This guide is designed to familiarize you with the layout

of the switches and describes how to deploy the switches in your network.

Accessories

Power Cable x1

Rack Mount Bracket x2 M3 Screw x8Rubber Pad x4

Console Cable x1 Grounding Cable x1

S3260-8T2FP

S3260-16T4FP

S3400-24T4FP

S3150-8T2FP

S3400-48T4SP

CONSOLE

SFP+

TE1

RESET

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

CONSOLE

SFP+

TE1

SWAP

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

1 3 5 7 9 11

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24 26 26F

COMBO

25F

28F

CONSOLE

PoE

27F

1 3 5 7

24 6 8

PoE

SYS

S3260-8T2FP

5 7 9

PWR 468

LnK/Act

PoE

+EO

RESET

LnK/Act

9 10

SFP

CONSOLE

PoE

1 3 5 7

2 4 6 8

PoE

SYS

S3150-8T2FP

5 7 9

PWR 4 6 8

LnK/Act

PoE

+EOP

RESET

LnK/Act

910

SFP

CONSOLE

PoE

SYS 2 4 6 8 10 12 14 16 18 18F 20

1 3 5 7 9 11 13 15 17 17F 19

Lnk/Act

PoE

PoE RESET

PWR

CONSOLE

17F 18F 19 20

1 3 5 7

2468

9 11 13 15

10 12 14 16

S3260-16T4FP

PoE

S3400-24T4FP

PoE

SYS 31

5 7 9 11 13 15 17 19 21 23 25 27 25F 27F

PWR 4 6 8 10 12 14 16 18 20 22 24 26 28 26F 28F

LnK/Act

PoE RESET

LnK/Act

COMBO

Hardware Overview

Front Panel Ports

1 3 5 7 9 11

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24 26 26F

27 25F

28F

CONSOLE

PoE

27F

S3400-24T4FP

PoE

SYS 31

57911 13 15 17 19 21 23 25 27 25F 27F

PWR 46810 12 14 16 18 20 22 24 26 28 26F 28F

LnK/Act

PoE RESET

LnK/Act

COMBO

RJ45 RJ45/SFP Combo Console

S3400-24T4FP

1357

2468

PoE

SYS 31

5 7 9

PWR 4 6 8

LnK/Act

PoE

+EOP

RESET

LnK/Act

910

SFP

CONSOLE

PoE

RJ45 SFP Console

S3150-8T2FP/S3260-8T2FP

S3260-16T4FP

SYS 2 4 6 8 10 12 14 16 18 18F 20

1 3 5 7 9 11 13 15 17 17F 19

Lnk/Act

PoE

PoE RESET

PWR

CONSOLE

17F 18F 19 20

1 3 5 7

2 4 6 8

9 11 13 15

10 12 14 16

S3260-16T4FP

PoE

COMBO

Console RJ45 RJ45/SFP Combo SFP

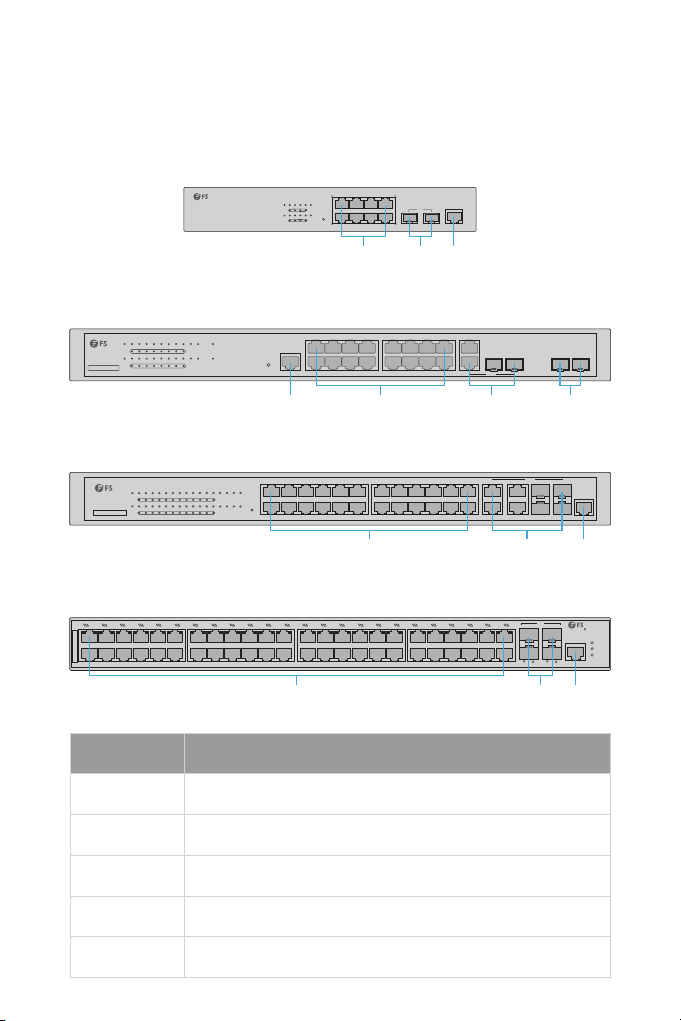

Ports Description

RJ45

RJ45/SFP Combo

SFP

10/100/1000BASE-T ports for Ethernet connection

One RJ45 port and one SFP slot, with one port active at a time

SFP ports for 1G transceivers

SFP+ SFP+ ports for 10G transceivers

Console An RJ45 console port for serial management

S3400-48T4SP

CONSOLE

SFP+

TE1

RESET

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

CONSOLE

SFP+

TE1

SWAP

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

RJ45 SFP+ Console

1357

2468

PoE

SYS 31

5 7 9

PWR 4 6 8

LnK/Act

PoE

+EOP

RESET

LnK/Act

910

SFP

CONSOLE

PoE

RESET

S3150-8T2FP/S3260-8T2FP

S3260-16T4FP

S3400-24T4FP

S3400-48T8SP

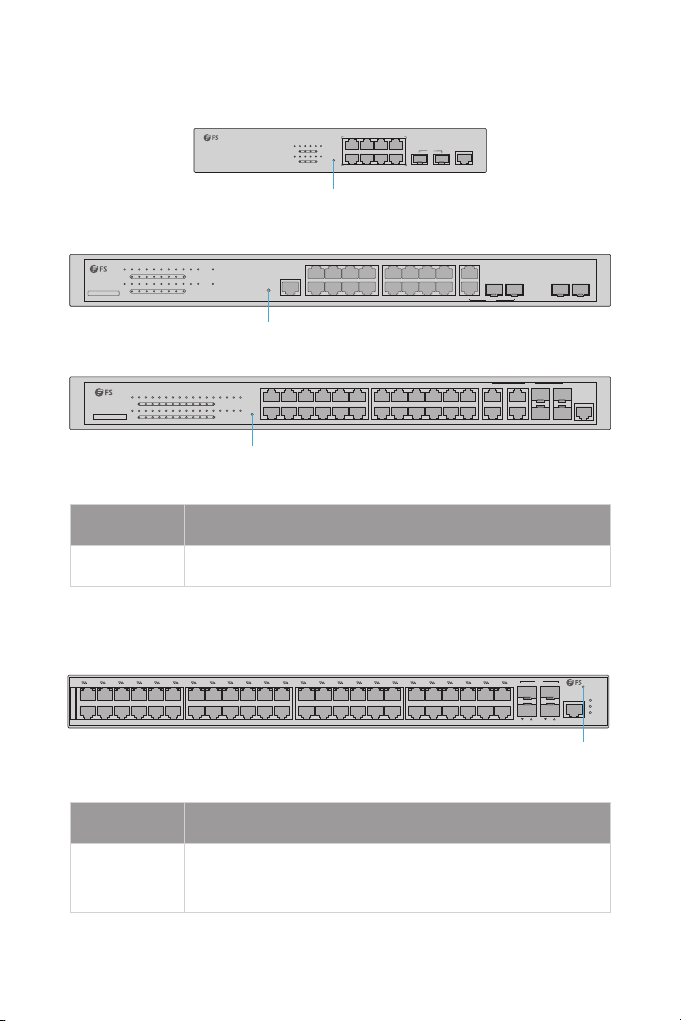

Front Panel Button

Button Description

Reset Restart and restore factory default settings.

Button Description

SWAP

Press the button and the indicator is on, and the indicator will

automatically turn o after a while. If the indicator is on, the

Ethernet port indicator indicates PoE power supply.

CONSOLE

SFP+

TE1

RESET

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

CONSOLE

SFP+

TE1

SWAP

POE

PoE

S3400-48T4SP

1 2 5 7 9 11 13 15 17 19 21 23 25 27

4 6 8 10 12 14 16 18 20 22 24 26 28

SYS

PWR

29 31 33 35 37 39 41 43

30 32 34 36 38 40 42 44 45 47

46 48

TE2TE3TE4

SWAP

SYS 2 4 6 8 10 12 14 16 18 18F 20

1 3 5 7 9 11 13 15 17 17F 19

Lnk/Act

PoE

PoE RESET

PWR

CONSOLE

17F 18F 19 20

1 3 5 7

2 4 6 8

9 11 13 15

10 12 14 16

S3260-16T4FP

PoE

COMBO

RESET

1 3 5 7 9 11

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24 26 26F

27 25F

28F

CONSOLE

PoE

27F

S3400-24T4FP

PoE

SYS 31

57911 13 15 17 19 21 23 25 27 25F 27F

PWR 46810 12 14 16 18 20 22 24 26 28 26F 28F

LnK/Act

PoE RESET

LnK/Act

COMBO

RESET

Back Panel

POWER

Input:100-240Vac

Freq:50/60Hz

OFF

Input:53.5Vdc

Grounding PointPower Supply (DC) Power Supply (AC)

Power ON/OFF

Installation Requirements

Phillips screwdriver.

Standard-sized, 19" wide rack with a minimum of 1U height available.

Category 5e or higher RJ45 Ethernet cables for connecting the network devices.

M6 screws.

Before you begin the installation, make sure that you have the following:

LEDs Status Description

SYS

PWR

Lnk/Act

Switch is powered on.

System is working properly.

System is working not properly.

Data is being transmitted or received.

Connection is not connected.

Blinking Green

ON/OFF

Blinking Green

ON/OFF

PoE Connected PD device, working properly.ON

Front Panel LEDs

1 3 5 7 9 11

2 4 6 8 10 12

13 15 17 19 21 23

14 16 18 20 22 24 26 26F

27 25F

28F

CONSOLE

PoE

27F

S3400-24T4FP

PoE

SYS 31

57911 13 15 17 19 21 23 25 27 25F 27F

PWR 46810 12 14 16 18 20 22 24 26 28 26F 28F

LnK/Act

PoE RESET

LnK/Act

Lnk/Act

PWR PoE

SYS

COMBO

SYS

PWR

S3400-24T4FP

1357911

810 12

SYS

7911 13 15 17 19 21 23 25 27 25F 27F

10 12 14 16 18 20 22 24 26 28 26F 28F

PoE

Lnk/Act

RESET

Lnk/Act

PWR

S3400-24T4FP

Rack Mounting

1. Secure the mounting brackets to the two sides of the switch with eight M3 screws.

15 17 19 21 23

16 18 20 22 24

25 27

COMBO

25F 27F

26 28 26F 28F

CONSOLE

PoE

Desk Mounting

1. Attach four rubber pads to the bottom.

2. Place the chassis on a desk.

Mounting the Switch

SYS

7911 13 15 17 19 21 23 25 27 25F 27F

10 12 14 16 18 20 22 24 26 28 26F 28F

PoE

Lnk/Act

RESET

Lnk/Act

PWR

S3400-24T4FP

13 15 17 19 21 23

14 16 18 20 22 24

26 28 26F 28F

CONSOLE

PoE

1357911

810 12

25 27 COMBO 25F 27F

Do not operate it in an area that exceeds an ambient temperature of 50ºC.

Be sure that the switch is level and stable to avoid any hazardous conditions.

Do not install the equipment in a dusty environment.

The installation site must be free from leaking or dripping water, heavy dew, and humidity.

Ensure rack and working platforms are well earthed.

The installation site must be well ventilated. Ensure that there is adequate air fow around the

switch.

Site Environment:

SYS

PWR

S3400-24T4FP

2. Attach the switch to the rack using four M6 screws and cage nuts.

25 27

COMBO

25F 27F

1357911

810 12

13 15 17 19 21 23

14 16 18 20 22 24

26 28 26F 28F

CONSOLE

13 15 17 19 21 23 25 27 25F 27F

14 16 18 20 22 24 26 28 26F 28F

PoE

Lnk/Act

RESET

Lnk/Act

PoE

1. Connect one end of the grounding cable to a proper earth ground, such as the rack in which the

switch is mounted.

2. Secure the grounding lug to the grounding point on the switch back panel with the washers and

screws.

Grounding the Switch

CAUTION: The earth connection must not be removed unless all supply connections have

been disconnected.

100-240V AC

50/60Hz

25 27

COMBO

25F 27F

1357911

810 12

13 15 17 19 21 23

14 16 18 20 22 24

26 28 26F 28F

SYS

7911 13 15 17 19 21 23 25 27 25F 27F

10 12 14 16 18 20 22 24 26 28 26F 28F

PoE

Lnk/Act

RESET

Lnk/Act

PWR

S3400-24T4FP

100-240V AC

50/60Hz

1. Plug the AC power cord into the power port on the back of the switch.

2. Connect the other end of the power cord to an AC power source.

Connecting the Power

WARNING: Do not install power cables while the power is on.

Connecting the RJ45 Ports

1. Connect an Ethernet cable to the RJ45 port of IP cameras, IP telephones, Access Points (AP), or other

network devices.

2. Connect the other end of the Ethernet cable to the RJ45 port of the switch.

25 27

COMBO

25F 27F

1357911

810 12

13 15 17 19 21 23

14 16 18 20 22 24

26 28 26F 28F

CONSOLE

19 21 23 25 27 25F 27F

20 22 24 26 28 26F 28F

PoE

Lnk/Act

RESET

Lnk/Act

PoE

Connecting the SFP/SFP+ Ports

1. Plug the compatible SFP/SFP+ transceiver into the SFP/SFP+ port.

2. Connect a ber optic cable to the ber transceivers. Then connect the other end of the cable to

other ber devices.

WARNING: Laser beams will cause eye damage. Do not look into bores of optical modules

or optical bers without eye protection.

Connecting the Console Port

1. Insert the RJ45 connector of the console cable into the RJ45 console port on the front of the switch.

2. Connect the other end of the console cable to the RS-232 serial port on the computer.

21 23

20 22 24

25 27

COMBO

25F 27F

26 28 26F 28F

CONSOLE

PoE

Conguring the Switch

Step 1: Connect the computer to any Ethernet port of the switch using the network cable.

Step 2: Set the IP address of the computer to 192.168.1.x. ("x" is any number from 2 to 254.). Set the

subnet mask of the computer to 255.255.255.0.

Conguring the Switch Using the Web-based Interface

OK Cancel

General

IP address:

Subnet mask:

Default gateway:

You can get IP settings assigned automatically if your network

supports this capability. Otherwise, you need to ask your network

administrator for the appropriate IP settings.

Internet Protocol Version 4(TCP/IPv4) Properties

Use the following IP address:

Obtain an IP address automatically

Preferred DNS server:

Alternate DNS server:

Validate settings upon exit Advanced...

. . . 21168192

0255

255255

. . .

Obtain DNS server address automatically

Use the following DNS server addresses:

Step 3: Open a browser, type http://192.168.1.1, and enter the default username and password,

admin/admin.

Step 4: Click sign in to display the web-based conguration page.

Step 1: Connect a computer to the switch's console port using the supplied console cable.

Step 2: Start the terminal simulation software such as HyperTerminal on the computer.

Step 3: Set the parameters of the HyperTerminal: 115200 bits per second, 8 data bits, no parity, 1 stop

bit and no ow control.

Conguring the Switch Using the Console Port

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BZB Gear Schalten Handbücher

BZB Gear

BZB Gear BG-PSC8X2HDB Bedienungsanleitung

BZB Gear

BZB Gear BG-8K-88MA Bedienungsanleitung

BZB Gear

BZB Gear BZ-SC-51UHD Bedienungsanleitung

BZB Gear

BZB Gear BG-UMV-HA41 Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-KVM41-KIT Bedienungsanleitung

BZB Gear

BZB Gear HDS-B41PA100 Bedienungsanleitung

BZB Gear

BZB Gear BG-PSC11X2-HDBT Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-QVP-4X2 Bedienungsanleitung

BZB Gear

BZB Gear BZ-UHD-88M100-ARC Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-KVM41 Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-KVM41-KIT Bedienungsanleitung

BZB Gear

BZB Gear BG-PSC6X2-4K Bedienungsanleitung

BZB Gear

BZB Gear BG-UMV-HA41 Bedienungsanleitung

BZB Gear

BZB Gear BG-PS21-4K Bedienungsanleitung

BZB Gear

BZB Gear BZ-41S-PA100 Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-QVP-4X2 Bedienungsanleitung

BZB Gear

BZB Gear BG-PS-BYOD-4K Bedienungsanleitung

BZB Gear

BZB Gear BG-HDVS42U Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-MVS21A Bedienungsanleitung

BZB Gear

BZB Gear BG-8K-HS41 Bedienungsanleitung

BZB Gear

BZB Gear BG-UHD-42MG2 Bedienungsanleitung

BZB Gear

BZB Gear BG-QuadFusion-4K Bedienungsanleitung

BZB Gear

BZB Gear BG-PSC7X2 Bedienungsanleitung

BZB Gear

BZB Gear BG-MFVS61-G2 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
