CaddyLite ONE –S, v8

User’s Manual

CaddyTek Inc.

2075 S. Atlantic Blvd., # C

Monterey Park, CA 91754, USA

www.caddytek.com

WARNING:

FOR YOUR OWN SAFETY, PLEASE REVIEW THESE WARNINGS AND

KEEP THIS USER GUIDE FOR FUTURE REFERENCE.

●Before using this golf cart, please read and understand the important

instructions and warnings in this user guide.

●AVOID injury by always following the folding and unfolding the cart

instructions carefully

●AVOID INJURY by keeping clear of moving parts while adjusting, folding

or unfolding this cart.

●ALWAYS make sure the cart is fully extended and locked before use.

●ALWAYS make sure the cart is folded and locked properly before lifting or

transporting.

●ALWAYS use the brake when parking the cart.

●DO NOT run while using this cart.

●DO NOT use accessories other than those designed specifically for this

cart.

●Keep hands and fingers away from moving parts or sliding sections of the

cart!

Package contents:

1. The main frame of the cart

2. Two main wheels

3. Front wheel assembly

4. Umbrella holder

5. Drink holder

6. This user manual

7. Tools for adjustment

In case any of the above items are missing or damaged, please call 800-906-6918 or email

service [email protected] to report.

Parts identification:

A: PVC handle grip

B: Umbrella holder

C. Umbrella holder base

D: Scorecard holder assembly

E: Umbrella holder storage rack

F: Handle frame

G: Upper bag holder bracket set

H: Adjustable handle mechanism

I: Main frame

J: Front connection Rod

J1: Main connection Rod

K: Leg frame bracket

L: 2 holes right leg frame

L1: 2 holes left leg frame

M: 4 holes right leg frame

N: Lower bag holder bracket assembly

O: Supporting cable

P: Stabilization bar

Q: Main lower frame tube

R: Right wheel lock assembly

R1: Left wheel lock assembly

S: Foot brake assembly

T: Rear wheel assembly

U: Front wheel assembly

V: Drink holder

W: One-click folding push button

X: Handle mesh net

Y:Lever for locking/unlocking front wheel swivel

Z: Holding slot

Z1: Basket with cooler

Assembly the cart

Install the main wheels Install the front wheel

Lift the upper bag bracket

as shown in Fig. 1.

Simply pull the handle and

upper bag bracket as shown in

Fig. 2 to extend the cart. (Shake

the cart slightly to release the

main frame from the holding slot

if necessary.)

Simply insert the front

wheel assembly into front

wheel holding frame as

shown in Fig. 4.

The cart is fully extended

as shown in Fig. 5.

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

locking buckle

Unfolding motion

Release the wheel locking buckle,

insert the wheel axel into the wheel

holder completely and then tighten

the locking buckle.

Press the button on both

sides of the golf bag holder

socket to unfold the wings

automatically in Fig. 3.

button

Remove front wheel for storage of the cart

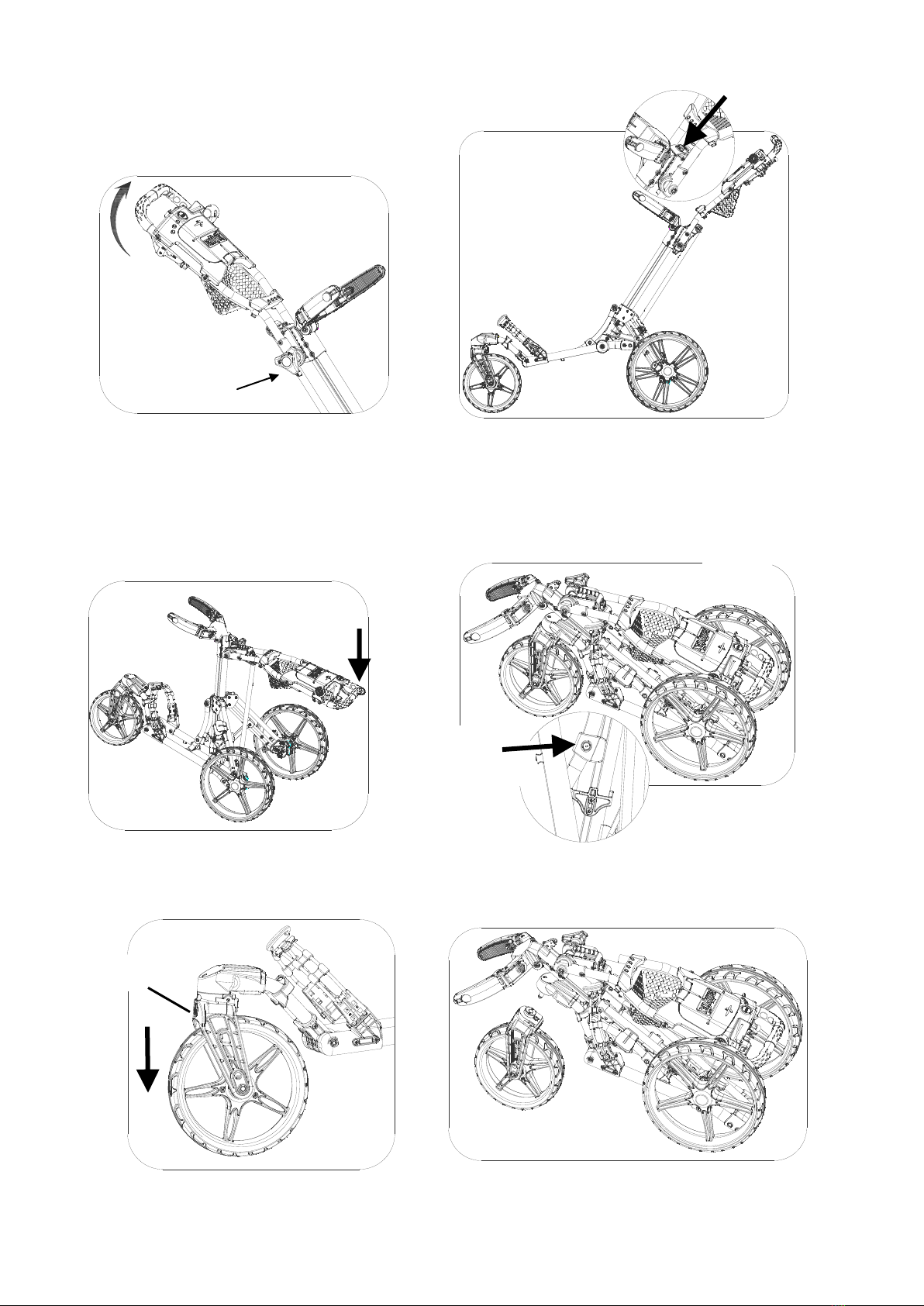

Make sure the handle height adjusting knob is fully tighten .Slightly lift up the handle as Fig. 6 then

press the folding button and push the handle downward as shown in Fig. 7 , Fig. 8 to fold the cart

till the main frame clicks into the holding slot as in Fig. O. The cart folded as Fig. 9.

Fig. 6

Fig. 9

Folding the cart

Folding push

button

Fig. 7

Fig. O

the holding slot

Fig. 8

Handle height

adjusting knob

Remove front wheel by pressing the release button as shown in Fig. 10 to store the cart conveniently

as Fig. 11.

button

Fig. 10

Fig. 11

Simply push the golf bag holder wings inward to closed wings as shown in Fig12, then fold the

upper bracket as shown in Fig13/14.

To secure the folded cart with the lower bag holder elastic rope as shown in Fig.15/16.

Push the both wings of upper

bracket inward to clamp the

bag as shown in Fig.17.

Press the release button at the

back of upper bracket to lose the

wings then golf bag can be taken

off shown in Fig.18.

Upper Golf Bag Holder Bracket

Release

button

Fig. 12

Fig. 13

Fig. 14

Fig. 15

Fig. 16

Elastic rope

Fig. 17

Fig. 18

Release

button

Umbrella Holder

To put in use:

Simply attach the umbrella holder

onto the cart as in fig. 22/23.

Fig. 22

Fig. 24

Fig. 23

To store:

Attach the umbrella holder to

the storage rack on the right

leg frame as in Fig. 24.

Use the brake

Install the drink holder

Press the foot brake to

brake, lift it up to release

as Fig. 25

Fig. 20

Fig. 19

Fig. 21

Fig. 25

When installing the drink holder as Fig.19, align the smallest part of

the slot on the holder with the fixed blocks. Then pull horizontally to fit

the holder on the base as Fig.20 & 21.

The front wheel can swivel 360

degree when the Lever on the

handle is pull down as Fig.26. The

front wheel will be locked and cart

going straight when the lever is pull

up.

Fig. 26

Lock and unlock the

Swivel front wheel

Fixed block on base notch

Slot on

Hole 1

Hole 2

DOWN

Bag Holder Strap Length Adjustment

Refer to the Fig. 27 & Fig.28:

1. Pull the elastic strap out of the strap buckle as in fig. 27.

2. Adjust the strap to the desired length.

3. Push the elastic strap back to the strap buckle as in fig. 28.

Fig. 27

Fig. 28

To open the scorecard

holder cover

Press the button to open the

scorecard holder cover as Fig.29.

Fig. 29

When facing the cart:

If the cart veers to RIGHT: use the Allen wrench (as shown in Fig.31) to lose the 2 screws

(A) on the backside of the front wheel frame as shown in Fig. 32. Then adjust the front

wheel to center position by turning the screw (B) counterclockwise as in Fig. 33. Tighten

the 2 Screws (A) after the front wheel alignment is done.

If the cart veers to LEFT: use the Allen wrench (as shown in Fig. 31) to lose the 2

screws (A) on the backside of the front wheel frame as shown in Fig. 32. Then adjust

the front wheel to center position by turning the screw (B) clockwise as in Fig. 33.

Tighten the 2 Screws (A) after the front wheel alignment is done.

Fig. 31

Fig. 32

Fig. 33

Allen wrench

Left

Right

Fig. 30

WARRANTY

CaddyTek Inc. warrants its products to be free of defects and workmanship

for one year from the date of purchase. We will either repair or replace

defective products at our option.

Normal wear and fading of products are not considered manufacturer's

defect. This warranty does not apply to claim of damage to items used in

connection with CaddyTek Inc. products. In the case of deterioration due to

normal use we will repair the item for a normal charge. CaddyTek Inc. is the

sole judge of any claim or warranty.

For customers in North America, please contact CaddyTek Inc. for the

service. For customers outside of North America, please contact with your

dealer for the warranty service or you are welcome to contact CaddyTek Inc.

directly.
