1

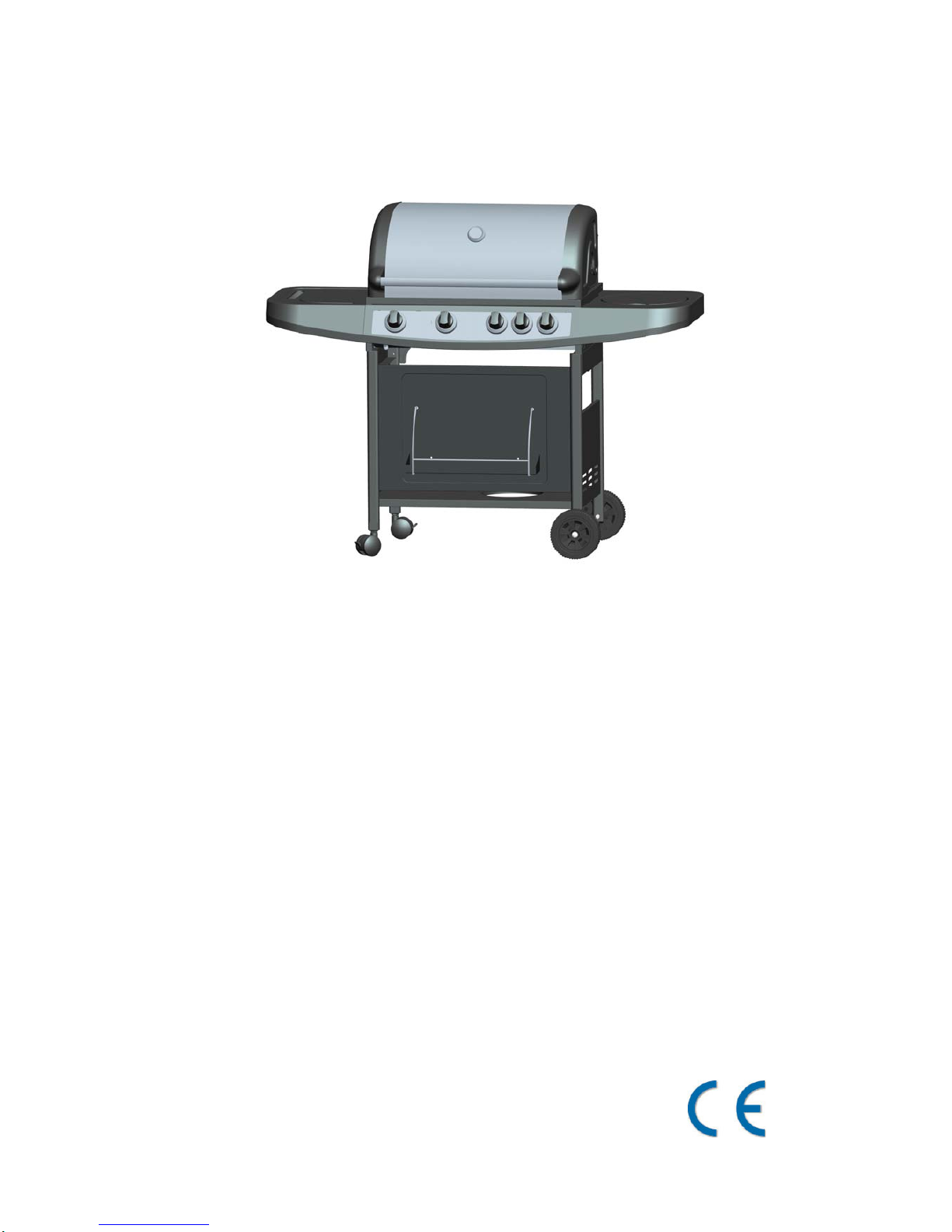

OWNER’S MANUAL FOR BARBECUE GAS GRILL
Model: CBA-401-A
◆ IF A REPLACEMENT IS NECESSARY, PLEASE CONTACT EITHER OUR CUSTOMER
SERVICE DEPARTMENT OR YOUR LOCAL DEALER.
◆ THE USE OF UNAUTHORISED PARTS CAN CREATE UNSAFE CONDITIONS AND
ENVIRONMENT.
◆ FOR OUTDOOR USE ONLY.
◆ READ THE MANUAL CAREFULLY BEFORE ASSEMBLLING AND OPERATING THE
APPLIANCE.
◆ ACCESSIBLE PARTS MAY BE VERY HOT. PLEASE KEEP YOUNG CHILDREN AWAY.
◆ PLEASE RETAIN THE MANUAL FOR FUTURE REFERENCE.
◆ PLEASE REMOVE ANY TRANSIT PROTECTION BEFORE ASSEMBLLING AND OPERATING
THE APPIANCE.
◆ THIS APPLIANCE MUST BE KEPT AWAY FROM INFLAMMABLE MATERIALS
◆PLEASE WEAR PROTECTIVE GLOVES WHEN HANDLING PARTICULARLY HOT
COMPONENTS
2
Technical information
Model: CBA-401-A (with side burner)
APPLIANCE CODE: CBA-401-A
GAS CATEGORY: I3+(28-30/37) I
3B/P(30) I
3B/P(50)
TYPES OF GAS: Butane Propane LPG Gas Mixtures LPG Gas Mixtures
GAS PRESSURE: 28-30 mbar 37 mbar 30 mbar 50mbar
TOTAL HEAT INPUT:
(Qn) 18.8kW (1347g/h)
19.5kW (1397g/h)
INJECTOR SIZE: 0.97mm for main burner
0.89mm for side burner 0.84mm for main burner
0.79mm for side burner
IDENTIFICATION
CODE: 0063BS7110
IMPORTANT:
Read the following instructions carefully and be sure your barbecue is properly installed, assembled
and cared for. Failure to follow these instructions may result in serious bodily injury and/or property
damage.
If you have any questions concerning assembly or operation, consult your dealer or LPG Gas
Company.
Never store a spare cylinder under the barbecue shelves or inside the trolley housing. Any LPG
cylinder not attached to the BBQ for use should be stored outdoors and well away from the appliance.
* This appliance is not intended to use on recreational vehicles or a marine environment.
* Only gas cylinder 7kgs or under could be placed inside the trolley for using. Gas cylinder
more than 7kgs need to be placed outside the trolley for using.
* The maximum loading weight for the side burner and side table is 20pounds ( 9kgs). Please
do not place anything more than 20 pounds (9kgs) on the side burner or side table.
CLEARANCE TO COMBUSTIBLES
Always maintain 915mm minimum clearance to combustible materials at the rear and sides of the
BBQ.
Do not use this BBQ under overhead combustible surfaces.
3

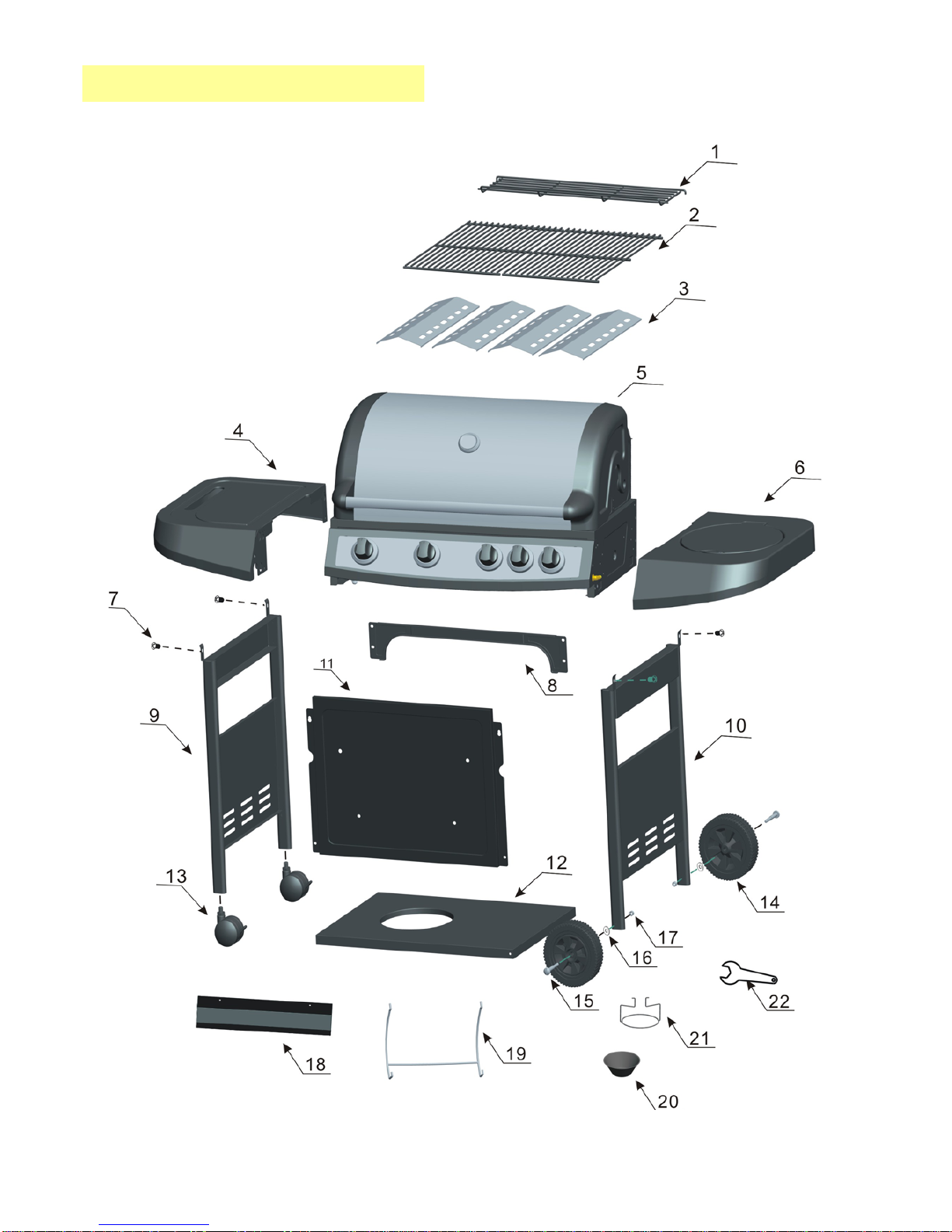

Parts Diagram – Model CBA-401-A
4

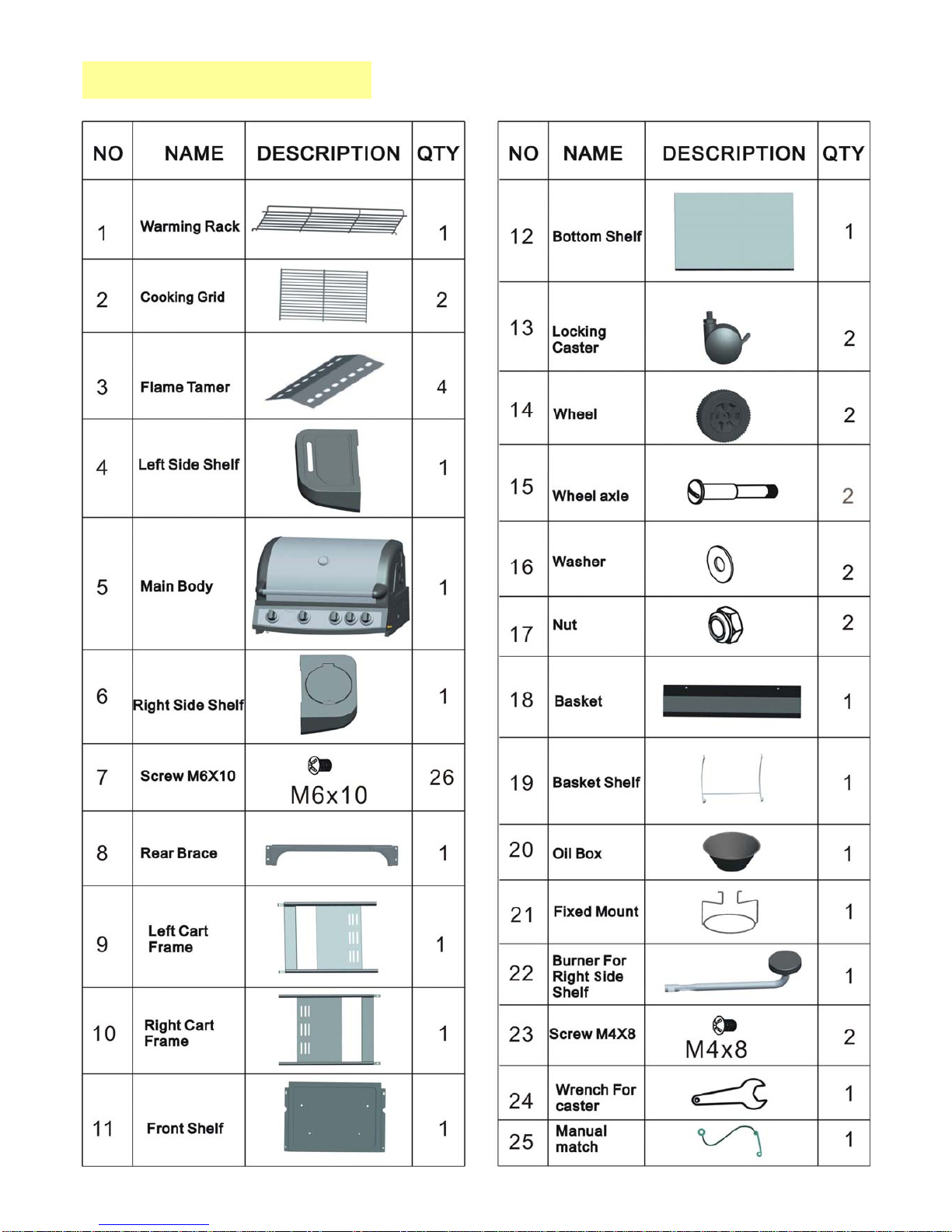

Parts List – Model CBA-401-A
5
*1.
*2.

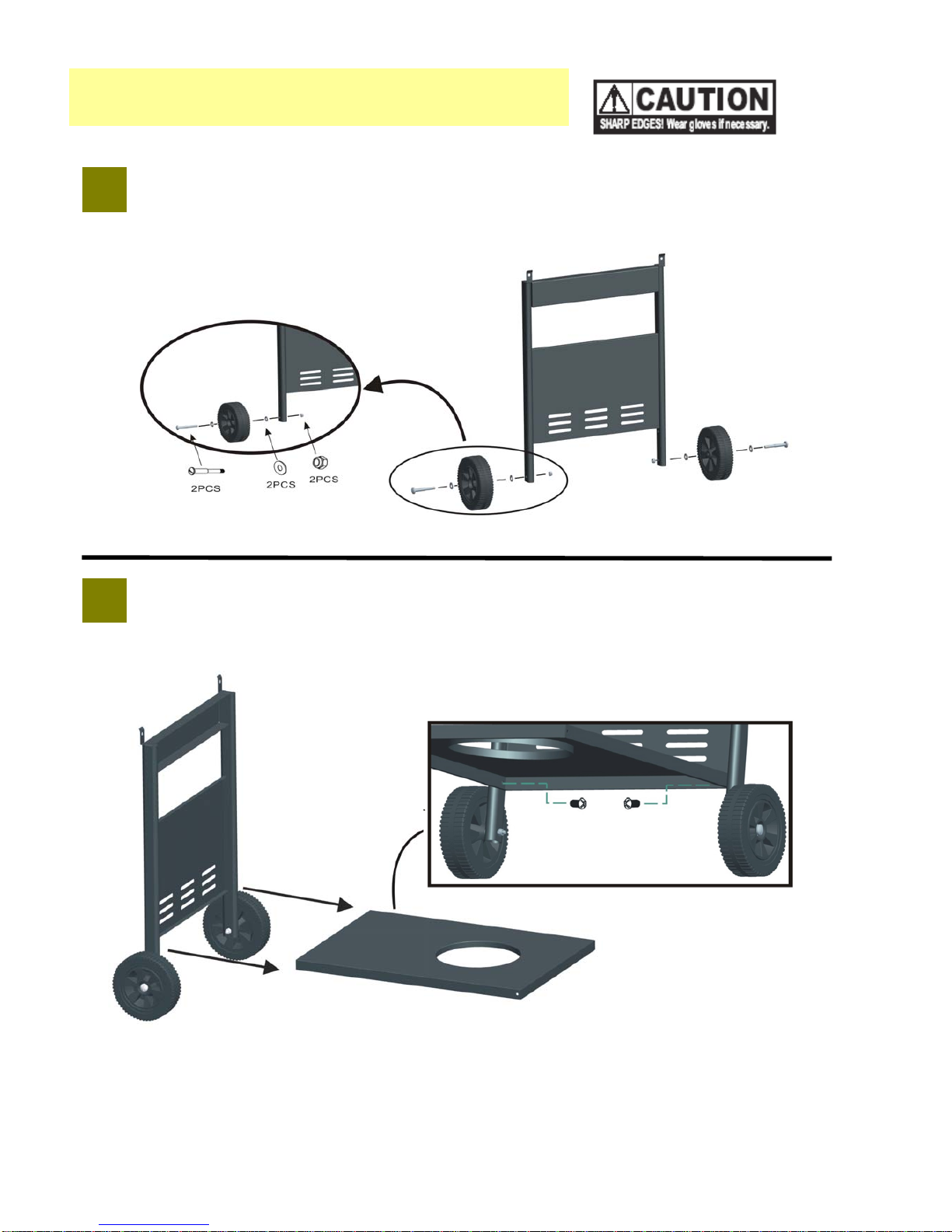

Put bottom shelf (12) between legs of right cart frame
(10). Connect the cart frame and the bottom shelf with
two M6X10 screws (7) from underside as shown.
Assemble wheels (14) to legs of right cart frame (10).
Secure wheels with two nuts (17), two flat washers (16) and
two axles (15).
NOTE: Based on model CBA-401-A.
The assembly for other models is the same.
6
*3.
*4.

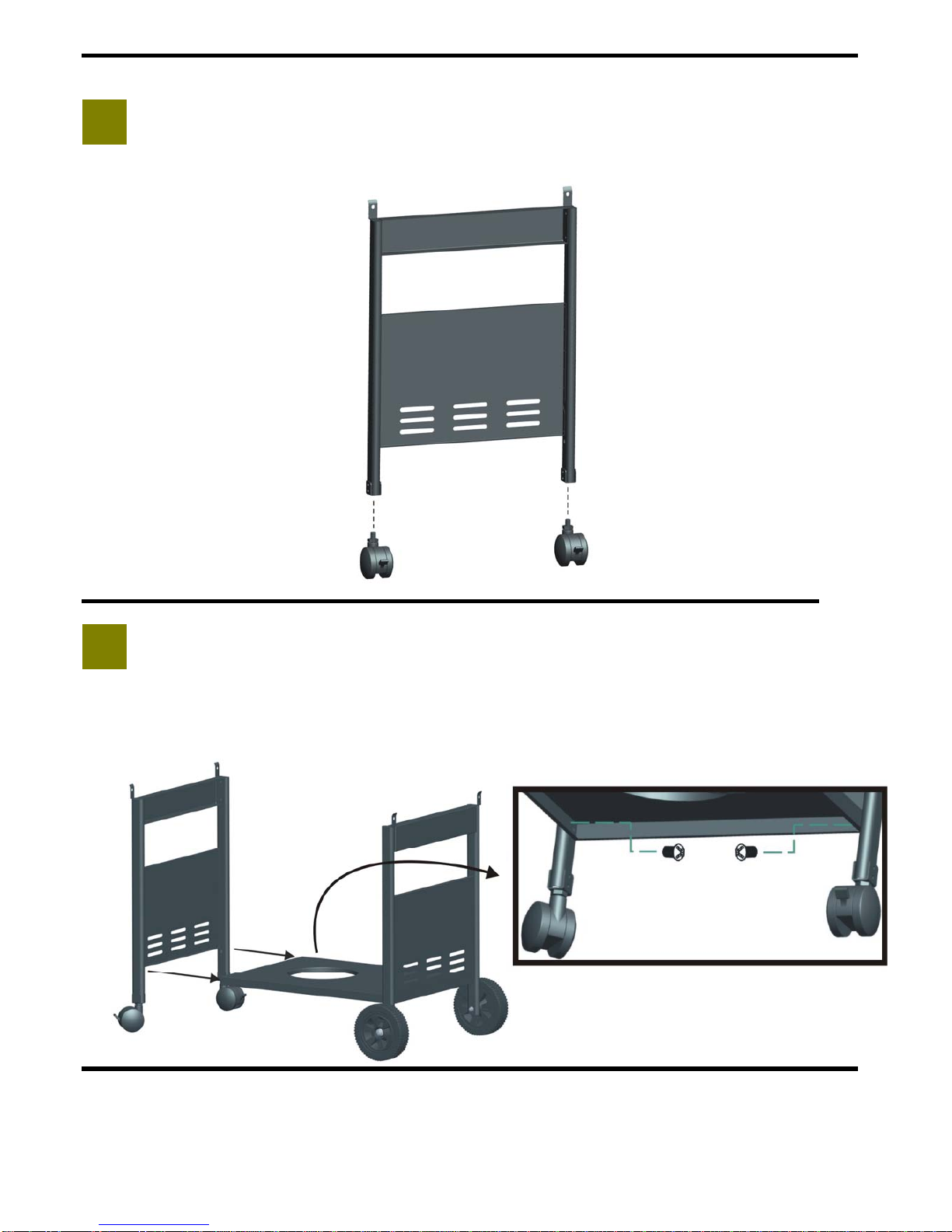

Attach locking casters (13) to legs of left cart frame (9).
Tighten casters using wrench provided (24).
Right position left cart frame (9) to bottom shelf.
Connect the cart frame and the bottom shelf
using two M6X10 screws (7) from underside as
shown.
7
*5.
*6.

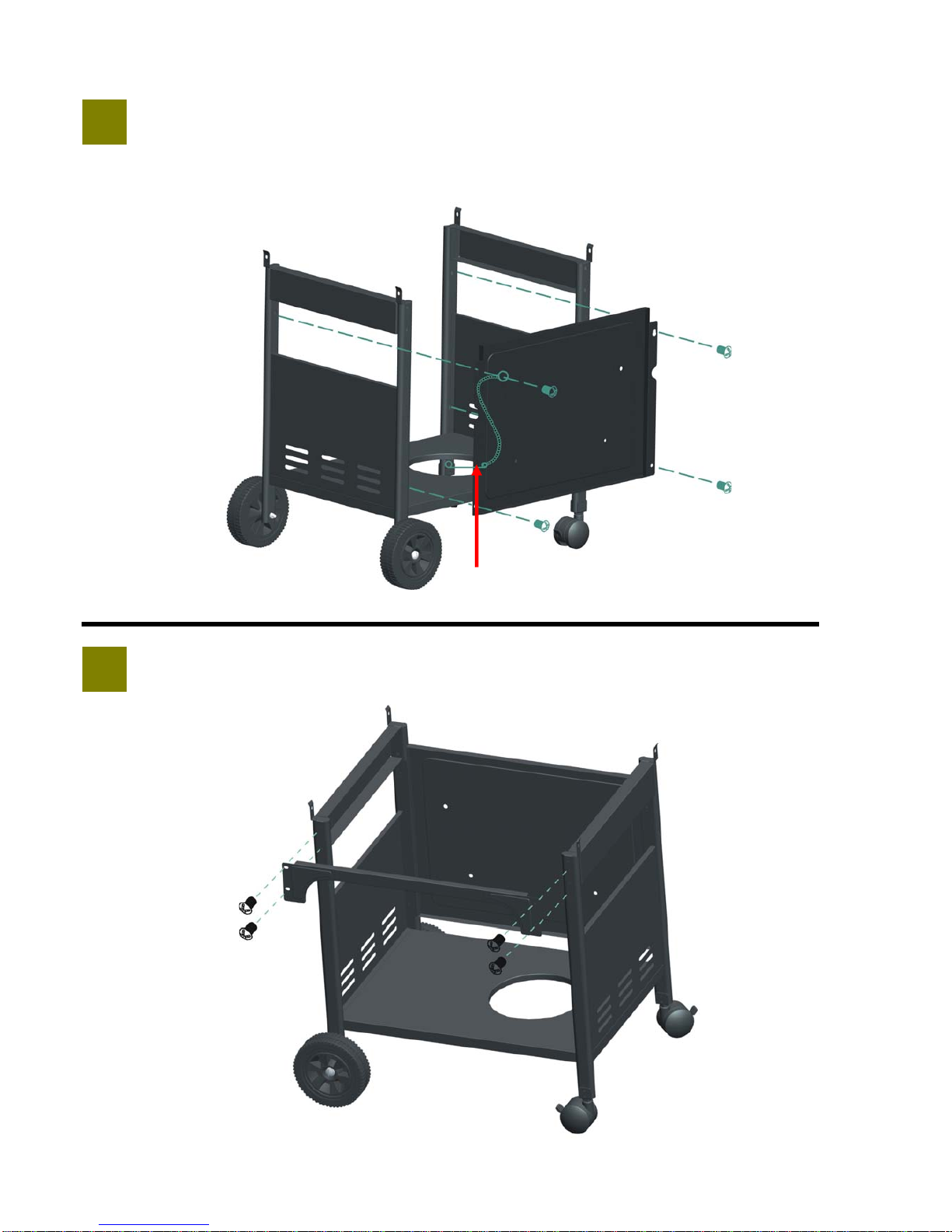

Assemble rear brace (8) from back of the cart. Connect brace and
back legs using two M6X10 screws (7) on each side of legs.
First, remove front shelf (11) from back of the cart and right position in front of
the cart. Manual match (25) need to be assembled at the same time. Connect the
front shelf, manual match and front legs using two M6X10 screws (7) on each
side of legs.
Manual match holder
(See step 17 for using the manual match)
8

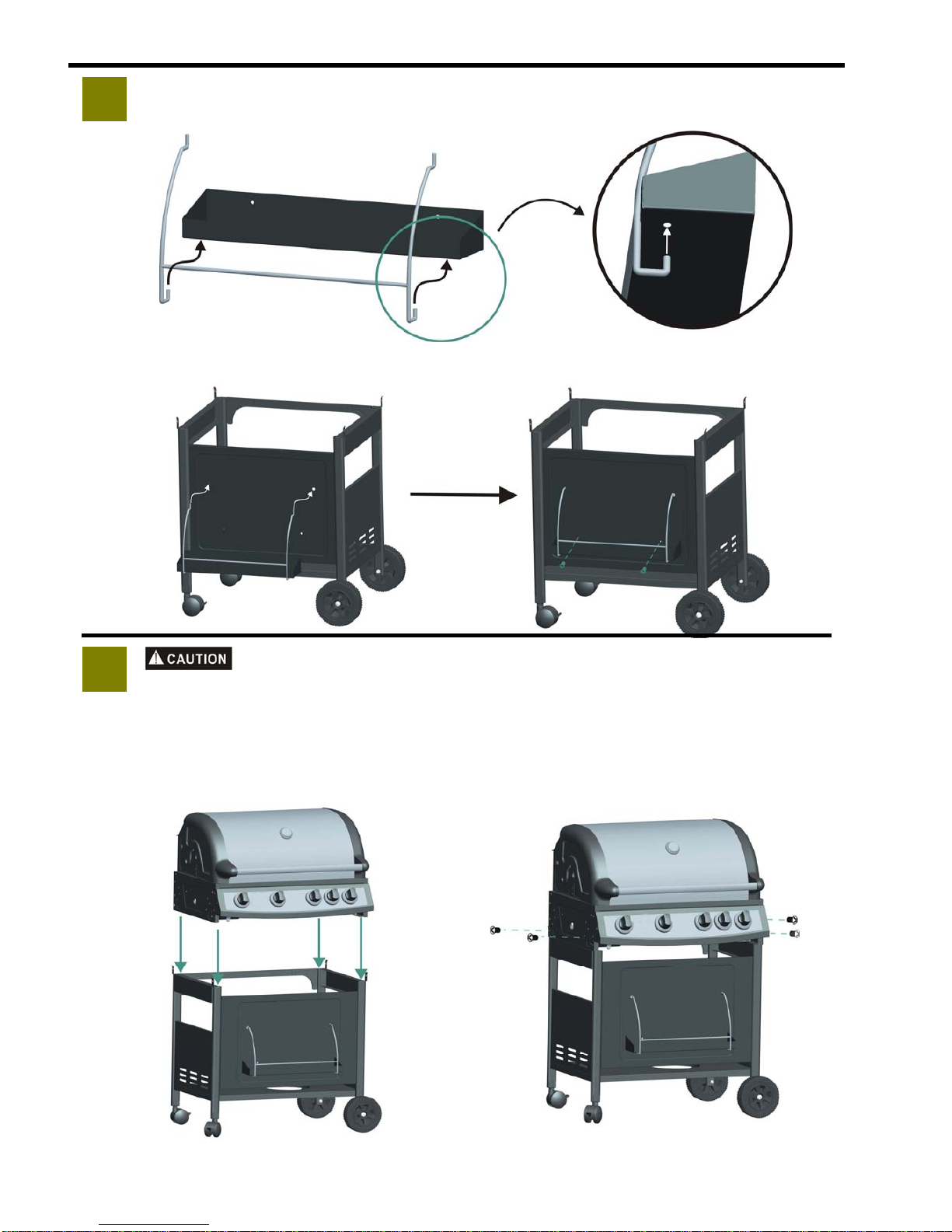

Hang the assembled condiment basket on the front shelf (11). Fix using 2 M6X10
screw.
Carefully lower the main body (5) onto the cart between the two braces. Align
the two holes on each side of the grill head with the two holes on each brace
using two M6X10 screws (7) on each side of cart brace.
*7.
*8.
Assemble basket shelf
(
19
)
to condiment basket
(
18
)
as shown.
This step requires two people to lift and position main body (5) ahead
onto cart.
9

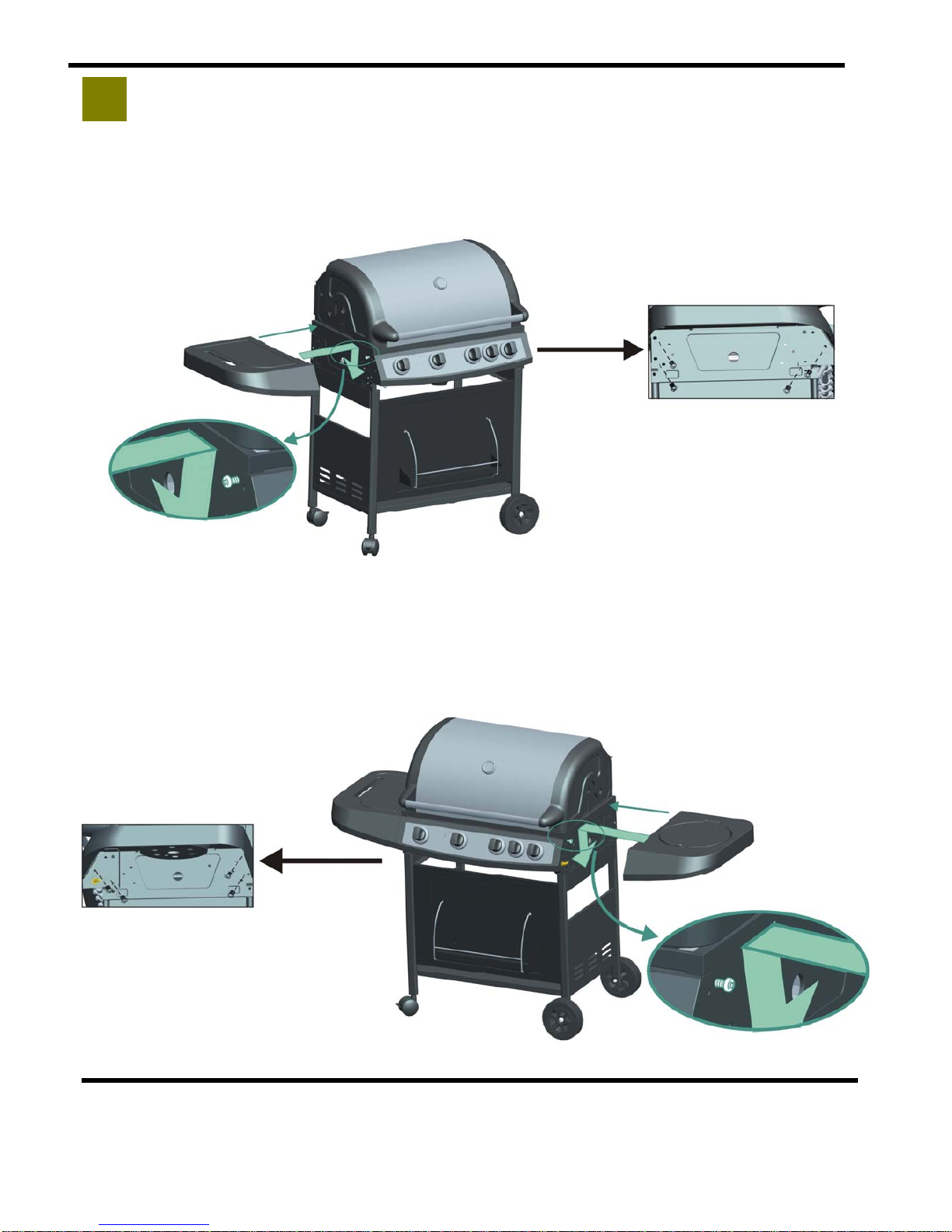

Before assembling left side shelf (4) and right side burner shelf (6), loosen the
screw on the left and right side plate of main body (5). Lift left side shelf and right
side burner shelf and put down vertically. Side shelf and side burner shelf locked
on the main body. Tighten the loose screw and secure using four M6X10 screws
(7) on each side.
*9.
4x M6X10 screws
4 xM6X10 screws
10
*10.
*11.
Side burner
Ignitorlead Ignitionwireelectrode
Ignition sire

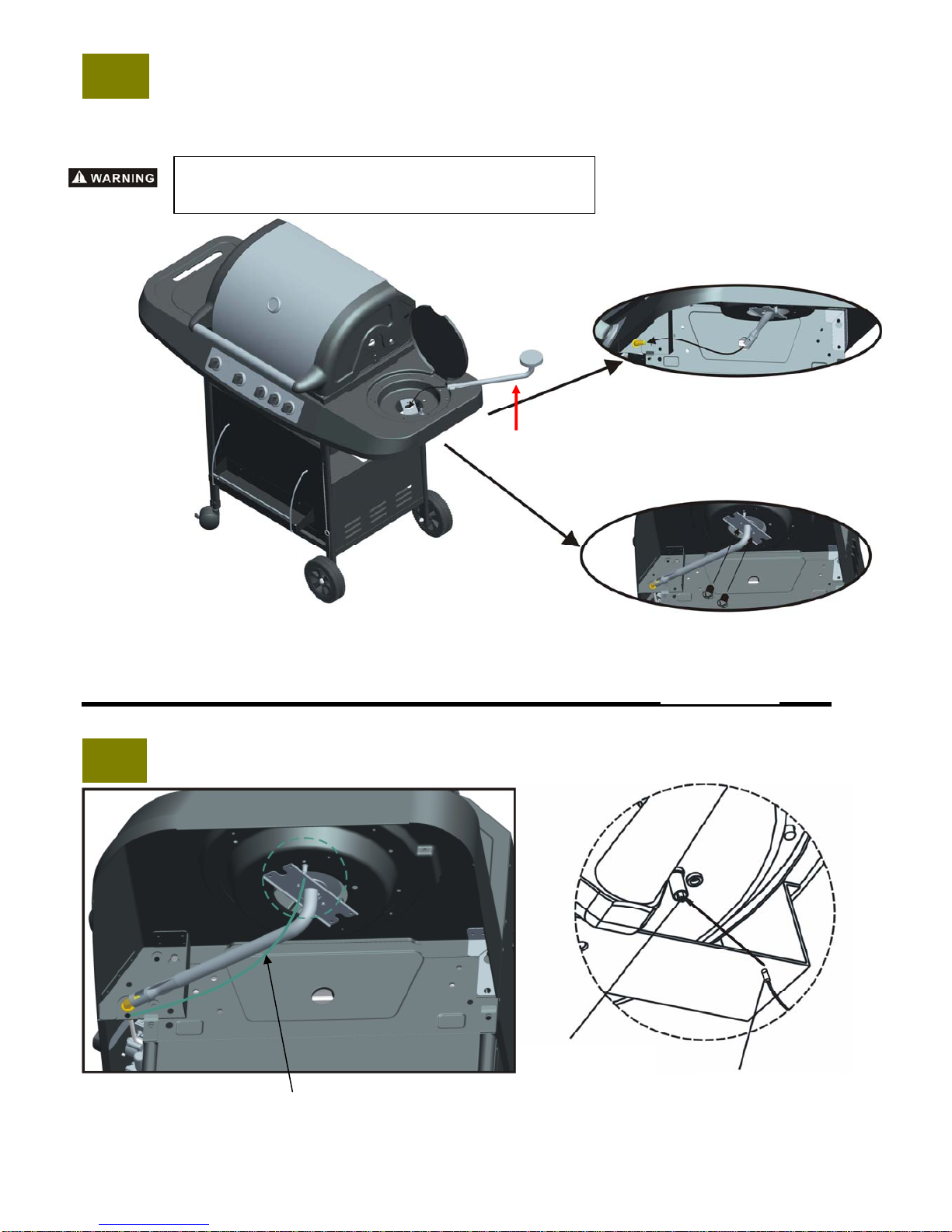

Instruction for fixing cast iron burner on the right side shelf.
Open the lid on right side shelf and put the cast iron burner in the hole.
Connect the burner with the connector nearby. Secure the burner using two
M4X 8 screws (23).
Connector
22x M4X8
Install electrode of right side burner.
Check and make sure the S/S gas flow tube of
the cast iron burner expedite before assembly!
