Calflame BBQ10245-KDB Bedienungsanleitung

LTR50001091, Rev. C

Cart Assembly

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Assembling the A La Cart

Parts List with Replacement Part Numbers

Before you begin, inventory the parts you received to make sure you

have everything. After you assemble your cart, you will have six frame

extensions you will not need. (If you assemble your cart con gured for

a  ve burner grill, for example, you will not need the frame extensions

for a three or four burner grill.)

These instructions describe how to assemble the A La Cart, which can

be con gured for three-burner, four-burner, and  ve-burner grills. The

example used in these instructions is a three-burner cart.

Cart Assembly

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Cart Assembly

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Attach the left frame piece to the2.

right frame piece with the front

and back bottom extensions.

Attach the extensions to the out-

side of of the frames as shown

below using the provided metal

screws.

Attach the two cart wheels to the right1.

side frame piece.

Cart Assembly

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Attach the top rear extension. Attach the extension to the inside of3.

of the frames as shown below using the provided metal screws.

Connect the the outer and inner extensions according to the width4.

of your cart’s size and attach them to the left and right frame

pieces. Attach the extensions to the inside of the of the frame. Use

screws and nuts.

3 burner 4 burner

5 burner

Cart Assembly

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Set the propane tank holder and the optional basket in place.6.

Attach shelves and shelf supports to both sides of the cart using5.

screws and nuts. Place the shims between the cart side and the

shelf so that they will be held in place by the middle and bottom

screws.

Assembling the A La Cart Plus

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Assembling the A La Cart Plus

BODY FLAT ASSY FOR 4 BRNR GRILLBBQ09306-KDB

8BBQ09303-KDB BODY FILLER PART FOR 3 BRNR GRILL 1

BBQ09304-KDB BODY FILLER PART FOR 4 BRNR GRILL 1

9BBQ09345112 REAR PLATE 1

10 BBQ09345130SLIDE BRACKET PART 4

11 BBQ09345141DOOR, 18 IN, ASSEMBLY 2

12 BBQ09300530 TUBULAR SIDE SHELF 2

BBQ09345-KDB BODY -COMPONENTS

ITEM PART # DESCRIPTION QTY

1BBQ09345100BOTTOM ASSEMBLY 1

2BBQ09345110BACK ASSEMBLY 1

3BBQ09345120LEFT SIDE ASSEMBLY 1

4BBQ09345121 RIGHT SIDE ASSEMBLY 1

5BBQ09345122BRIDGE ASSEMBLY 1

6BBQ09345125 L SUPPORT PART 1

7BBQ09305-KDB BODY FLAT ASSY FOR 3 BRNR GRILL

ACCESSORY SET

ITEM PART # DESCRIPTION QTY.

13 BBQ09910PAPER TOWEL HOLDER, SPICE RACK,

BOTTLE OPNR & TOWEL HOLDER SET 1

ACCESSORY SET CONSISTS OF:

14 BBQ08000500PAPER TOWEL HOLDER 1

15 BBQ07846P-18 SPICE RACK 1

16 BBQ09911BOTTLE OPENER 1

17 BBQ09912TOWEL HOLDER 1

ACCESSORIES

Assembling the A La Cart Plus

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Item Description Part Number Quantity

1 Base BBQ09345100 1

2 Rear Panel BBQ09345110 1

3 Left Side BBQ09345120 1

4 Right Side BBQ09345121 1

5 Bridge Support BBQ09345122 1

6 L Support BBQ09345125 1

7Front Body Plate 3 Burner

Grill BBQ09305-KDB 1

7Front Body Plate 4 Burner

Grill BBQ09306-KDB 1

Top Filler Piece 3 Burner

Grill BBQ09303-KDB 1

Top Filler Piece 4 Burner

Grill BBQ09304-KDB 1

9 Rear Plate BBQ09345112 1

10 Shelf Brackets BBQ09345130 4

11 Doors BBQ09345141 2

12 Shelves BBQ09300530 2

Accessory set

Paper Towel Holder, Spice

Rack, Bottle Opener, Towel

Holder

BBQ09910 1

Accessory set consists of:

14 Paper Towel Holder BBQ08000500 1

15 Spice Rack BBQ07846P-18 1

16 Bottle Opener BBQ09911 1

17 Towel Holder BBQ09912 1

Assembling the A La Cart Plus

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

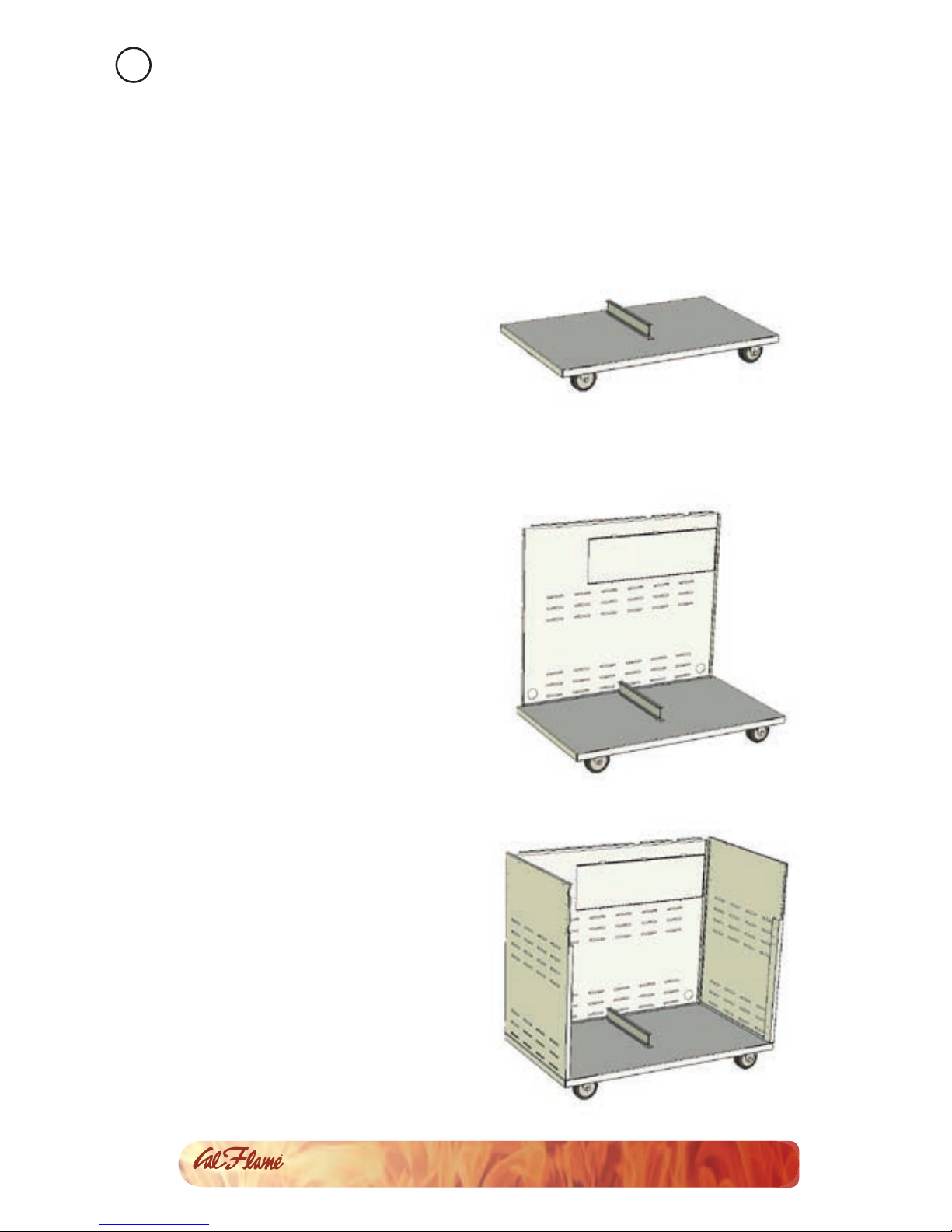

Attach the casters to the1.

base (if not already at-

tached).

Attach the back panel to the2.

base. Attach rear plate to the

back panel (if not already at-

tached).

NOTE: A three burner grill cart is used as an example to describe the

assembly of the A La Cart Plus. Differences between the three cart

sizes will be pointed out in these instructions.

Attach the side panels to the3.

base and the back panel.

Assembling the A La Cart Plus

A La Cart

LTR50001091, Rev. C

www. c a l  a m e b b q . c o m

Attach the bridge support to4.

the side panels.

Steps 5 through 7 are for three burner and four burner grills

only. If you have a ﬁ ve burner grill, skip to step 9.

Attach the L support to the bridge assembly and rear panel as5.

shown below.

Three burner grill Four burner grill

Five burner grill carts do not use the L support, front body plate or top

 ller piece. These pieces may be discarded.
