Cambridge Audio Minx X201 Bedienungsanleitung

Minx X201 Subwoofer

Manual Generated: 02/11/2023 - 13:20

Table of Contents

Minx X201 Subwoofer 3 ...............................................................................................................................................................................................

Introduction 4 ................................................................................................................................................................................................................

What's included with the Minx X201? 5 ....................................................................................................................................................................

Front panel 6 .................................................................................................................................................................................................................

Rear panel 7 ...................................................................................................................................................................................................................

Unboxing your Minx X201 8 ........................................................................................................................................................................................

Installation instructions 9 ...........................................................................................................................................................................................

Connecting a second subwoofer 11 ...........................................................................................................................................................................

Technical speciﬁcations 12 ..........................................................................................................................................................................................

Frequently asked questions 13 ...................................................................................................................................................................................

Troubleshooting 14 .......................................................................................................................................................................................................

Minx X201 Subwoofer

Last updated: January 26, 2023 04:55. Revision #10618

Users Manual

Introduction

Last updated: January 19, 2023 05:56. Revision #10627

Thank you for purchasing this Cambridge Audio Minx X201 subwoofer. Installed and used properly the subwoofer will deliver astonishing sound

quality, whether playing music or movies, whatever the listening environment. Please read this guide carefully, as it contains essential information

in getting the very best from your subwoofer.

Thank you for taking the time to read this manual; we do recommend you keep it for future reference.

For upcoming news on future products, software updates and exclusive oﬀers, make sure you register your product at

http://www.cambridgeaudio.com/register

What's included with the Minx X201?

Last updated: January 19, 2023 05:56. Revision #10626

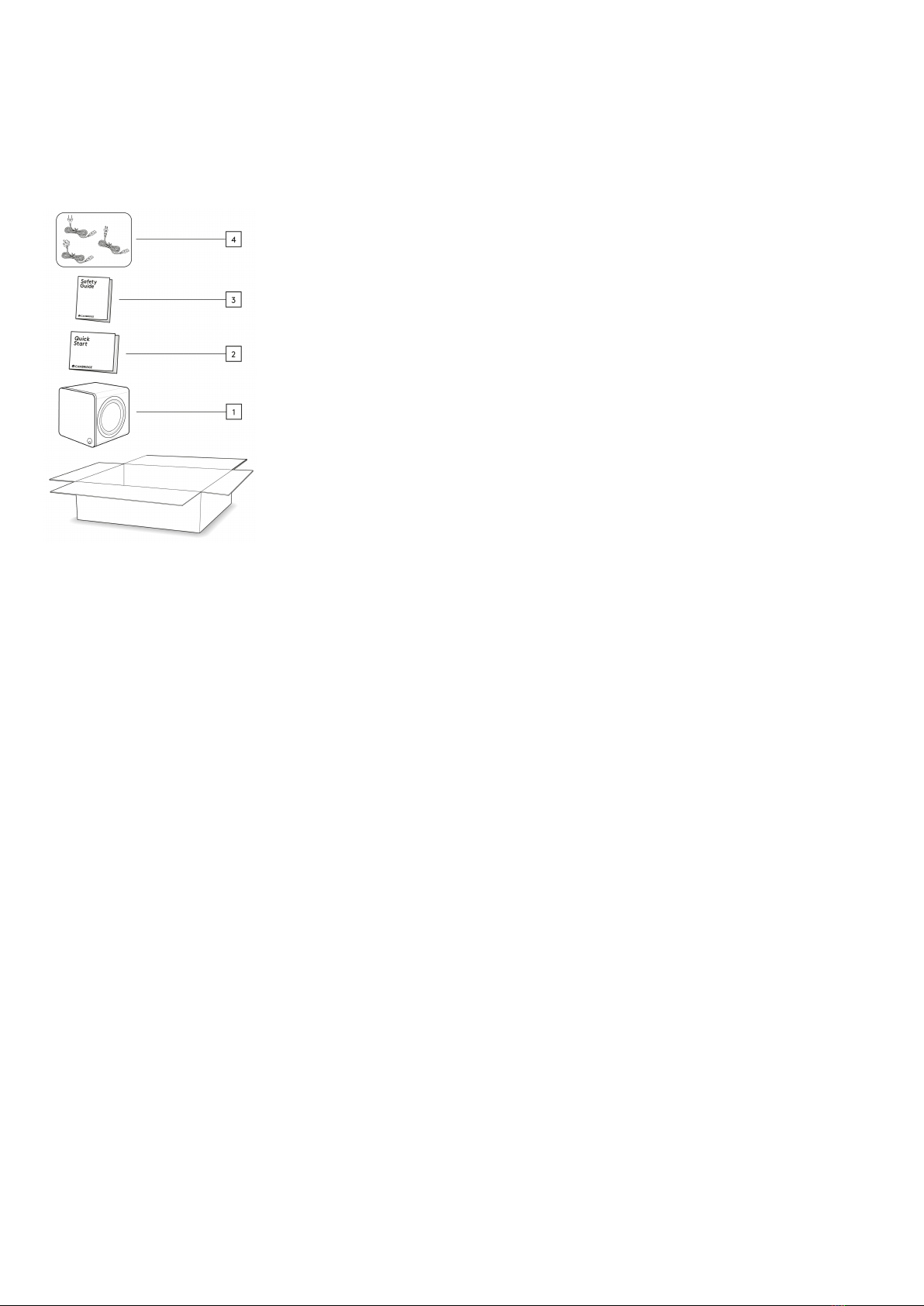

1. Minx X201 Subwoofer.

2. Installation guide.

3. Safety guide.

4. UK mains lead (depending on where the X201 was purchased)

EU mains lead (depending on where the X201 was purchased)

CU mains lead (depending on where the X201 was purchased)

Front panel

Last updated: January 19, 2023 05:56. Revision #10628

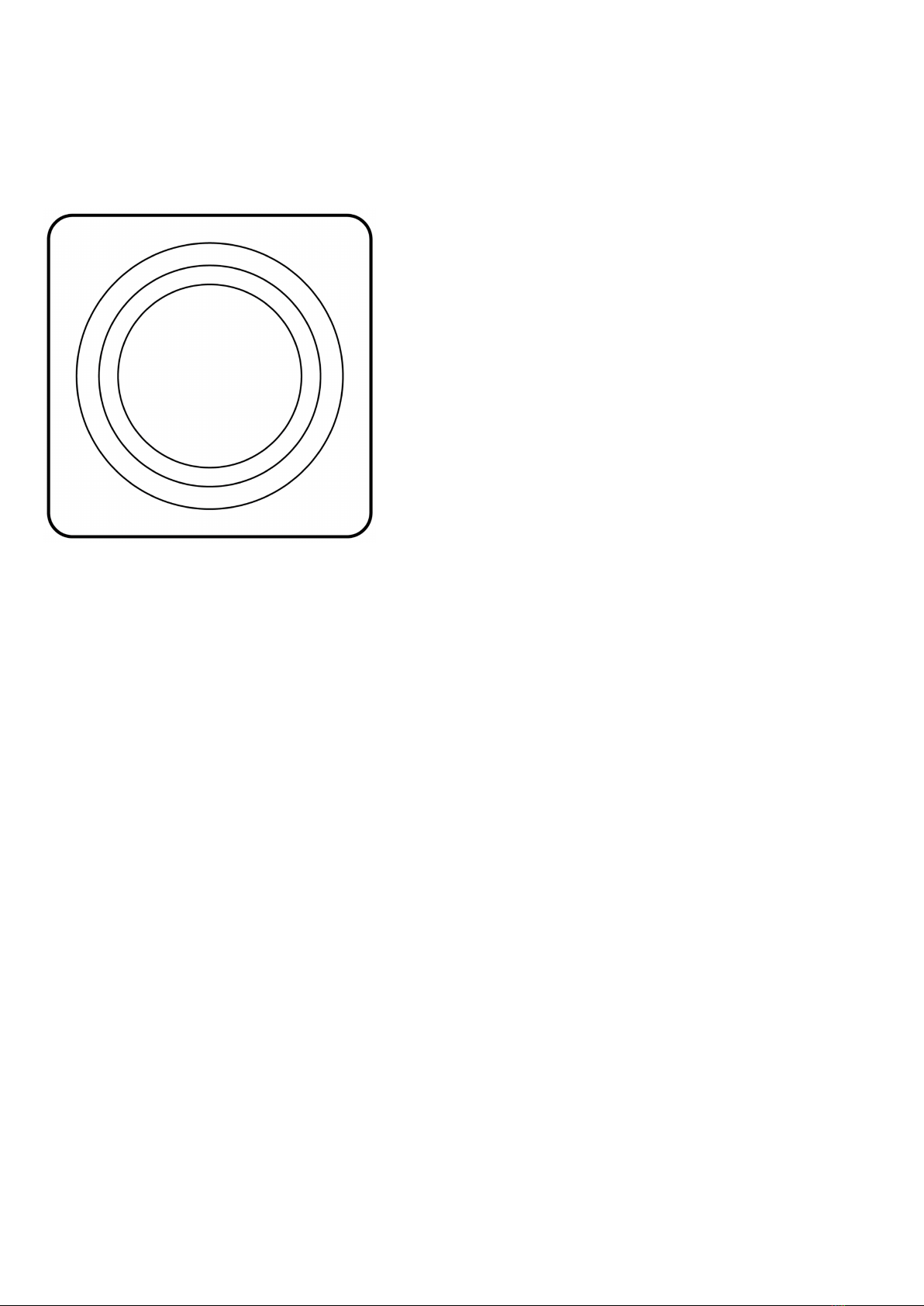

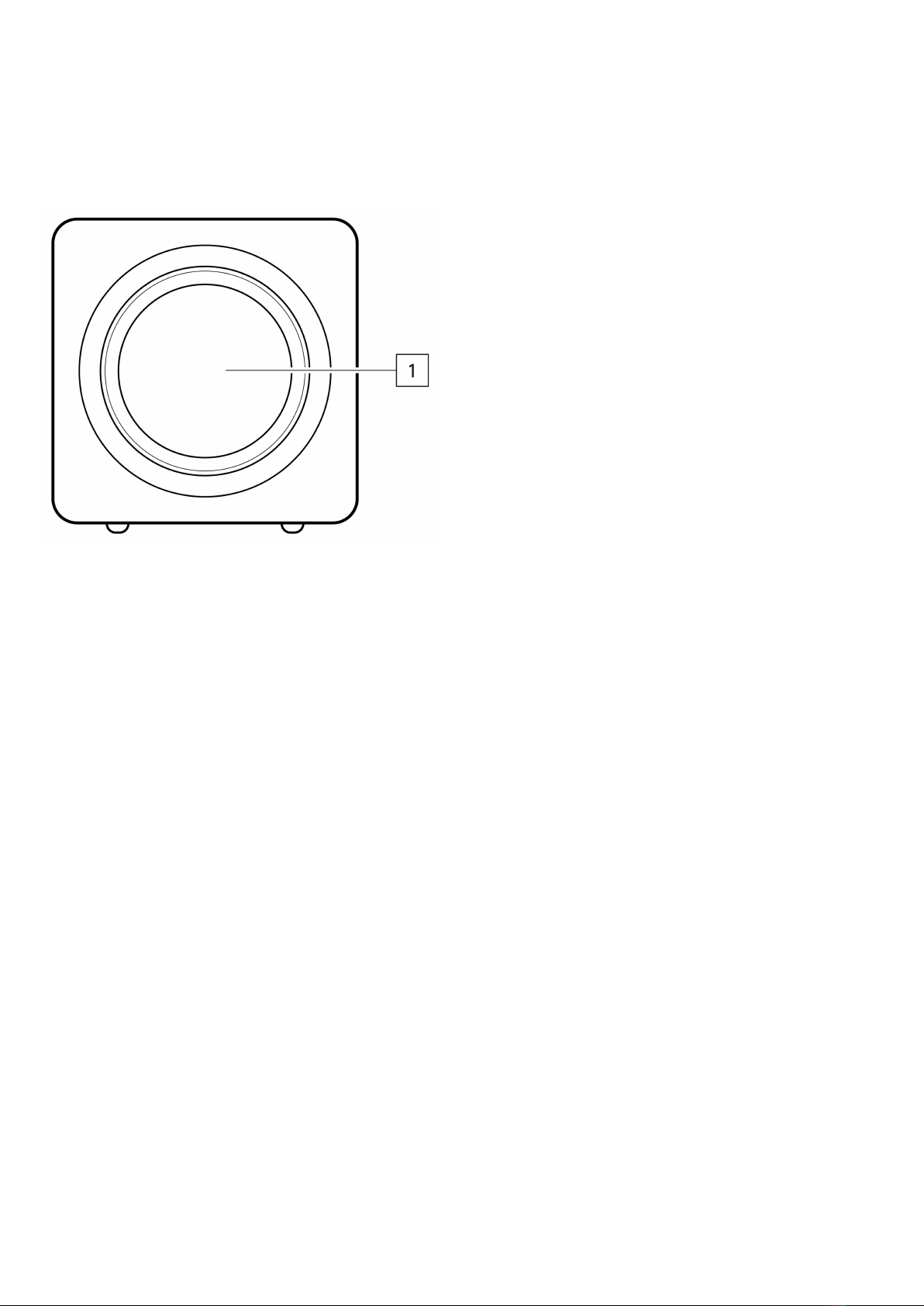

1. 6.5" Subwoofer.

Rear panel

Last updated: January 19, 2023 05:56. Revision #10625

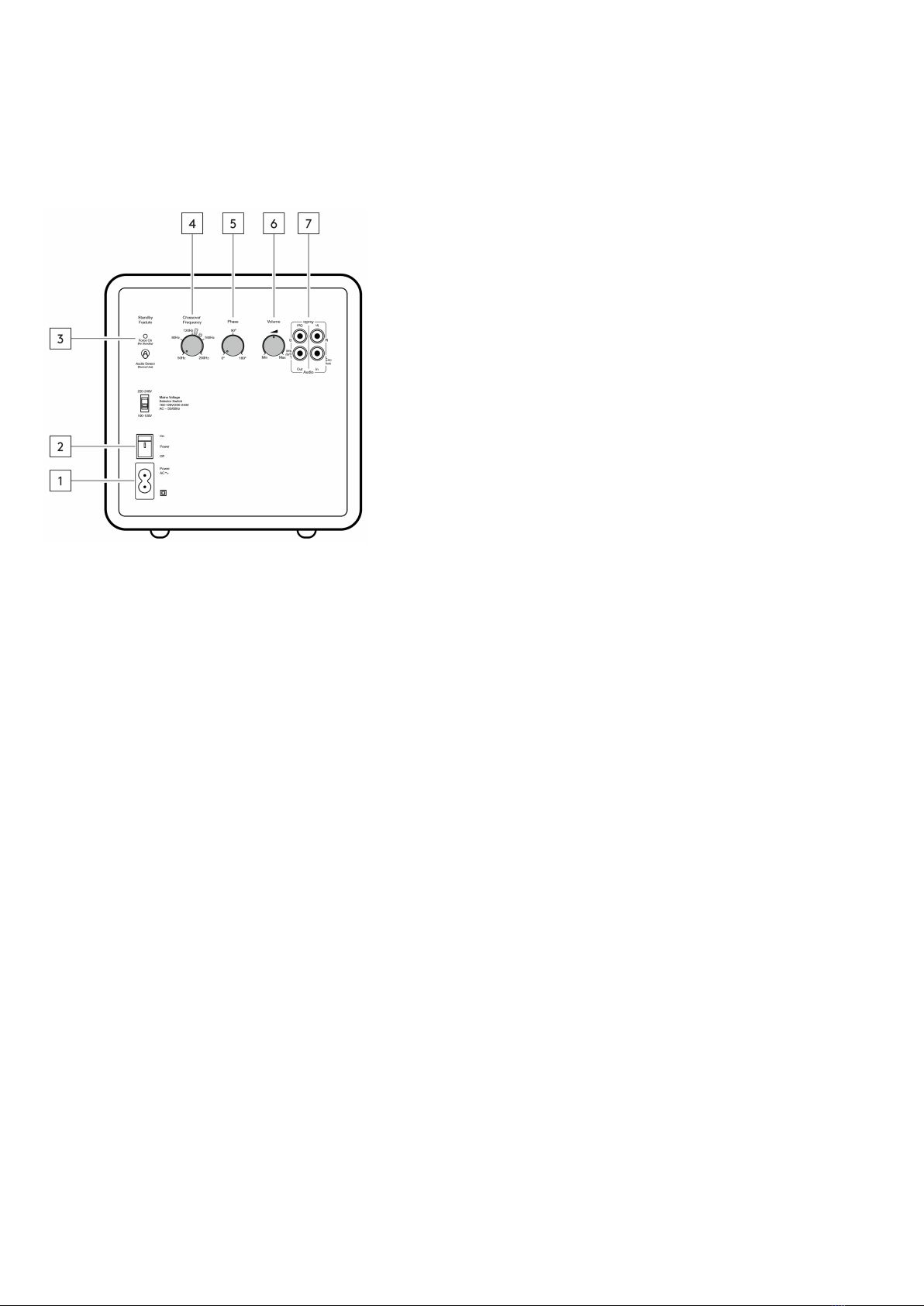

1. AC power socket.

2. Mains power switch – Switch the subwoofer between on and oﬀ.

3. Standby switch - Switch between ‘Force On’ (no standby), and ‘Audio Detect’. In audio detect mode the X201 will switch on when it detects an

incoming signal.

4. Crossover frequency control - Adjust the crossover frequency of the subwoofer.

5. Phase control - Adjust the phase settings of the subwoofer.

6. Volume control - Adjust the volume of the subwoofer.

7. Audio in/out.

Unboxing your Minx X201

Last updated: January 19, 2023 05:56. Revision #10624

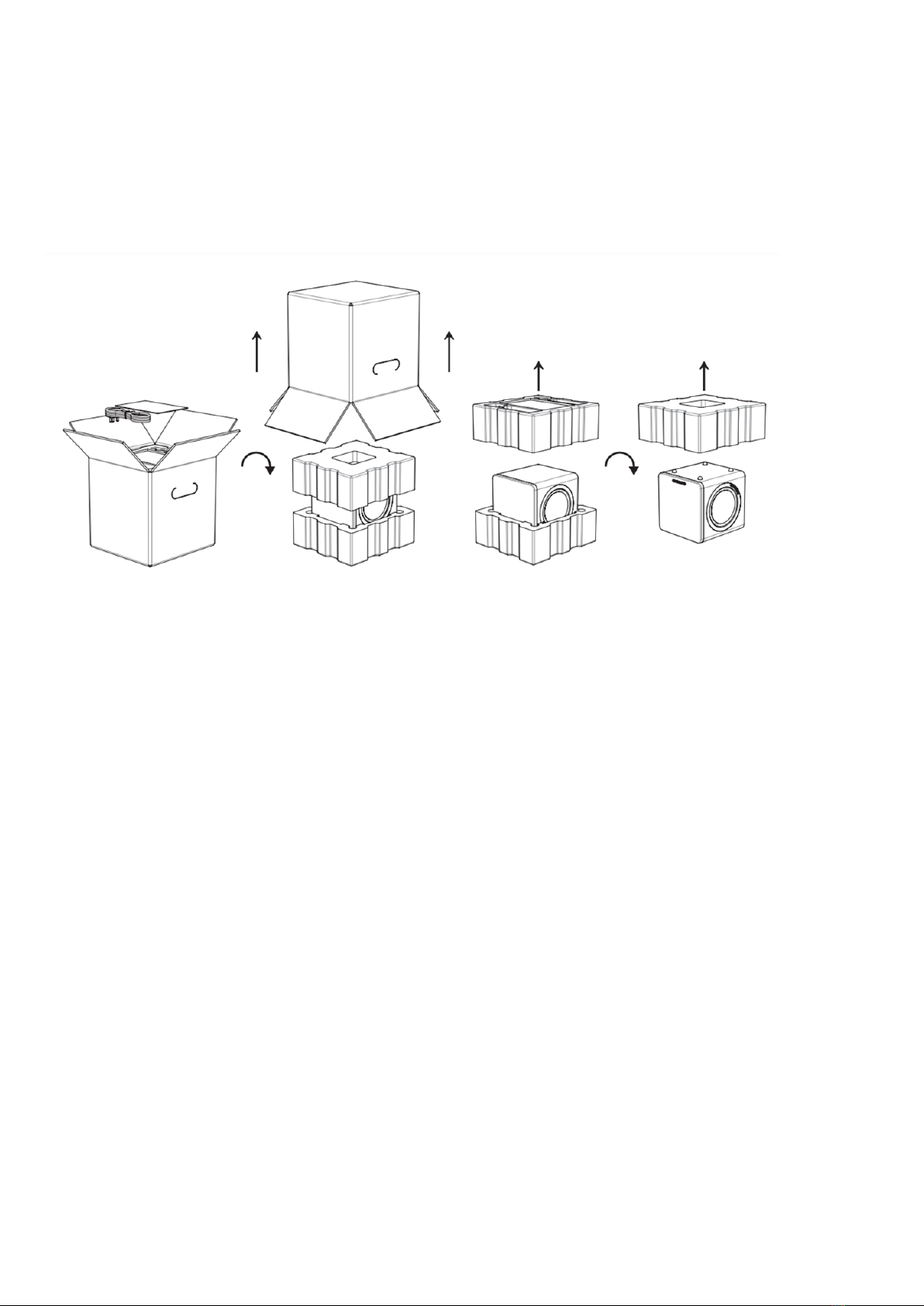

Follow the diagram and take care when unboxing your Minx X201 so not to damage the speaker cone.

Installation instructions

Last updated: January 19, 2023 05:57. Revision #10623

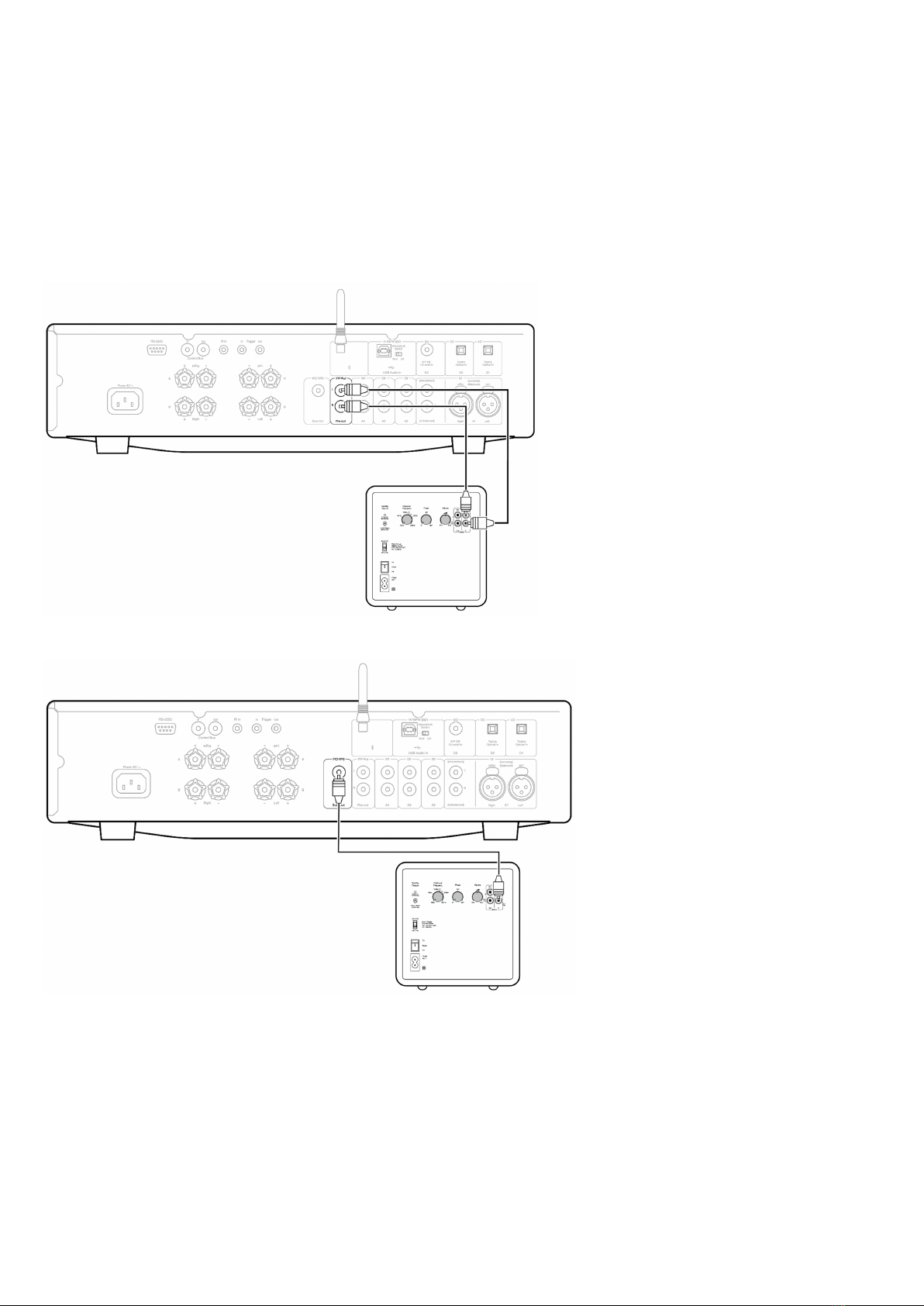

Dependent on your desired setup, there are a few diﬀerent ways to connect your Minx X201 subwoofer.

1. If you are using a two-channel hi-ﬁ system, then use the left and right line input connections to connect your Minx X201.

2. If you are using a receiver, or ampliﬁer with a dedicated sub out then connect the Minx X201 using the left channel (LFE/Sub) input.

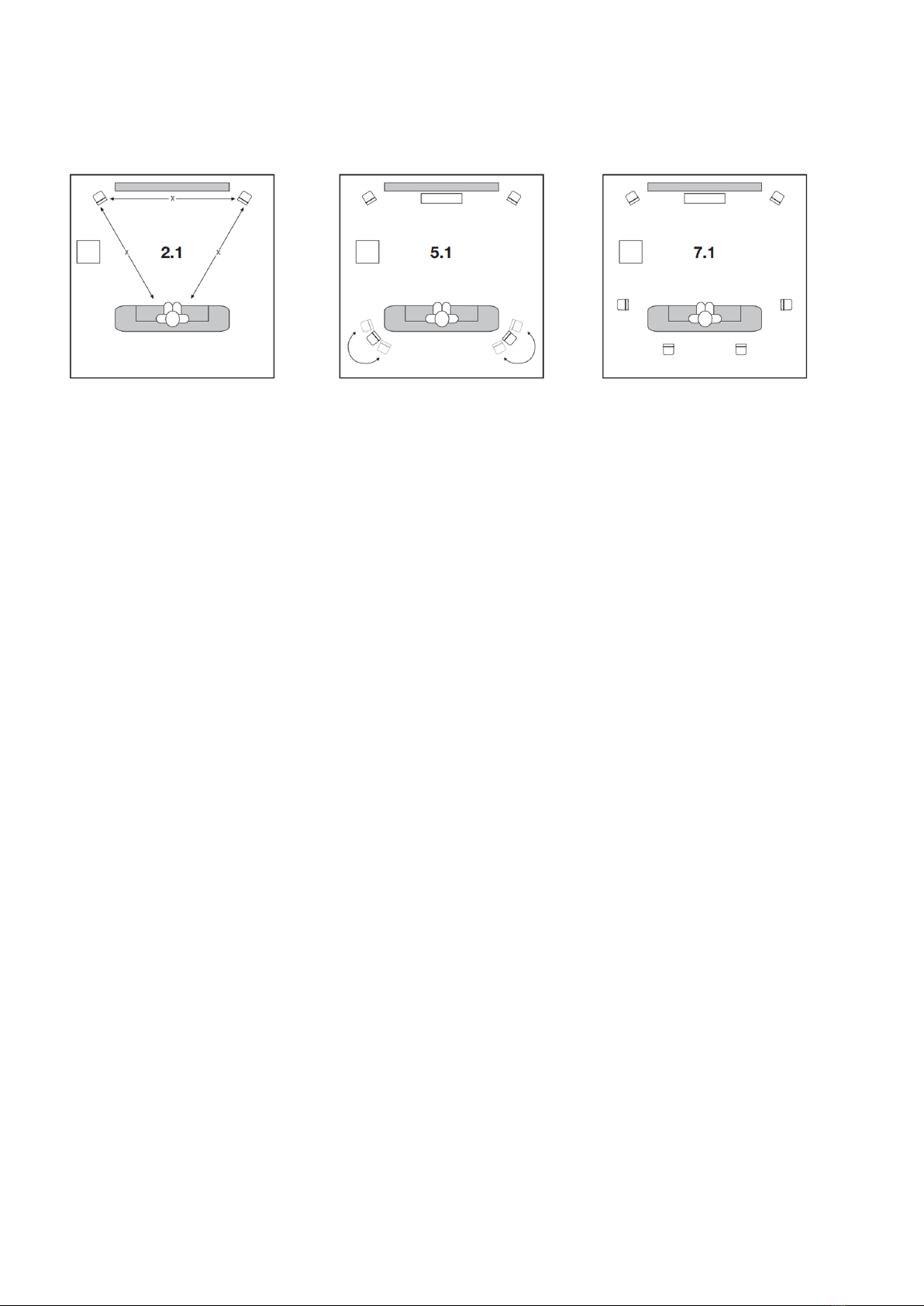

3. Once connected you can decide where to position your subwoofer. As low frequency content is largely unidirectional, you can experiment to ﬁnd

a place that suits your setup. Please see the below diagram for several suggestions on placement dependent on your speaker conﬁguration.

4. Use the crossover frequency, phase, and volume controls to adjust the subwoofer output to ﬁt with the rest of your system, and your

requirements.
