CAMBRIONIX PD-Sync4 Bedienungsanleitung

User Manual

PDSync-4

PDSync-4 Page 1 of 14

Table of Contents

1.Your PDSync-4 at a glance 2

2.Product Specifications 3

2.1.Input Power 3

2.2.Output Power 3

2.3.Physical specifications 3

2.4.Power Supply Specifications 4

3.Safety Guidelines and Precautions 5

4.Getting Started 7

4.1.What's Included 7

4.2.Connecting to the mains 7

4.3.Previous versions of Windows 7

4.4.Registration 7

4.5.Help and Support 7

5.Charging without connecting to a host computer 8

6.Using when connected to a host computer 9

6.1.Charging 9

6.2.Data Transfer 9

7.Scalability 10

8.Manage Ports & Devices using Cambrionix Software 11

8.1.LiveViewer 11

8.2.Cambrionix API 11

8.3.Command Line Instructions (CLI) 12

9.Certifications 14

PDSync-4 Page 2 of 14

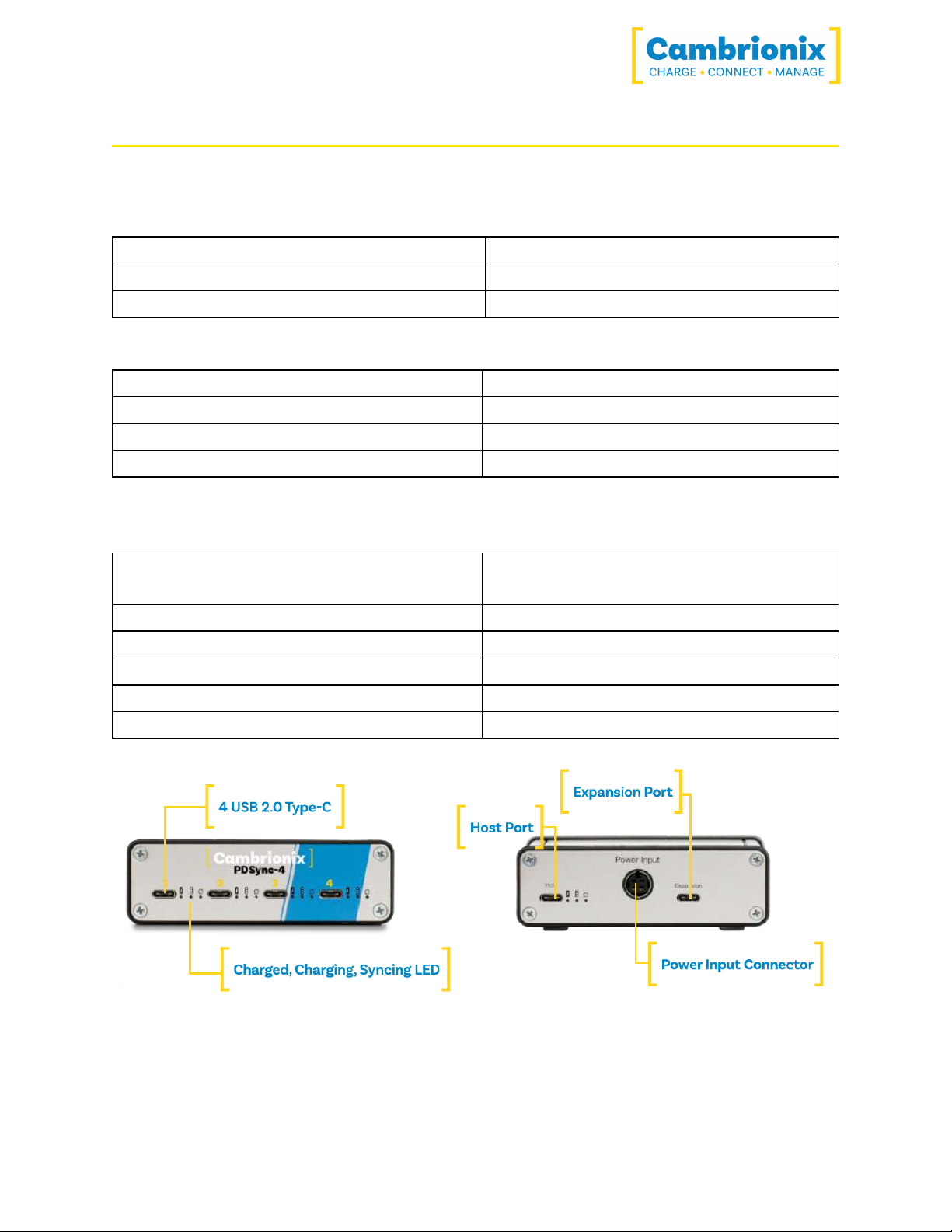

1.Your PDSync-4 at a glance

The PDSync-4 has been designed primarily for desktop use, being highly compact and quiet. It

provides 60W Max per Port of charging power to each of its 4 x USB 2.0 Type-C ports, allowing

mobile devices to be charged quickly, safely and reliably. All ports can be controlled using Cam-

brionix software to allow charging and/or data transfer while monitoring important port and

device information.

The PDSync-4 can charge attached USB devices without using a local computer and our intel-

ligent charging algorithm allows almost any device to be charged at its optimum rate (up to 3A

Max per Port). The firmware can be up-dated to allow new charging profiles to be added, ensur-

ing the PDSync-4 can charge the latest devices. It is ready to charge out-of-the-box and to sync

devices when attached to a host computer.

When a local (host) computer is attached, the host can control operation of the ports using

freely available software. Device charging and synchronisation can be monitored through

Cambrionix’s LiveViewer App, the Application Programming Interface (API) or Command Line

Interface (CLI). Cambrionix’s free monitoring and control software can be downloaded from-

https://www.cambrionix.com/software

PDSync-4 Page 3 of 14

2.Product Specifications

2.1.Input Power

Input Voltage 24Vdc

Input Current 15A

Input Connection 4-pin DIN

2.2.Output Power

Output Voltage 21V Maximum

Output Current 3A Max per Port

Output Power 60W Max per Port

Output Power (Total) 200W Maximum

2.3.Physical specifications

Input Connectors 1x USB 2.0 Type-C + 1 x USB2.0 Type-C Expan-

sion port

Output Connectors 4 x USB 2.0 Type-C

Ambient Operating Temperature range 0-35 Celcius

Relative humidity 5% to 95% non-condensing

Dimensions 132 x 106 x 34mm

Weight 1.6kg

PDSync-4 Page 4 of 14

2.4.Power Supply Specifications

Input Voltage 100-250Vdc

Input Current 2.5A @ 115Vac

Input Frequency 50-60Hz

Input Connector C14

Output Voltage 24V

Output Current 8.5A

Output Power 200W

Output Connector 4-pin DIN

PDSync-4 Page 5 of 14

3.Safety Guidelines and Precautions

Safety Warning Potential risk if ignored

Do not modify the product in any way Fire, electric shock or personal injury may occur

Do not dismantle the product Fire, electric shock or personal injury may occur

Do not bend, compress or drill into any part

of the product

Damage, electric shock or personal injury may

occur

Parts of Cambrionix products may become

hot during operation. Do not obstruct air

vents on the product or operate the product

in an environment where the

ambient temperature is outside the

recommended operating temperature region

An increased internal temperature may cause a

fire

Cambrionix products are not

reverse-polarity protected. The power

connections MUSTbe connected

correctly. If in doubt, please contact

Cambrionix

Damage to your product may occur. A fire or

electric shock may result

Do not short circuit the Power Supply Unit

(PSU) supplied with your product Sparks, fire or electric shock may result

Ensure dust does not collect around the

power plug pins or power socket, or in

/around the air vents to the extent it causes a

reduction in air circulation

A fire may result if there is combustible material

within the power socket or around the power

plug, or if the internal temperature increases

due to lack of air circulation

Do not allow liquids to come into contact

with the unit or power supply Fire, electric shock or personal injury may occur

Keep the power socket (where the power

cord is connected) unobstructed

The power cord must be disconnected to cut off

power to the product when an issue occurs.

Note that the product may not be completely

powered down by only using the power switch

on the product

Do not use a damaged power cord or plug, or

a loose power socket An electric shock or fire may result

Do not power multiple products from a single

power socket Overheated power sockets may cause a fire

Do not touch the power plug with wet hands An electric shock may result

PDSync-4 Page 6 of 14

Safety Warning Potential risk if ignored

Insert the power plug all the way into the

socket so that it is not loose An unsecured connection may cause a fire

Connect the plug to an earthed socket Failure to connect an earthed socket may result

in an electric shock or injury

Do not bend or pull the power cord with

force. Be careful not to leave the power cord

underneath a heavy object

Damage to the power cord may result in fire or

electric shock

Do not place the power cord near heat

sources A fire or electric shock may result

Only use the power cord provided

(if applicable) A fire or electric shock may result

Do not disconnect the power cord while the

product is being used

The product may become damaged by

electric shock

Cambrionix OEM modules are susceptile to

Electrostatic Discharge (ESD). OEM modules

should be handled in an ESDsafe area

Damage to your Cambrionix OEM module may

occur

Cambrionix OEM modules have sharp edges,

corners and components. suitable protective

equipment must be worn whilst handling

Personal injury may occur

No power supply is shipped with a

Cambrionix OEMmodule. Please contact your

power supply manufacturer directly for

safety related information

Fire, electric shock or personal injury may occur.

Please see the installation instructions for your

Cambrionix product for correct wiring require-

ments

When mounting a Cambrionix OEMmodule,

all mounting holes should be used with appro-

priate spacers, screws and a torque level of

1.1Nm

Damage or personal injury may occur

PDSync-4 Page 7 of 14

4.Getting Started

4.1.What's Included

l2m Mains power cable (Country specified on order)

l0.8m USB 2.0 Type-C data Updater Cable

lPDSync-4 Hub

lPower Supply Unit

4.2.Connecting to the mains

Connect the Power Supply Unit (PSU) to the hub using the 4-pin DIN plug. Connect the power

cable to the PSU. Making sure you adhere to local safety regulations, connect the power cable

to the 100 – 250 Vac mains power outlet and switch the hub on using the small power switch

located adjacent to the power input connector on the hub. When the device is switched on, a

red LED will be illuminated. The hub is now ready to charge attached devices.

4.3.Previous versions of Windows

If you are using a version of Microsoft Windows prior to Windows 10 you will need to install

Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers

please detach the hub from the PC before executing the downloaded installer. The installer will

prompt you for permission to install drivers signed by Cambrionix, please agree to this.

Once the installer has completed the installation of the drivers you may attach your hub.

Download the file at: https://www.cambrionix.com/software-archive

4.4.Registration

You may register you and your product athttps://cambrionix.com

to download LiveViewer and our API.

4.5.Help and Support

FAQs and support can be found on the Help & Support page here .ht-

tps://www.cambrionix.com/help_pages/help. You can raise a support ticket for more in depth

support here https://cambrionix.atlassian.net/servicedesk/customer/portals You can also down-

load any of our manuals and keep up to date at the link here https://www.cam-

brionix.com/product-user-guides

PDSync-4 Page 8 of 14

5.Charging without connecting to a host computer

When the Hub is switched on and is not connected to a local host computer it is

automatically configured to charge devices using its intelligent charging algorithm. Simply

connect the devices to be charged to any of the available ports (not the Host Port) using

USB - compliant cables.

Once the devices are connected, the algorithm will detect the highest charge rate allowable for

each attached device. Charging at the optimum rate (up to 3A Max per Port) specified by the

manufacturer will commence once profiling is complete. Depending on the state of charge of

the device attached, this may take tens of seconds.

PDSync-4 Page 9 of 14

6.Using when connected to a host computer

6.1.Charging

When the Host Port is connected to a local computer, the hub defaults to

Sync mode and charge currents are determined according to USB Implementers Forum (USBIF)

Super-Speed USB3.0 specifications. If the attached device complies with USB-IF Battery Char-

ging specification BC1.2 and supports Charging Downstream Port (CDP), the hub can provide

high-speed charging at up to 3A Max per Port. If the connected device does not comply with

BC1.2,the charge current will be limited to 500 mA in compliance with USB specifications.

6.2.Data Transfer

If you wish to transfer data, change applications, restore or update your mobile device, a data

connection to a local host computer is required. The hub works independently to the Operating

System (OS) and data transfer can be performed to all common mobile operating systems, such

as iOS, Android, Chromebook and Microsoft. In order to transfer data, connect the host port to

your local (host) computer using a Type-A to Type-A USB2.0 (or higher) compliant cable. Any

devices connected to the hub will now appear as if they were connected to the host computer’s

USB port. The hub is fully compliant with High Speed USB2.0 and supports data transfer at

speeds up to 480Mbps. The red power LED may flicker when the hub is syncing.

You can now use the programme of your choice to transfer data to and from your device.

Please note that USB specifications require a minimum 100 mA charge current to be delivered

during data transfer. As indicated in above, if the attached device has a BC1.2 compliant CDP

port, the device can draw up to 3A Max per Port while transferring data.
