CAME BPT XTS 5IP WH Handbuch
Handsfree entry phone for IP360 system
XTS 5IP WH - XTS 5IP BK
INSTALLATION AND CONFIGURATION MANUAL
EN
English
FB01266-EN
4
2
1
3
Page 2- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Description of parts
Front view
1Signaling LED
2Speaker
3Touch-screen display
4Microphone.
Rear view
5Socket for connecting the device to the LAN PoE
network.
Green LED, activity on the network:
permanently lit = active link,
flashing = data activity.
Yellow LED, data transmission speed:
o 10Mbps,
on 100Mbps.
The device automatically recognises the local
or PoE power supply.
DESCRIPTION
Full-touch speaker video intercom for IP360 system, 5˝ TFT touch screen display and Graphical User Interface.
General Precautions
• Read the instructions carefully before beginning the installation and carry out the actions as specified by the
manufacturer.
• The installation, programming, commissioning and maintenance of the product must only be carried out by
qualified technicians, properly trained in compliance with the regulations in force, including health and safety
measures and the disposal of packaging.
• Before carrying out any cleaning or maintenance operation, disconnect the device from the power supply.
• Use this equipment solely for the its specifically intended purpose.
• The manufacturer declines all liability for any damage as a result of improper, incorrect or unreasonable use.
5
F
Page 3- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
FReset button. When pressed it reboots the device; this operation DOES NOT require any deleting of program-
ming.
Function of terminals
Local power supply input
Landing call input
Alarm input
Technical data
Type XTS 5IP
local power supply (V DC) 14 to 18
PoE power supply IEEE 802.3af-PD
Maximum draw (mA) 330
Current draw in stand-by mode (mA) 270
Stocking temperature °C -25 to +70
Operating temperature °C 0 to +40
Protection rating (IP) 30
Video codec H.264
Capacitative TFT Touch-screen Display (pixels) 800 x 480
98 mm
138 mm
24 mm
1
83,5 mm
3
2
4
H= 155 -165 cm
H= 125 -135 cm
Page 4- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
INSTALLATION
5
Page 5- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
To make the device's installation more solid, use
the supplied screws and dowels to fasten the frame
to the wall.
MTMV/IP VAS/101
VAS/101
Modem router Wi-Fi
MTMV/IP
Modem router Wi-Fi
Switch PoE
Page 6- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions

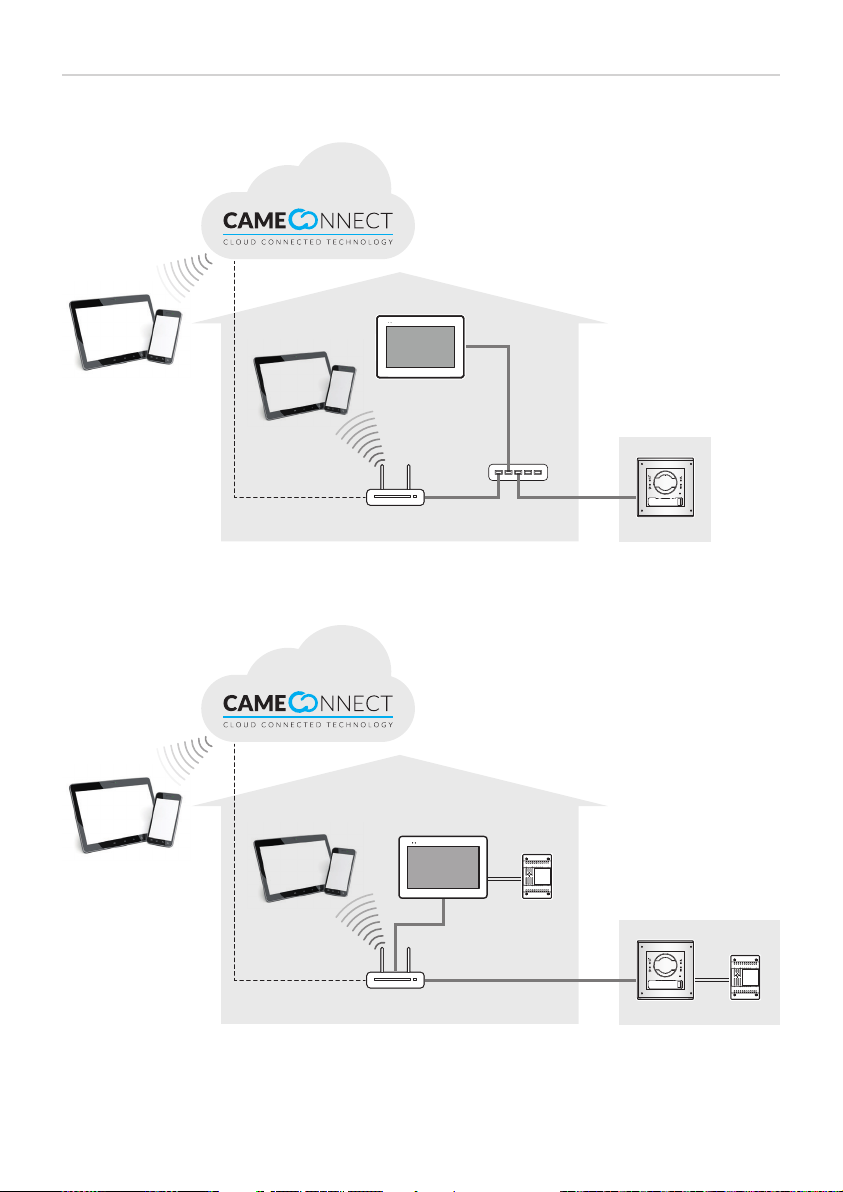

Examples of installation
Single-family system with POE power supply
Single-family system with local power supplies
MTMV/IP MTMV/IP
APARTMENT 4
APARTMENT 3
APARTMENT 1
APARTMENT 4
APARTMENT 2
SWITCH PoE
SWITCH PoE
MODEM
ROUTER Wi-Fi ETI/MiniSER
VAS/100.30
Master
Slave
Page 7- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
Multi-family system with an internal receiver for each apartment; one of the receivers can be
managed from a tablet or smartphone
Page 8- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
This section requires specific
know-how in operating the vid-
eo-intercom system. Wrong set-
tings may cause partial or even
total malfunctions; that is why
the editing of some parameters
is allowed only after entering the
installer password; the default
password is 112233).
Maintenance
Advanced sengs
Conguring the user interface
Tones
Automac door opener
Display
SIP Sengs
Backdrops
Network
Auxiliary seng
Sengs
Advanced settings
Scroll the list.
Select menu item B.
Select item A.
COMMISSIONING
Once the cables are laid and connected, program the essential function for operating the device.
Scroll the available pages.
Info Back Home
21:20 Thursday
15 Mar 2018
Info Back Home
21:20 Thursday
15 Mar 2018
Info Back Home
21:20 Thursday
15 Mar 2018
B
A
1
Page 9- Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
StacDHCP
ALets you choose the type of address from:
DHCP
The device's IP address is assigned by the DHCP server; if there are no special needs, this mode lets you
continue with the settings without adding any additional data.
Static
The device's IP address is manually assigned.
BIf you have chosen a static IP address, enter the device's IP, which must belong to the same subnet as that of
the router and of the other connected devices.
CIf the netmask is dierent from the default one, provide the proper netmask.
DProvide the default gateway for your network.
EIndicate the DNS from which the device acquires the correct time.
Press button Fto save the configuration
If a DHCP server is also present, the static address selected must not be among those included in the
DHCP pool.
MAC address
DNS
Gateway
Netmask
IP address
Mode
Type of connecon
Save
This section is used to configure
the connection to the network.
Network
Info Back Home
21:20 Thursday
15 Mar 2018
A
B
C
D
E
F
Page 10 - Manual FB01266 -EN - 12/2018 - © CAME S.p.A. - The contents of this manual may be changed, at any time, and without notice. - Translation of the original instructions
21:20 Thursday
15 Mar 2018 HomeBackInfo
Server type
Server address
Display name
Password
Mode
Flat Id
Username
DIn this space enter the server's IP address.
Default IP addresses of CAME servers (example):
ETI/MiniSER Xip, ETI/DOMO Xip - 192.168.0.3 (port 0) - 192.168.1.3 (port 1)
ETI/SER Xip, 192.168.1.1
Serverless IP entry panel, 192.168.1.5
EChoose the type of server the device is connected.
All CAME servers are of XIP Server type.
Automatic mode
Choosing the automatic SIP setting mode and pressing the [Save] button, a wizard is started through which it is
possible to choose the server or master device, to which the device must be connected. Once the call code (Flat
Id) assigned to your extension has been entered during programming from PCS/Xip, the procedure is completed.
Save
NoneGeneric
AutomacManual
XIP server
Manual Mode
AIn this space enter the “SIP User
Name” assigned to the device by
PCS Xip.
BIn this space enter the password
assigned in the receiver credentials
in the server set-up window.
CName assigned to the device
(for future use).
SIP Settings
A
B
C
D
E
