SCHEDA COMANDO

CONTROL BOARD

CARTE DE COMMANDE

STEUERPLATINE

TARJETA DE MANDO

SERIE Z |

Z SERIES

/ SÉRIE Z |

BAUREIHE Z |

SERIE Z

ZA3

CANCELLI AUTOMATICI

Descrizione scheda comando

La scheda elettrica ZA3 è adatta al

comando di automazioni per cancelli a

battente della serie ATI, FERNI e

FROG, alimentati a 230V con potenza

fino a 600W, frequenza 50÷60 Hz.

Progettata e costruita interamente

dalla CAME S.p.A., risponde alle

vigenti norme UNI 8612. La scheda va

inserita e fissata nel contenitore in

ABS (S4339 o S4340) con grado di

protezione IP54, dotato di

presa per il riciclo d’aria e completo di

trasformatore.

La scheda va alimentata con tensione

di 230V (a.c.) sui morsetti L1-L2 e

protetta in ingresso con due fusibili di

linea da 5A. I dispositivi di comando

sono a bassa tensione e protetti con

fusibile da 3.15A.

La potenza complessiva degli accesso-

ri (24V) non deve superare i 20W.

CARATTERISTICHE GENERALI

ITALIANO

QUAD RO COMAN DO

FUSIBILI

LINEA 5A

ZA3

CH1

FUSIBILE

CENTRALINA

T.L. T.C.A. TR2M. 2134567

8910

CH2

-4-

GENERAL CHARACTERISTICS

ENGLISH

Description of control board

The ZA3 electric board is suitable for

controlling the automation of ATI,

FERNI and FROG series 230V swing

gates with up to 600W power and 50-

60Hz frequency.

Wholly designed and built by CAME

S.p.A., it meets UNI 8612 regulations

in force. The board is inserted and

fixed to the ABS case (S4339 o

S4340), which has an IP54 protection

level, with air recycling inlet and

transformer.

The board requires 230V (a.c.) at

terminal blocks L1-L2 and the inlet is

protected with two 5A fuses. A 3.15A

fuse protects the low voltage command

devices.

The accessories’total wattage (24V)

must not exceed 20W.

Safety

Photocells can be connected to

obtain:

Re-opening

during closure (2-C1), if

the photocells identify an obstacle

while the gate is closing, they will

reverse the direction of movement until

the gate is completely open;

Re-closing

during opening (2-CX, dip

8OFF-10OFF), if the photocells identify

an obstacle while the gate is opening,

they will reverse the direction of

movement until the gate is completely

closed;

Partial stop,

shutdown of moving

gate, with activation of an automatic

closing cycle (2-CX);

Total stop

(1-2), shutdown of gate

movement without automatic closing; a

pushbutton or radio remote control

must be actuated to resume

movement).

NB: If an NC safety contact (2-C1, 2-

CX, 1-2) is opened, the LED will flash

to indicate this fact.

Accessories which can be

connected to this unit

“Gate open”signal ligh

t (10-5);

Cycle lamp.

The lamp which lights the

manoeuvring zone: it remains lit from

the moment the doors begin to open

until they are completely closed

(including the time required for the

automatic closure). In case automatic

closure is not enabled, the lamp

remains lit only during movement (E-

E3);

Electric lock

(11-S);

-5-

Other functions available

Automatic closing.

The automatic

closing timer is automatically activated

at the end of the opening cycle. The

preset, adjustable automatic closing

time is automatically interrupted by the

activation of any safety system, and is

deactivated after a STOP command or

in case of power failure;

Obstacle presence detection:

When

the motor is stopped (gate is closed,

open or half-open after an emergency

stop command), the transmitter and

the control pushbutton will be

deactivated if an obstacle is detected

by one of the safety devices (for

example, the photocells);

- Hammer movement.

At every opening

command, the wings press the closing

stop-ledge for a second, thus facilitat-

ing the release operation of the electric

lock connected to terminals 11-S.

It is only active if the wings are closed

and at the end of the work time or at

the 1st manoeuvre after the system has

been powered;

Enabling

functions of partial stop or

re-closure during opening, normally-

closed contact (2-CX), select one of

the two functions by setting Dip (see

page 14);

"Operator present" function:

Gate

operates only when the pushbutton is

held down (the radio remote control

system is deactivated);

Partial opening

, second motor door

opening, adjusted with TR2M trimmer;

it is activated by collecting to the

terminals 2-3P;

Pre-flashing

for 5 seconds, while the

door is opening and closing;

Type of command:

-open-stop-close-stop for pushbutton

and radio transmitter;

open-close-reverse for pushbutton

and radio transmitter;

-open only for radio transmitter.

Adjustments

- Automatic closure time;

- Partial opening time and delay in

closing of the M2 motor;

- Operating time.

Important! Disconnect the unit

from the main power lines before

carrying out any operation inside the

unit.

-12-

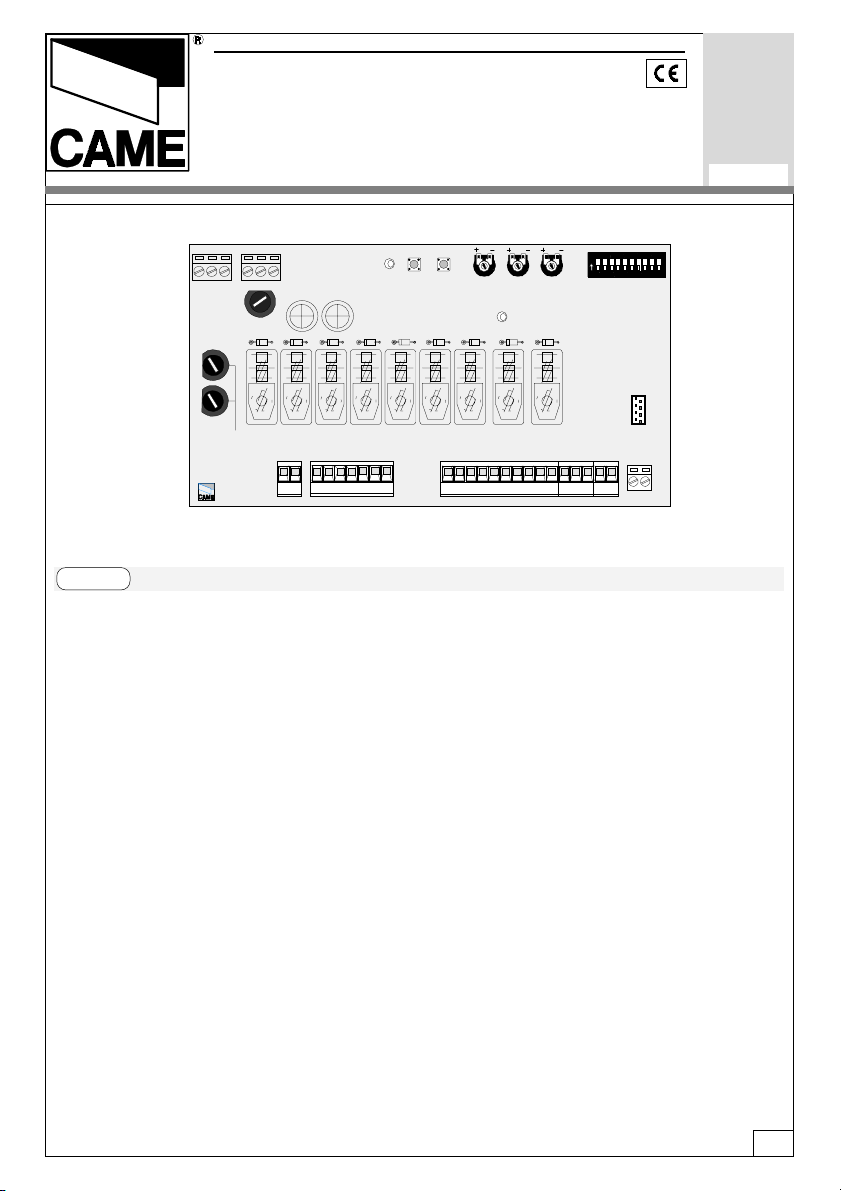

COMPONENTI PRINCIPALI

1 Morsettiere di collegamento

2 Fusibili di linea 5A

3 Fusibile centralina 3,15A

4 LED di segnalazione tensione presente 24V

5 Pulsanti memorizzazione codice radio

6 Trimmer di regolazione tempo lavoro

7 Trimmer di regolazione tempo in chiusura automatica

8 Trimmer di regolazione ritardo in chiusura 2° motore e apertura parziale

9 Selettore funzioni a 10 dip (vedi pagina 14)

10 Innesto scheda radiofrequenza (vedi tabella)

11 LED segnalazione

12 Limitatore di coppia (vedi pagina 21)

ITALIANO

1 2 3 4

L2T L1T

024

QUA DRO COMANDO

FUSIBILI

LINEA 5A

ZA3

CH1

FUSIBILE

CENTRALINA

T.L. T.C.A. TR2M.

1 3 45 67 8910O

CH2

4 5 6 7 8 9

Nero

Black

Noir

Schwarz

Negro

Rosso

Red

Rouge

Rot

Rojo

SCHEDA BASE -

MOTHERBOARD

- CARTE BASE -

GRUNDPLATINE

- TARJETA BASE

Nota: serie FROG, collega-

re i fili neri che fuoriescono

dalla scheda sui connettori

del condensatore del 1°

motore e i fili rossi sul con-

densatore del 2° motore.

NB: FROG series, connect

the black wires coming out of

the board to the connectors

of the first motor’s condenser

and the red wires to the

second motor’s condenser.

Note: série FROG,

connecter les fils noirs qui

sortent de la carte sur les

connecteurs du

condensateur du 1er moteur

et les fils rouges sur le

condensateur du 2emoteur.

Hinweis: Reihe FROG. Die

schwarzen Kabel, die von der

Karte wegführen, an die

Verbinder am Kondensator

vom 1. Motor anschließen,

die roten Kabel an den

Kondensator vom 2. Motor.

Nota: serie FROG, conectar

los hilos negros que salen

de la tarjeta en los

conectores del

condensador del 1° motor

y los hilos rojos en el

condensador del 2° motor.

-13-

HAUPTKOMPONENTEN

1 AnschlußKlemmenleiste

2 Hauptsicherung 5A

3 Schaltkastensicherung 3.15A

4 LED Kontrolleuchte für Stromversorgung mit 24V

5 Code-Speichertasten

6 Trimmer zur Einstellung Laufzeit

7 Trimmer zur Einstellung der Schließautomatik

8 Trimmer zur Einstellung Schließverzögerung Motor 2 und Teilweises Öffnung

9Wählschalter für Funktionen mit 10 Dip (sehen S.14)

10 SteckanschlußFunkfrequenze-Platine (sehen Tabelle)

11 LED Kontrolleuchte zur Anzeige

12 Drehmomentbegrenzer des Motor (sehen S.21)

PRINCIPALES COMPONENTES

1 Caja de bornes las conexiónes

2 Fusibles de línea 5A

3 Fusible para central 3.15A

4 Indicador luminoso de alimentación de 24V

5 Teclas memorización códigos

6 Trimmer de regulación tiempo trabajo

7 Trimmer de regulación tiempo cierre automático

8 Trimmer de regulación retraso cierre 2° motor y apertura parcial

9 Selector de funciones con 10 dip (vedas pag.14)

10 Conexión tarjeta radiofrecuencia (ver tabla)

11 Indicador luminoso

12 Limitador de par motor (ver pág. 21)

MAIN COMPONENTES

1 Terminal block for external conections

2 5A line fuses

3 3.15A central control unit fuse

4 24V power-supply signalling LED

5 Radio-code save buttons

6 Trimmer for adjustment operating time

7 Trimmer for adjustment automatic closing

8 Trimmer for adjustment delay on closing cycle motor n°2 and partial opening

9 10-dip function switch (see p.14)

10 Radiofrequency board socket (se table)

11 Signal LED

12 Motor torque limiter (see pag.21)

PRINCIPAUX COMPOSANTS

1 Plaque à bornes de connexion

2 Fusibles de ligne 5A

3 Fusible boîtier 3.15A

4 LED de signalisation alimentation à 24V

5 Boutons-poussoir mémorisation code radio

6 Trimmer de réglage temps de fonctionnement

7 Trimmer de réglage fermeture automatique

8 Trimmer de réglage retard fermeture moteur 2à et ouverture partielle

9 Selecteur de fonctions à 10 interrupteurs à positions multiples (voir pag.14)

10 Branchement carte radiofréquence (voir tableau)

11 LED de signalisation

12 Limiteur de couple moteur (voir p.21)

ENGLISH

FRANÇAIS

DEUTSCH

ESPANOL

-14-

SELEZIONI FUNZIONI -

SELECTION OF FUNCTIONS

-SÉLECTION FONCTIONS

FUNKTIONSWAHL

- SELECCIÓN DE LAS FUNCIONES

QUADRO COMANDO

FUSIBILI

LINEA 5A

ZA3

CH1

FUSIBILE

CENTRALINA

T.L. T.C.A. TR2M. 2

1 3456 78910O

CH2

DIP-SWITCH 10 IE / 10-WAY DIP-SWITCH / DIP-SWITCH 10 OIES

ZEHNWEG-DIP-SWITCH / DIP-SWITCH 10 ÍAS

1 ON Chiusura automatica attivata; (1OFF-disattivata)

2 ON "Apre-stop-chiude-stop" con pulsante (2-7) e radiocomando (scheda AF

inserita) attivata;

2 OFF "Apre-chiude" con pulsante (2-7) e radiocomando (scheda AF inserita)

attivata;

3 ON "Solo apertura" con radiocomando (scheda AF inserita) attivata; (3OFF-

disattivata)

4 ON Prelampeggio in apertura e chiusura attivato; (4OFF-disat.)

5 ON Rilevazione presenza ostacolo attivato; (5OFFdis.)

6 OFF "Uomo presente" (esclude il funzionamento del radiocomando) disattivata;

(6ON - attivata)

7 ON Colpo d'ariete attivato; (per facilitare lo sgancio della serratura) 7OFF-

disattivato

8 OFF - 10OFF Funzione di richiusura in fase di apertura (collegare il dispositivo di

sicurezza sui morsetti 2-CX) attivato;

8 OFF - 10ON Funzione di stop parziale (collegare il dispositivo di sicurezza sui

morsetti 2-CX) attivato;

(se non vengono utilizzati i dispositivi su 2-CX, posizionare il dip 8 in ON)

9 OFF Funzione di riapertura in fasedichiusuraattivato;condispositivodisicurezza

collegato ai morsetti 2-C1, (se non viene utilizzato il dispositivo, selezionare

il dip in ON)

ITALIANO

134567

8910

OFF

-15-

ENGLISH

1 ON Automatic closure enabled; (1OFF-disabled)

2 ON "Open-stop-close-stop"with button (2-7) andradiocontrol(AF board inserted)

enabled;

2 OFF "Open-close" with button (2-7) and radio control (AF board inserted)enabled;

3 ON "Only opening" with radio control (AF board inserted) enabled; (3OFF-

disabled)

4 ON Pre-flashing (opening and closing) enabled; (4OFF-disabled)

5 ON Obstacle detection device enabled; (5OFF - disabled)

6 OFF "Operator present" (radio remote control is deactivated when function is

selected) desabled; (6ON-enabled)

7 ON Hammer movement operation enabled; (this function helps unlock the

electric lock) 7OFF-disabled

8OFF - 10OFF Re-closure during opening (connect the safety device on terminals

(2-CX) enabled;

8OFF - 10ON Partialstop (connect the safety device on terminals (2-CX)enabled;

(if the devices on the 2-CX terminals are not used, set Dip 8 in ON)

9 OFF Re-opening in closing phase (connect the safety device on terminals 2-C1)

enabled; if not used, set the dip-switch to ON.

FRANÇAIS

1 ON Fermeture automatique activé; (1OFF-éteinte)

2 ON "Ouvre-stop-ferme-stop" avec bouton (2-7) et commande-radio (carte AF

insérée) activé;

2 OFF "Ouvre-ferme" avec bouton (2-7) et commande-radio (carte AF insérée)

activé;

3 ON "Soulement ouverture" avec commande-radio (carte AF insérée) activé;

(3OFF-éteinte)

4 ON Preclignotementpandant la phase d'ouvertureetde fermeture activé; (4OFF-

éteinte.)

5 ON Dispositif de détection d'obstacle activé; (5OFF éte.)

6 OFF Fonction avec "homme mort" (exclut la fonction radiocommande) éteinte;

(6ON - activé)

7 ON Fonction coup de bélier activé; (pour faciliter le déblocage de la serrure)

7OFF-éteinte

8OFF - 10OFF Réfermeture en phase d'ouverture(relierledispositif de sécurite aux

bornes 2-CX) activé;

8OFF - 10ON Stop partiel (relier le dispositif de sécurite aux bornes 2-CX) activé;

(si le dispositif sur 2-CX ne sont pas utilisés, positionner le dip 8 sur ON)

9 OFF Réouverture en phase de fermeture activé; relier le dispositif de sécuritèaux

bornes2-C1; s'iln'estpas utilisé,positionnerl'interrupteur àpositions multiples

sur ON.

-17-

QUADRO COMANDO

FUSIBILI

LINEA 5A

ZA3

CH1

FUSIBILE

CENTRALINA

T.L. T.C.A. TR2M. 2

1 3456 78910O

CH2

REGOLAZIONI -

ADJUSTMENTS

-RÉGLAGES -

EINSTELLUNGEN

- REGULACIONES

ITALIANO

FRANÇAIS

Trimmer T.L.

= Regolazione tempo di

lavoro da un minimo di 0”a un massi-

mo di 120”.

Trimmer T.C.A.

= Regolazione tempo

di chiusura automatica da un minimo di

1”a un massimo di 120”.

Trimmer TR2M

= Regolazione ritardo

in chiusura 2°motore (min. 0”, max.

15”) e contemporaneamente apertura

parziale (min. 0”, max. 30”).

ENGLISH

ESPANOL

DEUTSCH

REGULACIÓN TRIMMERS

EINTELLUNG TRIMMERS

RÉGLAGE TRIMMERS

TRIMME RS ADJUSTME NT

REGOLAZIONE TRIMMERS

T.L. T.C.A. TR2M.

Trimmer T.L.

= Adjusts of operating

time from a minimum of 0”to a

maximum of 120”.

Trimmer T.C.A.

= Adjusts automatic

closing time from a minimum of 1”to a

maximum of 120”.

Trimmer TR2M

= Adjustment delay

during closure of 2nd motor (min. 0”,

max. 15”) and simultaneously partial

opening time (min. 0”, max. 30”).

Trimmer T.L.

= Réglage du temps de

fonctionnement d'un minimum de 0”à

un maximun de 120”.

Trimmer T.C.A.

= Réglage du temps

de fermeture automatique d'un

minimum de 1”àun maximun de 120”.

Trimmer TR2M

= Réglage retard en

fermeture 2°moteur (min. 0”, max. 15”)

et en même temps ouverture partielle

(min. 0”, max. 30”).

Trimmer T.L.

= Laufzeit mit

mindestens 0”und höchstens 120 “

eingestellt werden kann.

Trimmer T.C.A.

= Timer, auf dem die

Verzögerung für das automatische

Schlißen mit mindestens 1”und

höchstens 120”eingestellt werden

kann.

Trimmer TR2M

= Einstellung der

Verzögerungszeit vom 2. Motor beim

Schließen (min. 0”, max. 15”) und

gleichzeitig vom Teilöffnen (min. 0”,

max. 30”).

Trimmer T.L.

= Regulación tiempo de

trabajo, desde un mínimo de 0”hasta

un máximo de 120”.

Trimmer T.C.A.

= Regulación tiempo

de cierre automático, desde un mínimo

de 1”hasta un máximo de 120”.

Trimmer TR2M

= Regulación del

retardo durante el cierre del 2°motor

(min. 0”, máx. 15”) y

contemporáneamente apertura parcial

(min. 0”, máx. 30”).

-18-

COLLEGAMENTI ELETTRICI -

ELECTRICAL CONNECTIONS -

BRANCHEMENTS ÉLECTRIQUES

ELEKRISCHE ANSCHLÜSSE -

CONEXIONES ELÉCTRICAS

L1 L2 UVWXYEE3 10 11 S 1 2 3 3P 4 5 7 2 C1CX B1B2

Alimentazione quadro comando - 230V (a.c.)

Power supply for control unit - 230V (a.c.)

Alimentation armoire de commande - 230V (c.a.)

Stromversorgung Steuergerät - 230V (Wechselstrom)

Alimentación cuadro de mando - 230V (a.c.)

Collegamento 1 Motore (ritardato in apertura)

Connection for 1 motor (delayed in opening)

Connection du moteur 1 (retardé en ouverture)

AuschlußMotor 1 (verzögertes Ansteuern beim Öffnen)

Conexionado 1 motor (redardo en apertura)

Collegamento 2 Motore (ritardato in chiusura)

Connection for 2 motor (delayed in closing)

Connection du moteur 2 (retardé en fermeture)

AuschlußMotor 2 (verzögertes Ansteuern beim Schließen)

Conexionado 2 motor (redardo en cierre)

Uscita 230V (a.c.)-25W max. in movimento (es. lampeggiato-

re)

230V (a.c.)-25W max. output in motion (e.g. flashing light)

Sortie 230V(c.a.)-25W max. en mouvement (ex.

branchement clignotant)

Ausgang 230V (Wechselstrom) in Bewegung (z.B. Blinker-

Anschluß)

Salida de 230V (a.c.) en movimiento (p.ej. conexión lámpara

intermitente)

Nel caso si

utilizzi un

solo motore,

collegare

solo il moto-

re n°2 in

uscita X,W,Y.

If only one

reduction gear

is used,

connect only

gear n°2 to the

X,W,Y outlet.

Si on n’utilise

qu’un seul

moteur, ne

brancher que

le moteur n°2

à la sortie

X,W,Y.

Im Fall einer

Inbetriebnahme

mit nur einem

Motor, wird nur

der Motor Nr.2

im Ausgang

X,W,Y.

Si se usa un

sólo motor,

conecte sólo

el motor n°2

en la salida

X,W,Y.

-19-

Collegamento lampada ciclo (230V-60W)

Connection (230V-60W) cycle lamp

Connection lampe cycle (230V-60W)

AnschlußBetriebszyklus-Anzeigeleuchte (230V60W)

Conexionado lámpara ciclo (230V-60W)

Lampada spia (24V-3W max.) "cancello aperto"

(24V-3W max.) "gate-opened" signal lamp

Lampe-témoin (24V-3W max.) "portail ouverture"

Signallampe (24V-3W max.) "Tor Öffnen"

Lampara indicadora (24V-3W max.) "puerta abierta"

Uscita 24V (a.c.) alimentazione accessori (max 20W)

24V (a.c.) output power supply to accessories (max. 20W)

Sortie 24V (c.a.) alimentation accessoires (max 20W)

Ausgang 24V (Wechselstrom) stromversorgung Zubehör

(max 20W)

Salida 24V (a.c.) alimentación accesorios (max 20W)

Collegamento elettroserratura (12V-15W max.)

Connection for electrically-actuated lock: 12V-15W max.

Connexion serrure électrique (12V-15W max.)

AnschlußElektroschloß(12V-15W max.)

Conexión electrocerradura (12V-15W max.)

Pulsante di stop (N.C.)

Stop button (N.C.)

Bouton-poussoir de stop (N.F.)

Stop-Taste (Ruhekontakt)

Tecla de parada (N.C.)

Pulsante apre (N.O.)

Open button (N.O.)

Bouton-poussoir d'ouverture (N.O.)

Taste Öffnen (Arbeitskontakt)

Tecla de apertura (N.O.)

Andere Handbücher für Z Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere CAME Steuereinheit Handbücher

Beliebte Steuereinheit Handbücher anderer Marken

Festo

Festo Compact Performance CP-FB6-E Stücklistenhandbuch

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Bedienungsanleitung

JS Automation

JS Automation MPC3034A Bedienungsanleitung

JAUDT

JAUDT SW GII 6406 Series Kurzanleitung

Spektrum

Spektrum Air Module System Bedienungsanleitung

BOC Edwards

BOC Edwards Q Series Bedienungsanleitung

KHADAS

KHADAS BT Magic Bedienungsanleitung

Etherma

Etherma eNEXHO-IL Bedienungsanleitung

PMFoundations

PMFoundations Attenuverter Bedienungsanleitung

GEA

GEA VARIVENT Bedienungsanleitung

Walther Systemtechnik

Walther Systemtechnik VMS-05 Bedienungsanleitung

Altronix

Altronix LINQ8PD Montageanleitung

Eaton

Eaton Powerware Series Bedienungsanleitung

WAGO

WAGO 750-407/040-000 Bedienungsanleitung

Sony

Sony CCU-590 Bedienungsanleitung

Graco

Graco 25D614 Bedienungsanleitung

Task Force Tips

Task Force Tips YE-RF-900 Programmierhandbuch

Shini

Shini SPV-U Series Bedienungsanleitung
